Description
The Quick Draw®punch drivers are self-contained
hydraulic tools.
These punch drivers, when used with Greenlee
punches, dies, and draw studs, form a complete system
for punching holes of various shapes and sizes through
mild steel, aluminum, fiberglass, and plastic.
Slug-Splitter®punches, dies, and studs are available for
punching all of these materials as well as stainless steel.
In addition, the 7704SB / 7706SB punch driver has a
flexible body that allows hole punching at a variety of
angles. The handle and release mechanisms rotate
nearly 360°for convenient actuation.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on the tool provide information for avoiding
hazards and unsafe practices related to the use of this
tool. Observe all of the safety information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee hydraulic punch drivers:
7704SB / 7706SB Quick Draw Flex™
7804SB / 7806SB Quick Draw®
7904SB / 7906SB Quick Draw 90®
Keep this manual available to all personnel.
Replacement manuals are available upon request at
no charge.
Other Publications
Service Manual:
7704SB / 7706SB: Publication 999 4732.3
7804SB / 7806SB: Publication 999 4732.3
7904SB / 7906SB: Publication 999 4731.5

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 34455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070

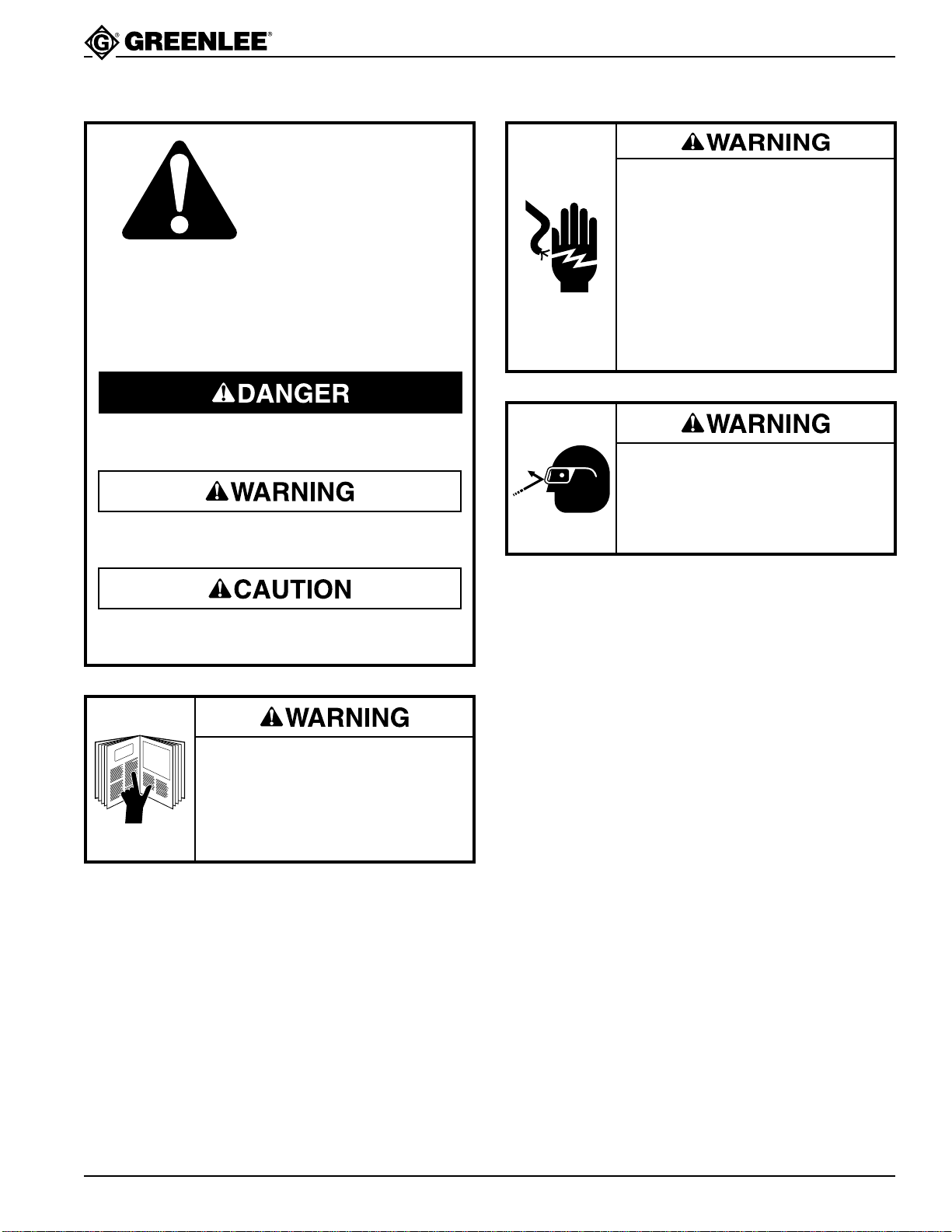

IMPORTANT SAFETY INFORMATION
Read and understand all of the
instructions and safety information in
this manual before operating or
servicing this tool.
Failure to observe this warning can
result in severe injury or death.
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, defined below,
indicates the severity of the hazard. The message
after the signal word provides information for
preventing or avoiding the hazard.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Hazards which, if not avoided, COULD result in
severe injury or death.
Immediate hazards which, if not avoided, WILL
result in severe injury or death.
SAFETY
ALERT
SYMBOL
Electric shock hazard:
Do not use this tool near live circuits.
This includes, but is not limited to,
the following:
• Near circuit breaker panels or fuse
boxes with energized circuits
• Near junction boxes with
energized circuits
Failure to observe this warning can
result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection can
result in serious eye injury from
flying debris.

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 44455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070
IMPORTANT SAFETY INFORMATION
Note: Keep all decals clean and legible, and replace
when necessary.

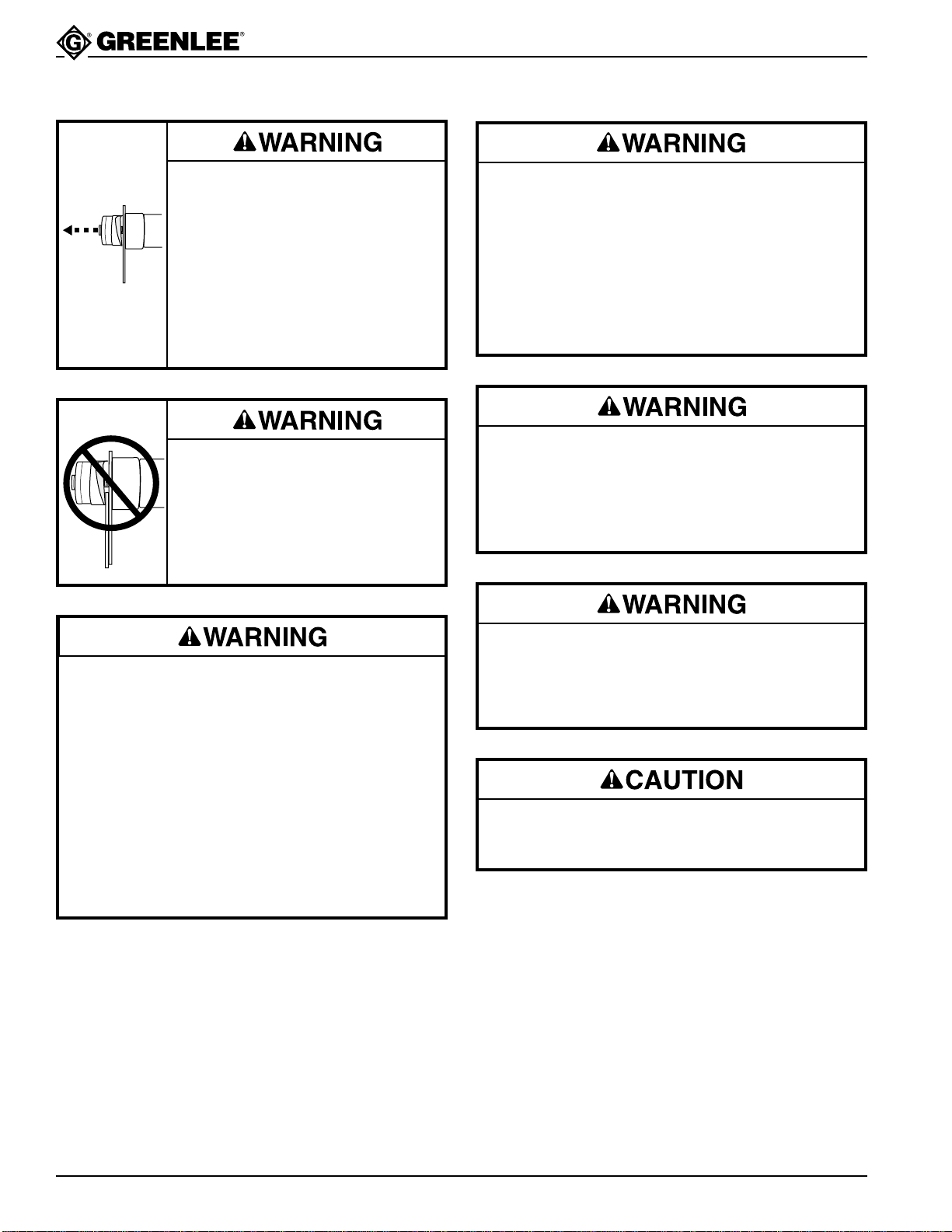

Set up the tool properly. An improper setup could
cause a component to fail and strike nearby
personnel with great force.
•Thread the punch completely onto the draw stud.
All of the punch threads must be engaged by the
draw stud threads. Incomplete assembly could
cause a component failure.
•Use only Greenlee punches, dies, and draw
studs. Other manufacturers’components might
not withstand the forces generated by this punch
driver.
Failure to observe these warnings can result in
severe injury or death.
Do not attempt to punch a hole
through two or more layers of
material. This will bend or break the
draw stud and could throw parts
with great force.
Failure to observe this warning can
result in severe injury or death.
A component failure could throw
broken parts.
•Do not allow anyone to stand in
front of the punch or behind the
hydraulic ram.
•Close access doors or covers on
any equipment that is in line with
the punch or ram.
Failure to observe this warning can
result in severe injury or death.
•Inspect tool for wear or damage. Replace any
worn, damaged, or missing components with
Greenlee replacement parts. A damaged or
improperly assembled tool can break and strike
nearby personnel with sufficient force to cause
severe injury or death.
•Inspect the punch, die, draw stud, and spacers for
wear or damage. Replace any worn or damaged
items with Greenlee replacement parts. Replace
any punches that have dull cutting surfaces.
Do not exceed the rated capacity of this tool.
Exceeding the rated capacity could cause a
component failure, which could throw broken parts
with great force.
Failure to observe this warning can result in severe
injury or death.
Do not operate the pump lever after the ram motion
stops. Continuing to operate the pump lever after the
ram motion stops will damage the driver and could
propel internal parts with great force, striking nearby
personnel.
Use this tool for the manufacturer’s intended pur-
pose only. Use other than that which is described in
this manual can result in injury or property damage.

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 54455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070
Specifications
Application Information
Refer to “Capacity and Draw Stud Selection Guide.”
Dimensions—7704SB / 7706SB Quick Draw Flex
Length
Without Draw Stud..........................................................................406 mm (16.00")
With 3/4" Draw Stud........................................................................482 mm (19.00")
Width (with handle extended)..............................................................260 mm (10.25")
Mass/Weight ....................................................................................... 2.60 kg (5.75 lb)
Dimensions—7804SB / 7806SB Quick Draw
Length
Without Draw Stud........................................................................321 mm (12.625")
With 3/4" Draw Stud......................................................................397 mm (15.625")
Width (with handle extended)..............................................................260 mm (10.25")
Mass/Weight ......................................................................................... 2.49 kg (5.5 lb)
Dimensions—7904SB / 7906SB Quick Draw 90
Overall Length.....................................................................................324 mm (12.75")
Mass/Weight ........................................................................................... 3.4 kg (7.4 lb)
Mechanical Data
Stroke (maximum).......................................22 mm (0.850") minimum draw stud travel
Handle Force (maximum)......................................................................... 356 N (80 lb)
Draw Stud Force (maximum) ....................................................... 71,168 N (16,000 lb)
Punch Diameter (maximum) ........Refer to “Capacity and Draw Stud Selection Guide”
Material Thickness (maximum) ....Refer to “Capacity and Draw Stud Selection Guide”
Hydraulic Data
Circuit Type ........................................................................................................ Closed
Operating Pressure (maximum) ................................................... 44,480 N (10,000 lb)
Volume
Stroke .......................................................................... 0.034 cm3/mm (0.053 in3/in)
Usable.........................................................................................33.9 mm3(2.07 in3)
Reservoir ....................................................................................38.0 mm3(2.32 in3)
Total............................................................................................57.4 mm3(3.50 in3)
Seals ......................................................Nitrile, fluorocarbon, and Teflon backup rings
Fluid Compatibility: Compatible with hydraulic oils, water, oil emulsions, synthetic
oils rated for use with nitrile (Buna N) and fluorocarbon (Viton) seal material.
Recommended Fluid .................................................................. Greenlee hydraulic oil
Miscellaneous
Operating Temperature............................................ –12 °C to 43 °C (10 °F to 110 °F)
Operating Position.................................................................................. No restrictions

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 64455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070

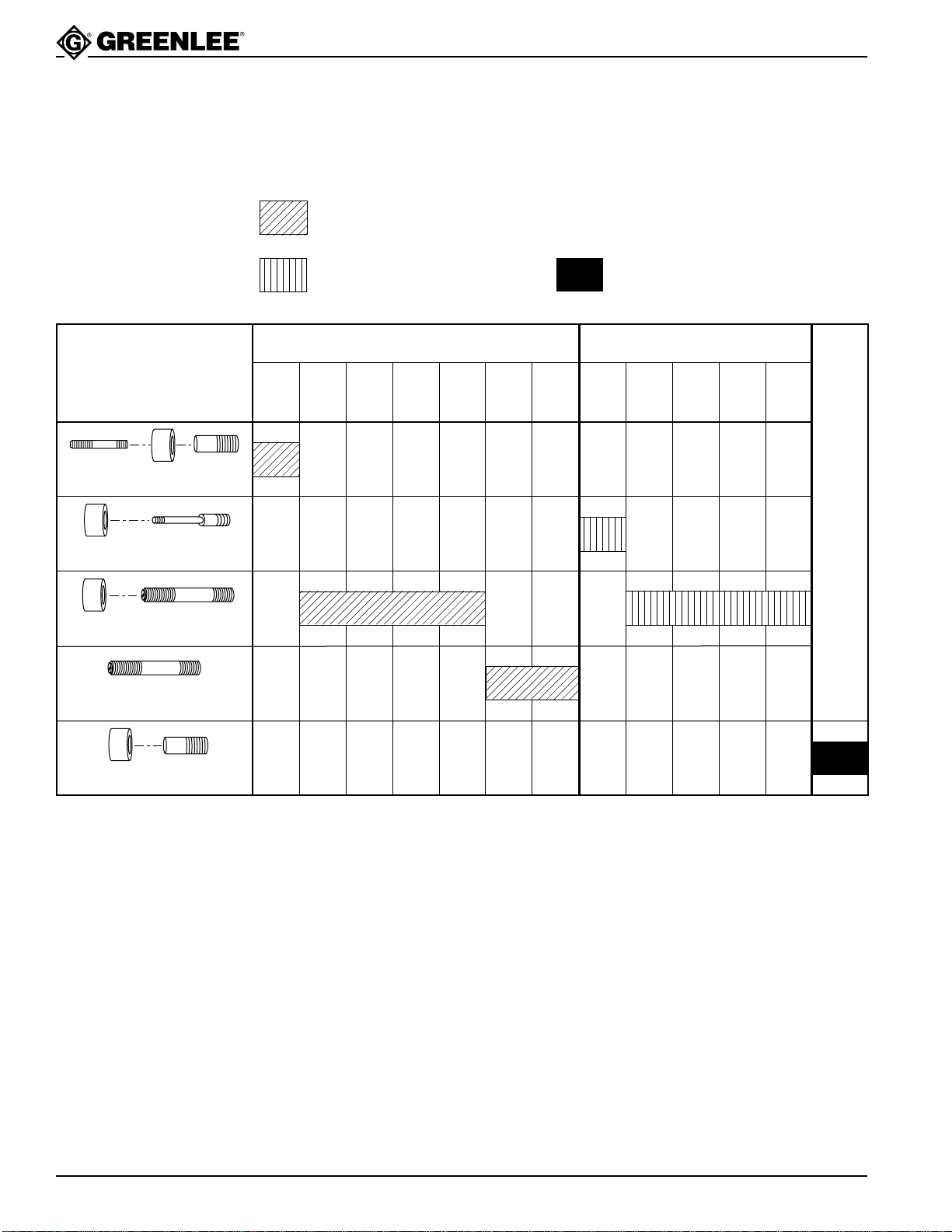

Capacity and Draw Stud Selection Guide
31872
3/4" Draw Stud
1614SS
3/8" Draw Stud 1924AA
Spacer 33967
Adapter
1924AA
Spacer 29451
7/16" Draw Stud
1924AA
Spacer 31872 3/4" Draw Stud
1/2"
con.
ø0.885"
15.2 mm
3/4"
con.
ø1.115"
28.3 mm
1-7/32" 1"
con.
ø1.362"
34.6 mm
1-1/4"
con.
ø1.701"
43.2 mm
1-1/2"
con.
ø1.951"
49.6 mm
2"
con.
ø2.416"
61.5 mm
1/2"
con.
ø0.885"
15.2 mm
3/4"
con.
ø1.115"
28.3 mm
1-7/32" 1"
con.
ø1.362"
34.6 mm
1-1/4"
con.
ø1.701"
43.2 mm
Electronic Connector Punches
RS-232, 229, 231, 234, 238
Standard and Slug-Buster®Punches Slug-Splitter®Punches
Draw Studs
and Accessories
10 ga. (0.1345" [3.4 mm])
Mild Steel
10 ga. (0.1345" [3.4 mm])
Stainless Steel 16 ga. (0.0598" [1.5 mm])
Mild Steel and 1/8" Soft Aluminum
33967
Adapter
1924AA
Spacer

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 74455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070
Operation
1. Drill a pilot hole.
2. Turn the release valve knob counterclockwise to fully
extend the ram.
3. Assemble the appropriate die and draw stud
components. Insert into the pilot hole.
4. Thread the punch onto the draw stud until it is tight.
If the punch is not tight, the hole may not be
completed.
5. Close the release valve knob. Pump the lever handle
until the punch is completely through the material.
6. Open the release valve knob. Remove the punch.
Step-up Punching
The 1/2" conduit-size punch is often used to increase the
size of the pilot hole; this is called “step-up punching.”
After enlarging the pilot hole, the 3/4" draw stud is used
to punch the final hole.
Do not operate the pump lever after the ram motion
stops. Continuing to operate the pump lever after the
ram motion stops will damage the driver and could
propel internal parts with great force, striking nearby
personnel.
Punch
Die
Pilot Hole
Draw Stud
Quick Draw Punch Driver
(7804SB / 7806SB shown)
Release Valve Knob
Lever Handle

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 84455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070
Maintenance
Maintenance and repairs should be performed in a dust-
free area by qualified technicians.
This unit requires minimum maintenance because it
has a closed hydraulic system and all internal parts
are lubricated by the hydraulic fluid. Lubricate lever pins
lightly. Keep contaminants away from the ram and
cylinder. Store with the lever down and hydraulic
pressure released.
Adding Hydraulic Oil
1. Place the driver in a vise in a vertical position with
the handles up. Unscrew the reservoir handle and
remove the bladder plug. Open the release valve
knob to assure the ram is fully extended.
2. Fill the rubber bladder to the point of overflow with
Greenlee hydraulic oil.
3. Purge air from the system:
Pump the lever handle several times to remove air
from the pumping chamber. Close the release valve
knob and pump the lever handle until the ram
completes its full travel. Repeat as necessary.
Note: Open the release valve knob slowly so the
ram extends slowly. Rapid return of oil and air may
cause the oil to overflow the rubber bladder.
If this procedure fails to remove air, remove the
bladder plug and open the release valve knob. Place
thumb over the plug hole in the bladder and squeeze
the bladder while pumping the lever handle several
times. Close the release valve knob and pump the
lever handle until the ram completes its full travel.
Repeat as necessary.
4. Fill the rubber bladder to the point of overflow and
replace the bladder plug. Wipe the bladder clean of
excess oil and reassemble the reservoir handle.
Oil Leaks
•Check for external oil leaks.
•Check that the release valve knob and stem are
closed tightly and seating properly.
•Remove the reservoir handle and check for oil leaks
around the rubber bladder and bladder plug.
Ram Section Will Not Rotate
(7904SB / 7906SB Only)
1. Loosen and readjust the set screw.
2. Hold the punch driver with the ram section down.
3. Apply a small amount of penetrating oil to the
cylinder at the attachment point, and then work the
ram section back and forth.
4. Apply a small amount of SAE 30 oil to the cylinder
collar next to the pump block.
Release Valve Knob
Rubber Bladder
Bladder Plug
Reservoir Handle
Lever Handle

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 94455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070
Probable Cause
Problem Probable Remedy
Troubleshooting
Does not punch hole. Refer to “Operation”and “Capacity and Draw
Stud Selection Guide.”
Improper assembly or use of punch,
die, or accessories.
Low oil level. Refer to “Adding Hydraulic Oil”in the
“Maintenance”section.
Requires excessive
lever force. Improper assembly or use of punch, die, or accessories. Refer to “Operation”and “Capacity and Draw Stud Selection Guide.”
Material being punched is too thick or
too hard. Refer to “Capacity and Draw Stud Selection Guide.”
Pump does not build
pressure. Air in system. Refer to step 3 of “Adding Hydraulic Oil”in the “Maintenance”section.

Quick Draw®Hydraulic Punch Drivers
Greenlee Textron / Subsidiary of Textron Inc. 10 4455 Boeing Dr. •Rockford, IL 61109-2988 USA •815/397-7070
Draw Studs and Accessories
Printed in the USA
Greenlee Textron / Subsidiary of Textron Inc.
4455 Boeing Drive, Rockford, IL 61109-2988 USA
Customer Service (International): 815/397-7070 •Fax: [phone]
Customer Service (North America): 800/435-0786 •USA Fax: [phone]
Canada Fax: [phone]
www.greenlee.textron.com
29451 502 9451.2 Draw stud, 7/16" stainless steel
31872 503 1872.1 Draw stud, 3/4–16 x 4.12
1924AA 503 3248.8 Spacer, .767 x 1.37 x .875
1614SS 503 0043.1 Screw, 3/8" short adapter
33967 503 3967.2 Adapter, stud, 3/8–24 x 3/4–16
Cat. No. Part No. Description
