GreenMachine GM15520 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
PRUNER ATTACHMENT
ACCESSOIRE D’ÉLAGAGE
ACCESORIO PARA PODAR
GM15520
To register your Green Machine product, please visit:
http://register.greenmachinetools.com/
Pour enregistrer votre produit de Green Machine, s’il vous
plaît la visite: http://register.greenmachinetools.com/
Para registrar su producto de Green Machine por favor
visita: http://register.greenmachinetools.com/
Your pruner attachmenthas been engineered and manufactured to high standards for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before us-
ing this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Cette accessoire d’élagage a été conçue et fabriquée
conformément aux strictes normes de fiabilité, simplicité
d’emploi et sécurité d’utilisation. Correctement entretenue,
elle vous donnera des années de fonctionnement robuste et
sans problème.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre
le manuel d’utilisation avant d’employer ce produit.
Su nuevo accesorio para podar ha sido diseñada y fabricada de
conformidad con las estrictas normas para brindar fiabilidad,
facilidad de uso y seguridad para el operador. Con el debido
cuidado, le brindará muchos años de sólido y eficiente
funcionamiento.
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador
antes de usar este producto.
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS

ii
See this fold-out section for all of the figures
referenced in the operator’s manual.
Consulter l’encart à volets afin d’examiner
toutes les figures mentionnées dans le manuel
d’utilisation.
Consulte esta sección desplegable para ver todas
las figuras a las que se hace referencia en el
manual del operador.

iii

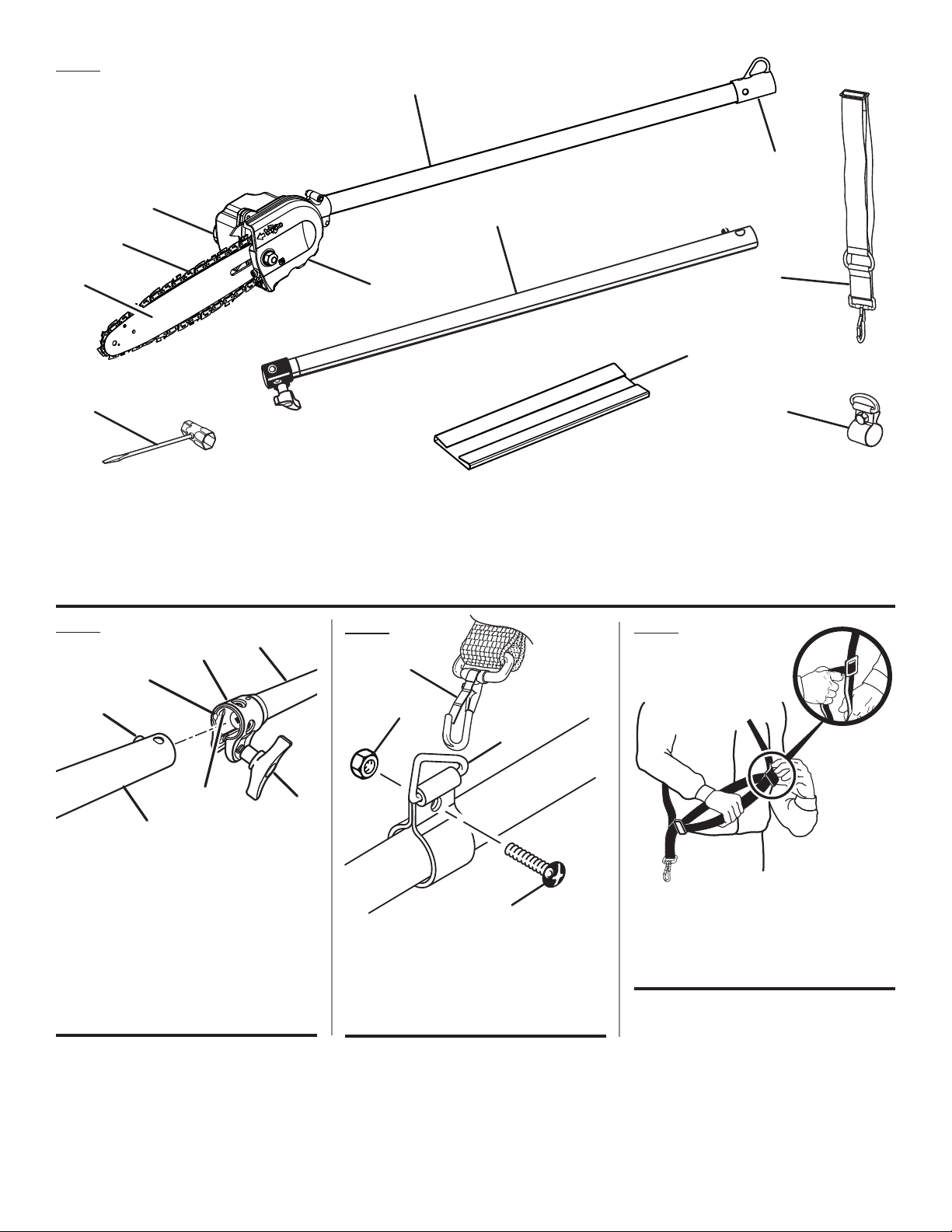

Fig. 1
A - Pruner attachment shaft (arbre d’accessoire
d’élagage, eje del accesorio para podar)
B - Chain oiler tank cap (capuchon du réservoir
d’huile de chaîne, tapa del tanque lubricador
de la cadena)
C - Chain (chaîne, cadena)
D- Bar (guide, barra)
Fig. 3 Fig. 4
A - Slide clip up or down to adjust shoulder
strap (faire glisser la boucle vers le haut ou
le bas pour ajuster la bandoulière, deslice el
clip hacia arriba o hacia abajo para ajustar la
correa para el hombro)
Fig. 2
A - Shoulder strap clip (boucle, clip de la correa
para el hombro)
B - Lock nut (écrou frein, tuerca)
C - Bolt (boulon, perno)
D - Strap hanger (dispositif d’accrochage,
colgador para la correa)
A - Power head shaft (arbre moteur, cabezal
motor eje)
B - Coupler (coupleur, acoplador)
C - Guide recess (renfoncement du guide, hueco
guía)
D - Button (bouton, botón)
E - Extension shaft (arbre de rallonge, eje de
extensíon)
F - Positioning hole (trou de positionnement,
orificio de posicionamiento)
G - Knob (bouton, perilla)
B
A
D
C
E
J
I
G
H
K
F
B
G
E
A
F
C
D
C
B
D
A
A
E - Gear case (carter d’engrenages, caja de
engranajes)
F - Scabbard (fourreau, funda)
G - Combination wrench (clé mixte, llave de
combinación)
H - Extension shaft (arbre de rallonge, eje de
extensión)
I - Shoulder strap (bandoulière, correa para
el hombro)
J - Hanger cap (capuchon de suspension, tapa
de suspensión)
K - Strap hanger (dispositif d’accrochage,
colgador de la correa)

iv
Fig. 5 Fig. 8
A
D
A
C
B
A - Second cut (deuxième coupe, segundo
corte)
B - Load (charge, carga)
C - First cut 1/4 diameter (première coupe 1/4
du diamètre, primer corte 1/4 del diámetro)
D -Final cut (coupe finale, corte final)
Fig. 6
A - Cutting guide (guide de coupe, guía de
corte)
Fig. 7
A - 60° maximum (60° maximum, 60° máximo)
Fig. 9
BD
C
A
C
A
B
D
B
C
A
C
BD
Fig. 10
A - Chain (chaîne, cadena)
B - Bar (guide, barra)
C - Bar nut (écrou du guide, tuerca de la barra)
D - Drivecase cover (carter d’engrenages, tapa
de la caja de la transmisión)
Fig. 11
Fig. 12
Fig. 13
A - Chain tensioning pin (axe de tension de
chaîne, pasador tensor de la cadena)
B - Bar nut (écrou du guide, tuerca de la barra)
C - Drivecase cover (carter d’engrenages, tapa
de la caja de la transmisión)
A - Sprocket (pignon, rueda dentada)
B - Bar stud (goujon de guide, perno de la
barra)
C - Bar (guide, barra)
D - Bar stud slot (fente du goujon de guide,
ranura del perno en la barra)
E - Chain tensioning pin hole (trou d’axe de
tension de chaîne, orificio del pasador tensor
de la cadena)
A - Chain rotation (rotation de la chaîne, rotación
de la cadena)
B - Chain (chaîne, cadena)
C - Bar nut (écrou du guide, tuerca de la barra)
D -Sprocket (pignon, rueda dentada)
A
Fig. 14
A - Chain tensioning screw (vis de tension de
chaîne, tornillo tensor de la cadena)
A - Minimum 50’ 15m (minimum 50’ 15m,
minimo 50’ 15m)
A
E

v
Fig. 16
A - Flats (méplats, partes planas)
A
APPROX .050 in. /
ENVIRON 1,25 MM (0,050 PO) /
APROX 1,25 MM (0,050 PULG.)
A
C
B
Fig. 17
Fig. 18
A
HG
F
E
D
C
B
PARTS OF A CUTTER / PIÈCES D’UNE
DENT / PARTES DE UN DIENTE DE CORTE
A
A
B
D
A
C
A
Fig. 15
A - Bar nut (écrou du guide, tuerca de la barra)
A - Remove cap (retirer le bouchon, quite la
tapa)
B - Chain oiler tank (réservoir d’huile de chaîne,
tanque del lubricador de la cadena)
C - Replace cap (remettre le bouchon en place,
vuelva a colocar la tapa)
Fig. 19
A - Depth gauge setting, (réglage du limiteur
de profondeur, ajuste del calibrador de
profundidad)
Fig. 20
A - Cutting corner (coupe du coin, esquina de
corte)
B - Top plate (plaquette supérieure, placa
superior)
C - Rivet hole (trou de rivet, orificio del
remache)
D -Heel (talonnage, talón)
E - Gullet (creux, garganta)
F - Toe (sabot, puntera)
G - Depth gauge (limiteur de profondeur, calibre
de profundidad)
H -Side plate (plaque latérale, placa lateral)
Fig. 21
Fig. 22
Fig. 23
Fig. 24
A - Left hand cutters (dents de gauche, dientes
de corte izquierdos)
B - Right hand cutters (dents de droite, dientes
de corte derechos)
A - Hanger cap (capuchon de suspension, tapa
de suspensión)
B - Hole (trou, orificio)
C - Secondary hole (trou secondaire, orificio
secundario)
D -Button (bouton, botón)
B

2
Introduction ...................................................................................................................................................................... 2
Introduction / Introducción
General Safety Rules........................................................................................................................................................ 3
Règles de sécurité générales / Reglas de seguridad generales
Specific Safety Rules........................................................................................................................................................ 4
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols............................................................................................................................................................................ 5
Symboles / Símbolos
Features............................................................................................................................................................................ 6
Caractéristiques / Características
Assembly.......................................................................................................................................................................6-7
Assemblage / Armado
Operation.......................................................................................................................................................................7-8
Utilisation / Funcionamiento
Maintenance................................................................................................................................................................9-11
Entretien / Mantenimiento
Troubleshooting.............................................................................................................................................................. 11
Dépannage / Corrección de problemas
Warranty ......................................................................................................................................................................... 12
Garantie / Garantía
Illustrated Parts List...................................................................................................................................................14-15
Liste des pièces illustrées / Lista de piezas ilustradas
Parts Ordering and Service ...............................................................................................................................Back Page
Commande de pièces et réparation / Pedidos de piezas y servicio ......................................................... Page arrière / Pág. posterior
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
INTRODUCTION
INTRODUCTION / INTRODUCCIÓN
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and de-
pendability have been given top priority in the design of this product making it easy to maintain and operate.
* * *
Ce produit offre de nombreuses fonctions destinées à rendre son utilisation plus plaisante et satisfaisante. Lors
de la conception de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité, afin d’en faire
un outil facile à utiliser et à entretenir.
* * *
Este producto ofrece numerosas características para hacer más agradable y placentero su uso. En el diseño
de este producto se ha conferido prioridad a la seguridad, el desempeño y la fiabilidad, por lo cual se facilita
su manejo y mantenimiento.

3 — English
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
fire, and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Read these instructions and the instructions for the power
head thoroughly before using pruner.
Know the tool. Read and understand the operator’s
manual and observe the warnings and instruction labels
affixed to the tool.
Do not allow children or untrained individuals to use this
unit.
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, along with hearing and head
protection when operating this unit.
Wear heavy long pants, long sleeves, boots, and gloves.
Do not wear loose fitting clothing, short pants, jewelry of
any kind, sandals, or go barefoot.
Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
Keep all bystanders, children, and pets at least 50 ft.
away.
Stay alert, watch what you are doing, and use common
sense when operating a power tool. Do not use tool while
tired or under the influence of drugs, alcohol, or medica-
tion. A moment of inattention while operating power tools
may result in serious personal injury.
Do not operate in poor lighting.
Do not overreach. Keep proper footing and balance at all
times. Proper footing and balance enables better control
of the tool in unexpected situations.
Keep all parts of your body away from any moving part.
Inspect unit before each use for loose fasteners and
damaged or missing parts. Correct before using the
attachment. Failure to do so can cause serious injury.
Use only original manufacturer’s replacement parts.
Failure to do so may cause poor performance, possible
injury, and will void your warranty.
Do not, under any circumstance, use any attachment or
accessory on this product, which was not provided with
the product, or identified as appropriate for use with this
product in the operator’s manual.
Avoid dangerous environments. Do not use the attach-
ment in damp or wet locations. Do not use in rain.
Use the right attachment. Do not use attachment for any
job except that for which it is intended.
Keep hands away from cutting area. Keep hands away
from blades. Do not reach underneath work or around
or over the blade while blade is rotating. Do not attempt
to remove cut material when blade is moving.
Blade coasts after being turned off.
Do not touch areas around the muffler or cylinder of a gas
power head. These parts get hot from operation. Contact
with hot surfaces could result in possible serious personal
injury.
Always stop the engine and remove the spark plug wire
before making any adjustments or repairs except for
carburetor adjustments.
GENERAL SAFETY RULES

4 — English
Kickback is a dangerous reaction that can lead to serious
injury. Kickback may occur when the moving chain con-
tacts an object at the upper portion of the tip of the guide
bar or when the wood closes in and pinches the chain
in the cut. Contact at the upper portion of the tip of the
guide bar can cause the chain to dig into the object and
stop the chain for an instant. The result is a lightning fast,
reverse reaction which kicks the guide bar up and back
toward the operator. If the chain is pinched along the top
of the guide bar, the guide bar can be driven rapidly back
toward the operator. Either of these reactions can cause
loss of tool control which can result in serious injury. Do
not rely exclusively upon the safety devices built into the
tool. As a pruner user, you should take several steps to
keep your cutting jobs free from accident or injury.
With a basic understanding of kickback, you can reduce
or eliminate the element of surprise. Sudden surprise
contributes to accidents.
Make sure that the area in which you are cutting is free
from obstructions. Do not let the nose of the guide bar
contact a log, branch, fence, or any other obstruction
while you are operating the unit.
Always cut with the engine running at full speed. Fully
squeeze the trigger and maintain a steady cutting speed.
Follow the sharpening and maintenance instructions for
the chain.
Use only the replacement guide bars and low kickback
chains specified for this unit.
Do not force tool. Use the correct tool for your applica-
tion. The correct tool will do the job better and safer at
the rate for which it is designed.
Do not use on a ladder or unstable support. Stable foot-
ing on a solid surface enables better control of the tool
in unexpected situations.
Never let anyone use the tool who has not received
adequate instructions in its proper use. This applies to
rentals as well as privately owned units and also to the
power head it is attached to.
To protect yourself from electrocution, do not operate
within 50 ft. of overhead electrical lines.
To protect yourself from falling branches, do not stand
directly under the branch or limb being cut. This unit
should not be held at an angle over 60° from ground level.
Keep the handles dry, clean, and free of oil or fuel mixture.
Before you start the engine, make sure the chain is not
contacting any object.
Shut off the engine and make sure the cutting attachment
has stopped before setting the unit down.
DANGER! Serious injury or death from electrocution if
power lines are contacted. Never use near any electrical
source, wires, or powerlines.
Wear face shield and hard hat to protect against falling
debris. Always have a clear work area and retreat path.
Be aware of limb/branch location to avoid falling limbs
and debris. Keep bystanders 50 feet away when operat-
ing saw.
Store Idle Appliance Indoors — When not in use, product
should be stored indoors in a dry and high or locked up
place—out of the reach of children.
Save these instructions.Refer to them frequently and
use them to instruct others who may use this tool.
If you loan someone this tool, loan them these in-
structions also to prevent misuse of the product and
possible injury.
NOTE: SEE YOUR POWER HEAD OPERATOR’S
MANUAL FOR ADDITIONAL SPECIFIC SAFETY RULES.
SAVE THESE INSTRUCTIONS
SPECIFIC SAFETY RULES

5 — English
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME EXPLANATION
Safety Alert Symbol Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye, Hearing, and Head Protection
Always wear eye protection with side shields marked to com-
ply with ANSI Z87.1, as well as hearing and head protection,
when operating this equipment.
Safety Footwear Wear non-slip safety footwear when using this equipment.
Gloves Wear non-slip, heavy-duty protective gloves when handling
the pole pruner attachment and the saw chain.
Moving Parts Keep hands away from moving parts.
Kickback DANGER! Beware of kickback.
Hot Surfaces Indicates HOT SURFACES. Keep all body parts away from
all hot surfaces.
Keep Tool Away from Electrical
Lines/Keep Bystanders Away
DANGER! Risk of electrocution! Keep tool 50 feet away from
electrical lines. Keep all bystanders at least 50 ft. away.
SYMBOLS

6 — English
PRODUCT SPECIFICATIONS
Bar length................................................................... 10 in.
Weight ..................................................................4-1/2 lbs.
KNOW YOUR PRUNER ATTACHMENT
See Figure 1.
The safe use of this product requires an understanding of
the information on the product and in this operator’s manual
as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all op-
erating features and safety rules.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
Donot connect to power head until assembly is complete.
Failure to comply could result in accidental starting and
possible serious personal injury.
WARNING:
Do not remove the scabbard until the pruner is fully as-
sembled and ready to use. Failure to comply could result
in possible serious personal injury.
CONNECTING POWER HEAD TO EXTENSION
SHAFT AND PRUNER ATTACHMENT
See Figure 2.
The pruner attachment connects to the power head or, for extra
reach, to an extension shaft by means of a coupler device.
WARNING:
Never attach or adjust any attachment while power head
is running. Failure to stop the engine could cause serious
personal injury.
To install the attachment:
Remove the spark plug wire.
Remove the hanger cap from the attachment shaft.
Loosen the knob on the coupler of the power head shaft.
Push in the button located on the shaft of the pruner
attachment.
UNPACKING
This product requires assembly.
Carefully remove the items from the box. Make sure that
all items listed in the packing list are included.
WARNING:
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-800-332-1631 for assistance.
PACKING LIST
Pruner Attachment
Scabbard
Bar and Chain Lubricant
Combination Wrench
Extension Shaft
Shoulder Strap
Strap Hanger
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
FEATURES
ASSEMBLY

7 — English
Align the button with the guide recess on the extension
shaft coupler and slide the two shafts together. Rotate
extension shaft until button locks into the positioning hole.
NOTE: The attachment should only be operated with the
blade in a vertical position. If the button does not release
completely in the positioning hole, the shaft is not locked
into place. Slightly rotate from side to side until the button
is locked into place.
Tighten the knob securely.
Repeat previous steps to attach extension shaft to power
head.
WARNING:
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious injury.
To remove:
Stop the engine and remove the spark plug wire.
Loosen the knob.
Push in the button and twist the shafts to remove and
separate ends.
INSTALLING THE SHOULDER STRAP AND
STRAP HANGER
See Figures 3 - 4.
When operating this unit, you must wear a shoulder strap to
support the unit. If your unit does not have a strap hanger
installed on the power head shaft, use the following instruc-
tions to install the hanger.
Pull strap hanger apart and place over power head end
of shaft; position near the upper knob.
Install bolt, washer, and lock nut. Tighten nut securely.
NOTE: Check for tightness before each use to avoid
serious injury or product damage.
Place shoulder strap over your left shoulder and attach
shoulder strap clip to strap hanger. Adjust by sliding the
front clip up or down.
NOTE: When properly adjusted, the power head should
be supported by the shoulder strap about hip level.
DANGER:
Never cut near electric cords or lines. If bar and chain
jams on any electrical cord or line, DO NOT TOUCH THE
BAR, CHAIN, OR SHAFTS! THEY CAN BECOME ELEC-
TRICALLY LIVE AND VERY DANGEROUS. Lay down the
power head away from you in a safe manner. Disconnect
the electrical service to the damaged line or cord before
attempting to free the bar and chain from the line or cord.
Contact with the bar, chain, shafts, other conductive
parts of the power head or pruner attachment, or live
electric cords or lines will result in death by electrocution
or serious injury.
WARNING:
Do not allow familiarity with this product to make you
careless.Rememberthat a carelessfraction ofa second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, as well as hearing and head
protection, when operating this equipment. Failure to do
so could result in objects being thrown into your eyes and
other possible serious injuries.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed below:
Limbing
Pruning
PREPARATION FOR CUTTING
Wear non-slip gloves for maximum grip and protection.
Maintain a proper grip on the unit whenever the engine is
running. Use your right hand to firmly grip the rear handle
while your left hand has a firm grip on the front handle.
Hold unit firmly with both hands. Always keep your left
hand on the front handle and your right hand on the rear
handle, so your body is to the left of the chain line. Never
use a left-handed (cross-handed) grip, or any stance that
places your body or arm across the chain line.
Never stand directly under the limb you are cutting.
Always wear shoulder strap for increased safety and to
support the pruner.
ASSEMBLY
OPERATION

8 — English
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious injury.
BASIC CUTTING PROCEDURE
See Figures 5 - 6.
Follow these steps to prevent damage to tree or shrub bark.
Do not use a back-and-forth sawing motion.
Fully squeeze the trigger and allow the engine to come to
full speed just before entering the cut. Keep the engine
at full speed the entire time you are cutting.
Make a shallow first cut (1/4 of limb diameter) on the
underside of the limb close to the main limb or trunk.
Make a second cut from the top side of the limb outboard
from the first cut.
Make a final cut close to trunk.
�NOTE: For second and final cuts (from top of limb or
branch), hold front cutting guide against the limb being
cut. This will help steady the limb and make it easier to
cut. Allow chain to cut for you; exert only light downward
pressure. If you force the cut, damage to the bar, chain,
or engine can result.
Release the trigger as soon as the cut is completed, allow-
ing the engine to stop. If you run the pruner at full speed
without a cutting load, unnecessary wear or damage can
occur to the chain, bar, and engine.
Failure to follow proper cutting procedures will result in the
bar and chain binding and becoming pinched or trapped in
the limb. If this should happen:
Stop the engine.
Remove the spark plug wire.
Loosen the knob on the coupler.
Depress the button on the shaft; twist and pull the shafts
to separate the pruner from the power head.
If the limb can be reached from the ground, lift the limb
while holding the attachment. This should release the
“pinch” and free the pruner.
If the pruner is still trapped, call a professional for as-
sistance.
Check the chain tension frequently when operating the
unit. Refer to Chain Tension in the Maintenance section
of this manual.
LIMBING AND PRUNING
See Figures 7 - 8.
This unit is designed for trimming small branches and limbs
up to 6 in. in diameter. For best results, observe the follow-
ing precautions:
Plan the cut carefully. Be aware of the direction in which
the branch will fall.
Branches may fall in unexpected directions. Do not stand
directly under the branch being cut.
The most typical cutting application is to position the unit
at an angle of 60° or less, depending on the specific situa-
tion. As the angle of the pruner shaft to ground increases,
the difficulty of making the first cut (from the underside
of limb) increases.
Remove long branches in several stages.
Cut lower branches first to allow the top branches more
room to fall.
Work slowly, keeping both hands on the tool with a firm
grip. Maintain secure footing and balance.
Keep the tree between you and the chain while limbing.
Cut from side of tree opposite branch you are cutting.
Do not cut from a ladder, rooftop, or other unstable sup-
port; this is extremely dangerous. Hire a professional for
complex cutting situations.
Do not make the flush cut next to the main limb or trunk
until you have cut off the limb further out to reduce the
weight. Following proper cutting procedures will prevent
stripping the bark from the main member.
Do not use the pruner for felling or bucking.
To prevent electrocution, do not operate within 50 ft. of
overhead electrical lines.
Keep bystanders at least 50 ft. away.
POSITION FOR STARTING
See Figure 9.
Lay the pruner on the ground and ensure that no objects or
obstructions are in the immediate vicinity. Make sure noth-
ing can come in contact with the bar and chain, including
dirt on the ground.
OPERATION

9 — English
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts can create a hazard or cause
product damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, as well as hearing and head
protection, when operating this equipment. Failure to do
so could result in objects being thrown into your eyes and
other possible serious injuries.
WARNING:
Before inspecting, cleaning, or servicing the unit (except
for carburetor adjustments), shut off engine, wait for all
moving parts to stop, and disconnect spark plug wire
and move it away from spark plug. Failure to follow
these instructions can result in serious personal injury or
property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken, or
destroy plastic, which can result in serious personal injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an authorized service center.
WARNING:
To avoid possible serious injury, never touch or adjust
the chain while the engine is running. The chain is very
sharp; always wear protective gloves when performing
maintenance to the chain.
REPLACING THE BAR AND CHAIN
See Figures 10 - 15.
Replacement Bar Part Number: 671834015
Replacement Chain Part Number: 690583003
WARNING:
To avoid possible serious injury, stop engine and remove
the spark plug wire before replacing the bar, chain, or
performing any maintenance operation.
Remove the bar nut and drivecase cover.
The bar contains a bar stud slot that fits over the bar stud.
The bar also contains a chain tensioning pin hole which
fits over the chain tensioning pin.
Place the bar onto the bar stud so that the chain tension-
ing pin fits into the chain tensioning pin hole.
Fit the chain over the sprocket and into the bar groove.
The cutters on the top of the bar should face toward the
bar tip, in the direction of the chain rotation.
Replace the drive case cover and reinstall the bar nut.
Tighten the bar nut finger tight only; the bar must be free
to move for tension adjustment.
Remove all slack from chain by turning the chain tension-
ing screw clockwise, assuring that the chain seats into
the bar groove during tensioning.
Lift the tip of the bar up to check for sag. Release the tip
of the bar, and turn the chain tensioning screw 1/2 turn
clockwise. Repeat this process until sag does not exist.
Hold the tip of the bar up and tighten the bar nut securely.
Chain is correctly tensioned when there is no slack on
the underside of the bar and the chain is snug, but can
be turned by hand without binding.
NOTE: If chain is too tight, it will not rotate. Loosen the
bar nut slightly and turn adjusting screw 1/4 turn counter-
clockwise. Lift the tip of the bar up and retighten bar nut.
WARNING:
Check the chain tension frequently when operating the
unit. Never touch or adjust the chain while the engine is
running. The chain is very sharp; always wear protective
gloves when performing maintenance to the chain.
POWER HEAD IDLE SPEED ADJUSTMENT
If the chain turns at idle, the idle speed screw needs adjusting
on your gas power head engine. Turn the idle speed screw
counterclockwise to reduce the idle RPM and stop the chain
movement. Refer to your power head Operator’s Manual for
more details. If the chain still moves at idle speed, contact
a service dealer for adjustment and discontinue use until
the repair is made.
MAINTENANCE

10 — English
WARNING:
The chain should never turn at idle. Turn the idle speed
screw “T” counterclockwise to reduce the idle RPM and
stop the chain, or contact a service dealer for adjustment
and discontinue use until the repair is made. Serious
personal injury can result from the chain turning at idle.
WARNING:
The chain will move around the guide bar when adjust-
ing the idle speed. Wear all protective clothing and keep
all bystanders, children, and pets at least 50 ft. away.
Make adjustments with the unit supported on a stable
surface so that the chain/guide bar does not contact the
ground or any object. Keep all parts of your body away
from the chain/guide bar and muffler. Failure to follow
these instructions could result in serious personal injury.
CHAIN TENSION
See Figures 16 - 17.
Stop the engine and remove the spark plug wire before
setting the chain tension. Make sure the guide bar nut
is loose to finger tight, turn the chain tensioning screw
clockwise to tension the chain. Refer to Replacing the
Bar and Chain for additional information.
A cold chain is correctly tensioned when there is no slack
on the underside of the guide bar and the chain is snug,
but can be turned by hand without binding.
The chain must be re-tensioned whenever the flats on
the drive links hang out of the bar groove.
During normal operation, the temperature of the chain will
increase. The drive links of a correctly tensioned warm
chain will hang approximately .050 in. (1.25 mm) out of
the bar groove.
NOTE: New chains tend to stretch; check chain tension
frequently and tension as required.
CAUTION:
A chain tensioned while warm may be too tight upon
cooling. Check the “cold tension” before next use.
CHAIN OILER
See Figure 18.
Use Premium Bar and Chain Lubricant. It is designed for
chains and chain oilers and is formulated to perform over
a wide temperature range with no dilution required.
Remove the cap and carefully pour approximately 8 oz.
of the bar and chain lubricant into the chain oiler tank.
Replace the cap and tighten securely.
Check and refill the chain oiler tank every hour or every
time the engine is fueled.
NOTE: Do not use dirty, used, or otherwise contaminated
lubricants. Damage may occur to the oil pump, bar, or
chain.
CHAIN MAINTENANCE
See Figure 19.
WARNING:
The chain is very sharp; always wear protective gloves
when performing maintenance to the chain.
Use only the replacement low kickback chain specified for
this unit.
For smooth and fast cutting, the chain needs to be main-
tained properly. The chain requires sharpening when the
wood chips are small and powdery, the chain must be
forced through the wood during cutting, or the chain cuts
to one side. During maintenance of the chain, consider the
following:
Improper filing angle of the side plate can increase the
risk of a severe kickback.
Depth gauge (or raker clearance) setting determines the
height the cutter enters the wood and the size of the wood
chip that is removed. Too much clearance increases the
potential for kickback. Too little clearance decreases the
size of the wood chip thus decreasing the chain’s cutting
ability.
If cutter teeth have hit hard objects such as nails and
stones, or have been abraded by mud or sand on the
wood, have service dealer sharpen chain.
HOW TO SHARPEN THE CUTTERS
See Figures 20 - 23.
WARNING:
Improper chain sharpening increases the potential of
kickback. Failure to replace or repair damaged chain can
cause serious injury.
Be careful to file all cutters to the specified angles and to
the same length, as fast cutting can be obtained only when
all cutters are uniform.
Tighten the chain tension enough that the chain does not
wobble. Do all of your filing at the mid-point of the bar.
Wear gloves for protection.
Use a 5/32 in. diameter round file and holder.
Keep the file level with the top plate of the tooth. Do not
let the file dip or rock.
Using light but firm pressure, stroke towards the front
corner of the tooth. Lift file away from the steel on each
return stroke.
MAINTENANCE

11 — English
Put a few firm strokes on every tooth. File all left hand
cutters in one direction. Then move to the other side and
file the right hand cutters in the opposite direction. Oc-
casionally remove filings from the file with a wire brush.
CAUTION:
Dull or improperly sharpened chain can cause excessive
engine speed during cutting, which may result in severe
engine damage.
ATTACHING THE STORAGE HANGER
See Figure 24.
There are two ways to hang the attachment for storage.
To use the hanger cap, push in the button and place the
hanger cap over the end of the attachment shaft. Slightly
rotate the cap from side to side until the button locks into
place.
The secondary hole in the attachment shaft can be used
for hanging purposes as well.
STORING THE ATTACHMENT
Clean the attachment thoroughly and lubricate before
storing.
Store the attachment indoors in a dry, well-ventilated
place that is inaccessible to children.
Keep away from corrosive agents such as garden chemi-
cals and de-icing salts.
Always place the scabbard on the cutting blade before
storing or when the attachment is not in use.
MAINTENANCE
TROUBLESHOOTING
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM, CONTACT YOUR AUTHORIZED SERVICING DEALER.
PROBLEM CAUSE REMEDY
Bar and chain running hot and
smoking.
Check chain tension for overtight con-
dition.
Chain oil tank empty.
Tension chain. Refer to Chain Tension
earlier in this manual.
Check oil tank.
Engine starts and runs, but chain is
not rotating.
Chain tension too tight.
Check guide bar and chain assembly.
Check guide bar and chain for
damage.
Retension chain, Refer to Chain Tension
earlier in this manual.
Refer to Replacing the Bar and Chain
earlier in this manual.
Inspect guide bar and chain for damage.

12 — English
WARRANTY
LIMITED WARRANTY STATEMENT
OWTIndustries, Inc., warrantsto theoriginal retailpurchaser
that this GREEN MACHINE™brand outdoor product is free
from defect in material and workmanship and agrees to
repair or replace, at OWT Industries, Inc.’s, discretion, any
defective product free of charge within two years from the
date of purchase.
This warranty extends to the original retail purchaser only
and commences on the date of the original retail purchase.
Any part of this product found in the reasonable judgment
of OWT Industries, Inc. to be defective in material or
workmanship will be repaired or replaced without charge
for parts and labor by an authorized service center for
GREEN MACHINE™brand outdoor products (Authorized
Green Machine Service Center).
Theproduct,including any defectivepart, must bereturned
to an authorized Green Machine service center within the
warranty period. The expense of delivering the product to
the service center for warranty work and the expense of
returningit back tothe owner after repair or replacementwill
be paid by the owner. OWT Industries, Inc.’s, responsibility
in respect to claims is limited to making the required repairs
orreplacements and no claim of breachof warranty shallbe
cause for cancellation or rescission of the contract of sale
of any GREEN MACHINE™brand outdoor product. Proof
of purchase will be required by the dealer to substantiate
any warranty claim. All warranty work must be performed
by an authorized service dealer.
This warranty is limited to thirty (30) days from the date of
original retail purchase for any GREEN MACHINE™brand
outdoor product that is used for rental or commercial
purposes, or any other income-producing purpose.
This warranty does not cover any product that has been
subject to misuse, neglect, negligence, or accident, or that
has been operated in any way contrary to the operating
instructions as specified in this operator’s manual. This
warranty does not apply to any damage to the product that
is the result of improper maintenance or to any product
that has been altered or modified. The warranty does not
extend to repairs made necessary by normal wear or by the
use of parts or accessories which are either incompatible
with the GREEN MACHINE™brand outdoor product or
adversely affect its operation, performance, or durability.
In addition, this warranty does not cover:
A. Tune-ups – Spark Plugs, Carburetor, Carburetor
Adjustments, Ignition, Filters
B. Wear items – Bump Knobs, Outer Spools, Cutting
Lines, Inner Reels, Starter Pulleys, Starter Ropes, Drive
Belts, Tines, Felt Washers, Hitch Pins, Mulching Blades,
Blower Fans, Blower and Vacuum Tubes, Vacuum Bag
and Straps, Guide Bars, Saw Chains, Blades
OWTIndustries, Inc.,reservesthe rightto changeor improve
thedesignof any GREENMACHINE™brandoutdoorproduct
without assuming any obligation to modify any product
previously manufactured.
ALL IMPLIED WARRANTIES ARE LIMITED IN DURATION
TO THE STATED WARRANTY PERIOD. ACCORDINGLY,
ANY SUCH IMPLIED WARRANTIES INCLUDING
MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR OTHERWISE, ARE DISCLAIMED IN
THEIR ENTIRETY AFTER THE EXPIRATION OF THE
TWO-YEAR WARRANTY PERIOD. OWT INDUSTRIES,
INC.’S, OBLIGATION UNDER THIS WARRANTY IS
STRICTLY AND EXCLUSIVELY LIMITED TO THE
REPAIR OR REPLACEMENT OF DEFECTIVE PARTS
AND OWT INDUSTRIES, INC., DOES NOT ASSUME OR
AUTHORIZE ANYONE TO ASSUME FOR THEM ANY
OTHER OBLIGATION. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU. OWT INDUSTRIES, INC., ASSUMES NO
RESPONSIBILITY FOR INCIDENTAL, CONSEQUENTIAL,
OR OTHER DAMAGES INCLUDING, BUT NOT LIMITED
TO, EXPENSE OF RETURNING THE PRODUCT TO AN
AUTHORIZED GREEN MACHINE SERVICE CENTER AND
EXPENSE OF DELIVERING IT BACK TO THE OWNER,
MECHANIC’STRAVEL TIME,TELEPHONE ORTELEGRAM
CHARGES, RENTAL OF A LIKE PRODUCT DURING THE
TIME WARRANTY SERVICE IS BEING PERFORMED,
TRAVEL, LOSS OR DAMAGE TO PERSONAL PROPERTY,
LOSS OF REVENUE, LOSS OF USE OF THE PRODUCT,
LOSS OF TIME, OR INCONVENIENCE. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
This warranty applies to all GREEN MACHINE™brand
outdoor products manufactured by or for OWT Industries,
Inc., and sold in the United States and Canada.
To locate your nearest Authorized Green Machine Service
Center, dial 1-800-332-1631.

3 — Français
AVERTISSEMENT :
Lire et veiller à bien comprendre toutes les
instructions. Le non-respect de toutes les instructions
ci-dessous peut entraîner un choc électrique, un incendie
et/ou des blessures graves.
CONSERVER CES INSTRUCTIONS
Lire attentivement ces instructions et celles du moteur
avant d’utiliser cet accessoire.
Apprendre à connaître l’outil. Lire et veiller à bien
comprendre le manuel de l’opérateur et observer les
avertissements et les instructions des autocollants
apposés sur l’outil.
Ne pas laisser des enfants ou personnes n’ayant pas
reçu une formation adéquate utiliser cet outil.
Toujours porter une protection oculaire avec écrans
latéraux certifiée conforme à la norme ANSI Z87.1, avec
protection auditive et un casque.
Porter des pantalons longs, manches longues, des
chaussures de travail et des gants épais. Ne pas porter
de vêtements amples, shorts, bijoux quels qu’ils soient,
des sandales et ne pas travailler pieds nus.
Attacher les cheveux longs pour les maintenir au-dessus
desépaules, afin qu’ilsne se prennentpas dansles pièces
en mouvement.
Garder les badauds, enfants et animaux domestiques à
une distance minimum de 15 m (50 pi).
Rester attentif, prêter attention au travail, et faire preuve
de bon sens lors de l’utilisation de tout outil électrique. Ne
pas utiliser cet outil en état de fatigue ou sous l’influence
d’alcool, de drogues ou de médicaments. Un moment
d’inattention pendant l’utilisation d’un outil électrique
peut entraîner des blessures graves.
Ne pas travailler sous un éclairage insuffisant.
Ne pas travailler hors de portée. Toujours se tenir bien
campé et en équilibre. Des pieds bien campés et un bon
équilibre permettent de mieux contrôler l’outil en cas de
situation imprévue.
Garder toutes les parties du corps à l’écart des pièces
en mouvement.
Inspecterl’appareilavant chaqueutilisation pour s’assurer
qu’il n’y a pas de fixations desserrées ou de pièces
endommagées ou manquantes. Effectuer les corrections
requises avant d’utiliser l’accessoire d’élagage. Ne pas
prendre cette précaution peut entraîner des risques de
blessures graves.
Utiliser exclusivement des pièces de rechange
d’origine. Toute dérogation peut entraîner un mauvais
fonctionnement, des blessures graves et l’annulation de
la garantie.
N’utiliser en aucun cas un accessoire non fourni avec le
produit ou indiqué comme pouvant être utilisé sur l’outil
dans le manuel d’utilisation.
Éviter les environnements dangereux. Ne pas utiliser
l’accessoire dans des endroits humides ou mouillés. Ne
pas utiliser sous la pluie.
Utiliserl’accessoire approprié. Nepas utiliser l’accessoire
dans une application pour laquelle il n’a pas été prévu.
Garder les mains à l’écart de la zone de coupe. Garder les
mains à l’écart des lames. Ne pas mettre les mains sous le
travail, ou autour ou au dessus de la lame lorsqu’elle est
en rotation. Ne pas essayer de retirer une pièce coupée
pendant que la lame est en rotation.
Les lames continuent de tourner en roue libre une fois
que la scie est éteinte.
Ne pas toucher les alentours de l’échappement ou du
cylindre de l’ensemble moteur à essence. Ces pièces
deviennent très chaudes en cours de fonctionnement.
Le contact avec des surfaces brûlantes pourrait entraîner
des blessures graves.
Toujours arrêter le moteur et débrancher le fil de la bougie
avant d’effectuer tout entretien ou réglage, à l’exception
des réglages du carburateur.
RÈGLES DE SÉCURITÉ GÉNÉRALES

4 — Français
Le rebond est une réaction dangereuse pouvant causer
des blessures graves. Le rebond se produit lorsque
la chaîne en rotation heurte un objet dans la partie
supérieure de l’extrémité du guide ou lorsque l’entaille
se referme et pince la chaîne dans le bois. Le contact
de la partie supérieure de l’extrémité du guide peut faire
plonger la chaîne dans le bois et la bloquer pendant un
instant. Il en résulte une réaction fulgurante, projetant le
guide vers le haut et l’arrière, en direction de l’utilisateur.
Le pincement de la chaîne sur le haut du guide peut
causer une projection violente de la lame en arrière,
en direction de l’utilisateur. Ces réactions peuvent faire
perdre le contrôle de l’outil et entraîner des blessures
graves. Ne pas compter exclusivement sur les dispositifs
de sécurité intégrés à l’outil. L’utilisateur doit prendre un
certain nombre de précautions pour éviter les accidents
et blessures.
Une compréhension élémentaire du rebond peut réduire
ou éliminer l’élément de surprise. Les surprises sont
favorables aux accidents.
S’assurer que l’endroit ou l’outil est utilisé est dépourvu
de tout obstacle. Ne pas laisser l’extrémité du guide entrer
en contact avec une bille, une branche, une palissade
ou tout autre obstacle risquant d’être heurté pendant le
travail.
Toujours couper avec le moteur tournant à sa vitesse
maximum. Serrer la gâchette à fond et maintenir une
vitesse de coupe constante.
Suivre les instructions d’affûtage et d’entretien fournies
par le fabricant de la chaîne.
Utiliser exclusivement les guides et chaînes à faible risque
de rebond spécifiées pour l’outil.
Ne pas forcer l’outil. Utiliser un outil approprié pour le
travail. Un outil approprié exécutera le travail mieux et de
façon moins dangereuse s’il fonctionne dans les limites
prévues.
Ne pas utiliser l’outil sur une échelle ou un support
instable. Une position stable sur une surface ferme permet
de mieux contrôler l’outil en cas de situation imprévue.
Ne jamais laisser quiconque n’ayant pas reçu des
instructions d’utilisation appropriées utiliser l’outil. Cette
règle s’applique aux outils de location aussi bien qu’à
ceux appartenant à des particuliers.
Pour éviter les risques d’électrocution, ne pas travailler à
moins de 15 m (50 pi) de lignes électriques.
Pour éviter les risques de blessures, ne pas se tenir
directement au-dessous des branches en train d’être
coupées. Cet outil ne doit pas être tenu à un angle de
plus de 60° par rapport au niveau du sol.
Garder les poignées sèches, propre et exemptes d’huile
ou de mélange de carburant.
Avant de lancer le moteur, s’assurer que la chaîne n’est
en contact avec aucun objet.
Arrêter le moteur s’assurer que l’accessoire de coupe est
immobilisé avant de poser l’outil.
DANGER! Un contact avec des lignes électriques
entraînera une électrocution causant des blessures graves
ou mortelles. Ne jamais utiliser l’outil près de sources de
courant, de fils ou de lignes électriques.
Porter un masque facial et un casque pour se protéger
contre toute chute de débris. Toujours s’assurer qu’aucun
obstacle n’encombre la zone de travail et le chemin de
repli prévu. Savoir où se trouvent les branches afin d’éviter
les rameaux et les débris qui pourraient tomber. Ne laisser
personne s’approcher à moins de 15 m (50 pi) au moment
d’utiliser la scie.
Entreposer ce outil à l’intérieur – Quand l’outil n’est pas
utilisé, il devrait être entreposé à l’intérieur, dans un
endroit sec ou haut c’est sécuritaire – hors de la portée
des enfants.
Conserver ces instructions.Les consulter fréquemment
et les utiliser pour instruire les autres utilisateurs
éventuels. Si cet outil est prêté, il doit être accompagné
de ces instructions, afin d’éviter un usage incorrect et
d’éventuelles blessures.
NOTE: CONSULTEZ LEMANUEL D’UTILISATION DEBLOC
MOTEUR POUR DE TÊTE POUR DES SUPPLEMENTAIRE
RÈGLES DE SÉCURITÉ PARTICULIÈRES.
CONSERVER CES INSTRUCTIONS
RÈGLES DE SÉCURITÉ PARTICULIÈRES

5 — Français
Les termes de mise en garde suivants et leur signification ont pour but d’expliquer le degré de risques associé à l’utilisation
de ce produit.
SYMBOLE SIGNAL SIGNIFICATION
DANGER : Indique une situation extrêmement dangereuse qui, si elle n’est pas évitée,
aura pour conséquences des blessures graves ou mortelles.
AVERTISSEMENT : Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée,
pourrait entraîner des blessures graves ou mortelles.
ATTENTION : Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée,
pourraît entraîner des blessures légères ou de gravité modérée.
ATTENTION : (Sans symbole d’alerte de sécurité) Indique une situation pouvant entraîner
des dommages matériels.
Certains des symboles ci-dessous peuvent être présents sur la produit. Veiller à les étudier et à apprendre leur
signification. Une interprétation correcte de ces symboles permettra d’utiliser la produit plus efficacement et de
réduire les risques.
SYMBOLE NOM EXPLICATION
Symbole d’alerte de sécurité Indique un risque de blessure potentiel.
Lire le manuel d’utilisation
Pour réduire les risques de blessures, l’utilisateur doit lire
et veiller à bien comprendre le manuel d’utilisation avant
d’utiliser ce produit.
Protection oculaire, protection de
l’ouïe et casque
Toujours porter une protection oculaire avec écrans latéraux
certifiée conforme à la norme ANSI Z87.1, ainsi qu’une
protection auditive et un casque lors de l’utilisation de cet
outil.
Chaussures de sécurité Porter des chaussures de travail à semelle antidérapante lors
de l’utilisation de l’outil.
Gants
Porter des chaussures de sécurité à semelles antidérapantes
et des gants épais pour assurer une bonne prise et protéger
les mains.
Pièces en mouvement Garder les maines à l’écart des pièces en mouvement.
Rebond DANGER ! Attention aux rebonds.
Surfaces brûlantes Indique des SURFACES BRÛLANTES. Garder toutes les
parties du corps à l’écart des surfaces brûlantes.
La tenir à l’écart de lignes
électriques et ne laisser personne
s’approcher
DANGER ! Risque d’électrocution ! Ne pas travailler à moins
de 15m (50 pi) de lignes électriques. Ne jamais laisser
quiconque se tenir à moins de 15 m (50 pi) de l’outil.
SYMBOLES

6 — Français
FICHE TECHNIQUE
Longueur du guide .....................................254 mm (10 po)
Poids ........................................................2,0 kg (4-1/2 lbs)
APPRENDRE À CONNAÎTRE L’ACCESSOIRE
D’ÉLAGAGE
Voir la figure 1.
L’utilisation sûre de ce produit exige une comprehension des
renseignements figurant sur le produit et contenus dans le
manuel d’utilisation, ainsi qu’une bonne connaissance du
projet entrepris. Avant d’utiliser ce produit, se familiariser
avec toutes ses caractéristiques et règles de sécurité.
DÉBALLAGE
Ce produit doit être assemblé.
Retirer soigneusement les articles du carton. S’assurer
que toutes les pièces figurant sur la liste de contrôle sont
incluses.
AVERTISSEMENT :
Nepas utiliser le produitsi, enle déballant, vous constatez
que des éléments figurant dans la Liste de contrôle
d’expédition sont déjà assemblés. Certaines pièces
figurant sur cette liste n’ont pas été assemblées par le
fabricant et exigent une installation. Le fait d’utiliser un
produit qui a été assemblé de façon inadéquate peut
entraîner des blessures.
Examiner soigneusement l’outil pour s’assurer que rien
n’a été brisé ou endommagé en cours de transport.
Ne pas jeter les matériaux d’emballage avant d’avoir
soigneusement examiné l’outil et vérifié qu’il fonctionne
correctement.
Si des pièces sont manquantes ou endommagées,
appeler le 1-800-332-1631.
LISTE DE CONTRÔLE D’EXPÉDITION
Accessoire d’élagage
Fourreau
Lubrifiant pour guide et chaîne
Clé mixte
Arbre de rallonge
Bandoulière
Dispositif d’accrochage
Manuel d’utilisation
AVERTISSEMENT :
Si des pièces manquent ou sont endommagées, ne pas
utiliser ce produit avant qu’elles aient été remplacées.
Le fait d’utiliser ce produit même s’il contient des pièces
endommagées ou s’il lui manque des pièces peut
entraîner des blessures graves.
AVERTISSEMENT :
Ne pas essayer de modifier ce produit ou de créer des
accessoires non recommandés pour le produit. De
telles altérations ou modifications sont considérées
comme un usage abusif et peuvent créer des conditions
dangereuses, risquant d’entraîner des blessures graves.
AVERTISSEMENT :
Ne pas brancher sur le bloc-moteur avant d’avoir terminé
l’assemblage. Le non-respect de cet avertissement peut
causer un démarrage accidentel, entraînant des blessures
graves.
AVERTISSEMENT :
Ne pas enlever le fourreau de lame avant que l’accessoire
d’élagage ne soit complètement assemblé et prêt à
l’emploi. Le non respect de ces mises en garde pourrait
entraîner des blessures graves.
CONNEXION DU BLOC-MOTEUR À L’ARBRE
DE RALLONGE ET L’ACCESSOIRE D’ÉLAGAGE
Voir la figure 2.
L’accessoire d’élagage se raccorde au bloc-moteur ou, pour
une portée étendue, sur une rallonge, à l’aide d’un dispositif
de couplage.
CARACTÉRISTIQUES
ASSEMBLAGE
