GreenMech EVO205D SAFE-Trak User manual

www.greenmech.co.uk
OPERATOR’S MANUAL
2 0 5 D SURE-Trak
2 0 5 D SAFE-Trak

EVO205D SAFE / SURE-Trak CONTENTS 1
©GreenMechLtd - 1 - 03/22
SECTION
Title
1
Introduction and Purpose
2
Technical Specifications, Dimensions
Noise Level, and Lifting points
Options list
3
Safety and Symbols
3.1,3.2,3.3
Ensure! Never! Always!
3.4
Safety controls and switches
3.5
Control cut-outs
3.6
'No Stress' system
3.7
Tracking Controls
3.8
Symbols on machines
4
Machine Preparation
4.1
Fuelling and parking
4.2
Infeed chute
4.3
Discharge chute
4.4
Discharge chute (optional)
4.5
Work Position
4.6
Smart Sense controller
5
Operation
5.1
Pre-work checks
5.2
Starting machine
5.3
Stopping machine
5.4
Blockages
5.5
Moving machine
5.6
Preparing for Transport on completion of work
5.7
Operating Hints
5.8
Feed Roller speed control
5.9
Flywheel drive clutch
5.10
Emergency traction drive
6
Maintenance
6
Routine Maintenance Schedule
6.1
Lubrication points
6.2
Engine Oil

EVO205D SAFE / SURE-Trak CONTENTS 2
©GreenMechLtd - 2 - 03/22
6.3
Coolant
6.4
Hydraulic Oil
6.5
Fuel Level
6.6
Drive Belt Check
6.7
Chipper Blades
6.8
Radiator
6.9
Drive Belt Replacement
6.10
Steam Cleaning
6.11
Air Cleaner
6.12
Electrics
6.13
Battery
6.14
SureTrack Pitch Ram Pivots
6.15
Spare Number Not Used
6.16
Bearings & Pivots
6.17
Track Removal
6.18
Hydraulic Connections
6.19
Mountings
6.20
Hydraulic Return Filter
6.21
Hydraulic Oil Change
6.22
Fuses and No Stress System
6.23
Fault Finding Chart
6.24
Chipper Disc Blade Re-grinding Data
6.25
Shear Bar Removal
7
Storage and Disposal
7.1
Storage
7.2
Removal From Storage
8
Disposal
Appendix
Options Winch & Lighting Tower
Risk Assessment
Warranty Form
Transcript of HSE leaflet 604
Engine Warranty

EVO205D SAFE / SURE-Trak
1. INTRODUCTION AND PURPOSE 1-1
©GreenMechLtd 1-1 03/22
INTRODUCTION
This manual explains the proper operation of your machine. Read these instructions
thoroughly before operating and maintaining the machine. Failure to do so could result in
personal injury or equipment damage. Consult your GreenMech supplier if you do not
understand the instructions in this manual.
CAUTION! This symbol indicates important safety messages in this manual.
When you see this symbol, be alert to the possibility of injury to yourself or
others, and carefully read the message that follows.
Keep this manual in the box provided and treat as part of the machine. Locate and note
here the serial number and quote it in any communications. This is important when ordering
spares. Remember to include all numbers and letters.
VIN Number…………………………………
Serial Number............................................
Write in the number!
This manual covers the following models and options (see appendices for supplements).
EVO205D SAFE/SURE-Trak tracked chipper, diesel engine (stage 5), Smart-Sense
controller.
Options in Manual: Folding discharge chute, Emergency Recovery Kit, Emergency
traction drive, Tool box.
Options in Supplement: Lighting tower, Winch.
The information in this manual is correct at the time of publication. However, in the course
of development, changes to machine specifications are inevitable. Should you find any
information to vary from the machine in your possession please contact your GreenMech
dealer for up-to-date information.
This manual may contain standard and optional features and is not to be used as a
machine specification.
PURPOSE CAUTION! This machine is designed solely to chip wood and must not
be used for any other purpose. The machine should only be used by
trained operators who are familiar with the content of this instruction
manual. It is potentially hazardous to fit or use any parts other than
genuine GreenMech parts. The company disclaims all liability for the
consequences of such use, which in addition voids the machine warranty.
Fig 1.1 Serial Number plate.
Serial
Number

EVO205D SAFE / SURE-Trak 2. SPECIFICATIONS 2-1
©GreenMechLtd 2-1 03/22
Note: SURE-Trak model includes pivoting tracks
TECHNICAL SPECIFICATIONS EVO205D SAFE-Trak model
EVO205D SAFE-Trak
Infeed Throat Aperture
205mm x 270mm
Max Timber Dia
205mm
Throughput
22cu.mt/hr
Power Unit
Kubota Diesel 1803-CR-TE4B 50HP 1826cc
Infeed Chute
1250mm x 700mm
Chipping Blades
6 disc blades
Flywheel Speed
1450 rpm
Feed Rollers
2 x Hydraulic
Power Control
Smart-Sense No-Stress Electronic Feed Roller Controller
Fuel Capacity
50Lt diesel
Tonnes per Hour
7 tonne/hr
Discharge Rotation
280 deg.
Hydraulic Capacity
50Lt
Length
3860mm (3020mm –infeed flap and platform up)
Width (working)
2356mm (tracks extended fully out)
Width (transport)
1550mm (Tracks retracted fully in)
Height (working)
2760mm
Weight
2085kg (no options), 2195kg (with all options)
Sound Power Lwa
114dB(A)
Sound Pressure LPa
91dB(A)

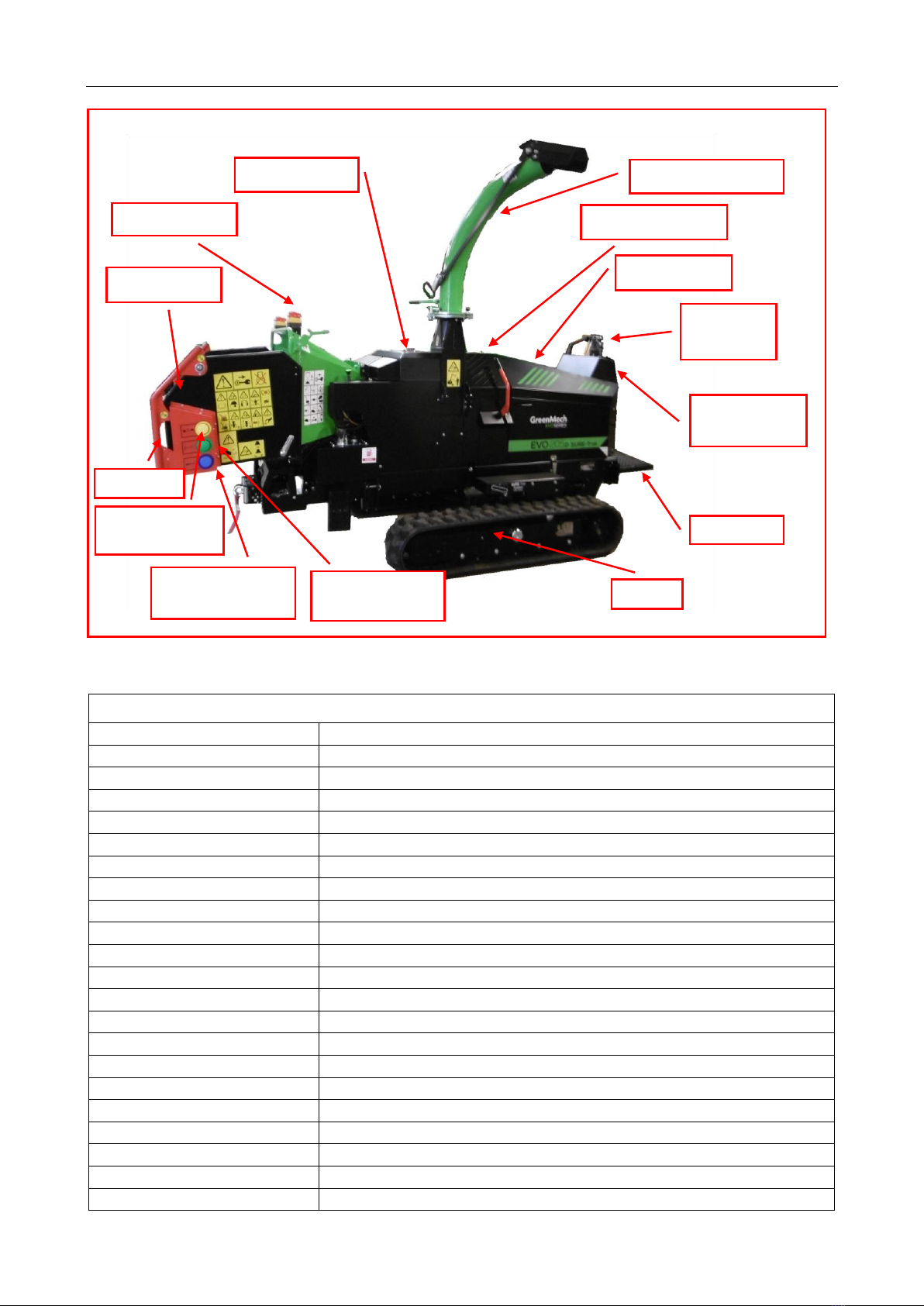

Fig 2.1 EVO205D SAFE/SURE-Trak –Main features
Platform
Engine cover
Discharge chute
Infeed chute
Stop bar
Top Cover
Smart Sense
Controller
Motion
Controls
Feed Out Button
(Blue)
Idle/Run Button*
(Yellow)
Feed In Button
(Green)
Stop Buttons
Flywheel cover
Tracks
Stand

EVO205D SAFE / SURE-Trak 2. SPECIFICATIONS 2-2
©GreenMechLtd 2-2 03/22
Noise
Noise levels vary depending on type of material being processed. Also duration of
operation is variable. Noise emission tests have been carried out and the guaranteed
sound power level (Lwa) is displayed on a decal as follows:
Evo205DT –114dB(A)
Minimise noise and fuel consumption by activating Economy Mode on controller (Section
4.6), switching from Run to Idle, or stopping the engine whenever chipping is not in
progress.
CAUTION! Operators must wear appropriate ear protection. Bystanders must be
kept away from proximity of machine.
TECHNICAL SPECIFICATIONS EVO205D SURE-Trak model
EVO205D SURE-Trak
Infeed Throat Aperture
205mm x 270mm
Max Timber Dia
205mm
Throughput
22cu.mt/hr
Power Unit
Kubota Diesel 1803-CR-TE4B 50HP 1826cc
Infeed Chute
1250mm x 700mm
Chipping Blades
6 disc blades
Flywheel Speed
1450 rpm
Feed Rollers
2 x Hydraulic
Power Control
Smart-Sense No-Stress Electronic Feed Roller Controller
Fuel Capacity
50Lt diesel
Tonnes per Hour
7 tonne/hr
Discharge Rotation
280 deg.
Hydraulic Capacity
50Lt
Length
3860mm (3020mm –infeed flap and platform up)
Width (working)
2356mm (tracks extended fully out)
Width (transport)
1550mm (Tracks retracted fully in)
Height (work)
2760mm
Weight
2150kg (no options), 2260kg (with all options)
Sound Power Lwa
114dB(A)
Sound Pressure LPa
91dB(A)

EVO205D SAFE / SURE-Trak 2. SPECIFICATIONS 2-3
©GreenMechLtd 2-3 03/22
Lifting Points
There is a single central lifting point by the base of the discharge chute.
CAUTION! Lift with extreme care. The machine may tilt because the single lifting
point may not be directly over the centre of gravity.
Factory fitted Options (Consult GreenMech)
Folding Discharge Chute (Section 4.4).
Tool Box (Fig. 2.2 on this page).
Emergency Recovery Kit (Section 5.10.1)
Emergency Electric Traction Drive. (Section 5.10.2)
Lighting Tower (Separate Supplement sheet)
Winch (Separate Supplement sheet).

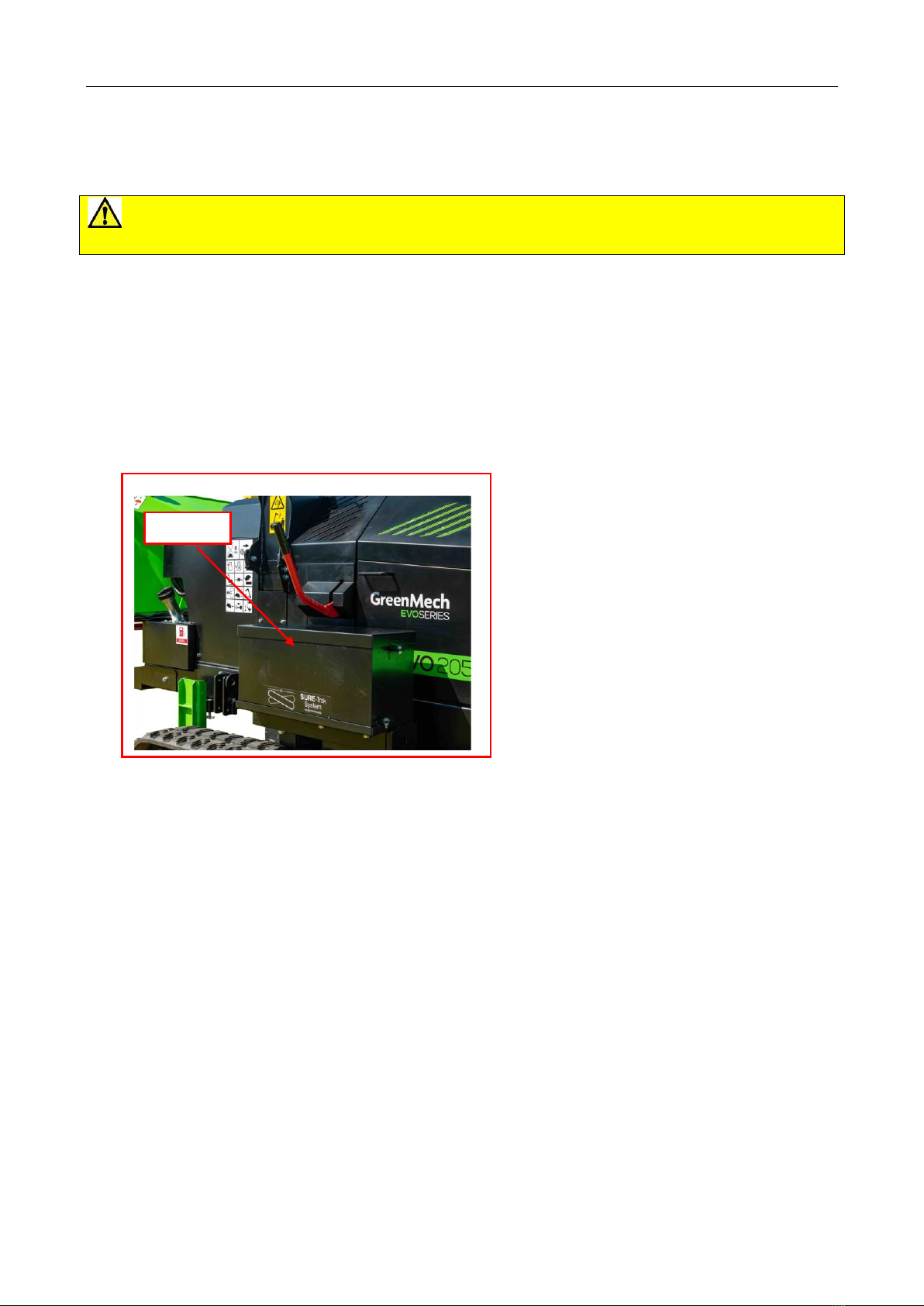

Fig 2.2 Tool box
Tool box

EVO205D SAFE / SURE-Trak 3. SAFETY 3-1
©GreenMechLtd 3-1 03/22
3.1 ENSURE! :
All Operators must be fully trained in the use of their machine.
(Certificated Operator training courses are available on request.)
Operators Manual is read and understood.
Enclosed HSE guidance notes are read and understood.
Appropriate Personal Protective Equipment (PPE) is worn, including non-snag clothing, gloves,
eye and hearing protection.
Machine is positioned on level ground and machine is level with infeed chute at not less than
600mm (23.62 inches) above ground level (fig 3.4.3).
Handbrake is applied and if necessary, wheels are chocked, when machine is detached from
towing vehicle.
All guards are fitted and in good condition.
Blades are in good condition and secure.
All blades are sharpened or replaced in “Sets”.
All fasteners are checked regularly for tightness.
Only “WOODEN” materials free of nails etc., are fed into machine.
Correct First Aid Kit including large wound dressing is available on site.
Fire extinguisher is available on site.
3.2 NEVER! :
Work on machine until chipper flywheel is stationary and engine or PTO has stopped.
Operate machine without protective clothing (Eye protection, Earmuffs, and Gloves), or high
visibility clothing when working on roadside.
Operate with loose articles of clothing, including loose cuffs on gloves.
Work under a raised component without adequate safety support.
Operate machine with untrained personnel or with individuals present who are not involved in
chipping work operation.
Leave machine unattended with engine running at full operating speed. (See section 4)
Put any part of your body into infeed chute while machine is running.
Operate machine whilst under the influence of alcohol or drugs.
Stand between the tracks (if applicable) and the chipper body.
Stand within 2 metres of the tracks (if applicable) when the legs are being extended.
Stop the engine or operate the chipper when moving directly up or down a slope.
Operate machine inside a building or confined space.
Climb on infeed chute.
Impede or obstruct Stop control.
3.3 ALWAYS! :
Check machine before starting (see Section 4 Preparation and Section 5.1 Operation: Pre-work
checks).
Be aware of potential hazards in work area, i.e. uneven ground, tree roots, trip/slip hazards,
obstructions and type of materials being fed into machine.
Feed from a side.
Keep clear of discharge area.
Have a second trained operator within easy reach of machine.
Maintain strict discipline at all times.
Service machine at specified periods. (see Section 6: Routine Maintenance).
Note direction of discharge chute and if necessary, note wind direction to prevent debris from being
blown into highway or where it could affect members of the public.
Keep machine level.
Check route to worksite for gradients, undulations and obstructions.
Remove key before doing any maintenance.

EVO205D SAFE / SURE-Trak 3. SAFETY 3-2
©GreenMechLtd 3-2 03/22

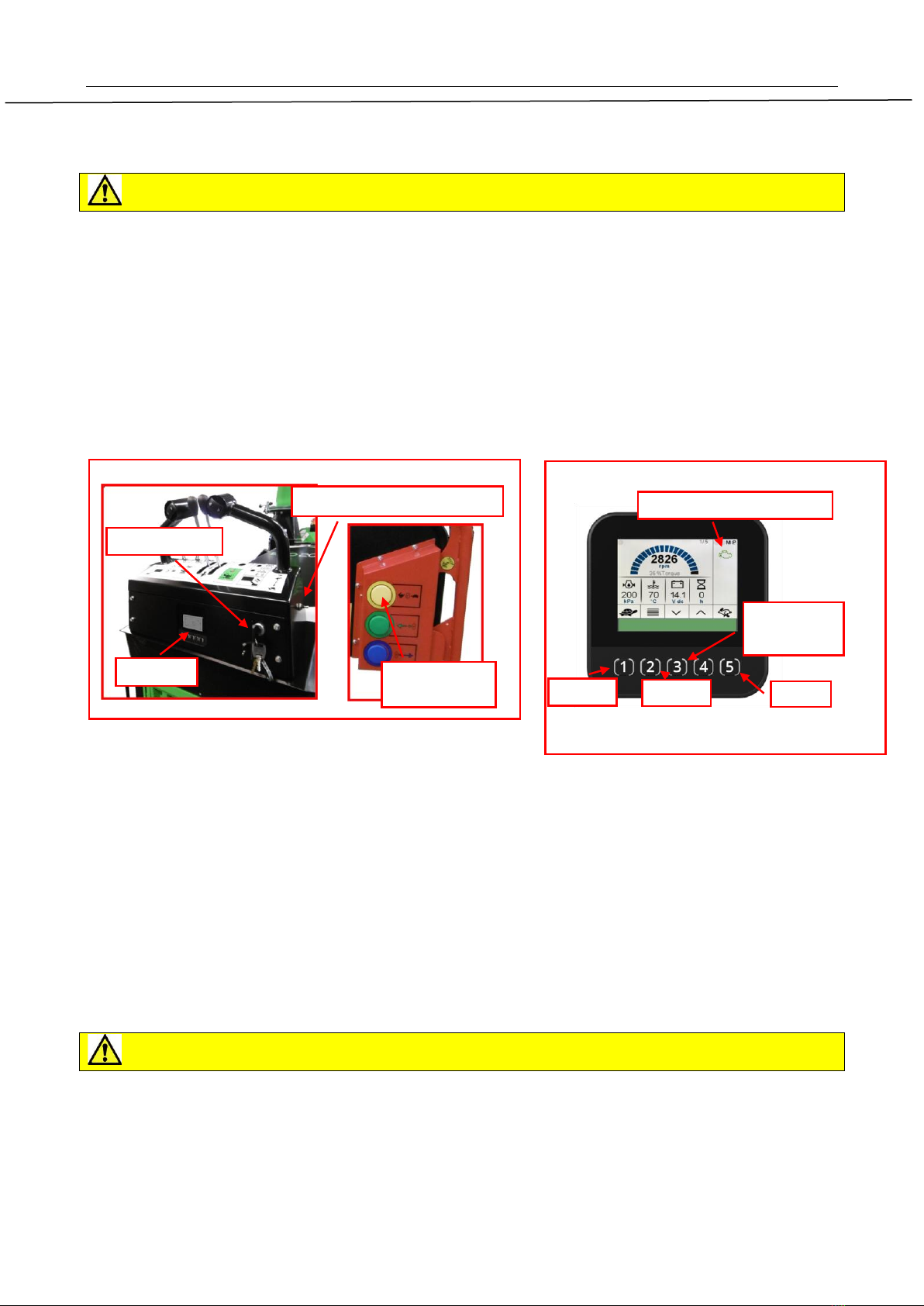

3.4 Safety Controls and Switches
3.4.1 Emergency Stop Bar and buttons (fig 3.4.1)
In the event of an emergency, push stop bar right in or press stop button to STOP feed
rollers.
Once the emergency has been rectified, pull Red stop
button back up if down.
Press Green button to restart rollers to continue Feed
In, or press and hold Blue button to Feed Out to eject
material. Stop bar returns to work position but does
not restart feed rollers.
If stop be tripped accidentally in normal working
conditions, i.e. NOT an emergency, then Feed In can
be recovered by pressing Green button, having first
checked stop bar is free to move and stop buttons are
up in work position.
To reverse feed rollers (Feed Out) press and hold
Blue button. To regain Feed In press Green button.
3.4.2 Engine Stop (fig 3.4.2).
To stop engine turn key anticlockwise to ‘0’ position.
To restart, turn key clockwise to Start.
To disable machine, remove key.
CAUTION! Do not restart engine until hazard has been removed.
3.5 Control Cut-Outs
Cut-out switch under engine cover prevents starting with covers removed.
Engine overheating is protected by thermal cut-out switch in coolant circuit.
Low engine oil pressure is protected by pressure switch in engine oil pump.
3.6 No Stress System with Smart-Sense controller
Speed sensor disables feed roller FEED IN or FEED OUT mode when engine speed is
below factory pre-set value.
Overload sensor stops and restarts rollers during Feed In.
Economy Mode setting (optional) when unloaded reduces speed to idle after preset time.
Refer to Section 4.6 for further information.
Fig 3.4.1 Control Bar and Buttons
Stop buttons
Idle/Run
Feed In
(Green)
Stop bar
Feed Out
(Blue)
Fig 3.4.2 Engine Stop/Start
Key Off/On/Start
Key
Fig 3.4.3 Infeed chute height
Infeed chute
height 600mm
min. (24")

EVO205D SAFE / SURE-Trak 3. SAFETY 3-3
©GreenMechLtd 3-3 03/22
3.7 Tracking Controls
Important: Practise all controls to familiarise before use.
Two position toggle switch selects either tracking or chipping. In track mode No Stress
system will not allow feed rollers to operate.
Select Track for tracking motion (Fig 3.7.1) Lever controls operate drives to tracks. Push
for forward motion. Pull for reverse motion.
Use Idle/Run on control panel or press and hold toggle switch to right hand side of console
to set engine for travelling speed.
Note: Chipper flywheel runs whenever engine is running, unless drive belt clutch is
released. (See 5.9)
Select left or right leg switch and press to extend or retract legs.
Fig 3.7 Track motion controls
Motion
levers
Chip / track
Leg
switches
Idle / Run

EVO205D SAFE / SURE-Trak 3. SAFETY 3-4
©GreenMechLtd 3-4 03/22
3.8SYMBOLS on the MACHINE
These relate to operator safety, correct use and maintenance of machine. Check that all
personnel understand and are familiar with meanings before using machine.
Important Safety Symbols
Take correct action shown on display box below stated hazard box (see table)
Important Operating Checks Notice
Before use carry out daily stated checks in order shown (see table)
Caution!
Remove Key
Do NOT
start engine
Caution!
Beware
flying
object
hazard
Beware
noise
hazard
Beware
trapping
hazard
Brakes
off
-incorrect
Read
instruction
manual
Wear
helmet &
visor
Wear ear
protectors
Wear
proper
clothes
Brakes
on
-correct
Machine
not level
-incorrect
Beware
flying
object
hazard
Beware
flying
object
hazard
Beware
exposed
drives
hazard
Caution!
Machine
level
-correct
Keep
bystanders
away
Position
and lock
discharge
chute
Fit all
guards
Keep
nuts tight
Every 8 Hours –
Daily checks
Remove key
stop engine
1. Check
coolant level
2. Check engine
oil level
3. Check hydraulic
oil level
4. Check
machine is level
5. Check brakes
are on
6. Check chipper
flywheel is clear
of debris
7. Check all
guards are in
place
8. Check infeed
chute is clear of
debris
9. Lock discharge
chute
10. Check stop
bar
11. Start engine
12. Increase from
Idle to Run
General Safety
Daily Checks

EVO205D SAFE / SURE-Trak 3. SAFETY 3-5
©GreenMechLtd 3-5 03/22
Important Safety Information
Sound level (typical only)
Ear defenders must be worn
Caution! Beware of
thrown object hazard
Action: Keep away from
fast discharge chute
Caution! Beware of thrown
object hazard
Action: Stand to side of infeed
chute, NOT in centre.
Lift Point
Ear defenders must
be worn
Face shield must
be worn
Caution! Infeed chute trapping
hazards
Keep hands clear. Do not climb in
Caution! Beware
Crushing hazard!
Do NOT work or park
directly up or down slope.
Transport Lock
Lock this component
before moving machine
Caution!
Do not climb into
infeed chute
Caution!
Do NOT operate with
infeed chute at less
than 600mm from
ground (bottom stop
bar).
Caution!
Do NOT drive up or down
slopes of more than 20°

EVO205D SAFE / SURE-Trak 3. SAFETY 3-6
©GreenMechLtd 3-6 03/22
Maintenance Information
Diesel Filler
Hydraulic Filler
Radiator cleaning
8 Hours
40 Hours
Check
radiator
screen
Blow out
radiator
core
Grease point
40 hours / weekly
High temperature
Grease 40 hours
Chipper Flywheel cleaning
Caution!
Read Manual!
Remove key
Caution! Sharp
edges
1) Wear protective
gloves
2) Release cover
bolts
3) Open chipper
covers
4) Lock / Block
flywheel
5) Clean blade nut
and bolt recess
6) Remove blade
nut
7) Clean blade
spigot and flywheel
recess
8) Replace and
Tighten to 200Nm
9) Replace all
covers
10) Secure covers
11) Replace key
Remote grease nipple locations

EVO205D SAFE / SURE-Trak 3. SAFETY 3-7
©GreenMechLtd 3-7 03/22
Operating Information
Driver Controls
Light tower
Remote
control*
Chip/Track
Pitch
control
Motion
levers
Emergency
drive*
Winch
Idle/Run
Left leg
extend/retract
Right Leg
extend/retract
Discharge chute control
Green - UP: Blue - DOWN
Feed Roller controls
(Left hand shown)
Yellow Idle/Run
Green Feed In
Blue Feed Out
Stop button –
Feed Rollers
Up –Run
Down - stop
Stop arrow
Recovery kit ports
Lift Point

EVO205D SAFE / SURE-Trak 4. MACHINE PREPARATION 4-1
©GreenMechLtd 4-1 03/22
4.1 Initial Fuelling and Parking
Fill fuel tank with correct fuel (fig 4.1).
Top up hydraulic tank if necessary, with correct oil. See Section
6.
Tracked Model
Position machine on tracks so that body is level.
4.2 Infeed Chute
1) Release infeed chute catch (fig 4.2), and gently lower
infeed chute flap to work position.
2) Check height of infeed chute for safe working height
(fig 3.4.3)
CAUTION! Infeed chute must not be used at less than 600mm from ground (fig
3.4.3). Adjust drawbar of Road tow models as necessary.
CAUTION! Before travelling, always fold up and secure infeed chute flap.
4.3Discharge Chute –Standard (fig. 4.3)
1) Release swivel clamps, point chute in desired direction
away from infeed chute and tighten clamps.
2) Set flap at desired height and tighten clamp.
CAUTION! Do not point discharge chute towards infeed
area. (See Fig 4.5)
Fig 4.1 Fuel tank
Fuel Filler
Fig 4.2 Infeed Chute Catch
Infeed catch
Fig 4.3 Discharge Chute
Flap clamp
Swivel
clamps

EVO205D SAFE / SURE-Trak 4. MACHINE PREPARATION 4-2
©GreenMechLtd 4-2 03/22

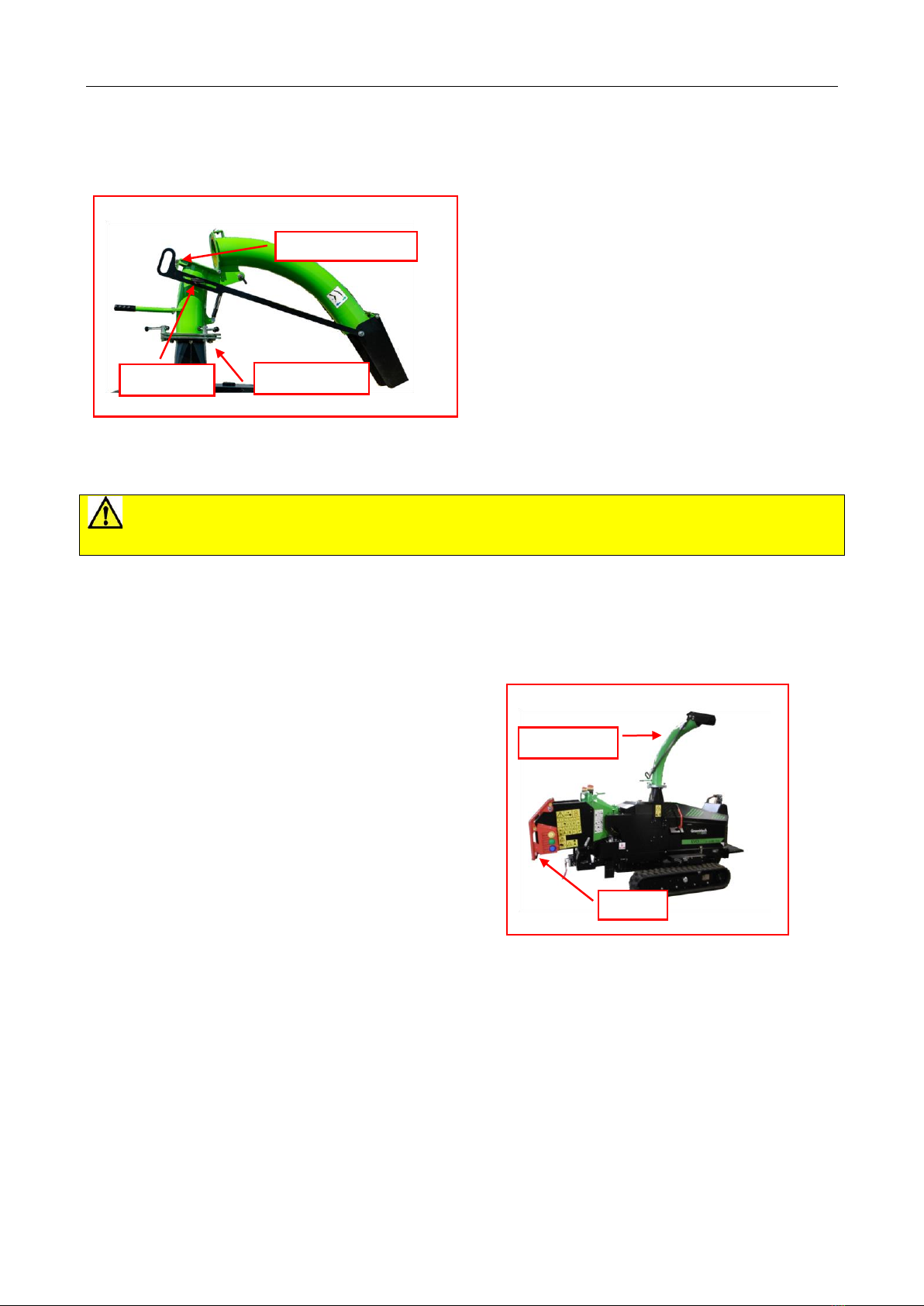

4.4 Optional Folding Discharge Chute (Fig 4.4)
From storage position (Fig 4.4) fold out to work position, secure hinge clamp and follow 4.3
to set direction and flap height.
CAUTION! Travel with discharge chute down is not recommended, unless restraint is
provided.
4.5 Work Position (Typical)
Typical work position (fig 4.5) shown with infeed chute down and discharge chute pointing
away from infeed.
Fig 4.5 Work position (typical)
Infeed
Discharge
Fig 4.4.1 Discharge Chute (folding option)
Flap clamp
Hinge toggle clamp
Swivel clamps

EVO205D SAFE / SURE-Trak 4. MACHINE PREPARATION 4-3
©GreenMechLtd 4-3 03/22
4.6 Smart Sense Controller (fig 4.6)
Operator settings: ( Fig 4.6.1 Home screen, Fig 4.6.2 Values screen)
Screen Brightness
Press menu button (2) (fig 4.6.1) to select brightness adjustment screen, then press
buttons 3 or 4 to adjust, then button 1 to return to home screen.
Smart Sense On or Off
Press Menu (2) to select Value screen (fig 4.6.2) to set control options for desired
operation. Select functions to set as below, using scroll button (3).
Set Smart-Sense On by setting from 0 (Off) to 1 (On) to enable No-Stress feed system to
function automatically. To override set to 0 (Off). Feed rollers will run at max stress speed
only.
Economy Mode On or Off
Set Economy Mode On by selecting delay time in seconds from 10 to 40 before machine
will automatically slow to idle after no load is detected and recovers when loading is
resumed. To override set to 0 (Off) for manual operation.
Kickback Timer
Set Kickback timer number higher or lower to adjust the time before long length of
material is to be kicked back by roller reversal.
Diesel Particulate Filter (DPF) regeneration is normally automatic
To force DPF, press menu (2) to select DPF screen and press button (1). Button (5) can
be used to inhibit regeneration in a fire sensitive area (e.g. heavy woodland, fuel station).
Engine Speed can be controlled in incremental steps either from Home screen using
buttons (1) and (5), or from press and hold toggle switch on right hand side of control
console. Yellow Idle/Run button on infeed chute switches between idle and run speed and
overrides Economy Mode timer setting. Use either of incremental controls to set engine
for transport speed. Blue and Green infeed buttons immobilised when speed is below
chipping speed.
General Note: Maximum and minimum stress speeds, feed roller start speed and Idle
(Eco) speeds are all factory set and locked. Consult dealer or Greenmech Ltd for
resetting.
Values shown in Fig 4.6.1 and Fig 4.6.2 are sample and may not apply to this machine.
Fig 4.6.2 Menu Values screen
N.B Value numbers in picture are sample
only and may not apply to this machine.
Fig 4.6.1 Engine Controller (home screen
shown)
N.B Value numbers in picture are sample only
and may not apply to this machine.
1-Slow
5-Fast
2-Menu
3-Scroll down
4-Scroll up
Engine management indicator

EVO205D SAFE / SURE-Trak 5. OPERATION 5-1
©GreenMechLtd 5-1 03/22
5.1 Pre-Work Checks:
Check machine is stationary, Key in OFF position or removed, and hand brake applied if separated
from vehicle.
Check that machine is level and infeed chute is not less than 600mm from ground (fig 3.4.3).
Check engine oil level (See Engine instruction manual).
Check hydraulic oil level (See Section 6).
Check fasteners for tightness and hydraulic connections for leaks.
Check condition of blades as follows:
Disengage flywheel clutch (See 5.9)
1) Raise engine cover. Check nothing is rotating.
2) Remove bolts (2) retaining chipper flywheel cover.
3) Using discharge chute handle as a lever, swing back
cover onto stop to expose chipper flywheel and blades. (fig
5.1.1)
CAUTION! Beware sharp edges of blades and
unexpected movement.
4) Turn flywheel to align locking pin with a mating boss (2)
and release pin into boss to prevent flywheel from turning.
5) Remove any loose wood material.
6) Retract locking pin and carefully rotate chipper flywheel
to check tightness of blade bolts and condition of blades (fig
5.1.2).
7) If any bolts are loose, refer to Maintenance Section 6.7 for further action.
8) Retract and turn locking pin to prevent it springing back and replace chipper flywheel cover.
9) Tighten all bolts securely.
10) Remove any loose material and
dust from radiator and engine bay
11) Replace all covers and secure.
Check discharge chute is in desired
position pointing away from infeed
and all clamps are tight. (see
Section 4.4)
Check work area and erect signs and
cone off discharge area if necessary.
Check ALL safety procedures have
been followed.
CAUTION! Always work with chipper level, preferably with the infeed direction slightly down
the slope to minimise the risk of material falling back out.
Fig 5.1.2. Flywheel and blades
Fig 5.1.1 Chipper flywheel cover
Locking Pin
Cover locating
bolts (removed)

EVO205D SAFE / SURE-Trak 5. OPERATION 5-2
©GreenMechLtd 5-2 03/22
5.2 Starting Machine (Fig 5.2)
Note: Read Section 4.6 before starting.
CAUTION! Beware sharp edges and dust. Wear protective gloves and eye shield!
Check all other personnel are clear of machine.
Check that feed roller stop bar is free to move, and feed roller Stop buttons in Up (Run) position.
Set Chip / Track switch to Chip.
Start engine (Fig 5.2.1 Fig 5.2.2)
Check that flywheel clutch is engaged.
1) Turn the ON - OFF key to position I. Wait for engine pre-glow countdown indicator to cease
and chipper speed 0 rev/min to be displayed.
2) Turn key to START engine.
3) Press yellow IDLE/RUN button OR press and hold ‘hare’ button (5) on controller until engine
reaches preset operating speed.
4) Press green FEED IN button when ready to start loading chipper.
5.3 Stopping Machine
1) Push stop bar to STOP position, or press down red Stop button to stop feed rollers.
2) Press yellow button to IDLE or press and hold ‘tortoise’ button (1) on controller and allow
chipper flywheel to slow down (fig 5.2).
3) Turn key anticlockwise to OFF (position 0) to stop engine.
4) Wait for chipper flywheel to stop.
CAUTION! Chipper flywheel will take several seconds to stop due to its inertia.
ON - OFF Key
Fig 5.2.2 Engine Controller (home screen
shown)
N.B Value numbers in picture are sample only
and may not apply to this machine.
1-Slow
5-Fast
2-Menu
3-Scroll down
4-Scroll up
Engine management indicator
Fig 5.2.1 Engine Controls
IDLE / RUN
Yellow button
IDLE / RUN press and hold toggle
Key Off/On/Start
Controller

EVO205D SAFE / SURE-Trak 5. OPERATION 5-3
©GreenMechLtd 5-3 03/22
5.4 Blockages
Stop engine and REMOVE key to secure place.
Check that flywheel clutch is disengaged (See 5.9).
CAUTION! Chipped material is inflammable. Expect large volume and prevent from falling
into engine compartment. All material must be removed.
Open chipper flywheel cover. See 5.1 Pre-work checks.
Look into chamber to identify problem if possible, before reaching
in.
Open chipper chamber or on optional version fold down at hinge
to inspect and clear. (see fig 5.4.1
Clean out discharge chute thoroughly with a suitable rod to pass
around bends as necessary.
CAUTION! Beware sharp edges of blades and unexpected
movement of flywheel due to resistance of engine. Wear
protective gloves.
Check if chipper flywheel is free to rotate. Pull top of flywheel in
operating direction of rotation. If so proceed to 6 below.
If flywheel does NOT rotate freely, proceed as follows:
1) Release roller spring tension at adjuster. (fig 5.4.2).
2) Using special bar provided, place in socket, pull as shown (fig
5.4.3) and twist to hook and lock roller away from fixed roller.
3) Inspect rollers and blades from infeed chute and carefully clear
material.
4) Carefully remove excess loose material from around chipper
flywheel and note any obstructions.
5) Carefully rotate chipper flywheel in reverse direction by full
revolution to release blocked material. Use bar against paddle
blades for aid.
6) Carefully remove all material, checking for obstructions.
Check rotation of chipper flywheel.
Check condition of blades. See 5.1.6
Note: Always attempt to find reason for blockage. e.g. blunt blades, slack drive belts.
6) Unhook and release lifting bar and stow.
7) Refit and tension spring adjuster under chassis
8) Re-assemble all covers with correct fasteners and check for security.
9) Start machine as 5.2 and check operation.
Note: If machine will not run, repeat process or contact dealer for
technical advice.
Fig 5.4.3 Feed roller lift
Bar
Lock
Fig 5.4.2 Feed roller spring
Tensioner
Release
Spring
Fig 5.4.1 Discharge Chute
folded
Clamp
