GreenWorks 60V Pro Series User manual

PAC458
2937207AU
EN OPERATOR MANUALEDGER HEAD
P0803562-00 Rev B
www.greenworksaustralia.com
Greenworks Australia
A Division Jak Max P/L
380 Foley’s Road Derrimut
Victoria, Australia 3026

1 Description......................................... 2
1.1 Introduction....................................................... 2
1.2 Purpose.............................................................. 2
1.3 Overview........................................................... 2
2 General power tool safety
warnings............................................. 2
2.1 Training..............................................................2
2.2 Preparation.........................................................2
2.3 Operation........................................................... 3
2.4 Maintenance.......................................................3
2.5 Service............................................................... 4
3 String trimmer and brush cutter
safety warnings.................................. 4
4 Symbols on the product.................... 5
5 Risk levels...........................................6
6 Recycle................................................6
7 Installation......................................... 6
7.1 Unpack the machine.......................................... 6
7.2 Assemble the shaft.............................................6
8 Operation........................................... 7
8.1 Adjust the depth of cut.......................................7
8.2 Replace the blade...............................................7
8.3 Operation tips.................................................... 7
9 Maintenance.......................................8
9.1 General information...........................................8
9.2 Clean the machine............................................. 8
9.3 Replace the skid plate........................................ 8
9.4 Replace the wheel..............................................8
10 Transportation and storage.............. 9
10.1 Move the machine............................................. 9
10.2 Store the machine.............................................. 9
11 Troubleshooting................................. 9
12 Technical data....................................9
13 Warranty............................................ 9
1
English EN

1 DESCRIPTION
1.1 INTRODUCTION
Your product has been engineered and manufactured to high
standards for dependability, ease of operation, and operator
safety. When properly cared for, it will give you years of
rugged, trouble-free performance.
1.2 PURPOSE
This edger is used to trim and cut around the edge of
driveways, side walks and more. The edger is not meant to be
used to cut hedges, shrubs, bushes, or flowers.

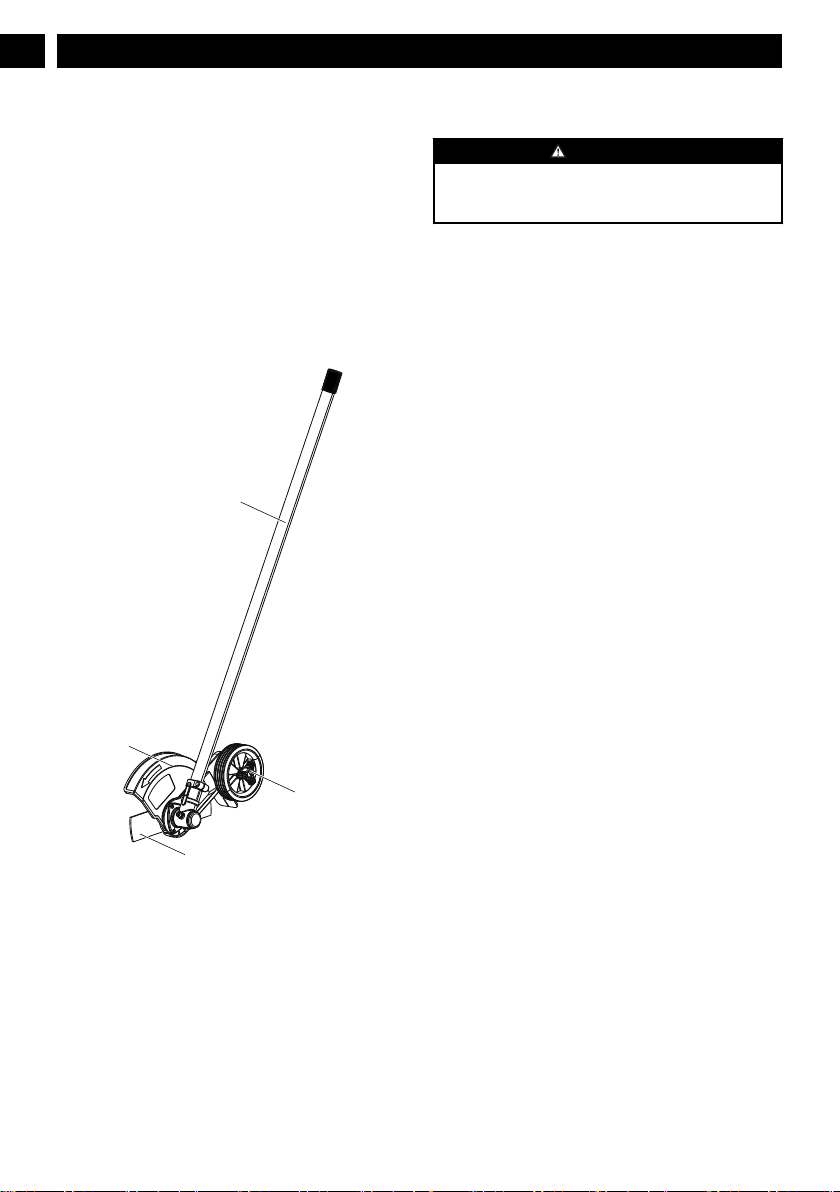

1.3 OVERVIEW
4
2
1
3
1Edger attachment
2Guard
3Blade
4Depth adjustment knob
2 GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your battery-
operated (cordless) power tool.
2.1 TRAINING
• Read the instructions carefully.
Be familiar with the controls
and the correct use of the
machine.
• Never allow children, persons
with reduced physical, sensory
or mental capabilities or lack
of experience and knowledge
or people unfamiliar with these
instructions to use the
machine. Local regulations can
restrict the age of the operator.
• Keep in mind that the operator
or user is responsible for
accidents or hazards occurring
to other people or their
property.
2.2 PREPARATION
• Before use, check the battery
pack for signs of damage or
aging. If the battery becomes
damaged during use, switch
2
English
EN

off the power tool and remove
the battery immediately. Do
not use the power tool if the
battery is damaged or worn.
• Before use, always visually
inspect the power tool for
damaged, missing or
misplaced guards or shields.
2.3 OPERATION
• Keep power cords away from
cutting means.
• Wear eye protection and stout
shoes at all times while
operating the power tool.
• Avoid using the power tool in
bad weather conditions
especially when there is a risk
of lightning.
• Use the power tool only in
daylight or good artificial
light.
• Never operate the power tool
with damaged guards or
shields or without guards or
shields in place.
• Switch on the motor only
when the hands and feet are
away from the cutting means.
• Always disconnect the power
tool from the power supply
(i.e. remove the plug from the
mains, remove the disabling
device or removable battery)
• whenever the power tool is
left unattended;
• before clearing a blockage;
• before checking, cleaning or
working on the power tool;
• after striking a foreign
object;
• whenever the power tool
starts vibrating abnormally.
• Take care against injury to feet
and hands from the cutting
means.
• Always ensure that the
ventilation openings are kept
clear of debris.
2.4 MAINTENANCE
• Disconnect the power tool
from the power supply (i.e.
remove the plug from the
mains, remove the disabling
device or removable battery)
before carrying out
maintenance or cleaning work.
• Use only the manufacturer’s
recommended replacement
parts and accessories.
• Inspect and maintain the
power tool regularly. Have the
3
English EN

power tool repaired only by an
authorized repairer.
• When not in use, store the
power tool out of the reach of
children.
2.5 SERVICE
•Have your power tool
serviced by a qualified repair
person using only identical
replacement parts. This will
ensure that the safety of the
power tool is maintained.
3 STRING TRIMMER
AND BRUSH CUTTER
SAFETY WARNINGS
• Children shall not play with
the power tool.
• Cleaning and user maintenance
shall not be made by children
without supervision.
• The battery must be removed
from the power tool before it is
scrapped.
• The power tool must be
disconnected from the supply
mains when removing the
battery.
• The battery is to be disposed
of safely.
• Do not overreach. Keep proper
footing and balance at all
times. This enables better
control of the power tool in
unexpected situations.
• Dress properly. Do not wear
loose clothing or jewellery.
Keep your hair, clothing and
gloves away from moving
parts. Loose clothes, jewellery
or long hair can be caught in
moving parts. While operating
the machine always wear
substantial footwear and long
trousers.
• This power tool is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
cpabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction
cnocerning use of the power
tool by a person responsible
for their safety.
• Children should be supervised
to ensure that they do not play
with the power tool.
• Do not touch moving
hazardous parts before the
machine is disconnected from
4
English
EN

the mains and the moving
hazardous parts have come to a
complete stop. Never to
replace the non-metallic
cutting means with metallic
cutting means.
• Never operate the machine
while people, especially
children, or pets are nearby.
• Always be sure of your footing
on slopes.
• Walk, never run.
• Never use the machine when
the operator is tired, ill or
under the influence of alcohol
or other drugs.
• Use a transport cover for metal
blades during transport and
storage.
• Regular maintenance tasks,
pre-operational measures and
daily maintenance techniques,
including checking for loose
fasteners and damaged parts,
such as cracks in the cutting
attachment.
• Cleaning and maintenance
before storage, including the
use of guards on cutting
attachments with metal blades.
• Need for daily inspection
before use and after dropping
or other impacts to identify
any significant defects.

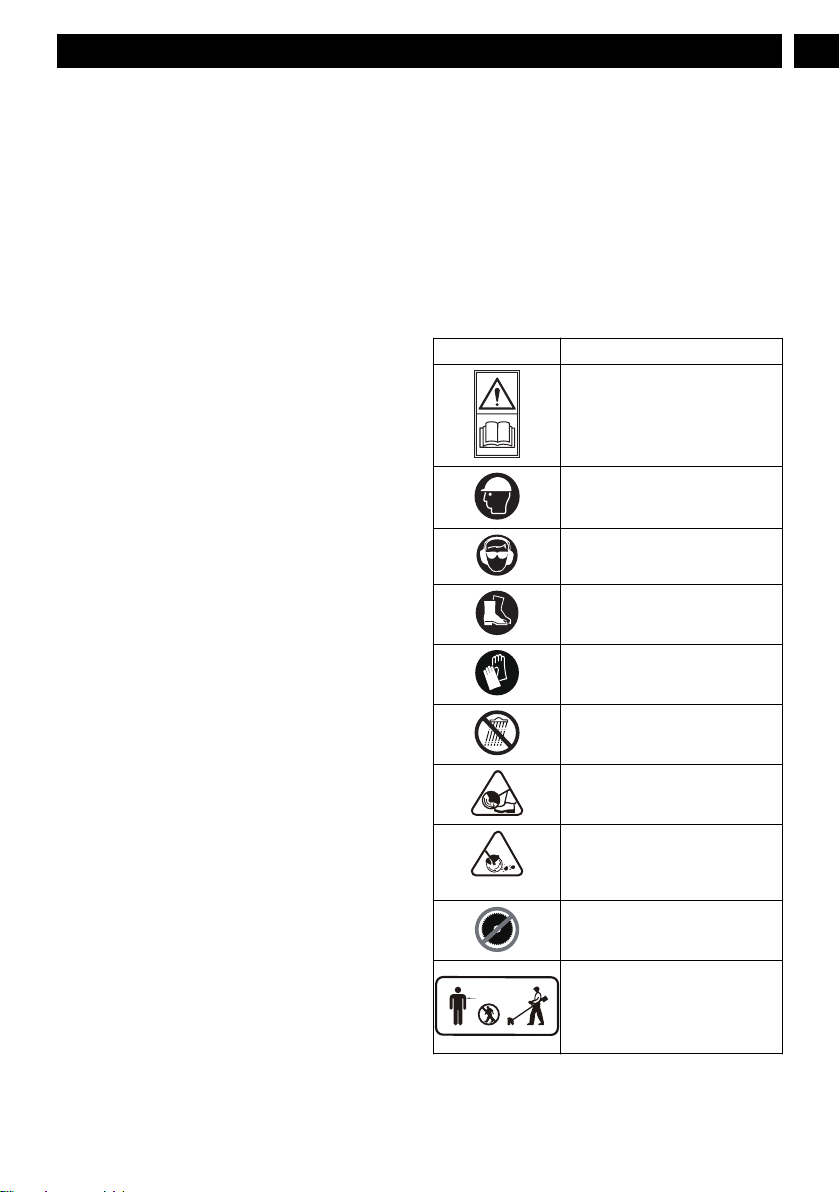

4 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this tool.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Explanation
Read and understand all instructions
before operating the product, follow
all warnings and safety instructions.
Wear head protection.
Wear eye and ear protection.
Wear safety footwear.
Wear protective gloves.
Do not expose the product to rain or
moist conditions.
Be aware of blade thrust. Take care
against injury to feet and hands from
the cutting means.
Thrown objects can ricochet and re-
sult in personal injury or property
damage. Wear protective clothing and
boots.
Do not use saw blades.
SLZ
Beware of thrown or flying objects.
Keep all bystanders, especially chil-
dren and pets, at a safe distance at
least 15 m away from the operating
area.
5
English EN

Symbol Explanation
Direction of rotation.
5 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation, which, if not
avoided, will result in death
or serious injury.
WARNING Indicates a potentially hazard-
ous situation, which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
6 RECYCLE
Separate collection. You must not discard
with usual household waste. If it is necessa-
ry to replace the machine, or if it is no more
use to you, do not discard it with household
waste.
Separate collection of used machine and
packaging let you recycle materials and use
them again. Use of the recycled materials
helps prevent environmental pollution and
decreases the requirements for raw materi-
als.
At the end of their useful life, discard batter-
ies with a precaution for our environment.
The battery contains material that is danger-
ous to you and the environment. You must
remove and discard these materials separate-
ly at a location that accepts lithium-ion bat-
teries.
7 INSTALLATION
7.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine before
use.
WARNING
• If parts of the machine are damaged, do not use the
machine.
• If you do not have all the parts, do not operate the
machine.
• If parts are damaged or missing, contact the service
center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in compliance with
local regulations.
7.2 ASSEMBLE THE SHAFT
1. Loosen the knob (1) on the coupler.
2. Push in the release button (2) on the lower shaft (3).
3. Align the release button (2) with the positioning hole (4)
and slide the two shafts.
1
5
4
2
3
4. Turn the lower shaft until the button locks into the
positioning hole.
2
5. Tighten the knob.
Loosen
Tighten
6
English
EN

8 OPERATION
IMPORTANT
Before you operate the machine, read and understand the
safety regulations and the operation instructions.
WARNING
Be careful when you operate the machine.
8.1 ADJUST THE DEPTH OF CUT
1. Remove the battery pack.
2. Loosen the depth adjustment knob to increase or decrease
the depth.
Depth Adjustment Knob
3. Adjust the depth so that the blade barely touches the
ground when the machine is held in a normal operating
posture.
4. Tighten the depth adjustment knob.
5. Standing in a normal working position, check the depth of
cut again and correct if necessary.
6. Replace the battery pack once all adjustments are
complete.
Blade
Wheel
8.2 REPLACE THE BLADE
NOTE
If the blade worn out, replace it with a new one (not
provided).
1. Use a metal rod (4) to fix the blade.
2. Remove the nut (1) by turning it clockwise with the
wrench (5) (not included).
3. Remove the outer cup (2) and the plate (3).
2
1
4
3
4. Remove the old blade and replace it with a new one.
5. Place the plate and outer cup on the blade.
6. Place the nut on the washer and tighten it
counterclockwise with the wrench provided.
Loosen
Tighten
5
8.3 OPERATION TIPS
WARNING
Always hold the edger away from the body keeping
clearance between your body and the edger. Any contact
with the edger cutting head while operating can result in
serious personal injury.
• Hold the edger with your right hand on the rear handle
and your left hand on the front handle.
• Keep a firm grip with both hands while in operation.
7
English EN

• Edger should be held at a comfortable position with the
rear handle about hip height.
• The edger will edge along sidewalks, driveways, flower
beds, curbs, and similar areas.
• Cut at a steady pace. If the blade begins to bog down, you
are edging too fast; slow your pace. Do not force the
blade into ground.
• Light contact of the blade against the sidewalk edge,
curb, etc., is acceptable and will not damage the edger.
• Best appearance is obtained when grass is dry. Avoid
edging in wet soil or wet grass areas or the blade guard
might clog and result in an uneven edge. If the blade
guard becomes clogged, stop the edger, remove the
battery, and remove debris from the blade guard.
9 MAINTENANCE
IMPORTANT
Read and understand the safety regulations and the
maintenance instructions before you clean, repair or do the
maintenance work on the machine.
IMPORTANT
Make sure that all nuts, bolts and screws are tight. Examine
regularly that you install the handles tightly.
IMPORTANT
Use only the replacement parts and accessories of the initial
manufacturer.
9.1 GENERAL INFORMATION
IMPORTANT
Only your dealer or approved service center can do the
maintenance that is not given in this manual.
Before the maintenance operations:
• Stop the machine.
• Remove the battery pack.
• Cool the motor.
• Store the machine in cool and dry place.
• Use correct clothing, protective gloves and safety glasses.
9.2 CLEAN THE MACHINE
• Clean the machine after use with a moist cloth dipped in
neutral detergent.
• Do not use aggressive detergents or solvents to clean the
plastic parts or handles.
• Keep the trimmer head free of grass, leaves, or excessive
grease.
• Keep the air vents clean and free of debris to avoid
overheating and damage to the motor or the battery.
• Do not spray water onto the motor and electrical
components.
9.3 REPLACE THE SKID PLATE
1. Remove the screws with a Phillips Head screwdriver (not
included).
2. Replace with the new skid plate (1).
3. Tighten the screws.
1

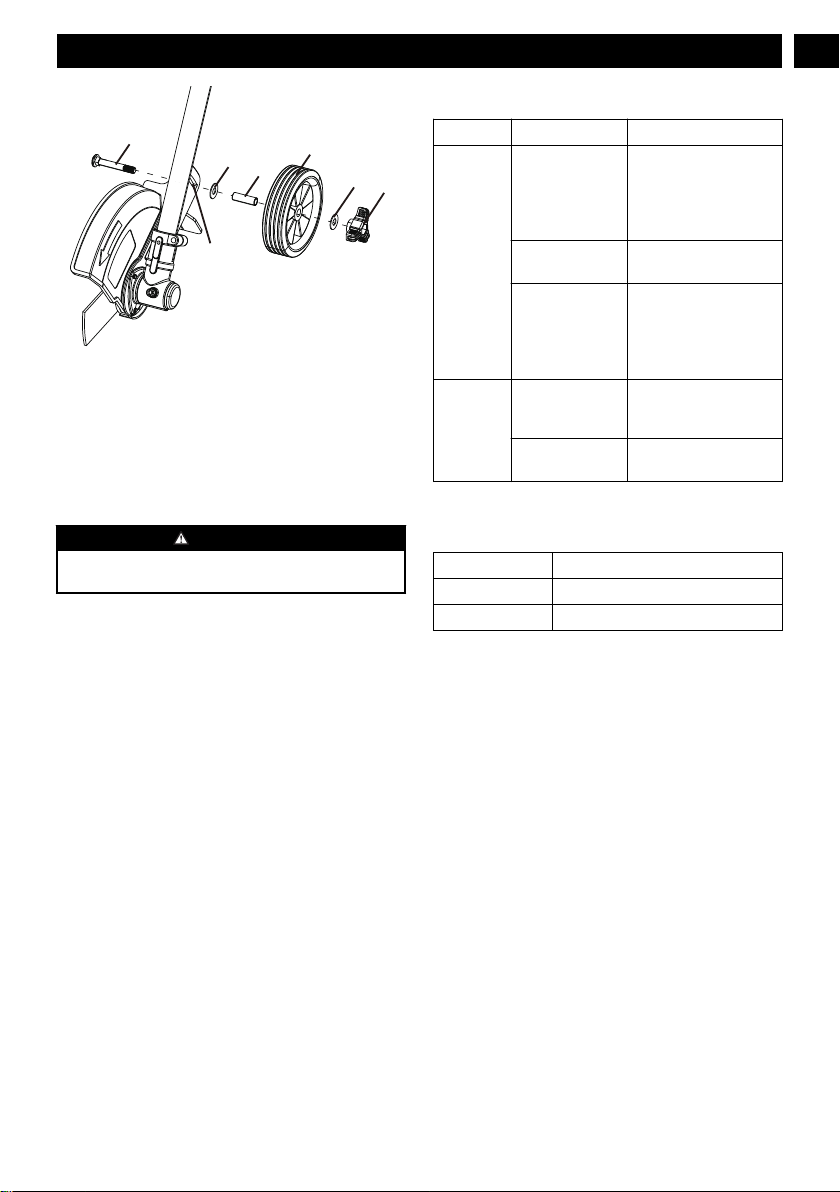

9.4 REPLACE THE WHEEL
1. Remove the battery.
2. Remove the knob (1), washer (2), wheel (3), axle sleeve
(4), washer (2) and wheel axle (5) orderly from the wheel
assembly.
8
English
EN

1
2
3
4
5
6
2
3. Replace with the new wheel.
4. Insert the wheel axle (5) through the slot (6) downward,
then put the washer (2), axle sleeve (4), wheel (3), washer
(2) and knob (1) orderly through the wheel axle.
5. Tighten the knob (1).
10 TRANSPORTATION AND
STORAGE
WARNING
Remove the battery pack from the machine before
transportation and storage.
10.1 MOVE THE MACHINE
When you move the machine, you must:
• Stop the machine.
• Remove the battery pack.
10.2 STORE THE MACHINE
• Remove the battery pack from the machine.
• Make sure that children cannot come near the machine.
• Keep the machine away from corrosive agents such as
garden chemicals and de-icing salts.
• Secure the machine during transportion to prevent
damage or injury. Clean and examine the machine for any
damage.
11 TROUBLESHOOTING
Problem Possible Cause Solution
The ma-
chine does
not start
when you
push the
trigger.
No electrical con-
tact between the
machine and the
battery pack.
1. Remove battery pack.
2. Check contact and in-
stall the battery pack
again.
The battery pack is
depleted.
Charge the battery pack.
The lock-out but-
ton and trigger are
not pushed at the
same time.
1. Pull the lock-out but-
ton and hold it.
2. Pull the trigger to start
the machine.
Edger stops
during use.
Depth is set too
low.
Adjust the depth as
shown in the instrustion
manual.
Walking too fast. Do not force the edger
through the grass.
12 TECHNICAL DATA
Cutting head Blade
Blade length 225mm
Weight 1.9 kg
13 WARRANTY
(The full warranty terms and conditions can be found on
Greenworks website www.greenworksaustralia.com)
The Greenworks warranty is 4 years on the product, and 2
years on batteries and chargers (consumer/private usage) from
the date of purchase. This warranty covers manufacturing
faults. A faulty product under warranty might be either
repaired or replaced. A unit that has been misused or used in
other ways then described in the owner’s manual might be
rejected for warranty. Normal wear, and wear parts are not
considered as warranty. The original manufacturer warranty is
not affected by any additional warranty offered by a dealer or
retailer.
A faulty product must be returned to the point of purchase in
order to claim for warranty, together with the proof of
purchase (receipt).
9
English EN
Other manuals for 60V Pro Series
1
This manual suits for next models
2
Table of contents
Other GreenWorks Edger manuals
Popular Edger manuals by other brands

Craftsman
Craftsman 536.797561 owner's manual

Craftsman
Craftsman 358.796500 Operator's manual

Skil
Skil PED0900 owner's manual

Global Machinery Company
Global Machinery Company PEDG instruction manual

Black & Decker
Black & Decker EDGE HOG LE750 instruction manual

Tanaka
Tanaka TPE-2510 Illustrated parts manual
