  9. GRI PRM-1 User manual

GRI PRM-1 User manual

Made in U.S.A.
WARRANTY: One year warranty against workmanship, material and factory defects.
GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
WWW.GRISK.COM
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
(308) 235-4645
FAX (308) 235-3561
E-MAIL: [email protected]
WWW.GRISK.COM
Programmable
Relay Module
PRM-1
9-12 Volts DC - battery or externally supplied power
85 dB Max. local annunciation with adjustable control
2 Form C (SPDT) relay outputs available for control
Visual indicators for normal and alarm conditions
User programming functions for timing and delays
Factory defaults (contact factory for options)
Available in almond only
DESCRIPTION:
GRI presents the PRM-1, an incredibly exible appliance capable of monitory and open or closed loop
sensor using batter and/or external power (recommended). The PRM-1 makes use of local annunciation,
provides 2 form C relay outputs, a bi-color LED, and Onset button for reset and programming, and a built-
in testing function.
Used as a stand alone system, the PRM-1 can provide a local warning alarm with a ashing visual signal, or
be limited to a visual signal only. Should remote monitoring and/or equipment control be desired, the relay
output(s) may be connected directly to an alarm panel or wireless transmitter to provide monitoring. The
PRM-1 can also be connected to an on/o controller of a pump, blower motor or other similar appliance.
1) The sounder produces 85 dB at 9 volts DC at alarm. The audible alarm will also sound intermittently
to indicate low batter condition if voltage drops below 7.5 volts DC.
2) The green LED will ash every 60 seconds indicating normal operating conditions. It will also ash
once per second alarm during input shunt delay and also during user programming.The red LED will ash
rapidly indicating alarm. A slow ashing red LED indicates alarm activated, bur unit is in a timed alarm
reset mode.
3) When PRM-1 is in normal monitoring state, depressing and releasing the Onset button will start the
shunt time set. Depressing and holding the Onset button will place the PRM-1 into the test function. If
PRM-1 is in alarm, depressing and releasing the Onset button will silence the local alarm and reset the
relay output. The PRM-1 will then return to the normal monitoring state.
4) MODEL OPTIONS OFFERED:
Model with no sounder
Model with 1, 2 or 4 sensor inputs
C_SS 25 Program Relay Mod PRM-1
Made in U.S.A.
WARRANTY: One year warranty against workmanship, material and factory defects.
GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
WWW.GRISK.COM
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
(308) 235-4645
FAX (308) 235-3561
E-MAIL: [email protected]
WWW.GRISK.COM
Programmable
Relay Module
INSTALLATION:
Upon removing the PRM-1 from the surface
mount box a knockout can be observed on the
back of the box for the exit/entrance of wires.
One can attach the surface mount case directly
to the wall or the PRM-1 may be mounted in a
single gang electrical box. Attach the sensor
wires to the terminal block TM1. The PRM-1
standard factory default programming is set
for Open Loop inputs, no alarm delay (instant
response) and a seven second manual shunt
time. To connect multiple sensors, contact GRI
at the number provided at the bottom of the
sheet. Optional external power of a 9 to 12 volt
DC can be connected to the terminal blockTM1
at Pins 1 and 2. Pin 1 for +DC, Pin 2 is ground. An optional remote reset function is available by connecting
a Normally Open momentary switch to TM1 Pin 3 and Pin 2. TM2 Pins 1 through 6 are used for 2 form
C relay outputs. Pins 1 and 2, and 4 and 5 for Normally Open contacts and Pins 2 and 3 and 5 and 6 for
Normally Closed contacts.
TERMINAL BLOCK TM1
1 External Power (+)
2 Ground (-)
3 Reset
4 Sensor (-)
5 Sensor (+)
6 Sensor (+)
7 Sensor (+)
8 Sensor (+)
TERMINAL BLOCK TM2
1 A Relay N/O
2 A Common
3 A Relay N/C
4 B Relay N/O
5 Common
6 B Relay N/C
7 Ground (-)
1.69 in
3.38 in
1.17 in
1.283 in 1.56 in
5.19 in
5.47 in
5.41 in
3.27 in
.22 in
DA-1 Built to Scale
GEORGE RISK INDUSTRIES, INC.
KIMBALL, NE 69145
www.grisk.com
1-800-445-5218
E-MAIL: sales@grisk.com
1.69 in
3.38 in
1.17 in
1.283 in
1.56 in
5.19 in
5.47 in
5.41 in
3.27 in
.22 in
DA-1 Built to Scale
GEORGE RISK INDUSTRIES, INC.
KIMBALL, NE 69145
www.grisk.com
1-800-445-5218
E-MAIL: sales@grisk.com
SPECIFICATIONS:
Battery Type 9 Volt Alkaline (recommended)
Battery Life Approx. 9 months
External Power 9 to 12 VDC
Low Battery Mode 7.5 Volts (threshold)
Sounder 85 dB at 10 feet
Relay Contacts Max. contact rating 30W DC
62.5VA AC
Max. switching voltage 125V DC/AC
Max. switching current 1AMPDC/AC
TEST MODE:
When the PRM-1 enters test mode, it tests the condition of the sounder by activating it with two short beeps. It
also test the condition of all LEDs by turning them on, and test the condition of the battery by disabling external
power and measuring battery voltage under a load. If a low battery is detected, the annunciator will sound 3 short
beeps 3 times, then the unit re-enters its normal monitoring mode.

Popular Relay manuals by other brands

ABB EF19 installation instructions

ABB

ABB EF19 installation instructions

F&F BIS-413 quick start guide

F&F

F&F BIS-413 quick start guide

Nexa WMR-3000 quick start guide

Nexa

Nexa WMR-3000 quick start guide

KinCony KC868-H8 user manual

KinCony

KinCony KC868-H8 user manual

Microelettrica Scientifica MC2-30T Operation manual

Microelettrica Scientifica

Microelettrica Scientifica MC2-30T Operation manual

MULTISPAN ELR-19N quick start guide

MULTISPAN

MULTISPAN ELR-19N quick start guide

Pilz PNOZ mc5.1p operating instructions

Pilz

Pilz PNOZ mc5.1p operating instructions

Omron G9SB datasheet

Omron

Omron G9SB datasheet

Siemens SIRIUS 3RU1900-1A operating instructions

Siemens

Siemens SIRIUS 3RU1900-1A operating instructions

Jung RS8REGHE operating instructions

Jung

Jung RS8REGHE operating instructions

ZIEHL MS220C operating instructions

ZIEHL

ZIEHL MS220C operating instructions

NatComm RCU-SIP user guide

NatComm

NatComm RCU-SIP user guide

Mart BR-10 user manual

Mart

Mart BR-10 user manual

ZIEHL STW12V operating manual

ZIEHL

ZIEHL STW12V operating manual

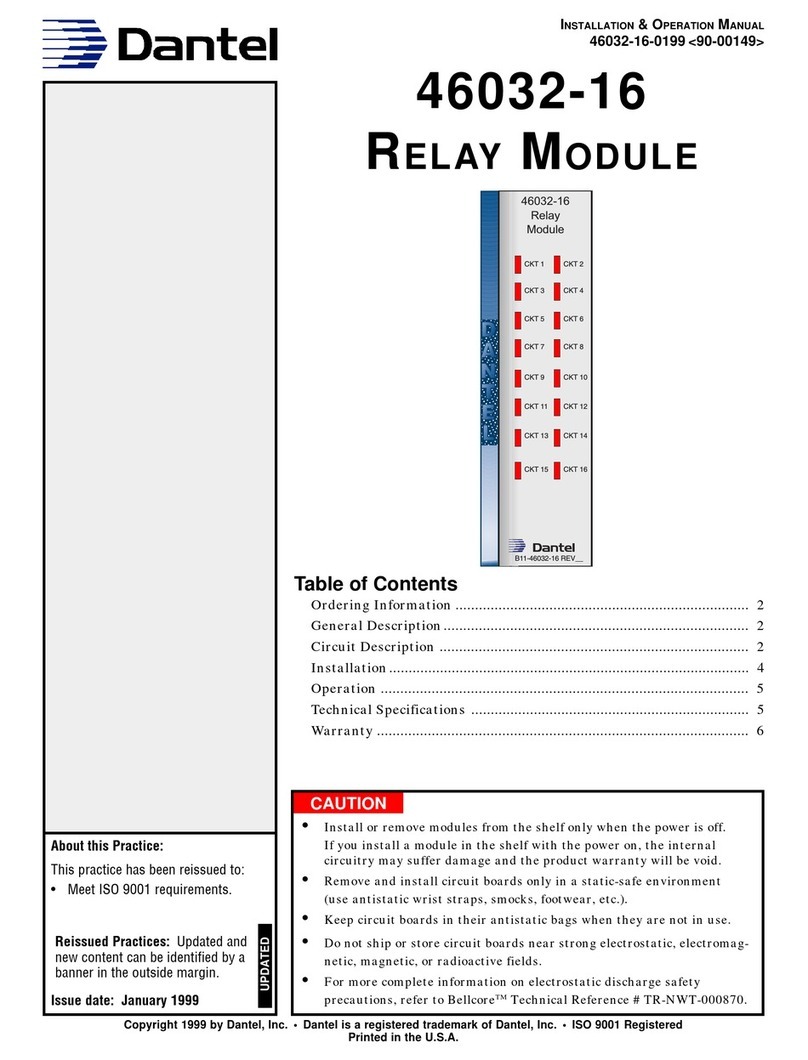

Dantel 46032-16 Installation & operation manual
