Grill'D Master-Kazan User manual

Wok stand is equipment for professional cooking dishes in the wok, and has the
following features:
• The wok is heated uniformly throughout its entire area.
• Burning intensity can be adjusted necessary for proper preparation of oriental dishes.
• There is the possibility of connecting a chimney for ease of use in semi-closed rooms.
• There is the possibility of installing an additional option - grill grate for preparation of
char-grilled dishes.
Operaon
Manual
Wok stand
Master-Kazan
Read the manual carefully before commencing installation and operating of the product.
Keep it for future use.
SPECIFICATIONS

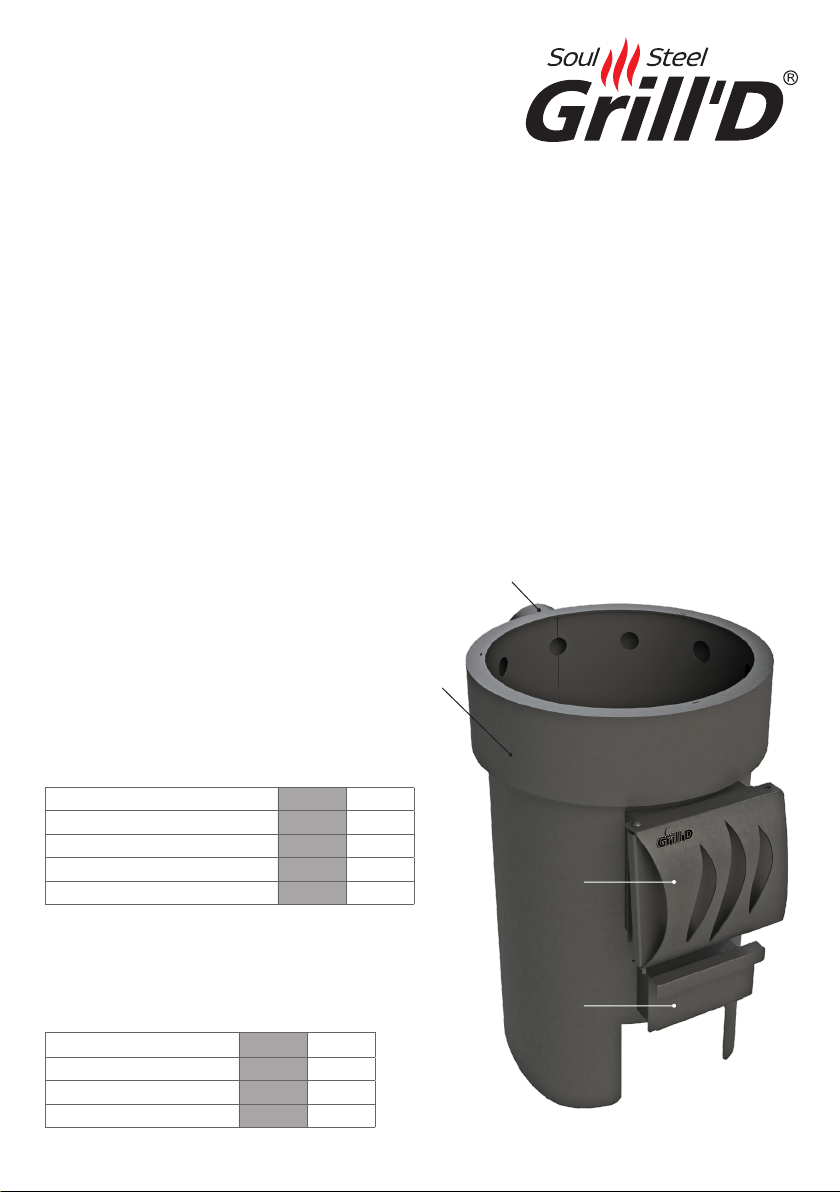

STRUCTURAL ELEMENTS
PARTS
Flue outlet connection diameter mm 115
Mass kg 32
Maximum firewood length mm 350
Firewood diameter mm 80-150
Matching wok volume* l 12
* Choose the wok based on the stand inner diameter
Body-firebox pcs 1
Door «mini» pcs 1
Ash drawer pcs 1
Grate plate pcs 6
1. Body-firebox
2. Door
3. Ash drawer
4. Flue outlet connection 1
2
3
4

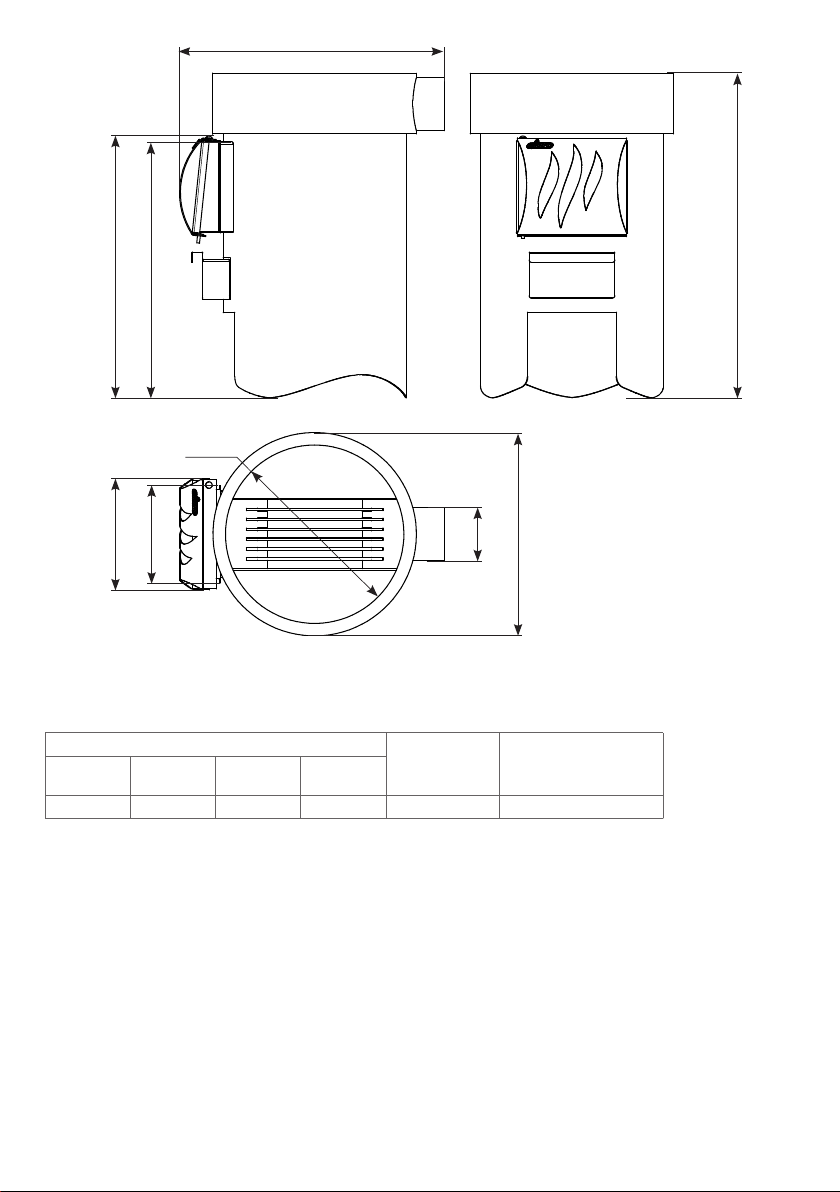

SAFETY DISTANCES:
Safety distances to the surfaces (the dimensions are in millimeters):
Combustible Non-
combustible
Non-combustible,
in the alcove
From top* From the
side
From the
back
From the
front
1000 500 500 800 50 100
* With the wok installed
GENERAL SAFETY RULES
IMPORTANT! PLEASE, OBEY FIRE SAFETY RULES!
IMPORTANT! Non-observance of safety measures when using the product can lead to
serious consequences, even death.
IMPORTANT! Do not use the product near flammable, volatile or explosive substances. It
is prohibited to use the grill in places where paints, paint thinners, solvents, gasoline, dust
particles or chemicals whose properties are unknown are located or may be present.
IMPORTANT! It is allowed to use only solid combustible materials: firewood (alder, birch),
charcoal. Construction and other materials containing chemicals, glue, etc., are strongly
prohibited as fuel: wood chipboard, wood fiber board, and others.
555
700
565240
570
ɸ385
210
ɸ
115
440

IMPORTANT! It is prohibited to use paints, solvents, plastic, gasoline, explosive and toxic
substances, and other inappropriate materials and substances when lighting a fire.
IMPORTANT! Do not touch the metal surfaces of the product in operation.
IMPORTANT! It is forbidden to carry out maintenance or moving operations, or to carry
out other operations with a product in operation.
IMPORTANT! It is forbidden to make changes in the design of the product or install any
additional elements that are not provided by the manufacturer.
IMPORTANT! It is prohibited to dry clothes, items, objects, firewood, bath brooms, etc., on
the product surface.
IMPORTANT! Combustible objects shall be at least 500 mm from the surface of the
product, and highly inflammable ones - at least 1800 mm.
IMPORTANT! It is forbidden to leave children and animals unattended in the immediate
vicinity of the grill.
IMPORTANT! The grill shall be supervised all the time, even if only smoldering coals or hot
ashes are left. Do not entrust this responsible task to children.
IMPORTANT! Keep firelighters and other materials for lighting a fire out of the reach of
children.
IMPORTANT! It is forbidden to lean on or to recline on the product and its parts, to use as
a support for various structures.
IMPORTANT! Vegetable oils used for cooking shall be stored in closed containers and shall
not be placed on or near the grill.
It is preferable to use natural materials such as birch bark, wood chips, etc. as firelighters.
Make sure that you have the necessary fire extinguishing equipment within easy reach.
Persons authorized to use the product shall be trained in the use of this equipment.
ASSEMBLING
IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the
possibility of damage to the paint coating.

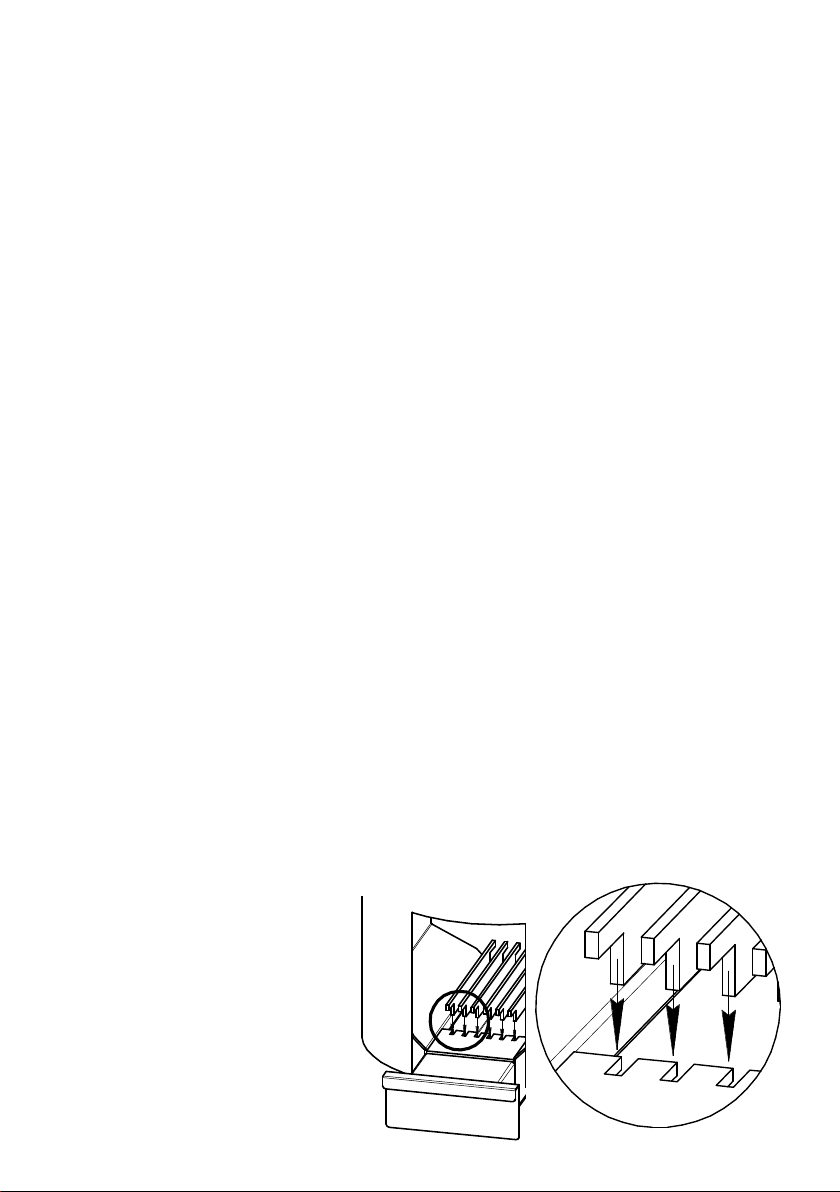

The grate
The grate consists of six
separate plates. A separate
seat is provided
for each plate.

Ash drawer
Place of installation and installation
method for the ash drawer are shown in
the figure.

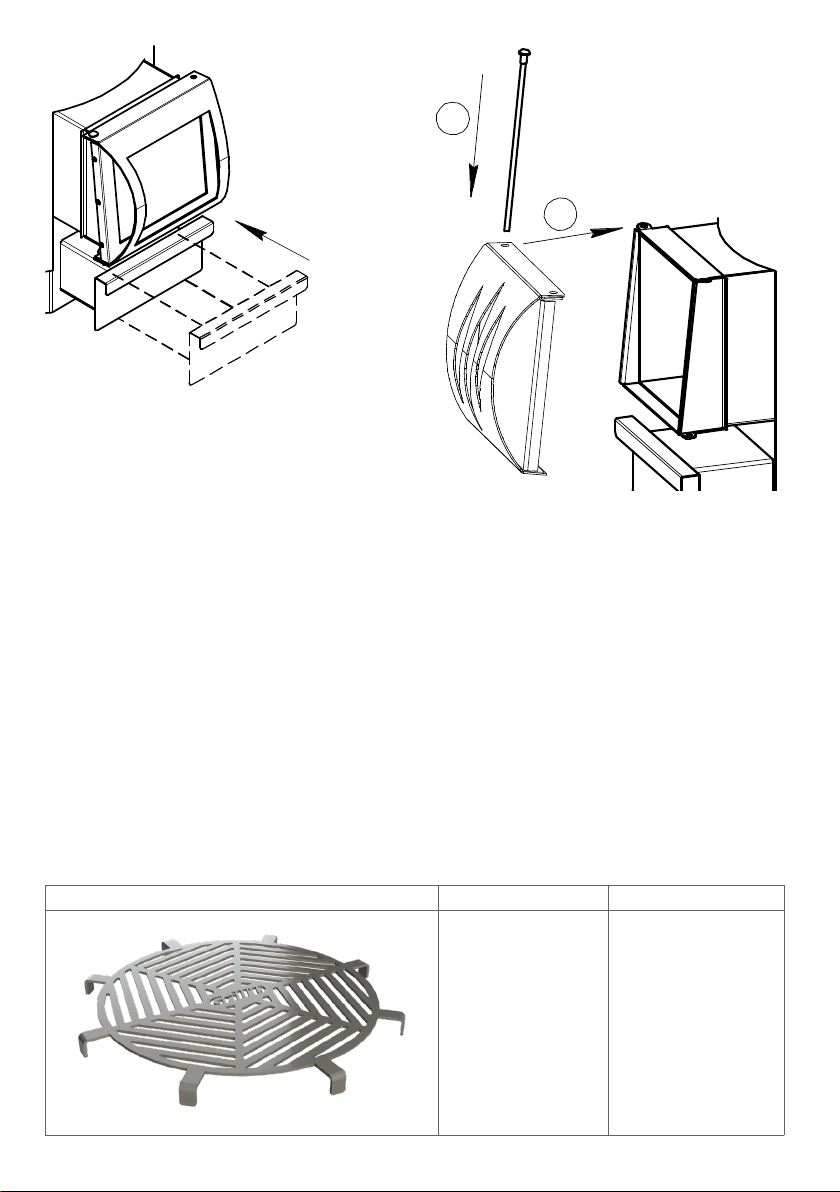

Door
The firebox door can be mounted in such ways that it will open either to the right, or to the
left. To do so, you need to pull out the metal pin, which is fixed to the door, and carefully
remove the metal spacer installed under the door.
Further:
1) Choose the door opening direction and mount the door onto the seat. The spacer shall be
installed on the hole under the door.
2) Fix the door in this position via the metal pin.
1
2
ADDITIONAL EQUIPMENT
The wok stand can be additionally equipped with some equipment from the factory of
origin:
Type Name Application
Master-kazan grill grate Is used for cooking
dishes on the grill

INSTALLATION
The product shall be installed on a flat, solid surface
that can withstand its load.
Concrete floor without finish
It can be installed on the floor without any special
precautions, if the concrete thickness is not less than
60 mm. There shall be no electrical cables, water
supply and sewage pipes in the concrete under the
product.
Floor with tile finish
The materials such as glue, waterproofing and so on,
laid under the tiles, are not resistant to heat radiation.
You can use special racks to protect the floor under the
product.
Floor made of combustible materials
You can use special racks to protect the floor under the
product or arrange an understructure rack consisting
of layers of heat-insulating, non-combustible, heat-
reflecting materials of sufficient thickness. In case
the floor in front of the product door is made of
combustible material, it is necessary to install floor
protection made of non-combustible material.
IMPORTANT! Make sure that the floor is capable of
withstanding the product load. Take measures, if
necessary.
Heat-resistant
steel pipe 0.5 mm
L1000 (D115 )
The element used to set
the required length of
the chimney flue, and
thereby improve draft
in the event that the
standard design is not
enough under current
operating conditions
90° elbow, 5 segments,
heat-resistant steel
0.5 mm (D115 )
Is used to change the
chimney flue direction
by 90°

COMMISSIONING
It is recommended to preheat the product prior to operation. Compound for metal
protection and volatile components of the heat-resistant enamel evaporate as a result of
heating up.
Note: remove all packing elements and paper stickers before the first heating up of the
stand.
The preferable option for heating up is outdoors, away from combustible surfaces and
materials, in compliance with fire safety measures and safe work practices.
Put 3-4 logs into the firebox, and start up a fire. Add firewood into the firebox as it is
consumed. Continue heating up until smoke and odor disappear.
IMPORTANT! It is necessary to avoid the chance of mechanical impact and ingress of
water on the paint coating of the product during the first heating up.
IMPORTANT! Do not heat the product red hot, as this will reduce its service life. Control
the draft by adjusting the ash drawer gap.
IMPORTANT! Install the product on the place of permanent operation only after complete
cooldown.
IMPORTANT! Make sure that all safety distances around the product are observed. There
shall be no electrical appliances, cables, melting and flammable materials within the
safety distances. Consider the safety distances from the chimney during installation!
COMBUSTION MATERIAL AND OPERATION
Recommended fuel type: hardwood with a moisture content not more than 25%.
IMPORTANT! Different fuel types have different heat of combustion. When a large amount
of firewood with a high heat of combustion is burned, as well as when the product is
operated at a constant excessive draft, the product service life decreases.
IMPORTANT! The following is prohibited to be used as fuel:
‒ combustible materials with a high heat of combustion (coal, wood chipboard, plastic,
pellets, and so on);
‒ painted or impregnated wood;
‒ waste (plastic, rubber, textiles, leather, etc.).
IMPORTANT! The following is prohibited:
‒ using explosive, toxic, highly flammable substances, paints, solvents, gasoline, etc., to
ignite the firewood;
‒ operating the product at a constant excessive draft in the firebox.
IMPORTANT! Partial burning out of heat-resistant enamel is possible on the most
thermally loaded elements of the product during operation, which is not a manufacturing
defect. The firebox metal may become slightly deformed during the product operation,
which is not a manufacturing defect provided the integrity of weld joints is preserved.

WARRANTY
The warranty period from the date of sale is 12 months.
If the Consumer detects a non- compliance of the Product with the specified properties, the
Consumer has the right to address a claim to the Company that sold the Product. However,
the Company has the right to contact the Manufacturer to resolve issues regarding the
Claim. The Manufacturer undertakes to improve the entire Product or its part (as decided
by the Manufacturer) free of charge, replace the entire Product, its components, parts,
compensate for the damage in any other way (as agreed with the Consumer), if the defect
occurred during the warranty period or due to the Manufacturer’s fault.
Should the Consumer make alterations to the entire Product, its component(s), parts, then
warranty obligations do not apply to the Product. Thereafter, the warranty does not apply to
elements that are subject to periodic replacement during operation.
The Product warranty is not provided in case of violation by the Consumer of the
requirements specified in the Operation Manual, technical requirements for installation and
operation of the Product. The above violations by the Consumer release the Manufacturer
from responsibility.

The Manufacturer disclaims warranty liability in the absence of a store stamp.
QCD mark: _________________________________________________________________
(Name, signature, stamp)
Date of sale: ________________________________________________________________
(Date, Seller’s signature, store stamp)
I have read and understood this manual: ________________________________________
(Buyer’s signature)
