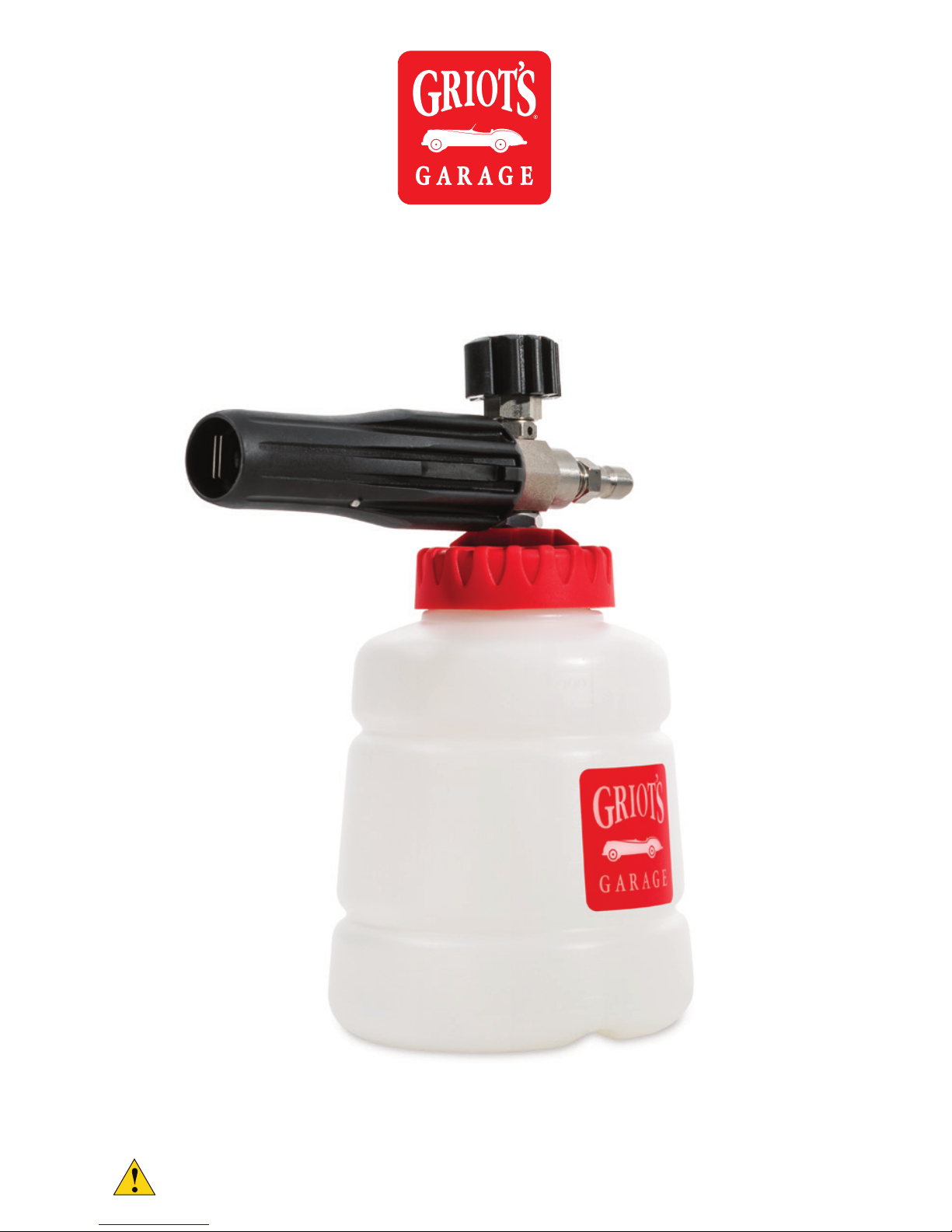

THE BOSS™Foam Cannon
User’s Manual and Care Instructions
THE BOSS™Foam Cannon
Please carefully read, understand, and follow all safety information in this manual prior
to and during use of this tool. Keep these instructions handy for future reference.
2
Please carefully read, understand, and follow all safety information in this manual
prior to and during use of this tool. Keep these instructions handy for future reference.
IMPORTANT SAFETY INFORMATION
INTENDED USE
The Griot’s Garage THE BOSS™Foam Cannon is designed to be used as a cleaning tool. It
combines a high-pressure flow of water mixed with air and a detergent to deliver rich clinging
foam. Do not exceed water pressures higher than 2,600 psi and always wear appropriate
safety equipment. Use in any unapproved manner or with inappropriate chemicals could lead
to unsafe operating conditions.
GENERAL TOOL SAFETY WARNINGS
Warning: Please read, understand, and follow all safety information contained
in these instructions prior to the use of this tool. Failure to follow the warnings
and instructions may result in serious injury. The term “tool” in the warnings refers
to your Griot’s Garage THE BOSS™Foam Cannon. Retain these instructions for
future reference.
1. Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Keep children and bystanders away while operating tool. Distractions can cause
you to lose control.
c) Use caution while walking on wet surfaces.
2. Personal & Tool Usage Safety
To reduce the risk associated with high-pressure water and other mechanical
forces, everyone using, installing, repairing, maintaining, changing accessories
on, or working near this tool must read and understand these instructions before
performing any such task.
a) Practice safety requirements. Work alert, have proper attire, and do not operate
tools under the influence of alcohol or drugs.
b) Operators and other personnel must always wear protection for eyes and ears
when in the work area or while operating a pressure washer unit. Follow your
employer’s safety policy for PPE’s and/or ANSI Z87.1 or local/national standards
for eye-wear and other personal protective equipment requirements.
c) The tool creates reactive forces on spray attachment in a direction opposite to
the direction of the spray (recoil or kickback). Hold the spray attachment firmly
with both hands in order to control the reactive forces.
d) Your pressure washer causes considerable noise pressure. Please wear hearing
protection in order to avoid potentially damaging sound exposure.
e) Chemical detergents may contain harmful (toxic, caustic, irritant), flammable or
explosive substances. In the event of skin or eye contact with detergent, flush
the affected body parts with plenty of clean water immediately. If detergent is
swallowed, seek medical attention immediately. Consult manufacturer’s Safety
Data Sheet (SDS) for warnings, instructions, and medical response.
f) NEVER point THE BOSS™Foam Cannon towards the face or body of you or
anyone else.
g) Never operate THE BOSS™Foam Cannon with more than 2,600 psi.
h) Keep THE BOSS™Foam Cannon out of reach of children.
i) This tool must not be modified.
j) Always disconnect tool from pressure washer lance prior to adding detergent,
making changes to metering tips or repairing.
3
USAGE
A pressure washer featuring a minimum of 1.8 GPM flow and 1,100 psi or 1,980
CU (Cleaning Units = gpm x psi) is required for the cannon to function as intended.
Warning: Check to ensure the tool is compatible with your pressure washer’s
operating specifications. Must not exceed the maximum pressure, flow, and
temperature ratings of the product.
SETUP
Determine the adaptor type your equipment requires. We offer the two most
common adaptors manufactured in fine stainless steel:
• Stainless Steel Threaded Direct Adapter:
Dual-threaded - M22-
3
⁄
8
M Item # 81240B
• Stainless Steel Quick Disconnect Coupler:
1
⁄
4”
Male Item # 81240A
Both adapters feature pre-installed red pipe thread sealant. Simply thread into
cannon and securely tighten using a 14mm or
9
⁄
16”
Box Wrench.
DETERGENT DISPENSING METHOD
THE BOSS™Foam Cannon features two detergent dispensing methods:
1. Auto-Mix Method
Remove jar from cannon, pour concentrate into jar or screw on Griot’s Garage 35oz.
bottle to internal cap threads. Select the appropriate metering tip from the chart on
the back page and insert snugly into the pick-up ball at the bottom of the poly-tube.
Note: Tip will be dependent on the type of pressure washer you have. (See AUTO-
MIX tip recommendation chart below)
2. Manual-Mix Method
Dispensing of pre-mixed, ready-to-use (RTU) solution (Water : Detergent). This is the
typical method, requiring the user to pre-mix a concentrate prior to use. Traditional
products require 2-3 ounces of concentrate, while BOSS™Foaming System products
are to be diluted 20:1, using 1.6oz of concentrate to water (32oz). See reference
chart of common applications of Griot’s Garage products on back page.
MAINTENANCE
Caution: With poor maintenance, failure may occur following one use.
Following every use, prior to storage, rinse cannon thoroughly with clear water.
Rinse cup out and add clear water, then run cannon until foam ceases and is no
longer visible. Failure to thoroughly flush cannon will lead to premature failure of
the stainless steel foaming mesh.
SERVICE
Should the foam cannon’s foam output diminish or seize during normal operation,
the Stainless Steel Foaming Mesh will require replacement. Use Griot’s Garage
replacement parts only – THE BOSS™ Foam Cannon REBUILD KIT - Item # BFKIT.
AUTO-MIX METHOD TIP RECOMMENDATION CHART
Pressure Washer PSI Rating Cleaning Units (CU) Tip Color
Gas-Powered Pressure Washer 2,200 - 2,600 psi 4,000 - 7,500 Pink
Electric Pressure Washer 1,100 – 2,200 psi 1,980 - 4,000 Purple
Maximum Foam (pressure washer) Aqua
MANUAL-MIX METHOD RATIOS USING 33.8 OZ JAR
Product Dilution Ratio Water (oz.) Concentrate (oz.)
BOSS™Foaming Surface Prep 20:1 32 1.6
BOSS™Foaming Surface Wash 20:1 32 1.6
BOSS™Foaming Poly Gloss 20:1 32 1.6
Iron & Fallout Remover RTU 0 33.8
Super-Concentrated Car Wash 15:1 30 2
Brilliant Finish™Car Wash 10:1 30 3
Best of Show™Wash & Wax 10:1 30 3
Convertible Top Cleaner 10:1 30 3
Product Use
All statements, usage recommendations, and technical information contained in this manual are
based on tests or development that Griot’s Garage has deemed reliable. However, many factors beyond
Griot’s Garage’s control can affect the use and performance of this Griot’s Garage product in a certain
application, including conditions under which the Griot’s Garage product is used and the time and
environmental conditions in which the product is expected to perform. Since these factors are uniquely
in the user’s knowledge and control, it is the responsibility of the user evaluate the Griot’s Garage
product to determine whether it is suitable for a particular purpose and the user’s method of application
Warranty
• Griot’s Garage Lifetime Guarantee - Griot’s Garage will repair or replace any defective tool, without
charge, due to faulty materials or workmanship for the working life of the tool, subject to certain
exclusions below.
• Six Month Satisfaction Guarantee - We want you to enjoy our quality product and have fun with it! If
you’re not 100% satisfied for any reason within six months of purchase, return it to point of sale with
proof of purchase for a full refund or credit.
Exclusions
• Griot’s Garage Lifetime Guarantee does not cover damage caused by failure to follow recommended
maintenance, misuse, alteration or abuse. Normal wear and tear is not considered a defect, therefore
part failure which may occur as the result of ordinary use is excluded from coverage. NOTE: Failure
to properly flush unit following use, leading to clogged Stainless Steel Foaming Mesh is not covered
under warranty. Replacement parts are available for purchase.
• Griot’s Garage is not responsible for any incidental or consequential damages.
Disclaimer
Limitation of Liability. In no event shall the monetary liability of company exceed amounts that have
actually been paid to company. Company shall not be liable for consequential, indirect, special, or
incidental damages under any circumstances, even if advised in advance of the possibility of such
damages.
Answers To Your Questions
To order additional air compressor accessories and products, or for a complete selection of Griot’s
www.griotsgarage.com.
Have fun in your garage!®
Griot’s Garage, Inc. • 3333 South 38th Street • Tacoma, WA 98409
800-345-5789 • griotsgarage.com
©2018 Griot’s Garage Inc.
