Grizzly G8220 User manual

WET/DRY BENCH GRINDER
MODEL G8220
INSTRUCTION MANUAL
COPYRIGHT ©2000 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
JANUARY, 2000. PRINTED IN TAIWAN

G8220 Wet/Dry Bench Grinder -1-
Table Of Contents PAGE
1. SAFETY
SAFETY INSTRUCTIONS FOR POWER TOOLS ................................................2-3
ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDERS......................................4
2. CIRCUIT REQUIREMENTS
110V OPERATION ....................................................................................................5
FUSING......................................................................................................................5
EXTENSION CORDS ................................................................................................5
GROUNDING ............................................................................................................5
3. INTRODUCTION
COMMENTARY ........................................................................................................6
UNPACKING ..............................................................................................................7
PIECE INVENTORY ..................................................................................................7
SITE CONSIDERATIONS ..........................................................................................8
4. ASSEMBLY

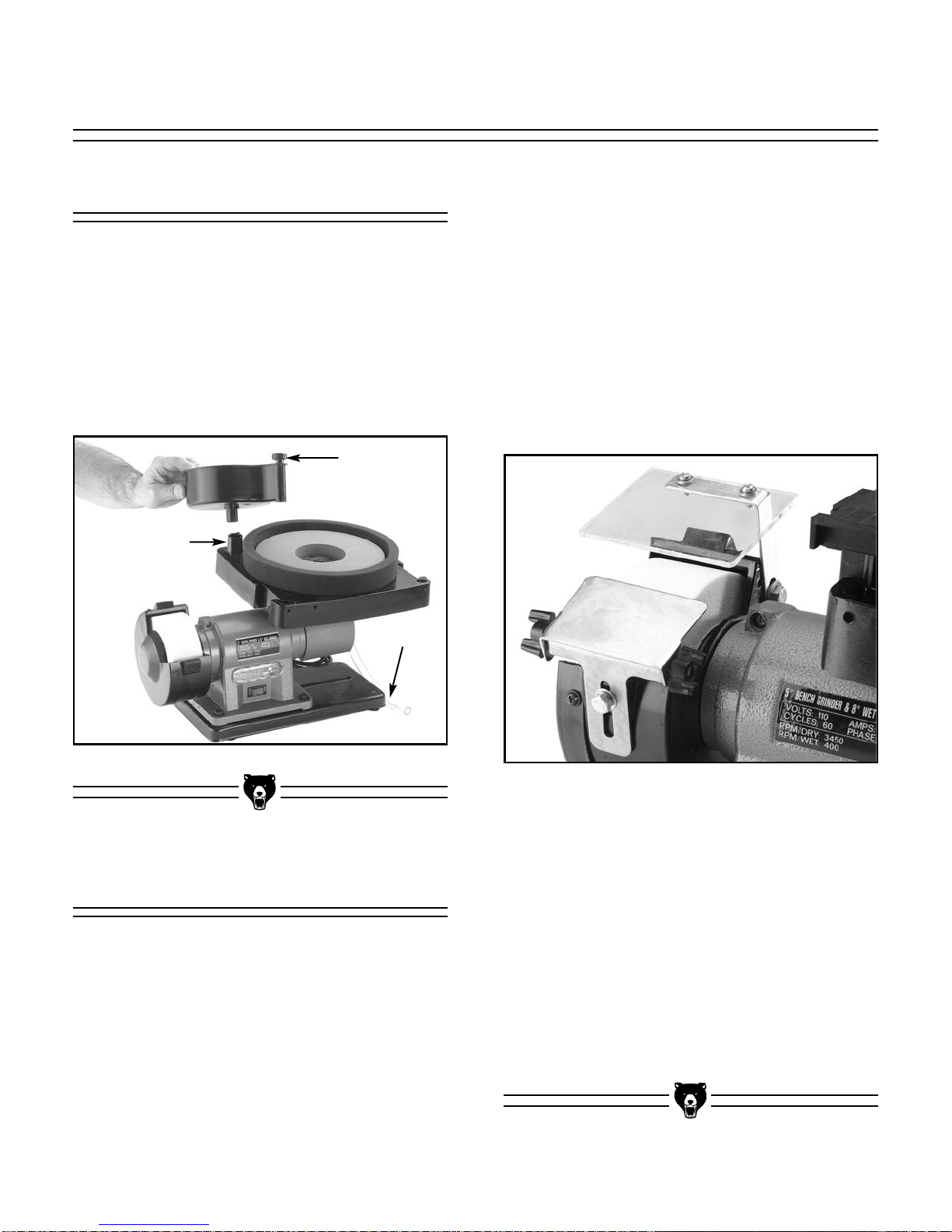

WATER RESERVOIR ................................................................................................9
TOOL REST/EYE SHIELD ........................................................................................9
TOOL REST - WET WHEEL....................................................................................10
5. OPERATIONS
OVERVIEW ..............................................................................................................11

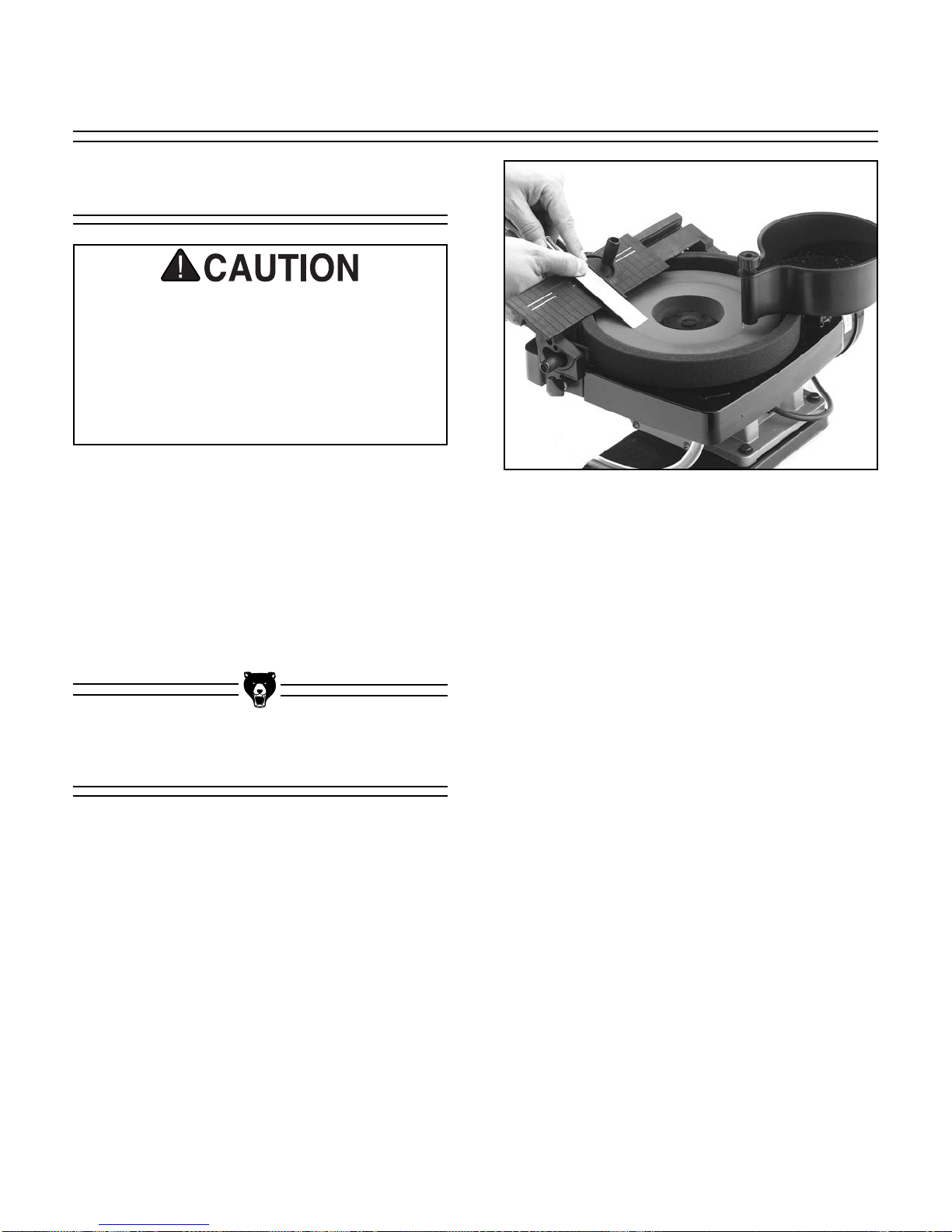

WET WHEEL GRINDING ........................................................................................11
DRY WHEEL GRINDING ........................................................................................12
6. MAINTENANCE

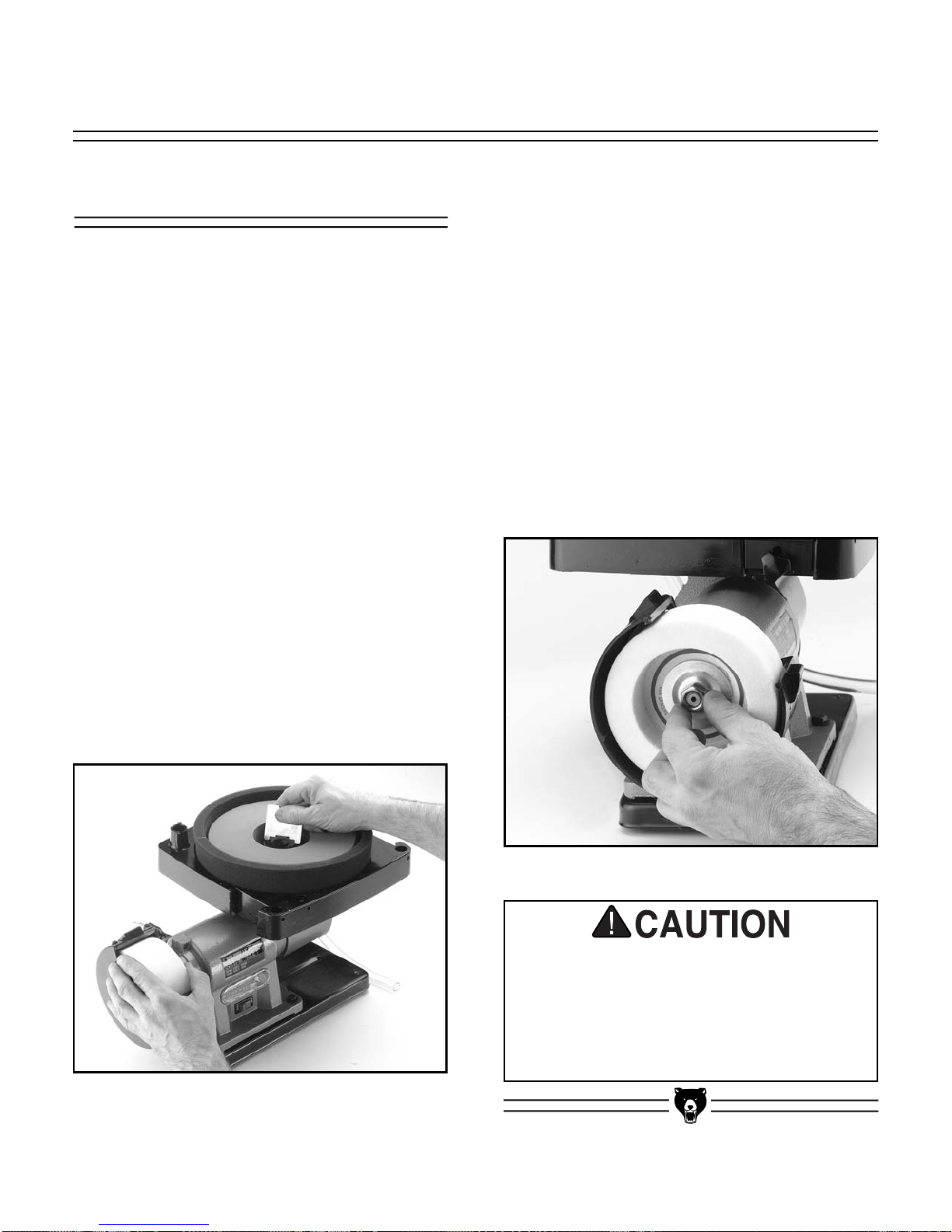

WHEEL REMOVAL ..................................................................................................13
7. CLOSURE ....................................................................................................................14
MACHINE DATA SHEET....................................................................................................15

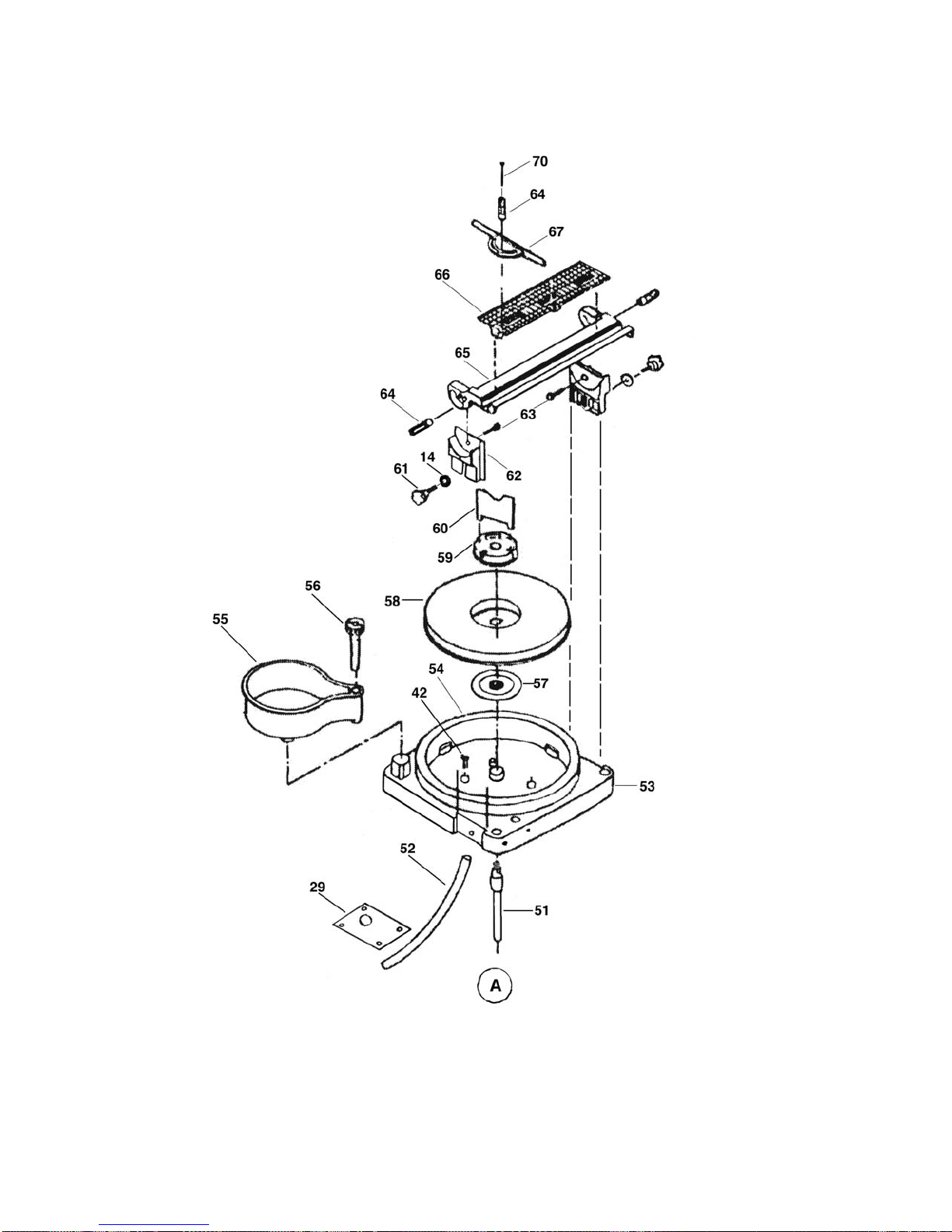

PARTS BREAKDOWN..................................................................................................16-18
WARRANTY AND RETURNS ........................................................................BACK COVER

-2- G8220 Wet/Dry Bench Grinder
Safety Instructions For Power Tools
SECTION 1: SAFETY
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept a safe distance from work area.
6. MAKE WORK SHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. DON’T FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRON-
MENT. Don’t use power tools in damp or
wet locations, or where any flammable or
noxious fumes may exist. Keep work area
well lighted.
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not
avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, MAY result in minor or moderate injury. It may also
be used to alert against unsafe practices.
This symbol is used to alert the user to useful information
about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words which are intended to convey the level
of importance of the safety messages. The progression of symbols is described below.
Remember that safety messages by themselves do not eliminate danger and are not a substi-
tute for proper accident prevention measures.
NOTICE

G8220 Wet/Dry Bench Grinder -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condi-
tion. Conductor size should be in accor-
dance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause a
drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace exten-
sion cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear
is recommended. Wear protective hair cov-
ering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT safe-
ty glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than
using your hand and frees both hands to
operate tool.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
Safety Instructions For Power Tools
13. DON’T OVERREACH. Keep proper foot-
ing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubri-
cating and changing accessories.
15. DISCONNECT TOOLS before servicing
and changing accessories, such as blades,
bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTION-
AL STARTING. Make sure switch is in off
position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, bind-
ing of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNAT-
TENDED. TURN POWER OFF. Don’t
leave tool until it comes to a complete stop.

-4- G8220 Wet/Dry Bench Grinder
Additional Safety Instructions For Grinders
1. Wear a face shield and/or safety gog-
gles.
2. Use clamps and supports to sharpen
tools.
3. Grinding creates sparks. Make sure
your work area is free of combustible
materials.
4. Dress the grinding wheel when its sur-
face becomes rutted or uneven.
Replace the wheel if the wear or dam-
age becomes excessive.
5. Do not use a wheel that is cracked or
chipped.
6. Be sure the grinder is mounted on a
stable surface.
7. If you are unclear about operating the
machine, don’t use it. Please call our
service department if you have ques-
tions about any element of this
machine’s operation.
8. Use care when handling sharpened cut-
ting tools.
Operating this equipment has the potential
to propel debris into the air which can
cause eye injury. Always wear safety glass-
es or goggles when operating equipment.
Everyday glasses or reading glasses only
have impact resistant lenses, they are not
safety glasses. Be certain the safety glass-
es you wear meet the appropriate stan-
dards of the American National Standards
Institute (ANSI).
Like all power tools, there is danger asso-
ciated with the Model G8220 Wet/Dry
Bench Grinder. Accidents are frequently
caused by lack of familiarity or failure to
pay attention. Use this tool with respect
and caution to lessen the possibility of
operator injury. If normal safety precau-
tions are overlooked or ignored serious
personal injury may occur.
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
son injury, damage to equipment or poor
work results.

G8220 Wet/Dry Bench Grinder -5-
110V Operation
SECTION 2: CIRCUIT REQUIREMENTS
A 15-amp fuse or circuit breaker should be used
when connecting this Bench Grinder. Circuits
rated any higher are not adequate to protect the
motor from power surges.
Equipment returned to us for service that shows
evidence of being over-fused will be repaired or
replaced totally at the customer’s expense,
regardless of the present warranty status.
Fusing
If you find it necessary to use an extension cord
with the Model G8220, make sure the cord is
rated Hard Service (grade S) or better. Refer to
the chart in the standard safety instructions to
determine the minimum gauge for the extension
cord. The extension cord must also contain a
ground wire and plug pin. Always repair or
replace extension cords when they become worn
or damaged.
Extension Cords
Grounding
This equipment must be grounded. Verify
that any existing electrical outlet and circuit
you intend to plug into is actually ground-
ed. If it is not, it will be necessary to run a
separate 12 A.W.G. copper grounding wire
from the outlet to a known ground. Under
no circumstances should the grounding pin
from any three-pronged plug be removed.
Serious injury may occur.
In the event of an electrical short, grounding
reduces the risk of electric shock by providing a
path of least resistance to disperse electric cur-
rent. This tool is equipped with a power cord hav-
ing an equipment-grounding conductor. See
Figure 1. The outlet must be properly installed
and grounded in accordance with all local codes
and ordinances.
The Model G8220 is wired for 110V, single phase
operation only. The 1⁄4 HP motor will draw 1 amp
at 110V. If you operate this grinder on any circuit
that is already close to its capacity, it might blow
a fuse or trip a circuit breaker. However, if an
unusual load does not exist and a power failure
still occurs, contact a qualified electrician or our
service department.
Figure 1. Grounded plug configuration.

-6- G8220 Wet/Dry Bench Grinder
SECTION 3: INTRODUCTION
We are proud to offer the Grizzly Model G8220
Wet/Dry Bench Grinder. The Model G8220 is part
of a growing Grizzly family of fine woodworking
machinery. When used according to the guide-
lines set forth in this manual, you can expect
years of trouble-free, enjoyable operation and
proof of Grizzly’s commitment to customer satis-
faction.
The Model G8220 incorporates two different
grinding media into one package. A 77⁄8" diameter
horizontally mounted wheel turns at 400 RPM
with a water feed system to keep the item being
ground cool and to maximize the sharpening
capability. This wheel has an adjustable rest and
miter gauge to make perfect bevels an easy task.
A second 47⁄8" diameter, fully guarded wheel
operating at 3450 RPM has an adjustable tool
rest and shield for coarse grinding.
We are also pleased to provide this manual with
the Model G8220. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It repre-
sents our effort to produce the best documenta-
tion possible. If you have any comments regard-
ing this manual, please write to us at the address
below:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Fax: [phone]
E-Mail: [email protected]
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G8220 as supplied when the manual was pre-
pared. However, owing to Grizzly’s policy of con-
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
Whenever possible, though, we send manual
updates to all owners of a particular tool or
machine. Should you receive one, we urge you to
insert the new information with the old and keep
it for reference.
To operate this, or any power tool, safely
and efficiently, it is essential to become as
familiar with its characteristics as possible.
The time you invest before you begin to use
your Model G8220 will be time well spent.
DO NOT operate this machine until you are
completely familiar with the contents of this
manual. Make sure you read and understand
all of the safety procedures. If you do not
understand something, DO NOT operate the
machine.
Commentary

G8220 Wet/Dry Bench Grinder -7-
Unpacking
This Wet/Dry Bench Grinder is shipped from the
manufacturer in a carefully packed carton. If you
discover the machine is damaged after you’ve
signed for delivery, and the truck and driver are
gone, you will need to file a freight claim with the
carrier. Save the containers and all packing mate-
rials for possible inspection by the carrier or its
agent. Without the packing materials, filing a
freight claim can be difficult. If you need assis-
tance determining whether you need to file a
freight claim, or with the procedure to file one,
please contact our Customer Service.
When you are completely satisfied with the con-
dition of your shipment, you should inventory its
parts.
Piece Inventory
NOTICE
A full parts list and illustrated breakdown can
be found toward the end of this manual. For
easier assembly, or to identify missing parts,
please refer to this section.
After all the parts have been removed from the
carton, you should have:
• Grinding Machine w/Wheels Installed
• Water Reservoir and Valve
• Plastic Tube
• Blade Rest Assembly
• Blade Rest Mounting Hardware
• Tool Rest
• Tool Rest Mounting Hardware
• Eye Shield Assembly and Hardware
• Wheel Wrench
In the event that any non-proprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or, for the sake of expedi-
ency, replacements can be obtained at your local
hardware store.

-8- G8220 Wet/Dry Bench Grinder
Site Considerations Notes
BENCH MOUNTING
Your G8220 Wet/Dry Grinder is designed to be
used on a workbench. Make sure it is positioned
at a comfortable working height. The machine
can be permanently mounted to a bench by
removing the base and using the four holes in the
motor body to secure it directly to the surface of
a bench.
WORKING CLEARANCES
Working clearances can be thought of as the dis-
tances between machines and obstacles that
allow safe operation of every machine without
limitation. Ensure that your working area offers
plenty of room for free movement and a substan-
tial amount of distance between you and others
that may be working in your shop space.
LIGHTING AND OUTLETS
Lighting should be bright enough to eliminate
shadow and prevent eye strain. Electrical circuits
should be dedicated or large enough to handle
combined motor amp loads. Outlets should be
located near each machine so power or exten-
sion cords are not obstructing high-traffic areas.
Be sure to observe local electrical codes for prop-
er installation of new lighting, outlets, or circuits.
Make your shop “child safe”. Ensure that
your workplace is inaccessible to young-
sters by closing and locking all entrances
when you are away. Never allow visitors in
your shop when assembling, adjusting or
operating equipment.

G8220 Wet/Dry Bench Grinder -9-
SECTION 4: ASSEMBLY
Tool Rest/Eye Shield
To assemble the Eye Shield:
1.Take the L-shaped bracket and position it
so the holes line up and the bracket is on
the underside of the plastic shield.
2. Use the two (2) combination head screws,
washers and nuts to secure the L-bracket
in place.
3. Attach the assembled Eye Shield to the
right side of the wheel guard using the
short hex head bolt and washer.
Water Reservoir
Insert the water valve into the hole in the Water
Reservoir. Attach the Water Reservoir to the
post behind the wet grinding wheel. Position the
water drip over the center of the grinding surface.
Attach the clear plastic drain pipe to the fitting
which in on the underside of the wet wheel hous-
ing.
Figure 2. Mounting water reservoir.
The Tool Rest attaches to the front of the dry
grinding wheel. It is adjustable for height and for
angle to provide a steady platform for a variety of
grinding angles and sizes. Refer to Figure 3 for
general orientation of the Tool Rest and Eye
Shield.
Figure 3. Dry wheel guard and rest positioning.
To assemble the Tool Rest:
1. Take the T-shaped bracket and position it
between the tabs on the underside of the
Tool Rest.
2. Secure the bracket to the rest with two (2)
hex head bolts and the wing nuts which
have a plastic knob.
3. Attach the assembled Tool Rest to the
Wheel Guard using a hex head bolt and
washer.
Water Valve
Mounting Post
Drain Pipe

-10- G8220 Wet/Dry Bench Grinder
Tool Rest-Wet Wheel
The large horizontally mounted wet grinding
wheel also has a tool rest situated over it to aid
the user in the grinding operations:
1. Position the two support brackets in the
wide grooves which are located on each
side of the water tray. The recess in the
shape of a half circle should be facing out-
ward on each side. See Figure 4.
Figure 4. Mounting rest holder.
Figure 5. Mounting tool rest.
2. Thread a locking knob with washer through
the hole in the bottom of the holder and into
the water tray body. These knobs control
the overall height of the tool rest assembly.
3. Set the tool rest into the half circle recess-
es. The sliding tool rest should already be
assembled onto the holder, if it is not, slide
the tool rest into the groove. It only goes
one way as there is a tab preventing incor-
rect installation. The miter gauge also
should already be positioned on the sliding
tool rest.
4. Attach the tool rest assembly to the support
brackets. Using the M4-.7 x 30mm Hex
Head Bolt, push the bolt through from the
inside of the holder and secure a knob to it
on the outside. See Figure 5. These two
knobs control the angular adjustment of the
tool rest. The hex heads will lock into a
recess molded into the inside of the brack-
et.

G8220 Wet/Dry Bench Grinder -11-
SECTION 5: Operations
The dry wheel supplied with the G8220 is an 80
grit Aluminum Oxide wheel good for heavy mate-
rial removal and for roughing in to approximate
dimensions. The wet wheel is a very fine 1000
grit which, along with the water supply, allows
fine grinding and honing to very precise edges.
Choose the wheel and grinding method appro-
priate for your grinding needs.
naturally generated during the grinding process.
Secondly, the water acts as a lubricant for the
grinding process improving the cutting character-
istics of the fine grit wheel. As you begin grinding,
adjust the water flow so there is a steady drip
onto the surface of the wheel, close to the inner
edge. Make sure the drain pipe coming out the
underside of the water tray is directed so it is
going into some type of container.
Plug the machine in and turn the motor on. Allow
the wheel to get up to full operating speed before
beginning the grind. Introduce the item to the
wheel slowly and carefully, making sure it is fully
supported against the tool rest and miter gauge.
For some types of grinds, it may be necessary to
sweep the item across the wheel surface by slid-
ing the tool rest across the holder. Always lift the
item off the surface when returning to the starting
point of the sweep. Do not let the workpiece get
too hot during grinding. If heat is increasing, slow
down the rate of grind, or turn up the water flow.
High heat will destroy the temper of the metal
and will make it impossible to hold an edge.
Use extreme caution when sharpening any
type of knife, both during and after sharp-
ening. Make certain the knife is fully sup-
ported by the rest before bringing it into
contact with the wheel. Failure to exercise
care while working near knives could result
in severe injury.
Overview
Wet Wheel Grinding
There are three adjustments necessary to get the
proper grinding angle. Tool rest height, tool rest
angle, and miter gauge angle must all be adjust-
ed to get the proper angle of attack on the grind-
ing wheel. Be sure the machine is off and
unplugged. Lay the item to be ground on the rest
and lay it against the stationary wheel. Adjust all
three elements until the blade contacts the wheel
in the proper orientation. A typical set up for a
bevel tip chisel is shown in Figure 6.
The water reservoir allows the operator to drip
water onto the wheel during the grinding process.
The water serves two purposes. One is to provide
a certain amount of cooling for the heat which is
Figure 6. Typical wet wheel grinding operation.

-12- G8220 Wet/Dry Bench Grinder
Long straight types of blades such as jointer or
planer knives can also be sharpened on this
machine as well. Position the blades as shown in
Figure 7, with the miter gauge set at a zero
angle. For this type of operation, it is necessary
to sweep the blade edge across the wheel. The
sliding table retained in the groove of the tool
rest holder allows for this sweeping action. Allow
the blade edge to push the circular foam materi-
al down, this is perfectly acceptable and helps to
insure the water does not spin off the wheel.
Maintain a constant and steady pressure
throughout the entire range of the sweeping
action to ensure that the blade is evenly ground
all the way to its edges. Be sure to avoid over-
heating the blades during grinding.
Figure 7. Grinding long knives.
Figure 8. Grinding on dry wheel.
Adjust the angle of the Tool Rest by loosening
the two lock knobs. The angle can also be affect-
ed by raising or lowering the entire Tool Rest
assembly by loosening the hex bolt at the front of
the wheel guard. Once you have achieved the
angle necessary for the item to be ground, make
certain all the adjustment knobs and bolts are
tightened so the rest will not move during grind-
ing.
Position the Eye Shield so it will cover the grind-
ing area. The Eye Shield can be moved up and
down, as well as back and forth, to get it in a
position where sparks will not fly up in the oper-
ator’s face. Tighten the adjusting bolt.
For dry grinding, it may be helpful to have a tray
of water handy for quenching the piece when it
builds up heat in the grinding process. Similar to
the wet wheel process, quenching keeps the
ground item from losing its temper by keeping
the temperature down.
Turn the grinder on and allow the wheel to come
up to full speed. Place the item to be ground
firmly on the Tool Rest and introduce it slowly
into the wheel. Grinding should be done lightly
and for short duration to avoid damage to the
tool you’re working with.
Use extreme caution when working near
rotating grinding wheels. Accidental con-
tact with the wheel can cause cuts and
abrasions. The spinning wheels can also
propel items which are not firmly support-
ed. Failure to exercise care while working
near grinding wheels could result in severe
injury.
Dry Wheel Grinding
Sweep back
and forth

G8220 Wet/Dry Bench Grinder -13-
SECTION 6: MAINTENANCE
After prolonged use, you may find it necessary to
replace the grinding wheel. New wheels for the
Model G8220 are available through the Grizzly
catalog. Check the latest catalog for ordering and
price information.
Changing the wet wheel:
1. Remove the Tool Rest assembly.
2. Remove the Water Reservoir.
3. Remove the wheel mounting nut. See
Figure 9. A special wrench is supplied to
remove the wet wheel. Hold the wheel from
turning by holding the dry wheel with your
other hand. Note the threading direction
area molded into the top of the nut.
4. Lift the wheel off of the spindle.
5. When installing the new wheel, make sure
the flat on the wheel plate is engaged on
the spindle. Reinstall the mounting nut.
Never allow visitors into your shop while
assembling, operating, or maintaining tools
and machinery. Keep your shop child-safe
by locking up securely when not in use, and
by providing proper supervision when chil-
dren are present.
Wheel Removal
Figure 9. Removing wet wheel.
Figure 10. Removing dry wheel.
Changing the dry wheel:
1. Remove the three screws holding the
wheel cover in place.
2. Use a socket or open end wrench to
remove the nut on the wheel spindle.
3. Remove the wheel flange and the wheel
from the spindle. There is another wheel
flange on the back side of the wheel.
4. When installing the new wheel make sure
the wheel flanges are in place on both sides
of the wheel, with the convex portion of the
flange facing out. Reinstall the hex nut and
tighten.

-14- G8220 Wet/Dry Bench Grinder
The following pages contain general machine
data, parts diagrams, parts list and Warranty and
Return information for your Model G8220
Wet/Dry Bench Grinder.
If you need parts or help in assembling your
machine, or if you need operational information,
we encourage you to call our Service
Department. Our trained service technicians will
be glad to help you.
If you have comments dealing specifically with
this manual, please write to our Bellingham,
Washington location using the address in Section
3: Introduction. The specifications, drawings, and
photographs illustrated in this manual represent
the Model G8220 as supplied when the manual
was prepared. However, due to Grizzly’s policy of
continuous improvement, changes may be made
at any time with no obligation on the part of
Grizzly. Whenever possible, though, we send
manual updates to all owners of a particular tool
or machine. Should you receive one, add the new
information to this manual and keep it for refer-
ence.
We have included some important safety mea-
sures that are essential to this machine’s opera-
tion. While most safety measures are generally
universal, Grizzly reminds you that each work-
shop is different and safety rules should be con-
sidered as they apply to your specific situation.
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the Service
Department listed in Section 3: Introduction
Additional information sources are necessary to
realize the full potential of this machine. Trade
journals, woodworking magazines, and your local
library are good places to start.
SECTION 7: CLOSURE
The Model G8220 was specifically designed
for knife grinding. DO NOT MODIFY AND/OR
USE THIS MACHINE FOR ANY OTHER PUR-
POSE. Modifications or improper use of
this tool will void the warranty. If you are
confused about any aspect of this machine,
DO NOT use it until you have answered all
your questions. Serious personal injury may
occur.
Operating this equipment has the potential
for flying debris, which can cause eye
injury. Always wear safety glasses or gog-
gles when operating equipment. Everyday
glasses or reading glasses only have
impact resistant lenses, they are not safety
glasses. Be certain the safety glasses you
wear meet the appropriate standards of the
American National Standards Institute
(ANSI).
Like all power tools, there is danger associ-
ated with the Model G8220 Wet/Dry Bench
Grinder. Accidents are frequently caused
by lack of familiarity or failure to pay atten-
tion. Use this tool with respect and caution
to lessen the possibility of operator injury.
If normal safety precautions are overlooked
or ignored, serious personal injury may
occur.

G8220 Wet/Dry Bench Grinder -15-
Customer Service #: [phone] • To Order Call: [phone] • Fax #: [phone]
GRIZZLY MODEL G8220 WET/DRY BENCH GRINDER
MACHINE DATA
SHEET
Design Type.................................................................................................... Bench Model
Overall Dimensions:
Height ....................................................................................................................113⁄4"
Length ......................................................................................................................12"
Width........................................................................................................................61⁄4"
Shipping Weight ..................................................................................................24 lbs.
Net Weight ..........................................................................................................22 lbs.
Box Size................................................................................183⁄4" L x 12" W x 111⁄2" H
Footprint ....................................................................................................173⁄4" x 103⁄4"
Grinding Wheel Specifications:
Wet Wheel
Type ⁄ Grit................................................................Type 50 Plate Mounted, 1000 Grit
Diameter ..................................................................................................................77⁄8"
Thickness....................................................................................................................1"
Bore ..........................................................................................................11⁄16" with flat
Wheel RPM..............................................................................................................400
Dry Wheel
Type ⁄ Grit ........................................................................Type 6, Straight Cup, 80 Grit
Diameter ..................................................................................................................47⁄8"
Thickness....................................................................................................................2"
Bore ..........................................................................................................................1⁄4"
Wheel RPM............................................................................................................3450
Motor:
Type ............................................................................TEFC Capacitor Start Induction
Horsepower ..........................................................................................................1⁄4 HP
Amps............................................................................................................................1
Phase ⁄ Voltage ............................................................................Single Phase ⁄ 110V
Cycle ⁄ RPM..................................................................................60 Hertz ⁄ 3450 RPM
Switch ..................................................................................................On ⁄ Off Rocker
Power Transfer ..........................................................................................Direct Drive
Bearings ................................................................Shielded & Permanently Lubricated
Features:
Includes adjustable tool rest for both wheels, eye shield, water reservoir, drain tube
and wheel wrench.
Specifications, while deemed accurate, are not guaranteed.
REVISED 1/00

-16- G8220 Wet/Dry Bench Grinder
G8220 MOTOR ASSEMBLY

G8220 Wet/Dry Bench Grinder -17-
G8220 UPPER ASSEMBLY

-18- G8220 Wet/Dry Bench Grinder
01 P8220001 SIDE GUARD
02 P8220002 COMBO HD LKG 10-24 X 5⁄8"
03 PN15 HEX NUT 9/16"-12
04 P8220004 WHEEL FLANGE
05 P8220005 GRINDING WHEEL 80 GRIT
06 P8220006 COMBO HD LKG 10-24 X 1⁄2"
08 P8220008 WHEEL GUARD
10 P8220010 TOOL REST
12 P8220012 WING NUT
13 P8220013 BRACKET - TOOL REST
14 PW03M FLAT WASHER M6
15 PLW02 LOCK WASHER 1⁄4"
16 PB02M HEX BOLT M6-1 X 12
17 P8220017 BRACKET - EYE SHIELD
18 PB15 HEX BOLT 5/16-18 X 3/8"
19 PN04M HEX NUT M4-0.7
20 PW05M FLAT WASHER 4MM
21 PS02M PHLP HD SCR M4-.7 X 12
22 P8220022 EYE SHIELD
23 P8220023 BUSHING
24 P6202 BALL BEARING 6202
25 P8220025 MOTOR STATOR
26 P8022026 MOTOR ROTOR
27 PSC1614 SPADE CONNECTOR
28 P8220028 CAPACITOR 8 MFD
29 P8220029 PLATE
30 P8220030 REAR BODY
31 P8220031 STRAIN RELIEF
32 PWRCRD110L POWER CORD 110V, LONG W/PLUG
33 P8220033 FRONT BODY
34 PB03 HEX BOLT 5/16-18 X 1
35 PW07 FLAT WASHER 5⁄16"
36 PS22 PHLP HD SCR 10-24 X 5⁄8"
37 P8220037 POWER SWITCH
38 P8220038 BASE
39 P8220039 BASE FOOT
40 PS01 PHLP HD SCR 10-24 X 1/2"
41 PRP22M ROLL PIN 4 X 32
42 PFH01 FLAT HD SCR 10-24 X 3/8
43 P8220043 WORM
44 P8220044 RING PLATE
45 P6200 BALL BEARING 6200
46 P8220046 GEAR BOX
47 PS24M PHLP HD SCR M6-1 X 10
48 PRP22M ROLL PIN 4 X 32
49 P8220049 WORM GEAR
50 P8220050 GEAR BOX COVER
51 P8220051 SPINDLE
52 P8220052 DRAIN HOSE
53 P8220053 WATER TRAY
54 P8220054 SPONGE
55 P8220055 WATER RESERVOIR
56 P8220056 WATER VALVE
57 P8220057 WHEEL MOUNT WASHER
58 P8220058 PLATE MTD WHEEL 1000
59 P8220059 WHEEL MOUNT NUT
60 P8220060 WRENCH
61 P8220061 LOCKING KNOB
62 P8220062 SUPPORT BRACKET
63 PB41M HEX BOLT M4-.7 X 30
64 P8220064 KNOB
65 P8220065 TOOL HOLDER
66 P8220066 TOOL REST WET WHEEL
67 P8220067 GUIDE
68 PR05M EXT RET RING 15MM
69 PW07 FLAT WASHER 5⁄16"
70 PS25M PHLP HD SCR M4-.7 X 30
REF PART # DESCRIPTION REF PART # DESCRIPTION
