Introduction
The Model T32733 Skew Grinding Attachment
allows you to securely position skew chisels in
two additional V-holders at offset angles for preci-
sion sharpening. The left and right V-holders are
adjustable to allow you to maintain bevels at exact
skew angles.
Inventory
V1.10.21
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
For questions or help with this product contact Tech Support at [phone] or [e-mail]
MODEL T32733
SKEW GRINDING
ATTACHMENT FOR T32732
INSTRUCTIONS
Description Qty
A. Skew Attachment ....................................... 1
B. Button Head Cap Screws M6-1 x 10 .......... 2
C. Hex Wrench 4mm ....................................... 1
Figure 1. Inventory.
A
B
Assembly
The Model T32733 must be attached to the long
arm of the T32732 Bench Grinder Sharpening
System before use.
Wear safety glasses during
the entire setup process!
To assemble:
1. Attach skew attachment to long arm with
(2) M6-1 x 10 button head cap screws (see
Figure 2).
Figure 2. Attaching skew attachment to long
arm.
x 2
Long
Arm
Skew Attachment
C

-2- Model T32733 (Mfd. Since 10/21)
Eye and face injuries and respiratory prob-
lems can occur while operating this tool.
Wear personal protective equipment to
reduce your risk from these hazards.
Keep hair, clothing, and
jewelry away from mov-
ing parts at all times.
Entanglement can result
in death, amputation, or
severe crushing injuries!

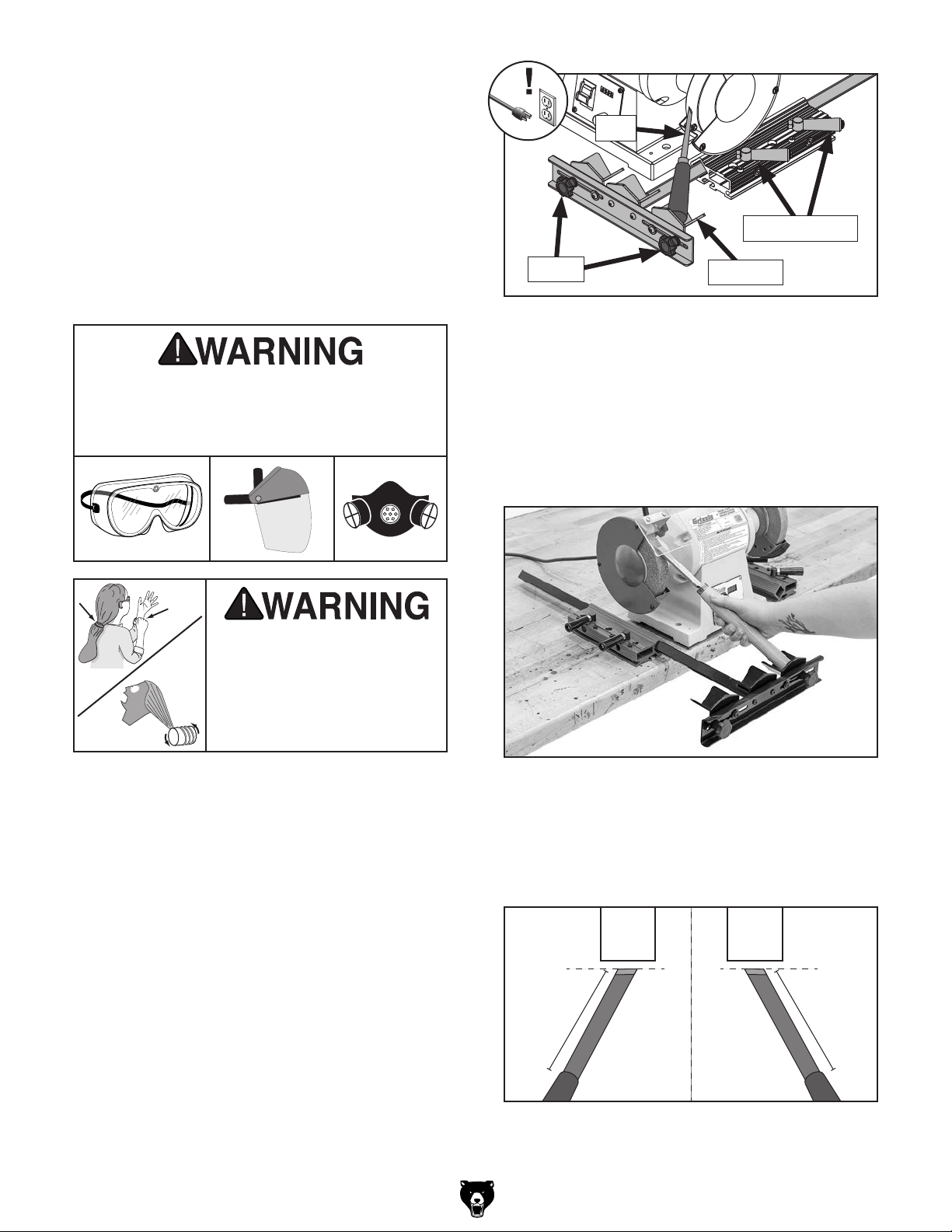

Using Skew Attachment
To use skew attachment:
1. DISCONNECT GRINDER FROM POWER!
2. Place woodturning tool handle in desired
V-holder (see Figure 3).
Note: Loosen knobs shown in Figure 3 to
adjust outside V-holder positions.
3. Adjust long arm until entire bevel of tool con-
tacts grinding wheel, then secure position by
pulling base handles forward (see Figure 3).
The skew attachment supplies two additional
V-holders for supporting a woodturning tool using
the long arm. Since these are offset from the cen-
ter of the grinding wheel, and are adjustable from
side to side, they allow for sharper-angled bevel
grinding.
IMPORTANT: Refer to your grinder manual or
instructions for information on safely operating
your grinder.
Figure 3. Example of tool supported by long
arm.
4. Tilt tool away from grinding wheel, connect
grinder to power, and turn machine ON.
5. Use firm grip to return tool to surface of grind-
ing wheel to perform grinding operation (see
Figure 4).
Figure 4. Example of skew attachment in use.
V-Holder
Tool
Base Handles
Knobs
Grinding
Wheel
Left
V-Holder
Right
V-Holder
Grinding
Wheel
Short
Side
Short
Side
Figure 5. V-holder side determined by short side
of chisel.
Note: Chisel with short left side should be
supported by left V-holder while chisel with
short right side should be supported by right
V-holder (see Figure 5).
