Grizzly G4179 User manual

COPYRIGHT © JUNE, 2008 BY GRIZZLY INDUSTRIAL, INC., REVISED MAY, 2022 (SS)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CR10816 PRINTED IN TAIWAN
MODEL G4179
1/2 HP POWER FEEDER
OWNER'S MANUAL
(For models manufactured since 01/22)
***Keep for Future Reference***
V3.05.22

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Controls & Components ............................................................................................................. 4
Machine Data Sheet ................................................................................................................... 4
SECTION 1: SAFETY....................................................................................................................... 7
Safety Instructions for Machinery ............................................................................................... 7
Additional Safety for Power Feeders ......................................................................................... 9
SECTION 2: POWER SUPPLY ...................................................................................................... 10
SECTION 3: SETUP ....................................................................................................................... 12
Needed for Setup ..................................................................................................................... 12
Unpacking ................................................................................................................................ 12
Inventory ................................................................................................................................... 13
Cleanup .................................................................................................................................... 14
Site Considerations .................................................................................................................. 14
Assembly .................................................................................................................................. 15
Power Connection .................................................................................................................... 15
Base Mounting ......................................................................................................................... 16
Mounting Options ..................................................................................................................... 17
Test Run ................................................................................................................................... 18
SECTION 4: OPERATIONS ........................................................................................................... 19
Operation Overview.................................................................................................................. 19
Basic Use & Care ..................................................................................................................... 20
Vertical/Incline Feeding ............................................................................................................ 22
SECTION 5: ACCESSORIES......................................................................................................... 24
SECTION 6: MAINTENANCE......................................................................................................... 25
Schedule .................................................................................................................................. 25
Cleaning ................................................................................................................................... 25
Lubrication ................................................................................................................................ 25
SECTION 7: SERVICE ................................................................................................................... 26
Troubleshooting ........................................................................................................................ 26
Wheel Replacement ................................................................................................................. 27
SECTION 8: WIRING...................................................................................................................... 28
Wiring Safety Instructions ........................................................................................................ 28
Wiring Diagram......................................................................................................................... 29
SECTION 9: PARTS....................................................................................................................... 30
Power Feeder ........................................................................................................................... 30
Stand ........................................................................................................................................ 32
WARRANTY & RETURNS ............................................................................................................. 33

-2- Model G4179 (Mfd. Since 01/22)
We stand behind our machines! If you have ques-
tions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
and manufacture date from the
machine ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Contact Info
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
sometimes the machine
you receive is
slightly different than shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
,
check our
website for an updated version. W
e post
current
manuals and
manual updates for free
on our web-
site at
www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
manufacture date and
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

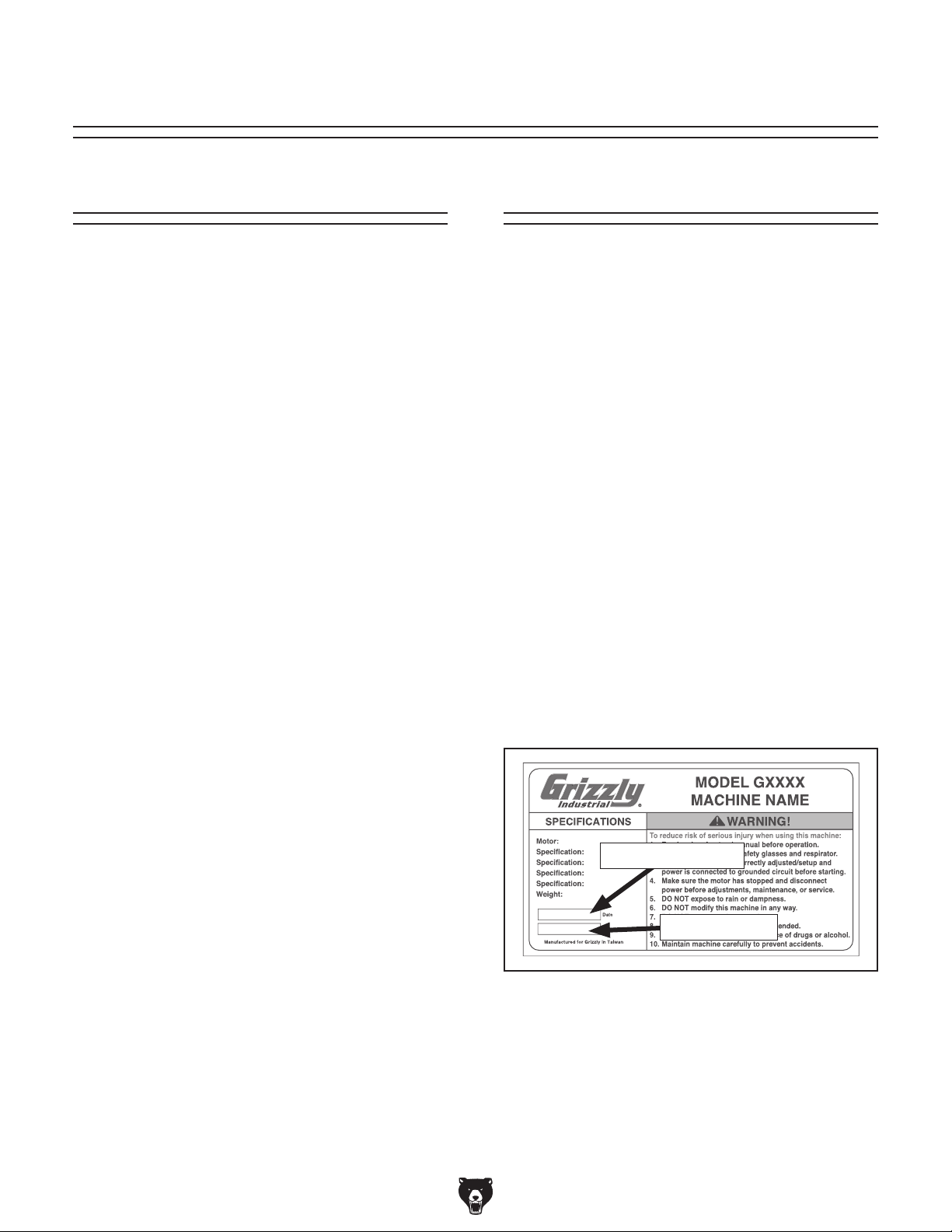

Manufacture Date
Serial Number
Manual Accuracy
INTRODUCTION

Model G4179 (Mfd. Since 01/22) -3-
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.

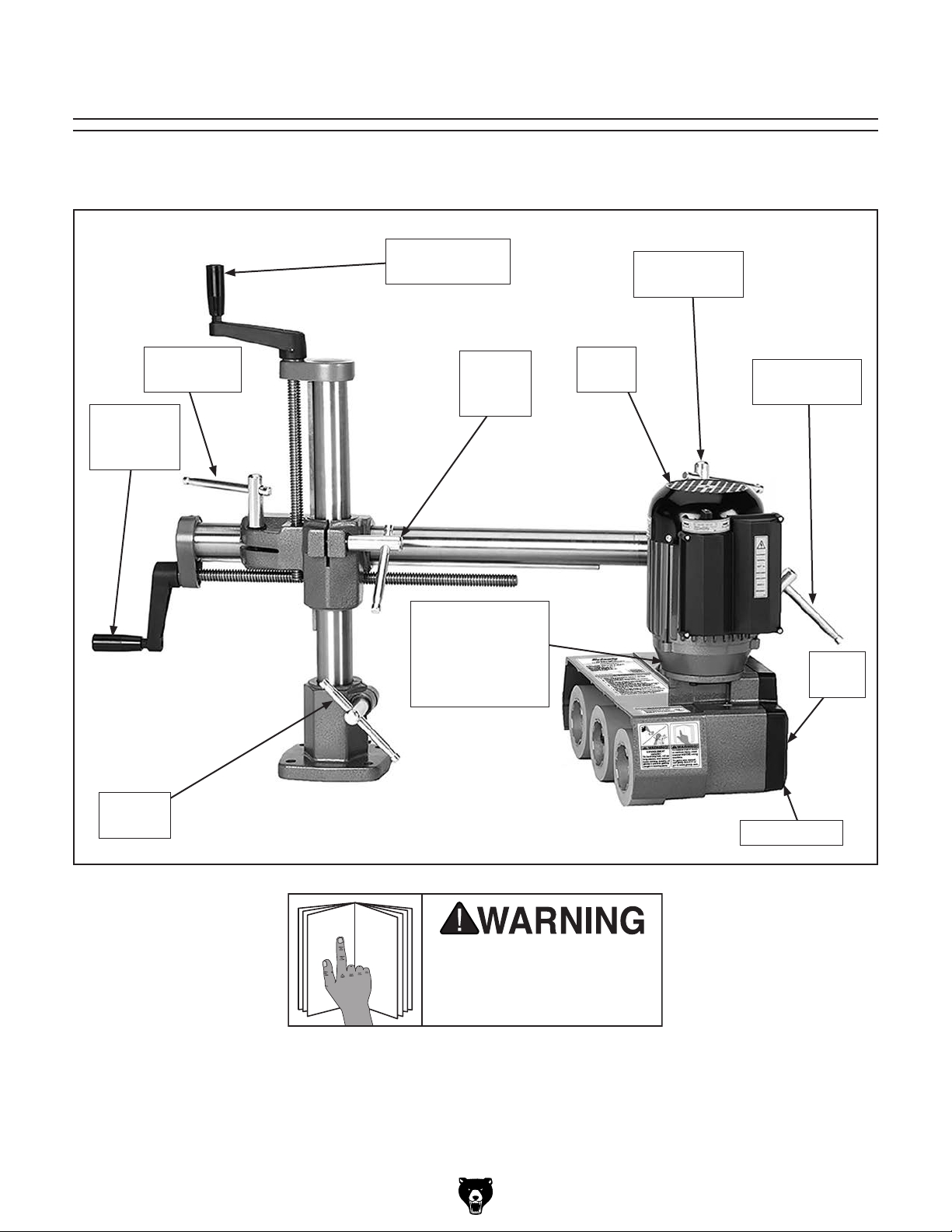

Identification
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Horizontal
Travel Lock
Vertical Travel
Handcrank
Vertical
Travel
Lock
1⁄2 HP
Motor
Upper Elbow
Joint Lock
Lower Elbow
Joint Lock
Gearbox Oil Plug
Labeled "OIL"
Located on Top
of Case Behind
Motor
Horizontal
Travel
Handcrank
Rotation
Lock Chain Cover
Cover
Knobs

-4- Model G4179 (Mfd. Since 01/22)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

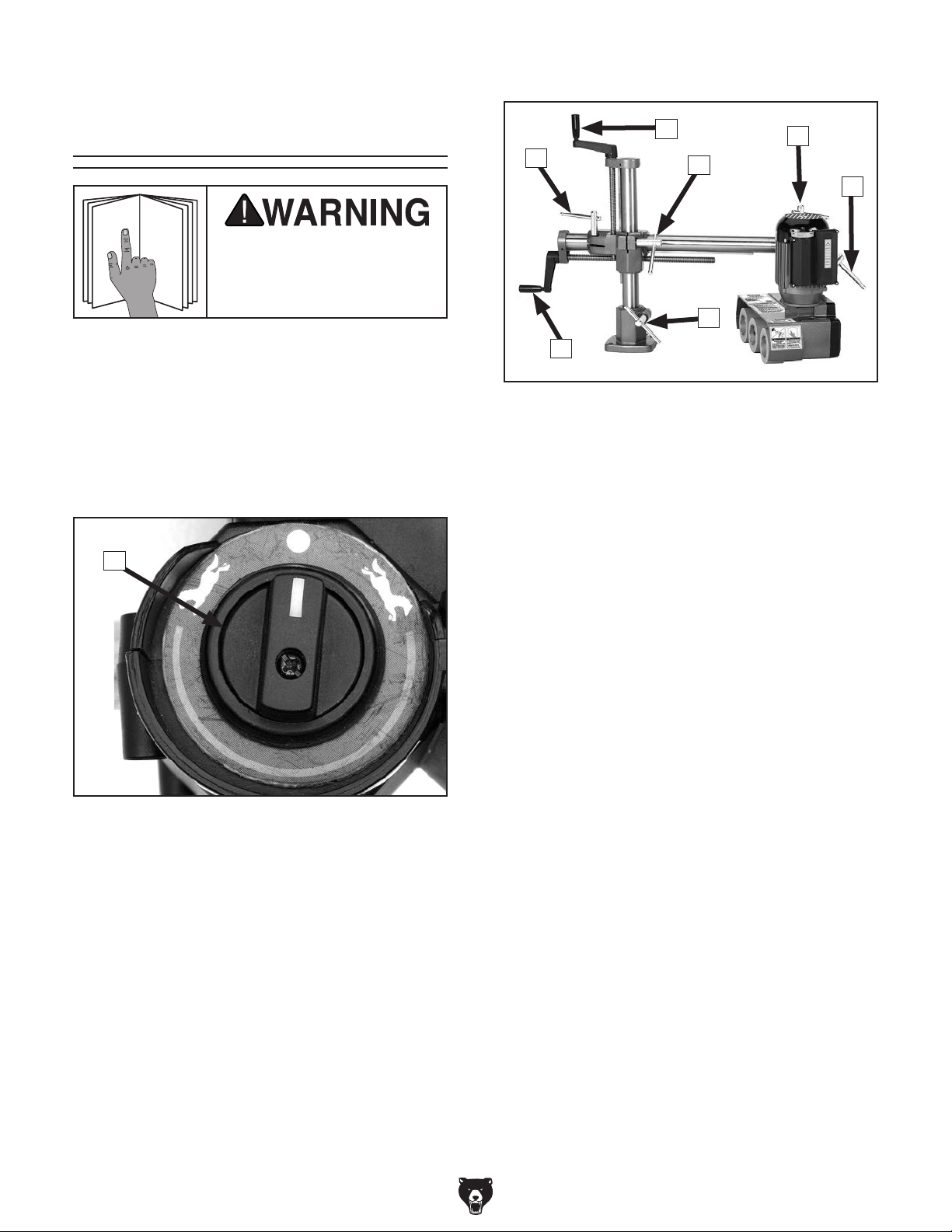

A. Feed Direction Switch: Starts and stops
motor, and controls forward/reverse roller
rotation.
Feed Direction Switch
Figure 1. Feed direction switch.
A
Column Controls
Figure 2. Column features.
B
C
D
E
F
G
H
B. Vertical Travel Handcrank: Adjusts vertical
position of power feeder.
C. Vertical Travel Lock: Locks vertical position
of power feeder.
D. Upper Elbow Joint Lock: Loosen to allow
lower elbow and power feeder to rotate
around upper elbow. Tighten to secure lower
elbow.
E. Lower Elbow Joint Lock: Loosen to allow
power feeder to rotate around lower elbow.
Tighten to secure power feeder.
F. Rotation Lock: Loosen to allow vertical
column to rotate when loosened. Tighten to
prevent vertical column from rotating.
G. Horizontal Travel Handcrank: Adjusts hori-
zontal position of power feeder.
H. Horizontal Travel Lock: Locks horizontal
position of power feeder.

Model G4179 (Mfd. Since 01/22) -5-
The information contained herein is deemed accurate as of 4/5/2022 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 2
Model G4179
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G4179 1/2 HP POWER FEEDER
Product Dimensions:
Weight.............................................................................................................................................................. 104 lbs.
Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 45 x 18 x 28-1/2 in.
Footprint (Length x Width)........................................................................................................................... N/A x N/A
Shipping Dimensions:
Carton #1
Type........................................................................................................................................... Cardboard Box
Content................................................................................................................................................. Machine
Weight...................................................................................................................................................... 58 lbs.
Length x Width x Height............................................................................................................. 20 x 11 x 19 in.
Must Ship Upright.......................................................................................................................................... No
Carton #2
Type........................................................................................................................................... Cardboard Box
Content...................................................................................................................................................... Stand
Weight...................................................................................................................................................... 49 lbs.
Length x Width x Height............................................................................................................. 19 x 30 x 11 in.
Must Ship Upright.......................................................................................................................................... No
Electrical:
Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz
Full-Load Current Rating.......................................................................................................................................... 4A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length................................................................................................................................................. 9 ft.
Power Cord Gauge......................................................................................................................................... 18 AWG
Plug Included........................................................................................................................................................... No
Recommended Plug Type..................................................................................................................................... 6-15
Switch Type........................................................................................................................... Forward/Reverse Switch
Motors:
Main
Horsepower............................................................................................................................................. 1/2 HP
Phase............................................................................................................................................ Single-Phase
Amps........................................................................................................................................................... 2.9A
Speed................................................................................................................................................ 1700 RPM
Type................................................................................................................. TEFC Capacitor-Start Induction
Power Transfer ................................................................................................................................. Gear Drive
Bearings........................................................................................................ Sealed & Permanently Lubricated
Centrifugal Switch/Contacts Type......................................................................................................... External
Main Specifications:
Workpiece Capacities
Minimum Workpiece Length........................................................................................................................ 6 in.

-6- Model G4179 (Mfd. Since 01/22)
The information contained herein is deemed accurate as of 4/5/2022 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 2
Model G4179
Operation Info
Number of Feed Speeds.................................................................................................................................. 4
Feed Speeds....................................................................................................................... 9.5, 15, 25, 38 FPM
Swing.................................................................................................................................................... 360 deg.
Vertical Movement....................................................................................................................................... 9 in.
Horizontal Movement................................................................................................................................. 16 in.
Rotation.................................................................................................................................. Forward, Reverse
Roller Info
Number of Rollers............................................................................................................................................. 3
Roller Width................................................................................................................................................. 2 in.
Roller Diameter............................................................................................................................................ 4 in.
Roller Suspension........................................................................................................................................ 1 in.
Maximum Height Rollers Parallel Table Surface......................................................................................... 7 in.
Centers Between Rollers....................................................................................................................... 4-3/4 in.
Construction Info
Roller....................................................................................................................................... Synthetic Rubber
Housing...................................................................................................................................... Cast Aluminum
Supports............................................................................................................................................... Cast Iron
Column....................................................................................................................................................... Steel
Paint Type/Finish.................................................................................................................................... Enamel
Other
Column Diameter......................................................................................................................................... 2 in.
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Features:
Rollers are Spring Tensioned
Heavy-Duty Gear Reduction with Hardened Gears
Universal Positioning with Handle Locks

Model G4179 (Mfd. Since 01/22) -7-
SECTION 1: SAFETY
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE mak-
ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin-
tended startup or contact with live electrical com-
ponents.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Alerts the user to useful information about proper operation of the
machine to avoid machine damage.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

-8- Model G4179 (Mfd. Since 01/22)
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G4179 (Mfd. Since 01/22) -9-
Additional Safety for Power Feeders
Serious injury or death can occur from getting hands, clothing, or jewelry entangled in moving
parts of power feeder or being pulled into cutting tool on attached machinery. Workpieces
ejected by attached machine can strike operator or bystanders with significant force, causing
impact injuries. To minimize risk of injury, anyone operating this machine MUST completely
heed hazards and warnings below.
FEATHERBOARD. When cutting long or large
stock that is difficult to feed properly, use a feath-
erboard with power feeder (on the infeed side) to
maintain even pressure and control of workpiece
against fence, and to help reduce risk of kickback.
FEED WORKPIECE PROPERLY. To reduce risk
of kickback, verify blade or cutter of associated
machine is at full speed before feeding stock
with power feeder. Avoid feeding workpiece too
quickly. Always verify power feeder wheels are
slightly lower than workpiece to ensure it will not
slip during cutting operation. Stop power feeder
BEFORE stopping cutting tool.
WORKPIECE SUPPORT. Loss of workpiece con-
trol while feeding can increase risk of kickback.
Support workpiece continuously during opera-
tion as required. Use auxiliary stands or support
tables for long or wide stock.
ADJUSTMENTS/MAINTENANCE. Make sure
power feeder and associated machine are turned
OFF, disconnected from power, and all moving
parts are completely stopped before doing adjust-
ments or maintenance.
ATTACHED MACHINERY. Follow all warnings
and safety information for attached machine doing
cutting work.
HAND SAFETY. To reduce risk of accidental
entanglement/pinch injuries between power feed-
er rollers and workpiece, or contact with blade/cut-
ter of associated machine, keep hands away from
rotating parts of power feeder. Turn power feeder
and associated machine OFF before removing
chips, sawdust, or cutoffs—DO NOT use your
hands.
INSTALLING GUARDS. To reduce risk of kick-
back and accidental contact with blade/cutter
of associated machine, always install guards,
fences, and hold-downs before starting attached
machine and power feeder. Repair or replace
guards promptly if they become damaged.
KICKBACK. Occurs when workpiece is ejected
from machine at a high rate of speed. To reduce
risk of kickback-related injuries (blindness, broken
bones, bruises, amputation, severe lacerations,
and death), use quality workpieces and proper
setup or maintenance of power feeder or associ-
ated machine. Never stand in path of workpiece.
VERIFY EACH SETUP. An improperly adjusted
power feeder can increase risk of kickback,
because it will continue feeding even if stock is
not properly positioned for cut. Ensure that power
feeder is set up correctly and firmly secured
before feeding workpiece.
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
sonal injury, damage to equipment, or poor
work results.
Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre-
cautions are overlooked or ignored, serious
personal injury may occur.

-10- Model G4179 (Mfd. Since 01/22)
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 220V ....... 4 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con-
sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
Circuit Requirements for 220V
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Nominal Voltage ......... 208V, 220V, 230V, 240V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 15 Amps
Plug/Receptacle ............................. NEMA 6-15
Cord ........“S”-Type, 3-Wire, 14AWG, 300 VAC
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Model G4179 (Mfd. Since 01/22) -11-
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size ...........................16 AWG
Maximum Length (Shorter is Better).......50 ft.

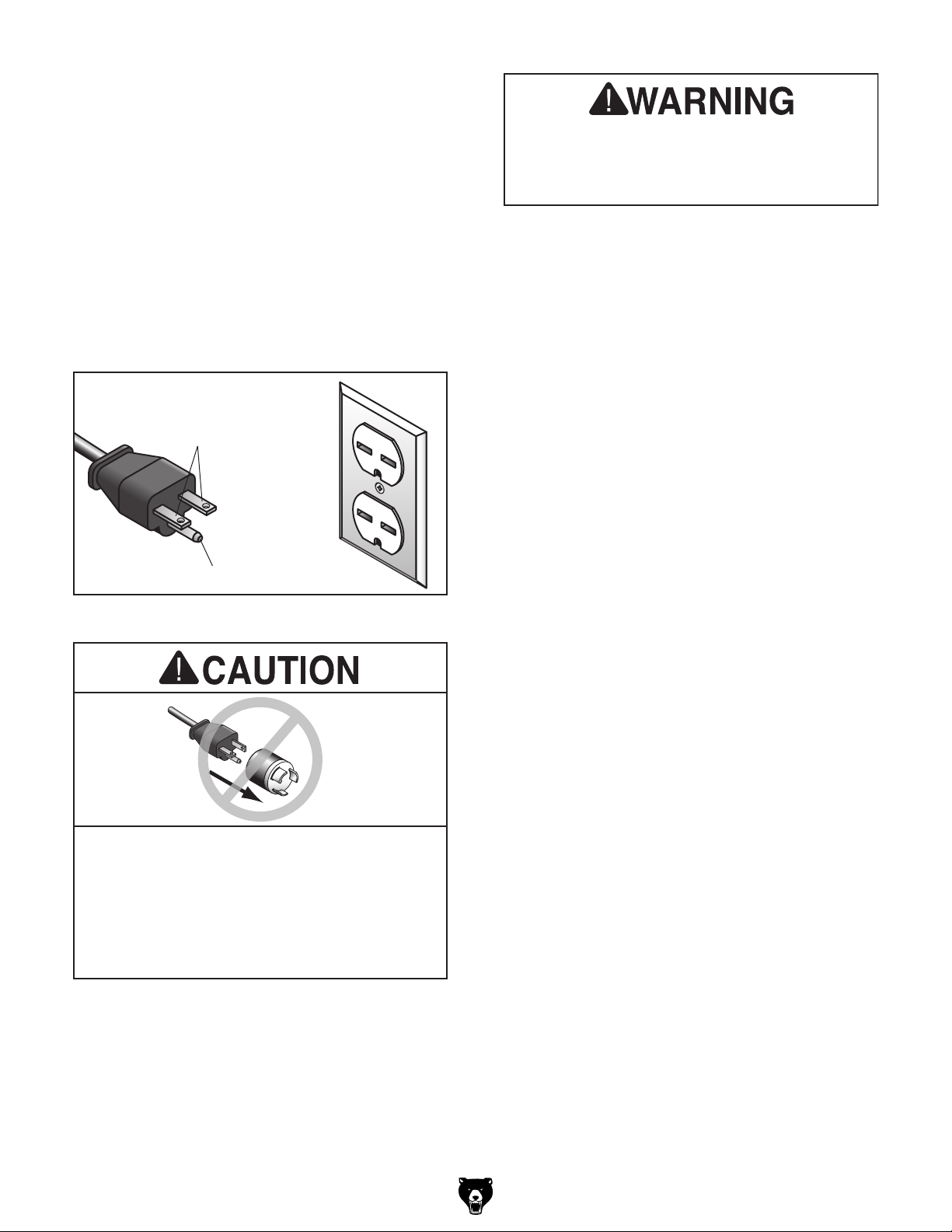

Figure 3. Typical 6-15 plug and receptacle.
Grounding Pin
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
No adapter should be used with plug. If
plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.
Grounding Instructions
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
The power cord and plug specified under “Circuit
Requirements for 220V”
on the previous page
has an equipment-grounding wire and a ground-
ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).

-12- Model G4179 (Mfd. Since 01/22)
SECTION 3: SETUP
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Description Qty
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ................... As Required
• Medium-Grade Thread Locking Liquid ....... 1
• Clean Rags ............................... As Required
• Disposable Gloves ..................................... 1
• Hex Wrench 6mm ....................................... 1
• Table Mounting Hardware .......................... 1
• Gear Oil 80-90W ........................................ 1
• 6-15 Plug .................................................... 1
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of this machine.
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
If items are damaged
,
please
call us immediately at [phone].
IMPORTANT:
Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Unpacking

Model G4179 (Mfd. Since 01/22) -13-

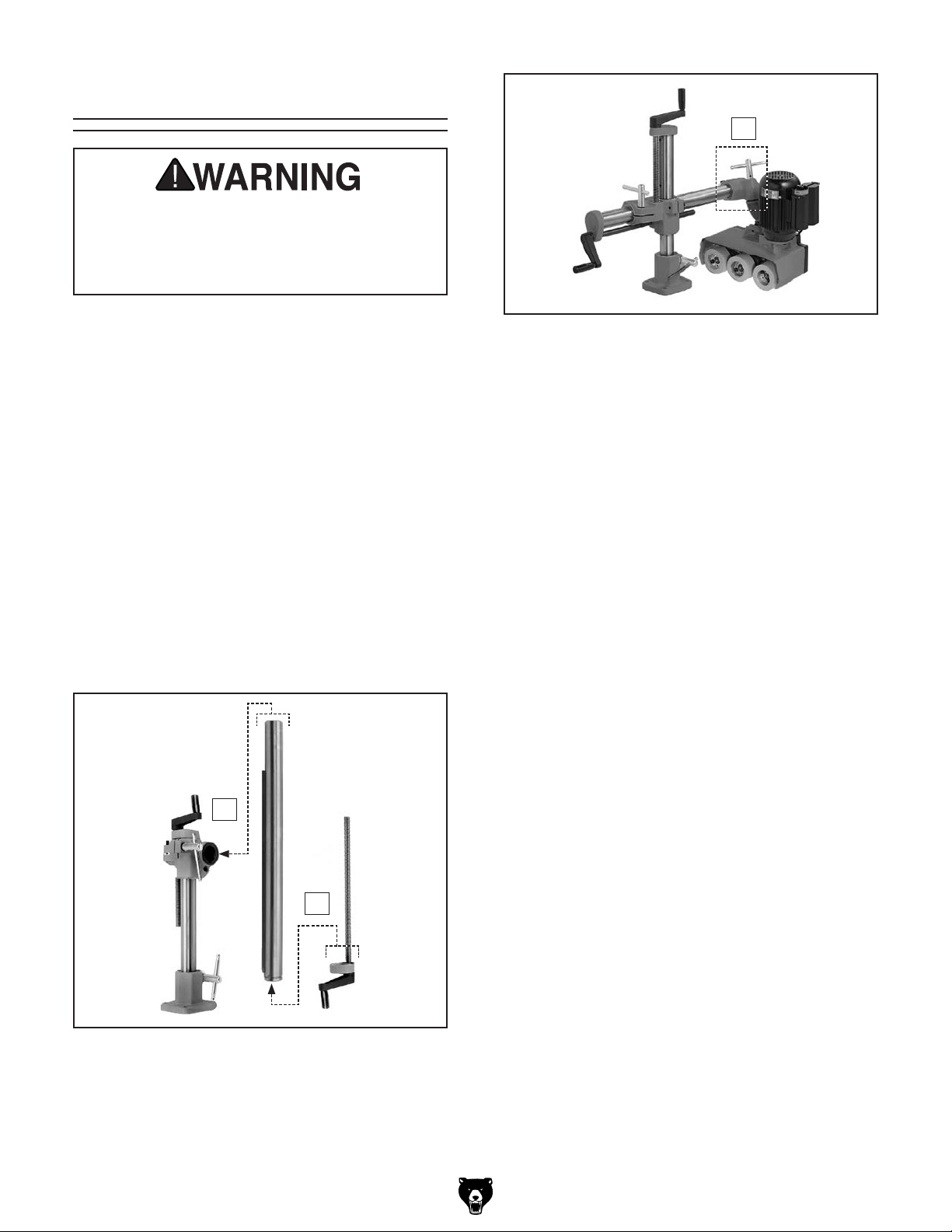

Figure 4. Power feeder inventory.
A
C
B
Figure 5. Base inventory.
E
D
F
G
H
IJ
K
L
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Inventory (Figures 4–5) Qty
A. Power Feeder Assembly ............................ 1
B. Extra 26T/34T Gears (Behind Cover) ....1 Ea
C. Elbow Joint Assembly ................................ 1
D. Base and Column Assembly ...................... 1
E. Crank and Leadscrew Assembly ................ 1
F. T-Handle ..................................................... 1
G. Horizontal Column Assembly ..................... 1
H. Base Bolt Pattern Template ........................ 1
I. Cap Screws M8-1.25 x 20 .......................... 2
J. Handcrank Handles .................................... 2
K. Flat Washer 13mm ..................................... 1
L. Hex Wrench 4mm ....................................... 1
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

-14- Model G4179 (Mfd. Since 01/22)
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2. Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur-
faces. Always test on a small, inconspicu-
ous location first.
Children and visitors may be
seriously injured if unsuper-
vised around this machine.
Lock entrances to the shop
or disable start switch or
power connection to prevent
unsupervised use.

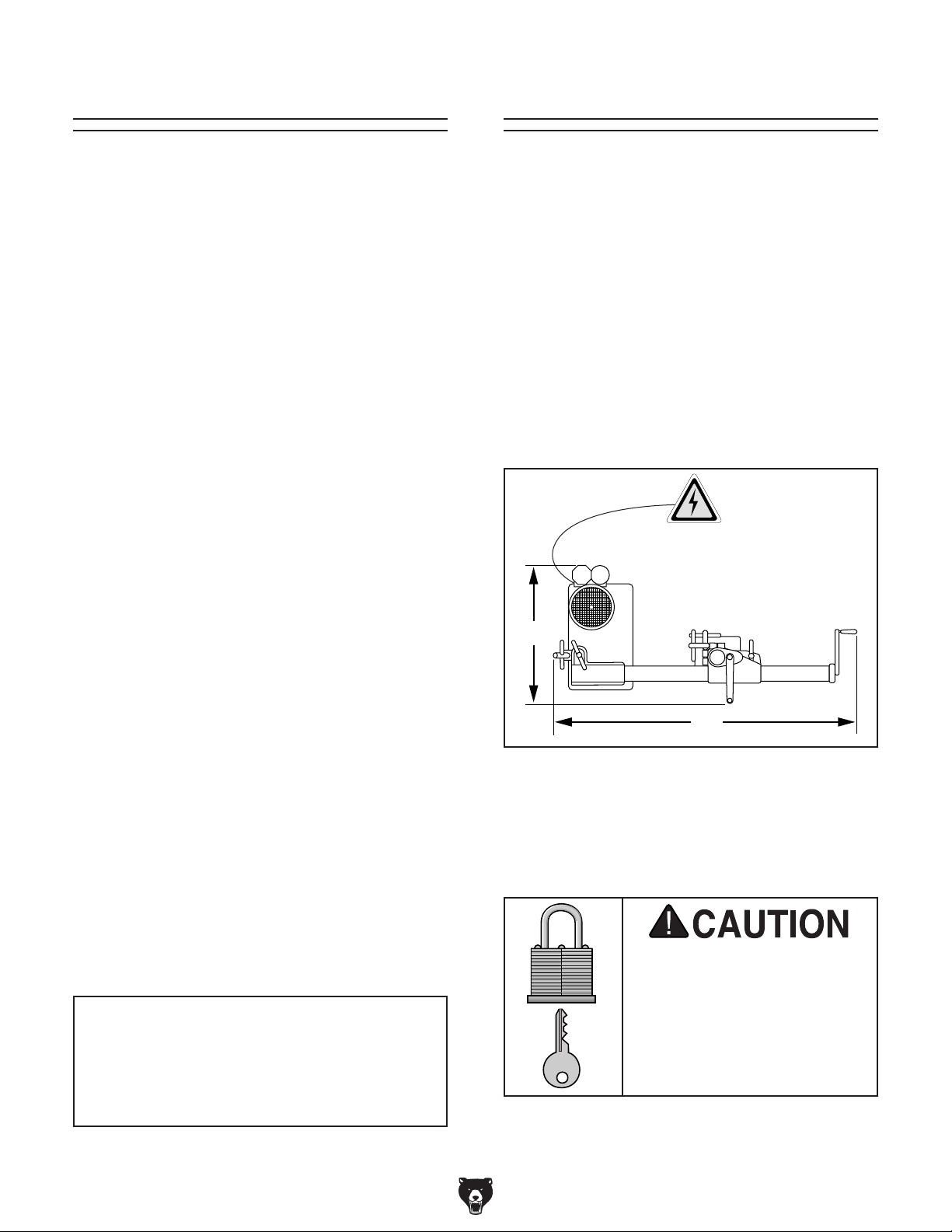

Site Considerations
Workbench Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein-
forcement to support the weight of the machine
and workpiece materials.
Consider anticipated workpiece sizes and addi-
tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Placement Location
Figure 6. Minimum working clearances.
220V
(Power Connection)
45"
18"
Note: Power feeder can rotate 360°around the
vertical column, so be sure to situate machine so
it can freely rotate. The machine is shown here
with the overarm shaft fully extended.

Model G4179 (Mfd. Since 01/22) -15-
Assembly
You MUST assemble all guards, fences, and
hold-downs before starting your machine or
power feeder. Failure to heed this warning
could result in serious personal injury.
Figure 7. Stand assembly.
B
A
C
Figure 8. Assembled unit.
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
and gather
all
listed items.
To ensure the assembly process
goes smoothly, first clean any
parts that are
cov-
ered or coated in heavy-duty rust preventative (if
applicable).
Tip: We recommend using a set of C-clamps to
temporarily secure the base while assembling the
power feeder to prevent it from tipping. You will
mount the power feeder to the machine table after
completing the assembly process. Refer to Base
Mounting on Page 17 for specific details.
To correctly position this power feeder on your
table top, completely assemble the power feeder
first in the order of A, B and C as shown in
Figures 7–8. Next, refer to Base Mounting on
Page 17. With the power feeder unit completely
assembled, it will be easier to locate where on the
table top you will need to drill your base mounting
holes, so you can take advantage of the full range
of power feeder swing and adjustments.

-16 - Model G4179 (Mfd. Since 01/22)
Power Connection
Before the machine can be connected to the
power source, an electrical circuit and connec-
tion device must be prepared per the POWER
SUPPLY section in this manual, and all previ-
ous setup instructions in this manual must be
complete to ensure that the machine has been
assembled and installed properly.
Always make sure the power switch on the
machine is turned OFF (or the OFF button is
pushed in) before connecting power.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Connecting Plug to Power Cord
To connect plug to power cord, install 6-15 plug
on end of power cord per plug manufacturer's
instructions. If no instructions were included, use
wiring diagram on Page 33.
Note About Extension Cords: Using an incor-
rectly-sized extension cord may decrease the life
of electrical components on your machine. If you
must use an extension cord, refer to Extension
Cords on Page 11 for more information.

Model G4179 (Mfd. Since 01/22) -17-
Position the power feeder on the table top to
determine where to drill the base mounting holes
in order to maximize power feeder swing and
adjustment options.
Use the included base-bolt pattern template to
align the mounting holes. Consider the available
mounting choices for your needs: Through-Bolt
Mounting and Direct Mounting (discussed on
Page 18).
With either mounting choice, leave room to oper-
ate the hand cranks and lock levers to position the
rubber rollers parallel with the table surface and
approximately 1⁄8" lower than the thickness of the
workpiece.
Also, aim the front of the power feeder slight-
ly towards the machine fence (see Figure 9)
with approximately 1° to 1.5° toe-in toward the
machine fence, so the rubber rollers lightly push
the workpiece against the fence during cutting
operations.
If cutting long or large stock that is difficult to feed
properly, use a featherboard before the power
feeder (on the infeed side) to maintain even pres-
sure and control of the workpiece against the
fence.
Base Mounting
Figure 9. Typical power feed mounting on a shaper, jointer, and table saw.
Feed Feed
Table SawShaper
Cutter
Feed
Jointer
Cutterhead
Blade
Fence Fence Fence
4th-Roller
Models
Optional
Featherboard

-18- Model G4179 (Mfd. Since 01/22)
To correctly position this power feeder on your
table top, completely assemble the power feeder
first, then refer to this section and mount your
base to the table using one of the two methods
below. The reason for this order is that with the
power feeder unit completely assembled, it will
be easier to locate where on the table top you will
need to drill your base mounting holes, so you can
take advantage of the full range of power feeder
swing and adjustments.
Through-Bolt Mounting
We recommend that you mount your new power
feeder to the machine table with through bolts,
nuts, and washers (see Figure 10). This option
will give the most rigidity and clamping strength to
prevent the feeder base from twisting out of align-
ment during use. However, if under-table support
webs interfere with washer or nut locations under
the table, you must use an optional clamping kit,
or drill and thread holes directly into the table as
described in Direct Mounting.
Direct Mounting
Use the included mounting template to drill and
tap your table, so the power feeder base can
be directly mounted to the table surface (see
Figure 11). If the table is thinner than 3⁄8" thick
where the threaded holes would be drilled and
tapped, or if support webbing is in the way, the
threads may strip or loosen as the power feeder is
used. Thread locking compound will not cure this
situation. Revert to the Through-Bolt Mounting
option. In any case, make sure to use a medium-
grade liquid thread locking compound on all
threads.
Figure 10. Through-bolt mounting.
Machine Table
Flat Washer
Flat Washer
Lock Washer
Locking Hex Nut
Table
Support
Webbing
Bolt
Feeder
Base
Figure 11. Direct mounting.
Machine Table
Table
Support
Webbing
Bolt
Feeder
Base
Lock Washer
Flat Washer
Apply Medium
Grade Thread
Locking Compound
to the Threads
Mounting Options
