Grizzly H8192 User manual
MODEL H8192
1" BELT/8" DISC
COMBINATION SANDER
OWNER'S MANUAL
COPYRIGHT © AUGUST, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TS9703 PRINTED IN CHINA
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Foreword .................................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Machine Data Sheet ................................................................................................................... 3
Identification ............................................................................................................................... 4
SECTION 1: SAFETY ....................................................................................................................... 5
Safety Instructions for Machinery ............................................................................................... 5
Additional Safety Instructions for Belt and Disc Sanders ........................................................... 7
SECTION 2: CIRCUIT REQUIREMENTS ........................................................................................ 8
110V Operation .......................................................................................................................... 8
SECTION 3: SETUP ......................................................................................................................... 9
Setup Safety ............................................................................................................................... 9
Items Needed for Setup ............................................................................................................. 9
Unpacking .................................................................................................................................. 9
Inventory ................................................................................................................................... 10
Clean Up .................................................................................................................................. 12
Site Considerations .................................................................................................................. 12
Assembly .................................................................................................................................. 13
Test Run ................................................................................................................................... 17
Mounting Sander ...................................................................................................................... 18
Dust Collection ......................................................................................................................... 18
SECTION 4: OPERATIONS ........................................................................................................... 19
Operation Safety ...................................................................................................................... 19
Disc Sanding ............................................................................................................................ 19
Belt Sanding ............................................................................................................................. 20
SECTION 5: ACCESSORIES ......................................................................................................... 21
SECTION 6: MAINTENANCE ........................................................................................................ 22
Schedule .................................................................................................................................. 22
Cleaning ................................................................................................................................... 22
Lubrication ................................................................................................................................ 22
Sanding Belt Tracking .............................................................................................................. 22
Changing the Sanding Belt ...................................................................................................... 23
Changing the Sanding Disc ..................................................................................................... 23
SECTION 7: SERVICE ................................................................................................................... 24
Troubleshooting ........................................................................................................................ 24
Squaring the Sanding Disc Table ............................................................................................ 25
Tensioning/Replacing V-Belt .................................................................................................... 25
Electrical Components & Wiring Diagram ................................................................................ 26
Sanding Belt & Motor Breakdown ............................................................................................ 27
Sanding Disc Breakdown ......................................................................................................... 28
Label Placement ...................................................................................................................... 30
WARRANTY AND RETURNS ........................................................................................................ 33
-2- Model H8192 1" Belt/8" Disc Combo Sander
INTRODUCTION
Foreword
We are proud to offer the Model H8192
1" Belt/8" Disc Combination Sander. This
machine is part of a growing Grizzly family of fine
woodworking machinery. When used according
to the guidelines set forth in this manual, you can
expect years of trouble-free, enjoyable operation
and proof of Grizzly’s commitment to customer
satisfaction.
The specifications, drawings, and photographs
illustrated in this manual represent the Model
H8192 when the manual was prepared.
However, owing to Grizzly’s policy of continuous
improvement, changes may be made at any time
with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com. Any updates to your machine
will be reflected in these manuals as soon as they
are complete. Visit our site often to check for the
latest updates to this manual!
If you have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
We stand behind our machines. If you have any
service questions or parts requests, please call or
write us at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: [email protected]
Web Site: http://www.grizzly.com
Contact Info
Model H8192 1" Belt/8" Disc Combo Sander -3-
Machine Data Sheet
-4- Model H8192 1" Belt/8" Disc Combo Sander
Figure 1. Model H8192 identification.
A. Sanding Belt 1" x 42"
B. Sanding Belt Tracking Knob
C. Sanding Disc 8"
D. Miter Gauge
E. Disc Table
F. V-Belt Safety Cover
G. Sanding Belt Safety Cover
H. Sanding Belt Dust Port
Identification
C
D
E
F
G
I
J
K
L
N
O
P
B
A
I. Motor
J. Disc Table Angle Scale
K. Disc Table Lock Handle
L. Disc Dust Port
M. ON/OFF Switch with Disabling Key
N. Rubber Machine Feet
O. Sanding Belt Table Lock Handle
P. Sanding Belt Table
H
M
Model H8192 1" Belt/8" Disc Combo Sander -5-
Safety Instructions for Machinery
-6- Model H8192 1" Belt/8" Disc Combo Sander
Model H8192 1" Belt/8" Disc Combo Sander -7-
Additional Safety Instructions for
Belt and Disc Sanders
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious
personal injury, damage to equipment, or
poor work results.
Like all machinery, there is potential danger
when operating this sander. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this sander
with respect and caution to lessen the
possibility of operator injury. If normal safety
precautions are overlooked or ignored,
serious personal injury may occur.
1. RESPIRATOR AND SAFETY GLASSES.
Always wear a respirator and safety glasses
while operating the sander. Dust and chips
are created when sanding. Some debris will
be ejected, becoming hazards to the eyes
and lungs.
2. AVOIDING ENTANGLEMENT. DO NOT
wear loose clothing articles, gloves, or
jewelry while operating this machine. Button
long sleeves and tie back long hair.
3. HAND PROTECTION. DO NOT place hands
near, or in contact with, sanding belt/disc
during operation. DO NOT allow fingers to
get pinched between the workpiece and
sanding table. This may pull the operator's
hand into the machine and cause serious
injury.
4. INSPECTING WORKPIECES. Always
inspect workpiece for nails, staples, knots,
and other objects that could be dislodged
and thrown from the machine during sanding
operations.
5. REPLACING SANDPAPER. Replace
sanding paper when it becomes worn or
torn. DO NOT operate the sander with
damaged or badly worn sandpaper.
6. UNATTENDED OPERATION. Never leave
the machine running attended.
7. DUST COLLECTION SYSTEM. Always
operate the sander with an adequate dust
collection system in place and running.
8. FEEDING STOCK. Firmly grasp the
workpiece in both hands and ease it into
the sandpaper with light pressure. DO NOT
jam the workpiece into the machine during
operations. Feed the workpiece against
the direction of sandpaper travel. DO NOT
sand tapered or pointed stock with the point
facing the direction of sandpaper travel.
Never sand more than one piece of stock at
a time.
9. MAINTENANCE AND ADJUSTMENTS.
Perform machine inspections and
maintenance service promptly when called
for. Disconnect power before performing
maintenance or adjustments on the sander,
with the exception of sanding belt tracking.
10. EXPERIENCING DIFFICULTIES. If at
any time you are experiencing difficulties
performing the intended operation, stop
using the machine! Contact our Technical
Support Department at (570) 546-9663.
-8- Model H8192 1" Belt/8" Disc Combo Sander

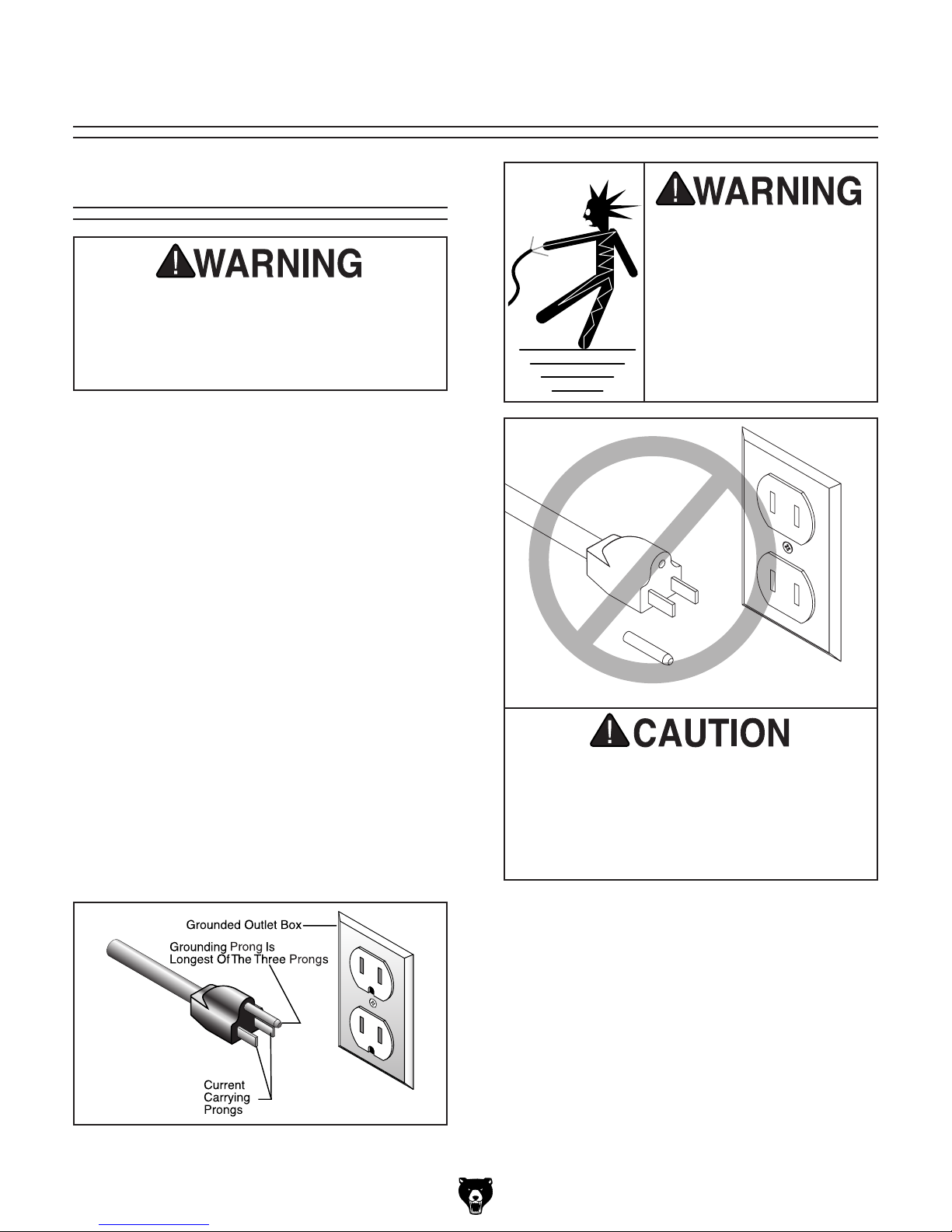

Figure 2. Typical type 5-15 plug and receptacle.
Serious personal injury could occur if you
connect the machine to the power source
before you have completed the set up pro-
cess. DO NOT connect the machine to the
power source until instructed to do so.
110V Operation
Amperage Draw
The Model H8192 motor draws the following amps
under maximum load:
Motor Draw .............................................. 4 Amps
Circuit Recommendations
We recommend connecting your machine to a
dedicated and grounded circuit that is rated for
the amperage given below. Never replace a circuit
breaker on an existing circuit with one of higher
amperage without consulting a qualified electrician
to ensure compliance with wiring codes. If you are
unsure about the wiring codes in your area or
you plan to connect your machine to a shared
circuit, consult a qualified electrician.
110V Circuit ...........................................15 Amps
Plug/Receptacle Type
Included Plug Type ........................... NEMA 5-15
This machine must have a ground prong in
the plug to help ensure that it is grounded.
DO NOT remove ground prong from plug
to fit into a two-pronged outlet! If the plug
will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Extension Cords
We do not recommend the use of extension cords,
but if you find it absolutely necessary:
• Use at least a 16 gauge cord that does not
exceed 50 feet in length!
• The extension cord must also contain a
ground wire and ground prong.
• A qualified electrician MUST size cords over
50 feet long to prevent motor damage.
Electrocution or fire could
result if this machine is
not grounded correctly
or if your electrical
configuration does not
comply with local and state
codes. Ensure compliance
by checking with a
qualified electrician!
SECTION 2: CIRCUIT REQUIREMENTS
Model H8192 1" Belt/8" Disc Combo Sander -9-
Wear safety glasses
during the entire setup
process!
This machine presents
serious injury hazards
to untrained users.
Read through this entire
manual to become
familiar with the controls
and operations before
starting the machine!
Setup Safety
SECTION 3: SETUP
The following items are needed to complete the
setup process, but are not included with your
machine:
Description Qty
• Safety Glasses (for each person) .............. 1
• Phillips Head Screwdriver .......................... 1
• Wrench 14mm ............................................ 1
• Wrenches 13mm ........................................ 2
• Dust Collection System .............................. 1
• 2" Dust Hoses (length as needed) ............. 2
• 2" Hose Clamps ......................................... 2
Items Needed for
Setup
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If
you discover the machine is damaged, please
immediately call Customer Service at (570) 546-
9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with
the condition of your shipment, inventory the
contents.
Unpacking
-10- Model H8192 1" Belt/8" Disc Combo Sander
Inventory
The following is a description of the main
components shipped with your machine. Lay the
components out to inventory them.
Note: If you can't find an item on this list, check
the mounting location on the machine or examine
the packaging materials carefully. Occasionally
we pre-install certain components for shipping
purposes.
Inventory: (Figures 3–4) Qty
A. Motor and Base .......................................... 1
B. Belt Housing Assembly .............................. 1
C. Belt Table ................................................... 1
D. Sandpaper Disc 8" ..................................... 1
E. Aluminum Sanding Disc ............................. 1
F. Disc Table .................................................. 1
G. V-Belt Safety Cover .................................... 1
H. V-Belt Rear Cover ...................................... 1
I. Disc Dust Port 2" ........................................ 1
J. Table Lock Handles ................................... 2
K. Miter Gauge ................................................ 1
L. Hex Wrench 2.5mm ................................... 1
M. Hex Wrench 8mm ...................................... 1
N. Disc Dust Cover ......................................... 1
Hardware (not shown): Qty
• Disc Table Scale Pointer ............................ 1
• Cap Screws M10-1.5 x 20 .......................... 2
• Phillips Head Screw M6-1 x 15 .................. 1
• Phillips Head Screw M4-.7 x 40 ................. 1
• Phillips Head Screws M4-.7 x 10 ............... 6
• Set Screw M5-.8 x 5 ................................... 1
• Flat Washers 10mm ................................... 2
• Flat Washers 4mm ..................................... 5
• Lock Washers 10mm ................................. 2
• Wing Nut M4-.7 .......................................... 1
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
A
B
C
D
E
F
G
Figure 3. Model H8192 inventory items A–G.
HI
J
K
L
M
N
Figure 4. Model H8192 inventory items H–N.
Model H8192 1" Belt/8" Disc Combo Sander -11-

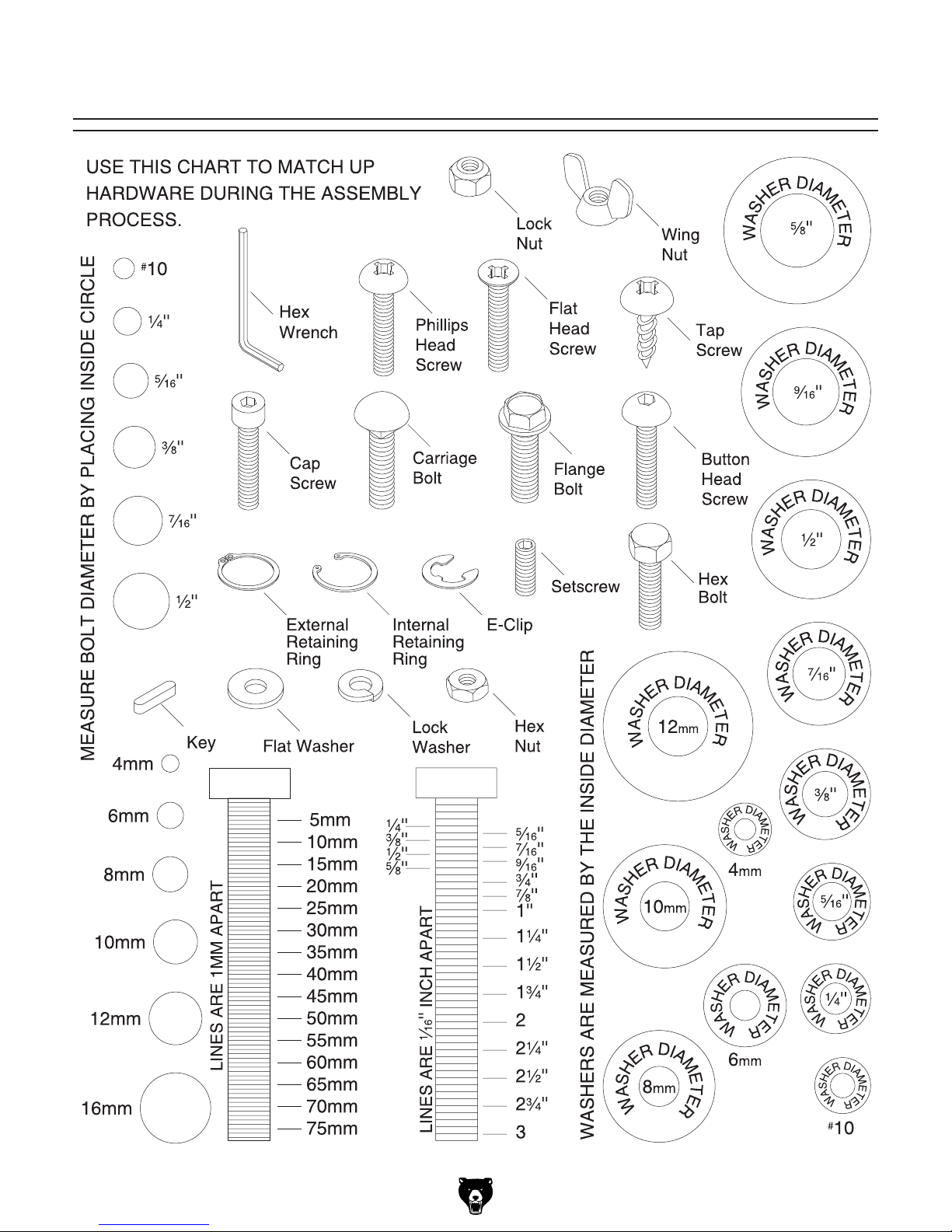

Hardware Recognition Chart
-12- Model H8192 1" Belt/8" Disc Combo Sander
Placement Location
Consider existing and anticipated needs, size of
material to be processed through each machine,
and space for auxiliary stands, work tables or
other machinery when establishing a location for
your new combo sander.
We recommend placing the machine at the corner
of a benchtop so that both the sanding belt and
disc can be accessed without having to move the
sander.
See Figure 5 for the minimum working
clearances.
Children and visitors may
be seriously injured if
unsupervised around this
machine. Lock entrances
to the shop or disable start
switch or power connection
to prevent unsupervised
use.
The unpainted surfaces are coated with a waxy
oil to prevent corrosion during shipment. Remove
this protective coating with a solvent cleaner or
citrus-based degreaser such as Grizzly’s G7895
Citrus Degreaser. To clean thoroughly, some parts
must be removed. For optimum performance
from your machine, clean all moving parts or
sliding contact surfaces. Avoid chlorine-based
solvents, such as acetone or brake parts cleaner
that may damage painted surfaces. Always follow
the manufacturer’s instructions when using any
type of cleaning product.
Site ConsiderationsClean Up
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. DO
NOT use these products
to clean the machinery.
Many cleaning solvents
are toxic if inhaled.
Minimize your risk by only
using these products in a
well ventilated area.
Figure 1. Grizzly citrus degreaser.
G7895—Grizzly Citrus Degreaser
This natural, citrus-based degreaser is a great
solution for removing export grease, and it’s much
safer to work around than nasty solvents.
Figure 5. Model H8192 placement dimensions.
Model H8192 1" Belt/8" Disc Combo Sander -13-
Assembly
To avoid risk of serious
injury, DO NOT connect
the sander to power
until told to do so in the
Test Run subsection.
To assemble your combo sander:
1. Using 13mm wrenches, loosen the four motor
mount hex bolts (Figure 6) so you can adjust
the motor position in the next steps.
Figure 7. Cap screws securing the belt housing
assembly (viewed from underneath the base).
Figure 8. Belt housing assembly installed.
Belt Housing
Assembly
Base
2. With assistance, position the belt housing
assembly on the left side of the base, taking
care not to pinch the power cords between
the assembly and the base.
3. Place the V-belt around both pulleys, and
secure the belt housing assembly with the
two M10-1.5 x 20 cap screws, lock washers,
and flat washers (see Figures 7 & 8)—do not
fully tighten the fasteners for now.
4. Center the motor arbor in the cutout of the
cast iron disc guard (see Figure 9), then
re-tighten the motor mount hex bolts.
Figure 9. Motor arbor centered.
Cutout
Arbor
Assembly
Figure 6. Motor mounting hex bolts (2 of 4,
viewed from top).
Motor Mounting
Hex Bolts (2 of 4)
-14- Model H8192 1" Belt/8" Disc Combo Sander
5. Position the belt housing assembly so there
is about 1⁄4" V-belt deflection when moderate
pressure is applied to the V-belt between the
pulleys (see Figure 10)—then fully tighten
the cap screws to secure the belt housing
assembly in place.

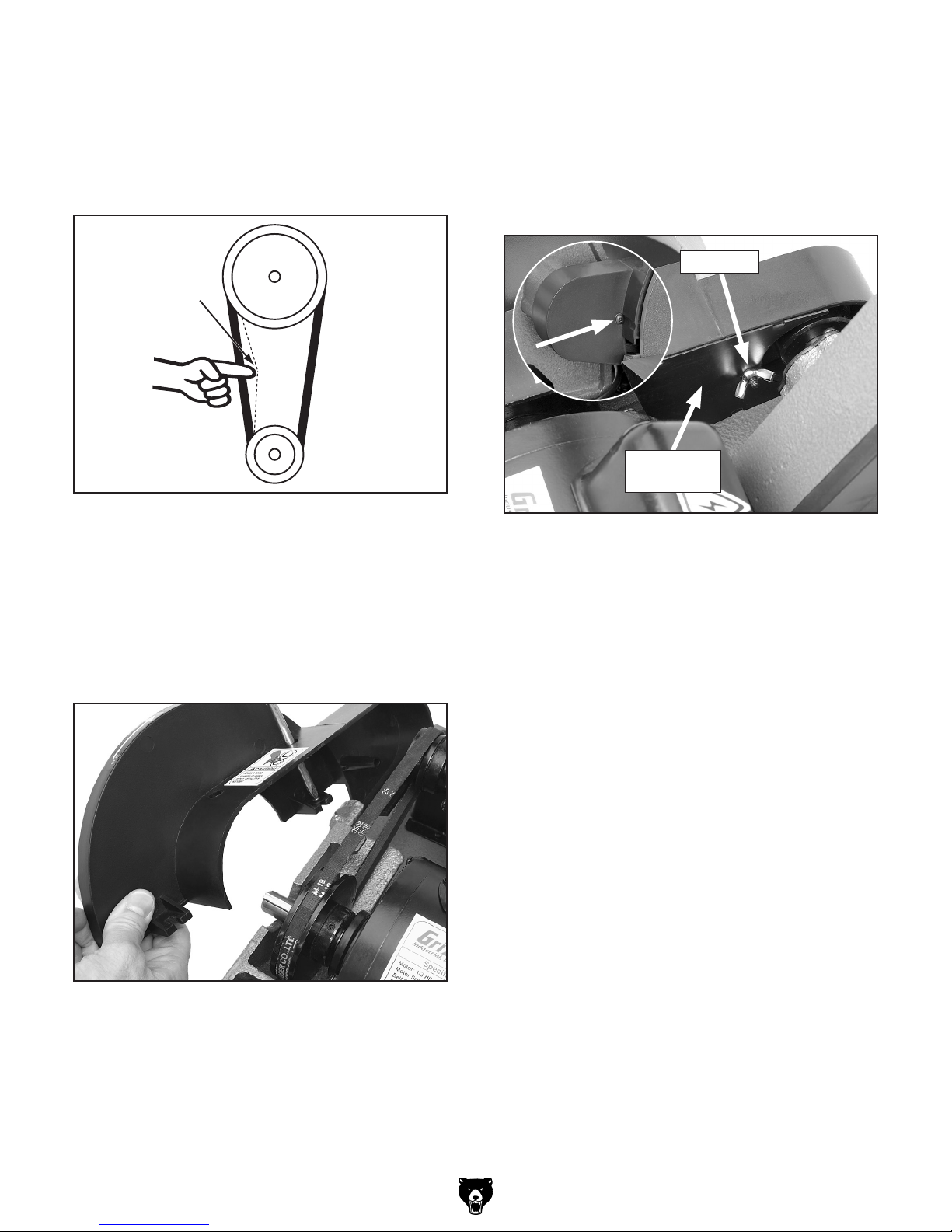

Figure 10. Measuring V-belt deflection.
6. Insert one M4-.7 x 10 Phillips head screw
and flat washer into the left inside mounting
bracket of the V-belt safety cover (see
Figure 11). Then hold it in place with a
screwdriver as you slide the cover over the
V-belt and tighten the fastener into the cast
iron disc guard.
7. Secure the right side of the V-belt cover with
one M4-.7 x 10 Phillips head screw and flat
washer.
8. Position the V-belt rear cover, as shown in
Figure 12, and secure it in place with the M4-
.7 x 40 Phillips head screw and wingnut.
Figure 12. V-belt rear cover installed (inset
shows front location of screw).
Wing Nut
V-Belt
Rear Cover
Figure 11. Holding V-belt cover mounting
fastener in place.
Deflection
Model H8192 1" Belt/8" Disc Combo Sander -15-
9. Peel the backing from the 8" sandpaper disc
and apply it to the aluminum disc.
10. Thread the M5-.8 x 5 set screw into the
aluminum disc shaft.
11. Slide the aluminum disc onto the motor arbor,
making sure to align the arbor key with the
disc keyway.
12. Rotate the disc until you can see the set
screw through the hole on the back of the
V-belt safety cover (see Figure 13).

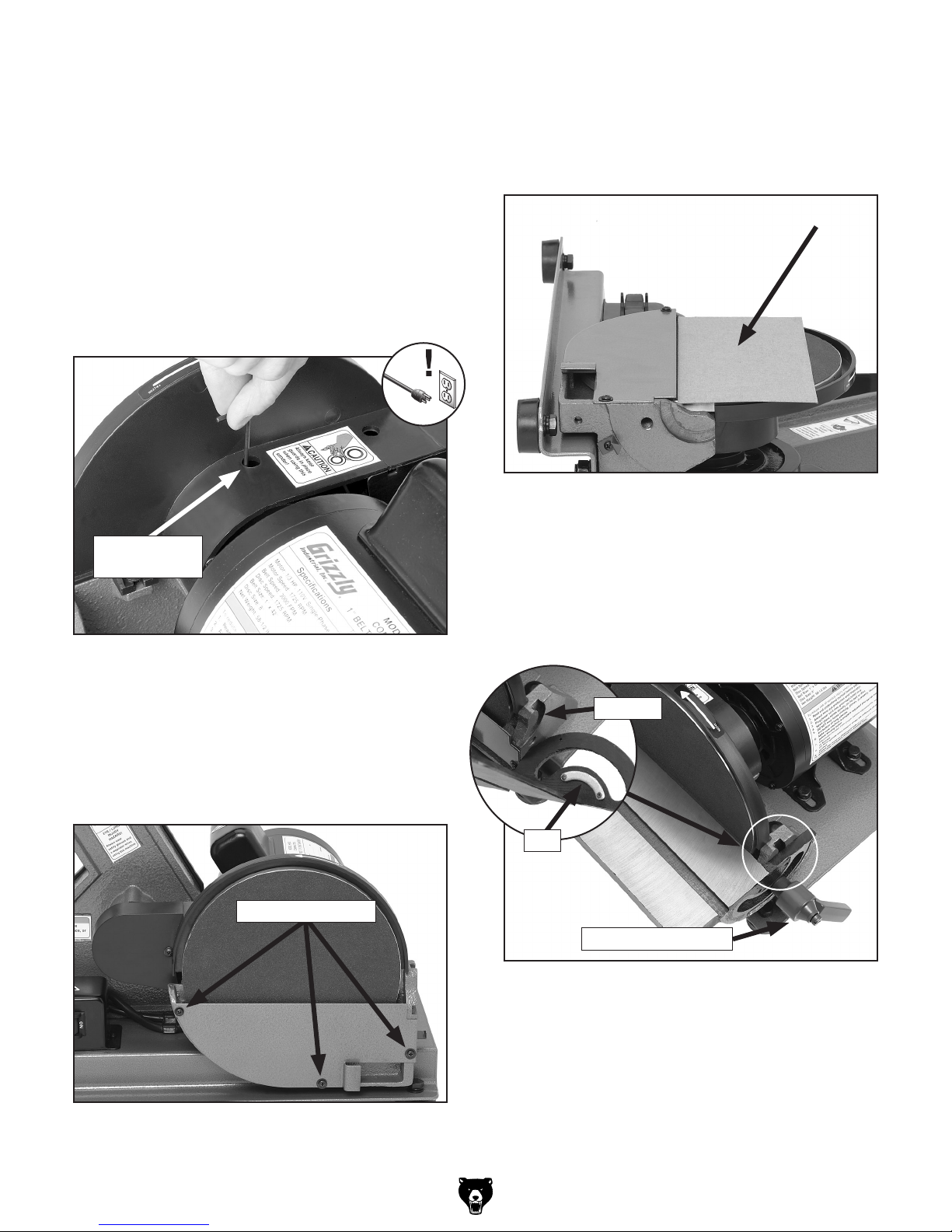

Figure 13. Securing the sanding disc set screw.
Set Screw
Access Hole
13. Using the 2.5mm hex wrench, tighten the set
screw to secure the disc to the motor arbor.
14. Install the disc dust cover, as shown in
Figure 14, with three M4-.7 x 10 Phillips head
screws and flat washers.
Figure 14. Disc dust cover installed.
Mounting Screws
16. Keeping the cardboard in place, align the
half-arc key of the disc table with the indented
keyway on the disc guard (see the inset of
Figure 16). Then secure the table with a table
lock handle, and remove the cardboard.
Figure 15. Using thin cardboard (approximately
1⁄16" thick) for table and sanding disc clearance
guage.
Figure 16. Sanding disc table installed.
Table Lock Handle
15. Lay the sander down on a flat surface, as
shown in Figure 15, and place a thin piece of
cardboard approximately 1⁄16" thick over the
sanding disc. This piece of carboard will act
as a spacer when you install the disc table.
Key
Keyway
-16- Model H8192 1" Belt/8" Disc Combo Sander
17. Secure the dust port, as shown in Figure 17,
with the M6-1 x 15 Phillips head screw and
flatwasher.
Note: Make sure the dust port covers the
entire opening in the dust cover.
18. Square the disc table to the sanding disc
(refer to Squaring Disc Table on Page 25).
19. Using the M4-.7 x 10 Phillips head screw,
align the red scale pointer with the "0" mark
on the table angle scale (see Figure 18).
20. Install the belt table with a 1⁄16" clearance from
the sanding belt, and secure it in place with
the table lock handle (see Figure 19).
21. Loosen the cap screw shown in Figure 20,
adjust the belt support approximately 1⁄16"
away from the sanding belt, then re-tighten
the cap screw.

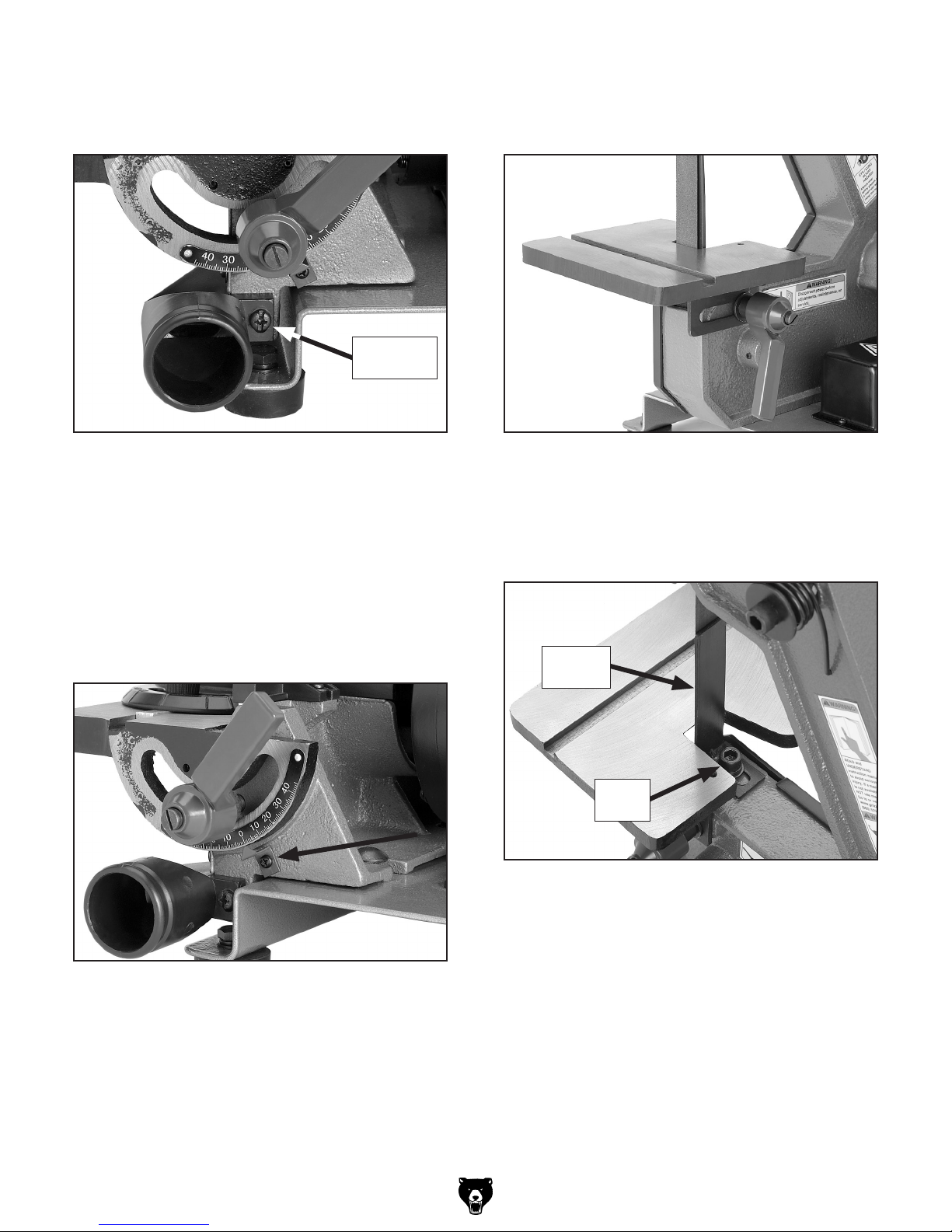

Figure 18. Sanding disc table angle scale
pointer installed.
Figure 19. Sanding belt table installed.
Figure 20. Sanding belt support.
Cap
Screw
Belt
Support
Figure 17. Disc dust port installed.
Mounting
Screw
Model H8192 1" Belt/8" Disc Combo Sander -17-
5. Turn the machine OFF.
6. Remove the switch disabling key, as shown
in Figure 21.
Test Run
Once the assembly is complete, test run your
sander to make sure it runs properly and is ready
for regular operation.
The test run consists of verifying the following:
1) The motor powers up and runs correctly, and
2) the switch disabling mechanism on the switch
works correctly.
If, during the test run, you cannot easily locate
the source of an unusual noise or vibration,
stop using the machine immediately, then review
Troubleshooting on Page 24.
If you still cannot remedy a problem, contact our
Tech Support at (570) 546-9663 for assistance.
To test run the sander:
1. Make sure you have read the safety
instructions at the beginning of the manual
and that the machine is setup properly.
2. Make sure all tools and objects used during
setup are cleared away from the machine.
3. Connect the machine to the power source.
4. Verify that the machine is operating correctly
by turning the machine ON.
—When operating correctly, the machine
runs smoothly with little or no vibration or
rubbing noises.
— Investigate and correct strange or unusual
noises or vibrations before operating the
machine further. Always disconnect the
machine from power when investigating or
correcting potential problems.
7. Flip the toggle switch to the ON position.
—If the machine does not start, the switch
disabling feature is working as designed.
—If the machine starts, immediately stop the
machine. The switch disabling feature is
not working correctly. This safety feature
must work properly before proceeding with
regular operations. Call Tech Support for
help.
8. When the Test Run has been successfully
completed, check the tracking of the sanding
belt and make adjustments if necessary (refer
to Sanding Belt Tracking on Page 22).
Figure 21. Removing disabling key from the
toggle switch.
-18- Model H8192 1" Belt/8" Disc Combo Sander
Mounting Sander
Once you have confirmed that your machine is
running properly, mount it to a workbench.
The strongest mounting option is a "Through
Mount" where holes are drilled all the way through
the workbench, and hex bolts, washers, and
lock nuts are used to secure the sander to the
workbench.
Figure 22. Example of a through mount setup.
Figure 23. Example of a direct mount setup.
Another option for mounting is a "Direct Mount"
where the machine is simply secured to the
workbench with a lag screw.
Dust Collection
To connect a dust collection hose:
1. Fit a 2" dust hose from the dust collection
system over each dust port, and secure them
in place with a 2" hose clamp.
2. Tug the hoses to make sure they do not
come off.
Note: A tight fit is necessary for proper
performance.
DO NOT operate the Model H8192 without
an adequate dust collection system. This
sander creates substantial amounts of wood
dust while operating. Failure to use a dust
collection system can result in short and
long-term respiratory illness.
Recommended CFM at EACH Dust Port:
100 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine
the CFM at the dust port, you must consider
these variables: (1) CFM rating of the dust
collector, (2) hose type and length between the
dust collector and the machine, (3) number of
branches or wyes, and (4) amount of other open
lines throughout the system. Explaining how to
calculate these variables is beyond the scope
of this manual. Consult an expert or purchase
a good dust collection "how-to" book.
Note: To reduce vibration when operating, keep
the rubber cushion included with your sander
between the machine base and the workbench.
Mounting
Table of contents
Other Grizzly Sander manuals
Grizzly
Grizzly G0447 User manual
Grizzly
Grizzly G5049Z User manual
Grizzly
Grizzly G0563 Quick start guide
Grizzly
Grizzly G0702 User manual
Grizzly
Grizzly G0564 Instruction Manual
Grizzly
Grizzly G0487 User manual
Grizzly
Grizzly G7297 User manual
Grizzly
Grizzly G0571 Instruction Manual
Grizzly
Grizzly G1183 User manual
Grizzly
Grizzly G0898 User manual
Grizzly
Grizzly G1014Z User manual
Grizzly
Grizzly G5970 Quick start guide
Grizzly
Grizzly G1079R User manual
Grizzly
Grizzly G0472 Quick start guide
Grizzly
Grizzly G0446 User manual
Grizzly
Grizzly H0590 Quick start guide
Grizzly
Grizzly H8120 User manual
Grizzly
Grizzly G1014Z Technical manual
Grizzly
Grizzly G8749 User manual
Grizzly
Grizzly POLAR BEAR Series User manual
Popular Sander manuals by other brands
Hitachi
Hitachi S920 Handling instructions
Atlas Copco
Atlas Copco LSV28 ST013-M14 LF manual
Parkside
Parkside PHS 160 B2 Operation and safety notes translation of original operation manual
Shop fox
Shop fox W1689 instruction manual
Makita
Makita BO6030 instruction manual
Scheppach
Scheppach Slik 5.0c instruction manual
Milwaukee
Milwaukee 48-09-0300 Care and operating instructions
Parkside
Parkside PHS 160 B2 Operation and safety notes
Meec tools
Meec tools 010-064 operating instructions
Axminster
Axminster AP406DS Original instructions
Clarke American Sanders
Clarke American Sanders RS-16 Operator's manual
Steel City
Steel City 50-310 owner's manual
