GROHE F-DIGITAL DELUXE
PLANNING & INSTALLATION GUIDE
GROHE Digital Planning_FE_2016.indd 1 19.08.16 08:10

Tailor-Made Showering 4
Important Details 8
Product overview 12
GROHE Shower Congurations
M 24
L 32
XL 40
Recommended Installation Heights 50
GROHE
CONTENT
SHOWER CONFIGURATION M 24 SHOWER CONFIGURATION L 32
GROHE Digital Planning_FE_2016.indd 2 19.08.16 08:10

grohe.com | Page 3
SHOWER CONFIGURATION XL 40
GROHE Digital Planning_FE_2016.indd 3 19.08.16 08:10

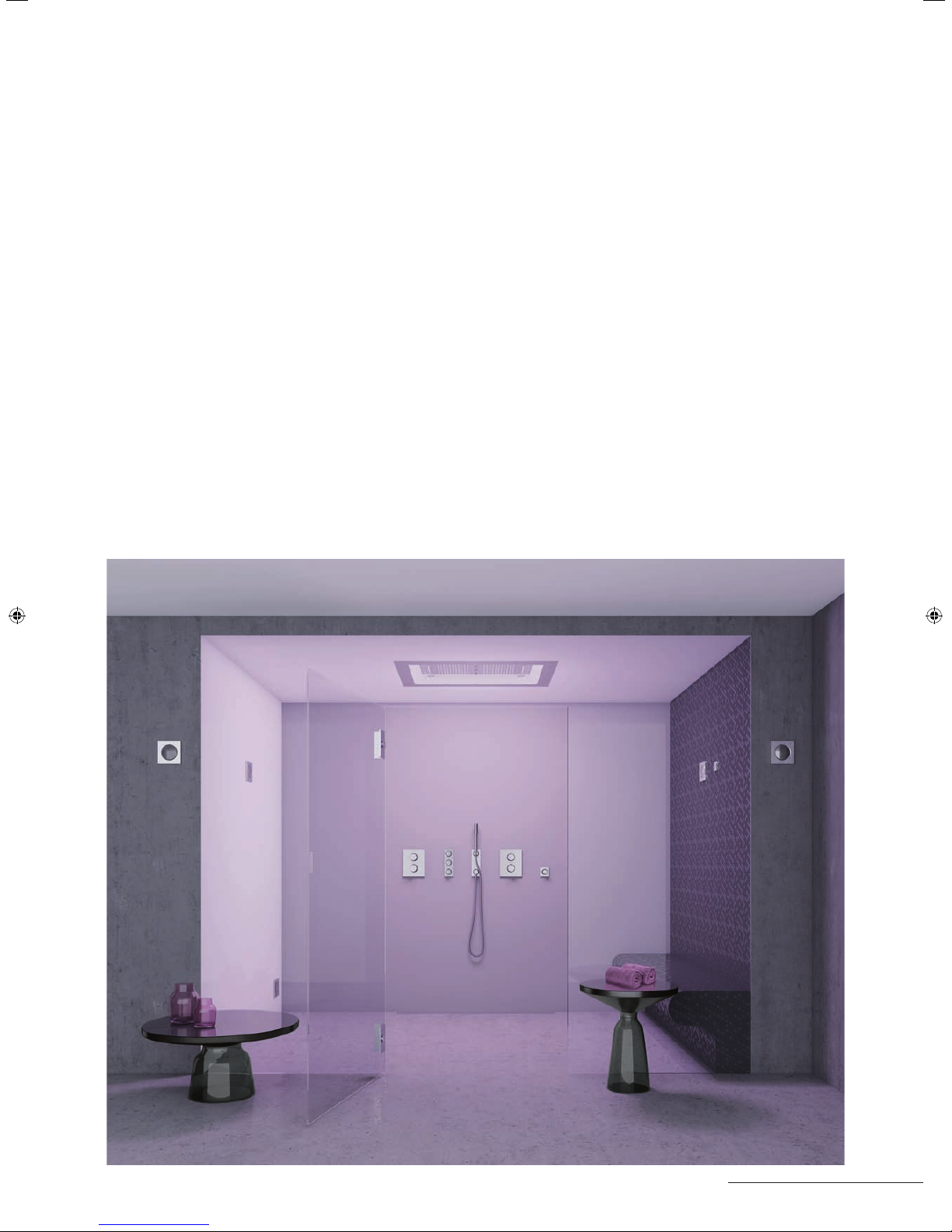

Flexibility for your GROHE SPA®. The bathroom was
once merely functional. Today, it’s a refuge, a place to
refresh and renew. It’s a sanctuary from the outside world;
a heaven of indulgence. Bathrooms are larger; different
zones are now dened. Each is an investment in your
health and wellbeing, a place where daily rituals become
sensational experiences.
With GROHE SPA®, your home sanctuary can be completely
tailor-made – from the basin and bathtub, to the head and
hand showers and handles, to the thermostats and light,
and the sound and steam. Everything can be made your
way. Even down to GROHE Blue® ltered water.
GROHE SPA®
TAILOR-MADE
SHOWERING
GROHE Digital Planning_FE_2016.indd 4 19.08.16 08:10

grohe.com | Page 5
GROHE SPA®
TAILOR-MADE
SHOWERING
GROHE Digital Planning_FE_2016.indd 5 19.08.16 08:11

GROHE Digital Planning_FE_2016.indd 6 19.08.16 08:11

grohe.com | Page 7

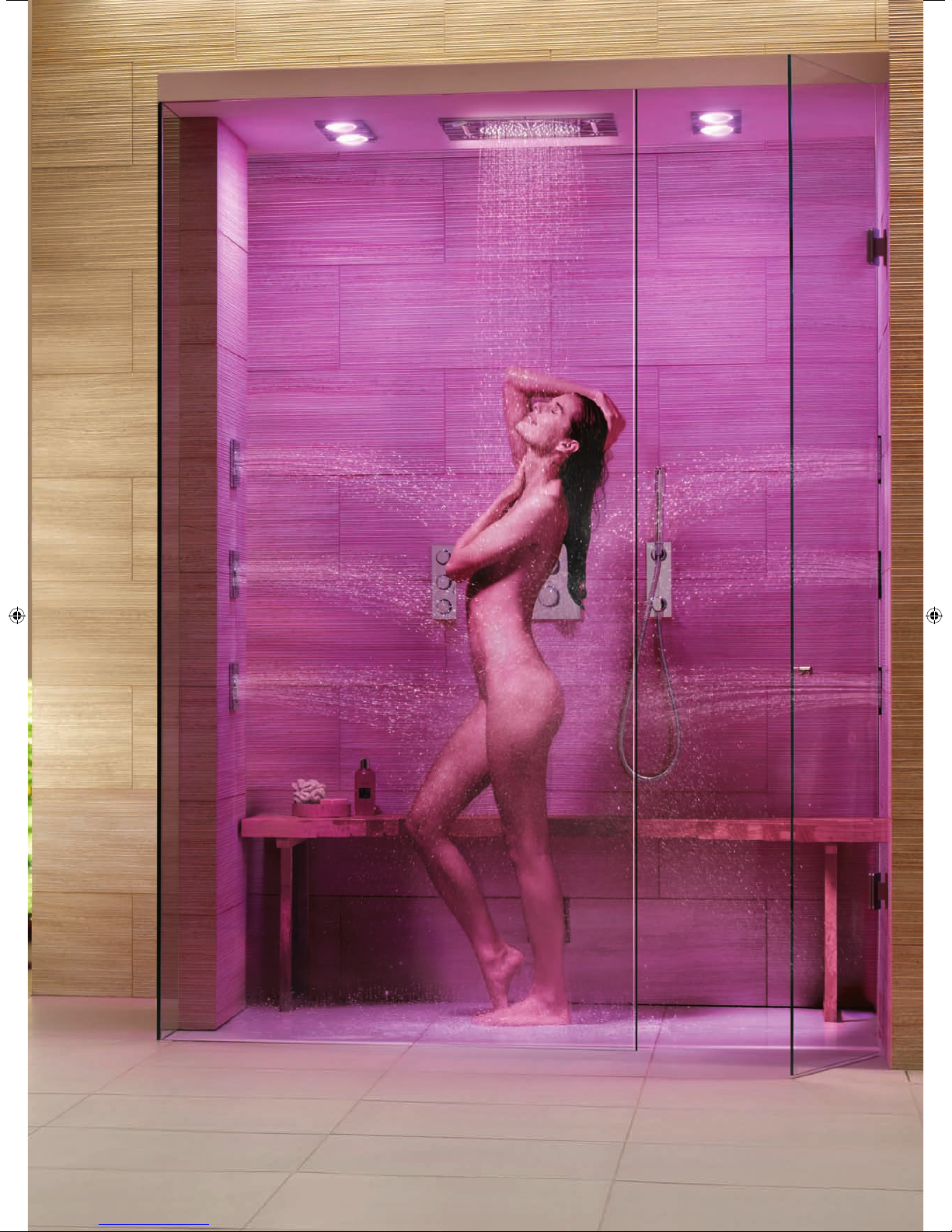

STIMULATE
YOUR SENSES

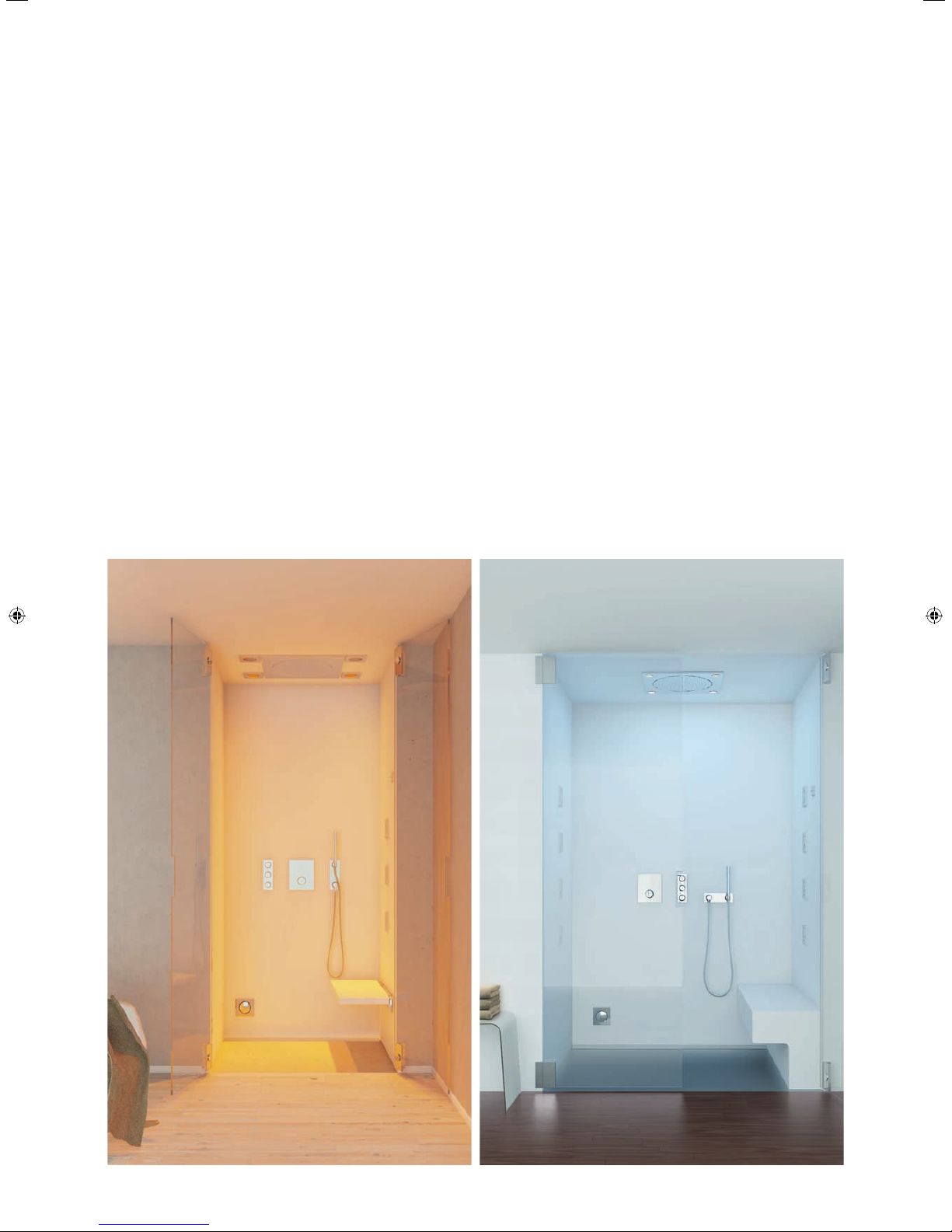

GROHE SPA® F-digital Deluxe: Lights, music, steam...
stimulation for all the senses. It’s time to transform your
bathroom into a luxurious and inspiring home spa.
With the power to ll your shower cabin with different
coloured lights, your favourite music of the moment and
cleansing steam, F-digital Deluxe is designed to soothe
or stimulate all your senses. It is perfect for all your moods.
At the touch of a button!
With GROHE SPA® F-digital Deluxe you know your home
is a sanctuary, complete with a sophisticated oasis of
wellbeing you can control with your ngertips.
Thanks to GROHE SPA® F-digital Deluxe, the bathroom
is no longer just a functional space. It is a life-enhancing
experience that every day breathes new life into your
tired body and soul.
GROHE Digital Planning_FE_2016.indd 7 19.08.16 08:11

Please read the following notes before planning and installing a GROHE F-digital
Deluxe steamroom!
Coordination is the key. It is important to appoint an experienced supervisor
before beginning construction to ensure each stage of the project is correctly
carried out. Refer to the planning examples in this document for further details
about the correct way to install the water supply, the drain pipes, the electrical
cabling and the vapour barrier (if a steam generator is used).
Choosing materials. The materials used for the walls, the ceiling, the furniture
and the electrical wiring and appliances must be carefully chosen to resist
100% humidity.
Understand the installation notes & local regulations. Before work
commences, the project supervisor must be familiar with all the general
installation notes for GROHE F-digital Deluxe as well as the country-specic
regulations concerning construction work, plumbing, electric installation
and the Technical Product Information (TPI).
Plan the installation carefully. Check the best place for the base unit box and
steam generator, especially in relation to the waste outlet, the maximum length
(15m) of the steam pipe (copper pipe with a diameter of 15mm), and the need to
completely isolate the steam pipe and pressure reducer. GROHE recommends the
steam generator is located in a side room for easy maintenance. In addition, a pipe
drain siphon is needed for boiling water after ushing. The drain has to be placed
next to the steam generator, but not directly below to prevent upcoming steam.
To avoid damages to the building please ensure adequate ventilation
of the room above the ceiling shower and protect the surfaces with
an appropriate moisture resistant paint.
Consult a qualied electricians. As installing steam generators, electronic
products and/or electric cables in wet rooms can be hazardous it is important
to use a qualied electrician. All products in the GROHE F-digital Deluxe range
must be connected using a dedicated circuit that is secured by an appropriate
ground fault circuit interrupter (FI)! Please ensure you use an uninterrupted
power supply. If this is not possible, GROHE recommends the installation of
an uninterruptible power supply (UPS) in accordance with local regulations.
Test and calibrate the system. After the system has been installed it is
important to check if it is working properly. For the initial operation of the
system an Apple or Android device with GROHE SPA® App installed is needed.
Next, the pipes must be ushed, pressurized and checked for leaks. The initial
operation steps are described in detail in the TPI (36 397 000 / 26 374 000).
Instruct the customer. When the completed steam room is presented,
the customer should be instructed in its use and receive a copy of all TPIs.
PLANNING A GROHE F-DIGITAL DELUXE
STEAM ROOM
IMPORTANT DETAILS!
!
GROHE Digital Planning_FE_2016.indd 8 19.08.16 08:11

grohe.com | Page 9
GROHE Digital Planning_FE_2016.indd 9 19.08.16 08:11

Attention: Please note the different installation depths of the products
carefully! The wall and ceiling materials, the furniture and the components
of the electrical supply must be carefully chosen to cope with 100% humidity.
Please integrate a vapour barrier into the design of the steam shower cabin
and a humidity resistant seal between the door and ceiling. Please do not use
a mosaic that has been glued to a mesh. The roof should have a gradient of 2%
running down to the back wall and the tiled stone seats should have a gradient
of 1-2% running down from back to front.
To avoid the risk of scalding do not use any metal materials for the seats and
storage spaces.
GROHE recommends the steam generator is installed in a separate room for
ease of maintenance, maximum safety and to comply with legal and regulatory
requirements. A free oor drain or pipe drain siphon for boiling water is also
needed next to the steam generator for ushing and decalcication.
To install only light and sound no separate space is needed, but it is important
to keep a minimal distance between the SPA Showers Base Unit Box (control unit)
and the shower (see VDE 0100 part 701 or EEC Norm). A locker (36367000) can
be used to coordinate all cables of the SPA Showers Base Unit Box.
The power supply should be installed higher than the steam generator and on the
opposite of the ushing pipe to avoid contact with water.
Do not direct the steam outlet at a wall, seating or any other object. There
should be a free space of at least 70 cm (28“) in front of the steam outlet.
Place the temperature sensor as far away from the steam outlet as possible.
Diagonally opposite is best.
Ensure that steam rooms that are used continuously for more than two hours
are ventilated by 10–20 cubic meters of air per person an hour. For detailed
information see the ‘Ventilation’ section of the Steam Generator TPIs (36362000
or 27 934 000).
To avoid damages to the building please ensure adequate ventilation
of the room above the ceiling shower and protect the surfaces with
an appropriate moisture resistant paint.
CAUTION!
Stay at least 12“ (30 cm) away from hot steam escaping from steam outlet.
INSTALLING A STEAM SHOWER
IMPORTANT DETAILS!
!
GROHE Digital Planning_FE_2016.indd 10 19.08.16 08:11

grohe.com | Page 11
Do not make sharp bends or ”elbows” along the steam pipe. A minimum
radius of 50 mm is recommended. Do not allow sags or “water pockets”
along the steam pipe and/or ventilation duct. All pipes must be completely
isolated.
Caution! Prevent any type of obstruction along the steam line, such as a stop-
off valve or tap. The internal diameter of the steam pipe must not be reduced.
A connector for 15 mm copper pipe (soft steel pipe) is included. In countries
that do not have this standard, the next higher diameter should be used.
The power supply to the steam generator via the feeder cable must not be
broken. For that reason, avoid switches along the feeder cable.
Make sure the ushing pipe slopes all the way down to the waste outlet.
Caution! The steam generator’s ushing pipe must always discharge into
a pipe drain siphon outside the steam room itself. The water is very hot
(boiling water).
The ambient temperature outside the steam room and around the steam
generator must not exceed 35°C.
De-scale the steam generator at regular intervals as instructed (please read
the section on ’De-scaling‘ in the TPI of 27 934 000 or 36 362 000. In hard-
water areas, where calcium levels exceed 5-dH, GROHE recommends the
installation of a lter system to avoid scaling.
THE STEAM GENERATOR
IMPORTANT DETAILS!
GROHE Digital Planning_FE_2016.indd 11 19.08.16 08:11

GROHE
F-DIGITAL
DELUXE
GROHE Digital Planning_FE_2016.indd 12 19.08.16 08:11

GROHE
F-DIGITAL
DELUXE
grohe.com | Page 13
GROHE Digital Planning_FE_2016.indd 13 19.08.16 08:11

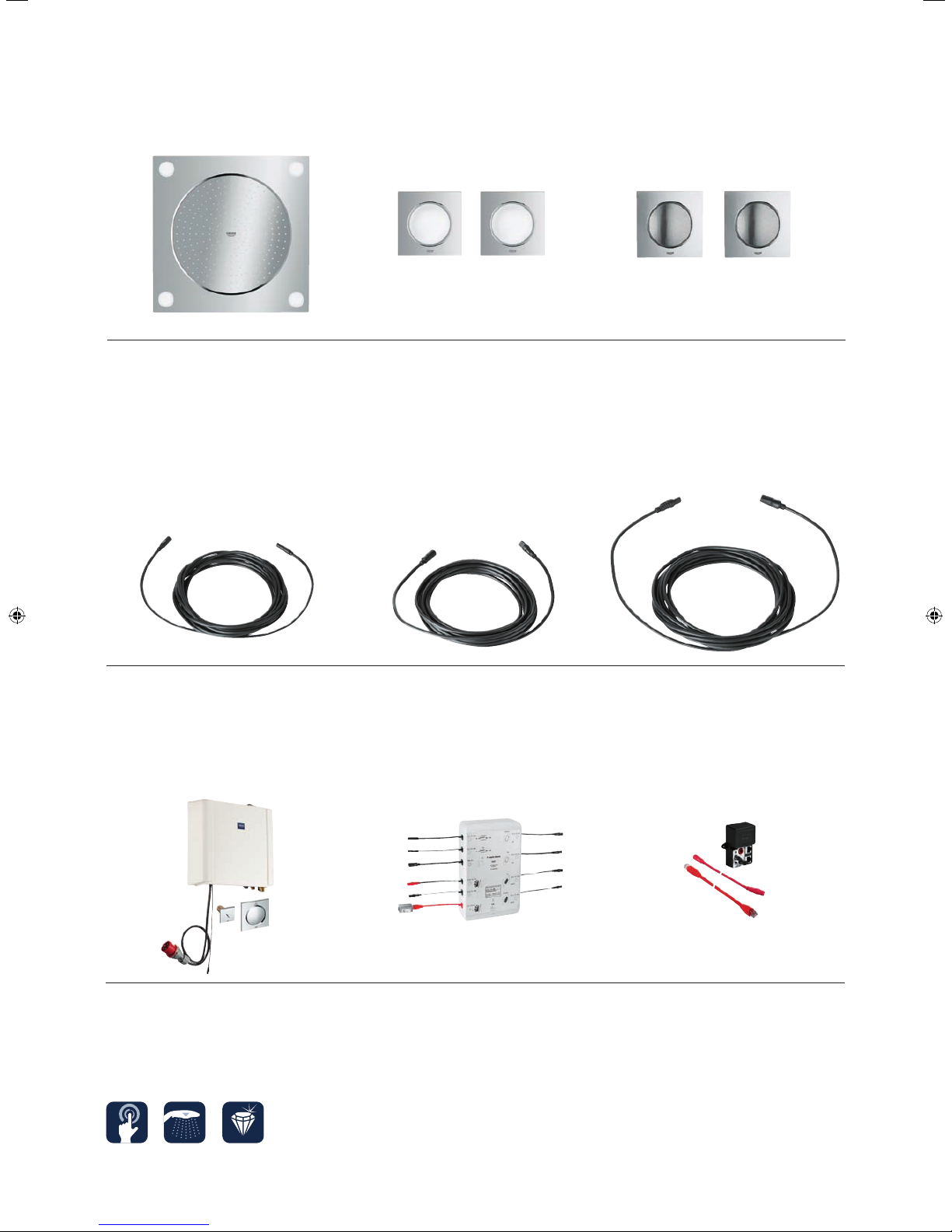

GROHE F-DIGITAL DELUXE
27 934 000
Steam Generator 6.6 kW
29 074 000
Rough-in set for Steam Generator
36 362 000 Steam Generator 2.2 kW
36 395 000 Steam Generator 240 V CN
36 396 000 Steam Generator 400 V CN
27 865 000
Ceiling Shower F-Series 20"
with light, 508 x 508 mm, metal
1 spray pattern: Rain
29 069 000
Connection set for 27 865 000
47 868 000
Cable extension Power Supply 5m
36 397 000
Base Unit Box 2.0 Bluetooth
26 374 000
Base Unit Box 4.0 Bluetooth
36 371 000
Bluetooth unit
36 367 000
Rough-in set base unit box
42 429 000
Power Supply Unit base unit box
47 949 000
Power Supply Unit base unit box CN
36 359 000
Light Set
29 072 000
Rough-in set for Light Set
47 910 000
Cable extension Light 1.6m
47 867 000
Cable extension Light 5m
47 837 000
Cable extension Steam Generator 5m
36 360 000
Sound Set
29 073 000
Rough-in set for Sound Set
47 838 000
Cable extension Sound 5m
47 877 000
Cable extension Temperature sensor 10m
GROHE
Digital®
GROHE
DreamSpray®
GROHE
StarLight®
STEAM BASE UNIT BOX
SHOWER LIGHT SOUND
GROHE Digital Planning_FE_2016.indd 14 19.08.16 08:11

27 286 000
Ceiling shower F-Series 20"
508 mm x 508 mm, metal
1 spray pattern: Rain

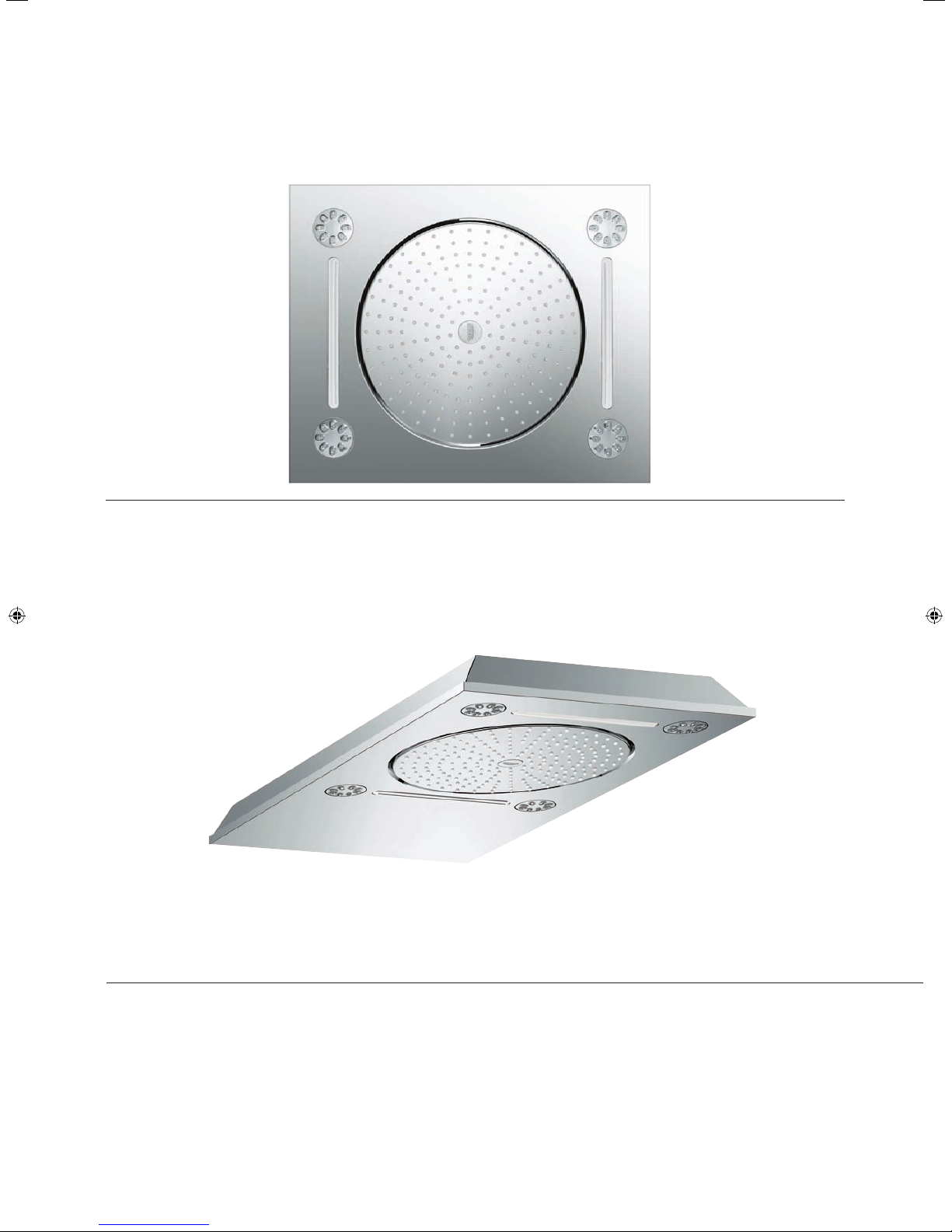

26 373 000

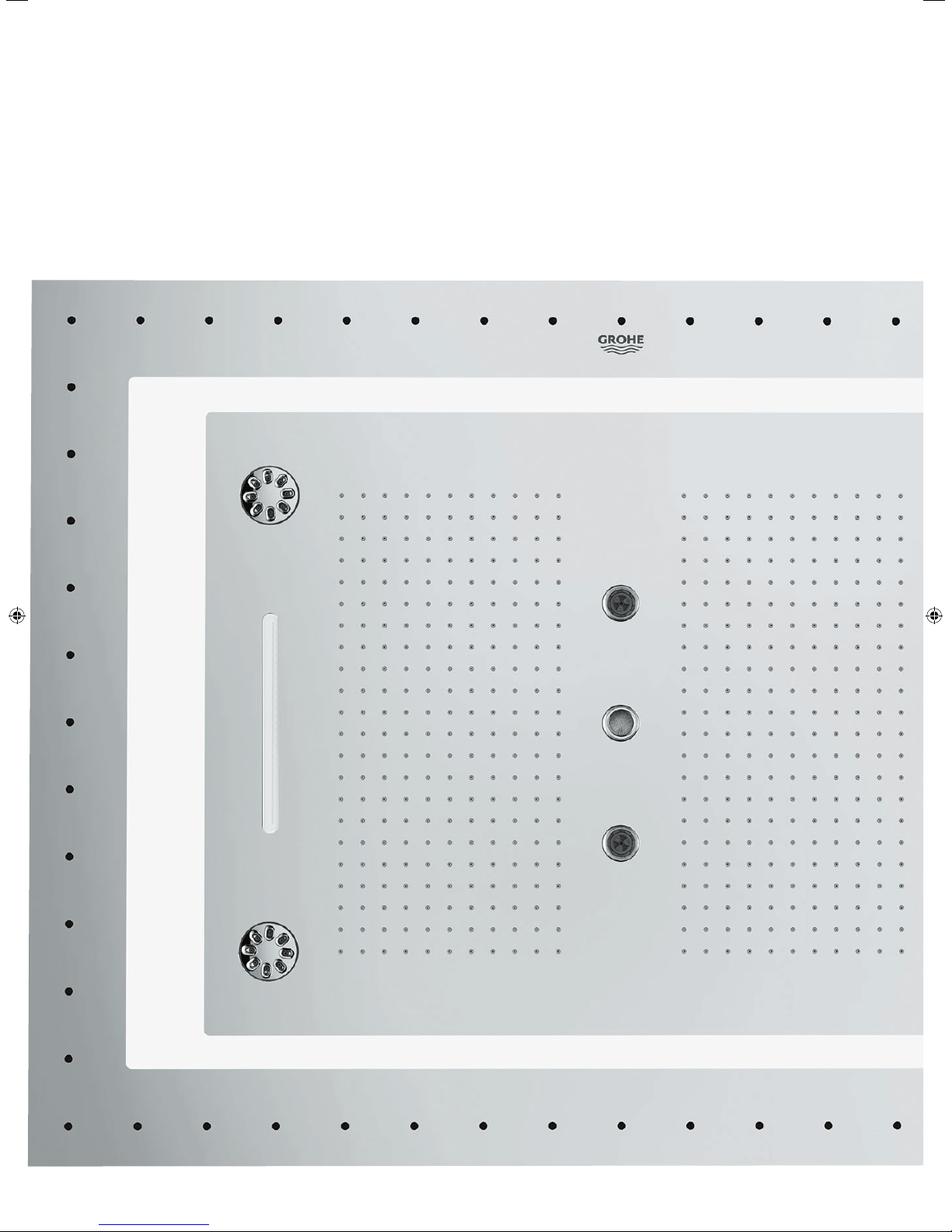

Ceiling shower with light F-Series 40“ AquaSymphony
1016 mm (width) x 762 mm (height) x 155 mm (depth), metal
6+ sprays: 1 x AquaCurtain, 1 x Pure XL spray, 1 x 2 Drizzle sprays (cold mist spray), 2 x GROHE PureRain spray 400 x 190 mm
(separately controlled), 1 x 2 XL Waterfall, 1 x 4 Bokoma Spray® with adjustment angle 20° and combinations
26 376 000
Rainshower® F-Series 40“ Rough-in set
27 865 000
Ceiling Shower F-Series 20" with light
508 x 508 mm, metal
1 spray pattern: Rain
29 069 000
Connection set for 27 865 000
GROHE RAINSHOWER® F-SERIES
HEAD SHOWERS / CEILING SHOWERS
GROHE
DreamSpray®
GROHE
StarLight®
NEW
grohe.com | Page 15
GROHE Digital Planning_FE_2016.indd 15 19.08.16 08:11

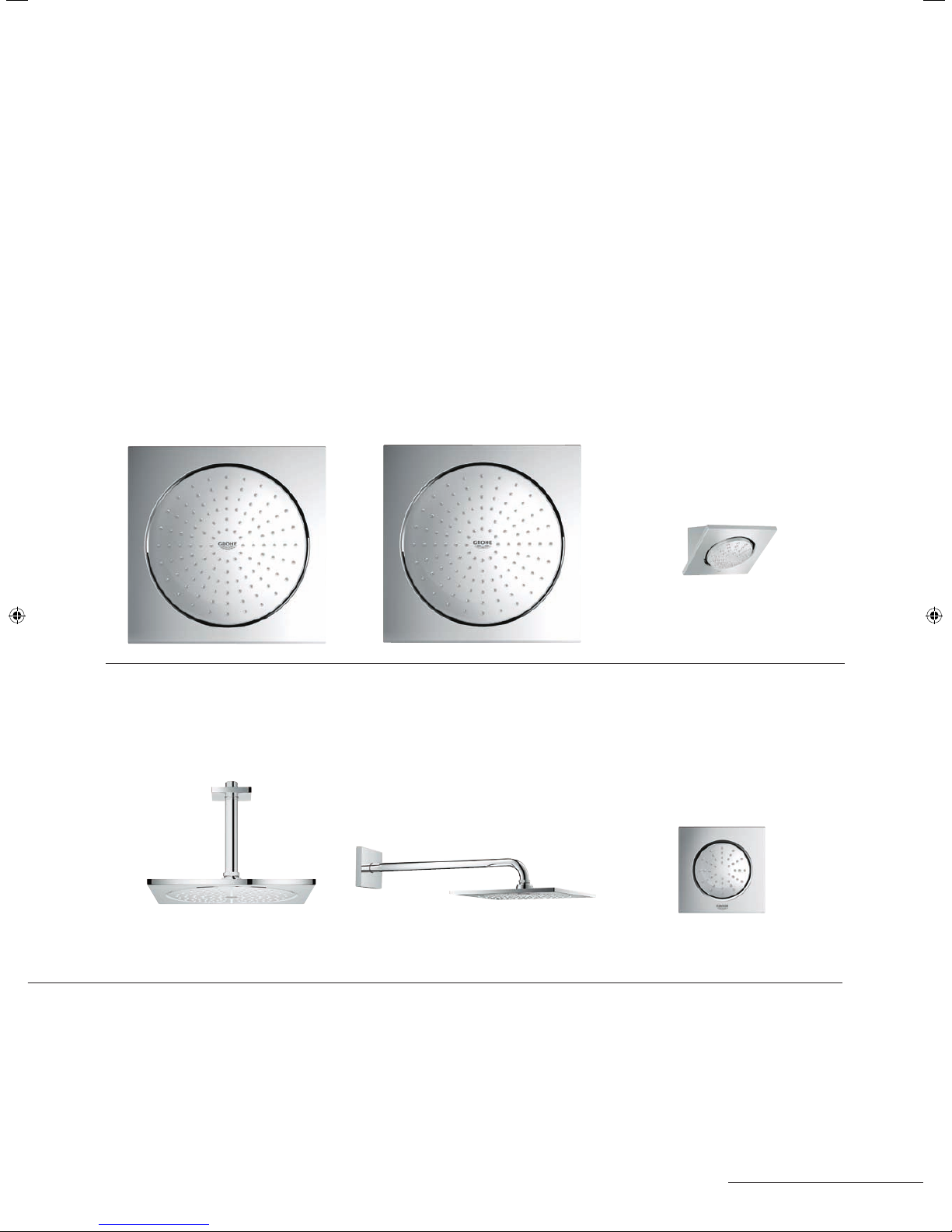

GROHE RAINSHOWER® F-SERIES
HEAD SHOWERS
CEILING SHOWERS
27 938 001 + 26 042 000
Head shower F-Series 15" Multispray
381 mm (width) x 60 mm (height) x 677 mm (depth)
metal
4+ spray patterns: Rain, 2x XL Waterfall, 4x Bokoma Spray and combinations
+ separate concealed body
27 939 001
Ceiling shower F-Series 15" Multispray
381 mm (width) x 17 mm (height) x 456 mm (depth)
metal
4+ spray patterns: Rain, 2x XL Waterfall, 4x Bokoma Spray and combinations
GROHE Digital Planning_FE_2016.indd 16 19.08.16 08:11

SIDE SHOWER
27 253 000
Head shower F-Series 5"
127 mm x 127 mm, metal
1 spray pattern: Rain
27 251 000
Side shower F-Series 5“
127 mm x 127 mm, metal
1 spray pattern: Rain
27 271 000
Head shower F-Series 10"
254 mm x 254 mm, metal
1 spray pattern: Rain
27 285 000
with 9.5 l/min. GROHE EcoJoy
27 815 000
with 7.5 l/min. GROHE EcoJoy
27 467 000
Ceiling shower F-Series 10"
254 mm x 254 mm, metal
1 spray pattern: Rain
26 061 000
Head shower set F-Series 10"
length 142 mm, metal
1 spray pattern: Rain
26 071 000
with 9.5 l/min. GROHE EcoJoy
26 259 000
Head shower set F-Series 10“
projection 422 mm
1 spray pattern: Rain
26 060 000
projection 286 mm
26 070 000
with 9.5 l/min. GROHE EcoJoy
grohe.com | Page 17
GROHE Digital Planning_FE_2016.indd 17 19.08.16 08:11

GROHE TRIMSETS – GROHTHERM F
GROHE
StarLight®
GROHE
EcoJoy
27 618 000 + 35 500 000
Thermostatic Module
with 2-way AquaDimmer
+ separate concealed body
27 619 000 + 35 500 000
Thermostatic Module
+ separate concealed body
28 034 000
Hand shower Sena Stick
1 spray pattern: Rain
28 341 000
with 9.5 l/min. GROHE EcoJoy
GROHE
TurboStat®
34 634 000
Grohtherm F
THM Complete Kit for F40“ precongured
consisting of:
2 x THM with 2-way diverter (27 618 000) + 35 500 000
1 x Triple volume control trim (27 625 000) + 35 031 000
1 x Volume Control (27 623 000) + 35 028 000
1 x Wall shower union with holder (27 621 000) + 35 034 000
1 x Sena Stick Hand Shower (28 034 000)
1 x Relexaex Metal 1500mm (28 143 000)
NEW
GROHE Digital Planning_FE_2016.indd 18 19.08.16 08:11

27 621 000 + 35 034 000
Wall union
with shower holder
+ separate concealed body
27 623 000 + 35 028 000
Single volume control
+ separate concealed body
27 625 000 + 35 031 000
Triple volume control
+ separate concealed body
grohe.com | Page 19
GROHE Digital Planning_FE_2016.indd 19 19.08.16 08:11

PURE FLEXIBILITY
SHOWER SOLUTIONS
GROHE Digital Planning_FE_2016.indd 20 19.08.16 08:12
