DISHWASHER
USER INSTRUCTIONS
GNV 41831
ENG

Please read this user manual first!
Dear Customer,
Thank you for preferring a Grundig product. We hope that you get the best results
from your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or useful
hints about usage.
AWarning for hazardous situations
with regard to life and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging materials together with the domestic or other wastes.
Take them to the packaging material collection points designated by the local authorities.

CONTENTS
1 INSTRUCTIONS FOR SAFETY
AND ENVIRONMENT 4
General safety ............................................... 4
Intended use ................................................... 4
Children’s safety ............................................ 5
Disposing of packaging material ................. 5
Transportation of the product ....................... 5
Compliance with WEEE Directive and
Disposing of the Waste Product ................... 6
Compliance with RoHS Directive ................. 6
Package information ...................................... 6
2 DISHWASHER 7
Overview ........................................................ 7
Fan drying system .......................................... 8
Technical specifications ................................. 8
3 INSTALLATION 9
Appropriate installation location .................. 9
Connecting water supply .............................. 9
Connection to the drain ..............................10
Adjusting the feet .........................................10
Electrical connection ...................................10
WaterProtect+ .............................................. 11
Initial use ....................................................... 11
4 PREPARATION 12
Tips for energy saving ................................. 12
Water softening system ............................... 12
Adjusting the water softening system ......... 12
Adding salt ...................................................13
Detergent ......................................................13
Adding detergent .........................................13
Tablet detergents .........................................14
Rinse aid ....................................................... 15
Silverware basket .......................................18
Adjusting the height of the upper basket ...18
Collapsible upper basket tines ...................19
Upper basket height adjustable rack ......... 19
Tray Wash Supports ....................................20
Collapsible lower basket tines ....................20
Upper cutlery basket ................................... 21
5 OPERATING THE
PRODUCT 22
Keys ...............................................................22
Preparing the machine ................................22
Programme selection ...................................23
Auxiliary functions .......................................25
Scheduling the washing time ......................26
Starting the programme ..............................27
Cancelling the programme .........................27
Salt indicator ( ) .......................................27
Rinse Aid indicator ( ) ..............................27
End of programme .......................................28
Water cut-off warning ..................................28
Overflowing warning ..................................28
MachineCare ...............................................28
Cleaning the filters .......................................29
6 MAINTENANCE AND
CLEANING 29
Cleaning the outer surface of the product 29
Cleaning the interior of the machine..........29
Cleaning the hose filter ...............................30
Cleaning the impellers.................................30
Lower impeller ..............................................30
Upper impeller ............................................. 31
Ceiling Impeller ............................................ 31
7 TROUBLESHOOTING 32

4DISHWASHER / USER INSTRUCTIONS /37 EN
INSTRUCTIONS FOR SAFETY AND ENVIRONMENT
1
This section contains safety
instructions that will help to get
protected from risk of personal
injury or property damage. Failure
to follow these instructions shall
void all warranties.
General safety
•Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will cause
electrical parts to overheat.
This will cause problems with
your product.
•Do not operate the product
if the power cable / plug is
damaged! Call the Authorised
Service Agent.
•Connect the product to a
grounded outlet protected
by a fuse complying with
the values in the “Technical
specifications” table. Do
not neglect to have the
grounding installation made
by a qualified electrician.
Our company shall not be
liable for any damages that
will arise when the product
is used without grounding in
accordance with the local
regulations.
•The water supply and
draining hoses must be
securely fastened and remain
undamaged.
•Unplug the product when not
in use.
•Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
•Never touch the plug with
wet hands! Never unplug by
pulling on the cable, always
pull out by grabbing the plug.
•The product must be
unplugged during installation,
maintenance, cleaning and
repairing procedures.
•Always have the installation
and repairing procedures
carried out by the Authorised
Service Agent. Manufacturer
shall not be held liable for
damages that may arise from
procedures carried out by
unauthorised persons.
•Never use chemical solvents in
the product. They bring forth
the risk of explosion.
•When you pull the upper and
lower baskets out completely,
the door of the product will
bear all the weight of the
baskets. Do not put other
loads on the door; otherwise,
the product may tilt.
•Never leave the door of the
product open apart from
loading and unloading
procedures.
•Do not to open the door of
the product when it is running
unless necessary. Be careful
for the rush of hot vapour
when you need to open the
door.
Intended use
•This product has been
designed for domestic use.
•It must be used to do the
domestic type dishes only.

DISHWASHER / USER INSTRUCTIONS 5 / 37 EN
instructions for safety and environment
•This appliance is intended
to be used in household and
similar applications such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
•Only dishwasher safe
detergents, rinse aids and
additives must be used.
•The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
•The service life of your product
is 10 years. During this period,
original spare parts will be
available to operate the
product properly.
•This product should not be
used by persons with physical,
sensory or mental disorders or
unlearned or inexperienced
people (including children)
unless they are attended
by a person who will be
responsible for their safety
or who will instruct them
accordingly for use of the
product.
Children’s safety
•Electrical products are
dangerous for the children.
Keep children away from the
product when it is in use. Do
not let them to tamper with the
product.
•Do not forget to close the door
of the product when leaving
the room where it is located.
•Store all detergents and
additives in a safe place away
from the reach of the children.
Disposing of packaging
material
Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the product
are manufactured from recyclable
materials. Dispose of them
properly and sort in accordance
with recycled waste instructions.
Do not dispose of them with
normal domestic waste.
Transportation of the
product
AIf you need to move the
product, do it in upright
position and hold from
the rear side. Slanting
the product onto its front
side may cause the
electronic parts in it get
wet and damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage and
water supply connections.
3. Drain the remaining water in
the product completely.

6DISHWASHER / USER INSTRUCTIONS /37 EN
instructions for safety and environment
Compliance with WEEE
Directive and Disposing
of the Waste Product
This product complies with
EU WEEE Directive
(2012/19/EU). This product
bears a classification symbol
for waste electrical and electronic
equipment (WEEE).This product
has been manufactured with high
quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the
waste product with normal
domestic and other wastes at the
end of its service life. Take it to the
collection center for the recycling
of electrical and electronic
equipment. Please consult your
local authorities to learn about
these collection centers.
Compliance with RoHS
Directive
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not
contain harmful and prohibited
materials specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.
Do not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by the
local authorities.

DISHWASHER / USER INSTRUCTIONS 7 / 37 EN
DISHWASHER
2
Overview
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket
14. Ceiling impeller
15. Fan drying system (depends on model)
15

8DISHWASHER / USER INSTRUCTIONS /37 EN
Dishwasher
Technical specifications
Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the safety
rules included in all pertaining European Community regulations.
2006/95/EC, 2004/108/EC, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-1.0
Mpa)
CTechnical specifications may be changed without prior notice to improve the
quality of the product.
CFigures in this manual are schematic and may not match the product exactly.
CValues stated on the markings of the product or in the printed documents
accompanying the product are obtained in the laboratory on basis of the relevant
standards. Depending on operational and environmental conditions of the
product, these values may vary.
Note for test institutions:
Data required for performance tests shall be provided upon request. Requests can be
e-mailed to the following address:
[email protected]
Do not forget to provide the code, stock and serial numbers of the product to be tested in your
request e-mail along with your contact information. Code, stock and serial numbers of the
product may be found on the type label attached to the side wall of the door.
Fan drying system
Fan drying system ensures efficient drying of your dishes.
It is normal to hear a different sound than that of washing cycle during fan operation.

DISHWASHER / USER INSTRUCTIONS 9 / 37 EN
3INSTALLATION
Refer to the nearest Authorised Service
Agent for installation of your product. To
make the product ready for use, make sure
that the electricity, tap water supply and
water drainage systems are appropriate
before calling the Authorised Service Agent.
If they are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
CPreparation of the location and
electrical, tap water and waste
water installations at the place
of installation is under customer's
responsibility.
BInstallation and electrical
connections must be carried out
by the Authorised Service Agent.
Manufacturer shall not be held
responsible for damages arising
from processes carried out by
unauthorised persons.
APrior to installation, visually
check if the product has any
defects on it. If so, do not have
it installed. Damaged products
cause risks for your safety.
CMake sure that the water inlet
and discharge hoses are not
folded, pinched or crushed
while pushing the product into
its place after installation or
cleaning procedures.
When placing the product, pay attention not
to damage the floor, walls, piping, etc. Do
not hold the product from its door or panel
to move it.
Appropriate installation
location
•Place the product on a solid and flat
floor that has sufficient load carrying
capacity! The product must be installed
on a flat surface in order for the door to
be closed comfortably and securely.
•Do not install the product at places
where temperature may fall below 0ºC.
•Place the product at least 1 cm away
from the edges of other furniture.
•Place the product on a rigid floor. Do
not place it on a long pile rug or similar
surfaces.
BDo not place the product on the
power cable.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product in a place close to
the tap and the drain hole. Select the
installation location by considering
that it will not be changed after the
connections are made.

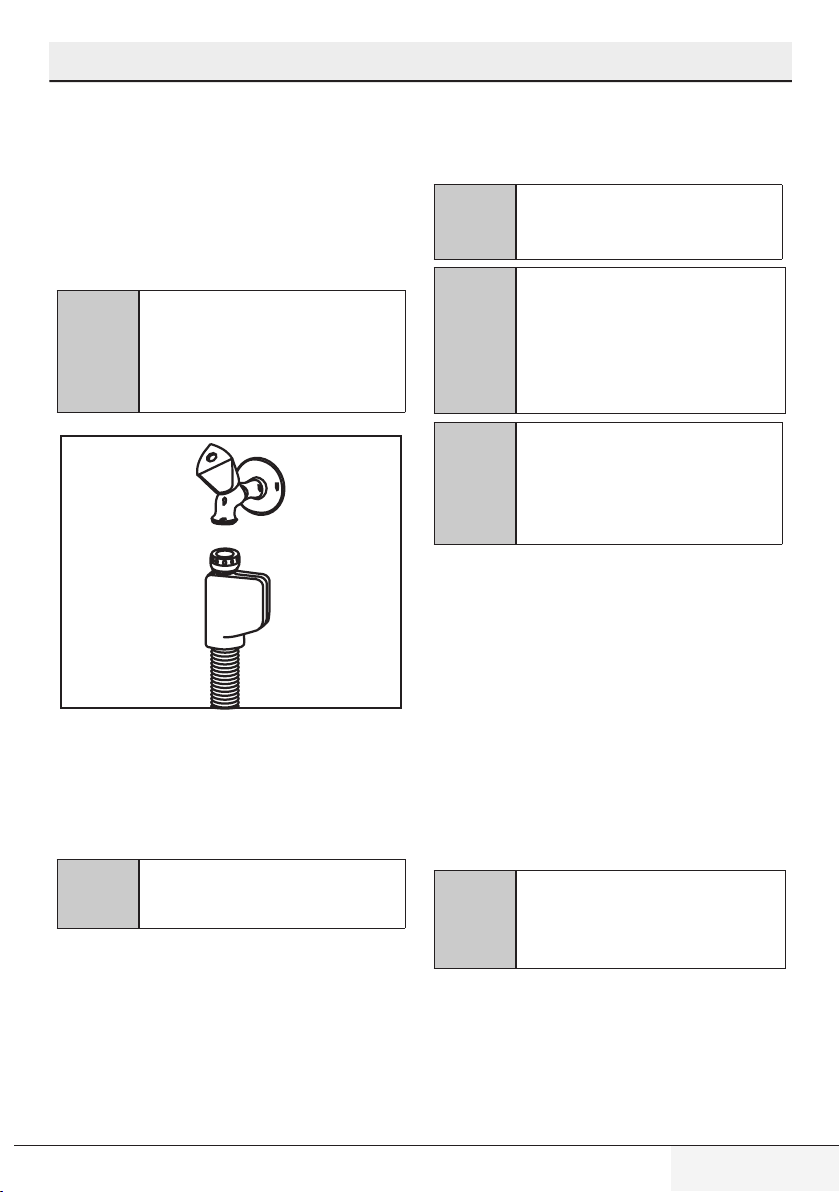

Connecting water supply
CWe recommend attaching a
filter on the house/apartment
supply water inlet to protect the
machine from damages that
may arise from impurities (sand,
dirt, rust, etc.) coming from the
urban water supply system or
from your own water system as
well as to prevent complaints
such as yellowing or sludge
accumulation at the end of
washing.

10 DISHWASHER / USER INSTRUCTIONS /37 EN
Installation
Attach the water discharge hose to the
drainpipe without bending it. Tightly fix the
water discharge hose to the drainpipe in
order to prevent any dislocation of the water
discharge hose during operation of the
product.
min 300
min 120
max 1000
min 500
Permitted water temperature: up to
25°C
The dishwasher may not be connected to
open warm water devices or flow-through
water heaters.
•Do not use old or used water inlet hose
on the new product. Use the new water
inlet hose supplied with the product.
•Connect the water inlet hose directly
to the water tap. Pressure coming from
the tap should be minimum 0.3 and
maximum 10 bars. If the water pressure
exceeds 10 bars, a pressure relief valve
should be installed in between.
•Open the taps completely after making
the connections to check for water
leaks.
CUse a screw-on hose connector
to connect the water inlet hose
to a water tap with a ¾ inch
external thread. If required, use
a filter insert to filter deposits
from the pipes.
AFor your safety, close the water
inlet tap completely after the
washing programme is over.
Connection to the drain
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. The length of this connection must
be min. 50 cm and max. 100 cm from the
floor. A discharge hose longer than 4 meters
causes dirty washing.
CDrainpipe must be connected to
the sewage system and it should
not be connected to any surface
water.
Adjusting the feet
If the door of the product cannot be closed
properly or if the product swings when
you push it slightly, then you need to adjust
the feet of the product. Adjust the feet of
the product as illustrated in the installation
manual supplied with the product.
Electrical connection
Connect the product to a grounded outlet
protected by a fuse complying with the
values in the “Technical specifications” table.
Our company shall not be liable for any
damages that will arise when the product is
used without grounding in accordance with
the local regulations.

DISHWASHER / USER INSTRUCTIONS 11 / 37 EN
Installation
•Connection must comply with national
regulations.
•Power cable plug must be within easy
reach after installation.
BUnplug the product after the
washing programme is over.
•The voltage and allowed fuse or
breaker protection are specified in the
“Technical specifications” section. If the
current value of the fuse or breaker in
the house is less than 16 Amps, have a
qualified electrician install a 16 Amp
fuse.
•The specified voltage must be equal to
your mains voltage.
•Do not make connections via extension
cables or multi-plugs.
BDamaged power cables must
be replaced by the Authorised
Service Agent.
BIf your dishwasher is equipped
with internal illumination, lamp
should only be replaced by the
Authorised Service Agent in case
of failures that may occur on the
lamp.
BIf the product has a failure, it
should not be operated unless
it is repaired by the Authorised
Service Agent! There is the risk
of electric shock!
Initial use
Before starting to use the product, make
sure that all preparations are made
in accordance with the instructions in
sections “Important safety instructions” and
“Installation”.
•To prepare the product to do the dishes,
perform first operation in the shortest
programme with detergent while the
machine is empty. During the initial use,
fill the salt reservoir with 1 litre of water
prior to filling it with salt.
AThere might be a small amount
of water left in the product after
factory quality control tests. This
has no harm on the product.
WaterProtect+
The WaterProtect+ system protects against
water leaks that may occur at the hose inlet.
Water contact with the valve box of the
system must be avoided to prevent damage
to the electrical system. If the WaterProtect+
system is damaged, unplug the product and
call the Authorised Service Agent.
AAs the hose set contains
electrical connections and
assemblies, never shorten or
lengthen the hose with extension
hoses.

12 DISHWASHER / USER INSTRUCTIONS /37 EN
PREPARATION
4
Tips for energy saving
Following information will help you use the
product in an ecological and energy-efficient
manner.
Wipe away any coarse food remnants on
the dishes before putting them in the product.
Operate the product after filling it
completely.
When selecting a programme, consider
the table of "Programme data and average
consumption values".
Do not put more detergent than suggested
on the detergent package.
Water softening system
CYour dishwasher requires soft
water. If the hardness of the
water is above 6°dH, the water
must be softened and descaled.
Otherwise, ions that create the
hardness will accumulate on the
surfaces of the dishes and may
adversely affect the washing,
shining and drying performances
of the product.
The product is equipped with a water
softening system which reduces the hardness
of incoming water. This system softens the
supply water that enters into the product to a
level that will allow washing the dishes with
the required quality.
Adjusting the water softening
system
Washing performance will increase when
water softening system is adjusted properly.
Adjust the new water hardness level
according to the Water hardness level
instruction supplied with your machine.

DISHWASHER / USER INSTRUCTIONS 13 / 37 EN
Preparation
5. If you will not start a washing programme
immediately after adding the salt, run the
machine empty in the shortest programme to
dissolve and wash away the scattered salt in
the machine.
CSince different salt brands in the
market have different particle
sizes and since the water
hardness may vary, dissolution
of the salt in water may take
a couple of hours. Therefore,
Salt Indicator remains on for a
while after adding salt into the
machine.
Detergent
You can use powder or tablet detergent in
the machine.
AOnly use in the machine the
detergents produced particularly
for use with dishwashers. We
recommend you not to use
detergents that contain chlorine
and phosphate as they are
harmful for the environment.
Adding detergent
CYou can find the correct amount
of detergent for the selected
programme in the table of
"Programme data and average
consumption values".
ADo not put solvents into the
detergent dispenser. There is the
risk of explosion!

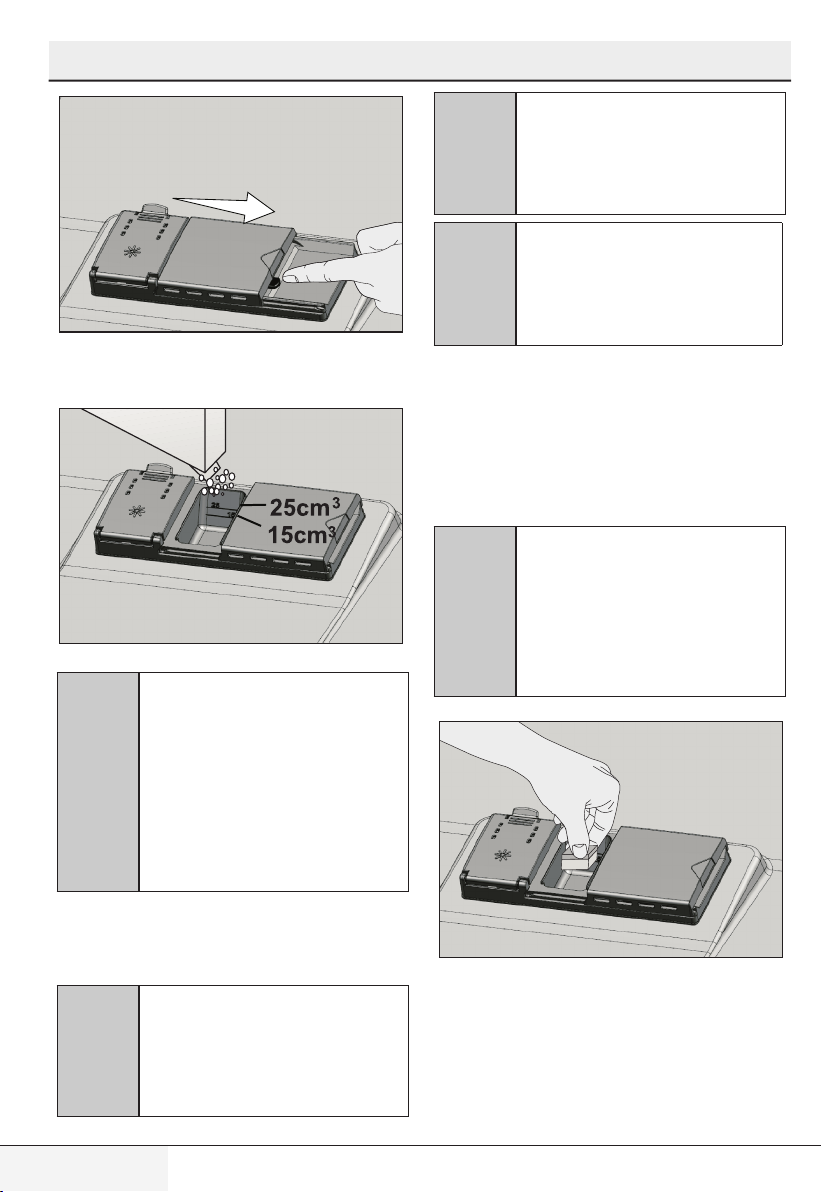

Put the detergent into the detergent dispenser
just before operating the machine as
illustrated below.
1. Press the latch in the direction of arrow
to open the detergent dispenser lid (A).
Adding salt
Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used for this
purpose.
CUse only special softening salts
produced particularly for the
dishwashers in your machine.
CWe recommend using granular
or powder softening salts. Do
not use salts that are insoluble
in water such as table salt or
common salt. Performance of
water softening system may get
worse in time.
CSalt reservoir will fill with water
when you start the product.
Therefore, add the softening salt
before starting the machine.
1. First take the lower basket out to add
softening salt.

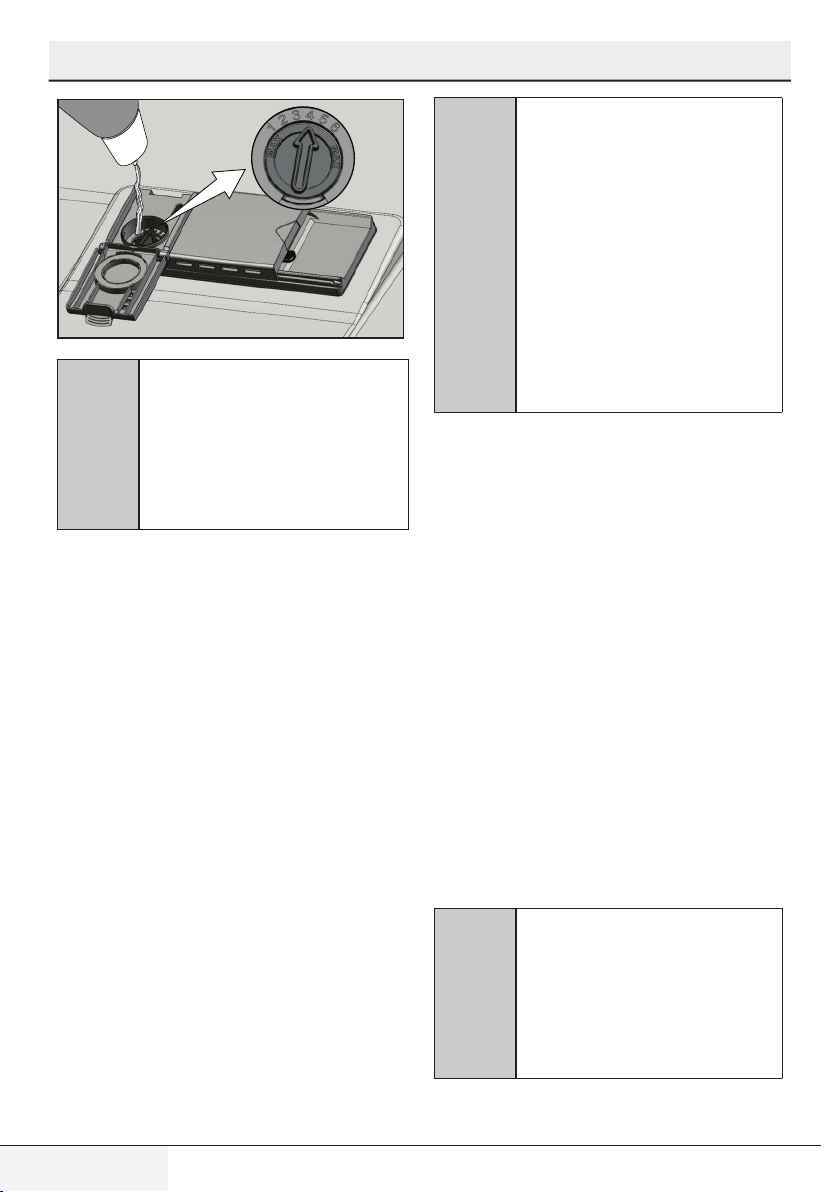

2. Turn the salt reservoir lid in counter
clockwise to open it (A, B).
CSalt reservoir will fill with water
when you start the product.
Therefore, add the softening salt
before starting the machine.
CBefore initial use, fill the water
softening system with 1 litre of
water (C).
3. Fill the salt reservoir with salt by using salt
funnel (D). To speed up dissolution rate of
salt in water, stir it with a spoon.
CYou can put about 2 kg of
softening salt into the salt
reservoir.
4. Replace the lid and tighten it securely
when the reservoir is full.

14 DISHWASHER / USER INSTRUCTIONS /37 EN
Preparation
CUse powder detergent in short
programmes without prewash
since the solubility of the tablet
detergent changes depending on
the temperature and time.
AExcessive usage of powder
detergents will cause the
detergent not dissolve
completely and will also cause
scratches on the glassware.
Tablet detergents
Tablet detergents exhibit water softening and
/ or rinse aid effect in addition to detergent
effect. Some types of these detergents also
contain special-purpose washing chemicals
such as glass and stainless steel protectors.
CTablet detergents give satisfying
results only under certain usage
conditions. The best washing
performance in dishwashers is
obtained by using detergent,
rinse aid and water softening salt
individually.
2. Put suggested amount of powder or
tablet detergent in the dispenser.
AInside the detergent dispenser
there are level markings that help
you use appropriate amount of
powder detergent. Fill detergent
up to 15 cm3 or 25 cm3 level
marks in the detergent dispenser
according to fullness of the
machine and/or soiling degree
of the dishes.
3. Close the detergent dispenser lid by
pressing on it lightly. A "click" will be
heard when the lid is closed.
CIn programs with pre-washing
and high temperature, in which
you may use tablet detergents,
make sure that the detergent
dispenser lid is closed firmly.

DISHWASHER / USER INSTRUCTIONS 15 / 37 EN
Preparation
CDepending on the model, salt
indicator and/or rinse aid
indicator should be enabled
again if they are disabled
before.
Rinse aid
CThe rinse aid used in dishwashers
is a special combination
that aims to increase drying
efficiency and prevent water
or lime stains on the washed
items. For this reason, care must
be paid to have rinse aid in the
rinse aid reservoir and to use
rinse aids produced specially for
dishwashers only.
Please check the rinse aid indicator on the
display to see whether there is adequate
amount of rinse aid in the dishwasher or
not. You need to refill the rinse aid reservoir
with rinse aid whenever rinse aid warning
indicator appears on the display of your
machine.

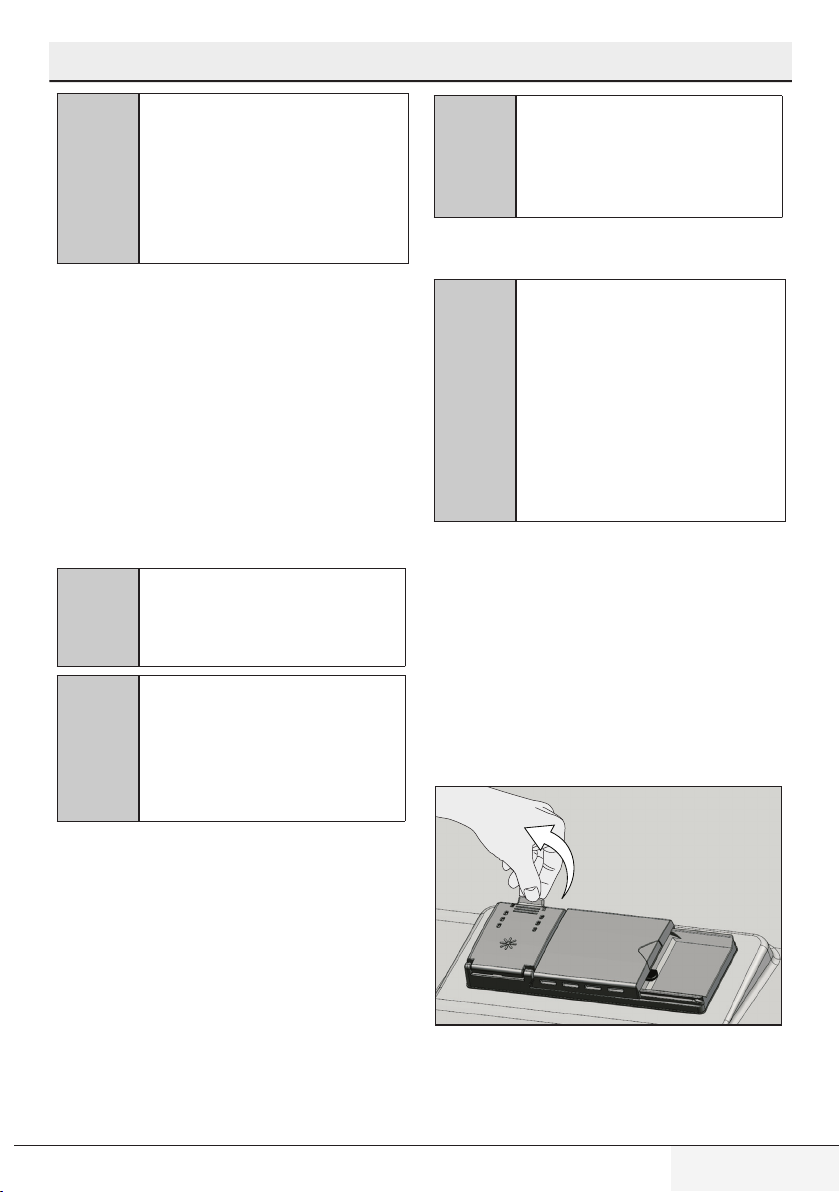

1. Open the lid of the rinse aid reservoir by
pulling the latch in the direction of the
arrow (B).
2. Fill the reservoir until “MAX” level.
3. Close the lid of the reservoir by pressing
on it lightly.
CInformation about suitable
places (detergent dispenser,
basket etc.) in the dishwasher to
place the tablet can be found
amongst the usage instructions
on the packages of the tablet
detergents.
Tablet detergent types commonly found in
the market:
2in1: Contains detergent, rinse aid or water
softening salt
3in1: Contains detergent, rinse aid and
water softening salt
4in1: Contains glass protectors in addition
to detergent, rinse aid and water softening
salt
5in1: Contains glass and stainless steel
protectors in addition to detergent, rinse aid
and water softening salt.
CObserve the instructions of the
detergent manufacturer on the
package when using tablet
detergents.
CContact the detergent producer
if your dishes are wet and/
or if you notice limescale spots
particularly on your glasses after
the washing programme is over
when using a tablet detergent.
When you switch to powder
detergent from tablet detergent:
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the highest
level and perform an empty run.
3. After the empty washing cycle, review
the user manual and readjust the water
hardness level so as to suit the water
supply.
4. Make the appropriate rinse aid settings.

16 DISHWASHER / USER INSTRUCTIONS /37 EN
Preparation
CDecorative prints of chinaware
as well as aluminum and silver
items may get discoloured or
tarnished after washing in the
dishwasher just as it happens
in handwashing as well. Some
delicate glass types and crystals
may become dull in time. We
strongly recommend you to
check if the tableware you are
going to purchase is suitable
for washing especially in the
dishwasher.
Placing the dishes into the dishwasher
You can use your dishwasher in the optimum
way with respect to energy consumption and
washing and drying performance only if you
place the dishes in an orderly way.
•Wipe away any coarse food remnants
(bones, seeds, etc.) on the dishes before
placing them in the dishwasher.
•Place thin, narrow pieces in the middle
sections of baskets if possible.
•There are two separate baskets in
which you can place your dishes in the
dishwasher. Place the heavily soiled and
bigger items in the lower basket and
smaller, delicate and light items in the
upper basket.
•Place the hollowed dishes such as bowls,
glasses and pans upside down in the
dishwasher. Thus, accumulation of water
in deep hollows is prevented.
ATo prevent possible injuries,
always place the sharp and
pointed dishes such as service
fork, bread knife, etc. upside
down so as their pointed ends
will face down or they will lie
horizontally in the dish basket.
Unload dishes in the lower basket first and then
the dishes in the upper basket.
CAfter making sure that the lid is
closed, wipe clean any spilled
rinse aid outside the reservoir.
Rinse aid that spilled accidentally
will cause foaming and it will
eventually decrease washing
performance.
4. Turn the rinse aid amount adjuster
manually to a position between 1 and
6 (C). If there are stains on tableware
items after washing, level must be
increased and if there is a blue trace
after wiping them by hand, it must be
decreased. This is set to position 4 as
factory default.
Items not suitable for washing in the
dishwasher
•Never wash dishes soiled by cigarette
ash, candle remnants, polish, dyestuff,
chemicals, etc. in your dishwasher.
•Do not wash iron alloy items in the
dishwasher. It can get corroded or
leave stains on other items.
•Do not wash silverware and cutlery
with wooden or bone stems, glued
pieces, or pieces that are not resistant
to heat, as well as copper and tin-
plated containers in the dishwasher.

DISHWASHER / USER INSTRUCTIONS 17 / 37 EN
Preparation
Suggestions for loading the dishwasher
Lower basket
Upper basket
Improper Loading Of Dishware
Improper Loading Of Dishware

18 DISHWASHER / USER INSTRUCTIONS /37 EN
Preparation
Adjusting the height of the
upper basket
Basket adjustment mechanism on the loaded
upper basket of the machine is designed to
allow you create taller areas in the upper or
lower section of the machine based on your
requirements by adjusting the height of the
loaded basket in up or down directions.
To raise the basket:
Grab one of the upper basket wires (right or
left) and lift it up (A).
Repeat the same process to raise the other
side of the basket.


Make sure that both sides of the loaded
basket height adjustment mechanism are at
the same level (down or up).
To lower the basket:
Press the latch on the loaded basket
adjustment mechanism (right and left) to
lower the basket (B).


Repeat the same process to lower the other
side of the basket.
Make sure that both sides of the loaded
basket height adjustment mechanism are at
the same level (down or up).
Silverware basket
Silverware basket is designed to wash your
dishes such as knife, fork, spoon, etc. in a
cleaner manner.
Since the cutlery basket can be moved (A,
B), you can create a wider space while
placing your dishes to the lower basket and
free up space for your dishes in different
sizes.

DISHWASHER / USER INSTRUCTIONS 19 / 37 EN
Preparation
Upper basket height
adjustable rack
Use the lower and upper parts of the height
adjustable racks in the upper basket of
the machine by sliding them down or up
according to the heights of the glasses, cups
or etc. (A, B, C).
Collapsible upper basket tines
Upper basket of the machine is equipped
with tines with gradual folding system (A)
that you can lay down when you need a
larger space for large dishes.

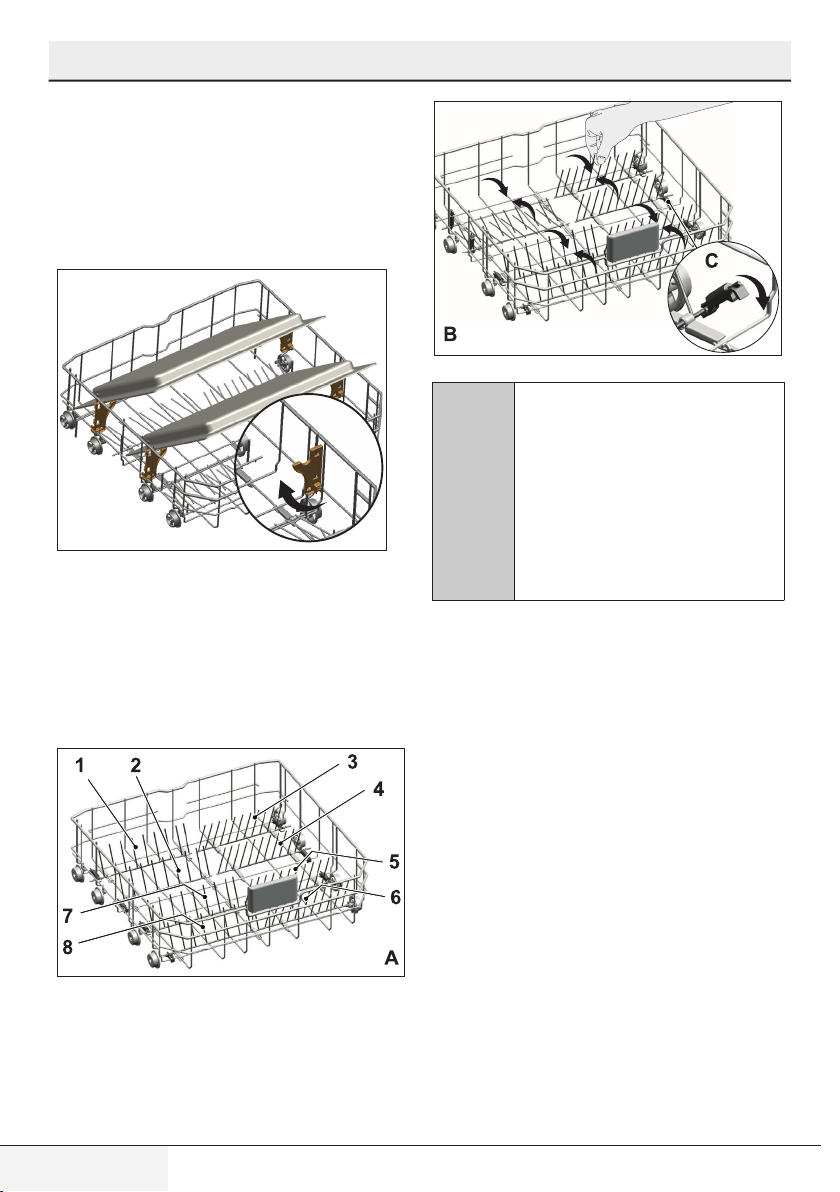

To bring the collapsible tines into horizontal
position, grab the tines from mid position and
push them in the directions of arrows. Place
your larger dishes into the area created. To
bring the tines back to vertical position, just
lift them up. Collapsible tines will click into
the latch again.
CBringing the tines to the
horizontal position by holding
them from the tips may cause
them to bend. Therefore, it will
be appropriate to bring the tines
in the middle to horizontal or
vertical position by holding them
from their stems and pushing in
the direction of arrow.

20 DISHWASHER / USER INSTRUCTIONS /37 EN
Preparation
Collapsible lower basket tines
The six piece foldable tines (A) located
at the lower basket of the machine are
designed for an easier placement of large
pieces such as pans, bowls, etc. You can
create larger spaces by folding each tines
individually or all of them at once.
To bring the collapsible tines into horizontal
position, grab the tines from mid position and
push them in the directions of arrows (B). To
bring the tines back to vertical position, just
lift them up. Collapsible tines will click into
the latch again (C).
Tray Wash Supports
Use the supports to wash trays in the bottom
basket.
See the Auxiliary functions section for
appropriate programme and function
selection.
CBringing the tines to the
horizontal position by holding
them from the tips may cause
them to bend. Therefore, it will
be appropriate to bring the tines
in the middle to horizontal or
vertical position by holding them
from their stems and pushing in
the direction of arrow.
