Grundig GU15WDT User manual

GU15WDT/GU15WDPCX
ATV/DTV
CH.
VOL .
GUI DE
EXI T
INF O/i INPUT
FAS T TEX T
MEN U
1
4
7 8 9
0
56
23
I-II P .MO DE
P.S IZE
CH. L IST SUB TIT LE
SLE EP
/ TEX T
Grundig Web Site: www.grundig.co.uk

1
LCD TV User Guide
Safety Instructions
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire or electric shock, do not
expose this equipment to rain or moisture.
This symbol is intended to alert the user to avoid the risk of
electric shock, do not disassemble this equipment by
anyone except a qualified service personnel.
This symbol is intended to alert the user to the presence
of important operating and maintenance instructions
in the literature accompanying the appliance.
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
CAUTION
CAUTION
WARNING

2LCD TV User Guide
Safety Instructions
MAINS PLUG WIRING
Electrical Information
This appliance is fitted with a BS1363/A 13 amp plug. If it is not suitable for your
supply sockets it must be removed and replaced with an appropriate plug. If the
plug becomes damaged and/or needs to be replaced please follow the wiring
instructions below. The plug removed must be disposed of immediately. It must not
be plugged into a supply socket as this will be an electrical hazard. If the fuse needs
to be replaced it must be of the same rating and ASTA approved to BS1362. If the
plug is changed, a fuse of the appropriate rating must be fitted in the plug, adapter or
at the distribution board. If the fuse in a moulded plug is replaced, the fuse cover
must be refitted before the appliance can be used.
Wiring Instructions
The supply cable will be either 2-core or 3-core. Follow the appropriate wiring
instructions given below. In both cases ensure that the outer sheath of the cable is
firmly held by the cable clamp.
WARNING! Do not connect either wire to
the earth terminal.
This symbol indicates that this 2-core
appliance is Class II and does not require an
earth connection.
2- CORE
BLUE
(Neutral)
Cable
clamp
BROWN
(Live)
Fuse
The wire coloured blue must be connected to
the terminal marked with the letter N or
coloured black.
The wire coloured brown must be connected to
the terminal marked with the letter L or
coloured red.
WARNING! This appliance must be
earthed.
The wire coloured green and yellow must be
connected to the terminal marked with the letter
E, or by the earth symbol, , or coloured green
or green and yellow.
The wire coloured blue must be connected to the
terminal marked with the letter N or coloured
black.
The wire coloured brown must be connected to
the terminal marked with the letter L or coloured
red.
3- CORE
BLUE
(Neutral)
Cable
clamp
BROWN
(Live)
Fuse
GREEN and
YELLOW
(Earth)

3
LCD TV User Guide
Safety Instructions
WARNINGS
WEEE:
This appliance is labelled in accordance with European Directive 2002/96/EG
concerning used electrical and electronic appliances(waste electrical and electronic
equipment - WEEE). The guideline determines the framework for the return and
recycling of used appliances as applicable throughout the EU.
●Unqualified attempts to repair this TV are not allowed. Refer repairs to this unit to
a qualified technician only.
●Do not disassemble this unit. There are dangerous-voltage parts inside that may
cause electric shock even after power is disconnected.
●Store your unit in a clean, dry environment, Unplug the unit immediately it gets
wet, and consult your servicing technician.
●Always unplug the unit before cleaning it. Wipe dust off the cabinet of the unit with
clean & dry & soft cloth. Apply non-ammonia cleansing lotion onto the cloth, not
directly onto the screen.
●Do not place heavy objects on top of the unit.
●Avoid exposing your unit directly to sunlight or other heat sources.
●Put your unit in a well-ventilated area away from high humidity.
●Do not expose this TV to rain or moisture, dripping or splashing.
Safety Tips
●If smoke, abnormal noise or odour comes out of your unit, unplug from the mains
supply immediately and call your dealer.
●Never try to repair the your unit on your own. Always call your dealer for repairs.
Note
This user’s manual contains for-reference-only graphics and information that are
subject to change without notice.

4LCD TV User Guide
CONTENT
CONTENT
PREPARATION
Key Features ............................................................................................................5
Package Contents ....................................................................................................6
Setting Up Your LCD TV .......................................................................................... 7
Your LCD TV ............................................................................................................9

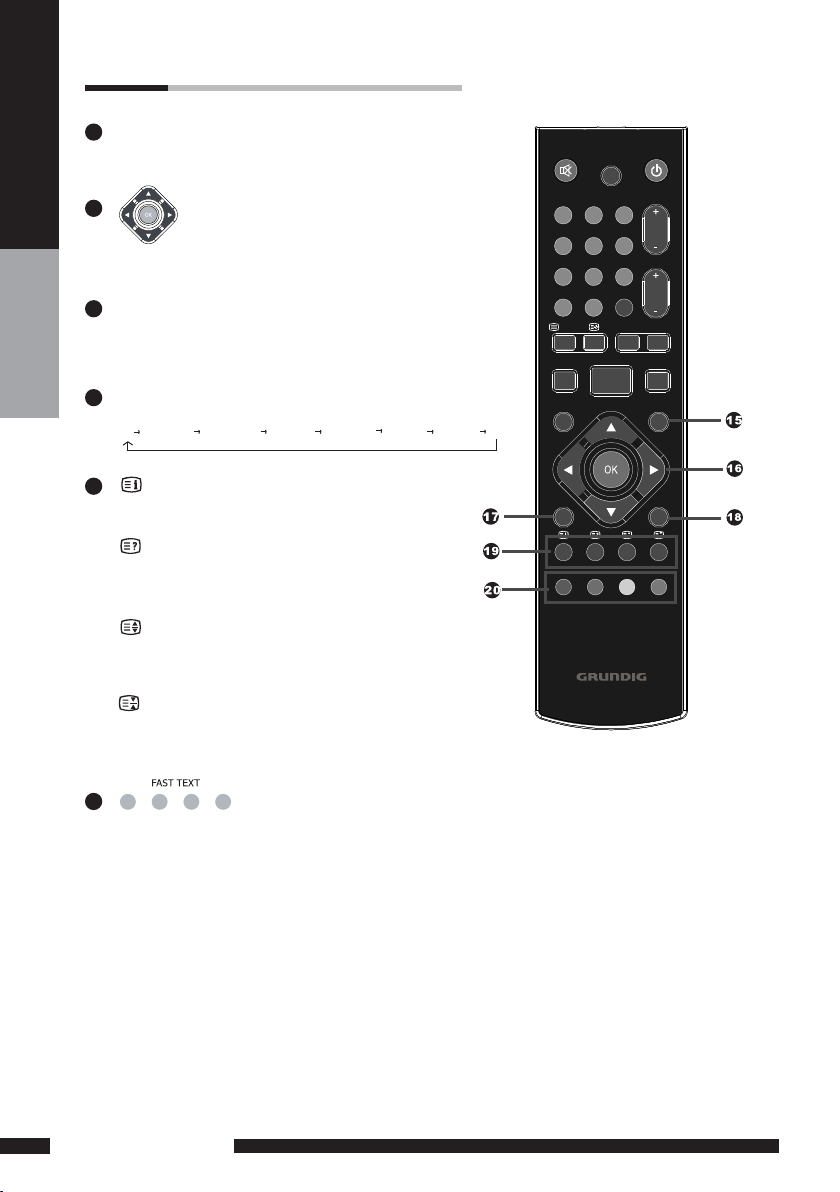

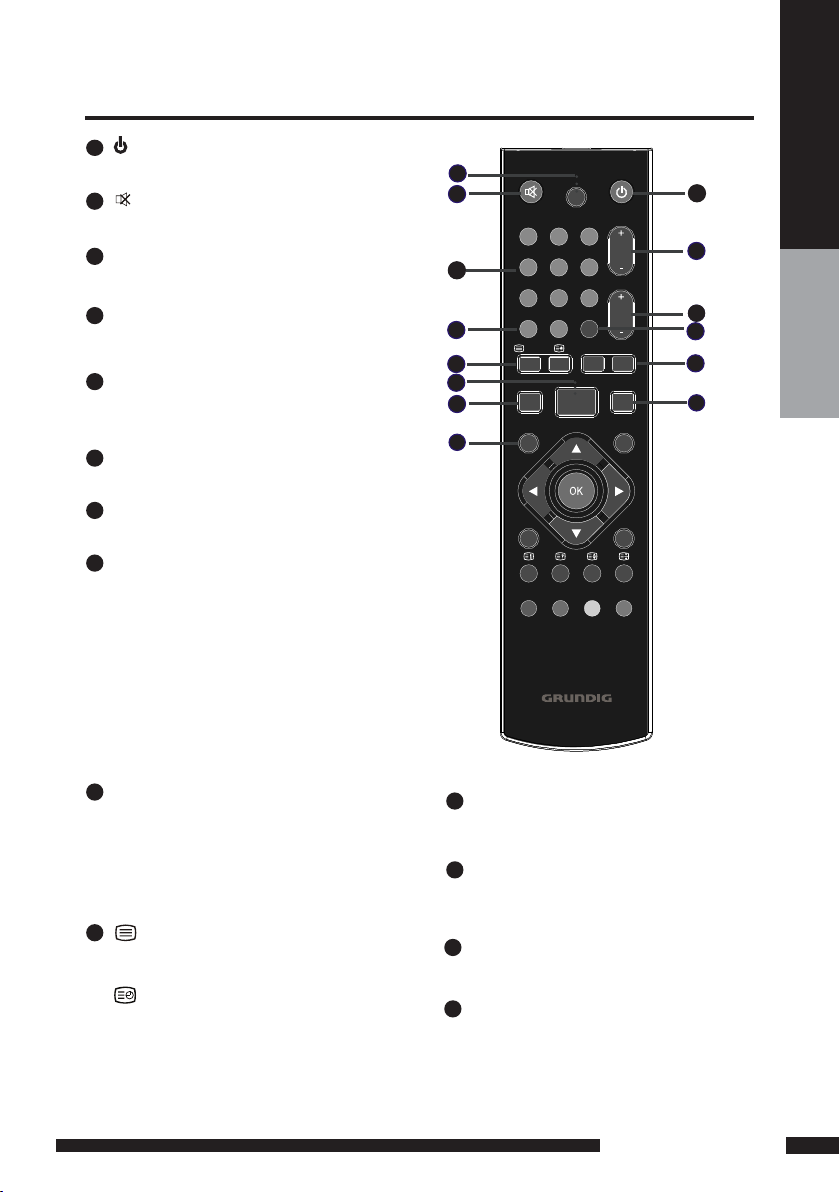

Remote Control .......................................................................................................11
INSTALLATION
Connecting a TV Cable or Aerial .............................................................................13
Connecting a DVD Player .......................................................................................15
Connecting a VCR & Video Camera .......................................................................16
Connecting a TV box and satellite Receiver ......................................................... .17

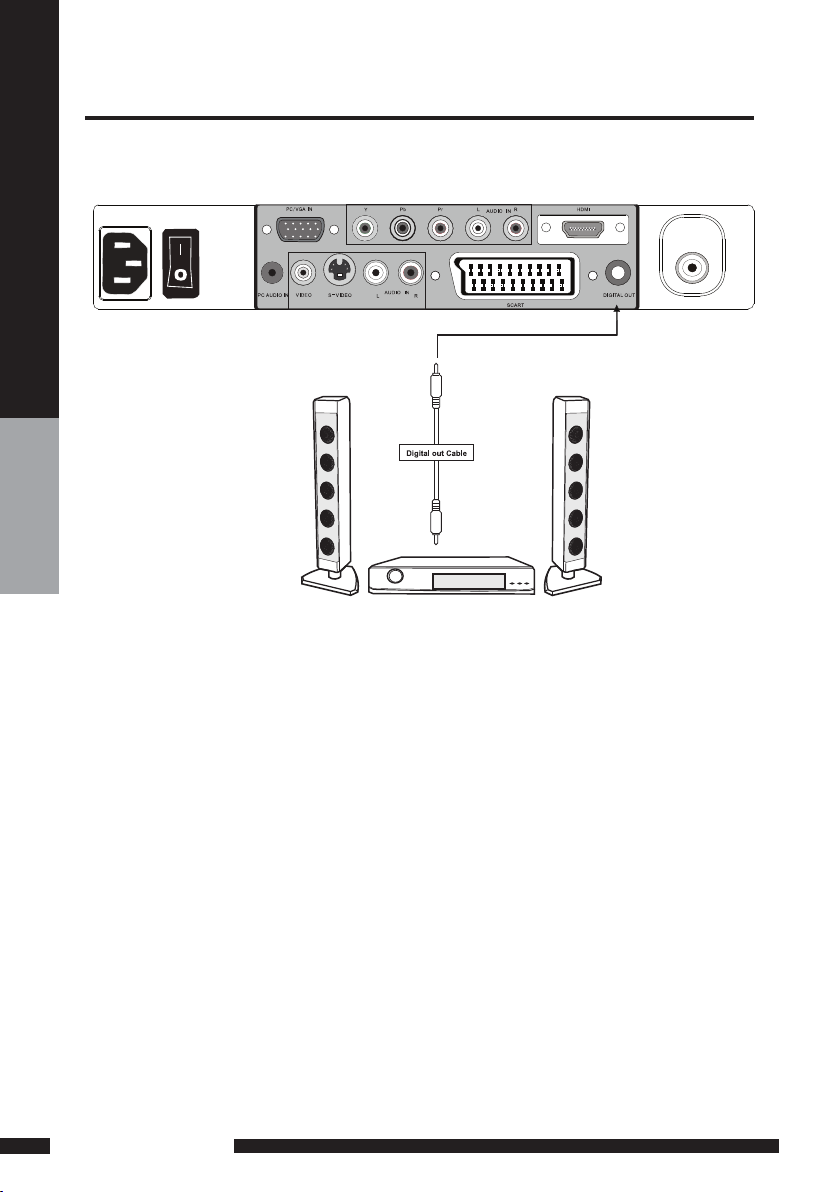

Connecting an External Audio Amplifier ..................................................................18
HDMI ............................................. .........................................................................19
USING THE FEATURES
Basic Operation ..................................................................................................... 20
OSD Menu Operation ............................................................................................. 21
The Video Settings ................................................................................................ 22
The Audio Settings ................................................................................................ 22
Setup ...................................................................................................................... 23
The Parental Settings ............................................................................................ 24
The Screen Settings................................................................................................24
Using The Digital TV Features.................................................................................25
SPECIFICATIONS..............................................................................................................34

5
PREPARATION
PREPARATION
Key Features
Various Audio/Video terminals for external equipment connection
▪1 set of composite A/V input terminals
▪1 SCART input terminals
▪1 set of component Video input terminals
▪1 VGA/ Audio input terminal
▪1 HDMI/Audio input terminals
▪1 Headphone terminal
High Definition Multimedia Interface (HDMI)
▪High Definition Multimedia Interface (HDMI) is a small, user-friendly interconnect that can carry up
to 5 Gbps of combined video and audio in a single cable. This system eliminates the cost,
complexity and confusion of multiple cables used to connect current A/V systems.
HDTV Component Video Inputs
▪Offers the best video quality for DVD(480p) and digital set-top-box (HD1080i, 720p) connections.
WSS(Wide Screen Scale) Function
▪This function can automatically convert and display any aspect ration (4:3 / Wide) TV
broadcast signal.
Built-in ATV and DTV Tuners
▪The built-in DTV tuner allows the reception of DVB-T broadcasting without the addition of a set-top
box.
DISPLAY MODES
The screen resolution has been optimized during production for the display modes listed below.
If the signal from the system equals the standard signal mode, the screen adjusts automatically. If the
signal from the system is not equal to the standard signal mode, adjust the screen resolution by referring
to your video card user guide, otherwise there may be no video.
Video signal: (VGA Standard)
Resolution (Dot X Line) Vertical Frequency(Hz) Horizontal Frequency(kHz)
640 x 480 59.94 31.46
72.80 37.86
75.00 37.50
800 x 600 60.31 37.87
72.18 48.07
75.00 46.87
1024 x 768 60.00 48.36
70.06 56.47
75.02 60.02

6PREPARATION
PREPARATION
Make sure all of the above contents are included in the package. If you are missing
any items, please contact your dealer.
 LCD TV
Make sure all of the following contents are included.
These items are all you need to set up and operate the LCD TV in its basic configuration.

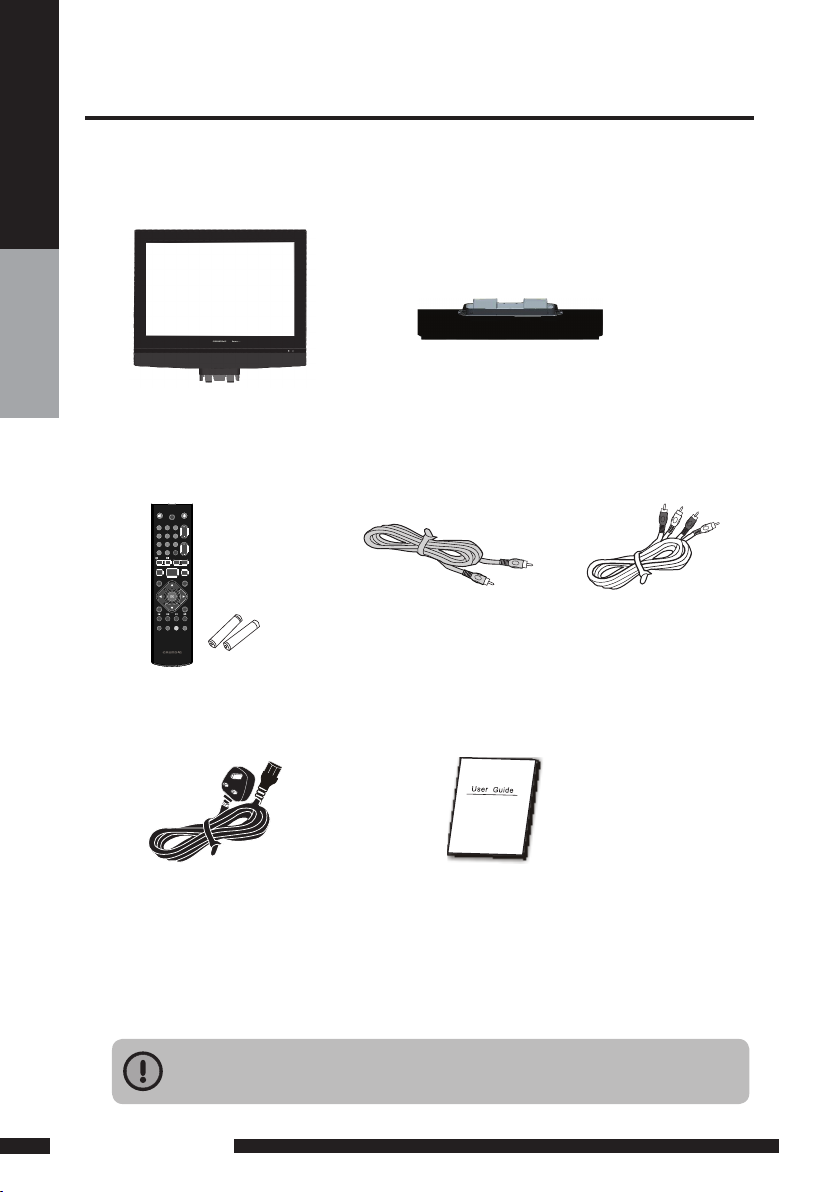

Package Contents
 VIDEO Cable Remote Control/
AAA Batteries x 2
 AUDIO Cable
 Power Cord  User’s Manual
 STAND
ATV/DTV
CH.
VOL.
GUIDE
EXIT
INFO/ i INPUT
FAST TEXT
MENU
1
4
789
0
56
23
I-II P.M ODE
P.SIZE
CH. LIST SUBTITLE
SLEEP
/TEXT

PCAUDIOIN
PC/VGAIN
AC230V~
50Hz
ACPOWER
SWITCH
VHF/UHFIN
7
PREPARATION
PREPARATION

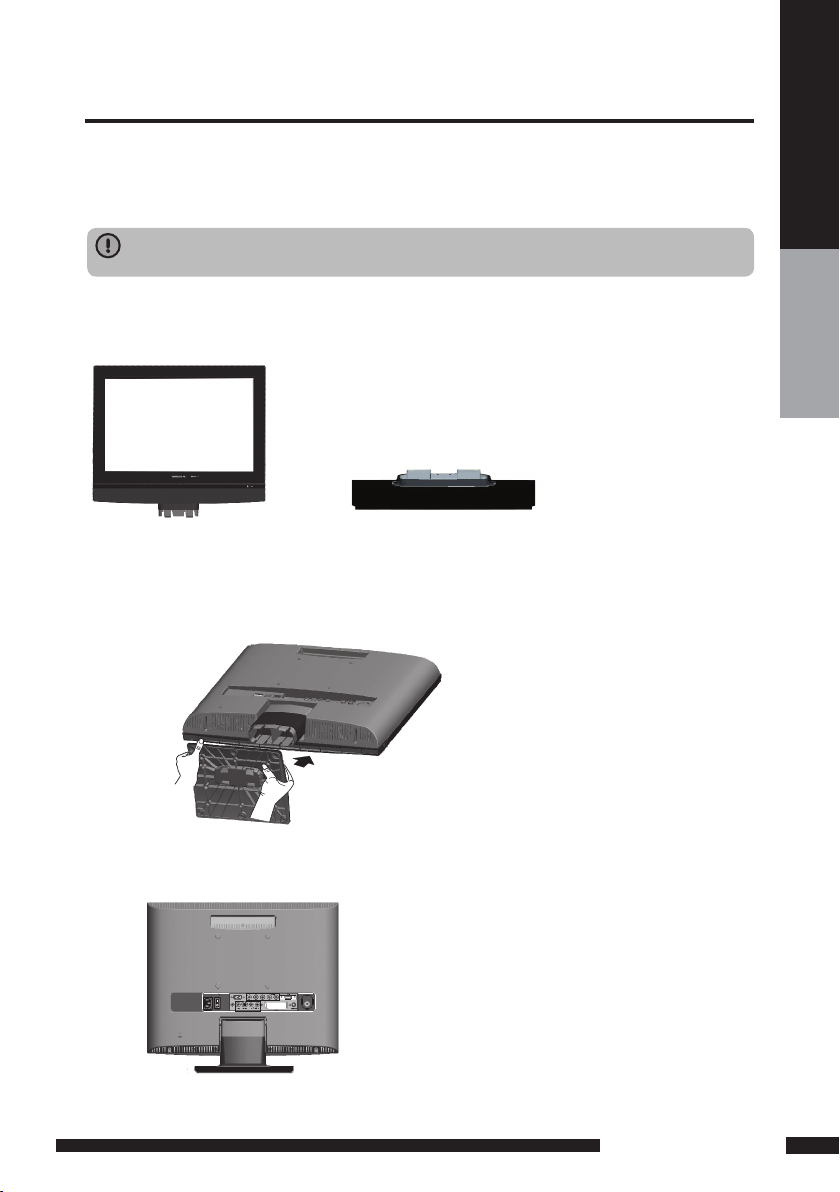

Setting Up Your LCD TV
Ensure the TV stand is still attached with the bottom foam packaging material in the package.
a. Open the box, and make sure all necessary parts are in the box. The package contains:
b. Cover an even stable surface with a soft cloth. Place the LCD TV unit face-down on the cloth. Fit the
stand onto the bottom of the LCD TV unit as shown:
c. Then push until it clicks in place.
LCD TV STAND

8PREPARATION
PREPARATION

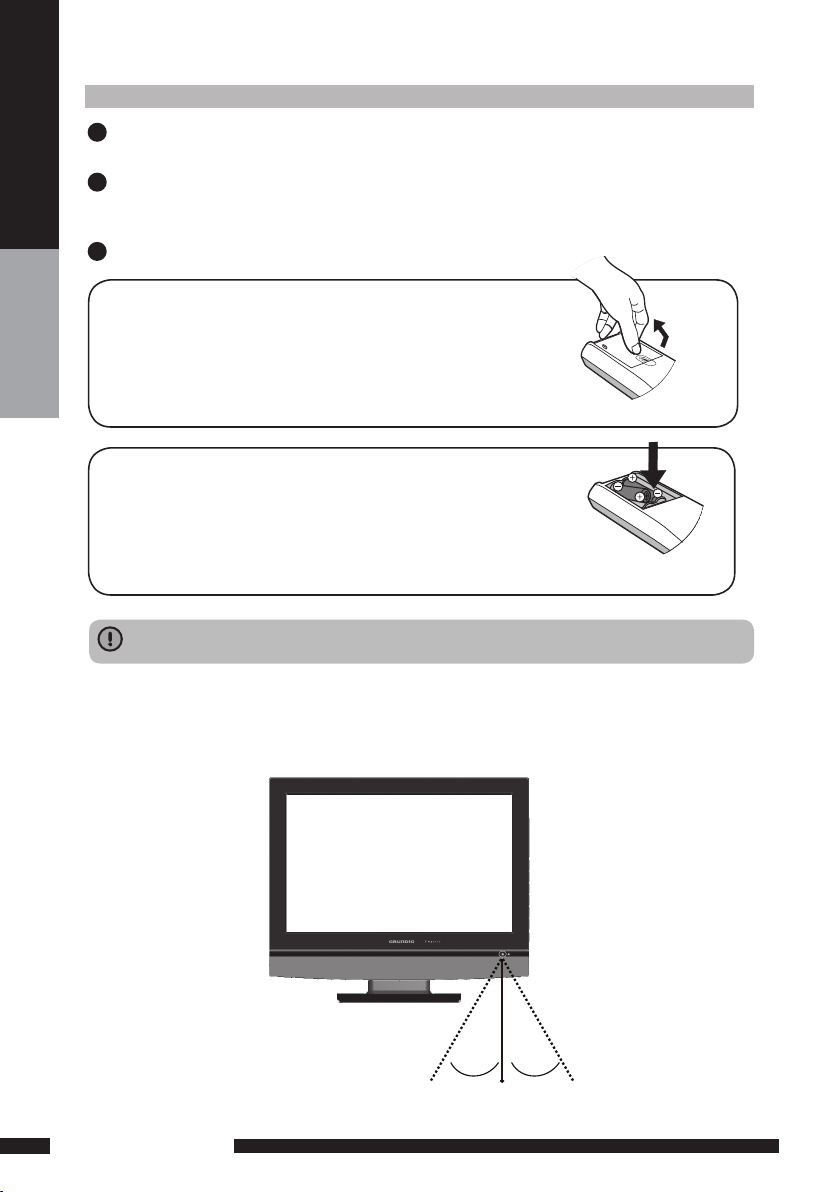

How to setup the TV
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the
remote, as it may suffer damage.
Connect a TV aerial to the ANT terminal on the rear panel of the TV. (refer to page 14).
Connect the mains cord to the mains input socket on rear panel of TV . Connect the 3 pin
mains plug to a 230VAC socket.
Insert the 2 batteries supplied in remote control.
Step1 Slide the back cover up to open the battery
compartment of the remote control.
Step2 Insert two AAA size batteries. Make sure to match the (+) and
( - ) ends of the batteries with the (+) and ( - ) ends indicated
in the battery compartment. Slide the cover back into place.
1
2
3
Your remote control can be activated from up to the LCD TV 5m away,
when used directly in front of the TV.
Effective range
5M
30O 30O

9
PREPARATION
PREPARATION
Your LCD TV
Front View / Side View
Note:
INPUT button on the TV, has the same function of OK button on the remote control,can be
used as confirm button.
LED
The LED light indicates when the
LCD TV is activated.
IR
Infrared
Receiver
Turns the LCD TV on and into standby
mode.
Connects to the external
earphone for private listening.
MENU
Presses once to display the OSD (on
screen display), presses again to turn
the OSD off.
VOL. + / -
Adjusts the volume up and down.
Selects the main-menu item and change
values for items when in the OSD mode.
CH.▲ / ▼
Scans up and down through channels.
Selects sub-menu item when in the
OSD mode.
INPUT
Chooses from different input signal
sources.

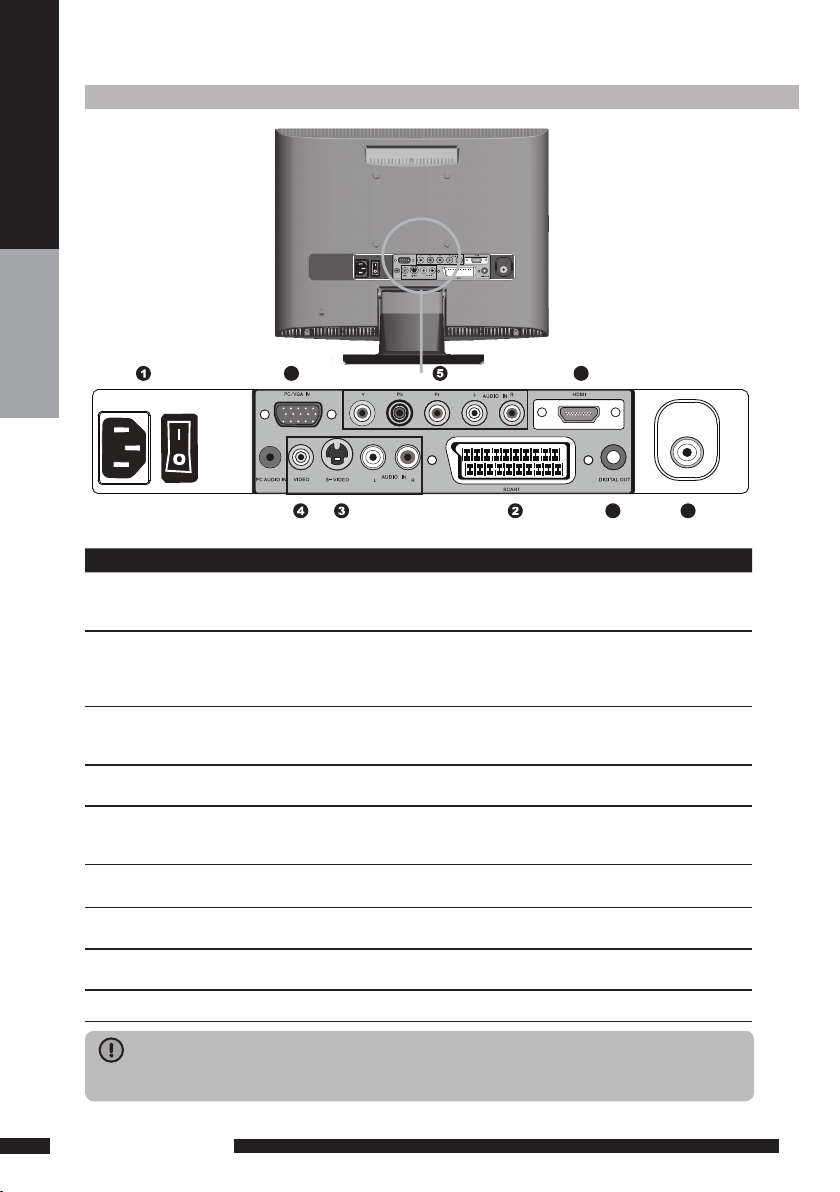

Rear View and Sockets
1 AC IN / Power Switch
Connects the AC power cord to this socket./ Make sure that this
switch is in the ON position (Red LED light will show on the bottom
centre of the TV).
2 AV1
SCART
Connect to external equipment with scart socket. This
scart input allows audio and CVBS/YC/RGB+CVBS.
RGB,S-VIDEO from an external devise to be shown on
your TV.
3 AV2
S-VIDEO/AUDIO
(L/R)
Connects to the S- VIDEO output sockets and Audio
output sockets on your video equipment.
4 AV3
VIDEO/AUDIO(L/R)
Connects to the composite A/V output sockets on your
video equipment.
5 AV4
Y, Pb, Pr /AUDIO(L/R)
Connects to the component ( Y, Pb, Pr ) video sockets
and audio ( L/R ) sockets of your DVD player, HDTV, or
video equipment.
6 AV5
VGA IN/PC AUDIO IN Connects to a PC or other devices with a VGA interface.
7 AV6
HDMI IN Connects to devices with a HDMI interface.
8 DIGITAL OUT Connects to digital out socket on external digital
audio equipment. (Only for DVB-T input sources)
9 VHF/UHF IN Connect TV aerial here.
ITEM DESCRIPTION
S-VIDEO and Video have a common audio input, if both devices are being used at the same time
audio from both will be heard at same time. Only switch on the required device to stop the mixing
of audio.
PCAUDIO IN
PC/VGAIN
AC230V~
50Hz
ACPOWER
SWITCH
VHF/UHFIN
67
98
PC AUDIO IN
AC 230V~
50Hz
AC POWER
SWITCH
VHF/UHF IN
10 PREPARATION
PREPARATION

11
PREPARATION
PREPARATION
Your Remote Control
POWER
Turns the LCD TV on and into standby mode .
Mutes and restores your LCD TV sound.
ATV/DTV
Pressing enter ATV (analogue) or Digital (DTV)
Mode.
0-9
Select and switch to a channel by
using 0-9 buttons.
GUIDE
In DTV mode,pressing GUIDE key displays
the electronic program guide on the screen.
CH. +/-
Changes the channels up and down .
VOL. +/-
Increases and decreases volume.
SLEEP
Sets the LCD TV sleep time.
- Press the SLEEP button to select the number of
minutes. followed by 15, 30, 60minutes and off.
The timer begins to count down from the number
of minutes selected.
a.To check the remaining sleep time, press the
SLEEP button once.
b.To cancel the sleep time, repeatedly press the
SLEEP button until the display off appears.
c. If you turn the set off after setting the sleep
timer, the setting will be erased.
CH. LIST
Displays channel list in ATV mode.
SUBTITLE (used only in DTV mode)
Press the SUBTITLE key to display the subtitle
which is broadcast with the program on the screen.
Turns on and off the Teletext function.
1
2
3
4
5
6
7
8
9
10
11
13
14
12
P.SIZE
Selects from the following modes
settings: Wide, 4:3, Zoom, Original.
ATV/DTV
CH .
VO L.
GUIDE
EX IT
IN FO/i INPUT
FAST TEXT
ME NU
1
4
789
0
56
23
I-II P.MO DE
P.SIZE
CH. LIST SUBTITLE
SLEEP
/TEXT
14
12
11
9
8
5
2
3
1
4
7
10
13
6
EXIT
Exits the OSD menu (on-screen display).
I-II
Cycles through the TV Sound options:
MONO/DUAL/STEREO.
P.MODE
Selects picture mode: Custom, Vivid,
Standard, Mild.
Display the Time which broadcast with the
teletext on the screen.
/TEXT

12 PREPARATION
PREPARATION
MENU
Displays the OSD menu (on screen display).
Allows you to move, select and set up the OSD
options.
INFO/i
Pressing once displays a variety of information
such as the current channel and the input source.
In DTV mode will show programme Information.
INPUT
Cycles among the different input signal sources:
Displays the main index in Teletext mode.
Reveals hidden information such as the answer to
a quiz in Teletext mode.
Freezes a multi-page passage on screen in
Teletext mode.
Displays the top, bottom or all of page, to easily
read in Teletext mode.
Accesses the TELETEXT items or corresponding
pages.
The coloured buttons are used to access
interactive modes when using Digital / Freeview TV
channels.
20
19
18
17
16
15
ATV/DTV
CH .
VO L.
GUIDE
EX IT
IN FO/i INPUT
FAST TEXT
ME NU
1
4
789
0
56
23
I-II P.MO DE
P.SIZE
CH. LIST SUBTITLE
SLEEP
/TEXT
TV AV1(SCART) AV2(S-VIDEO) AV3(CVBS) AV4(Y Pb Pr) AV5(VGA) AV6(HDMI) DTV

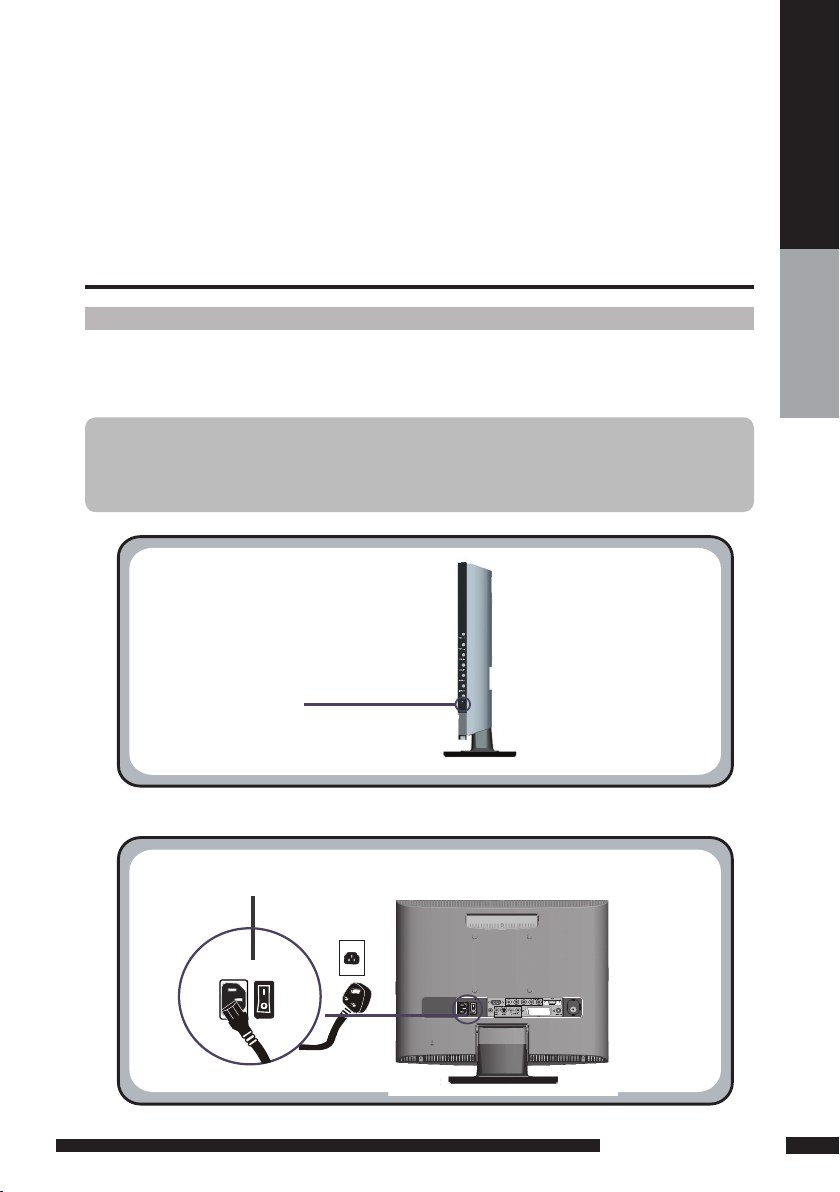

The Power button on the right side of the front panel and also on the remote control is only used for powering up and
switching the TV to standby mode, it does not disconnect the device from the mains supply.
To completely disconnect the main voltage, please switch off the power switch on the rear of the TV, or
remove the power plug from the socket.
13
PREPARATION
PREPARATION
AC POWER
SWITCH
PCAUDIOIN
PC/VGAIN
AC230V~
50Hz
ACPOWER
SWITCH
VHF/UHFIN
Make sure the power
switch is switched off.
Unplug from
a wall outlet
Installing the LCD TV
Refer to the owner’s manual of any external equipment to be connected.
When connecting any external equipment, do not connect any AC power cords to wall outlets
until all other connections are completed.
Aerial Connection
The aerial requirements for Digital TV reception are more important than those for Analogue TV
reception. For this reason, high gain digital TV aerial must be used.
Connecting a TV Cable or an Aerial
POWER
AC 230V~
50HZ

14 PREPARATION
PREPARATION
AC POWER
SWITCH
PCAUDIOIN
PC/VGAIN
AC230V~
50Hz
ACPOWER
SWITCH
VHF/UHFIN
When connecting external equipment, do not connect any AC power cords to wall outlets until you have completed
all the connections.
Connecting an aerial
 Connect your existing TV aerial to the Aerial input socket on the TV.
 Insert the supplied mains cable to the mains socket located on the rear of the TV. Connect the
other end of this cable to a 3 pin mains socket.
 Connect all AC power SOURCES before turning on the power switch at the back of the TV.
 Press the POWER button on your remote to turn on your LCD TV.
a. After connecting an aerial to your LCD TV and connecting the mains cable to the TV and
230VAC mains socket, flip the POWER SWITCH on the back panel of TV on, a red light will
show on the front centre panel of the TV.
b. Press the POWER button, the red light will change to green and the First Time Installation
screen will show:
1. Make sure an aerial is fitted then press OK button on the remote to start the Auto
Programme Scan (APS).
2. The analogue Channels will be scanned first and in a short while you will see the TV
programmes briefly as each channel is received and stored in the memory. You may be
prompted to start Digital TV scan next (press OK button) . When APS is completed BBC1
Digital TV channel will show, press CH.+/- buttons to view the other channels stored.
c. To power off press the POWER button, the green light will change to red.
 Press the INPUT button and choose TV (analogue TV) or DTV (Digital TV) mode then press OK
to select.
Make sure the power switch
is switched off.
Unplug from
a wall outlet
TV Aerial
Aerial/75-ohm
coaxial input
connect the supplied
mains cable to this socket.
AC 230V~
50HZ

15
INSTALLATION
INSTALLATION
Rear of TV
Connecting a DVD Player
PC AUDIO IN
AC 230V ~
50Hz
AC POWER
SWITCH
VHF/UHF IN
bPr P
C
DVD PLAYER
Audio
( R)
Video/Audio Cable
ideo Audi
(L )
Vo
B
AD
A video and audio cable for use with
method A are supplied. Cables for the
other connection methods are not
supplied.
 METHOD A (AV3)
Use an A/V cable to connect the DVD’s composite output sockets to your LCD TV.
METHOD B (AV2)
Use an Audio cable to connect the DVD’s audio output sockets to your LCD TV.
Use a S-Video cable to connect your LCD TV and DVD player.
METHOD C (AV1)
Use a SCART cable to connect the DVD’s SCART socket to the LCD TV’s SCART socket.
METHOD D (AV4 )
Use a Component cable to connect the (Y Pb Pr ) sockets on the DVD player to your LCD TV.
Use an audio cable to connect the DVD’s audio sockets to your LCD TV.
 Connect all power SOURCES before turning on the power switch of the LCD TV or other
connected equipments.
 Press the POWER button to turn on your LCD TV.
 To watch DVD, press the INPUT button to select AV1, AV2, AV3, AV4.

16 INSTALLATION
INSTALLATION
“Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility”.
Rear of TV
Connecting a VCR&Video Camera
PC AUDIO IN
AC 230V ~
50Hz
AC POWER
SWITCH
VHF/UHF IN
Audio
(R )
Video/Audio Cable
ide o Audi
(L )
V
o
AB
C
VCR PLAYER
CAMERA
 METHOD A (AV3)
Use an A/V cable to connect the VCR’s/ video camera’s composite output sockets to your LCD
TV.
METHOD B (AV2)
Use an Audio cable to connect the VCR’s/ the Video Camera’s audio output sockets to your LCD
TV.
Use a S-Video cable to connect your LCD TV and VCR player/ video camera.
METHOD C (AV1)
Use a SCART cable to connect the VCR’s SCART socket to the LCD TV’s SCART socket.
 Connect all power SOURCES before turning on the power switch of the LCD TV or other
connected equipments.
 Press the POWER button to turn on your LCD TV.
 To watch video camera, press the INPUT button to select AV2 or AV3.

To watch VCR, press the INPUT button to select AV1, AV2 or AV3 .

17
INSTALLATION
INSTALLATION
Connecting a TV Cable Box or Satellite Receiver
Rear of TV
PC AUDIO IN
AC 230V ~
50Hz
AC POWER
SWITCH
VHF/UHF IN
Audio
(R )
Video/Audio Cable
ideo Audi
(L )
Pb Pr
VGA Cable
HDM I CABL E
Vo
E
CD
AF
B
SATELLITE RECEIVER TV CABLE BOX
SATELLITE ANTENNA
CABLE

Method A(AV3) :
Use an AV cable to connect the TV Cable Box’s composite output sockets to your LCD TV.
Method B(AV2) :
Use an Audio cable to connect the TV Cable Box’s audio output sockets to your LCD TV.
Use a S-Video cable to connect your LCD TV and TV Cable Box.
Method C(AV5) :
Use a VGA 15 pins cable to connect the TV Cable Box’s RGB output sockets to your LCD TV.
Use a 3.5mm socket to RCA adapter cable for connecting audio.
Method D(AV1) :
Use a SCART cable to connect the TV Cable Box’s SCART socket to the LCD TV’s SCART
socket.
Method E(AV4) :
Use a Component cable to connect the Y/Pb/Pr sockets on the TV Cable Box to your LCD TV.
Use an Audio cable to connect TV cable box’s audio output sockets to LCD TV.
Method F(AV6) :
Use a HDMI cable to connect the Satellite Receiver HDMI connector to your LCD TV.

Connect all power SOURCES before turning on the power switch of the LCD TV or other
connected equipments.

Press the POWER button to turn on your LCD TV.

To watch TV cable box, press the INPUT button to select AV1, AV2, AV3, AV4 ,AV5.

To watch programs satellite receiver, press the INPUT button repeatedly to select AV6 .

18 INSTALLATION
INSTALLATION
Rear of TV
Connecting an External Audio Amplifier
PC AUDIO IN
AC 230V~
50Hz
AC POWER
SWITCH
VHF/UHF IN
Use an audio cable to connect the audio receiver’s audio LINE IN sockets to LCD TV’s DIGITAL
OUT sockets. (Only for DVB-T input sources)
Connect all power SOURCES before turning on the power switch of the LCD TV or other
connected equipments.
Press the POWER button to turn on your LCD TV.

19
INSTALLATION
INSTALLATION
How to connect
1. If External Devices have HDMI Output , connect to the HDMI socket located at the rear of the TV using
the HDMI Cable supplied with your external device. (HDMI sends Digital Video and Audio with one
cable.)
HDMI
HDMI
- This TV can accept High-Definition Multimedia Interface(HDMI) .
- This TV SET supports HDCP(High-bandwidth Digital Content Protection) Protocol for TV SET (480p,
720p, 1080i) modes.
- When you connect to the output of an HD ready player (DVD Player, Set Top Box or PC) switch to the
AV6(HDMI) function and the TV will automatically detect the resolution used by the HDMI source.
- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 1280 x 720p.
- To get the best picture quality, adjust the PC graphics card to 1024 x 768, 60Hz.
Analog Audio Cable(Stereo to RCA type)
HDMI Cable
(not supplied with the product)
HDMI to DVI Cable
(not supplied with the product)
Cable sample
