Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants
and checked under the most meticulous quality control procedures, will
provide you an effective service
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future references.
The user manual will help you use the product in a fast and safe way.
Will help you use your appliance in a fast and safe way.
Read the manual before installing and operating your product.
Follow the instructions, especially those for safety.
Keep the manual in an easily accessible place as you may need it later.
Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information
or useful usage tips.
AWarning against
dangerous conditions
for life and property.
BWarning against
electric voltage.
Packaging materials
of the product are
manufactured from
recyclable materials
in accordance with our
National Environment
Regulations.

3
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
1. Safety and environment instructions
This section provides the safety instructions
necessary to prevent the risk of injury and material
damage. Failure to observe these instructions will
invalidate all types of product warranty.
Intended use
A
WARNING:
Keep ventilation
openings, in the
appliance enclosure or
in the built-instructure,
clear of obstruction.
A
WARNING:
Do not use mechanical
devices or other
means to accelerate
the defrosting
process, other than
those recommended
by the manufacturer.
AWARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside
the food storage
compartments of the
appliance, unless
they are of the type
recommended by the
manufacturer.

4
This appliance is intended to be used in household
and similar applications such as
– staff kitchen areas in shops, offices and other
working environments;
– farm houses and by clients in hotels, motels and
other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
1.1. General safety
• This product should not be used by persons with
physical, sensory and mental disabilities, without
sufficient knowledge and experience or by children.
The device can only be used by such persons under
supervision and instruction of a person responsible
for their safety. Children should not be allowed to
play with this device.
• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before
plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands! Do not pull
the cable to plug off, always hold the plug.
• Do not plug in the refrigerator if the socket is loose.
• Unplug the product during installation,
maintenance, cleaning and repair.
• If the product will not be used for a while, unplug
the product and remove any food inside.
• Do not use the product when the compartment with
circuit cards located on the upper back part of the
product (electrical card box cover) (1) is open.

5
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
1
1
• Do not use steam or steamed cleaning materials
for cleaning the refrigerator and melting the ice
inside. Steam may contact the electrified areas and
cause short circuit or electric shock!
• Do not wash the product by spraying or pouring
water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it
may cause electric shock. Contact the authorised
service before doing anything.
• Plug the product into an earthed socket. Earthing
must be done by a qualified electrician.
• If the product has LED type lighting, contact the
authorised service for replacing or in case of any
problem.
• Do not touch frozen food with wet hands! It may
adhere to your hands!
• Do not place liquids in bottles and cans into the
freezer compartment. They may explode.
• Place liquids in upright position after tightly closing
the lid.
• Do not spray flammable substances near the
product, as it may burn or explode.
• Do not keep flammable materials and products
with flammable gas (sprays, etc.) in the
refrigerator.

6
C
The label on the
inner left side
indicates the type
of gas used in the
product.
• Do not place containers holding liquids on top of
the product. Splashing water on an electrified part
may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and
wind will cause electrical danger. When relocating
the product, do not pull by holding the door handle.
The handle may come off.
• Take care to avoid trapping any part of your hands
or body in any of the moving parts inside the
product.
• Do not step or lean on the door, drawers and
similar parts of the refrigerator. This will cause
the product to fall down and cause damage to the
parts.
• Take care not to trap the power cable.
1.1.1 HC warning
If the product comprises a cooling system using
R600a gas, take care to avoid damaging the cooling
system and its pipe while using and moving the
product. This gas is flammable. If the cooling system
is damaged, keep the product away from sources of
fire and ventilate the room immediately.

7
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
C
The label on the
inner left side
indicates the type
of gas used in the
product.
1.1.2 For models with water dispenser
• Pressure for cold water inlet shall be maximum
90 psi (6.2 bar). If your water pressure exceeds
80 psi (5.5 bar), use a pressure limiting valve in
your mains system. If you do not know how to
check your water pressure, ask for the help of a
professional plumber.
• If there is risk of water hammer effect in your
installation, always use a water hammer
prevention equipment in your installation. Consult
Professional plumbers if you are not sure that there
is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take
precautions against of the risk of freezing of the
hoses. Water temperature operating interval
shall be 33°F (0.6°C) minimum and 100°F (38°C)
maximum.
• Use drinking water only.
1.2. Intended use
• This product is designed for home use. It is not
intended for commercial use.
• The product should be used to store food and
beverages only.
• Do not keep sensitive products requiring controlled
temperatures (vaccines, heat sensitive medication,
medical supplies, etc.) in the refrigerator.

8
• The manufacturer assumes no responsibility for
any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years,
following the product purchasing date.
1.3. Child safety
• Keep packaging materials out of children’s reach.
• Do not allow the children to play with the product.
• If the product’s door comprises a lock, keep the key
out of children’s reach.
1.4. Compliance with WEEE Directive and
Disposing of the Waste Product
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and electronic
equipment (WEEE).
This product has been manufactured with high quality parts
and materials which can be reused and are suitable for
recycling. Do not dispose of the waste product with normal
domestic and other wastes at the end of its service life. Take it
to the collection center for the recycling of electrical and
electronic equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive (2011/65/EU). It
does not contain harmful and prohibited materials specified in
the Directive.
1.6. Package information
• Packaging materials of the product are manufactured
from recyclable materials in accordance with our National
Environment Regulations. Do not dispose of the packaging
materials together with the domestic or other wastes. Take
them to the packaging material collection points designated by
the local authorities.

9
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO

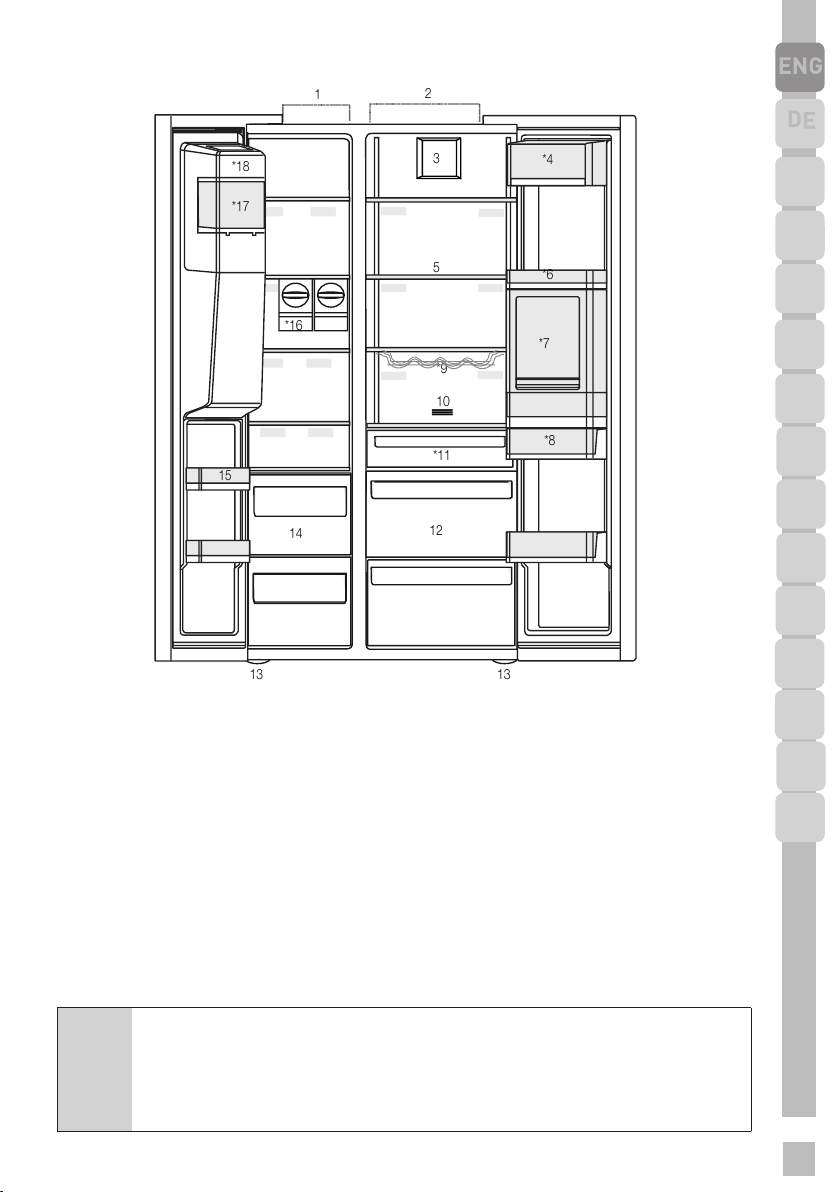

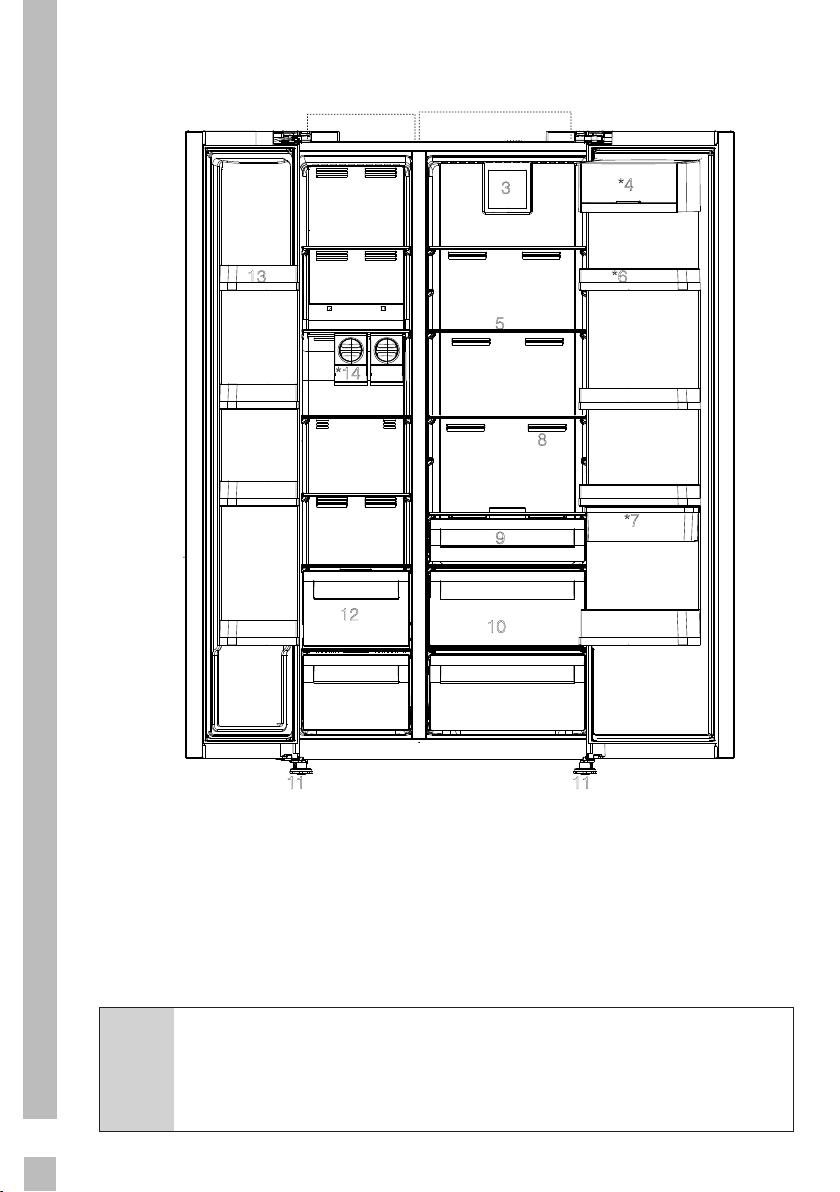

2. Your Freezer
C
Figures in this user manual are schematic and may not match
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.
1. Freezer compartment
2. Cooler compartment
3. Fan
4. Butter-cheese compartment
5. Glass shelves
6. Cooler compartment door
shelves
7. Minibar accessory
8. Water tank
9. Bottle shelf
10. Odour filter
11. Zero degree compartment
2
3*4
5*6
1
*7
*11
*16
*17
*18
12
13
14
15
13
*8
10
*9
12. Vegetable bins
13. Adjustable stands
14. Frozen food storing compart-
ments
15. Freezer compartment door
shelves
16. Icematics
17. Ice storage box
18. Ice-maker decorative lid
*Optional

10
2
1
3*4
5
*6
*7
11
11
10
13
9
8
*14
12
2. Your Freezer
C
Figures in this user manual are schematic and may not match
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.

11
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
3. Installation
3.1 Right place for installation
Contact the Authorized Service for
the product's installation. To ready
the product for installation, see the
information in the user guide and
make sure the electric and water
utilities are as required. If not,
call an electrician and plumber to
arrange the utilities as necessary.
B
WARNING: The
manufacturer assumes
no responsibility for
any damage caused by
the work carried out by
unauthorized persons.
B
WARNING: The product’s
power cable must
be unplugged during
installation. Failure to do
so may result in death or
serious injuries!
A
WARNING: If the door
span is too narrow for the
product to pass, remove
the door and turn the
product sideways; if this
does not work, contact
the authorized service.
3.2 Attaching the
plastic wedges
Use the plastic wedges in the
provided with the product to
provide sufficient space for air
circulation between the product
and the wall.
1. To attach the wedges, remove
the screws on the product and
use the screws provided with
the wedges.

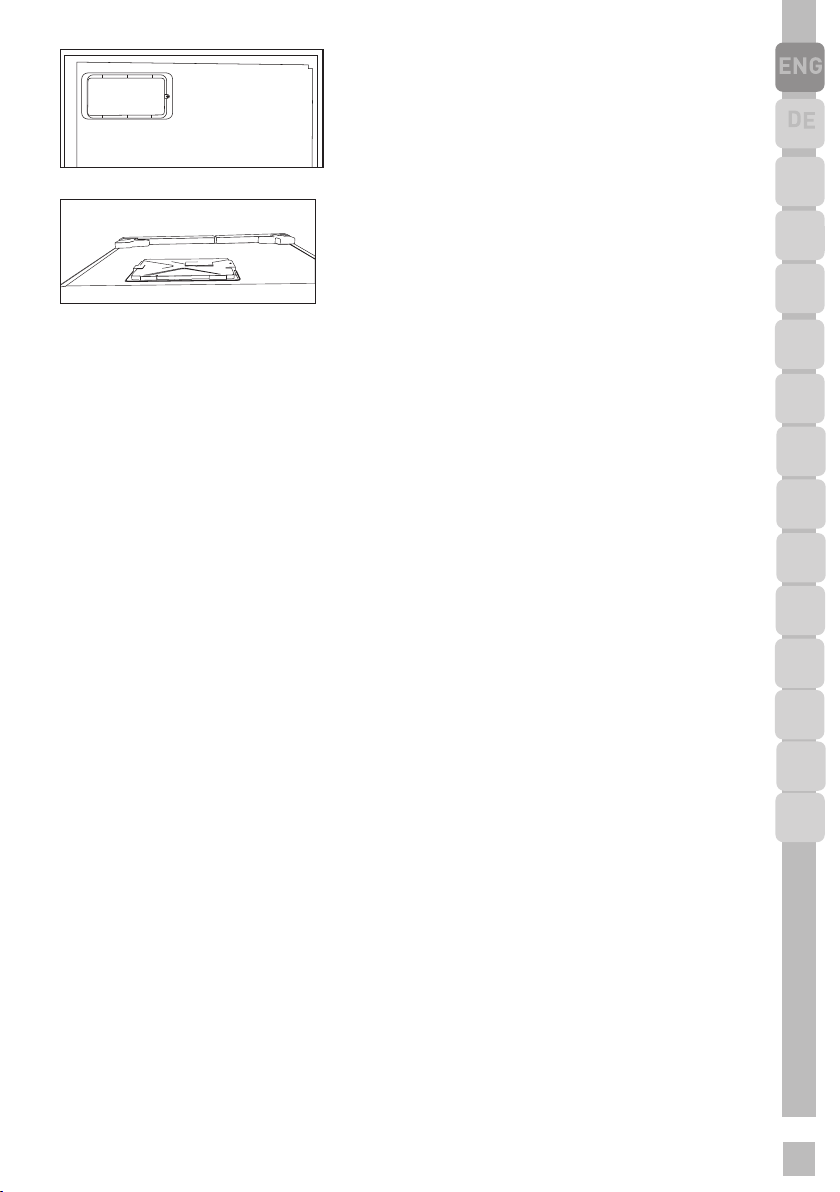

2. Attach 2 plastic wedges on the
ventilation cover shown as j in
the figure.
3.3 Adjusting the stands
If the product is not in balanced
position, adjust the front adjustable
stands by rotating right or left.

12
3.4 Power connection
AWARNING: Do not
use extension or multi
sockets in power
connection.
BWARNING: Damaged
power cable must be
replaced by Authorized
Service.
C
When placing two
coolers in adjacent
position, leave at least 4
cm distance between the
two units.
• Our firm will not assume
responsibility for any damages
due to usage without earthing
and power connection in
compliance with national
regulations.
• The power cable plug must
be easily accessible after
installation.
In order to adjust the doors vertically,
•Loosen the fixing nut at the bottom
•Screw adjusting nut (CW/CCW)
according to the position of the door
•Tighten the fixing nut for the final
position
In order to adjust the doors
horizontally,
• Loosen the fixing bolt on the
top
• Screw the adjusting bolt (CW/
CCW) on the side according to
the position of the door
• Tighten the fixing bolt on the
top for the final position
adjusting nut
fixing nut
fixing nut
adjusting nut

13
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
• Connect the refrigerator to
an earthed socket with 220-
240V/50 Hz voltage. The plug
must comprise a 10-16A fuse.
• Do not use multi-group plug
with or without extension cable
between the wall socket and the
refrigerator.
3.5 Water connection
(Optional)
AWARNING: Unplug the
product and the water
pump (if available) during
connection.
The product’s water mains, filter
and carboy connections must be
rendered by authorizer service.
The product can be connected to
a carboy or directly to the water
mains, depending on the model. To
establish the connection, the water
hose must first be connected to the
product.
Check to see the following parts
are supplied with your product’s
model:
3
1
4
2
*5

14

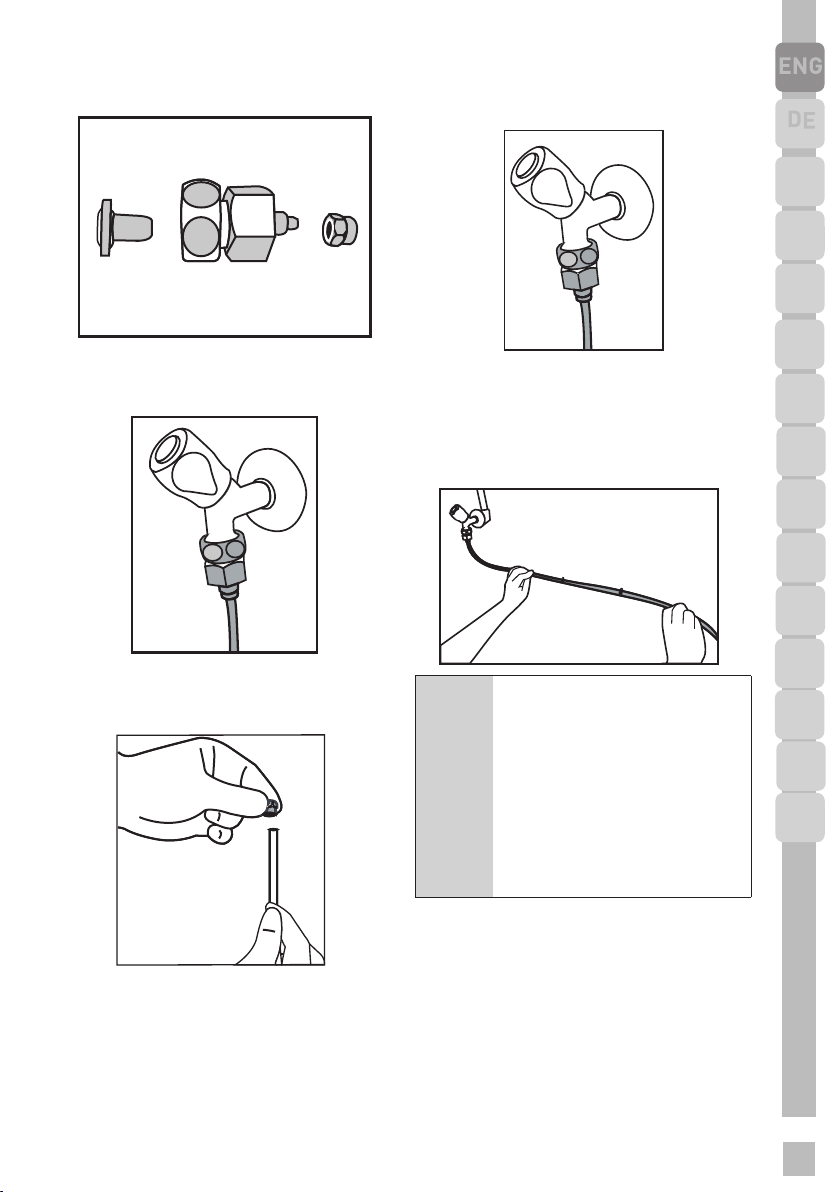

1. Connector (1 piece): Used to
attach the water hose to the
rear of the product.
2. Hose clip (3 pieces): Used to fix
the water hose on the wall.
3. Water hose (1 piece, 5 meter
diameter 1/4 inches): Used for
the water connection.
4. Faucet adapter (1 piece):
Comprises a porous filter, used
for connection to the cold water
mains.
5. Water filter (1 piece *Optional):
Used to connect the mains
water to the product. Water
filter is not required if carboy
connection is available.
3.6 Connecting water hose
to the product
To connect the water hose to the
product, follow the instructions
below.
1. Remove the connector on the
hose nozzle adaptor in the back
of the product and run the hose
through the connector.
2. Push the water hose down
tightly and connect to the hose
nozzle adaptor.
4. Connect the other end of the
hose to the water mains (See
Section 3.7) or, to use carboy,
to the water pump (See Section
3.8).
3.7 Connecting to water mains
(Optional)
To use the product by connecting
to the cold water mains, a standard
1/2” valve connector must be
installed to the cold water mains
in your home. If the connector is
not available or if you are unsure,
consult a qualified plumber.
3. Tighten the connector manually
to fix on the hose nozzle
adaptor. You may also tighten
the connector using a pipe
wrench or pliers.

15
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
1. Detach the connector (1) from
the faucet adaptor (2).
1
23 1
2
3
2. Connect the faucet adaptor to
the water mains valve.
4. Attach the connector into the
faucet adaptor and tighten by
hand / tool.
5. To avoid damaging, shifting
or accidentally disconnecting
the hose, use the clips
provided to fix the water hose
appropriately.
AWARNING: After turning
the faucet on, make sure
there is no water leak on
either end of the water
hose. In case of leakage,
turn the valve off and
tighten all connections
using a pipe wrench or
pliers.
3.8. For products using
water carboy
(Optional)
To use a carboy for the product’s
water connection, the water pump
recommended by the authorized
service must be used.
3. Attach the connector around
the water hose.

16
1. Connect one end of the water
hose provided with the pump to
the product (see 3.6) and follow
the instructions below.
2. Connect the other end of the
water hose to the water pump
by pushing the hose into the
pump’s hose inlet.
3. Place and fasten the pump
hose inside the carboy.
4. Once the connection is
established, plug in and start
the water pump.
CPlease wait 2-3
minutes after starting
the pump to achieve
the desired efficiency.
CSee also the pump’s
user guide for water
connection.
CWhen using carboy,
water filter is not
required.
3.9 Water filter
(Optional)
The product may have internal or
external filter, depending on the
model. To attach the water filter,
follow the instructions below.
3.9.1.Fixing external filter
on the wall (Optional)
AWARNING: Do not fix the
filter on the product.
Check to see the following parts
are supplied with your product’s
model:
123
4
5
6

17
DK
SV
NO
IT
FIN
HR
FL
FR
EL
NL
CZ
PL
RO
1. Connector (1 piece): Used to
attach the water hose to the
rear of the product.
2. Faucet adapter (1 piece): Used
for connection to the cold water
mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix
the water hose on the wall.
5. Filter connecting apparatus (2
pieces): Used to fix the filter on
the wall.
6. Water filter (1 piece): Used
to connect the product to the
water mains. Water filter is not
necessary when using carboy
connection.
1. Connect the faucet adaptor to
the water mains valve.
2. Determine the location to
fix the external filter. Fix the
filter’s connecting apparatus (5)
on the wall.

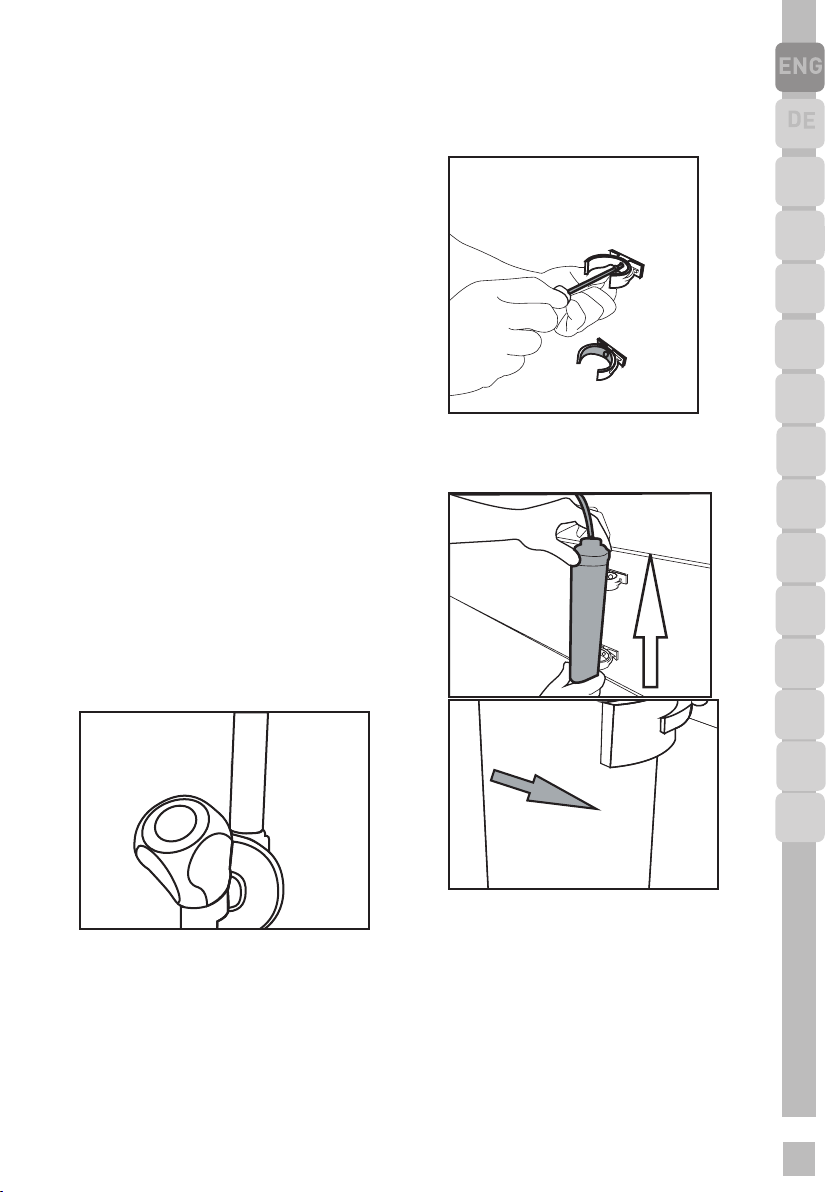

3. Attach the filter in upright
position on the filter connecting
apparatus, as indicated on the
label. (6)
4. Attach the water hose
extending from the top of the
filter to the product’s water
connection adaptor, (see 3.6.)
After the connection is established,
it should look like the figure below.

18
3.9.2.Internal filter
The internal filter provided with
the product is not installed
upon delivery; please follow the
instructions below to install the
filter.
Water line:
Carboy line:

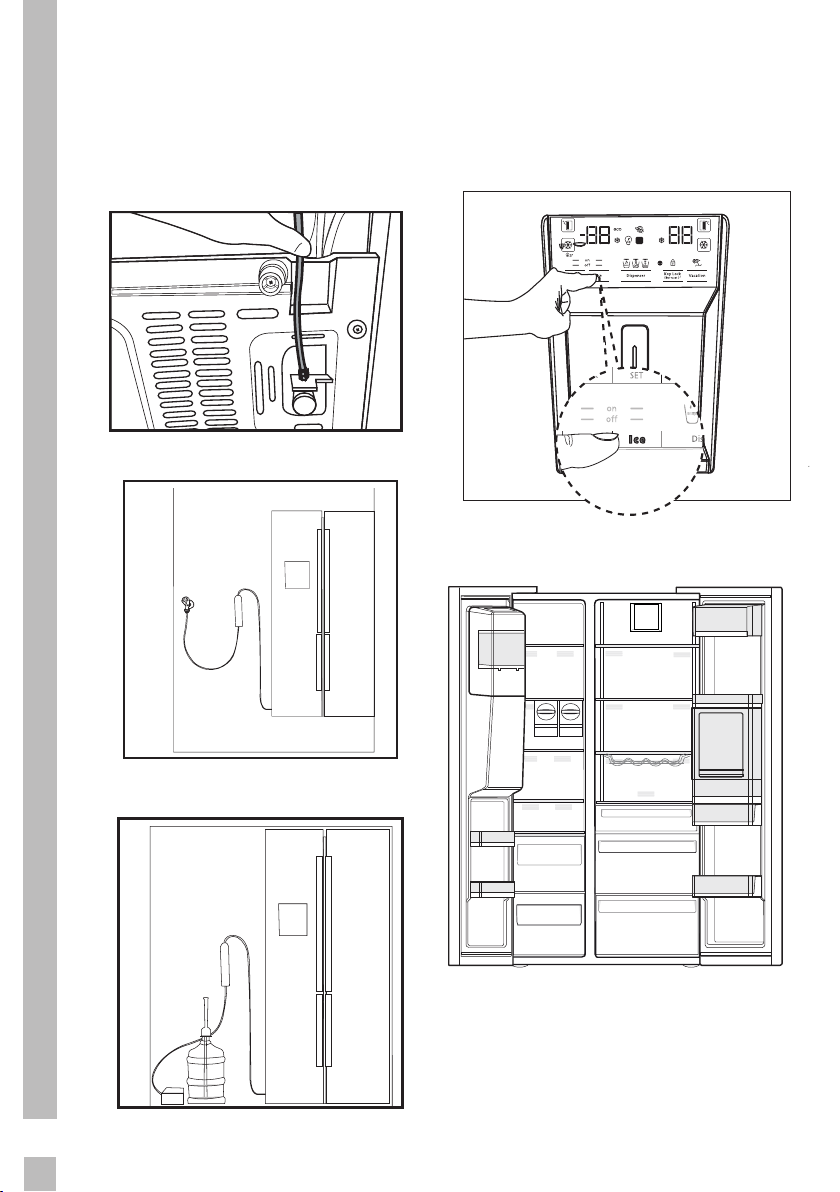

1. “Ice Off” indicator must be
active while installing the filter.
Switch the ON-OFF indicator
using the “Ice” button on the
screen.
a
2. Remove the vegetable bin (a) to
access the water filter.
