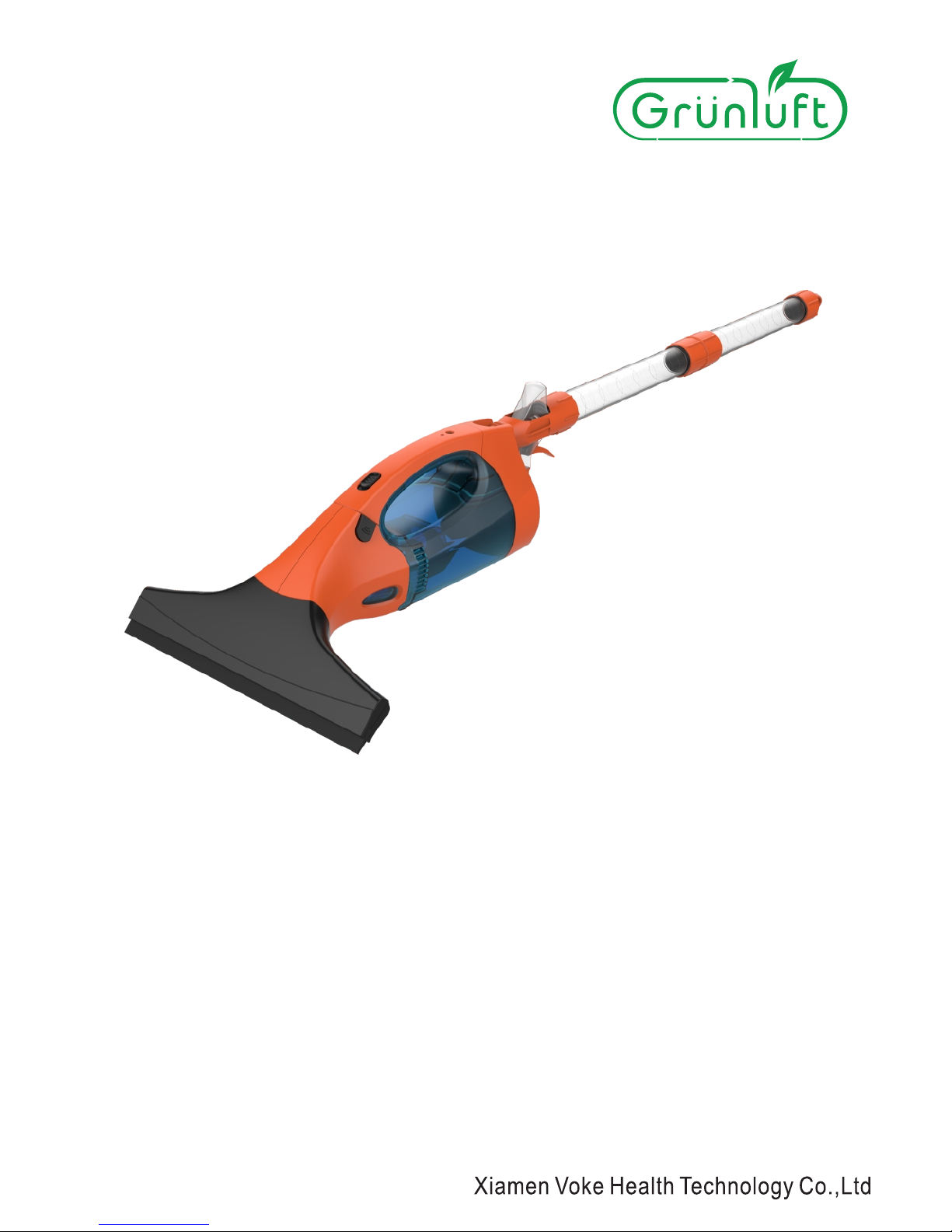

Grunluft VK-9009 User manual
VK-9009
Window Vacuum
USER MANUAL
When using an electrical device, basic safety measures should always observed:
(1) Only use this window vacuum cleaner as described in these instructions.
(2) Do not store or change the window vacuum cleaner outdoors.
(3) Do not operate the charger with moist or wet hands.
(4) Do not insert any objects into the ventilation slots.
(5) The window vacuum cleaner is not a toy.
(6) This window vacuum cleaner is not intended for use by person (including children)
who are physically or mentally handicapped or have sensory disabilities, nor is it to be
used by person without sufficient experience and / or knowledge, unless these persons
are supervised by persons responsible for their safety or unless they have been
instructed how to use appliance.
(7) The window vacuum cleaner may only be operated with the supplied charger.
(8) Fully charge the window vacuum cleaner prior to the first use (see start-up/
charging the battery).
(9) Always remove the charger from the socket and window vacuum cleaner after
charging.
(10) Repairs may only be performed by authorized customer service technicians. Never
open the basic device by yourself. The individual components of the basic device may not
be disassembled, repaired or modified.
(11) Unplug the device before cleaning or maintenance. When cleaning, ensure that no
liquids make their way into the switches and buttons.
ONLY SUITABLE FOR HOUSEDHOLD USE!
Information regarding the battery
(1) Short circuit hazard! Do not insert conductive objects (such as screwdrivers or
similar) into the charger plug.
(2) You may recharge the battery using only the original charger provided with the
appliance or a charger approved by Grunluft .
Tips for using the battery charger
(1) In case of visual damage, replace the charger with charger cable immediately by
original parts.
(2) Only use and store the charger in dry rooms, ambient temperature 5 – 40℃.
(3) Never touch the mains plug with wet hands.
Information regarding the transport
(4) The battery has been tested as per the relevant directives for international transport
and can be transported/shipped.
Dear customer,
Congratulations on your purchase VOKE window vacuum cleaner. Please read the
operating carefully before using window vacuum cleaner. They will help you to efficiently
and properly operate the device from the start and to avoid misuse. Please especially
notice the safety instructions in these operating instructions.
We hope that you are satisfied with the window vacuum cleaner. Please call us if
suggestions regarding our product. The VOKE team will be happy to help.
01、
02、Fore-hold
03、See-through window
04、Lock
05、 Power switch
Vacuum nozzle 06、
07、See-through water tank
08、Basic appliance
09、Indicator Light &
DC outlet
Dirty water freeing port
Component check:
When unpacking the package content. Check for completeness and any damages from
transit. In these cases, please contact your dealer or VOKE Services.
Content: Window vacuum cleaner (2 parts), Charging cable Operating manual.,
Type of device: Window Vacuum Cleaner
Volume of direct water reservoir: 180 ml
Operation time of full charging: 30mins
Nominal battery voltage: 3.7V
Rated power of appliance: 12W
Charging current for empty battery: 3 hrs
Output voltage, charger: 5V
Output current, charger: 1A
Sound pressure level: 63 dB(A)
Weight: 1.2 kg
Battery type: Lithium
All values are approximate values!
Use only original window vacuum cleaner rechargeable batteries by VOKE.
(1) Please note that this product is only intented for household use. VOKE does not
provide a manufacturer's warranty for commercial use.
(2) Only use this device for cleaning wet, smooth surfaces, such as windows, mirrors,
and tiles.
(3) Avoid sucking in dust and dirt.
(4) Do not use the window vacuum cleaner on rough surfaces so as to avoid damage to
rubber lip.
(5) The device is not suited to vacuum more liquids than 180 ml.
(6) Only use this device in connection with conventional window cleaning agents (no
spirits, no foam cleaner).
(7) Only use this device with accessories and spare parts approved by VOKE.
Any other use is considered to be improper. The manufacturer is not liable for damages
resulting from improper use. The user alone shall bear the risk for this.
Technical data:
Proper use:
Assemble the appliance:
A. Sprayer
B. Clean water tank
C. Extension stick
D. Pipe connecting head
A
B
C
D
E
F
G
E. Extension stick cover
F. Mopping/ Wiper head
G. Cleaning cloth
Step1: B+C+D+E
Please install the according to the following steps:device
Step2: Add water into B
Step3: A+B Step4: F+G Step5: 3+4
The window vacuum cleaner is not delivered with a fully charged battery. Therefore,
please fully charge the battery prior to the first use.
(1) Push the functional part (rubber lip and tank) onto the base unit from above, until
the connection lock audibly.
(2) Before you charge the device, please ensure that the device is switch off.
(3) Plug the charger into the socket.
(4) A “beep”, indicator light flashes while the charging is taking place.
(5) Charging complete, “beep” sound of three, indicator light off.
(6) The battery may only be charged the supplied charger.
(7) The charger is only to used in connection with VOKE window vacuum cleaner.
(8) Always charge the rechargeable battery after work and always store the device fully
charged.
Assemble the appliance:
Danger
Immediate danger that can cause severe injury or even death.
Warning
Possible hazardous situation that could lead to severe injury or even death.
Caution
Possible hazardous situation that could lead to mild injury to persons or damage to
property.
+
(1)
(2) Unlock the suction nozzle first and remove it from the separator, then unlock the
separator and remove it, too.
(3) Clean the separator and the suction nozzle under running water (not dishwasher
safe).
Caution: The basic appliance contains electrical components. Do not clean this under
running water!
(4) Remove the dirt water reservoir, rotate the lock and pull out.
(5) Empty the reservoir and rinse with clear water. Close the reservoir again.
(6) Remove the wiping cover from the spray bottle and rinse it under running water. The
wiping cover can also be washed in the washing machine at a temperature of up to 63 ℃
(without the use of fabric softeners).
(7) Let the cleaned appliance dry prior to assembly.
(8) Charge the battery.
This appliance includes a built-in battery pack; Please remove this battery pack before
disposing of the old appliance.
Remove battery pack and dispose of
(1) The appliance may only be opened in order to dispose of the battery pack.
Caution: when opening the appliance avoid shor circuits
(2) Remove battery pack and dispose of properly(at a collection site or the dealer).
Warning:
Do not open the batter,as ther is a risk of an electrical shock;also,irritating or caustic
vapors can escape.
Do not expose the battery to direct sunlight,heat or fire,there is a risk of explosion.
Turn off the appliance.
Finish up your work :
Disposing of old device and battery pack :
Start working:
(1) Suction clean the surface
A. Clean the window as usual with water and cleaning agent.
B. Switch the window vacuum on by the main power switch; the indicator
light will be off.
C. Low power, a beep, indicator light flashed, 2 sec./ time.
D. No power, beep sound of five, indicator light flashed, 5 sec/ time, and
off the device.
(2) Over the highest water level, pour out the water.
CAUTION:
The device unit contains electrical components.
Therefore, do not clean the basic unit under running water.
NOTES:
(1) Do not use the window vacuum cleaner on rough surfaces.
(2) Clean the device with damp cloth.
(3) Never submerge the device in water.
(4) If your product does not work properly under normal conditions, please contact your
dealer with your proof of purchase.
#16, Xianghong Road, Xiang an, Xiamen, 361101 China
Tel + 86 (0)592 7687698
Fax + 86 (0)592 7687690
Mail health-sale@ctmold.com
www.gruenluft.com
Xiamen Voke Health Technology Co.,Ltd.
