GSC GS-27 User manual

Drill Grinder
Operation Manual
Model : GS-27

RECYCLING
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new once, the retailer is legally obligated to take back
your old appliance for disposal at least for free of charge.

Index
I. Safety Instructions .................................................................................. 2
II. Intended Use ........................................................................................... 6
III. Machine Installation Instruction ............................................................. 6
IV. Machine Devices Introduction................................................................ 7
V. Dust Collection Adapter Assembly Steps ............................................... 8
VI. Choose of Grinding Wheel & Collet ...................................................... 9
VII. Chuck Set Assembly Steps ..................................................................... 9
VIII. The use of the Positioning Shelf............................................................. 10
IX. Twist Drill Grinding (Right side of Machine) ........................................ 12
X. Iron Frame Drill Grinding (Left side of Machine) ................................. 14
XI. The use of the Parallel Alignment Device .............................................. 15
XII. The use of Metal Shims .......................................................................... 15
XIII. Machine Maintenance and Clean............................................................ 16
XIV. Troubleshooting ...................................................................................... 17
1

I. Safety Instructions
All personnel working with the machine must be properly trained in its operation, and must follow
strictly on the operating instructions and procedures given in this and all associated manuals.
The machine may only be operated by persons who are authorized and trained.
The user of the machine must not remove, modify or obscure in any way the content or the
readability of any safety label placed on or inside the machine.
The sound pressure level of this machine is less 70dB(A) with uncertainty 3dB.
The vibration total value does not exceed 2.5 m/s2.
WARNING
Read all safety warnings, instructions provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
1. Work area safety
●Keep work area clean and well lit. Cluttered or dark areas invite accidents.
●Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
●Keep children and bystanders away while operating a power tool. Do not let
persons, especially children, not involved in the work touch the tool or the extension
cord and keep them away from the work area.
2. Electrical safety
●Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
●Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
●Use proper extension cord. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current
your product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating.
2

●Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
●Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
3. Personal safety
●Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
●Use personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, protective glasses, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions will reduce personal injuries.
●Keep guards in place, in working order. Safety guards must never be removed when
the tool is being used.
●Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
●Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
●Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
●Dress properly. Do not wear loose clothing, gloves, neckties or jewelry which may
get caught in movine parts. Keep your hair, clothing, gloves or jewelry away
from moving parts.
●If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
●Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
●Use only designated clamps to hold workpiece. It's safer than using your hand and
it frees both hands to operate tool.
3

●Never stand on tool. Serious injury could occur if the tool is tipped or if the cutting tool
is unintentionally contacted.
●Never leave tool running unattended. Turn power off. Don't leave tool until it comes
to a complete stop.
4. Power tool use and care
●Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
●Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
●Disconnect the plug from the power source and/or remove the battery pack, if
detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
●Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
●Maintain power tools and accessories. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting, guards, cord and any
other condition that may affect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
●Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
●Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
●Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of
the tool in unexpected situations.
●Do not use damaged grinding wheels.
●Use only grinding wheels and accessories that are recommended by the
manufacturer. Use of unauthorized accessories may result in personal injury.
●The grinding wheel will not be dressed.
4

●Please use the air spray gun and duster to clean all sharpened dusts from the
machine after finishing the grinding job.
●Direction of feed. Feed work into a blade or cutter against the direction of rotation of
the blade or cutter only.
5. Service
●Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Explanation of Labels
Indication of ground wiring Do not touch
5

II. Intended Use

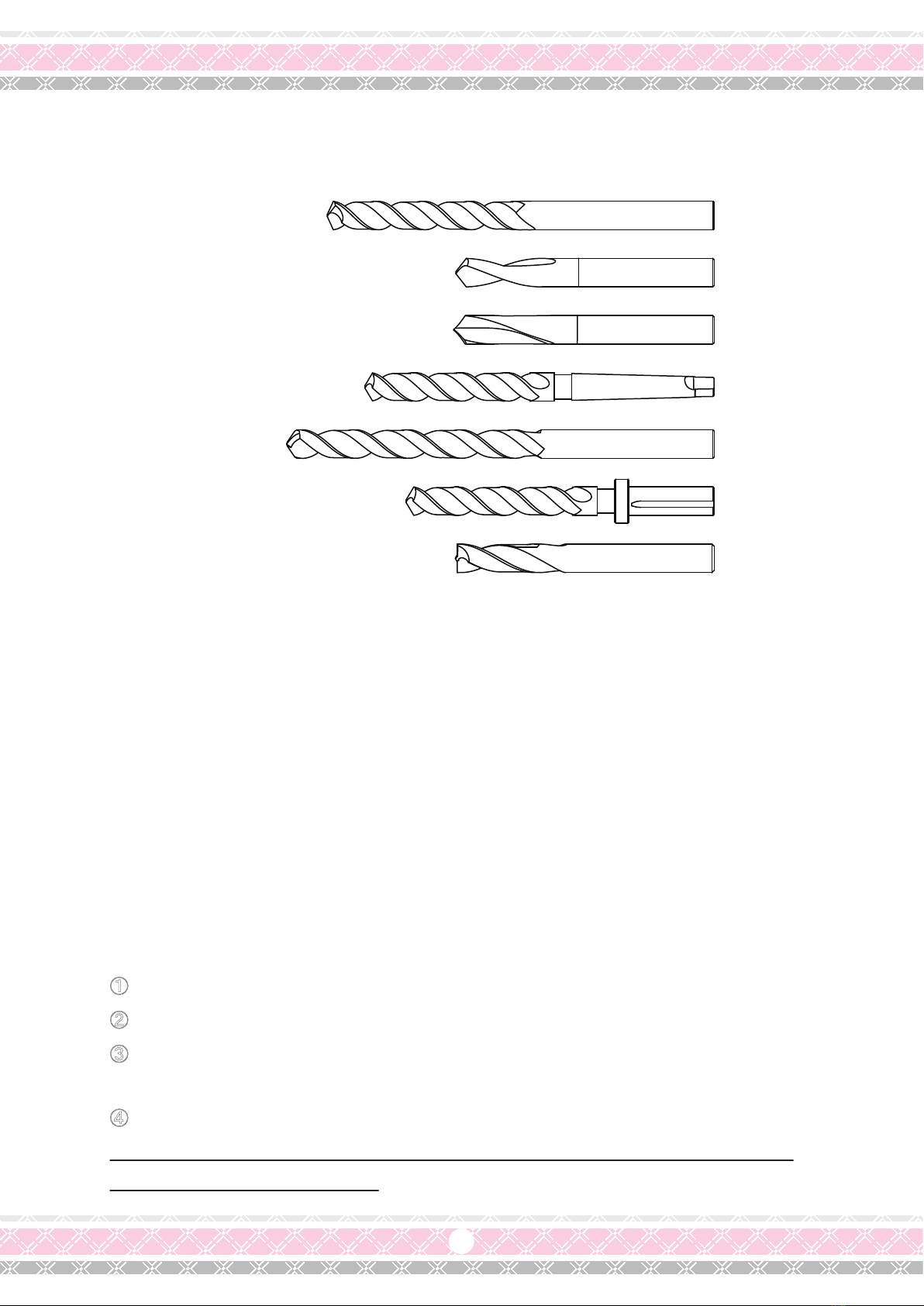

This grinding machine is suitable for grinding and sharpening HSS / carbide twist drill.
Universal Twist Drills
NC Spotting Drills 120°
NC Spotting Drills 90°
Taper Shank Twist Drills
Deep-Hole Drills
Noss Drills
Drills for Iron Frame (Centre point)
III . Machine Installation Instruction
1. Environmental Condition
●Place the machine on a “flat” and “stable” working table.
● Operate the machine in dry environment and away from liquid.
● Make sure power plug and power cord are installed in proper location.
2. Power Supply
Make sure the local power supply is matching with the voltage specification from the
product label.
Please check the switch is in off position before plugging into socket outlet.
3. Motor Direction Test
①Plug the power cord into socket outlet.
②Check the grinding wheel protection cover is fastened by the screw.
③Quickly switch on and off the machine, then check if the rotating direction of
the right side grinding wheel is counterclockwise.
④Switch on the machine again and check if any abnormal sound.
(The Machine is equipped with carbon brush DC motor. A slightly grinding sound is
considered as normal condition.)
6

IV . Machine Devices Introduction

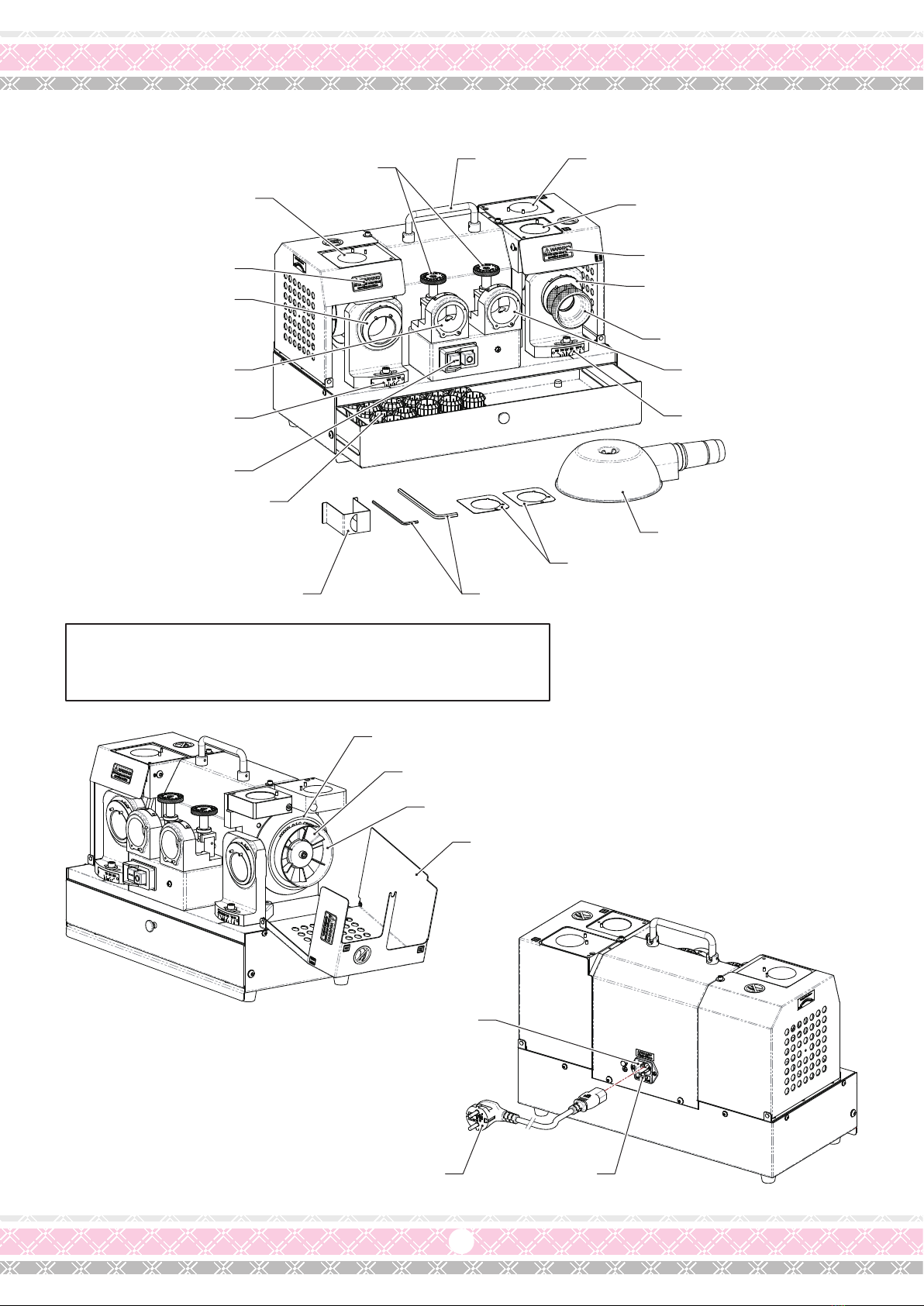

Handle Heel Grinding Shelf (III)
(for twist drill)
Adjustment Scale
Web Thinning Grinding
Shelf (II) (for twist drill)
Web Thinning
Grinding Shelf
(for iron frame drill) Warning Sign
Warning Sign
Cutting Lip Grinding
Shelf (I) (for twist drill)
Cutting Lip
Grinding Shelf
(for iron frame drill) Chuck Set
Positioning Shelf
(for twist drill)
Positioning Shelf
(for iron frame drill)
Point Angle Indicator
Point Angle
Indicator
Power Switch
Standard Collet Set
Dust Collection Adapter
Metal Shim (0.1 & 0.3 mm)
Parallel Alignment Device Hexagon Wrench (3 & 5 mm)
For Twist Drill diameter: Φ12.0 mm - Φ26.0 mm
For Iron Frame Drill diameter: Φ12.0 mm - Φ26.0 mm
Grinding Wheel
Fan
Plastic Protection Cover
Grinding Wheel Protection Cover
Power Socket
Power Cord Fuse
7

V. Dust Collection Adapter Assembly Steps
1. Thread the hex nut onto the suitable position of the threaded rod, align the end of the
threaded rod containing the hex nut to the tapped hole of grinding wheel cover, and turn
the threaded rod clockwise to thread the rod into the grinding wheel cover and tighten
lightly. (Fig. 5-1)
Grinding Wheel Cover
Hex Nut
Threaded Rod
Fig. 5-1
2. Align the hole in the center of the dust collection adapter to threaded rod. Push the dust
collection adapter to the end. (Fig. 5-2)
3. Assemble the washer and wing nut and tighten the wing nut to secure the dust collection
adapter. (Fig. 5-3)
Dust Collection Adapter
Fig. 5-2
Washer Wing Nut
Fig. 5-3
8

VI . Choose of Grinding Wheel & Collet
1. Please unplug the power cord before changing grinding wheel.
2. Choose the proper grinding wheel according to the material of the drill.
●HSS drill use CBN grinding wheel (Standard).
●Carbide drill use SD grinding wheel (Optional).
3. Choose the proper collet according to the drill diameter.
E.g. 12.0 mm drill, use 12 mm collet ; 12.1 - 13.0 mm drills, use 13 mm collet.
VII . Chuck Set Assembly Steps
1. Make sure there are no dust or scraps inside the clamping nut, collet and collet holder.

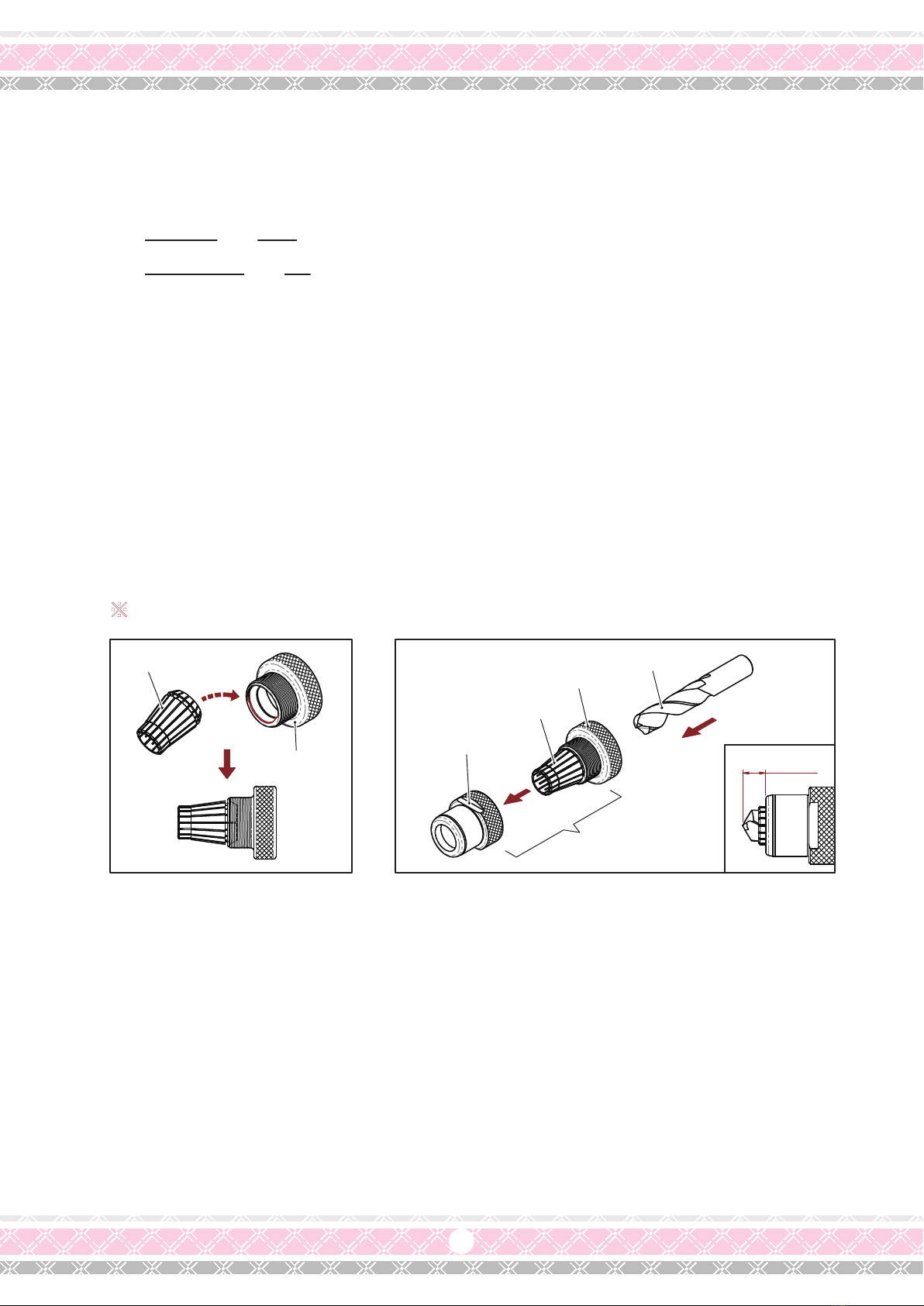

2. Put the collet into collet holder by 45° angle. (Fig. 7-1)
3. Screw in a little bit by clamping nut, then insert the drill through the collet holder until
the drill tip is about 15 mm out of the clamping nut (Fig. 7-2), slightly screw the chuck set
to tighten the drill a little bit.
※Do not fully tighten the chuck set, make sure the drill can still be adjusted.
Collet
Collet Holder
Fig. 7-1
15 mm
Drill
Collet Holder
Collet
Clamping Nut
Chuck set
Fig. 7-2
9

VIII . The use of the Positioning Shelf
󳮓The left side positioning shelf is for iron frame drills;
The right side positioning shelf is for twist drills.
1. Preset the scale of the positioning shelf. (Fig. 8-1)
󳶖Turn it by clockwise to the end.
󳶗Turn it by counterclockwise at “0”.
2. Adjust the scale according to the drill diameter.
E.g. 12.1
- 13.0 mm drills, set at 13 ; 13.1 - 14.0 mm drills, set at 14.
󳮓For grinding High Spiral Drill Bit, please increase the scale
more than its diameter.
󳮓For grinding Deep Hole Drills, the scale is adjusted to 2 times of the drill diameter.
E.g. The diameter at 13 mm, the scale should adjust above 26.
3. Drill positioning (Fig. 8-2) :
󳶖Align the slot of the clamping nut to the pin on
the positioning shelf, insert the chuck set into the
positioning shelf and fit them with no gaps, then
turn the chuck set clockwise until it stops by the pin.
󳶗Push the drill to the end and slowly turn it clockwise
until the drill’s cutting edge touches the position block.
󳶘Turn the collet holder clockwise and tighten the
chuck set to secure the drill.
4. Gently turn the chuck set counterclockwise and take it out,
make sure the drill’s cutting edge is parallel to
the slot of the clamping nut (Fig. 8-3).
󳮓The cutting edge can be angled towards
the slot of the clamping nut but no more than 5°
(Fig. 8-4), but the cutting edge cannot be angled
away from the slot of the clamping nut.
󳡃󳮓
You could also choose to use the parallel alignment device to check the parallelism.
(See chapter “XI. The use of the Parallel Alignment Device”)
(continued on next page)
󳶖
󳶗
Fig. 8-1
No gap between
chuck set and the
positioning shelf

Pin
Position block

Drill is blocked by
the position block

Fig. 8-2
10

(continued from previous page)

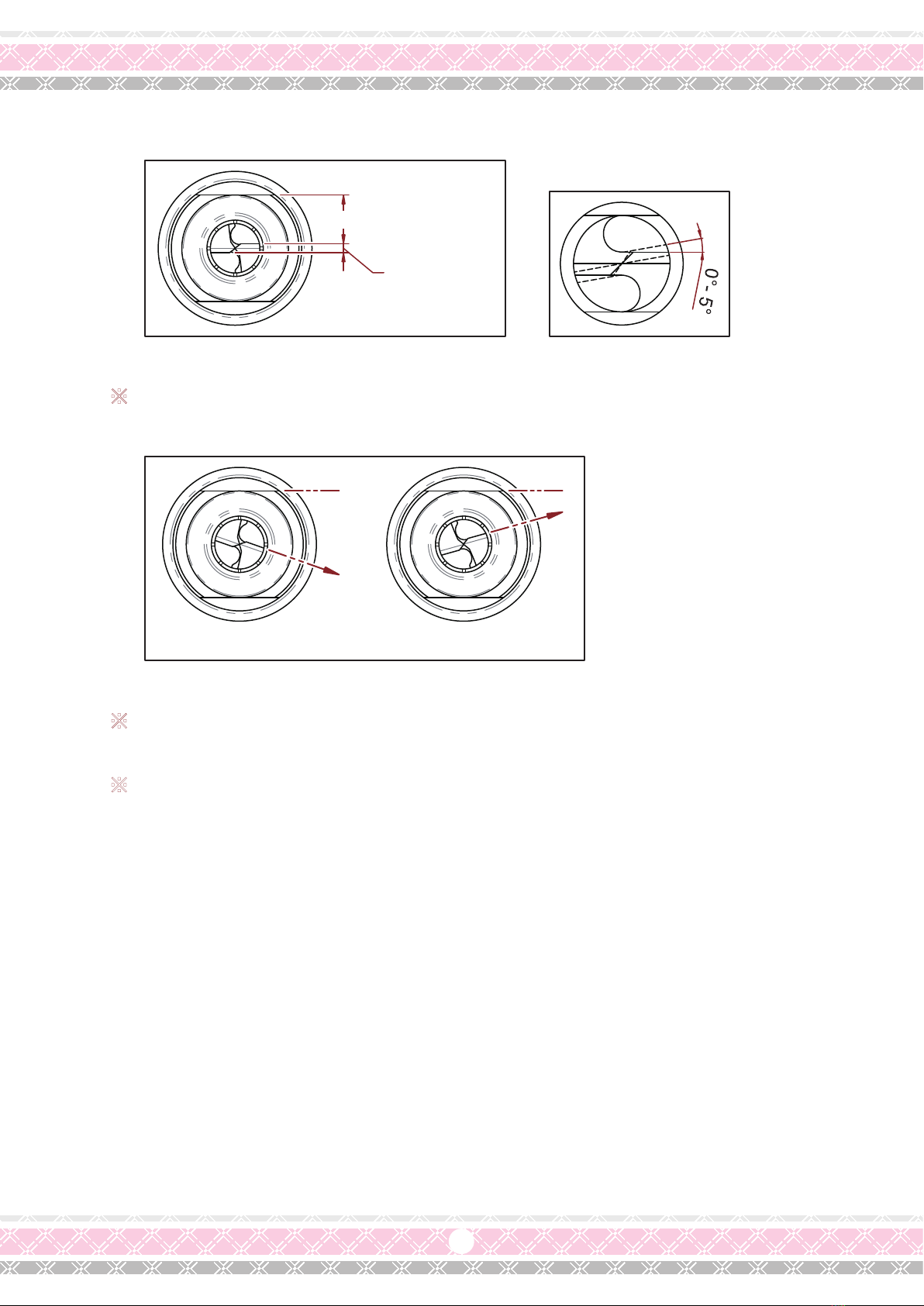

Slot of clamping nut
Parallel
Cutting edge
Web thickness
Fig. 8-3 Fig. 8-4
※
If the drill's cutting edge is not parallel to the slot of the clamping nut, adjust the scale
and reposition the drill. (Fig. 8-5)
Slot
Increase the scale
Slot
Decrease the scale
Fig. 8-5
※
The drill's web thickness is thicker than original after re-sharpening many times,
the scale should be increased until the cutting edge is parallel to the slot.
※
Make sure the positioning result is correct before starting the grinding procedure.
11

IX . Twist Drill Grinding (Right side of Machine)
󳮓Verify the drill’s point angle and adjust the angle of the cutting lip grinding shelf (I)
to the same before grinding procedure. (Angle adjustment available is 90° - 140°)
Turn the power switch on and wait about 10 seconds until the motor rotation is stable.
󳮓Do not hold the drill shank while grinding, it may affect the grinding accuracy.
1. Cutting Lip Grinding (Fig. 9-1)
Insert the chuck set into the cutting lip
grinding shelf (I), align the slot of clamping-
nut to the two pins on the grinding shelf,
push the chuck set gently and turn it
clockwise and counterclockwise until
the grinding noise stops.
Take the chuck set out, turn it to the other
side and grind the drill in the same way.
2. Web Thinning (Fig. 9-2)
󳡃󳮓
When inserting or taking out the chuck set,
the center part of the clamping nut slot should align to the pin on the grinding shelf.
Insert the chuck set into the web thinning grinding shelf (II), push the chuck set gently
and turn it clockwise and counterclockwise until the grinding noise stops.
󳶗Take the chuck set out, turn it to the other side and grind the drill in the same way.
Pin
No gap between
the chuck set and
the grinding shelf
Point Angle
Indicator
Fig. 9-1
No gap between
the chuck set and
the grinding shelf
Pin Align the center of
the slot to the pin
Fig. 9-2
󳡃󳮓
There are 0.1 mm shim and 0.3 mm shim for adjusting the size of web thickness.
(See chapter “XII. The use of Metal Shims”)
(continued on next page)
12

(continued from previous page)
3. Heel Grinding (Fig. 9-3)
�Insert the chuck set into the heel grinding
shelf (III), align the slot of clamping nut
to the two pins on the grinding shelf,
push the chuck set gently until the
grinding noise stops.
②Take the chuck set out, turn it to the other
side and grind the drill in the same way.
Pin
No gap between
the chuck set and
the grinding shelf
Fig. 9-3
Before After
13

X. Iron Frame Drill Grinding (Left side of Machine)
󳮓Verify the drill’s point angle and adjust the angle of the cutting lip grinding shelf to the same
before grinding procedure. (Angle adjustment available is 160° - 180°)
Turn the power switch on and wait about 10 seconds until the motor rotation is stable.
󳮓Do not hold the drill shank while grinding, it may affect the grinding accuracy.
1. Cutting Lip Grinding (Fig. 10-1)
Insert the chuck set into the cutting lip
grinding shelf, align the slot of clamping-
nut to the two pins on the grinding shelf,
push the chuck set gently and turn it
clockwise and counterclockwise until
the grinding noise stops.
Take the chuck set out, turn it to the other
side and grind the drill in the same way.
2. Web Thinning (Fig. 10-2)
󳡃󳮓
When inserting or taking out the chuck set, the
center part of the clamping nut slot should align to the two pins on the grinding shelf.
Insert the chuck set into the web thinning grinding shelf, push the chuck set gently
and turn it clockwise and counterclockwise until the grinding noise stops.
󳶗Take the chuck set out, turn it to the other side and grind the drill in the same way.
Pin
No gap between
the chuck set and
the grinding shelf
Point Angle
Indicator
Fig. 10-1
No gap between
the chuck set and
the grinding shelf
Pin Align the center of
the slot to the two pins
Fig. 10-2
󳡃󳮓
There are 0.1 mm shim and 0.3 mm shim for adjusting the size of web thickness.
(See chapter “XII. The use of Metal Shims”)
14

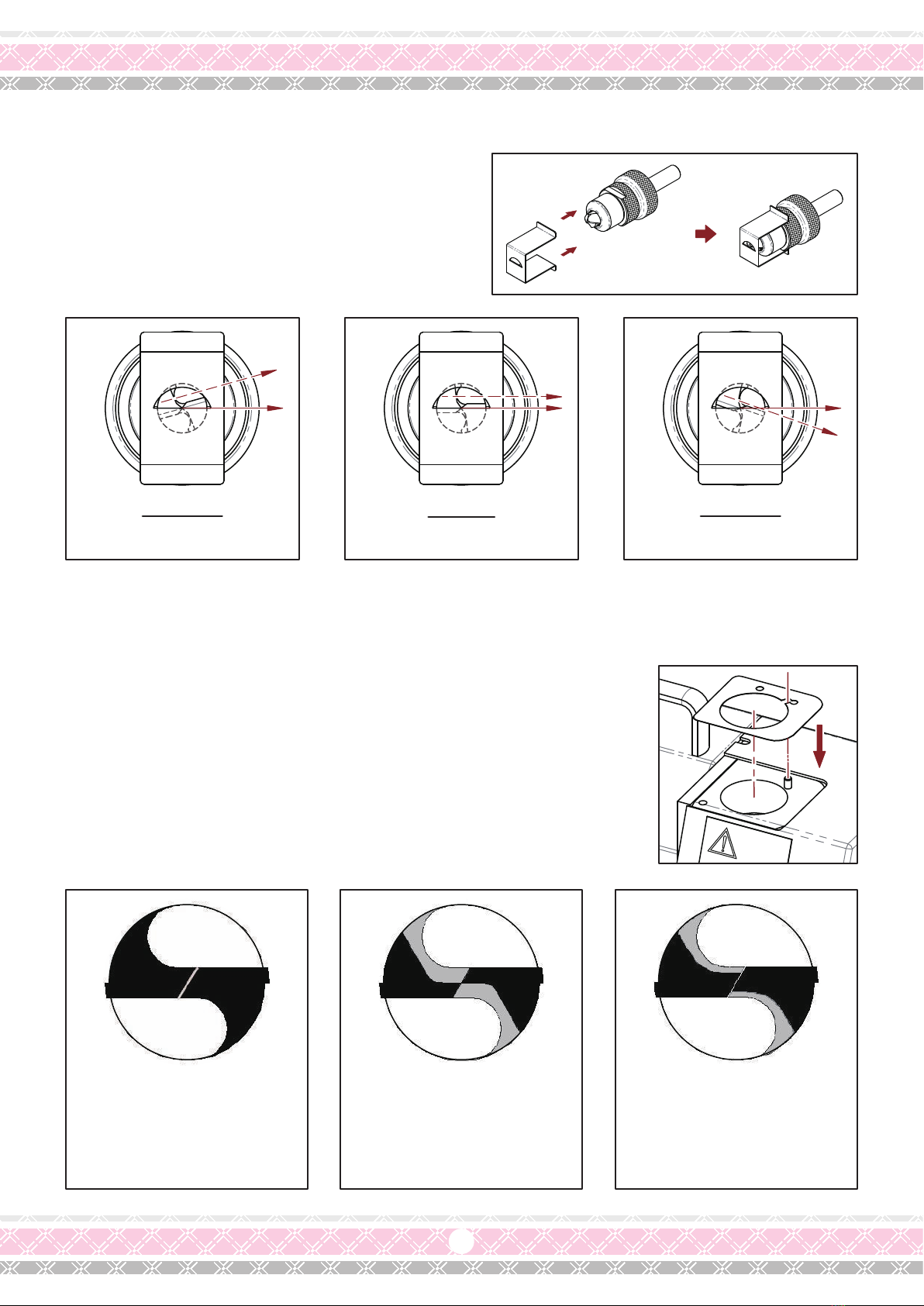

XI . The use of the Parallel Alignment Device
Align the parallel device with the two slots of the
clamping nut, then connect them as shown in
the picture on the right.
Verify the parallelism of the drill’s cutting lip with
the flat figure of the hole on the parallel device.
Incorrect
Decrease the scale
Correct
Cutting lip parallel
Incorrect
Increase the scale
XII . The use of Metal Shims
There are 3 pieces metal shims as standard accessories.
●2 pieces of 0.1 mm metal shims.
●1 piece of 0.3 mm metal shim.
Align the hole of the shim to the pin on the web thinning
grinding shelf then put it on as shown in the picture on the right.
Adding one shim of 0.1 mm will expand 0.2 mm of the point size,
adding 0.3 mm shim will expand 0.6 mm of the point size and so on.
Tip of drill without thinning,
use only the cutting lip
grinding shelf to sharpen
this form.
Web thinning made by normal
grinding procedure without
adding metal shims.
Point size: 0.2 mm - 0.4 mm
Web thinning result with
metal shims.
Point size: 0.4 mm or bigger
depend the shims added
15

XIII . Machine Maintenance and Clean
1. Replacement of Grinding Wheel
※Do not exchange our grinding wheel with other grinding wheel
from other supplier!
①Unplug the power cord and make sure the power is off.
②Confirm the screw direction on the grinding wheel cover before
changing the grinding wheel. (Fig. 13-1)
③Loosen the screw from the grinding wheel cover to open the cover. (Fig. 13-2)
④Loosen the screw from the grinding wheel to take off the grinding wheel. (Fig. 13-3)
⑤Use clean cloth to clean the flange and the contact surface of the grinding wheel.
⑥Replace the new grinding wheel and fasten the screw. (Fig. 13-3)
※
Tighten the wheel screw until the fan can’t be moved separately, do not over tighten.
⑦Close the grinding wheel cover and secure with screw.
Fig. 13-1
Cover Screw
Washer
Fig. 13-2
Grinding Wheel
Flange Plastic Protection Cover
Fan
Taking out
Replacing Washer Screw
Fig. 13-3
2. Cleaning
①Unplug the power cord and make sure the power is off.
②Disassemble the chuck set after use.
③Use the air press gun to clean the scraps and dust
out of all grinding shelves and all the accessories.
(Fig. 13-4, Fig. 13-5)
※Please wear protection glass while using the
air press gun.
④Use clean cloth to clean each contact port and all
the accessories, then put them back in order.
(Fig. 13-4, Fig. 13-5)
Fig. 13-4
Fig. 13-5
16

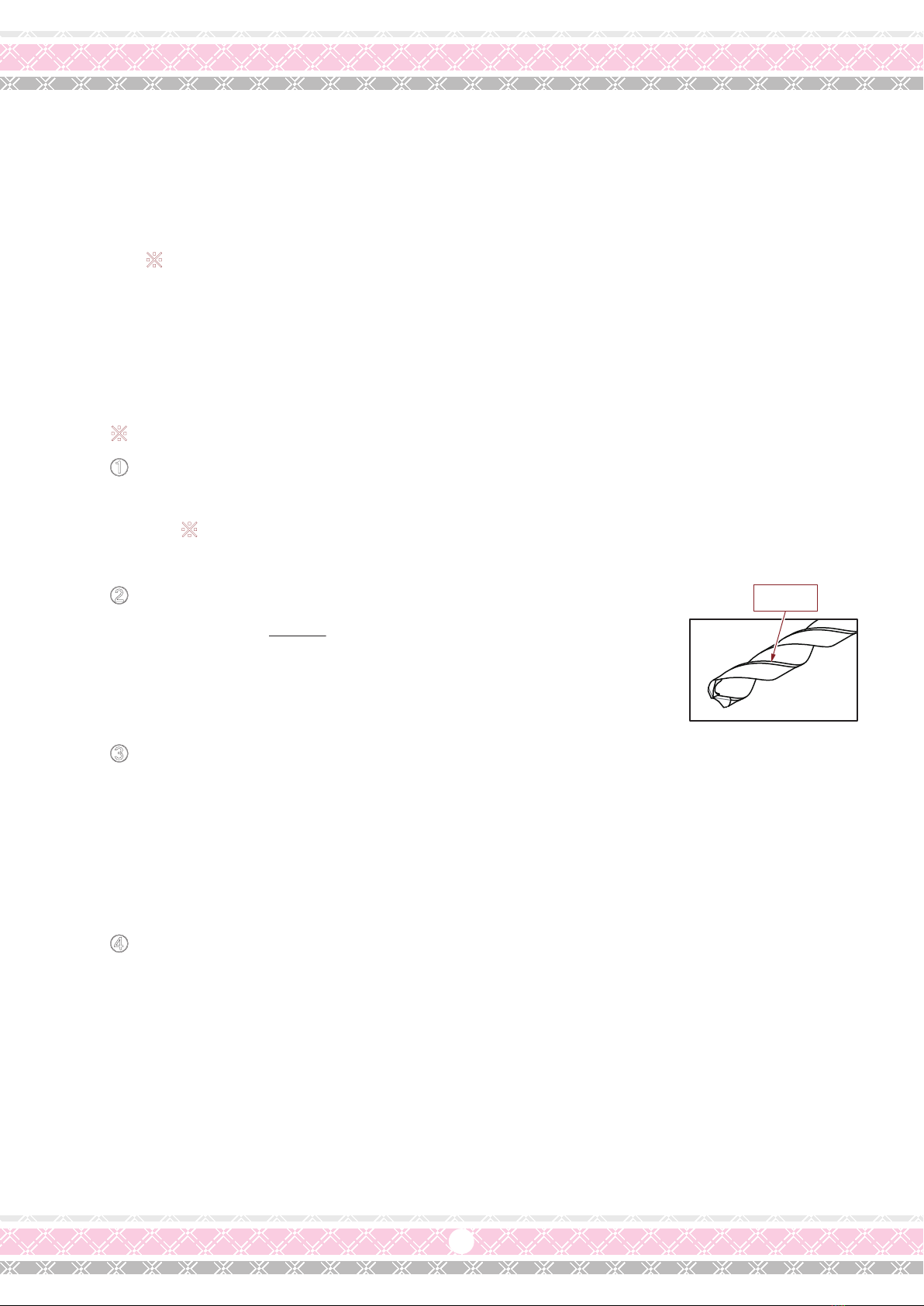

XIV . Troubleshooting
1. Drill is positioned but incorrect result.
●Check the drill’s cutting edge is clean without scraps / iron ash.
●Check the scale of the positioning shelf.
󳮓Preset the scale of the positioning shelf first and then adjust the scale.
●Check the contact surface of positioning shelf is clean without scraps.
●Check the position block is clean without scraps / iron ash.
●Check the position block, if it is damaged, please contact your agent for replacement.
2. Positioning result is correct but failed accuracy after grinding.
󳮓If encountered any of the following problems, please reposition the drill and regrind.
Problem with grinding shelf :
●Check the angle of the cutting lip grinding shelf.
󳮓After adjusting the angle, must fasten the set screw of the grinding shelf.
●Check the contact surface of grinding shelf is clean without scraps / iron ash.
Problem with drill :
●Check the margin of the drill, if it is damaged should
be cut off.
●If the drill is deformed or has unequal land, may affects
the grinding accuracy.
Problem with accessories :
●Check the cleaningness of chuck set (collet / collet holder / clamping nuts).
●Check the grinding wheel, if it is damaged, please contact your agent for
replacement.
●While changing grinding wheel, the flange and the center hole of grinding wheel
should be kept clean.
Problem with drill grinding :
●Do not apply too much pressure to grinding shelf.
●Make sure to fully turn to the end when turning the chuck set clockwise and
counterclockwise.
●For web thinning, when inserting or taking out the chuck set, the center part of
the clamping nut slot should align to the pin on the grinding shelf.
3. In case of product or component damage, switch off the machine and disconnect the
power cord. Contact your local authorized supplier for repair or replacement.
Margin
17

127L02-2
2021.07
