GSi PNEG-1544CE User manual

PNEG-1544CE
CE Compliant Vision
SCR Board Calibration
Instruction Manual - Original Instructions
PNEG-1544CE
Date: 09-24-20
IC/LC BARRIER TERMINAL BOARD
P/N 9884
LINE
FUSE
ACCEL ARM
FUSE
MAX MIN I1 CL
P3 P2 P1 I1 F+ F- L1 L2 A+ A-

2 PNEG-1544CE CE Compliant Vision SCR Board Calibration

Table of Contents
PNEG-1544CE CE Compliant Vision SCR Board Calibration 3
Contents
Chapter 1 Introduction ..........................................................................................................................................4
Chapter 2 Safety .....................................................................................................................................................5
Safety Guidelines .................................................................................................................................. 5
Safety Instructions ................................................................................................................................. 6
Chapter 3 SCR Drive Setup ...................................................................................................................................7
Chapter 4 Warranty ..............................................................................................................................................21

4 PNEG-1544CE CE Compliant Vision SCR Board Calibration
1. Introduction
READ THIS MANUAL carefully to learn how to properly use and install the equipment. Failure to do so
could result in personal injury or equipment damage.
INSPECT the shipment immediately upon arrival. The customer is responsible for ensuring that all
quantities are correct. The customer should report and note any damage or shortage on the bill of lading
to justify their claim to the transport company.
THISMANUALshouldbeconsideredapermanentpartofyourequipmentandshouldbeeasily accessible
when needed.
This warranty provides you the assurance that the company will back its products when defects appear
within the warranty period. In some circumstances, the company also provides field improvements, often
without charge to the customer, even if the product is no longer under warranty. Should the equipment be
abused or modified to change its performance beyond the factory specifications, the warranty willbecome
void and field improvements may be denied.

PNEG-1544CE CE Compliant Vision SCR Board Calibration 5
2. Safety
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems. It is the
responsibility of the owner/operator to inform anyone operating or working in the area of this equipment
of these safety guidelines. To help you recognize this information, we use the symbols that are defined
below. Please read the manual and pay attention to these sections. Failure to read this manual and its
safety instructions is a misuse of the equipment and may lead to serious injury or death.
DANGER
WARNING
CAUTION
NOTICE
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not related to
personal injury.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.

2. Safety
6 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want to
keep you as a customer. This manual is to help you understand safe operating procedures and some
problems that may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions
exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may be
required from the personnel. Avoid any alterations tothe equipment. Such alterations may produce a very
dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.

PNEG-1544CE CE Compliant Vision SCR Board Calibration 7
3. SCR Drive Setup

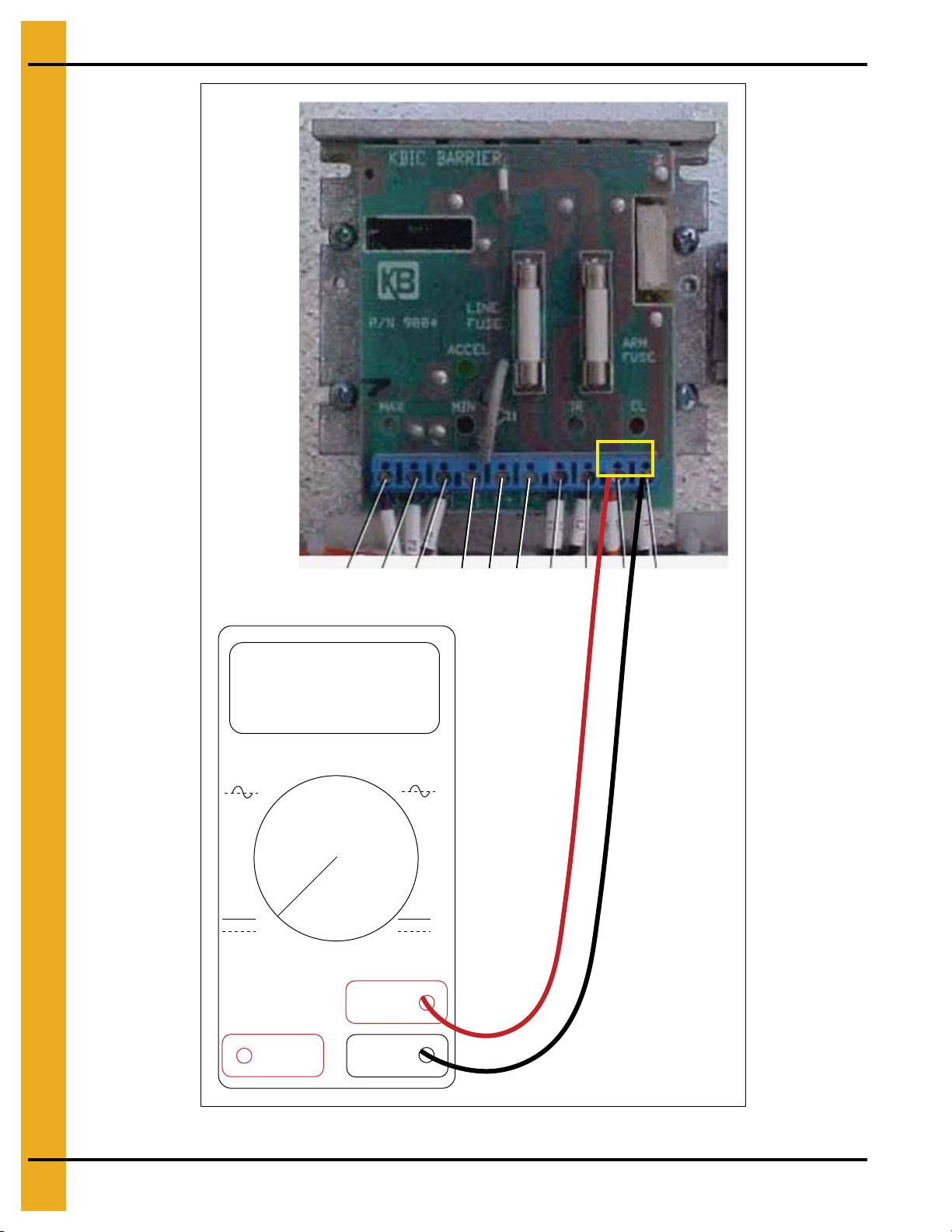

Figure 3A
Figure 3B
Ref # Description
AMain I/O Board
BSCRBoard
CUpper Control Panel
A
B
C

3. SCR Drive Setup
8 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3C


3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 9

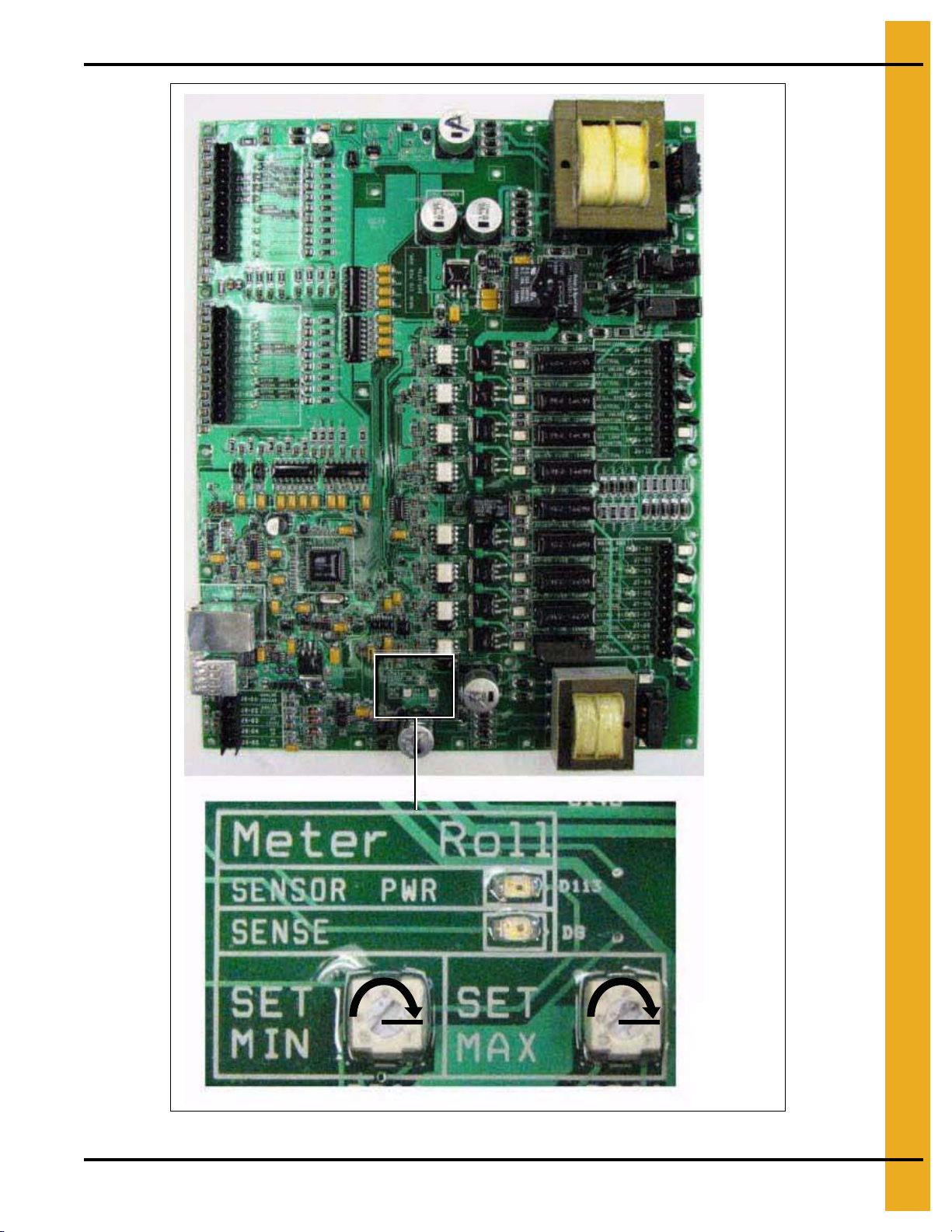

Figure 3D


3. SCR Drive Setup
10 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3E
V
V
OFF
COM
A
A
A
Ω
VΩ
A-
F-
F+
I1P1P2P3 A+L2L1

3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 11
Figure 3F
Figure 3G

3. SCR Drive Setup
12 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3H
Figure 3I

3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 13
Figure 3J
Figure 3K

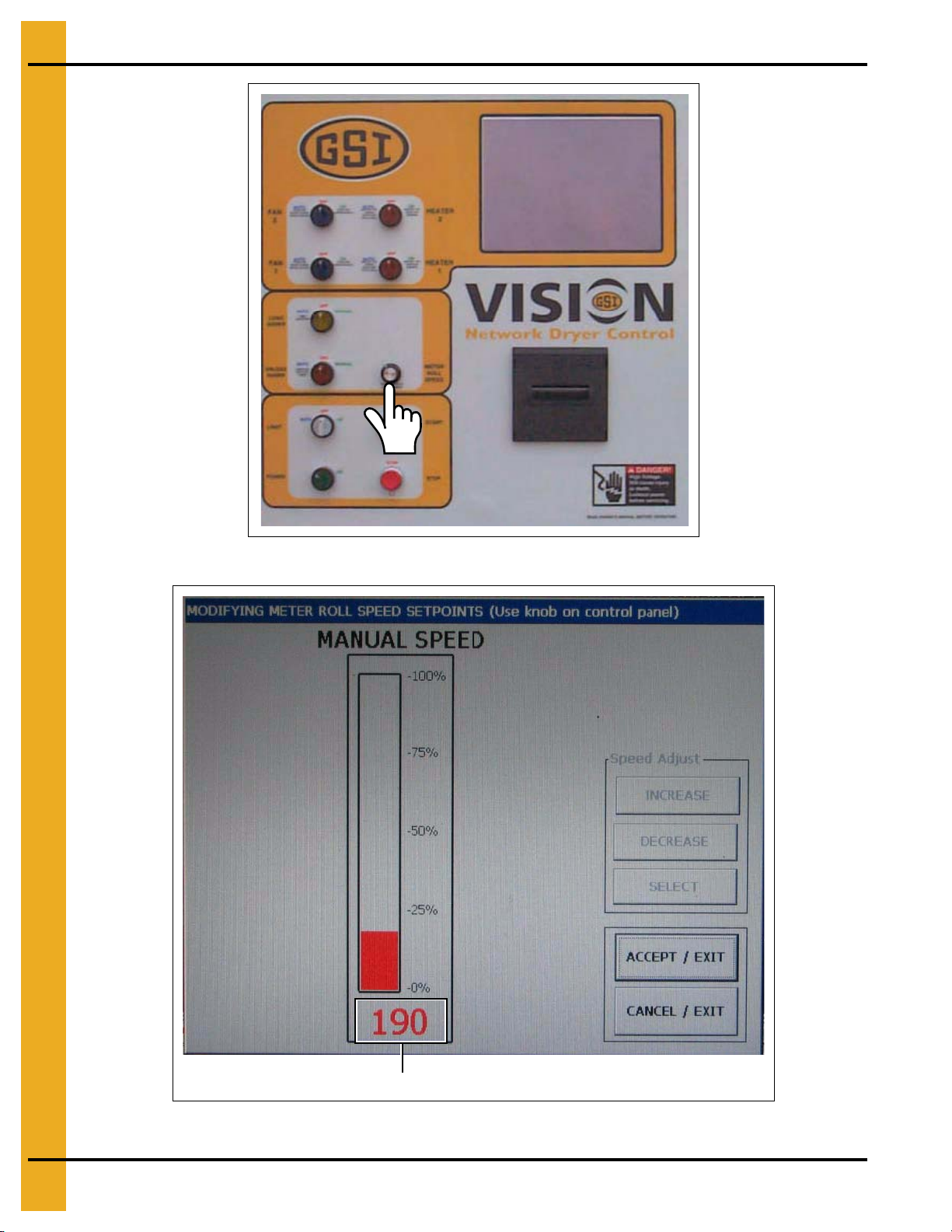

= Manual

3. SCR Drive Setup
14 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3L
Figure 3M

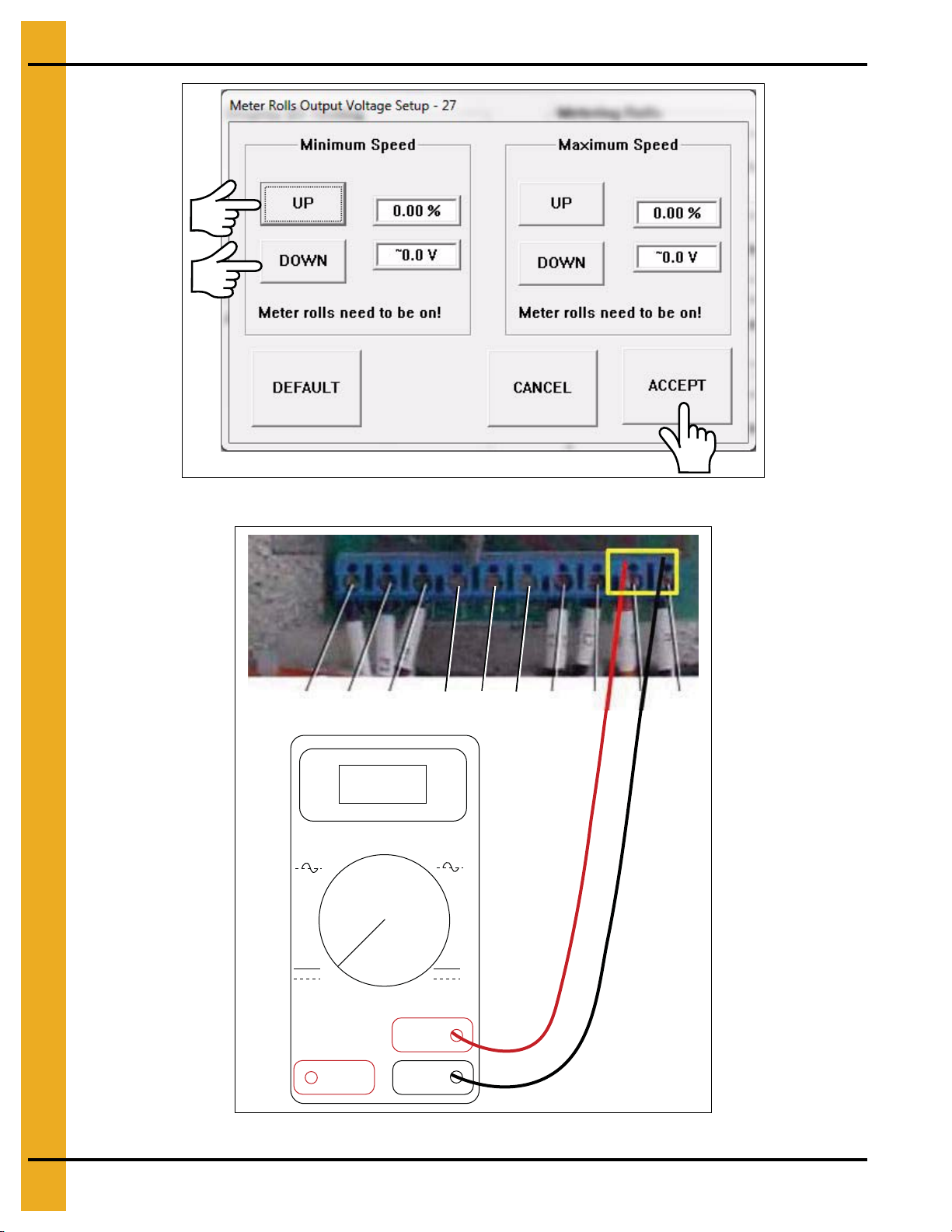

= 50 (5%)

3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 15
Figure 3N
Figure 3O

3. SCR Drive Setup
16 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3P
Figure 3Q
V
V
OFF
COM
A
A
A
Ω
VΩ
A-F-F+I1P1
9.00 V
P2P3 A+L2L1

3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 17
Figure 3R
Figure 3S
= 1000 (100%)

3. SCR Drive Setup
18 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3T
Figure 3U
V
V
OFF
COM
A
A
A
Ω
VΩ
A-F-F+I1P1
180.00 V
P2P3 A+L2L1

3. SCR Drive Setup
PNEG-1544CE CE Compliant Vision SCR Board Calibration 19
Figure 3V
Figure 3W

3. SCR Drive Setup
20 PNEG-1544CE CE Compliant Vision SCR Board Calibration
Figure 3X
Figure 3Y
