OPERATION INSTRUCTIONS
60cm White Slide Out Rangehood
Model No. MR60WSOUT
V2 July 2022
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au
Th
ank you
Thank you for choosing Mistral Appliances.
All Mistral appliances carry a 2 year In Home warranty be sure to
retain your Installation and user manual and receipt.
For all warranty and technical queries please contact
Australia 1300 373 199
New Zealand 0800 764 912
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au
C o nte nts
Sa fe ty instruc tio ns ............................................... 2
Pro d uc t d e sc rip tio n ............................................ 3-4
Sta rt using yo ur a p p lia nc e ................................. 5-6
Ma inte na nc e ...................................................... 7-8
Wa rra nty .............................................................. 9-10
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au
Safety Instructions
This manual explains the proper installation and use of your range hood, please read
it carefully before using even if you are familiar with the product. The manual should
be kept in a safe place for future reference. In case of failure, only the Authorised
Technical Service may repair this range hood. Otherwise the guarantee will be null
and void. All Appliances are for domestic use only.
Never to do:
•
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
•

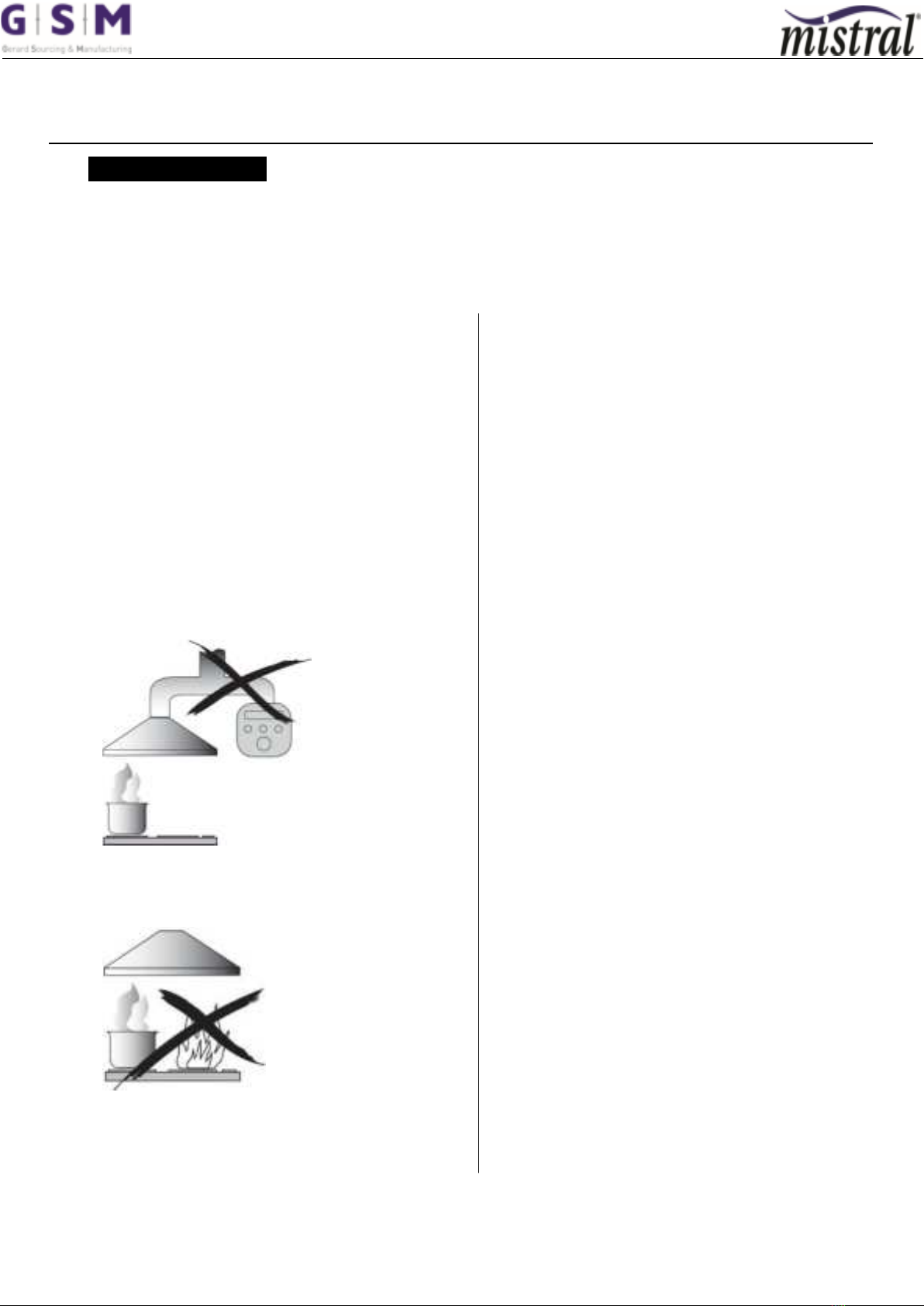

Never carry out flamable cooking under
the appliance
•
The exhaust from the range hood must not be
discharged into any heating flue, which may
carry combustion products from other sources.
•
Do not leave lit gas burners exposed due to
the risk of fire.
•
This range hood is not recommended
for barbecues.
Always to do:
•
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
•
Children should be supervised to ensure that
they do not play with the appliance;
–do not flambé under the range hood.;
–CAUTION: Accessible parts may become hot
when used with cooking appliances
•
Ensure the range hood is switched off
before carrying out maintenance, to
avoid any possibility of electric shock.
•
Grease filters must be removed every
four weeks (maximum) for cleaning to
reduce the risk of fire.
•
There must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or
other fuels.
•
Always cover lit gas burners with pots or
pans when range hood is in use.
•
Always switch off gas burners before
you remove pots or pans.
•
If the supply cord is damaged, the cord
must be replaced by the manufacturer, its
service agent or similarly qualified persons
in order to avoid a hazard
•
Plug must be accessible after installation.
2
Safety Instruction
Never to do:
•
This range hood cannot be installed for outdoor use.
•
It is prohibited to fit the range hood over a solid
fuel stove
•
This appliance must not be connected to a
chimney or vent flue which is in use.
•
This appliance is not to be vented into the
roof cavity, must exit into open air.
•
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the
purpose.
•
This appliance should not be connected to
ducting which ventilates rooms with fire
places.
Always to do:
•
Attention should be given to ensure that
any applicable regulations concerning
discharge of exhaust air are fulfilled.
•
This appliance should be installed and
maintained by a suitably qualified
and competent person in
accordance with the relevant safety
regulations.
•
Before connecting the appliance to the
mains supply, ensure that the voltage and
frequency details on the rating plate are
consistent with the source of supply.
This product must not be disposed
together with domestic waste. This product
has to be disposed at an authorised place
for recycling of electrical and electronic
appliances.
By collecting and recycling waste, you help save
natural resources, and make sure the product is
disposed in an environmental friendly and healthy
way.
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust
www.belliniappliances.com.au Model: BPI1200 Fineline Aus Portable Induction Cooker
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust
www.belliniappliances.com.au Model: BPI1200 Fineline Aus Portable Induction Cooker
3
Product Description
Accessories bag
Description Picture QTY
Installation & User Manual 1
Metal plate 1
L bracket 2
Outlet( diameter 120mm) 1
Dry wall anchors plugs 4
Screw (M4x10mm) 2
Screw(ST4x30mm) 4
Screw (ST3x12mm)* 2
Washer* 6
Screw (M4x35mm)* 6
*Used in installation method B
Component list:
1. L bracket(used installation A method)
2. Outlet(diameter 120mm)
3. Main body
4. Metal plate(used installation B method)
5. Grease mesh filters
Technical data:
Power supply: 220 – 240v, 50Hz
Motor: 1x100W
Lights: 1x2W LED light Length
of power cord: 1.70 M Air
outlet diameter: 120mm
4

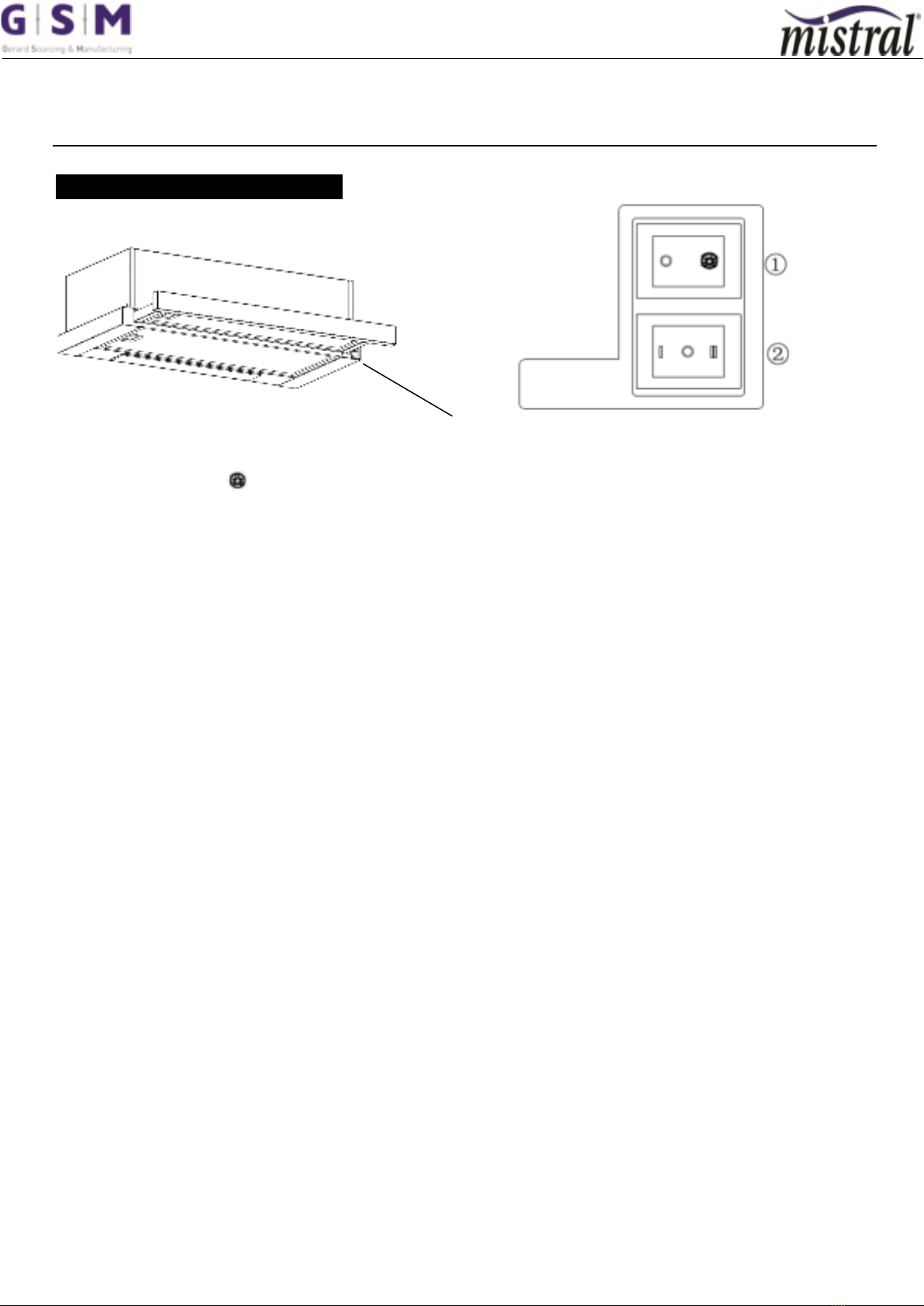

Operation Mode

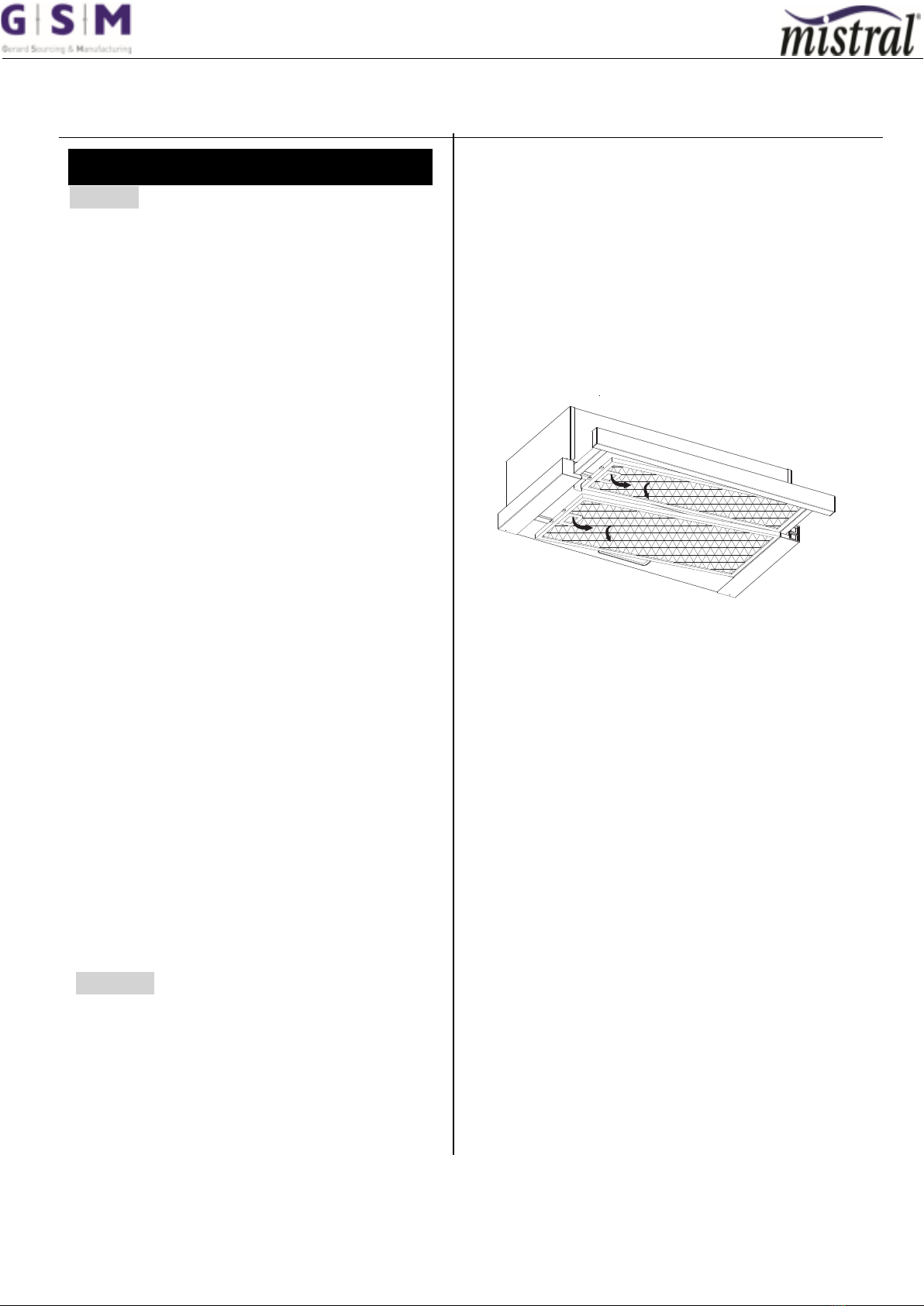

Your range hood can only be operated in ducting mode (Air Extraction).
Air Extraction
For air extraction mode, a ducting kit is required, the
air is drawn in and cleaned by the grease filters and
directed outside.
Ducting must be vented to outside atmosphere.
5
Installation
Installation:
Warning:
Check that the installation complies with the standards of local building, gas and electrical
authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the
voltage on the appliance rating plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from
the range hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction

Keep exhaust duct short and straight

Do not reduce the size or restrict exhaust duct

When using flexible duct always install the duct pulled taut to minimize pressure loss

Failure to observe these basic instructions will reduce the performance and increase noise
levels of the range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
We provide two options to install your range hood, against wall (method A) or into cabinet (method
B), choose what kind of method you want and then follow up corresponding instruction.
6

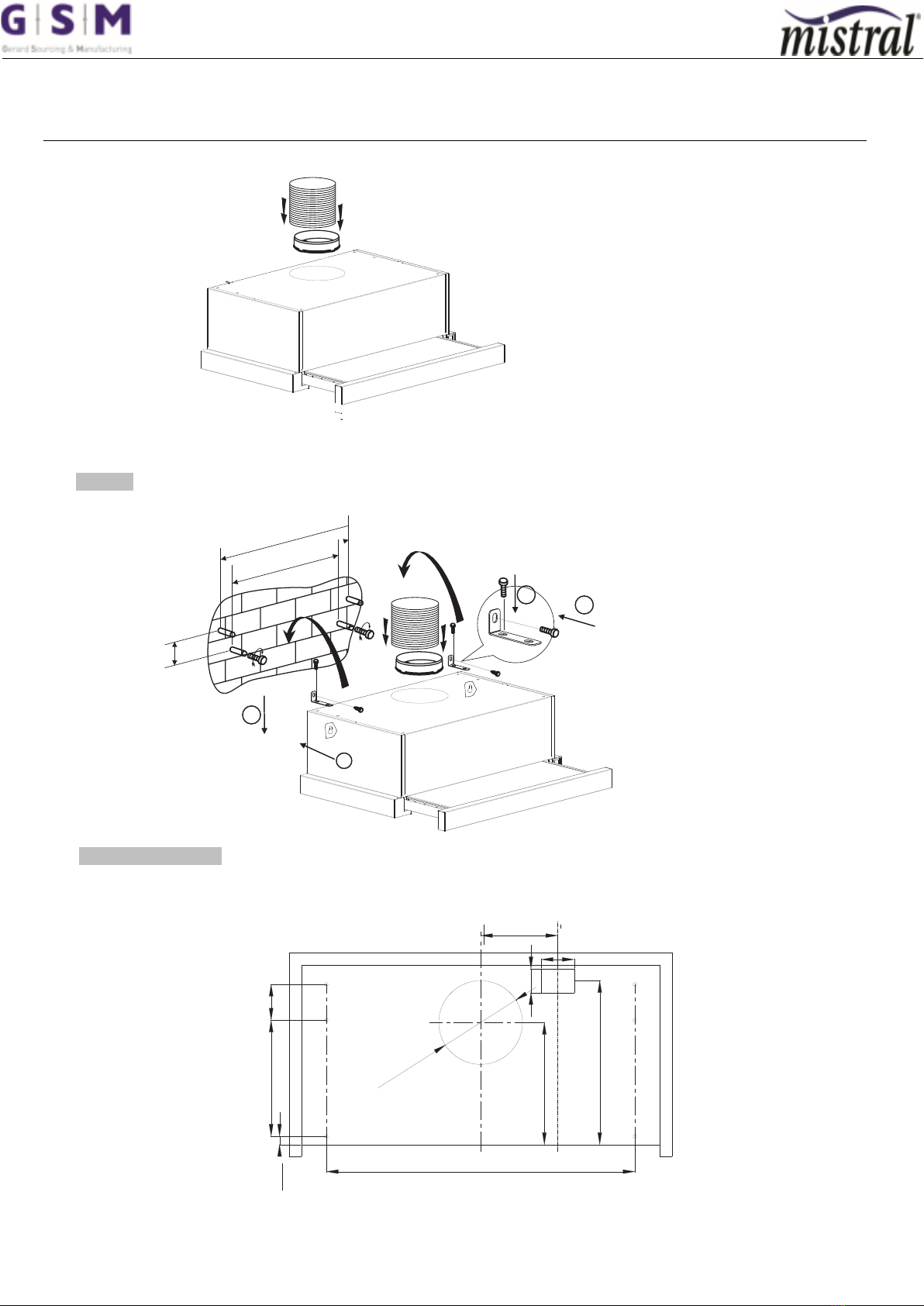

A: Install against wall

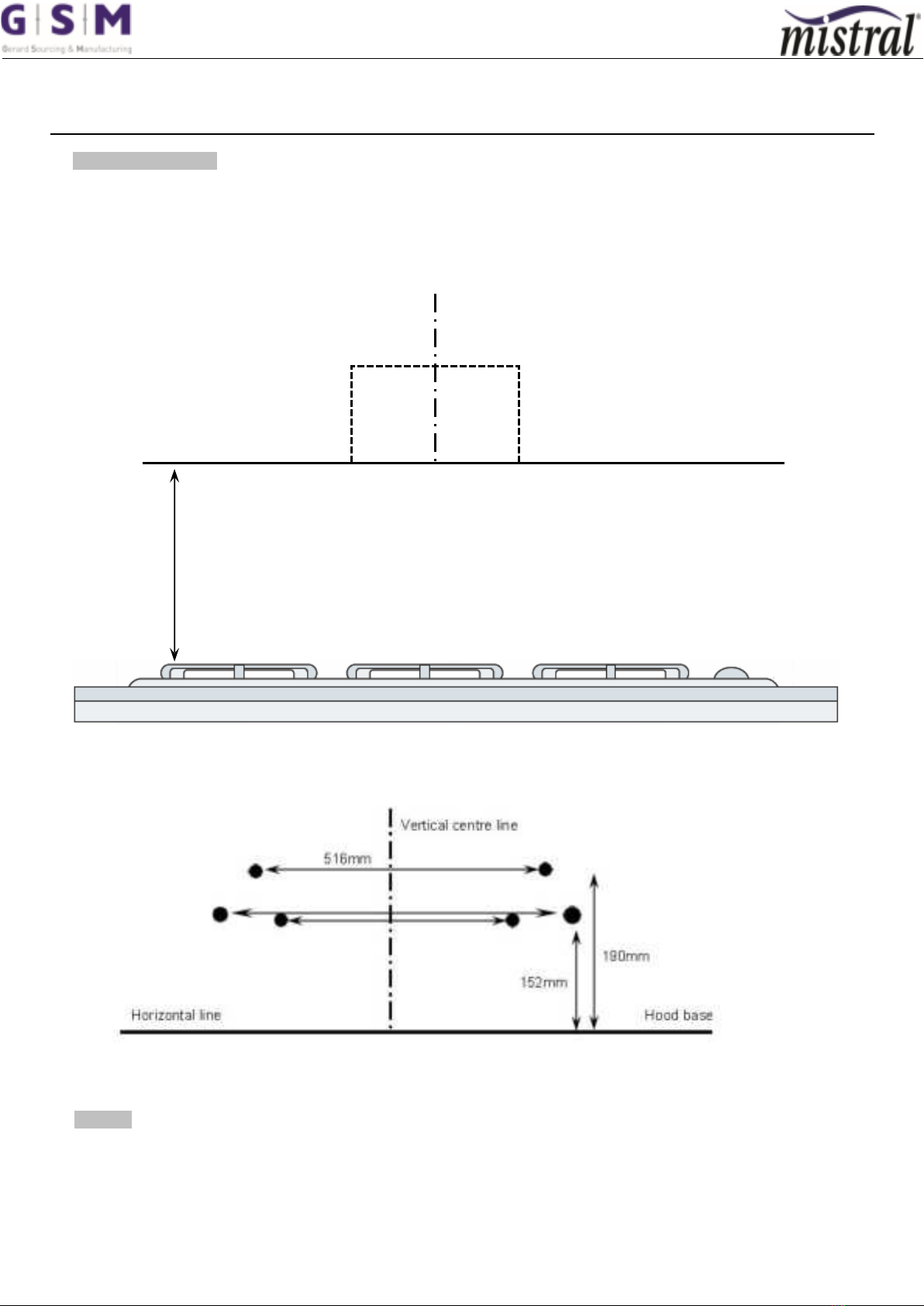

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a
horizontal line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum
of 600mm & 650mm to a gas cook top and a maximum height of 750mm.
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
2. Drill 4 holes of 8mm diameter on the wall according to below drawing.
3. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the two lower holes(with
distance to horizontal line 496mm) and fasten, they will be used to hang on the range hood.
Warning: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards
Vertical centre line
Where the range hood will be
Horizontal line Hood base
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
Top of hob
7
Fit the outlet and flexible exhaust pipe on top of range hood body.
4. Hang on the range hood, fasten 2pcs Screw(ST4x30mm) and L bracket onto two higher holes(with
distance to horizontal line 516mm), and then fasten 2pcs Screw (M4x10mm) and L bracket onto body.
Warning: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards

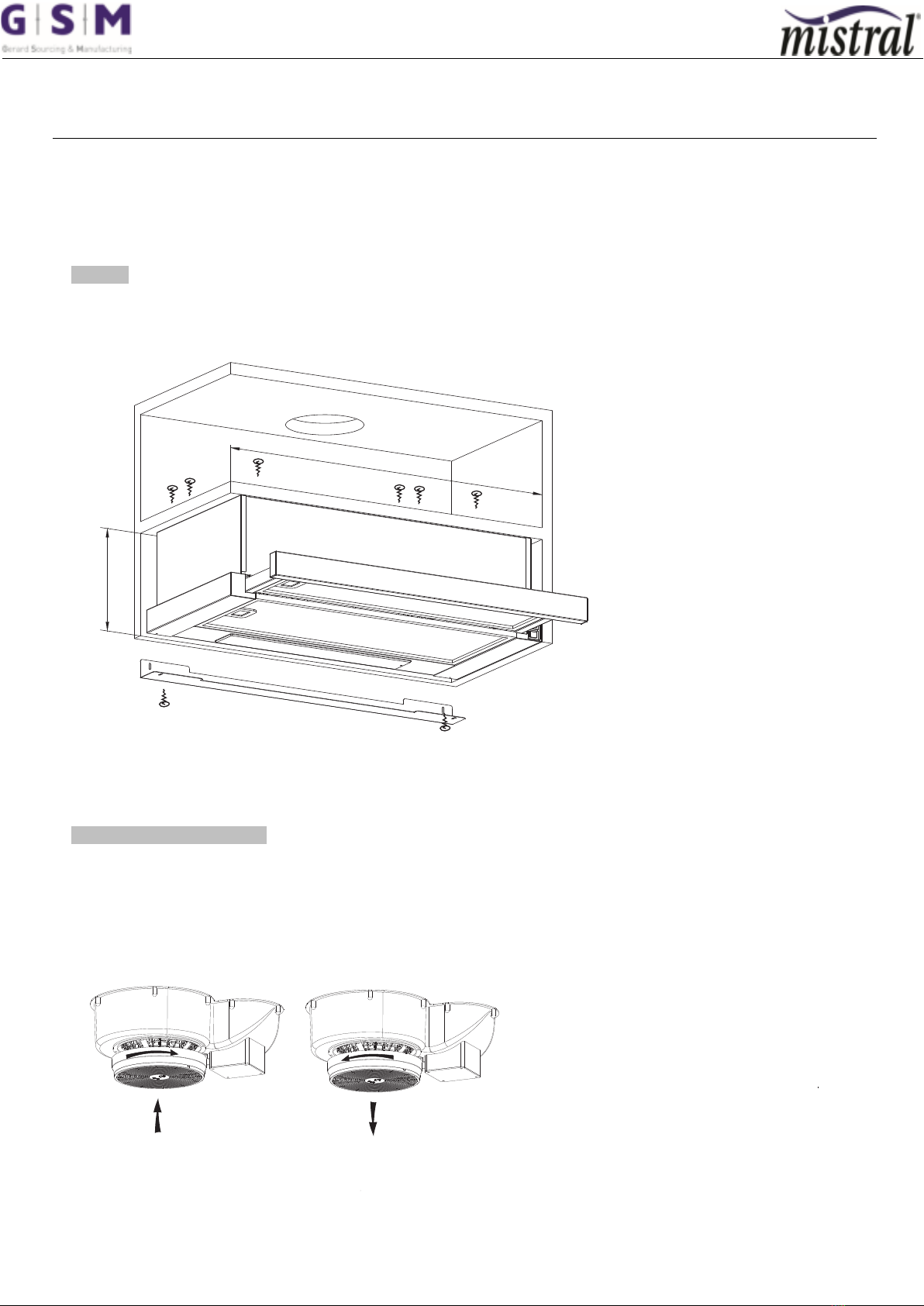

B: Install into cabinet
1. According to below drawing to determine where want to place the range hood, and drill 6
holes with 4mm diameter at the hanging board of your cabinet.
496516
38
1
243
12955
40274
φ140
6019414204
516
