GTD FOS Hydor Profile User manual

FOS Hydor Profile
User’s Manual

FOS TECHNOLOGIES all rights reserved. Information, specifications, diagrams, images, and instructions herein
are subject to change without notice. FOS TECHNOLOGIES logo and identifying product names and numbers
herein are trademarks of FOS TECHNOLOGIES. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product
names used in this document may be trademarks or registered trademarks of their respective companies and are
hereby acknowledged. All non-FOS TECHNOLOGIES brands and product names are trademarks or registered
trademarks of their respective companies.
FOS TECHNOLOGIES and all affiliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss
associated with the use or reliance of any information contained within this document, and/or as a result of the
improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

Table of contents
1. Safety instructions ..........................................................................................................................................1
2. Product introductions ....................................................................................................................................3
2.1 Dimensions .................................................................................................................................................3
2.2 Fixture overview .........................................................................................................................................4
2.3 Accessories .................................................................................................................................................4
3. Packing and shipping .....................................................................................................................................5
3.1 Protection lock ............................................................................................................................................5
3.2 Unpacking ..................................................................................................................................................5
3.3 Packing after use .........................................................................................................................................5
4. Installation ......................................................................................................................................................6
4.1 Clamps installation.....................................................................................................................................6
4.2 Device installation ......................................................................................................................................6
5. Power / Control connection ...........................................................................................................................7
5.1 Power connection........................................................................................................................................7
5.2 Control connection......................................................................................................................................7
5.3 Testing ........................................................................................................................................................7
6. Control panel ..................................................................................................................................................8
6.1 Panel instruction.........................................................................................................................................8
7. Technical specification ...................................................................................................................................9

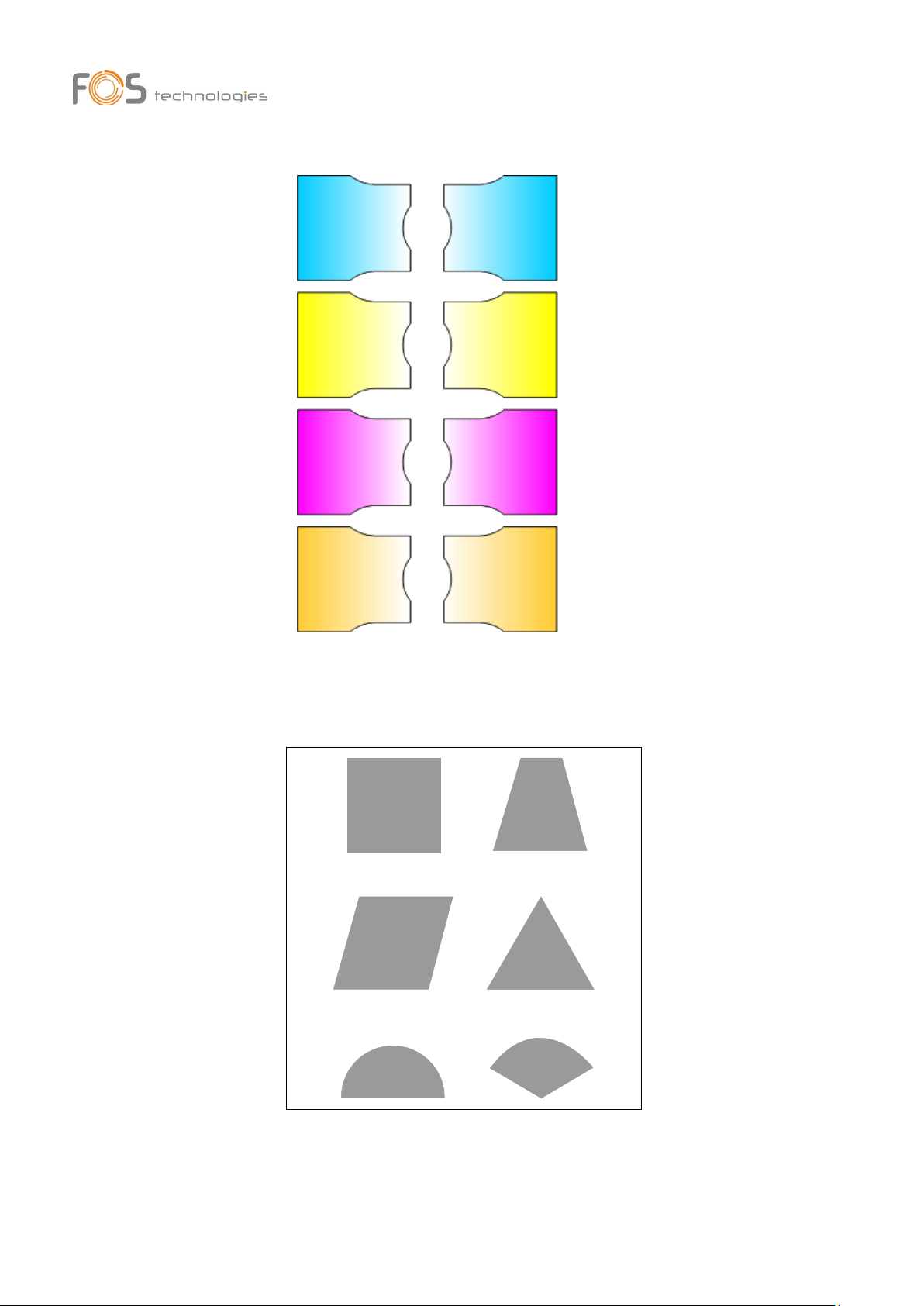

8. Gobos and colors...........................................................................................................................................12
8.1 Gobo specification....................................................................................................................................12
8.2 Gobos........................................................................................................................................................12
8.3 Colors........................................................................................................................................................13
9. Menu structure .............................................................................................................................................14
10. DMX protocol .............................................................................................................................................16
11. System wiring diagram ..............................................................................................................................21
12. Maintenance and Troubleshooting ...........................................................................................................23
12.1 Cleaning and maintenance ......................................................................................................................23
12.2 Troubleshooting......................................................................................................................................24
13. Spare parts list ............................................................................................................................................25

1
1. Safety instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to
the safety instructions. Please check www.FOS Technologies-lighting.com for the latest revision/update of the user
manual.
The manufacture of this fixture, are not responsible for damages, resulting from misuse of this
fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock
WARNING!
Wear protective eyewear. Never look directly into the light source.
WARNING!
Burn hazard. Hot surface. Do not touch.
Only to direct mounting on non-combustible surfaces.
Replace all cracked glass shields.
m Minimum distance to lighted objects.
ta Maximum ambient temperature.
tc Maximum temp of the external surface.

2
General guidelines
 This product has a protection rating of IP66.
 Never open this fixture while in use.
 The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments. Avoid
contact with chemical liquid.
 Minimum distance to lighted objects must be 16.4feet (5m).
 Maximum temp of the external surface 194˚F (90˚C).
 Maximum ambient temperature 113˚F (45˚C).
 Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).
 Lamp should be changed if damaged or distorted in shape due to extreme heat.
 Cover, prism or OLED Menu Function Display with visible damages such as cracks or scratches must be
replaced to ensure performance of the fixture.
 Disconnect the fixture from power before changing any parts or accessories.
 Basic insulation should be maintained between the controllable device and the product power supply.
 Make sure that the installation area can hold a minimum point load of 10 times the weight of allinstalled
 fixtures, clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged.
Certified safety cables must always be used when installing the fixture.
 The fixture is only intended for installation, operation and maintenance by qualified professional.
Instructions stated in the manual must be complied.
 The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the
fans or ventilation openings are unblocked.
 Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified
local distributors or the manufacturer to ensure operational safety.
 Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than FOS
TECHNOLOGIES manufactured parts.
 For questions regarding safety operation, please contact our technical personnel or call the service hotline
[phone].

3

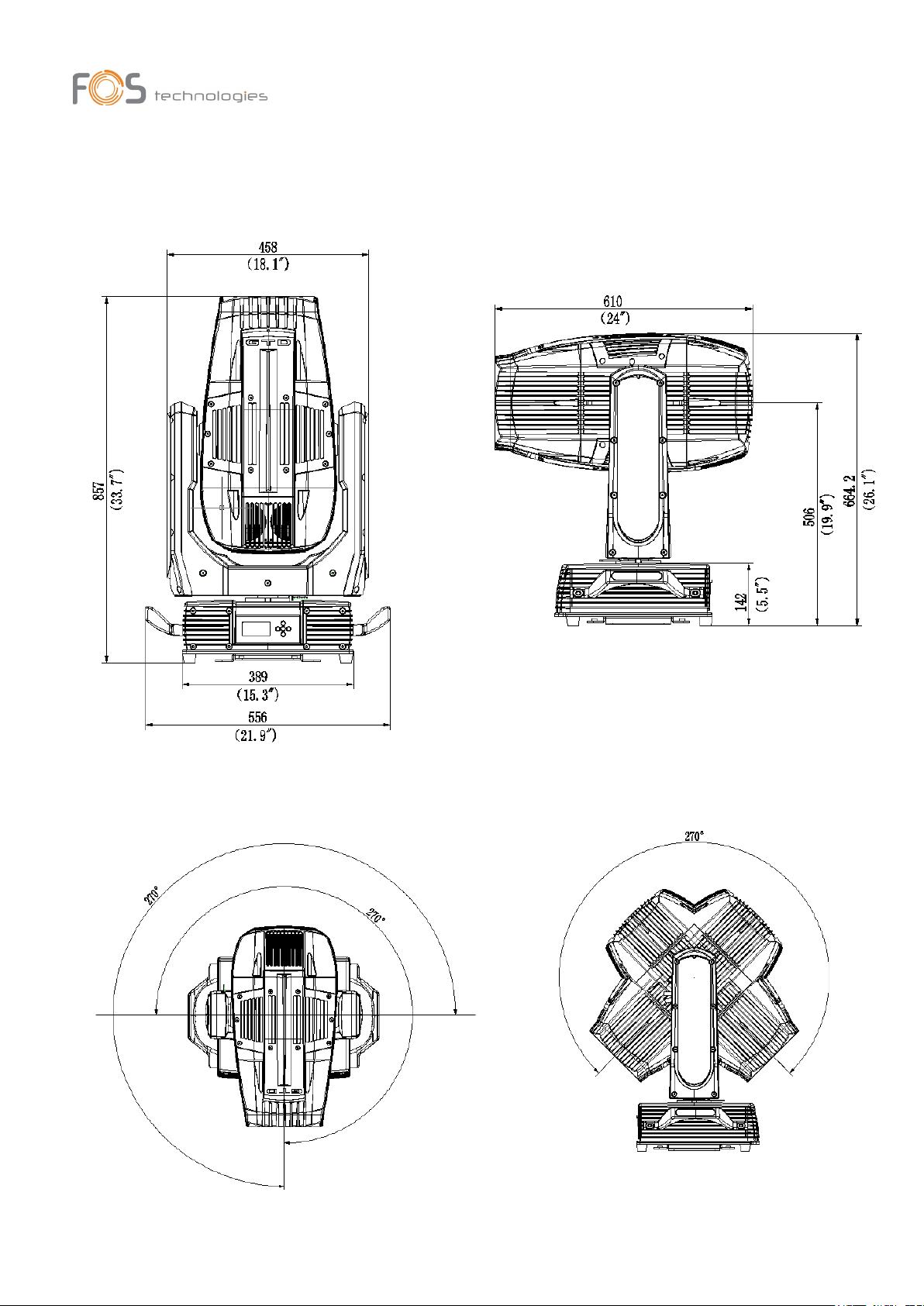

2.1 Dimension
2. Production instructions

4
2.2 Fixture overview
2.3 Accessories
Item Qty Unit Remark
User Manual 1 Pc --
Clamps 2 Set 02A+21A 42-52mm Load weight 200KG
Safety cable 2 Pc Φ5*60cm 7*19 pc with hook Material：Steel
3-pins signal line 1 Set --
Power cord 1 Set 1.5m 2.5mm2

5

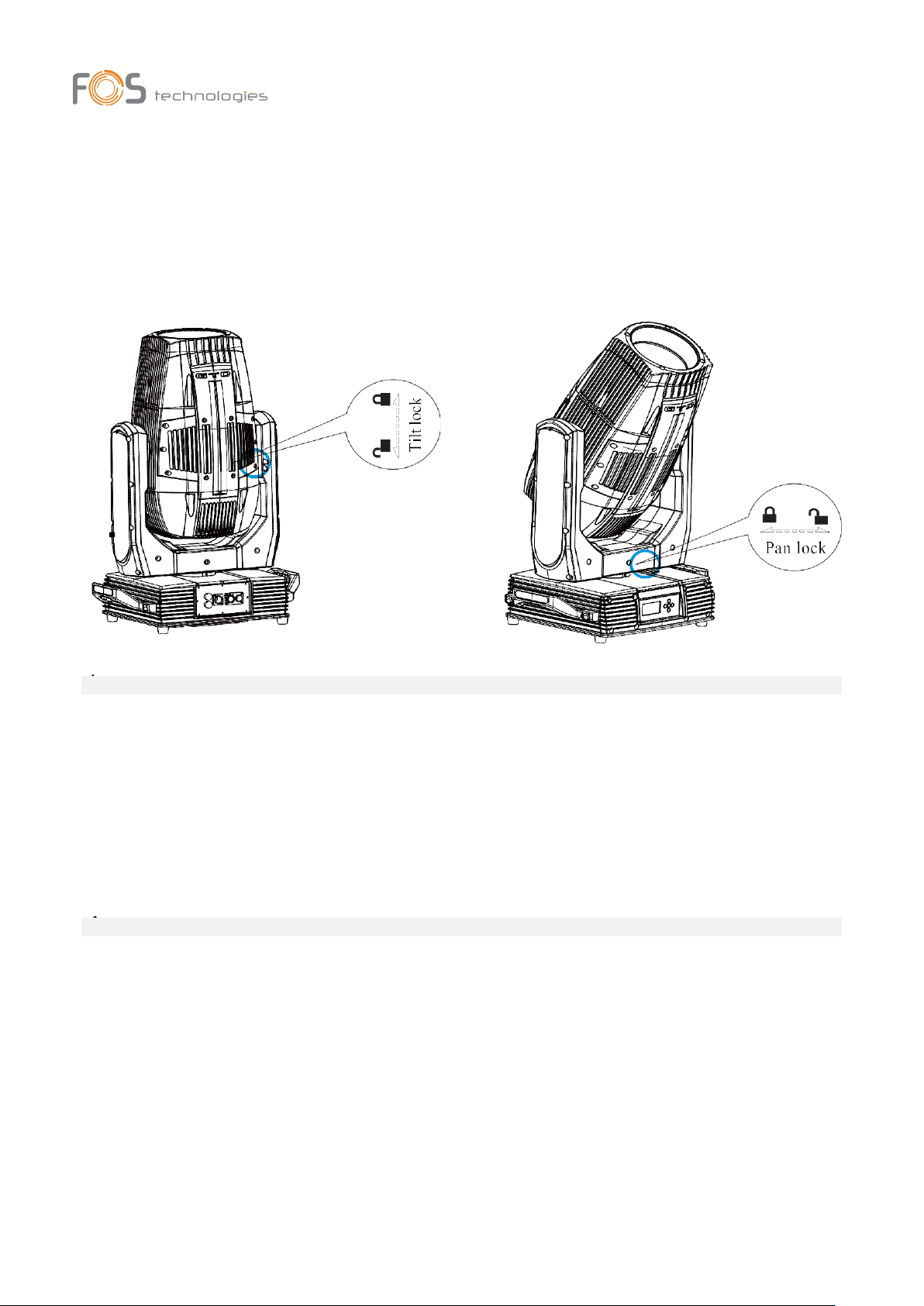

3.1 Protection lock
3. Packing and shipping
Pan and tilt locks are equipped to ensure safe transportation.
PAN: 4 lock positions are located evenly on the Pan.
TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.
3.2 Unpacking
Notes
All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture
is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.
Photographic evidence of the damage must be provided.
Flight-Case：Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture
firmly and take it out carefully.
Cardboard box：Open the box and take out the whole set of packaging foam which contains both the fixture and
its accessories. Remove the foam from the top, put away the accessories, and then take out the fixture wrapped in
the plastic bag.
Notes
Check if the pan and tilt are unlocked before connecting the fixture to power.
3.3 Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the
fixture for at least 15 minutes before packing.
2. Lock pan and tilt.
3. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight
case along with all the accessories. Close the cover. Only 3 layers are allowed when piling up the flight cases.
Do not upside down.
4. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories.

6
Place the other set of packaging foam on top then carefully put it inside the cardboard box.

7
4.1 Clamps installation
4. Installation
The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting
position on the base of the fixture.
Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise
to lock. Always remember to use the safety cable which goes through the mounting hole on the base. Do not attach
the safety cable on the handle.
4.2 Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the
chassis. Fasten the clamp tightly by a 1/4 turn clockwise. Fix another clamp in the same way.
3. Check if pan and tilt are unlocked before connecting the unit to AC power.

8
5. Power/ Control connection
5.1 Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
5.2 Control connection
The fixture has 3-pin XLR connectors for DMX data input and output as shown below. Connection between the
console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum
connecting distance of signal cable is 150 meters. Additional DMX512 signal-amplifier is recommended for longer
distance
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to
the second fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single DMX
universe. On the last fixture‘s output connect a DMX terminator. (The terminator is a 3-pin XLR connector with a
1/4W and 120Ω resistor between the pin 2 and pin 3) as shown below:
5.3 Testing
Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before
putting into operation.
 The voltage and frequency of the power source must be in compliance with the ones marked on the
fixture. It
is strongly recommended that each fixture are to be connected to the power source separately so that they
can
be switched on / off individually.
1：Ground
2：—
3：+

9

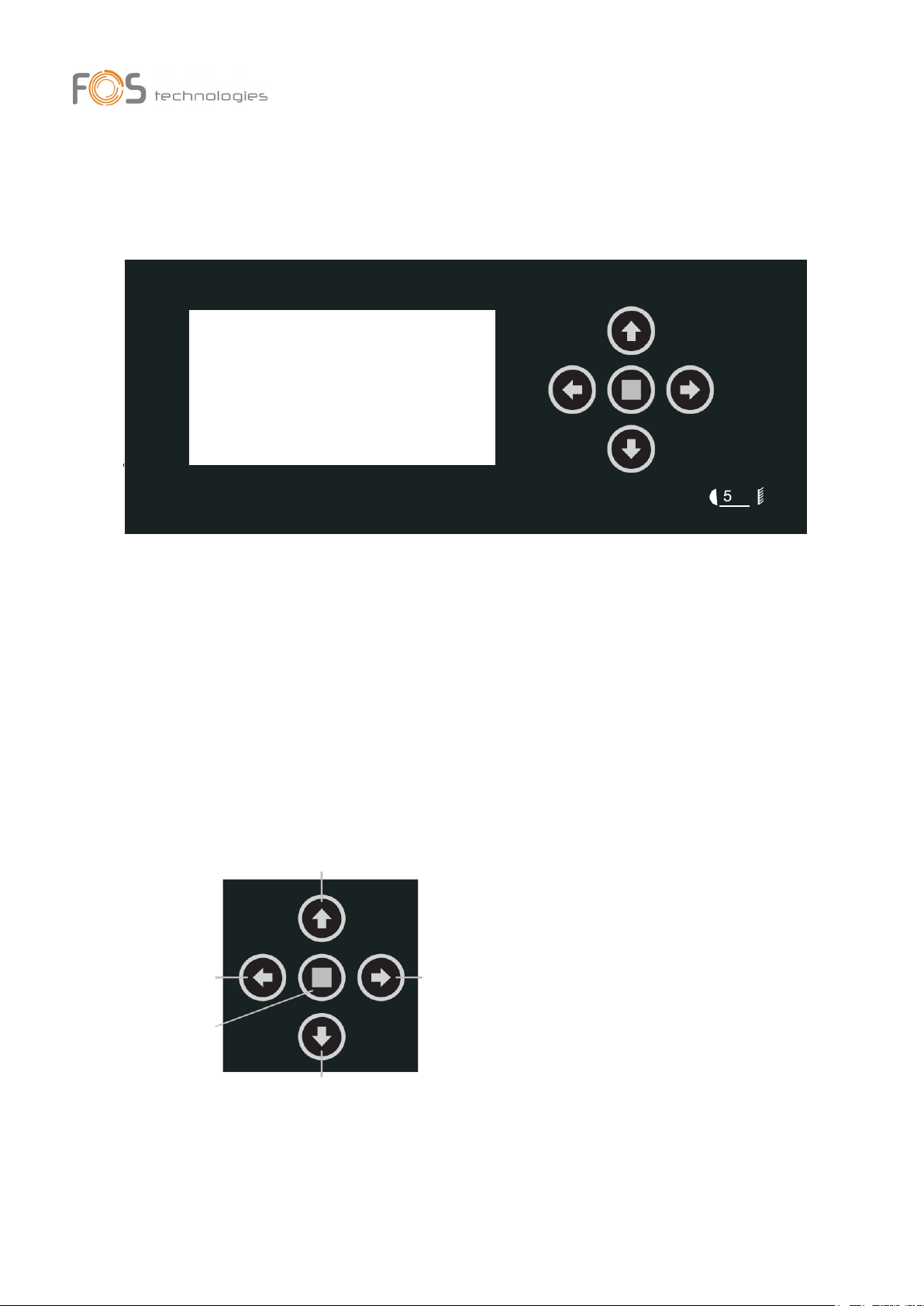

6.1 Panel instruction
6. Control panel
The control panel features touch-sensitive buttons and OLED digital display for quick and easy setup of
address code and functions menu.
Press the left key to enter the menu, press again to exit the menu, press the up and down keys to select the
menu setting item, and press the right key to confirm the setting item. Press the up and down keys to adjust the
value of the setting item, then press the right key to confirm, and press the left key to exit the menu setting
item successively until exiting the menu.
Press up and down to set the address, left to exit, right to confirm.
Middle key (reserved).
Key Panel Indicator Diagram：
Upper
Left Right
Middle
Lower
FOS
m

10
Optical
7. Technical specification
Light source: LED 730W
Expected average lifetime: 20000 h
Color temperature correction: 7000K
Total luminous flux: 35000Lm
Color rendering index: ≥90Ra
Zoom: 5° -45°
Spot uniformity：≥80%
Focus: multi-point focus, focus from5 meters to infinity tracking s
Prism: 1-facet prism，CW/CCW rotation, variable speed
Frost: 1-independent frost effect
Gobo
Rotating gobo wheel: 6 interchangeable gobos, CW/CCW rotation, variable speed
Fixed gobo wheel: 7 gobos + open，CW/CCW rotation, variable speed
Gobo outside diameter: 27mm
Max. Image diameter: 22mm
Max. Thickness: 3.5mm
Gobo material: Glass
Color
CTO: 7000K-2700K
C、M、Y: linear infinity color mixing
Color wheel: 6 colors + open, split color, CW/C CW rotation, “Rainbow effect” in both directions
Electrical
Power input, nominal: AC 110-240V 50/60Hz
Max. Power consumption: 1111W, max current: 11.3A, PF: ≧0.99
Power supply unit: Wide Voltage switching power supply
Main fuse: 250V/15A
Power input: NEUTRIK socket (input/output)
DMX data input/output: Chassis 3-pin XLR waterproof socket
Control and programming
Control channels (DMX): 37/33/52
Protocol: DMX-512 RDM
Display: OLED
Physical / Installation

11
Weight: 55Kg (121.25lbs.)

12
IP rating: IP66
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/270˚
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, mechanical dimming
Thermal
Operating range: 5˚F to 113˚F (-15˚C to +45˚C)
Startup range: -13˚F to 113˚F (-25˚C to +45˚C)
Storage range: -40˚F to 140˚F (-40˚C to +60˚C)
Cooling: Active fan
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

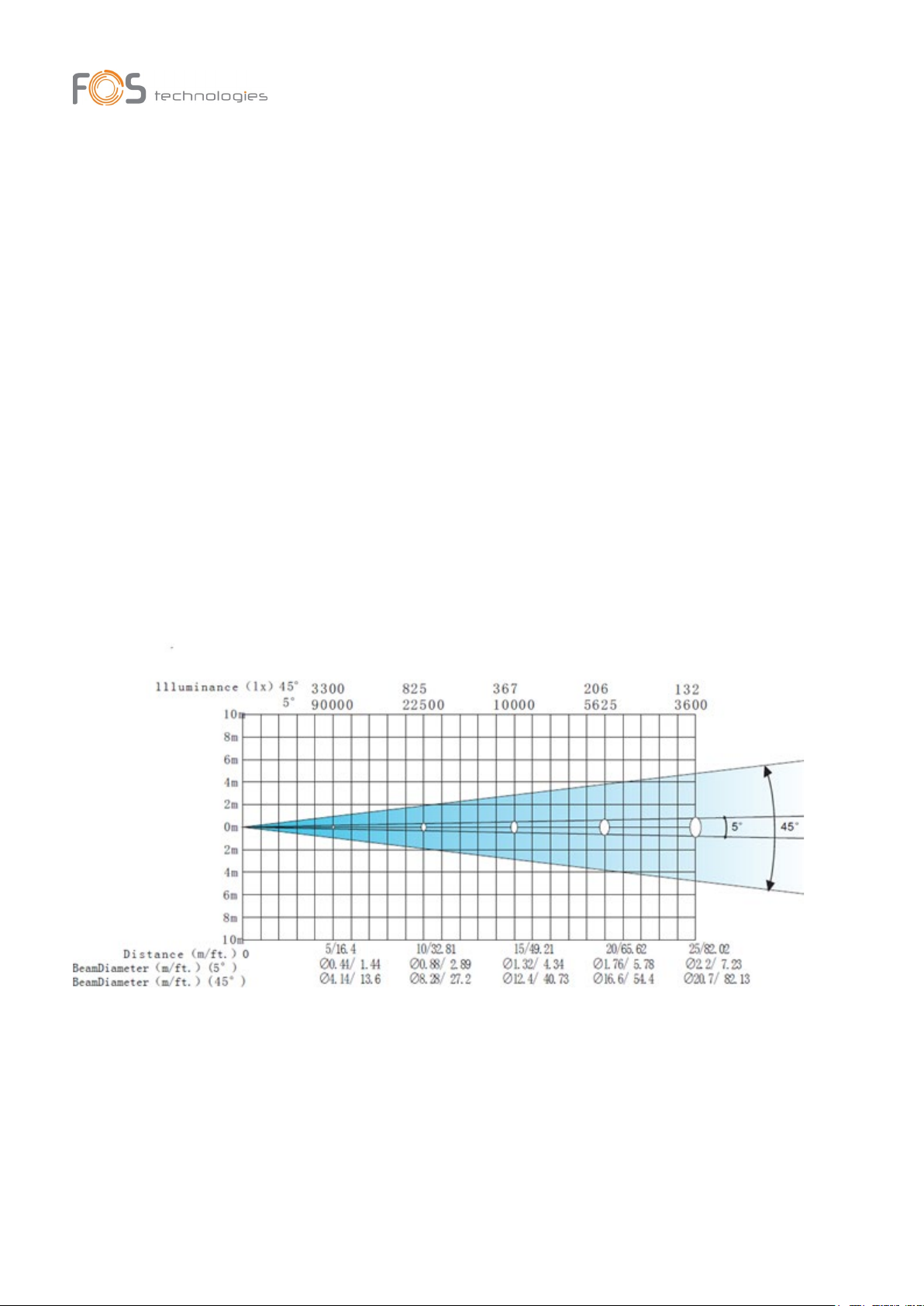

Photometric

13
Other features
Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both
reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency
variations in different countries.
Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically
with the photoelectric tracking induction technology.
Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the fixture is
disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time
can be customized.
Power setting: built-in continuous rechargeable battery, allowing setting functional data via OLED interface
without power connection.
Communication: DMX wired transmission, RDM two way control technology, upgrade software easily with
DMX cable.
Dissipate heat: With wind direction drainage and temperature intelligent momitoring technology, it can
automatically adjust the heat dissipation system and effectively control the bulb temperature according to the
start, use, close and other states of the lamp, and the temperature of different positions of the lamp.

14
1
3
7
5
8.1 Gobo specification
8. Gobos and colors
All patterns are made onto the metal gobos, and can be customized according to user’s requirement.
The customized size is as below:
Gobo material Outer dimension Effective dimension Thickness
Glass gobo Φ27mm Φ22mm 3.5mm
Gobo material: Glass
8.2 Gobos
One rotating gobo wheel: 6 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
One fixed gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed
2 2
1
3
7 8 4
4
6
5
6
Rotating gobo wheel Fixed gobo wheel

15
Effect wheel

16
6
4
3
1
8.3 Colors
One color wheel: 6 colors + open, split color, CW/CCW rotation, “Rainbow effect” in both directions
5
1: Epiphany
2: Red
3: Orange
4: Green
7 5: Yellow
6: Blue
7:Open
2

17
CMY/CTO
Cutting effect
C
Y
M
CTO
