Gude GKM 800 User manual

GKM 800
#16793
© Copyright Güde GmbH & Co. KG - Birkichstrasse 6 - 74549 Wolpertshausen - Germany
English

2
1 1
2
3
5
5
2
4
6
6
3
7 7
5
5
8
8
3

GB
Thank you for purchasing the Güde sweeper and enjoying confidence in our products.
Please read carefully the Operating Instructions before putting the appliance into operation!!!
A.V. 2
Any reprints, even partial, are subject to approval. Technical changes reserved.
GB
Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions?
You will be helped quickly and without needless bureaucracy at our web pages www.guede.com in the Services part.
Please help us be able to assist you. To be able to identify your appliance when claimed, we need to know its serial No.,
order No. and the year of production. All these details can be found on the type label. Enter the details below for future
reference:
Serial No Order No. Year of production:
Tel.: [phone] / 700-360 Fax: [phone] E-Mail: [email protected]m

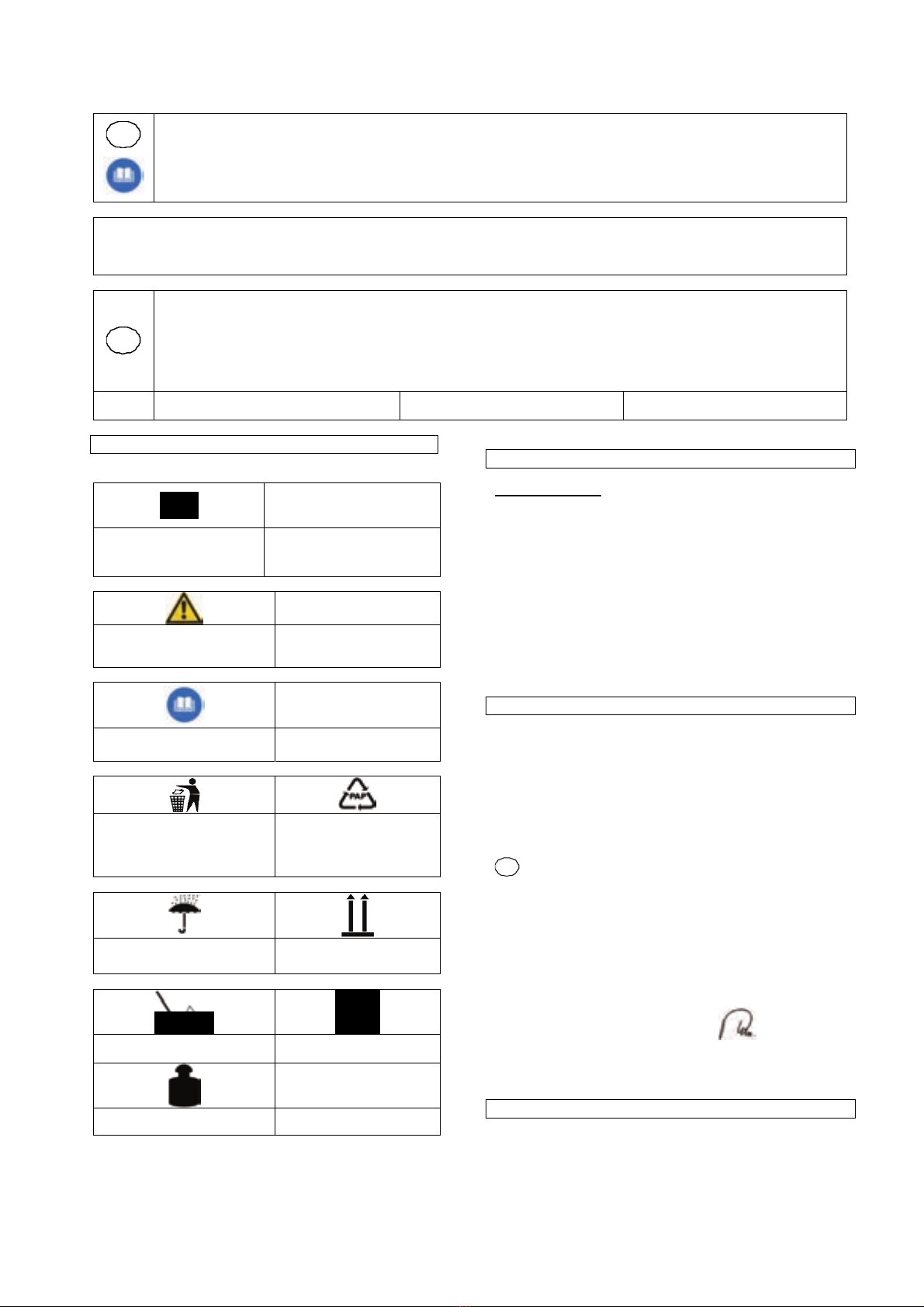

Marking:
Product safety:
Product corresponds to
appropriate standards of the
EU
Warning:
Warning/attention
Commands:
Please read the Operating
Instructions before use
Environment protection:
Dispose waste professionally
so as not to harm the
environment
Packing cardboard material
may be delivered to
collecting centres for
recycling.
Package:
Protect against humidity This side up
Technical data:
Container content Max. working width with
side brushes
Weight
Appliance
GKM 800 sweeper
High-quality plastic cover, double-sided drive with rubber belt,
rotary wheel, folding handle for travel. Two side brushes carry
the swept material forward between the main running sweeping
cylinders. They catch dust, dirt, etc. and put them into the dirt
container. Pressure of side brushes and main sweeping
cylinder can be universally adjusted; big driving wheels with
rubber tires for optimum grip.
Equipment (standard):
Two main sweeping cylinders, two side brushes, dirt container,
rotary wheel, central height adjustment, 3 possible adjustments
of the sliding handle height.
Appliance description and supply extent (pic. 1)
1. Sliding handle
2. Mounting nut for sliding handle
3. Dirt collecting container
4. Adjusting screw for central height adjustment
5. Feeder brushes
6. Sliding handle height adjustment
7. Belt drive
8. Sweeping brushes
GB EU Declaration of Conformity
We, Güde GmbH & Co. KG Birkichstraße 6, 74549
Wolpertshausen, Germany, hereby declare the conception
and construction of the below-mentioned appliances
correspond - at the type of construction being launched - to
appropriate basic safety and hygienic requirements of EC
Directives.
In case of any change to the appliance not discussed with
us the Declaration expires.
Marking of appliances: GKM 800 Order No. 16793
Date/producer signature: Jul 21, 2009
Signed by: Mr Arnold, Managing Director
Technical documentation: J. Bürkle FBL; QS
Guarantee
The guarantee exclusively relates to faults caused by material
defects or manufacturing defect.
Original proof of purchase indicating the sale date needs to be
provided when claiming any fault in the guarantee period.
5

The guarantee does not include any unauthorised use such
as appliance overload, violent use, damage by intervention
by any foreign person or item. Failure to follow the
operating and assembly instructions and ordinary wear and
tear are also not included in the guarantee.
Technical data
Drive: Manual
Max. working width with
side brushes: 800 mm
Working speed: 4 km/h
Sweeping capacity: 3200 m²/h
Container content: 40 l
Weight: 11 kg
General safety instructions
To prevent any injury and damage, it is necessary to follow
these general safety instructions.
•Please read carefully the Operating Instructions and
unconditionally follow all instructions included in them.
Familiarise with the appliance, its correct handling and
safety regulations using these Operating Instructions.
•Keep the Instructions for future reference.
•If you give the appliance to other persons, then
provide them with the Operating Instructions, too.
We are not liable for any accidents and damages caused as
a result of failure to follow these Operating Instructions.
Safety instructions for first putting the appliance into
operation
•Take suitable measures to prevent children from
accessing the appliance.
•Immediately replace any faulty components.
•Use original spare parts only.
•We are not liable for any damage caused as a result of
any unauthorised repair and unauthorised handling or
use contrary to the use as designated.
Sweeping of any gel, liquid, combustible,
explosive, hot and unhealthy substances prohibited.
Use as designated
Sweeping of flat and dry surfaces – e.g. entries, terraces,
courtyards, etc.
Disposal
The disposal instructions are based on icons on the
appliance or its package. The description of all meanings
can be found in the “Marking“ Chapter.
Transport package disposal
The package protects the appliance against any damage
during transport. Package materials are usually chosen
according to their environment friendliness and disposal
method and can therefore be recycled.
Putting the package into material circulation saves raw
materials and reduces waste disposal costs.
Parts of the package (e.g. foils, styropor) can be dangerous
to children. Risk of suffocation!
Keep parts of the package out of reach of children and
dispose them as quickly as possible.
Handling requirements
The operating staff must carefully read the Operating
Instructions before using the appliance.
Qualification
Apart from the detailed instruction by a professional no special
qualification is necessary for using the appliance.
.
Transport and storage
For any longer storage the appliance must be thoroughly
cleaned and stored so as unauthorised persons could not
access it.
- Empty the dirt collecting container
- Adjust the brushes to relieve them
- Store the appliance when it is dry
- To save spaces, the sliding handle can be folded.
Loosen the screws, pull the sliding handle out and
fold forward.
Assembly (pic. 1, 2)
When putting the appliance into working order, it is enough just
to fold up the sliding handle and tighten the screws included in
the supply.
Now adjust the sliding handle height. Loosen the screws (pic.
1/6), select the required fixture and fix the sliding handle in the
desired height.
Operation (pic. 3)
When the sweeper is moved, the feeder brushes (pic. 3/5) and
sweeping brushes (pic. 3/8) start rotating, helped by the belt
drive. Rotating feeder brushes (pic. 3/5) drive the dirt to the
centre. It is then collected by both sweeping brushes, running
opposite each other (pic. 3/8) and taken to the dirt collecting
container (pic. 3/3).
Adjustment of feeder and sweeping brushes
Depending on the type of use and wear, it is possible to
centrally adjust the height of feeder brushes and the back
sweeping brush. Turn the central screw for height adjustment
(pic. 1/5). The deeper you adjust the appliance, the closer to
the ground the feeder brushes are going to be and the more
difficult it is going to be to move the appliance forward.
Emptying the dirt collecting container
If you want to take out the dirt collecting container (pic. 1/3) to
empty it, take it by its handle and pull up.
If metal, glass or sharp objects have been swept, it is necessary
to use firm working gloves when emptying the dirt collecting
container.
Inspections and maintenance
Use a wet cloth for plastic parts cleaning. Do not use
any cleaning agents, solvents or sharp objects.
After every use
Remove the appliance off dust and dirt.
Empty the dirt collecting container.
Except the above, the appliance needs not be maintained any
further.
