Guide Gear 1A-EG008 User manual
READ & SAVE THESE INSTRUCTIONS
Electric Grinder Foot Pedal
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item # 1A-EG008
2
Congratulations on your Guide Gear™ purchase.
Take your game to the next level with field-tested
Guide Gear™ products for a confident,
competitive edge that
strikes the perfect balance between performance and value.
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This electric grinder foot pedal is designed for certain applications only.
The Sportsman’s Guide and Northern Tool and Equipment are not
responsible for issues arising from modification or improper use of this
product such as an application for which it was not designed. We
strongly recommend that this product not be modified and/or used for
any application other than that for which it was designed.
DO NOT RETURN TO THE STORE.
For help with assembly, service, or missing/defective parts,
Please call our toll-free number:
1-800-545-9633
Or email:
M-F 8:00 AM - 6:00 PM CST
Saturday 8:00 AM - 4:00 PM CST
.
3
Table of Contents
Intended Use ........................................................................................................................................ 4!
Technical Specifications .................................................................................................................... 4!
Important Safety Information ............................................................................................................. 4!
Grounding ............................................................................................................................................ 6!
Extension Cords .................................................................................................................................. 7!
Operating Instructions ........................................................................................................................ 8!
Replacement Parts .............................................................................................................................. 9!
Limited Warranty ............................................................................................................................... 10!
4
Intended Use

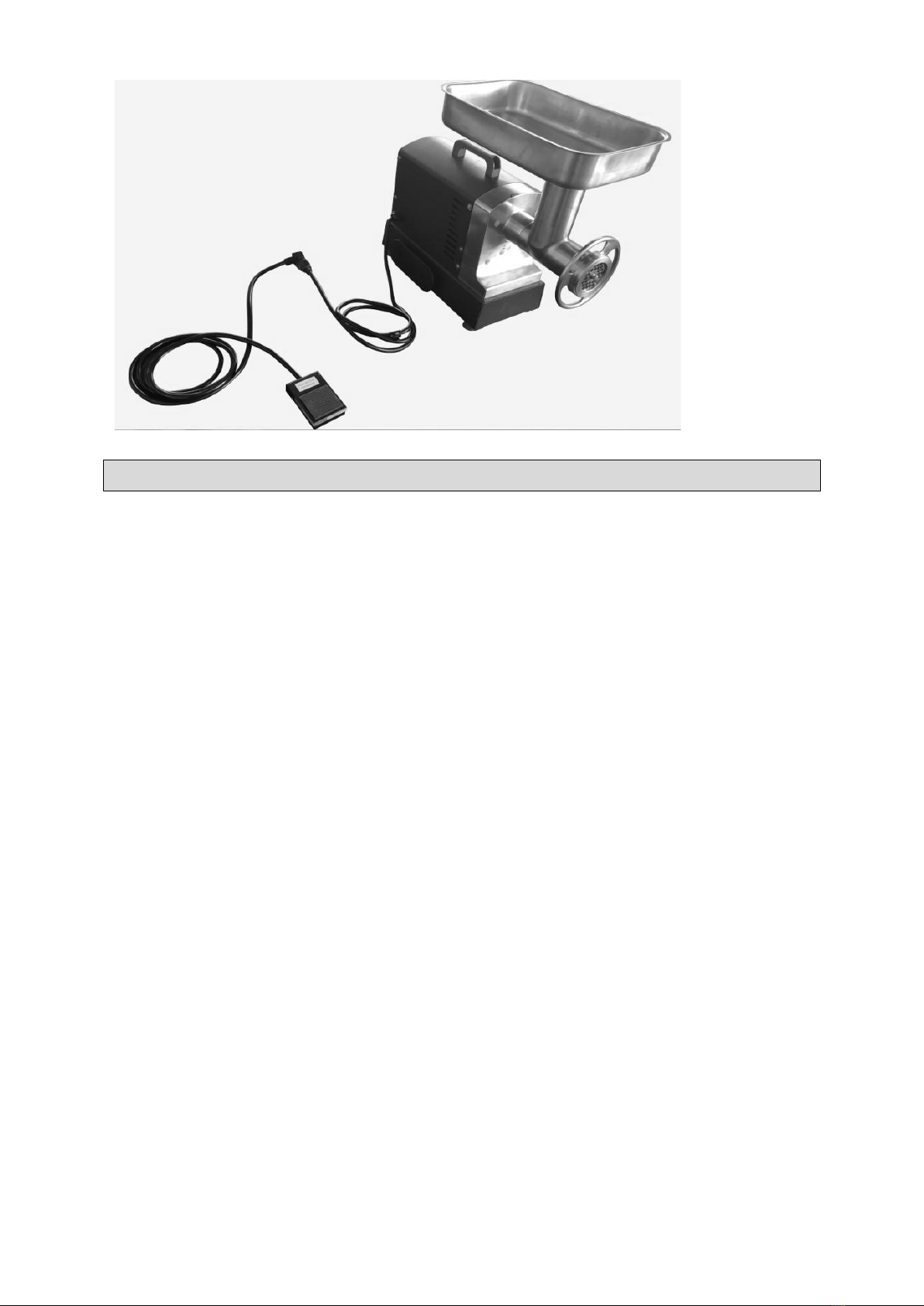

Put your pedal to the metal to propel your meat grinder to efficient new heights. A simple touch of this
Guide Gear® Grinder Foot Pedal is all you need to stop and start your Guide Gear® Grinder
hands-free. That frees you up for keeping the grinder filled to the brim to maximize your efficiency.
Compatible with all Guide Gear® series electric grinders (sold separately).
Technical Specifications
Property
Specification
Cord Length
8 feet
Amperage
15 Amps
Weight
1.72 pounds
Material
Plastic
Compatible Grinders
Guide Gear Electric Grinders #22, #32, & #42
Attachment Method
Simply plug your foot pedal into grinder
Important Safety Information
WARNING
• Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this electric grinder
foot pedal. Always be aware of the environment and ensure that the electric grinder foot pedal is
used in a safe and responsible manner.
• Do not allow persons to operate or assemble the electric grinder foot pedal until they have read
this manual and have developed a thorough understanding of how it works.
• Do not modify this electric grinder foot pedal in any way. Unauthorized modification may impair the
function and/or safety and could affect the life of the product. There are specific applications for
which the product was designed.
• Use the right grinder for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this electric grinder foot pedal was
designed. This electric grinder foot pedal will be safer and do a better job at the capacity for which
it was intended. DO NOT use this electric grinder foot pedal for a purpose for which it was not
intended.
• Industrial or commercial applications must follow OSHA requirements.
WARNING
• This product may contain chemicals known to the state of California to cause cancer, birth defects,
or other reproductive harm.
• Handling power cords on corded products may expose you to lead, a chemical known to the state
of California to cause cancer and birth defects or other reproductive harm. Wash your hands after
handling.
5
WARNING
WORK AREA SAFETY
• Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.
• Do not allow the product to come into contact with an electrical source. The electric grinder foot
pedal is not insulated and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the electric grinder foot
pedal. Do not allow children to handle the product.
• Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
WARNING
PERSONAL SAFETY
• Stay alert, watch what you are doing, and use common sense when operating the electric grinder
foot pedal. Do not use the electric grinder foot pedal while you are tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating the electric grinder foot
pedal may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts.
• Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. This applies to all
persons in the work area.
• Do not overreach. Keep proper footing and balance at all times.
• Do not use the electric grinder foot pedal when tired or under the influence of drugs, alcohol or
medication.
CAUTION
PRODUCT USE AND CARE
• Electric grinder foot pedals are safer and do a better job when used in the manner for which they
are designed. Plan your work, and use the correct product for the job.
• Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
• Do not use a product with a malfunctioning switch.
6
• Disconnect the power supply from the product and place the switch in the locked or off position
before removing blade, making any adjustments, changing accessories, cleaning or storing the
grinder. Such preventive safety measures reduce the risk of starting the electric grinder foot pedal
accidentally.
• Store the product when it is not in use. Store it unplugged in a dry, secure place out of the reach of
children. Inspect the electric grinder foot pedal for good working condition prior to storage and
before re-use.
• Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one grinder may create a risk of injury when used with
another grinder.
• Do not use electric foot pedal and grinder outdoors. This foot pedal is intended for household use
only.
• Do not use in wet areas. Do not put in water or other liquids. Do not operate with wet hands or
while standing on a wet floor. Do not use if it is wet.
Grounding
WARNING
• This electric foot pedal must be grounded while in use to protect the operator from electrical
shock. This unit is equipped with an electrical cord that has an equipment grounding conductor
and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly
installed and grounded in accordance with ALL local codes and ordinances.
• DO NOT MODIFY THE PROVIDED PLUG. If it will not fit the receptacle, have the proper
receptacle installed by a qualified electrician.
• CHECK with a qualified electrician or service person if you do not completely understand the
grounding instructions, or if you are not sure the grinder and foot pedal is properly grounded.
Grounded Slicers: Slicers with 3-Prong Plugs
Grinders and foot pedals marked with Grounding Required have a 3-wire cord and 3-prong
grounding plug. The plug must be connected to a properly grounded outlet. If the grinder and foot
pedal should electrically malfunction or break down, grounding provides a low resistance path to carry
electricity away from the user, reducing the risk of electric shock. (See Figure A.)
The grounding prong in the plug is connected through the green wire inside the cord to the grounding
system in the grinder and foot pedal. The green wire in the cord must be the only wire connected to
the grinder’s and foot pedal’s grounding system and must never be attached to an electrically live
terminal.
Your grinder and foot pedal must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet should look like those in
the following illustration.
7
Double Insulated Grinders and Foot Pedals: Grinders and Foot Pedals with
Two-Prong Plugs
Grinders and Foot Pedals marked Double Insulated do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with the applicable
standards of Underwriters Laboratories, Inc., the Canadian Standard Association, and the National
Electrical Code. (See Figure B.)
Double insulated grinders and foot pedals may be used in either of the 120 volt outlets shown in the
following illustration.
Extension Cords
WARNING
• IT IS RECOMMENDED THAT YOU DO NOT USE AN EXTENSION CORD WITH THIS
PRODUCT.
• IF YOU DO, USE A PROPER EXTENSION CORD. Make sure your extension cord is in good
condition. When using an extension cord, be sure to use one heavy enough to carry the current
your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of
power and cause overheating.
• Be sure your extension cord is properly wired and in good condition. Always replace a damaged
extension cord or have it repaired by a qualified person before using it. Protect your extension
cords from sharp objects, excessive heat and damp or wet areas.
• Grounded grinders and foot pedals require a 3-wire extension cord. Double Insulated grinders
and foot pedals can use either a 2- or 3-wire extension cord, again it is recommended that an
extension cord not be used with this product.
• As the distance from the supply outlet increases, you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in
loss of power and possible grinder and foot pedal damage.
8
• The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a
14-gauge cord can carry a higher current than a 16-gauge cord. Minimum extension cord wire
size is shown in the following table:
Minimum Wire Size Of Extension Cords
Nameplate AMPS
Cord Length
25'
50'
100'
150'
0-6
18 AWG
16 AWG
16 AWG
14 AWG
6-10
18 AWG
16 AWG
14 AWG
12 AWG
10-12
16 AWG
16 AWG
14 AWG
12 AWG
12-16
14 AWG
12 AWG
NOT RECOMMENDED
• When using more than one extension cord to make up the total length, make sure each cord
contains at least the minimum wire size required.
• If you are using one extension cord for more than one grinder and foot pedal, add the nameplate
amperes and use the sum to determine the required minimum cord size.
• Make sure your extension cord is properly wired and in good electrical condition. Always replace
a damaged extension cord or have it repaired by a qualified electrician before using it.
• Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
Operating Instructions
1. Plug your grinder into this 15 amp grinder foot pedal plug.
2. Plug the pedal into a 110V outlet.
3. Now you can start and stop your grinder with a tap of your foot. The grinder foot switch keeps
both hands free when stuffing casings or filling ground meat bags.
9
Replacement Parts
• For replacement parts and technical questions, please call Customer Service at 1-800-545-9633
or email at [email protected]om.
• Not all product components are available for replacement. The pictures provided are a convenient
reference to the location and position of parts in the assembly sequence.
• When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
• The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.
10
Limited Warranty
The Sportsman’s Guide and Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to
the original purchaser only ("You" or ''Your'') that the Guide Gear product purchased will be free from
material defects in both materials and workmanship, normal wear and tear excepted, for a period of
one year from date of purchase. The foregoing warranty is valid only if the installation and use of the
product is strictly in accordance with product instructions. There are no other warranties, express or
implied, including the warranty of merchantability or fitness for a particular purpose. If the product
does not comply with this limited warranty, Your sole and exclusive remedy is that We will, at our sole
option and within a commercially reasonable time, either replace the product or product component
without charge to You or refund the purchase price (less shipping). This limited warranty is not
transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-545-9633, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.
11
Distributed by:
The Sportsman’s Guide
And
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.sportsmansguide.com www.northerntool.com
Made in COUNTRY OF ORIGIN
Table of contents
