GUIDESSIMO DI 8610 User manual

DI 8610 - HI 8610
CHDI 8610
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice d utilisation et d installation
Operating and Installation Instructions
All manuals and user guides at all-guides.com
all-guides.com

58
Contents
Safety warnings .............................................................................. 59
For the user ...................................................................................... 59
For the installer ................................................................................. 60
Description of the Appliance ......................................................... 62
Extraction mode ................................................................................ 62
Recirculation mode ........................................................................... 62
Hood Operation .............................................................................. 63
Control device for grease and charcoal filters ..................................... 64
Maintenance and Care................................................................... 65
Cleaning the hood ............................................................................. 65
Metal grease filter ............................................................................. 65
Charcoal filter .................................................................................... 66
Changing the light bulbs .................................................................... 67
What to do if ................................................................................... 6
Special accessories ........................................................................ 6

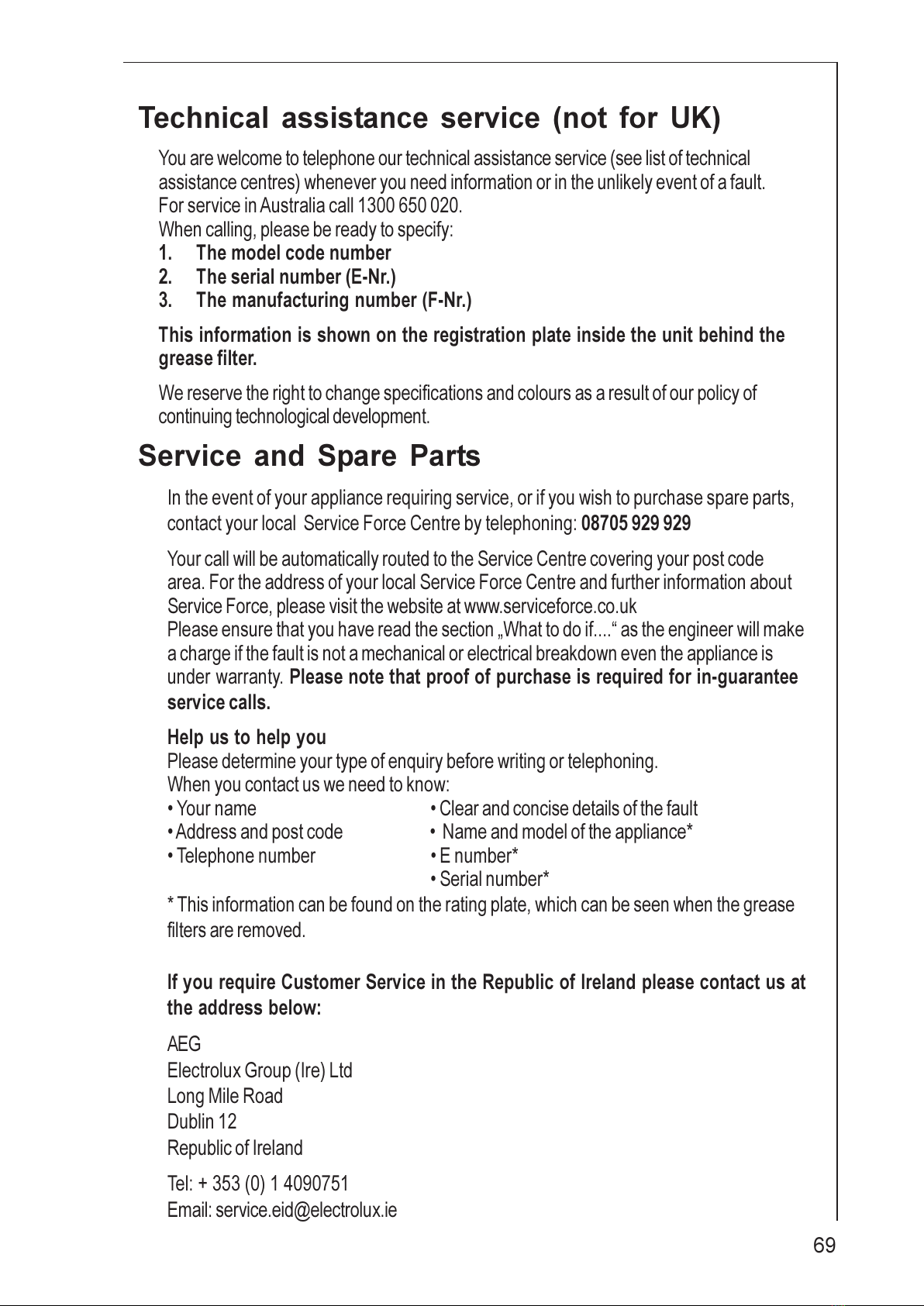

Technical assistance service ......................................................... 69
Service and Spare Parts .................................................................... 69

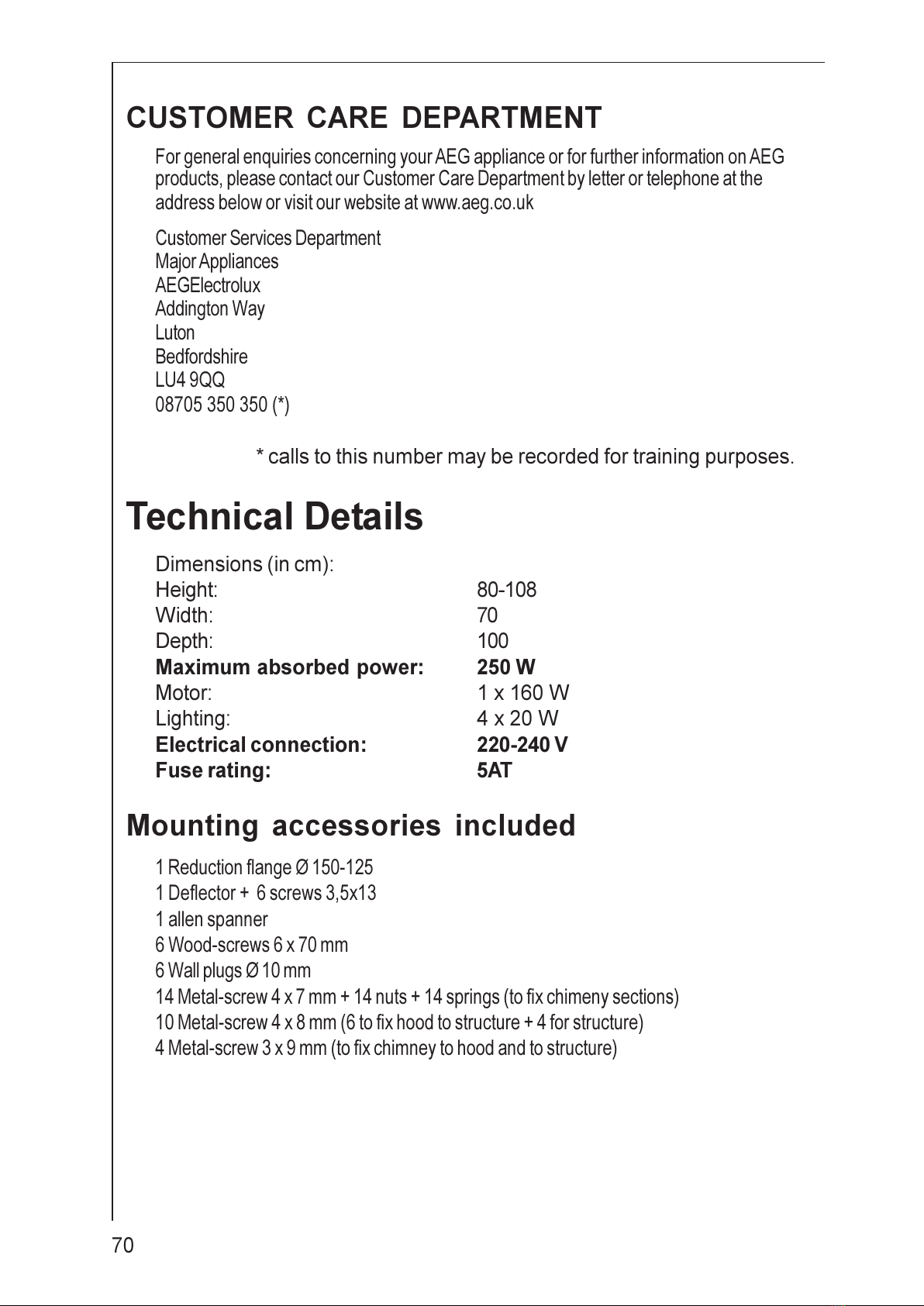

Customer Care Department ............................................................... 70
Technical Details ............................................................................ 70
Mounting accessories included ......................................................... 70
Electrical connection ..................................................................... 71
Installation ........................................................................................ 72
All manuals and user guides at all-guides.com

59
Safety warnings
For the user
 The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
 Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
 Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
 The hot oil in the frying pan might ignite due to overheating.
 The risk of self-ignition increases when the oil being used is dirty.
 It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
 The appliance is not intended for use by young children or infirm
persons without supervision.
 Older children must be supervised if using the appliance.
 Young children should be supervised to ensure that they do not play
with the appliance.
 WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
All manuals and user guides at all-guides.com

60
For the insta er
 When used as an extractor unit, the hood must be fitted with a hose
having preferably the same diameter as the outlet hole.
Attention: The hose is not supplied and must be purchased
separately.
Should there already be a pipe of diameter 125 mm that ducts to the
outside through the walls or roof, it is possible to use the 150/125
mm reduction flange provided. In this case the hood will be slightly
noisier.
The minimum distance between the supporting surface for the
cooking vessels on the hob and the lowest part of the range hood
must be not less than 50cm from electric cookers and 65cm from
gas or mixed cookers.
If the instructions for installation for the gas cookers specify a greater
distance, this must be adhered to.
 The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
 The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
 The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
 When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approxi-
mately the same as the outlet hole.
 National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
 Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
 If you have any doubts, contact the relevant controlling authority or
building inspectors office.
 Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
All manuals and user guides at all-guides.com

61
 If the hood is used in its recirculation mode, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.
 When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
 Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
All manuals and user guides at all-guides.com

62
Description of the Appliance
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
 The hood is supplied as an extractor unit and can also be used with a
recirculation mode by fitting a charcoal filter.
Extraction mode
 In this mode fumes are extracted to
the outside via a hose connected to
the coupling ring A. Fig. 1.
 In order to obtain the best performance
the hose should have a diameter equal
to the outlet hole.
For the extractor version this pipe
must have a diameter of 150 mm.
Should there already be a pipe of
diameter 125 mm that ducts to the
outside through the walls or roof, it is
possible to use the 150/125 mm
reduction flange provided. In this case
the hood will be slightly noisier.
Fig. 1
A
Recircu ation mode
 The air is filtered through a charcoal filter and returned to the
kitchen.
 You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).
All manuals and user guides at all-guides.com
all-guides.com

63
Hood Operation
 Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
disappeared.
The control switches are located on the units front panel:
A- Main switch, hood off (OFF-stand-by).
B- Start and choice of motor speed 1-2-3-1-2.........
C- Indicates speed 1 (LED).
D- Indicates speed 2 and saturation of the grease filter (LED)
E- Indicates speed 3 and saturation of the charcoal filter (LED)
(flashing LED)
F- Indicates Intensive speed (LED).
G- Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood
reverts to previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood
will be turned off after 5 minutes.
To interrupt the Intensive speed, press button A or B.
H- Light OFF
I- Light ON
Should the hood or the controls fail to operate: disconnect the power
supply for at least 5 seconds, then turn the hood back on again.
ABCDEFGH I
Fig. 2
All manuals and user guides at all-guides.com

64
Contro device for grease and charcoa fi ters
This hood is fitted with a device that signals when it is necessary to
clean the grease filter or the charcoal filter (in the case of recirculation
version with charcoal filter).
On delivery, the hood is not supplied with an charcoal filter, so the
saturation indicator will be disabled.
If the hood is to be used with a charcoal filter, the saturation
indicator light must be enabled as follows:
Set "OFF" the hood.
Press buttons B and G simultaneously and hold them for 3 seconds.
At first only the grease filter LED D will light up, but when the charcoal
filter LED E lights up the saturation indicator will be enabled.
To disable it: Press buttons B and G again simultaneously and hold
them for 3 seconds, until the charcoal filter LED goes out.
Grease fi ter LED (D)
LED D will start to flash when it is time to clean the grease filter.
Cleaning will be necessary after 40 working hours. Always comply with
the maintenance instructions for the grease filter.
Charcoa fi ter LED (E)
The charcoal filter LED E will start to flash when the charcoal filter
needs to be replaced.
This operation is necessary after approximately 160 working hours.
Resetting the saturation indicator
After cleaning or replacing the filters, press button A for 3 seconds until
the grease filter LED D or the charcoal filter LED E stops flashing.
All manuals and user guides at all-guides.com

65
Maintenance and Care
The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
C eaning the hood
 Clean the outside of the hood using a damp cloth and a solution of
water and mild washing up liquid.
 Never use corrosive, abrasive or flammable cleaning products or
products containing bleach. .
 Never insert pointed objects in the motors protective grid.
 Only ever clean the switch panel and filter grill using a damp cloth
and mild washing up liquid.
 It is extremely important to clean the unit and change the filters at the
recommended intervals. Failure to do so will cause grease deposits
to build up that could constitute a fire hazard.
Meta grease fi ter
 The purpose of the grease filters is to
absorb grease particles which form
during cooking and it must always be
used, either in the external extraction
or internal re-circulation function.
Attention: the metal grease filters
must be removed and washed, either
by hand or in the dishwasher, every
four weeks.
Removing the metal grease filter
 First, push the metal grease filter
stop backwards, then extract the
filter, pulling downwards. Fig. 3.
Hand washing
Soak grease filters for about one hour in hot water with a grease-
loosening cleaner, then rinse off thoroughly with hot water. Repeat the
process if necessary. Refit the grease filters when they are dry.
Dishwasher
Place grease filters in the dishwasher. Select most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
 Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).
Fig. 3
All manuals and user guides at all-guides.com

66
Fig. 4
i
g
h
Charcoa fi ter
 The charcoal filter should only be used if you want to use the hood in
recirculation mode.
 To do this you will need an original charcoal filter (available from your
local Service Force Centre).
Cleaning/replacing the charcoal filter
Unlike other charcoal filters, the LON LIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be cleaned
every second month (when using the hood 2,5 hours per day,on
avarage). The best way to clean the filter is in the dishwasher. Use
normal detergent and choose the highest temperature (65º C). Wash
the filter separately so that no food parts gets stuck on the filter and
later causes bad odours. To reactivate the charcoal, the filter should
be dried in an oven for 10 minutes with a maximum temperature of
100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
Fitting
Remove the frame i which supports the filter h by turning 90° the two
knobs g.
Insert the charcoal filter inside the frame and put all parts back in
their place. Fig. 4.
To remove proceed in the reverse order.
 Always specify the hood model code number and serial number when
ordering replacement filters. This information is shown on the rating
plate located on the inside of the unit.
 The charcoal filter can be ordered from your local Service Force
Centre.
All manuals and user guides at all-guides.com

67
Fig. 5
Warning
 Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
 The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the ight bu bs
Disconnect the cooker hood from the mains supply.
 Remove the lamp cover carefully, use a screw driver as a lever.
Fig. 5.
 Replace the old bulb with a new one of the same type.
 Refit the lamp cover.
 If the light does not come on, make sure the bulb has been inserted
in correctly before contacting your local Service Force Centre.
All manuals and user guides at all-guides.com
all-guides.com

68
What to do if
If your appliance fails to work properly please carry out the following
checks.
Symptom Solution
The cooker hood Check that: The hood is connected to
will not start... the electricity supply.
Check that a fan speed has been
selected
The cooker hood Check that: The fan speed is set
is not working high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has The safety cut-out device has been
switched off tripped.
during operation... Turn off the hob and then wait for
the device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Special accessories
Charcoal filter TYPE 20
All manuals and user guides at all-guides.com

69
Technica assistance service (not for UK)
You are welcome to telephone our technical assistance service (see list of technical
assistance centres) whenever you need information or in the unlikely event of a fault.
For service in Australia call 1300 6 0 020.
When calling, please be ready to specify:
1. The model code number
2. The serial number (E-Nr.)
3. The manufacturing number (F-Nr.)
This information is shown on the registration plate inside the unit behind the
grease filter.
We reserve the right to change specifications and colours as a result of our policy of
continuing technological development.
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts,
contact your local Service Force Centre by telephoning: 87 5 929 929
Your call will be automatically routed to the Service Centre covering your post code
area. For the address of your local Service Force Centre and further information about
Service Force, please visit the website at www.serviceforce.co.uk
Please ensure that you have read the section What to do if.... as the engineer will make
a charge if the fault is not a mechanical or electrical breakdown even the appliance is
under warranty. Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
 Your name  Clear and concise details of the fault
 Address and post code  Name and model of the appliance*
 Telephone number  E number*
 Serial number*
* This information can be found on the rating plate, which can be seen when the grease
filters are removed.
If you require Customer Service in the Republic of Ireland please contact us at
the address below:
AEG
Electrolux Group (Ire) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel: + 3 3 (0) 1 40907 1
Email: [email protected]
All manuals and user guides at all-guides.com

70
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your AEG appliance or for further information on AEG
products, please contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk
Customer Services Department
Major Appliances
AEGElectrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
0870 3 0 3 0 (*)
* calls to this number may be recorded for training purposes.
Technical Details
Dimensions (in cm):
Height: 80-108
Width: 70
Depth: 100
Maximum absorbed power: 250 W
Motor: 1 x 160 W
Lighting: 4 x 20 W
Electrical connection: 220-240 V
Fuse rating: 5AT
Mounting accessories inc uded
1 Reduction flange Ø 1 0-12
1 Deflector + 6 screws 3, x13
1 allen spanner
6 Wood-screws 6 x 70 mm
6 Wall plugs Ø 10 mm
14 Metal-screw 4 x 7 mm + 14 nuts + 14 springs (to fix chimeny sections)
10 Metal-screw 4 x 8 mm (6 to fix hood to structure + 4 for structure)
4 Metal-screw 3 x 9 mm (to fix chimney to hood and to structure)
All manuals and user guides at all-guides.com

71
Electrical connection (not for UK)
Safety warnings for the e ectrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to any
standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of at
least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
E ectrica connection for UK on y
Safety warnings for the electrician
Connect the hood to the mains supply via a double pole switch which
has 3 mm minimum separation between the contacts.
The switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
( ), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, -
- the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
All manuals and user guides at all-guides.com

72
Insta ation - Fig. 6-7-8
Expansion plugs are provided to secure the hood to most types of
ceilings. However, a qualified technician must verify suitability of the
materials in accordance with the type of ceiling. The ceiling must be
strong enough to take the weight of the hood.
During electrical connection ensure the power supply is disconnected
at the domestic mains switch.
 Adjust extension of the hood support structure, as the final height of
the hood depends on this, and remember that with installation
completed the hood must be at least 50 cm above the hob top for
electric cookers and 65 cm for gas or mixed fuel cookers.
 Fix the two sections of the structure using 8 screws (2).
 Place the ceiling hole diagram directly above the hob top (3 - the
centre of the diagram must match the centre of the hob top and the
edges must be parallel to the sides of the hob top  the side of the
diagram with the wording FRONT corresponds to the control panel
side). Prepare the electrical connection.
 Drill as shown (6 holes for 6 wall plugs  4 plugs for fixture), screw
the outer screws leaving a space of about 1 cm. between the screw
head and the ceiling (4).
 Fit an exhaust pipe inside the support (5) and connect it to the motor
compartment connection ring (exhaust pipe and fixing brackets are
not supplied).
 Hook the frame onto the 4 screws (6 - see also step 4).
CAUTION! The side of the support with connection box corresponds
to the side of the control panel with hood assembled.
 Tighten the 4 screws (7).
 Insert and tighten another 2 screws in the remaining free holes ( ) for
secure fixing.
 Carry out the electrical connection (9) to the mains power supply,
only turn on the power supply upon completion of assembly.
 Hook the hood onto the support (10) , ensuring it fits properly  to
hook the hood onto the support partially tighten 4 screws (see also
step 12).
 Secure the hood to the support using two screws (11); this will also
help centre the two sections.
 Tighten the 4 screws securing the support to the hood (12).
All manuals and user guides at all-guides.com
all-guides.com

73
2a
3
4
4
4
4
44
6
6
7
7
7
7
8
8
2a
5
7
9
10
10
10 10
11
11
14,5
273
273
244
214
190
6
12
2b
2b
Fig. 6
All manuals and user guides at all-guides.com

74
 For extractor versions (13A), connect the other end of the exhaust
pipe to the flue.
For filter versions (13F), fit deflector F to the support and secure it to
the bracket supplied using 4 screws, then connect the exhaust pipe
to the connection ring located on the deflector.
 Fit the nuts with fixing hooks (14) supplied inside the top and bottom
sections of the flues at the rectangular slots. A total of 14 nuts must
be fitted.
 Join the two top sections of the flue to cover the truss (15) so that
one of the slots on the sections is situated on the same side of the
control panel and the other on the opposite side. Screw the two
sections together with 8 screws + springs (4 each side- see the plan
diagram for joining the two sections).
 Fix the top flue assembly to the support, near the ceiling, with two
screws (16 - one each side).
 Carry out electrical connection of control panel and bulbs (17).
 Join the two bottom sections of the flue covering the truss (1 ) using
6 screws+springs (3 each side, see the plan diagram for joining the
two sections).
 Insert the bottom section of the flue in its seat so that it completely
covers the motor compartment and electrical connection box, then
ensure it from inside the hood using two screws (19).
 Apply the 2 tabs (20 - supplied) to cover the fixing points of the
bottom flue (CAUTION! THE BOTTOM FLUE TABS ARE THE
NARROWER AND SHALLOWER ONES).
The wider and deeper tabs are those used for the top flue, and must
be cut to size.
If necessary, slightly expand the tabs to ensure their adherence to
the flue.
 Turn the mains power on again at the central electrical panel and
check for correct hood operation.
All manuals and user guides at all-guides.com

75
Fig. 7
15
15
15
15
15
16
16
15
15
13A
15
14
H
15
13F
F
G
15
15
All manuals and user guides at all-guides.com

76
Fig.
19
18
18
18
18
18
18
18
18
18 18
M
X
17
17
19
20
X
20
18
All manuals and user guides at all-guides.com
