Guild PFS200G User manual

GUILD
200W 1/3 Sheet Sander
Instruction Manual
Important - Please read these instructions fully before operating or maintaining your Guild 1/3 sheet sander
These instructions contain important information that will help you get the best from your Guild
1/3 sheet sander, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
PFS200G
UK/Ireland 0333 3201989
[e-mail]

Customer Helpline 0333 3201989
2
Contents
Safety Information.....................................................................................................3
In The Box..................................................................................................................6
Accessories................................................................................................................6
Operating Instructions...............................................................................................7
Working Hints For Your 1/3 Sheet Sander................................................................11
Maintenance.............................................................................................................11
Trouble Shooting......................................................................................................11
Technical Data..........................................................................................................12
Environmental Protection........................................................................................13
Guarantee................................................................................................................14
Declaration of Conformity........................................................................................14
Plug Replacement (Uk & Ireland Only)....................................................................15

Customer Helpline 0333 3201989
3
Safety Information
Important - Please read these instructions fully before starting assembly
Warning Symbols
The following warning symbols appear throughout this assembly manual and
indicate the appropriate safety measures you should take when assembling and
operating the 1/3 sheet sander.
To reduce the risk of injury. Please read the instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice.

Customer Helpline 0333 3201989
4
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
Original Instructions

Customer Helpline 0333 3201989
5
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings

Customer Helpline 0333 3201989
6
In The Box
Parts
1
2
3
4
5
On/Off Switch
Dust Collection Box
Dust Outlet
Sanding Paper Clamp
Base Plate
1
2
345
Accessories
Dust box 1pc
Sanding paper (2x80 grit & 2x100 grit) 4pc

Customer Helpline 0333 3201989
7
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This tool is intended for dry sanding of wood, plastic, filler and coated surfaces.
1. FITTING THE SANDING PAPER
SANDING PAPER WITH HOOK & LOOP SYSTEM

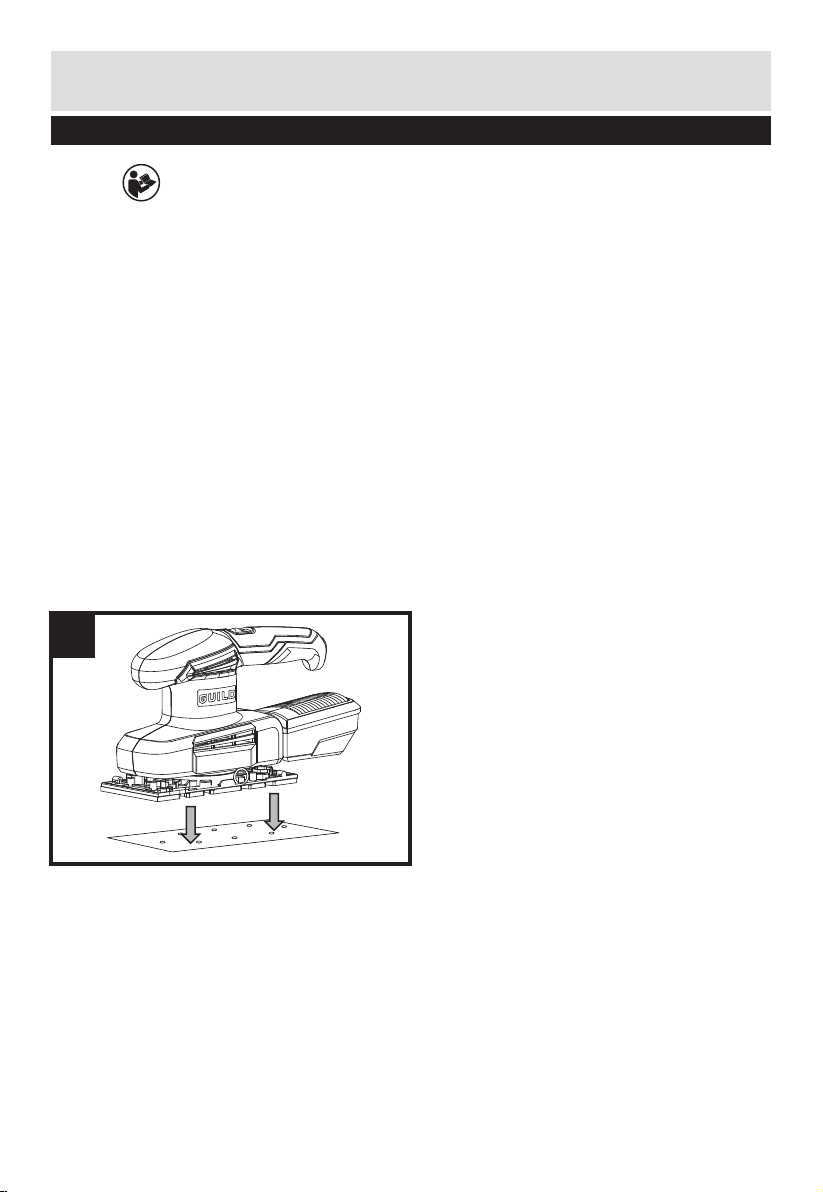

FIT THE SANDING PAPER (SEE FIG A)
The sanding papers are placed directly onto the base plate. The hole pattern in the
base plate and sanding paper must match. Then press the sanding paper onto the base
plate by hand. Firmly press the power tool with the sanding paper against a flat surface
and briefly switch the power tool on. This provides for good adhesion and prevents
premature wear.
Before placing on the sanding paper, free the base plate from dust/debris by lightly
tapping against it.
REMOVE THE SANDING PAPER
Simply remove the sanding paper directly.
Operating Instructions
A

Customer Helpline 0333 3201989
8
Operating Instructions

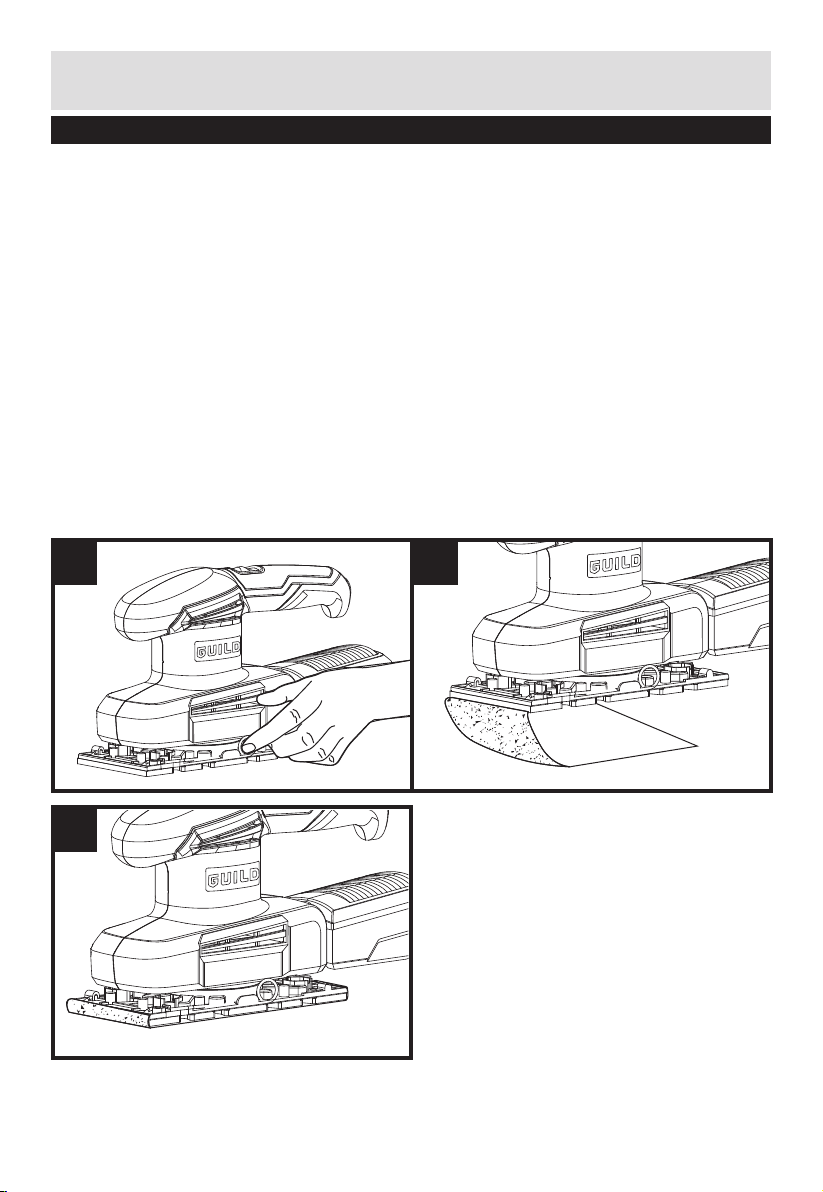

SANDING PAPER WITHOUT HOOK & LOOP SYSTEM (SEE FIG B , C , D)
FIT THE SANDING PAPER
Fit the sanding paper over the base. Make sure the sanding paper is even with the
edges and that the dust collection holes in the base and sanding paper is aligned and
that the sanding paper is taut on the base.
Lift the sanding paper retaining clips to the open position and insert one end of the
sanding paper under the retaining clip.
Push the clip back into the retaining position. Lightly stretch the paper over the base
plate ensuring that it is not folded or wrinkled then position under the other retaining
clip back into the retaining position. Check that the paper is flat to the base plate,
if not, release either clip and reposition the paper before resetting the clip. Switch
on momentarily to check that the sander is functioning correctly. If there is undue
vibration, repeat the paper positioning procedure.
REMOVE THE SANDING PAPER
To remove the sanding paper, lift up the clamp lever and move away from the clamp
lever lock. The sanding paper clamp is now loose. Repeat with the other clamp on the
opposite side of your sander.
B C
D C3

Customer Helpline 0333 3201989
9
E F
G
Operating Instructions
2. USING THE Dust Collection BOX (SEE FIG E)
A) ATTACH THE DUST BOX
Your sander is equipped with a Dust Collection Box (2), which is designed for collect
dust task. Insert the Dust Collection Box into the rear dust outlet of sander. Then pull
the Dust Collection Box and make sure it is tightened securely on the dust outlet.
B) EMPTY DUST BOX
For more efficient operation, empty dust box every 5-10mins. This will permit the air to
flow through the box better.
To empty the dust box, pull off the dust box out of the dust extraction outlet directly and shake out dust.
3.USING THE DUST OUTLET (SEE FIG F)
Your sander is equipped with a 35mm dust outlet, which are designed for connecting the
hose of a vacuum cleaner.
If the vacuum hose is 35mm, insert the hose directly into the rear dust outlet of sander.
First please turn on the vacuum cleaner, and then turn on the sander. If you stop sanding,
first turn off the sander, and then turn off your vacuum cleaner.
NOTE: Please pull the dust adapter to make sure tightened securely on the dust outlet.
4. OPERATING THE ON/OFF SWITCH (SEE FIG G)
Slide the on/off switch to the position marked”I” to start the tool.
Slide it to the position marked “0” to stop it.

Customer Helpline 0333 3201989
10
Operating Instructions
5. USING THE SANDER
The workpiece to be sanded must be secured. If it is small or it may move during
sanding, it must be held in a vice or suitably clamped.
Be sure to hold the sander firmly whilst it is on and apply it gently to the work, it may
“kick” on first contact. Hold the sander so that it is flat on the work and move slowly,
preferably with a smooth, circular motion. Regularly check the condition of the sanding
paper and replace when worn for best results.
6. FLUSH SANDING FACILITY
Your sander can sand flush on three sides of the baseplate which allows easy access to
corners and edges of mouldings.
7 . ORBITAL SANDING
Your sander operates in small a circular rotation which allows efficient material
removal. Operate your sander in long sweeping movements across your workpiece and
even across the grain. For a finer finish, always use a fine grain sanding paper and only
move the sander in the direction of the grit and never across the grain. Do not allow
your sander to remain in the same position otherwise you will remove material and
create an uneven surface.
8.SELECT THE RIGHT SAND PAPER
Selecting the correct grit of sandpaper is an extremely important decision that will
allow you to achieve the best quality sanding finish.
Coarse grit will remove the most material and finer grit will give you the best finish in
all sanding operations. The condition of the surface to be sanded will determine which
grit will do the job.
If the surface is rough:
Start with coarse grit (sold separately) and sand until the surface is uniform. Then
use medium to remove any scratches left by the coarse grit. Then use finer grit (sold
separately) for finishing the surface.
NOTE: Always continue sanding with each grit until the surface is uniform.

Customer Helpline 0333 3201989
11
1. Your sander is useful for working on wood, metal, painted surface. It will smooth surfaces
prior to painting, even where fillers have been used and left proud.
2. Your sander is best suited to large flat areas such as doors but can also be used on skirting
boards, windows, etc, provided they are accessible.
3. Different types of sanding paper will allow the sander to meet various needs. Different
grades of sanding paper are available, the higher grade number, the finer the grit. For rough
work start with a low grade of grit (i.e. 60 grade) and change to a higher, finer grade (i.e.
100 or 120) for finishing. If you use a fine grade for rough surfaces it will soon clog and need
changing.
4. At all times, let the sander do the work-do not force it or apply excessive pressure to the
sanding paper or it could wrinkle or tear. Preferably, use a light circular motion.
5. If the surface shows excessive making from the abrasive motion, you may be using a grit
which is too coarse or applying too much pressure.
Maintenance
Trouble Shooting
Working Hints For Your Sander
Remove the plug from the socket before carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user
serviceable parts in your power tool. Never use water or chemical cleaners to clean your
power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the
motor ventilation slots clean. Keep all working controls free of dust. If you see some sparks
flashing in the ventilation slots, this is normal and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
1. If your sander will not operate, check the power at the mains plug.
2. If the sander does not abrade surface, checking the sanding paper. If the sanding paper have been
worn, replace the new paper and try again. The paper must be kept in a dry place, if it is allowed
to become damp, the abrasive particles will lose their adhesion to the backing paper and will not
abrade.
3. If the sander dose not move smoothly, The sanding paper may be loose, damaged or wrinkled.
Replace and try again.
4. If a fault can not be rectified return the sander to an authorized dealer for repair.

Customer Helpline 0333 3201989
12
Technical Data
A weighted sound pressure LpA : 72.7dB(A)
A weighted sound power LwA : 83.7dB(A)
KpA & KwA=3.0dB(A)
Wear ear protection
Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibration Vibration emission value ah= 6.399m/s2
Uncertainty K =1.5m/s²
Voltage 230-240V~50Hz
Power input 200W
No load speed 12000/min
Dimension of base 90*187mm
Orbital dia. 1.3mm
Protection class /II
Machine weight 1.51kg
The declared vibration total value may be used for comparing one tool with another, and
may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can
differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good
condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions
of use should also take account of all parts of the operating cycle such as the times
when the tool is switched off and when it is running idle but not actually doing the job.
This may significantly reduce the exposure level over the total working period.Plan your
work schedule to spread any high vibration tool use across a number of days.
Technical Data Table
Noise Information
Vibration Information

Customer Helpline 0333 3201989
13
Vibration Information
Technical Data
Environmental Protection
Waste electrical products must not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for
recycling advice.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 100C or less.
Plan your work schedule to spread any high vibration tool use across a number of days.

Customer Helpline 0333 3201989
14
Guarantee
This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 24 months. This
does not cover the product where the fault is due to misuse, abuse, use in contravention of
the instructions, or where the product has been the subject of unauthorised modifications
or alterations, or has been the subject of commercial use. In the event of a problem with
the product within the guarantee period please return it to your nearest store. If the item is
shown to have an inherent defect present at the time of sale, the store will provide you with
a replacement. Your statutory rights remain unaffected.
Issue1 08/2015
Declaration of Conformity
This Guild 200W 1/3 Sheet Sander model number PFS200G fully complies with the
Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/
EC(before 2016/04/20) and 2014/30/EC(since 2016/04/20), RoHS Directive 2011/65/EU and
the following harmonized EU standards
EN 60745-2-4: 2009 + A11: 2011
EN 60745-1: 2009 + A11: 2010
EN 55014-1: 2006 + A1:2009 + A2:2011
EN 55014-2: 1997 + A1:2001 + A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
This declaration is made under the sole responsibility of Argos Ltd, 489/499 Avebury
Boulevard, Milton Keynes, MK9 2NW
Category Technical Manager signed
Issued 20/10/2015

Customer Helpline 0333 3201989
15
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows. The wire
which is coloured blue must be connected to the terminal which is marked with N. The
wire which is coloured brown must be connected to the terminal which is marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only fit an
approved BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the
plug and severed cable, it must be destroyed to prevent engaging into a socket.

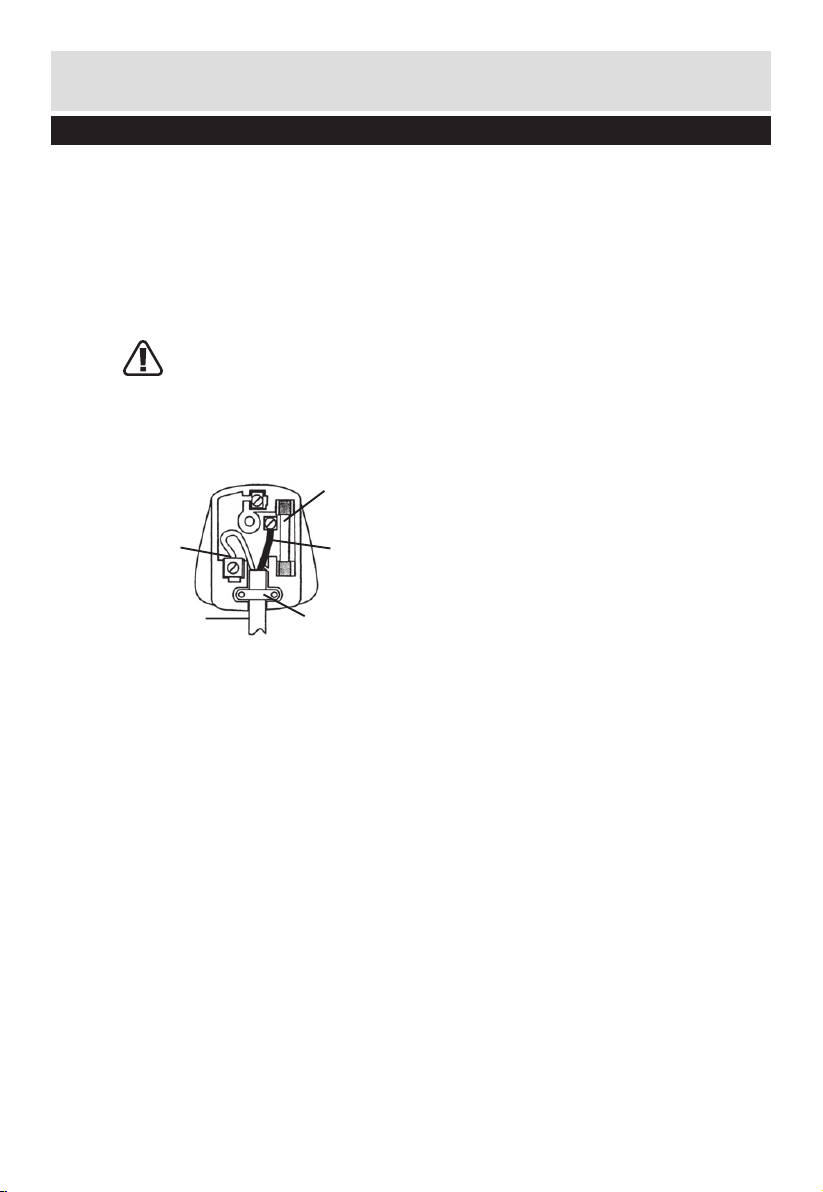

Plug Replacement (Uk & Ireland Only)
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
