Guild PFS260GH User manual

GUILD
260W 1/3 Sheet Sander
Instruction Manual
Important - Please read these instructions fully before operating or maintaining your Guild 1/3 sheet sander
These instructions contain important information that will help you get the best from your Guild
1/3 sheet sander, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 0333 3201989
After Sales Support
UK/Ireland 0333 3201989
[e-mail]
PFS260GH

Customer Helpline 0333 3201989
2
Contents
Safety Information.....................................................................................................3
In The Box..................................................................................................................6
Accessories................................................................................................................6
Operating Instructions...............................................................................................7
Working Hints For Your 1/3 Sheet Sander.................................................................11
Maintenance.............................................................................................................11
Trouble Shooting.............................................................................................. .. ... .. ...12
Technical Data..........................................................................................................12
Environmental Protection........................................................................................13
Guarantee................................................................................................................14
Declaration of Conformity.........................................................................................14

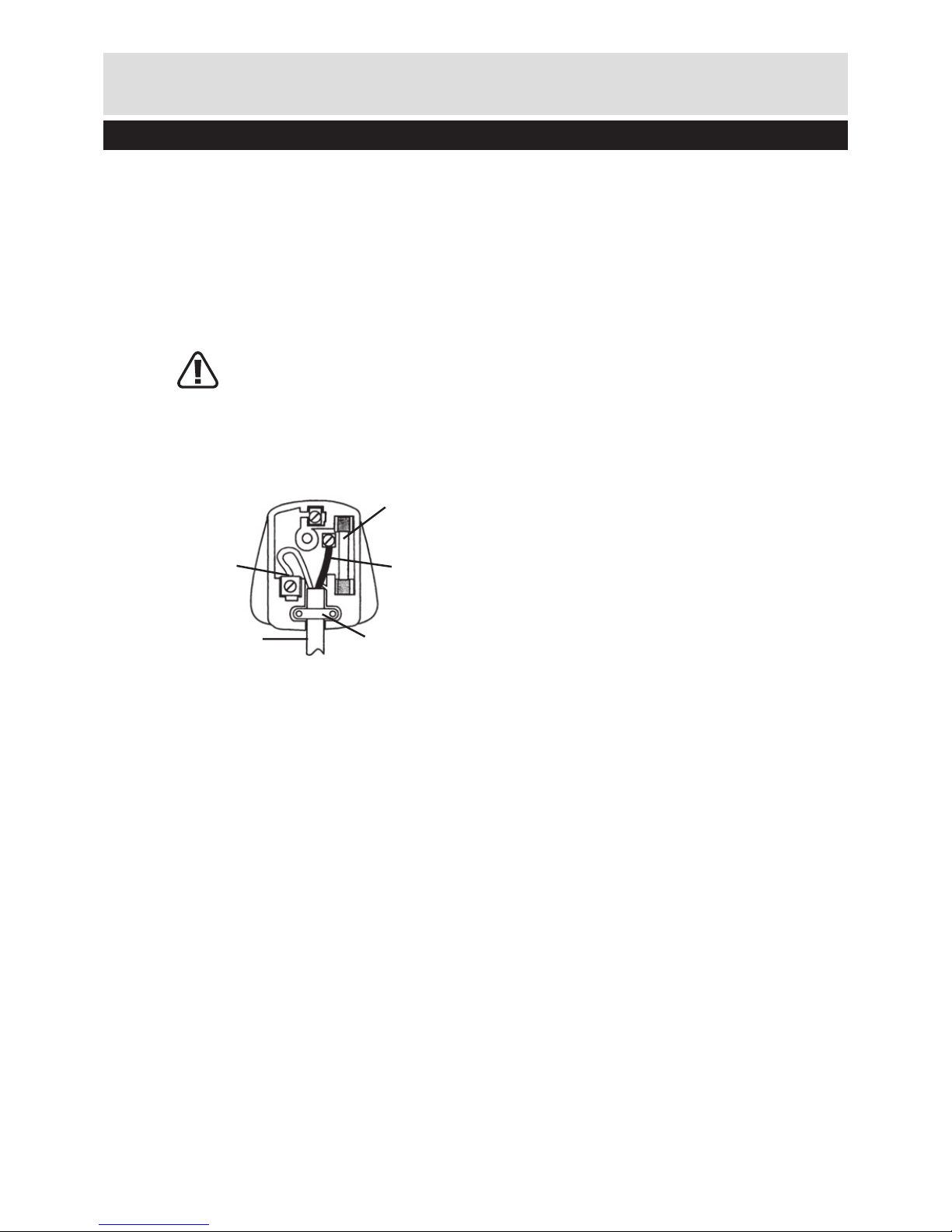

Plug Replacement (Uk & Ireland Only).....................................................................15

Customer Helpline 0333 3201989
3
Safety Information
Important - Please read these instructions fully before starting assembly

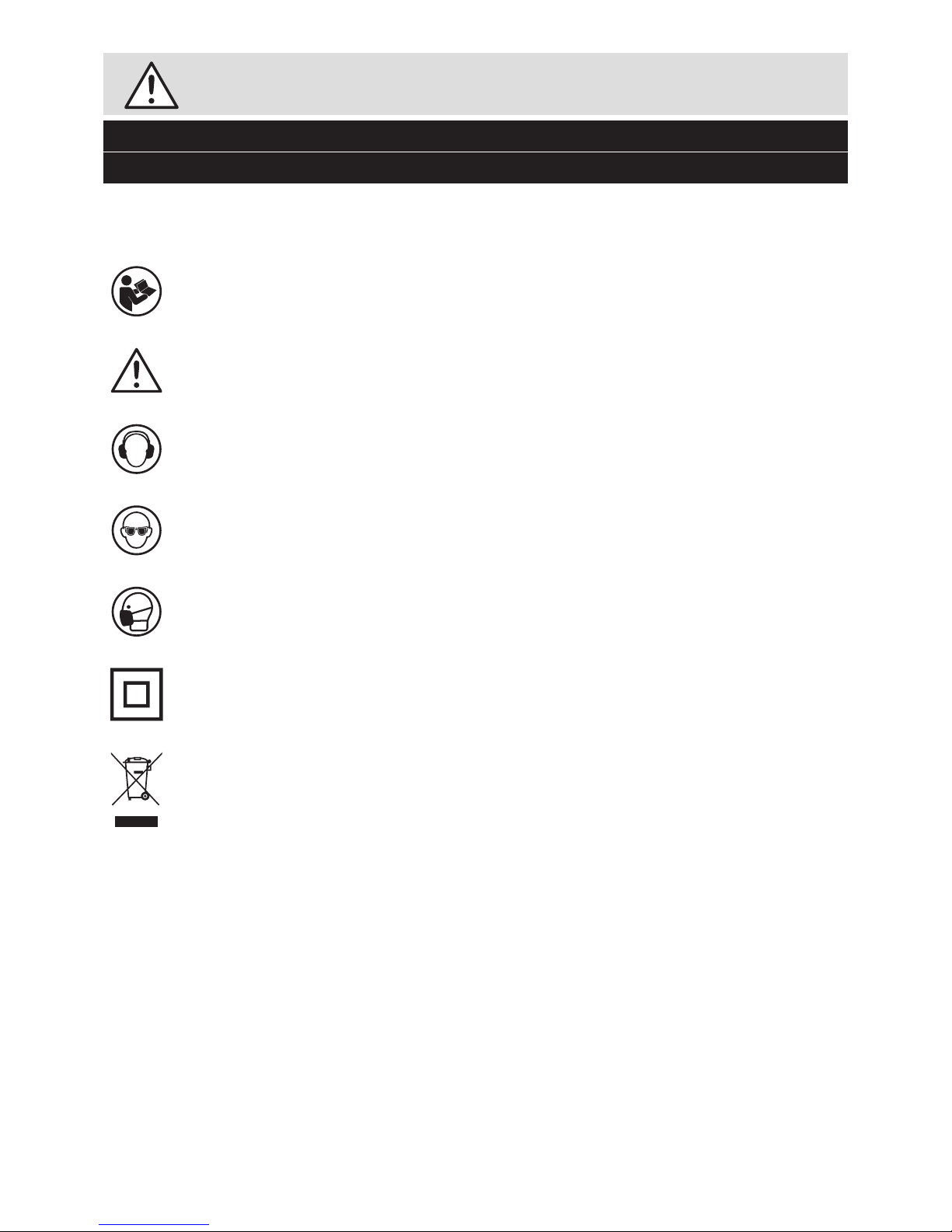

Warning Symbols
The following warning symbols appear throughout this assembly manual and
indicate the appropriate safety measures you should take when assembling and
operating the 1/3 sheet sander.
To reduce the risk of injury, Please read the instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Waste electrical products must not be disposed of with household waste. Please recycle
where facilities exist. Check with your local authorities or retailer for recycling advice.

Customer Helpline 0333 3201989
4
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that
have the switch on invites accidents.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
Original Instructions

Customer Helpline 0333 3201989
5
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or
a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
5) Service
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings

Customer Helpline 0333 3201989
6

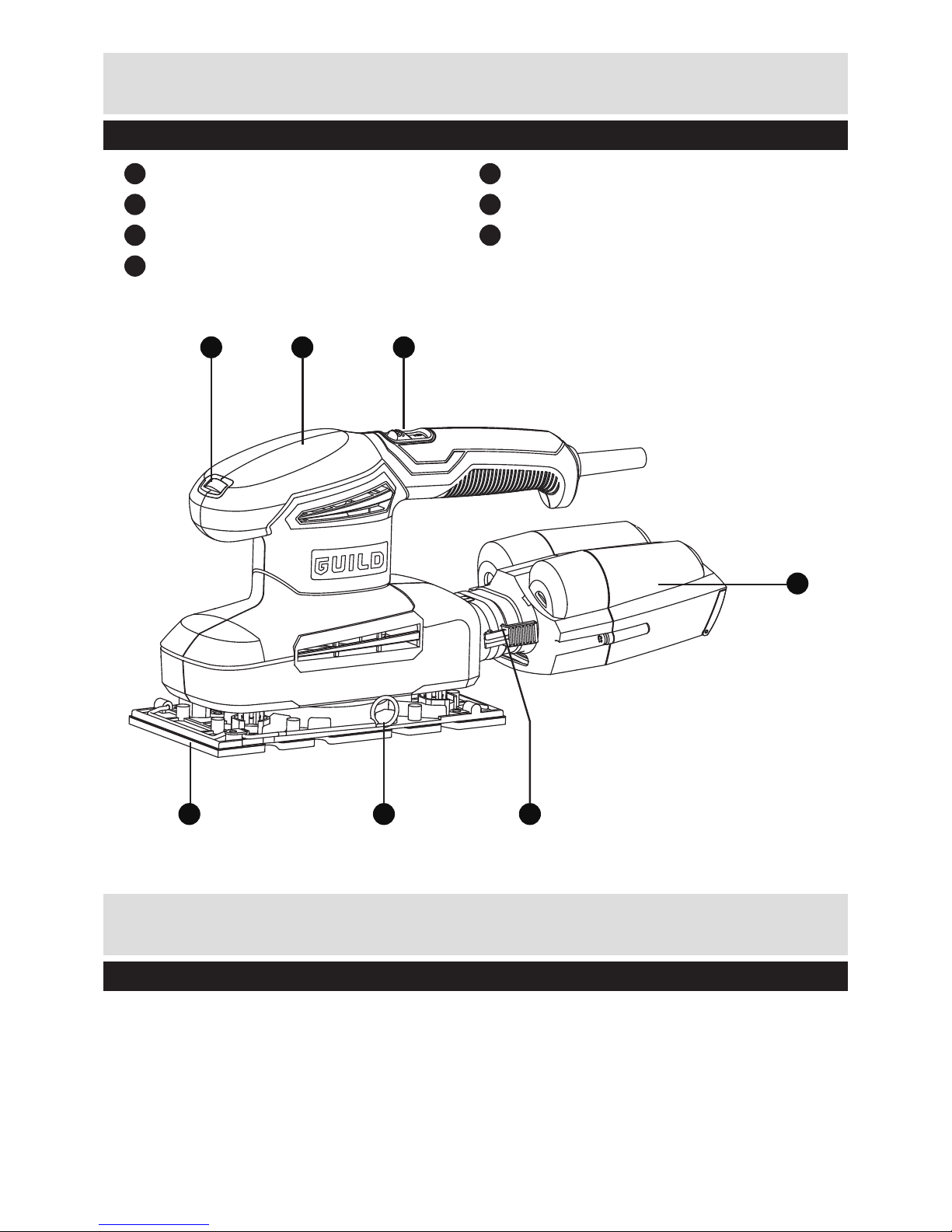

In The Box
Parts
1
2
3
5
6
7
4
Variable speed control
Hand grip area
On/off switch
Cyclone Dust box
Dust outlet
Sanding paper clamp
Aluminium base plate
1 2 3
4
567
Accessories
Cyclone Box 1pc
Sanding paper (2x80 grit & 2x100 grit) 4pc

Customer Helpline 0333 3201989
7
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This tool is intended for dry sanding of wood, plastic, filler and coated surfaces.
1. FITTING THE SANDING PAPER
SANDING PAPER WITH HOOK & LOOP SYSTEM

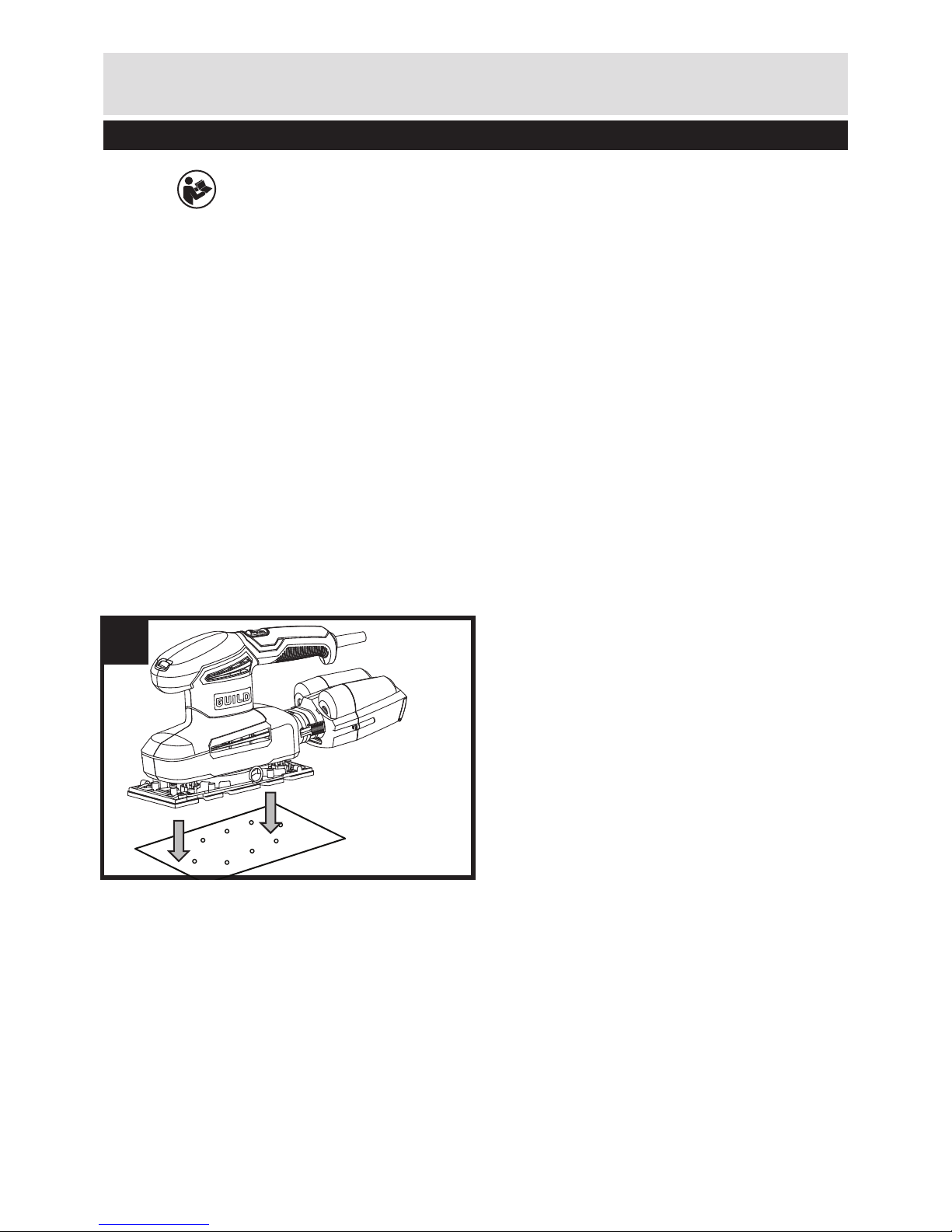

FIT THE SANDING PAPER (SEE FIG A)
The sanding papers are placed directly onto the base plate. The hole pattern in the
base plate and sanding paper must match. Then press the sanding paper onto the base
plate by hand. Firmly press the power tool with the sanding paper against a flat surface
and briefly switch the power tool on. This provides for good adhesion and prevents
premature wear
Before placing on the sanding paper, free the base plate from dust/debris by lightly
tapping against it.
REMOVE THE SANDING PAPER
Simply remove the sanding paper directly.
Operating Instructions
A

Customer Helpline 0333 3201989
8
Operating Instructions

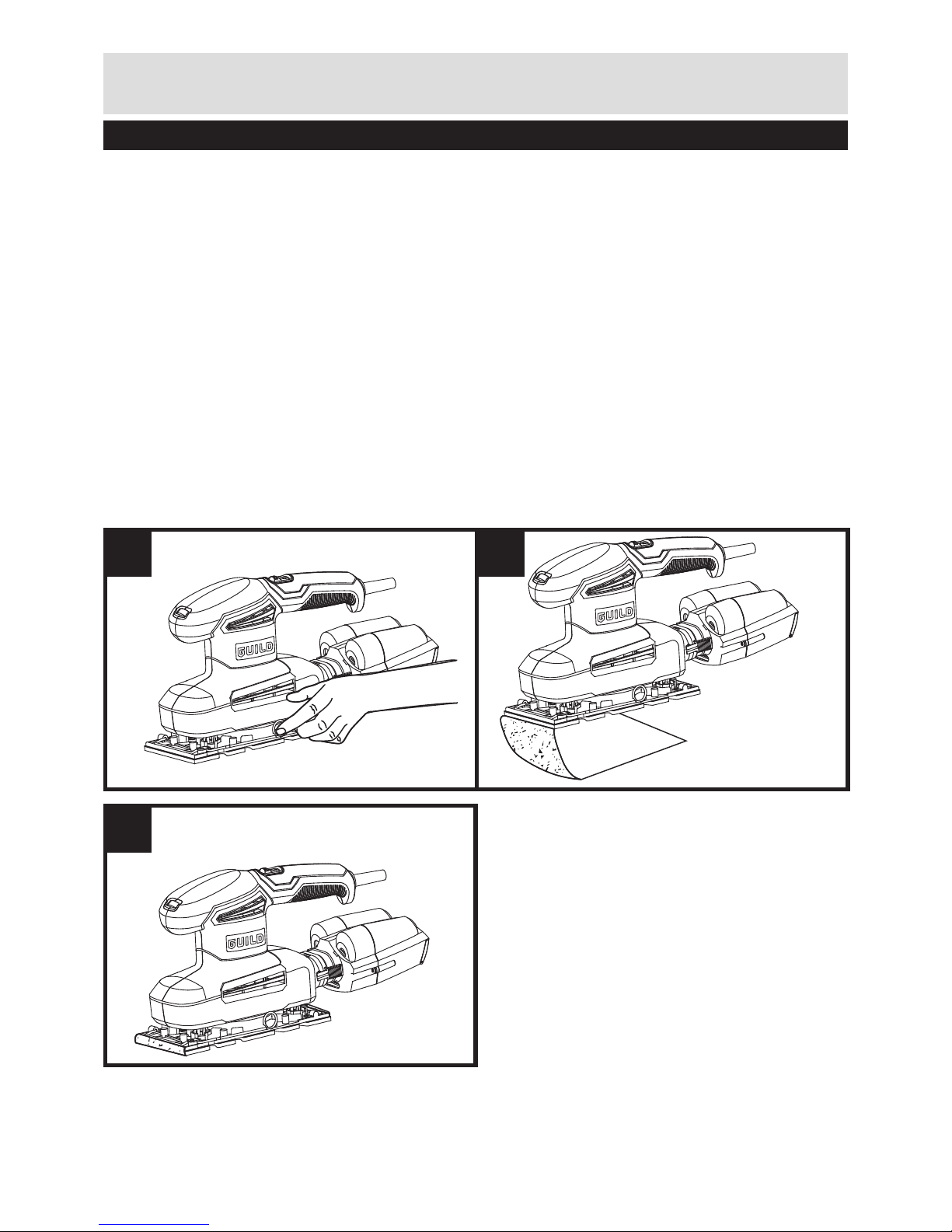

SANDING PAPER WITHOUT HOOK & LOOP SYSTEM (SEE FIG B , C , D)
FIT THE SANDING PAPER
Fit the sanding paper over the base. Make sure the sanding paper is even with the
edges and that the dust collection holes in the base and sanding paper is aligned and
that the sanding paper is taut on the base.
Lift the sanding paper retaining clips to the open position and insert one end of the
sanding paper under the retaining clip.
Push the clip back into the retaining position. Lightly stretch the paper over the base
plate ensuring that it is not folded or wrinkled then position under the other retaining
clip back into the retaining position. Check that the paper is flat to the base plate,
if not, release either clip and reposition the paper before resetting the clip. Switch
on momentarily to check that the sander is functioning correctly. If there is undue
vibration, repeat the paper positioning procedure.
REMOVE THE SANDING PAPER
To remove the sanding paper, lift up the clamp lever and move away from the clamp
lever lock. The sanding paper clamp is now loose. Repeat with the other clamp on the
opposite side of your sander.
B C
D C3

Customer Helpline 0333 3201989
9
Operating Instructions

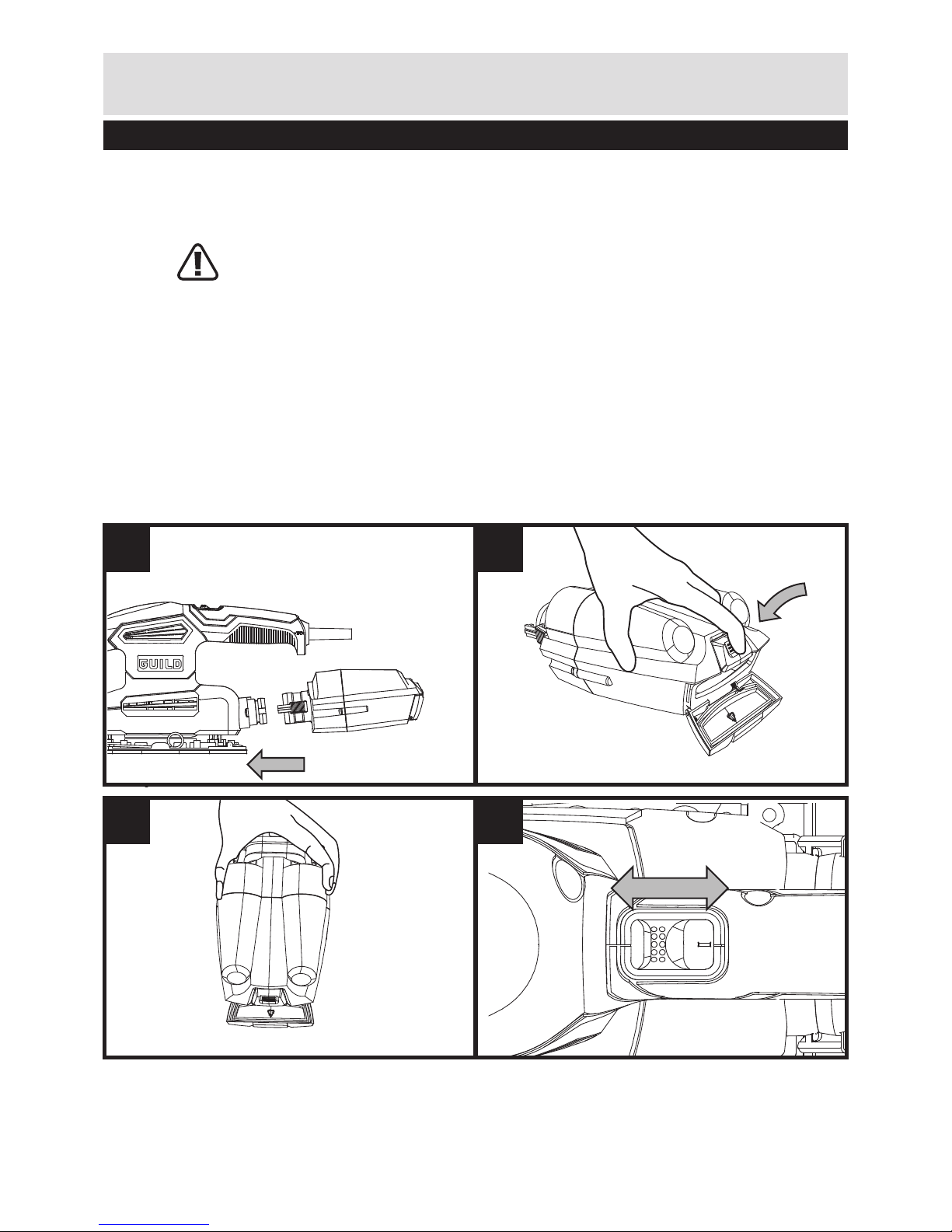

2. USING THE CYCLONIC DUST BOX
A) ATTACH THE CYCLONIC DUST BOX (SEE FIG E1)
Your sander is equipped with a cyclonic dust box. To attach, slide the box onto the outlet
piece and take care that the latching lever engages.
Caution: To prevent the possibility of sanding dust or foreign body being thrown
into your face or eyes, never attempt to use your sander without the dust box
properly installed.
B) EMPTY THE CYCLONIC DUST BOX (See Fig E2 E3)
For more efficient operation, empty the cyclonic dust box every 5-10mins. This will
permit the air to flow through the box better.
To empty the box, press the latching lever in and pull off the box. Then press the button
at the rear of the box to open it, and shake out dust.
3. OPERATING THE ON/OFF SWITCH (SEE FIG F)
Slide the on/off switch to the position marked”I” to start the tool.
Slide it to the position marked “0” to stop it.
E3
E1
F
E2

Customer Helpline 0333 3201989
10
Operating Instructions
4. VARIABLE SPEED CONTROL (SEE FIG G)
With the variable speed control (1), the required speed can be selected (also while
running).
The required speed is dependent on the material and is to be determined by a practical
trial.
After longer periods of working at low speed, allow the tool to cool down by running it for
approx. 3 minutes at maximum speed with no load.
5. USING THE SANDER
The workpiece to be sanded must be secured. If it is small or it may move during sanding,
it must be held in a vice or suitably clamped.
Be sure to hold the sander firmly whilst it is on and apply it gently to the work, it may
“kick” on first contact. Hold the sander so that it is flat on the work and move slowly,
preferably with a smooth, circular motion. Regularly check the condition of the sanding
paper and replace when worn for best results.
6. FLUSH SANDING FACILITY
Your sander can sand flush on three sides of the baseplate which allows easy access to
corners and edges of mouldings.
7. ORBITAL SANDING
Your sander operates in small a circular rotation which allows efficient material removal.
Operate your sander in long sweeping movements across your workpiece and even
across the grain. For a finer finish, always use a fine grain sanding paper and only move
the sander in the direction of the grit and never across the grain. Do not allow your
sander to remain in the same position otherwise you will remove material and create an
uneven surface.
8.SELECT THE RIGHT SAND PAPER
Selecting the correct grit of sandpaper is an extremely important decision that will allow
you to achieve the best quality sanding finish.
G

Customer Helpline 0333 3201989
11
Coarse grit will remove the most material and finer grit will give you the best finish in all
sanding operations. The condition of the surface to be sanded will determine which grit
will do the job.
If the surface is rough:
Start with coarse grit (sold separately) and sand until the surface is uniform. Then
use medium to remove any scratches left by the coarse grit. Then use finer grit (sold
separately) for finishing the surface.
Note: Always continue sanding with each grit until the surface is uniform.
Operating Instructions
Working Hints For Your 1/3 Sheet Sander
Maintenance
1. If your power tool becomes too hot, especially when used at low speed, set the speed to maximum
and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds.
Always use sand paper that is suitable for the material you want to sand.
2. Always ensure the work-piece is firmly held or clamped to prevent movement.
3. Any movement of the material may affect the quality of the sanding finish.
4. Start your sander before sanding and turn it off only after you stop sanding. For the best results,
sand wood in the direction of the grain.
5. Do not start sanding without having the sandpaper fitted.
6. Do not allow the sandpaper to wear away it will damage the base-plate. The guarantee does not
cover base-plate wear and tear.
7. Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and ine grit for the
final surfaces. If necessary, first make a test run on scrap material.
8. Use only good quality sandpaper.
9. The sandpaper controls the sanding efficiency, not the amount of force you apply to he tool.
Excessive force will reduce the sanding efficiency and cause motor overload. Replacing the
sandpaper regularly will maintain optimum sanding efficiency.
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power
tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free
of dust. Occasionally you may see sparks through the ventilation slots. This is normal
and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.

Customer Helpline 0333 3201989
12
A weighted sound pressure LpA : 74,3dB(A)
A weighted sound power LwA : 85,3dB(A)
KpA & KwA=3.0dB(A)
Wear ear protection when sound pressure is over: 85,3dB(A)
Vibration total values (triax vector sum) determined according to EN 60745:
Vibration emission value: ah= 4,6m/s2
Uncertainty K =1.5m/s²
Rated voltage 230-240V~50Hz
Rated power 260W
No load speed 6000-12000/min
Protection class /II
Base size 90*187mm
Orbital dia. 1.6mm
Machine weight 1.86kg
The declared vibration total value may be used for comparing one tool with
another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can
differ from the declared value depending on the ways in which the tool is used
Noise Information
Vibration Information
Trouble Shooting
1. If your sander will not operate, check the power at the mains plug.
2. If the sander does not abrade surface, checking the sanding paper. If the sanding paper has been
worn, replace the new paper and try again. The paper must be kept in a dry place, if it is allowed
to become damp, the abrasive particles will lose their adhesion to the backing paper and will not
abrade.
3. If the sander dose not move smoothly, The sanding paper may be loose, damaged or wrinkled.
Replace and try again.
4. If a fault can not be rectified return the sander to an authorized dealer for repair.
Technical Data
Technical Data Table

Customer Helpline 0333 3201989
13
Technical Data
dependant on the following examples and other variations on how the tool is used:
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions
of use should also take account of all parts of the operating cycle such as the times
when the tool is switched off and when it is running idle but not actually doing the job.
This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10oC or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
Environmental Protection
Waste electrical products must not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authorities or retailer for
recycling advice.

Customer Helpline 0333 3201989
14
Guarantee
This product is selected for DOMESTIC USE ONLY and not for business use.
This product is guaranteed against manufacturing defects for a period of 24 months. This
does not cover the product where the fault is due to misuse, abuse, use in contravention of
the instructions, or where the product has been the subject of unauthorised modifications
or alterations, or has been the subject of commercial use. In the event of a problem with
the product within the guarantee period please return it to your nearest store. If the item is
shown to have an inherent defect present at the time of sale, the store will provide you with
a replacement. Your statutory rights remain unaffected.
Issue1 08/2015
Declaration of Conformity
This Guild 260W 1/3 Sheet Sander model number PFS260GH fully complies with the
Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/
EC(before 2016/04/20) and 2014/30/EC(since 2016/04/20), RoHS Directive 2011/65/EU and
the following harmonized EU standards
EN 60745-2-4: 2009 + A11: 2011
EN 60745-1: 2009 + A11: 2010
EN 55014-1: 2006 + A1:2009 + A2:2011
EN 55014-2: 1997 + A1:2001 + A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
This declaration is made under the sole responsibility of Argos Ltd, 489/499 Avebury
Boulevard, Milton Keynes, MK9 2NW
Category Technical Manager signed
Issued 20/10/2015

Customer Helpline 0333 3201989
15
If you need to replace the fitted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows. The wire
which is coloured blue must be connected to the terminal which is marked with N. The
wire which is coloured brown must be connected to the terminal which is marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only fit an
approved BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the
plug and severed cable, it must be destroyed to prevent engaging into a socket.
Plug Replacement (Uk & Ireland Only)
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
