Guitammer ButtKicker Advancer User manual

Thank you for purchasing the ButtKicker®Advance low
frequency audio transducer!
This User’s Guide is designed to help you install and use
the ButtKicker®Advance in order to receive the most possible
enjoyment.
If after followingtheseinstructionsyou arenotCOMPLETELY
THRILLED with the ButtKicker® Advance, please contact
us. Call, email or fax us. We will do everything possible to
make sure you are completely satisfied.
Contact Information
The Guitammer Company
P.O. Box 82
Westerville, OH 43086
[e-mail]
Phone: [phone]
Fax: [phone]
Please visit our website www.thebuttkicker.com for
additional technical information, specifications and FAQs.
ButtKicker is a registered trademark of The Guitammer Company, Xbox
is a registered trademark of Microsoft Corporation.
PlayStation 2 and PlayStation 3 are registered trademarks of Sony
Computer Entertainment. Wii is a trademark of Nintendo.
OWNER’S MANUAL

Contents
Contents......................................................Page Number
Product Description..................................................... 01
Specifications................................................................. 01
Quick Setup............................................................................. 02
Integration into Your Sound System......................................... 03
- Powering.................................................................... 03
- Low End Roll Off............................................................. 03
- Source Material.............................................................. 03
Source Connection to Amplifier.............................................. 04
- Surround Sound System............................................. 04
- Gaming Consoles / Stereo Systems............................. 04
Mounting Guidelines.............................................................. 05
- Wood Floors................................................................. 05
- Chairs, Couches and Other Types of Furniture............ 05
- Platforms and Risers................................................... 05
- Rubber Isolators.......................................................... 06
- Vertical vs. Horizontal Mounting................................... 06
Dimensions..................................................................... 07
Thermal Protection......................................................... 08
Warranty...................................................................... Back Cover
ButtKicker®Advance

OWNER’S MANUAL
01
Product Description
The ButtKicker®Advance is a patented low frequency audio
transducer that utilizes a magnetically suspended piston.
ButtKicker®transducers are musically accurate, have powerful
low frequency response, and are virtually indestructible and
maintenance free. With a natural working range of approximately
5 – 200 Hz, it is designed primarily to move structure, not air, and
to provide a much more direct method of sound perception.
Because it provides a more effective sense of feeling than that
produced by a speaker system, the ButtKicker®Advance enables
your subwoofer and speaker system to function in their more
natural, audible working ranges. Many users wind up turning their
sound system’s volume (especially the subwoofer) down when
using ButtKicker®products reducing the amount of sound that
their significant others, family, friends and neighbors hear outside
of the theater area. For this reason, ButtKicker®brand products
are an ideal solution for connected housing, such as apartments.
ButtKicker®Advance
Specifications
Dimensions: 6.125” W x 4.875” L x 4.375” H
155.6mm W x 123.8mm L x 111.1mm H
Frequency Response: 5 - 200 Hz
Weight: 4.5 lbs / 2 kgs
Nominal Impedance: 4 Ohm, inductive
Power Handling: 75 watt minimum /
400 watt maximum

02
Quick Setup
This section is for those who are more experienced with sound
system installation. The ButtKicker®Advance is a passive, 4 Ohm
speaker load, which requires power from an audio power amplifier
which in turn requires an adequate signal feed from your sound
system (Figure 1). Shaking forces are produced in the direction
of the axis of the shaker as shown (Figure 2). A positive voltage
at the red terminal wire will produce a “push” by the ButtKicker®
Advance toward its feet (red terminal is positive). It can be mounted
on the topside of a surface; inverted and mounted to the bottom
side of a surface or, using the side mounting plate, mounted to
the side of an object as long as the unit is facing up or down.
It may also help you to consider the ButtKicker®Advance as a
“silent subwoofer” that enables you to “feel” the low end (bass)
by vibrating the surface to which it is attached as opposed to
moving air like a subwoofer. And, like a subwoofer, the ButtKicker®
Advance also requires a separate amplifier to power it. While
powered subwoofer’s have their amplifiers in the speaker cabinet,
the ButtKicker®Advance’s amplifier is a separate component.
• Receiver
• Processor
• PreAmp

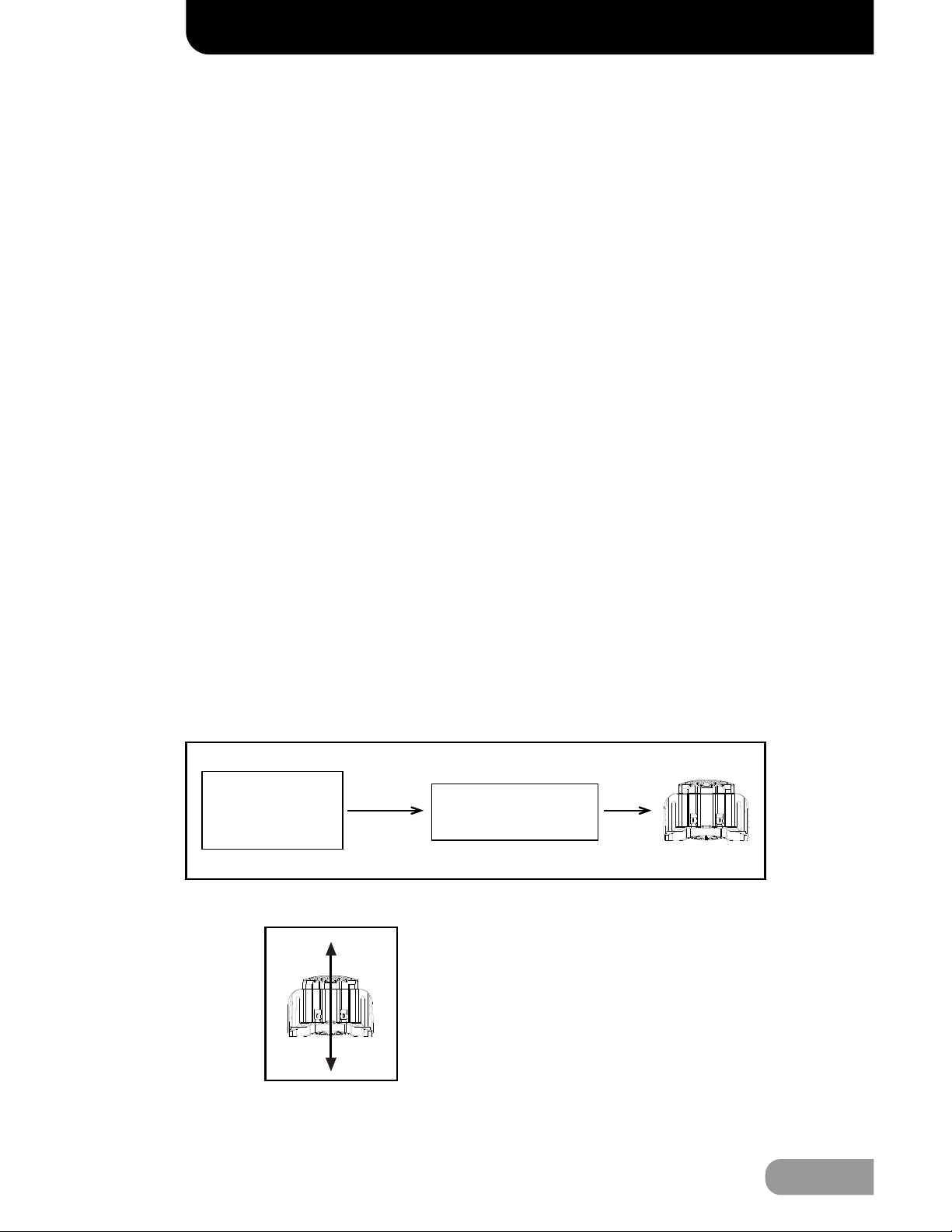

ButtKicker Power
Amplifier BKA300-4
Figure 1. System Integration
Figure 2. Piston Direction
ButtKicker®Advance

03
Integration into Your Sound System
Powering
The ButtKicker®Advance is a passive load and therefore requires
its own dedicated audio power amplifier. See the Specification
section on Page 1 for Power Handling details. The use of 14 gauge
speaker cable between the amplifier and the ButtKicker®unit is
recommended. For cable runs over 25 feet, 12 gauge speaker
cable is recommended.
Low End Roll Off
When choosing a power amplifier other than the ButtKicker Power
Amplifier BKA300-4, please be aware of the low frequency response
of the amplifier. Many manufacturers’ amplifiers roll off, or cut
frequencies below 20 Hz, because anything below 20 Hz has been
considered unusable and damaging for speaker systems. This roll
off of low frequencies (also called “Low Cutoff” or Hi Pass” filters)
is not best for ButtKicker®transducers because they respond to
frequencies as low as 5 Hz.
Source Material
The ButtKicker®Advance responds to a broad range of bass
frequencies, including those far below what we hear, or deep down
into the feeling range of sound. Today’s digital sound sources
(DVD’s, MP3’s, etc.) are capable of carrying signals down to 5 Hz,
but it is the producers who determine the content of a sound track,
so the level and range of bass contained within any given sound
track will vary. Even though a DVD may show the launch of a rocket,
the audio track will contain only what the producers chose to
include in the audio track. The ButtKicker®Advance responds
accurately to the existing low frequency content, much as a
subwoofer responds to the signal given it.
OWNER’S MANUAL

04
Source Connection to Amplifier
Surround Sound System
One signal source for the ButtKicker®Advance is the “Subwoofer”
output of your surround receiver/processor. This output is controlled
by the master volume control and usually a separate subwoofer
control. If a subwoofer is also a part of the sound system and
connected to this signal output, then a “Y” connector may be used
to split the signal two ways.
Gaming Consoles / Stereo Systems
The ButtKicker®Advance also works with two channel stereo
systems and gaming consoles like Microsoft’s XBOX®, Sony’s
PlayStation®3 and Nintendo’s GameCube™. In a two channel
stereo system, the low frequency signals are very seldom only on
the left or right channel, so a connection to either left or right
channel preamp output would produce satisfying results.
ButtKicker®Advance

05
Mounting Guidelines
Floating Wood Floors
A suspended joist floor is an ideal mounting surface for the
ButtKicker®Advance. Best results are obtained by installing two
2” x 6” boards between two floor joists. Place them near the center
of the room, or near the seating area of the audience, avoiding
any supports and bracing that would not allow the floor to move.
Then mount the ButtKicker®Advance to the two 2” x 6” boards.
Chairs, Couches and Other Types of Furniture
The “Chair / Couch Mounting Accessory Kit” (sold separately) is
the ideal companion for using the ButtKicker®Advance with all
types of chairs, couches and furniture. Additionally, the ButtKicker®
Advance unit may be attached directly to your furniture where and
when possible. NOTE: For proper performance the rubber isolators
must be used underneath each leg of the furniture. Rubber isolators
are included with the Chair / Couch Mounting Accessory Kit or
may be purchased separately.
Platforms and Risers
Many home theaters have more than one row of seats, with the
second and third rows on risers. The ButtKicker®Advance can be
mounted above or below the top surface of the riser. If above,
consider people traffic and furniture placement. If mounted
underneath, some simple framing can be done to avoid the extra
room needed under the riser. As always, keep in mind any
maintenance that may become necessary.
If you’re building a riser, build it similar to a suspended wood joist
floor to give the riser its greatest low frequency response. The
major differences between a riser and real floors are the suspension
points and tie points (other external structures). The riser should
be free floating - not tied into any adjacent walls. The greatest flex
of the riser will be along its long dimension, the riser’s short
dimension will offer much less low frequency flexibility. Therefore,
when possible, avoid any support along the long dimension.
OWNER’S MANUAL

06
ButtKicker®Advance
Mounting Guidelines, continued
Rubber Isolators
Rubber Isolators should be used under furniture or platforms
where the ButtKicker®Advance is mounted to maximize its
effectiveness. Position the rubber isolators under each leg of your
furniture or along the corners or your riser to isolate the vibration
within the furniture or riser. This will maximize the effectiveness
of the ButtKicker®Advance. Additionally, use of the rubber isolators
will help reduce any vibration from your furniture from being
transmitted throughout the rest of your home or apartment.
More information on rubber isolator types and usage can be found
in the support and FAQ sections of the ButtKicker®website:
www.thebuttkicker.com.
Vertical vs. Horizontal Mounting
As noted in the “Quick Setup” section, the ButtKicker®Advance
was designed for optimal performance when mounted vertically
(either “up” or “down”), but will function at any angle. Horizontal
orientation will not damage the ButtKicker®Advance, however a
vertical installation - either “up”, “down” or mounted using the
bottom or side plates - is strongly recommended for the best effect.

07

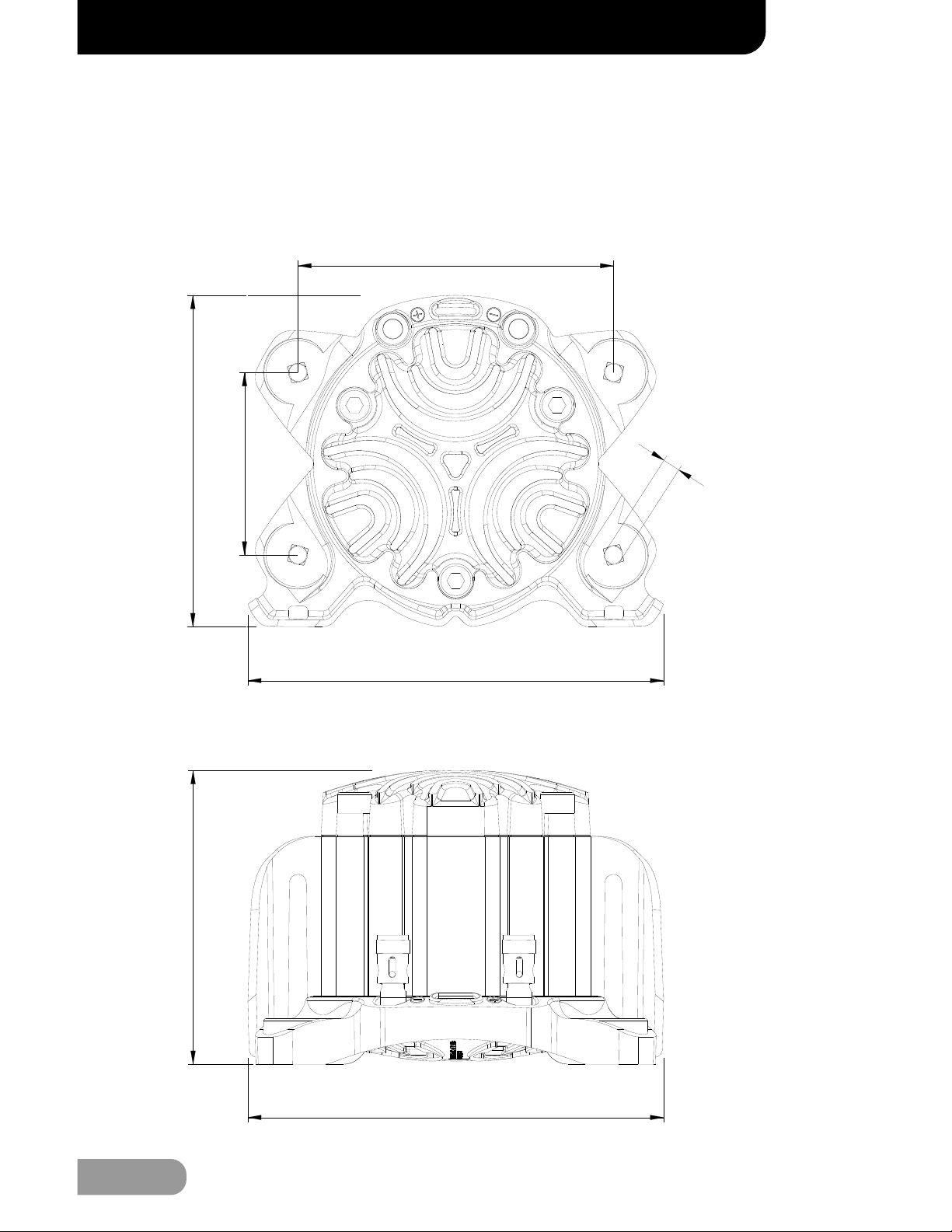

ButtKicker®Advance Dimensions
All measurements are in inches and millimeters.
OWNER’S MANUAL
4.65” - 118.24 mm
4.85” - 124 mm 2.69” - 68.3 mm
6.13” - 155.7 mm
Ø.26” -
6.6 mm
6.13” - 155.7 mm
4.32” - 109.7 mm

08
ButtKicker®Advance
Thermal Protection
If the ButtKicker®Advance is driven too hard (i.e. given too much
power for too long of a period of time) it may overheat. For this
reason, each ButtKicker®Advance has a built in thermal switch.
This switch will automatically shut down the ButtKicker®Advance
if its internal temperature reaches a preset limit. If tripped, the
thermal switch will automatically reset after the unit has cooled
sufficiently and then the ButtKicker®Advance will resume normal
operation. Cooling off time can be 5 – 20 minutes, depending on
ventilation. While in thermal protection mode, the ButtKicker®
Advance may feel warm to the touch, but the cutoff point has been
set to avoid damage or harm.

Limited Warranty
This Guitammer Company product is warranted against defects in materials
and workmanship for a period of one (1) year from the date of purchase by the
original end-user. Items returned for repair under warranty will be repaired or
replaced at the sole discretion of The Guitammer Company without charge for
materials or labor, providing such items are returned for inspection, transportation
prepaid, to The Guitammer Company or an authorized service center. All repaired
or replaced items will be returned freight collect. Warranties do not apply to
products that have been subjected to abuse, accident, modifications, improper
handling or installation, or repairs made by anyone other than The Guitammer
Company or an authorized service center. The Guitammer Company shall be
the final authority in the determination of all warranty service claims.
Please Record the Serial Number on the side of
your ButtKicker®Advance for easy reference.
Serial Number:
BK4-
Email us at:
[e-mail]
The Guitammer Company
1-888-676-2828 / 1-614-898-9370
8:30 AM to 5:30 PM EST
Visit us on the web at:
www.thebuttkicker.com
STOP!
If you have questions or need technical support,
please contact The Guitammer Company, not
the store where you purchased the product.
