Guldmann Rs User manual

GB/US ....Digital Scale model RS

User manual – vers. 101.00

GB .......Digital Scale model RS

Item no.:

560602 & 560604

1.00 .........General provisions ............................................4

2.00 .........Intended use..................................................5

2.01 .........Safety........................................................6

2.02 .........Use..........................................................8

2.03 ........Conguration table.............................................10

2.04 ........Accessories ..................................................12

2.05 .........EMC - Information .............................................12

3.00 .........Technical properties ..........................................16

4.00 .........Control panel ................................................16

5.00 .........Weighing mode ..............................................17

6.00 .........Settings and functions ........................................18

7.00 .........Choice / change of automatic shut-o󰀨 and auditory signal ..........18

8.00 .........Settings for the digital scale step-by-step ........................19

9.00 .........Replacement of battery ........................................19

10.00 ........Error messages ..............................................20

11.00 ........Maintenance and service ......................................21

12.00 ........Disposal of digital scale including batteries. . . . . . . . . . . . . . . . . . . . . . . 22

13.00 ........Identication labels ...........................................23

14.00 ........Warranty and service conditions ................................24

A. ..........Warranty.....................................................24

B. ..........Service or Repair..............................................25

1.00 General provisions

Read this user manual carefully before using the digital scale, as it sup-

plies important information concerning use, safety and maintenance.

The descriptions and illustrations in these instructions are not binding.

Guldmann reserves the right to make changes to the product that they deem

to be necessary in order to improve the product, without them being obligated

to update this publication.

Product type: Professional electronic digital scale for mobile lifters and ceil-

ing hoists.

Conventions: In this user manual, the following symbols are used

0476 EC type-approved for medical use

Metrological certication and type approval

Accuracy class

ATTENTION!

The digital scale must be mounted correctly before it is placed

into use. In the event of erroneous installation, damage may be

caused to the digital scale and injury to the patient.

Must not be disposed of as ordinary household refuse, but must

be brought to recycling.

Type B in accordance with UL/EN 60601-1

Battery operated

Indication of weight function

OIndication on stable weight

Interference may arise in the vicinity of the devices

Dual insulation (Class II)

2.00 Intended use

This equipment must be used for weighing a person lifted in a sling for

general diagnostic purposes.

Application area: at institutions, hospitals and specialised medical clinics.

We recommend that the unit be used in surroundings that are not subjected

to magnetic disturbances.

Personnel who may use the product: Trained caregivers, specialised oper-

ators and physicians, who are familiar with the procedures for proper use.

Controls and responsibility: The medical equipment must be used under

the supervision of a qualied physician (only for Class III scale) or qualied

personnel with responsibility for maintenance and periodic controls, and who

are familiar with all the safety procedures.

Limitations of use: This medical equipment must only be used as described

in this user manual.

2.01 Safety

The operators must read this user manual carefully, follow the direc-

tions in the manual and learn the correct procedures for the use and

maintenance of the digital scale.

These user instructions contain important information on the mounting, use

and maintenance of the digital scale.

The manufacturer assumes no liability for direct or indirect damages, includ-

ing loss of earnings or other commercial damage, which may be due to use

of the product that is not in accordance with what is described in this user

manual.

Save this user manual and the declaration of conformity for later use, and use

them when training personnel.

• Avoid overloading the digital scale beyond its maximum capacity

• Avoid sudden loading of the digital scale

• Do not use sharp or pointed objects to press the keys

• Do not try to open the digital scale

• Do not remove the seals on the digital scale

• The battery poles must not be short-circuited

• Do not submerge the digital scale in water or other liquids

• Perform regular maintenance and subsequent measurement checks (see

section 11.00)

NOTE: The medical equipment requires special precautions concerning elec-

tromagnetic compatibility, and must be installed and used with respect to the

information in accompanying documents.

ATTENTION

Mounting of the digital scale must be performed by qualied personnel, and

before use it must be checked that the di󰀨erent parts are mounted correctly,

such that the person is weighed in a safe and sensible manner. Incorrect

mounting may cause risks of falls and involve serious consequences for the

person.

After mounting of the digital scale and before weighing of the person, the person-

nel must ensure that:

• The weighing will be performed over “soft” items such as for example a mat-

tress, pillows, bed or other soft elements, in order to minimise the consequenc-

es of a possible accident

• The model RS digital scale and the sling are in the VERTICAL POSITION

• The personnel must ALWAYS follow and keep their focus on the sling and

the person during the lift in order to avoid swinging and possible move-

ments of the digital scale

• The ceiling hoist or the mobile lifter with digital scale and the person in the

sling must not be moving, relocated or turned during the weighing

• Once the weighing has been concluded, the sling must be taken o󰀨 the

person and the digital scale dismounted

Swinging and turning of the scale may cause incorrect weighing. The personnel

must therefore ensure that the person remains calm during the weighing.

Avoid swinging and sudden movements of the digital scale, which may

damage the scale and result in incorrect weighing.

• Always follow the applicable rules with the use of electrical components that

are subject to increased safety requirements.

• Incorrect installation will invalidate the warranty.

• The digital scale is intended for indoor use.

• Comply with the permissible room temperatures for operation.

• The digital scale complies with the requirements for electromagnetic

compatibility.

• The maximum values specied in the applicable standards must not be

exceeded.

• Avoid overloading the digital scale. Overloading will be indicated by an

audible signal.

2.02 Use

There are many di󰀨erent mounting possibilities with a digital scale, depend-

ing upon the situation in which it is being used. The most common manners

of mounting the digital scale are described below. A number of the mounting

combinations in the conguration table at the end of this chapter are illus-

trated.

1. Hook from ceiling hoist or mobile lifter

2. Quick release button on the digital scale’s top

3. Quick release button on the digital scale’s bottom

4. Adapter for mounting of lifting hanger

1. A. Mounting of the digital scale on a ceiling hoist GH1, GH3, GHZ or a

mobile lifter GL5, GL5.1

Fasten the digital scale to the hook on the ceiling hoist or the mobile lifter by

pressing on the quick release button (2) and fastening the hook (1).

B. Mounting of the digital scale on a ceiling hoist GH2 or a ”Universal”

oval hook

Fasten the digital scale to the hook on the ceiling hoist by opening the GH2

snap hook (1) or the oval hook and fasten the hook on the quick release

button (2).

C. Mounting of the digital scale on a mobile lifter GL

Fasten the digital scale to the mobile lifter using an adapter tted on the

mobile lifter’s bar.

Fasten the digital scale to the adapter (see page 11) on the mobile lifter by

pressing on the quick release button (2) and fastening the adapter.

2. Mounting of adapter hook from lifting hanger to the digital scale

Press on the quick release button (3) and fasten the adapter hook (4).

Fasten the lifting hanger by inserting the adapter hook (4) on the lifting hang-

er.

3. Attach the desired sling on the lifting hanger and reset the digital scale (see

section 4.00). The display will subsequently show 0.0.

4. Remove the sling from the hanger. Place the sling on the person and attach it

on the lifting hanger again.

5. Carefully lift the person. When the sling with the person is at rest and freely

suspended, the relevant weight will be shown on the display.

Important

Always reset the scale before weighing takes place.

Note:

The power saving function will automatically shut o󰀨 the display after 30 sec.

if the scale has no load. Can be changed (see section 7.00).

6. Carefully lower the person after the scale has been read.

Warning

This scale has been produced in order to weigh the person in connection

with him/her being relocated, for example between a bed and a chair. In con-

nection with reduced lifting height, it may be necessary to divide the process

in 2, weighing of the person and subsequent detachment of the scale, and

then performing the nal relocation, for example between a bed and chair.

The scale has not been produced for use in connection with transport of the

person. In the event of transport, the scale must be detached.

2.03 Conguration table

Conguration table for Digital scale

Lifting capacity, max. 300 kg 300 kg

Length 200 mm 200 mm

Product Ceiling hoist GH1 / GH3 movable Ceiling hoist GH2

Lifter interface

Adapter interface top NA NA

Digital scale RS

Adapter for mounting

of lifting hanger

Hanger interface

Conguration table for Digital scale

Lifting capacity, max. 300 kg

Length 200 mm 260 mm 365 mm

Product Mobile lifter GL5 / GL5.1 Mobile lifter GL Universal

Lifter interface

Adapter interface top

Digital scale RS

Adapter for mounting

of lifting hanger

Hanger interface

2.04 Accessories

Item description Item No. Installation length Illustration

Oval hook 561628 107.5 mm

GH3 Adapter

for Mobile lifter

552530 60 mm

Adapter for

mounting of

lifting hanger

558898 45 mm

2.05 EMC - Information

Manufacturer's instructions and declaration - Electromagnetic emissions

The model RS electronic digital scale is intended for use in the electromagnetic environ-

ments, such as are specied below. The customer or the user must ensure that the scale is

used in such an environment.

Emission test Conformity Guidelines for Electromagnetic environment

guidance

RF emissions

CISPR11

Group 1 Class B The model RS digital scale uses only RF ener-

gy for its internal functionality. Hence these RF

emissions are very low, and there is very little

probability that they would cause any interfer-

ence in nearby electronic equipment.

RF emissions

CISPR11

Group 1 Class B The model RS digital scale is suitable for use

in all healthcare and hospital systems that are

connected to the public low voltage distribution

grid.

Harmonic

emissions

IEC 61000-3-2

Class A

Voltage uc-

tuations / voltage

emissions

IEC 61000-3-2

Conformity

Manufacturer's instructions and declaration - Electromagnetic immunity

The model RS electronic digital scale is designed to function in electromagnetic environ-

ments that are specied below. The customer or the user must ensure that the scale is

used in this environment.

Immunity test Conformity Guidelines for electromagnetic environment

Electrostatic

discharge

(ESD) IEC/NEK-

EN61000 - 4 -2

6 kV contact

8 kV air

The oors should be of wood, concrete or

ceramic material.

If the oors are covered by synthetic material,

the relative humidity must be at least 30%.

Electrical rapid

transients/burst

NEK-IEC/

EN61000 - 4 - 4

+/-2 kV power supply

+/-1 kV to inbound/

outbound lines

The power supply quality must be the same as

in an ordinary commercial or hospital environ-

ment.

Surge IEC/NEK-

EN61000 - 4 - 5

+/-2 kV di󰀨erential

mode

+/-1kV common

mode

The power supply quality must be the same as

in an ordinary commercial or hospital environ-

ment.

Voltage dips,

brief interruptions

and voltage vari-

ation IEC/NEK-

EN61000 - 4 - 11

<5 % UT in 0.5 cycles

40 % UT in 05 cycles

70 % UT in 25 cycles

<5 % UT in 5 sec.

Note= UT is the

value of the power

supply voltage.

The power supply quality must be the same as

in an ordinary commercial or hospital environ-

ment.

Magnetic eld at

power frequen-

cies IEC/NEK-

EN61000 - 4 - 8

3 A/m The product power frequency magnetic elds

should be at levels af a typical location in a

typical commercial or hospital environment.

Manufacturer's instructions and declaration - Electromagnetic immunity

The model RS electronic digital scale is intended for use in the electromagnetic environ-

ments as specied below. The customer or the user must ensure that the scale is used in

such an enviroment.

Immunity test Conformity Guidelines for electromagnetic environment

Immunity against

conductor-bound

disruptions IEC/

NEK-EN61000

- 4 - 6

3 Vrms 150 kHz to

80 MHz (for devices

that are not life-sup-

porting)

Portable and mobile radio frequency-based

communications equipment must not be used

closer to the device, including conductors, than

the recommended distance calculated based

on the applicable formula for the transmitter's

frequency. Recommended distance between

devices

d = 1.2√P d = 1.2 √P

From 80 MHz to 800 MHz d = 2.3√P

From 800 MHz to 2.5 GHz,

where P is the maximum rated output power

for the transmitter in watts (W) as per the man-

ufacturer of the transmitter, and d is the rec-

ommended, seperation distance in metres (m).

The eld strengths from xed radio frequency

transmitters, as measured in an electromagnetic

examination of the location, a ought to be lower

than the compliance level in each frequency

range b. Interference may occur in the area

around devices, which is marked with the follow-

ing symbol:

Immunity radi-

ated IEC/NEK-

EN61000 - 4 - 3

3 V/m 80 MHz to

2.5 GHz (for devices

that are not life-sup-

porting)

At 80 MHz and 800 MHz the higher frequency range applies. It is possible that these guide-

lines do not apply in all situations. Electromagnetic propagation is a󰀨ected by absorption

and reection from buildings, objects and people.

a) Field strengths from xed transmitters, such as base stations for radiotelephones

(mobile/wireless) and land mobile radios, amateur radio equipment, AM and FM radio

transmitters and TV broadcasting, cannot be estimated reliably theoretically. Consid-

er performing an electromagnetic eld survey in order to assess the electromagnetic

environment that is caused by xed radio frequency transmitters. If the measured eld

strength at the location where the device is being used exceeds the compliance level for

radio frequency energy that will be used, then you should observe the device in order to

check that its operation is normal. If abnormal operation is observed, further precautions

may be necessary, for example turning or relocating the device.

b) Over the frequency range from 150 kHz to 80 MHz the eld strength should be less

than 3 V/m.

Recommended distance between RS Digital scale and portable- and mobile radio fre-

quency-based communications equipment

The model RS digital scale is intended for use in an electromagnetic environment, where

radiated RF disruptions are under control. The customer or user of device may assist in

preventing electromagnetic disruptions by maintaining a minimum distance between por-

table and mobile RF communications equipment (transmitters) and the device as recom-

mended below, with respect to the communications equipment's maximum output power.

Maximum rated

output e󰀨ect for

transmitter W

Distance with respect to the transmitter's frequency m

150 kHz to 80 MHz

d = 1.2 √P

80 MHz to 800 MHz d

= 1.2 √P

800 MHz to 2.5 GHz

d = 2.3 √P

0.01 0.12 0.12 0.23

0.1 0.38 0.38 0.73

1 1.2 1.2 2.3

10 3.8 3.8 7.3

100 12 12 23

For transmitters with a rated maximum output power not mentioned above, the recom-

mended distance in metres (m) can be estimated using the formula that applies for the

transmitter frequency, where P is the transmitter's maximum rated output power in watts

(W) according to the manufacturer of the transmitter.

Note: At 80 MHz and 800 MHz the higher frequency range applies. It is possible that these

guidelines do not apply in all situations. Electromagnetic propagation is a󰀨ected by absorp-

tion and reection from buildings, objects and people.

3.00 Technical properties

Model RS

Manufacturer Wunder Sa.Bi. Srl- Trezzo Sull’Adda (MI), Italy

Capacity and division Max. 300 kg, e=100 g

OIML approval Class III

Measurement unit Kg

Display LCD 25 mm with 5 digits

Dimensions mm (W) 120 x (L) 70 x (H) 160 mm

Function keys ON/ZERO/OFF, HOLD, TARE

Power supply 6 alkaline batteries AAA

Operating temperature 0 °C / 40 °C

Complies with Directive 2011/65/EU

Protection IP54 (Protects against dust and spray)

4.00 Control panel

Function keys

On/O󰀨/Zero/Tare

Hold (locking of

weight)

RS Digital Scale:

HOLD = Indicator for

locking of

weight

NET = net weight

GROSS = gross weight

kg = unit kg

3. HOLD 4. NET 5. GROSS

1. ON/OFF/ZERO/TARE:

1. Push the ON/OFF key to activate the digital scale, and hold the key down

for 3 seconds to deactivate the scale.

2. Push the ZERO key in order to reset the digital scale (corresponds to

approx. +/-2 % of the maximum capacity).

3. Push the TARE key to nd the tare weight.

2. HOLD:

Push this key in order to lock the result of the weighing during the weighing

phase. Push the HOLD key again to deactivate the HOLD function.

3. NET:

Net weight function

4. HOLD:

Gross weight function

5.00 Weighing mode

Please read the following important guidelines before you read the detailed

instructions on how you should use the weighing functions:

- You must always make sure that the display shows “Zero” before use.

Press the ZERO key if this is not the case.

- The professional medical digital scale is designed to perform weighing

when the weight is stable. Only rst at this point in time can a correct

weight be read.

- A tilt of more than 3° of the digital scale will result in an incorrect

reading

- Swinging and turning of the scale may cause incorrect weighing. The

personnel must therefore ensure that the person remains calm during the

weighing.

- Avoid tilting or rotating the digital scale horizontally

6.00 Settings and functions

Adjustment of time for automatic shut-o󰀨: This function concerns a period

of time the digital scale is not in operation. Once the amount of time set has

passed, the digital scale will automatically be switched o󰀨.

Time for automatic shut-o󰀨: Programmable 120 sec / 180 sec / 240 sec /

300 sec.

Adjustment of auditory signal: This function concerns the choice of the set-

ting for the auditory signal for ON (switched on) or OFF (switched o󰀨). This

depends upon what the user prefers.

Auditory signal: On/O󰀨

7.00 Choice / change of automatic shut-o󰀨 and auditory signal

Setting for time for automatic shut-o󰀨 -120/180/240/300/o󰀨

(seconds)

Auditory signal ON (beep on) / OFF (beep o󰀨)

Save the settings

Press “Hold” for 3 seconds.

Display showes “Set”.

Note:

“Hold” means “select” go to another selec-

tion horizontally.

On/O󰀨/Zero/Tare means “enter” go to another

selection ver-

tical.

8.00 Settings for the digital scale step-by-step

Example: Setting with AUTO-OFF (auto-shut-o󰀨) after 180 seconds and with

disconnected auditory signal.

Step 1. Press HOLD for 3 seconds in order to go to the settings status

SETUP.

Step 2. Press ZERO in order to go to the status A.OFF, when A.OFF is

shown.

Step 3. Press HOLD in order to select 180 S = time for automatic shut-o󰀨

is 180 sec.

Step 4. Press ZERO in order to select and go back to the A.OFF status,

and press HOLD in order to switch to the setting status BEEP.

Step 5. Press ZERO in order to go to the setting status BEEP, and press

HOLD again in order to choose between ON and OFF.

Step 6. Press ZERO in order to select and go back to the setting status

BEEP.

Step 7. Press HOLD in order to select END, and press ZERO in order to

end selecting the settings.

9.00 Replacement of battery

The model RS digital scale uses 6 AAA alkaline batteries. Read the instruc-

tions below before you use the digital scale.

1. The cover for the battery case is

located on the back side

2. Remove the battery case cover

on the digital scale.

3. Take the battery holder out.

4. Insert 6 AAA alkaline batteries

into the battery holder.

5. Insert the battery holder back into

place again.

6. Insert the cover on the battery

case.

10.00 Error messages

1. Low battery level

This message indicated that the voltage in the batteries is

too low for the digital scale to be able to function. Replace

the batteries

2. High Zero

The load is over the limit when the unit is switched on.

Reduce the load.

3. Low zero

The load is under the limit when the unit is switched on.

Increase the load.

4. Overload or counter error

The load is over the permitted limit, reduce the load and try

again. Contact a Guldmann service center if the problem

persists.

5. Memory error

The programs in the scale contain errors. We ask that you

contact a Guldmann service center if the problem persists.

This manual suits for next models

Table of contents

Other Guldmann Scale manuals

Guldmann

Guldmann 11346 User manual

Popular Scale manuals by other brands

Escali

Escali 25 Lb user manual

Shimadzu

Shimadzu BL3200H instruction manual

Vogue

Vogue F172 User instructions

KERN

KERN MPE 250K100HM operating instructions

Scarlett

Scarlett SC-KS57P33 instruction manual

NOOA

NOOA NOPS3110 user manual

Sepor

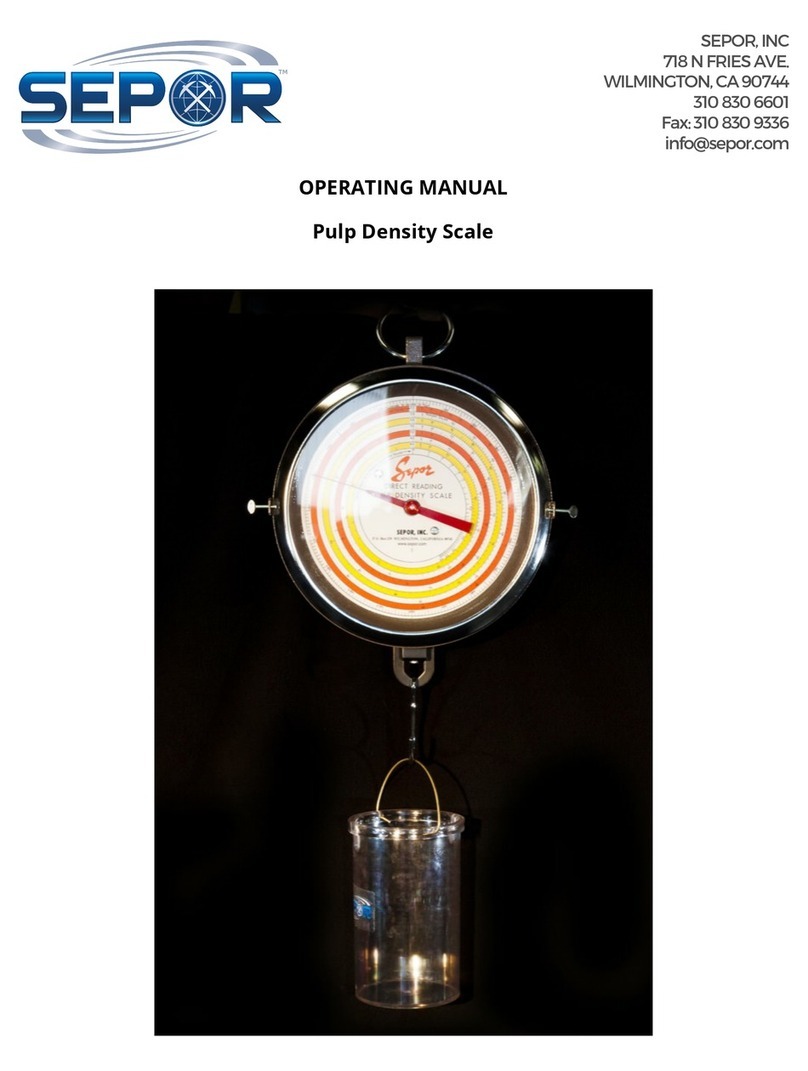

Sepor Pulp Density Scale operating manual

camry

camry EK-19A SERIES Instructions for use

Xavax

Xavax Lea Operating insructions

Health O Meter

Health O Meter 500KL User instructions

Rice Lake

Rice Lake DHH-10BT Operator's manual

Promate

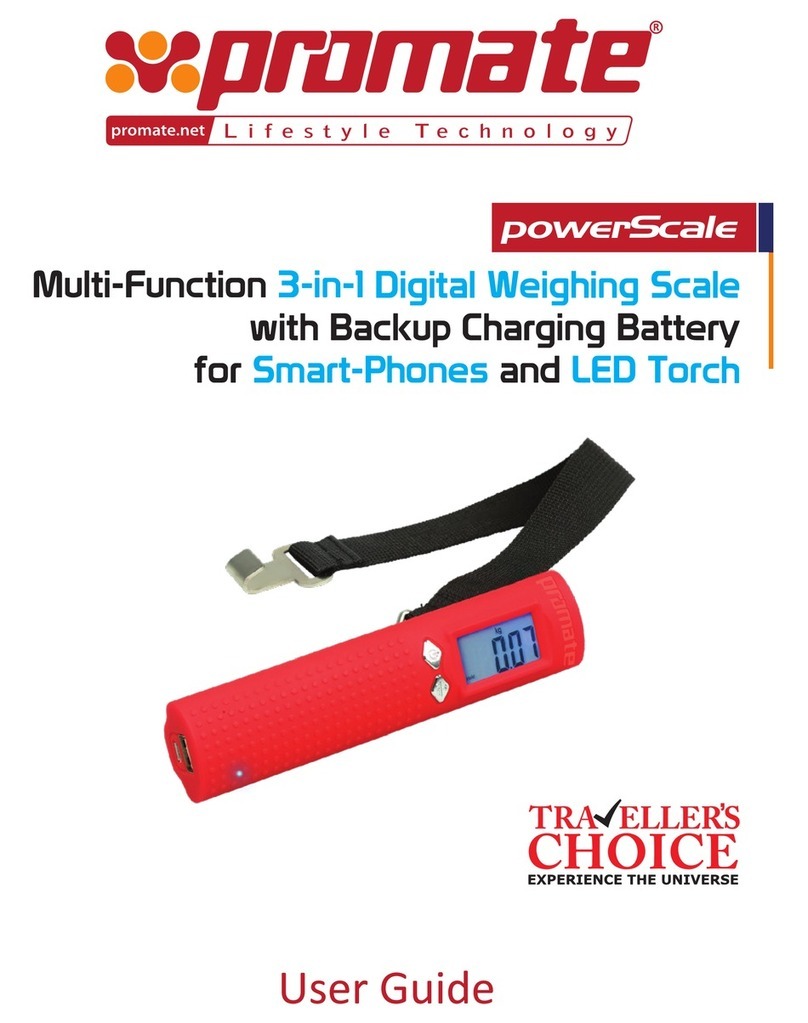

Promate powerScale user guide

Hyundai

Hyundai OVE 813 G instruction manual

Health O Meter

Health O Meter HDM561 user manual

Goclever

Goclever HKSSCALE quick start guide

ScienTECH

ScienTECH Zeta ZSM50 Set up and operating instructions

Fagor

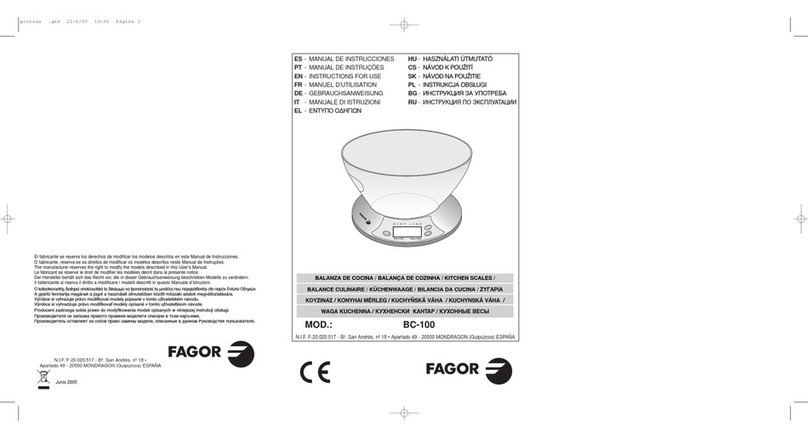

Fagor BC-100 Instructions for use

LEM

LEM 1167 Use & maintenance

Guldmann RS User manual

Popular Scale manuals by other brands
