Health O Meter 500KL User manual

Model 500KL
Eye Level Digital Beam Scale
1
E112697
UL 60601-1
CSA C22.2 No. 601.1-M90
User Instructions
PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com
© Pelstar, LLC 2015
P/N UM500KL Rev 20150305

Model 500KL
Thank you for your purchase of this Health o meter®Professional product. Please read this
manual carefully, and keep it for easy reference or training.
TABLE OF CONTENTS
Caution and Warning.................................................................................................3
Specifications / Definition of Symbols........................................................................5
Certifications / Connectivity / Disposal ......................................................................6
500KL Assembly Instructions ...................................................................................7
Setup / Batteries........................................................................................................15
Quick Start Instructions.............................................................................................17
Maintenance..............................................................................................................21
Calibration.................................................................................................................22
Troubleshooting ........................................................................................................23
Warranty....................................................................................................................24
Note: This scale has been factory calibrated, and does not
require calibration prior to use.
Please register your scale for warranty coverage at:
www.homscales.com
For User Instructions updates and revisions please go to:
www.homscales.com
2

3
CAUTION AND WARNING
When Operating this scale:
To prevent injury and damage to your scale, please follow the enclosed user instructions
to assemble and operate very carefully.
Exercise caution when assembling the scale column.
For accurate weighing, this scale must be placed on a flat, stable surface.
For accurate weighing, verify before each use the proper operation according to the
procedure described in this manual.
Operating this scale at voltages and frequencies other than specified can damage the
equipment and will void the warranty.
Do not transport the scale with any weight on the platform.
Do not exceed recommended weight limit of 500 lb / 220 kg for this scale.
Do not use in the presence of flammable or explosive materials.
For accurate weighing, if the “Lo” indicator activates, replace the batteries or switch to
the optional AC adapter as soon as possible.
If the scale becomes damaged, it should not be operated until properly serviced. All
repairs should only be performed by authorized Health o meter®Professional service
personnel.
When replacing / inserting batteries, be sure to use all new batteries.
To prevent patient injury, the patient must be attended throughout the entire weighing
event.
This equipment has been tested and found to comply with the EMC limits for the Medical
Device Directive 93/42/EEC (EN 55011 Class A and EN 60601-1-2). These limits are
designed to provide reasonable protection against harmful interference in a typical
medical installation. The equipment generates, uses and may radiate radio frequency
energy and, if not installed and used in accordance with these instructions, may cause
harmful interference to other devices in the vicinity. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference with other devices, which can be determined by turning the
equipment off and on, the user is encouraged to try to eliminate the interference by one
or more of the following measures:
oReorient or relocate the receiving device.
oIncrease the separation between the equipment.
oConnect the equipment into an outlet on a circuit different from that to which the
other device(s) is connected.
oConsult Customer Service or a field service technician for help.

4
CAUTION AND WARNING
When operating this scale with the AC adapter:
Operate this scale exclusively with the AC adapter provided by Health o meter
Professional. Use of an unspecified adapter will void the warranty, and can pose a
serious safety hazard.
For use with AC adapter model ADPT30WA (International, plug kit) or ADPT31
(Domestic, USA).
Prior to using this scale, inspect theAC adapter cord for cracking / fraying, or for broken
/ bent plug prongs.
Prior to using this scale, ensure that theAC adapter is plugged into an outlet with the
rated voltage appropriate for operation.
Ensure that the AC adapter outlet is wired to a circuit breaker or other protected power
source.
Ensure that the AC adapter and scale do not come in contact with liquids, excessive
temperature, or excessive humidity.
Unplug the AC adapter, and carefully store both the adapter and adapter cord before
moving the scale.
If the scale is being connected to another medical device, the power adapter must not be
used. Disconnect the power adapter from the scale and use only the battery power.

SPECIFICATIONS FOR THIS SCALE
General
The Model 500KL eye level digital beam scale uses highly sophisticated microprocessor
technology. Each precision scale is designed to provide accurate, reliable and repeatable
weight measurements. In addition, each scale is designed to provide the user with features that
make the weighing process simple, fast, and convenient.
Weight can be displayed in pounds (lb) or in kilograms (kg). This scale can be powered using
an AC adapter (not included), or by 6 - AA batteries (included).
500KL Scale Specifications
Capacity and Resolution 500 lb x 0.2 lb (220 kg x 0.1 kg)
Power Requirements 120 - 240AC, 50 - 60Hz - 9V DC adapter or 6 - AA batteries
Environmental Operating temperatures: 50°F to 104°F (10°C to 40°C)
Storage temperatures: 30°F to 122°F (0°C to 50°C)
Maximum Humidity: 95% RH
Physical Dimensions Scale
(Overall Dimensions)
Width: 14-1/8” (36 cm)
Depth: 21-1/8” (53.8 cm)
Height: 53-5/8” (136.2 cm)
Weight: 21 lb (9.5 kg)
Platform
(Standing Area)
Width: 13-¾” (34.9 cm)
Depth: 16-½” (41.9 cm)
Height: 2-3/8” (6.0 cm)
DEFINITION OF SYMBOLS
5
Attention, Consult Accompanying Documents 40C Temperature range
(10°C to 40°C / 50°F to 104°F)
10C
AC to DC power supply
(9V DC, 500mA)
Humidity range
(10% - 95% RH) DC Connector Polarity
Type BF Applied Parts
Atmospheric pressure range
(500hPa – 1060hPa)
AC to DC power supply

CERTIFICATIONS / CONNECTIVITY / DISPOSAL
Certification Descriptions
Pelstar, LLC has been officially certified as a manufacturer of Health o
meter®Professional medical devices to be in compliance with stringent legal
requirements. The Pelstar, LLC quality assurance system covers the design,
marketing, and distribution of specialized scales for the Healthcare Industry.
This product is tested to and meets the requirements of:
1. UL60601-1 First Edition: Safety for Medical Electrical Equipment
2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment
500KL Scale Connectivity Information
To enable reliable transmission of weight, height, and Body Mass Index (BMI) data, this scale is
designed to connect to a computer, monitor, or other electronic device via a built-in USB port.
This connectivity helps minimize a source of potential medical errors caused by incorrectly
copying and then recording patient data.
This scale is EMR-EHR compatible. For more information regarding how to connect this scale to
other electronic devices, please contact Health o meter®Professional Scales Technical Support,
available during normal business hours at 1-800-638-3722.
500KL Scale Disposal
This Health o meter®Professional scale must be disposed of properly as electronic waste.
Follow the national, regional or local regulations which apply to you for disposal of electronic
waste or batteries. Do not dispose of this device in the domestic waste stream.
6

7
500KL ASSEMBLY INSTRUCTIONS
Before Assembly
Each 500KL eye level digital beam scale is shipped disassembled in one carton. Carefully
inspect the carton for shipping damage before unpacking. If damage is found, contact your
shipper or a Health o meter®Professional representative immediately at 1-800-815-6615.
Claims must be filed with the shipper as soon as possible after receipt of the package. The
following information details what you will find inside the main carton as you unpack the parts for
assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the
protective inner packaging.
Parts List
Carton
(1) Scale platform
(1) Upper column (w / display assembly)
(1) Lower column
(6) AA batteries
(1) User instructions
(1) Upper height rod (w / head assembly)
(1) Lower height rod
Hardware attached to column
Tools Required
Phillips head screwdriver (not included)

8
500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Assembling the 500KL Scale (Refer to Figures 1 - 11)
Caution: It is recommended that the assembly be performed by two persons.
1. Carefully remove the scale platform Cand columns Aand Bfrom the carton. Place the scale
platform and columns on a flat, level, and dry surface (see Figure 1).
2. Remove the 4 small screws and washers from the bottom of column B(see Figures 1 & 2).
3. Locate cable connector inside column A(see Figures 1 & 3).
4. While holding column A, slide the cable connector through the top of column B. The top of
column Bhas a notch (see Figures 1 & 5).
5. Plug the cable connector into the RJ jack, located on the scale platform C(see Figures 1 & 4).
Note: Ensure that the cable connector is correctly plugged into the RJ jack.
6. Align column A and column B. Snap the locking tab into place. Ensure that the locking tab is
locked securely into place (see Figures 1 & 5).
7. Position and secure the connected columns Aand B to the scale platform C.
8. Insert the 4 small screws through the bottom of the scale platform Cscrew holes and into
column B. Ensure that washers are located between the screw heads and the scale platform
Cscrew holes (see Figures 1, 6, & 7).
9. Using a Phillips head screwdriver, tighten the screws to secure column Bto the base of the
scale platform C(see Figure 1, 6, & 7).
Note: Ensure that the screws are fully tightened to prevent damage to the scale.
10. Locate the upper height rod Dand lower height rod Efrom the carton (see Figure 1).
11. Align the upper height rod Dwith the lower height rod E. Snap the locking tab into place.
Ensure locking tab is securely locked (see Figures 8 & 9).
12. Position the bottom of the fully assembled height rod into the height rod opening Gat the top
of the upper column A. Press locking tab Finward to insert the height rod into the height rod
opening G(see Figures 1 & 10).
13. The scale is now assembled and ready for use (see Figure 11).

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Figure 1
Screws and washers
Column
B
Figure 2
9

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Cable connecto
r
Column
A
Figure 3
RJ jack
Scale platform C
Figure 4
10

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Column
A
Locking
tab
Notch
Column
B
Figure 5
Screw
holes Screw
holes
Scale platform C
Figure 6
11

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Adaptor Jack
Washe
r
Screws
Figure 7
Upper height rod D
Locking
tab
Notch
Lower height rod E
Figure 8
12

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Fully assembled height rod
Figure 9
Locking tab FHeight rod
opening G
Height rod E
Column
A
Figure 10
13

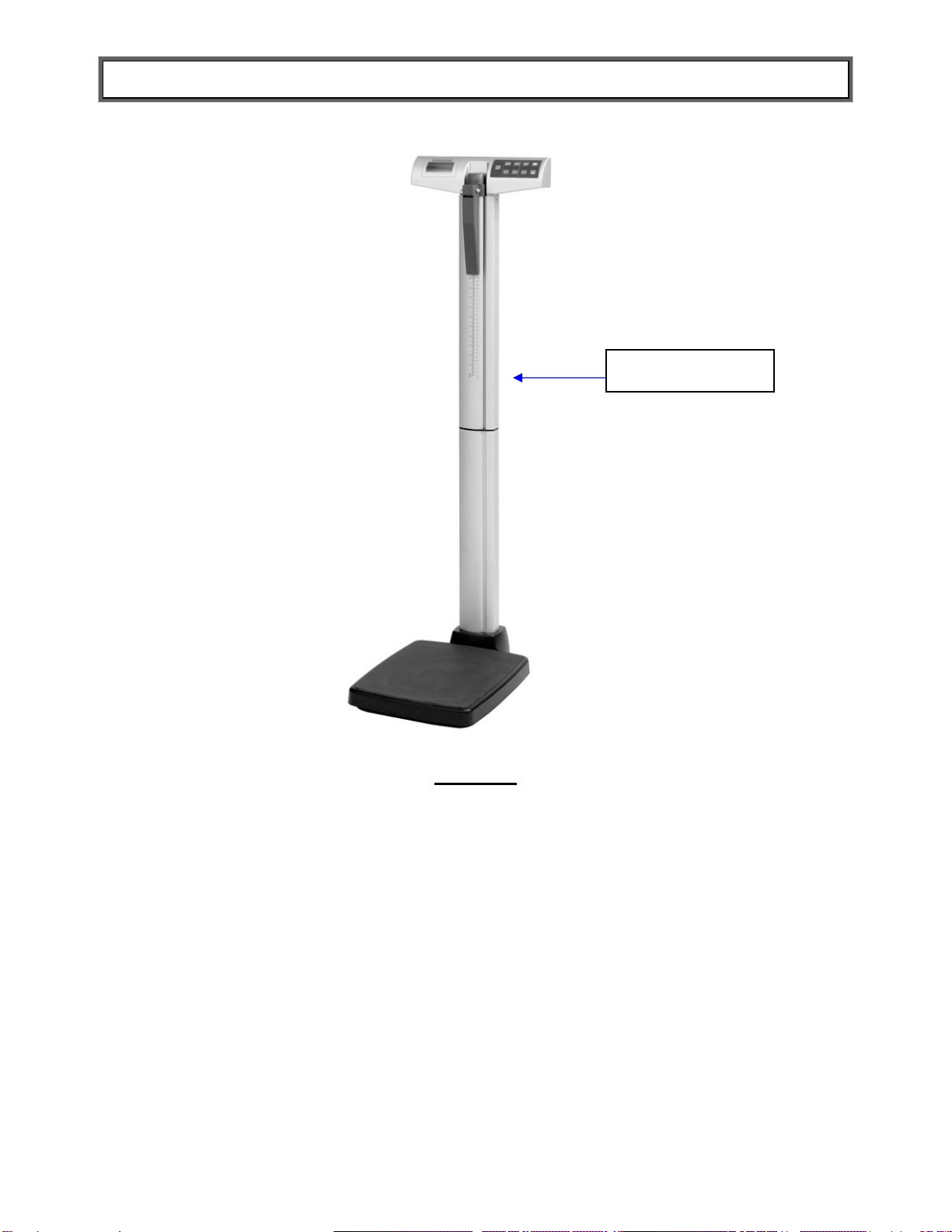

500KL ASSEMBLY INSTRUCTIONS (CONTINUED)
Final assembly
Figure 11
14

15
SETUP / BATTERIES
Preparing the 500KL Scale for Use
Replacing / Inserting Batteries
1. Remove the protective plastic film covering the display (the film says “FACTORY
CALIBRATED”).
2. Unplug the optional AC adapter, if connected to a power source.
3. With a Phillips head screwdriver remove the screw from the battery compartment cover and
remove the battery cover on the back of the display assembly by pressing the locking tab (see
Figure 12).
4. Replace or install the batteries with new units. Health o meter®Professional recommends
using an alkaline or lithium battery, rated for 130°F (54°C) operation. Do not use zinc-carbon
batteries.
5. Re-attach the battery cover to the display assembly.
6. Ensure all objects are removed from the scale’s assembly, and then press the ON/OFF
button to turn the scale on. The display will show “Start”, then “0.0” LB or “0.0” KG. Press the
LB/KG button to select the weight mode (LB or KG).
Note: This scale will always default to the settings and units last used (LB or KG).
Note: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is
not corrected, refer to qualified service personnel.
Warning: If the scale will not be used for some time, remove the batteries to avoid a
safety hazard. Disposal of batteries must be performed in accordance with the prevailing
national, regional or local regulations which apply to you.
Optional AC Adapter
1. Connect the AC adapter (not included) into the adaptor jack on the scale platform C(see
Figure 7).
Warning: To avoid a safety hazard, use AC adapter model ADPT30WA (International, plug
kit) or ADPT31 (Domestic, USA).
2. Plug the scale’s AC adapter into the power source.
3. When the AC adapter is disconnected from the scale, the scale will switch to battery power if
batteries are installed.
Note: If the set up procedure failed, refer to the troubleshooting instructions. If the problem is
not corrected, refer to qualified service personnel.

SETUP / BATTERIES
Locking tab
Battery cover
Display assembly
Figure 12
16

QUICK START / OPERATING INSTRUCTIONS
Keypad
Figure 13
Function Description
ON/OFF Turns scale on and off.
ZERO Tares the scale prior to a weighing.
HOLD/RELEASE Holds the weight value of the patient on the display until the button is
pressed again to clear the value.
BMI Prompts entry of height data to calculate patient’s Body Mass Index
(BMI).
LB/KG Toggles between pounds (LB) and kilograms (KG).
CLEAR Clears the incorrect height input when in BMI mode.
UP▲Increases height input (0.5 in / 0.5 cm increments)
DOWN▼Decreases height input (0.5 in / 0.5 cm increments)
ENTER Used to accept height value in BMI mode.
17

18
QUICK START / OPERATING INSTRUCTIONS (CONT)
Auto-Off Function
As an energy saving feature, the scale will automatically turn off after 2 minutes of inactivity. By
default this function is enabled.
Disable Auto-Off
1. While the scale is turned off, press and hold the HOLD/RELEASE button.
2. While holding the HOLD/RELEASE button, press the ON/OFF button to turn the scale on.
3. START will briefly appear on the display followed by “AOF=0”.
4. Auto-off is now disabled and the scale will remain on until the scale is manually turned off.
Enable Auto-Off
1. While the scale is turned off, press and hold the HOLD/RELEASE button.
2. While holding the HOLD/RELEASE button, press the ON/OFF button to turn the scale on.
3. START will briefly appear on the display followed by “AOF=1”.
4. Auto-off is now enabled.
KG and LB Lock Out
Note: The default weighing mode for this scale can be changed from LB/KG to KG only or LB
only.
To Change Weighing Mode:
1. Press the ON/OFF button to turn the scale on.
2. Wait for “0.0” LB or “0.0” KG to appear on the display.
3. Press and hold the LB/KG button until the unit of measure begins to flash.
4. Release the LB/KG button and the scale will operate in the selected mode.
5. Repeat steps 3-4 to change the weighing mode to a different unit of measure as the default
for use.

19
QUICK START / OPERATING INSTRUCTIONS (CONT)
Weighing a Patient
Note: When this scale is turned on, it will always default to the settings and units last used (LB
or KG).
1. Make sure there is no object on the scale platform.
2. Press the ON/OFF button to turn the display assembly on.
3. Wait until the “0.0” LB or “0.0” KG appears on the display.
4. Ask the patient to step on the scale. The scale will begin to display weight information and will
lock on the patient’s weight when the stable weight of the patient is determined. Depending on
the movement of the patient on the scale, it may take several seconds for the scale to lock onto
the weight.
Caution: To prevent patient injury, the patient must be attended throughout the entire
weighing event.
5. The weight may be held on the display by pressing the HOLD/RELEASE button. To release,
press the HOLD/RELEASE button again.
6. After the weight measurement has been taken and is recorded, have the patient step off the
scale.
7. Press the ON/OFF button to turn the scale off.
BMI Function
Body Mass Index is another name for Quetelet Index, a formula that is a convenient indicator of
BMI with various exemptions, such as athletes, children, the elderly, and the infirm.
Note: The scale will not calculate BMI for a patient that is 24 pounds (12 kg) or less. If a height
is not entered for the patient within 30 seconds of pressing the BMI button, the scale will return
to the normal weighing mode.
1. Make sure there is no object on the weighing platform.
2. Press the ON/OFF button to turn the scale on.
3. Wait until the “0.0” LB or “0.0” KG appears on the display.
4. Ask the patient to step on the scale. The scale will begin to display weight information and will
lock on the patient’s weight when the stable weight of the patient is determined. Depending on
the movement of the patient on the scale, it may take several seconds for the scale to lock onto
the weight.
5. After obtaining the patient’s weight on the scale, press the BMI button while the scale is on.
6. The scale will prompt you to enter the patient’s height. Use the keypad ▲and ▼buttons to
enter the patient’s height.
Note: When weighing in pounds, the height is displayed in inches. When weighing in kilograms,
the height is displayed in centimeters.
7. Once height is keyed in, press the ENTER button.
8. The display will show the patient’s BMI.
9. Press the CLEAR button to return to the normal weighing mode of the scale.

QUICK START / OPERATING INSTRUCTIONS (CONT)
Zero Function
When using this scale, the weight of an object, can be zeroed out allowing additional weight to
be added and displayed. The zero function automatically performs this subtraction.
Note: Ensure there are no objects on the scale platform.
Zero (Push Button)
1. With all weight off the scale, press the ON/OFF button to turn on the scale.
2. Wait until the “0.0” LB appears on the display.
3. Set the unit (LB or KG).
3. Place the object on the scale. The display will show a value for the object’s weight.
4. Press the ZERO button. The word “TARE” will appear on the display, followed by “0.0” LB or
“0.0” KG.
5. Place additional item (object) on the platform and only the weight of the additional item will be
displayed.
6. When you remove the item from the platform “under” will be temporally displayed and then
the displayed will return to “0.0” LB
Reading Height Rod Measurements
Measure here for heights
less than 48.5”
Measure here for heights
greater than 48.5”
Figure 14
20
