Gulfstream La Tulip 2 User manual

Chair 9622 Chair 9640Chair 9620-1
PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE
OWNER MANUAL
Cleanjet MAX®, La Tulip2 and La Tulip 3™, Gulfstream Inc.®are trademarks of Gulfstream Inc.
Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444,
#D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882,
#D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182
© 2014 All rights reserved. Design and Specifications are subject to change without notice.

Table of Contents
Safety and Precautions ...................................................................................... 1-2
Identifying Parts.................................................................................................. 3-4
Foot-Spa Clearance ........................................................................................... 5
INSTALLATIONS
Attaching Seat .................................................................................................... 6
Jet Assembly ...................................................................................................... 7-8
Plumbing Connections ....................................................................................... 9-10
Operations and Use ........................................................................................... 11-12
Cleaning & Maintenance .................................................................................... 13-14
Warranty & Service ............................................................................................ 15
Owner Manual

SAFETY & PRECAUTION 1
Thank you for purchasing the La Tulip 2 - 3 spa from Gulfstream Inc. Please carefully read the instructions before
installing the spa. Carefully follow the instructions and your spa will give you years of beauty and service.
This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct
operation. If a Class A GFCI protected outlet is not available, DO NOT USE THIS PRODUCT! Please
contact a licensed electrician for installation of a Class A GFCI according to local electric codes, or equivalent.
THIS PRODUCT IS FOR IN DOOR USE ONLY
DISCONNECT POWER SUPPLY CORD BEFORE SERVICING AND CLEANING
Foot-spa must be installed by a licensed plumber and electrician in accordance with local codes. Plumbing and
Electrical Installation instructions must be adhered to in order for the warranty to be in effect and to ensure the utmost
in safety. Chair and spa have a maximum seating capacity of 350 pounds.
The foot-spa is not intended to be stood in or used as a step. The portable foot-spa model is movable, standing in tub
or using as a step may cause severe damage to the unit as well as possible serious injury to the person.
Warning
If a crack occurs in the glass bowl, DO NOT manually handle the bowl unless the proper attire is worn.
Under no circumstances may the bowl be used by your customers as you could be held accountable for
any injury that may occur. Gulfstream is not liable for any injury that may occur.
Warning
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised
at all times
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
1. Excessive water temperature is dangerous and should be checked BEFORE use.
2. Maximum temperature of the water should never exceed 100 degrees F.
3. Always enter and exit the Foot Spa slowly and carefully.
4. NEVER bring and / or operate any electrical devices into or near the Foot Spa.
Warning

SAFETY & PRECAUTION 2
GROUNDING METHODS
Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI),
DO NOT use a grounding adapter.
The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code.
GROUNDING INSTRUCTIONS
This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter. The ground-fault
interrupter can be in the out-let shown in illustration A or in the circuit breaker (fuse) box. If your outlet or circuit breaker
(fuse) box is not equipped with a ground-fault interrupter, you must have your electrician install one (5 amps/unit
required).
In the event of an electrical short-circuit, the ground-fault circuit interrupter will turn off the electrical power to the unit
immediately, greatly reducing the likelihood of serious injury. This appliance is for use with a nominal 120-volt circuit and
has a grounding plug that looks like the plug illustrated in the sketch. The outlet must be properly installed and grounded
in compliance with all local codes and ordinances.
If it is necessary to use an extension cord, use only a three-wire extension cord that has a three-blade grounding plug
and a three-slot receptacle that will accept the plug on the appliance.
Replace any damaged cord.
OPERATION AND USE INSTRUCTIONS, (READ AND FOLLOW ALL INSTRUCTIONS)
1. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised
at all times.
2. CAUTION: This unit should not be used by persons with open wounds, cuts or sores on their feet or legs, or by
persons with poor circulation, or by persons with heart conditions. If in doubt, the client should consult with his
or her physician.
3. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer
4. Do no operate with a damaged cord or plug. If unit malfunctions or is damaged in any manner,
contact an authorized service representative for examination or repair.
5. Never drop or insert any objects into any opening.
6. Do not block jets during pedicure operation.
7. Water temperature should be checked before use. Water temperature should never exceed 100 degrees
Fahrenheit.
8. Never bring any electrical devices into the unit or operate electrical devices near it.
9. The unit must be connected to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI).
10. Connect the unit only to a properly grounded outlet. See grounding instructions.
11. Close supervision is necessary when the unit is used by, on or near children or invalids.
IMPORTANT! At the end of the day, ALWAYS turn the main power OFF!
including the power switch on the chair.
Warning
Grounding PIN
GROUND-FAULT
INTERRUPTER OUTLET
NEMA 5-15R
NOT INCLUDED
A B
COMPLIANCE WITH LOCAL CODES AND/OR
INSPECTIONS IS THE RESPONSIBILITY OF
THE PURCHASER AND/OR INSTALLER

IDENTIFY YOUR FOOT-SPA 3
1. Chair Remote Control
2. Headrest Pillow
3. Back Cushion & Massage
4. Seat Cushion
5. Wooden Armrest
6. Flip-up Manicure Tray
(Swing-out Accessories Bowl Access is available
in the 9622 and 9620-1 chairs.)
7. Glass Bowl
8. Jet Control
9. Water Mixer Control
10. Hand Spray under Footrest
11. Adjustable Footrest
12. Drain Control
13. Jet
14. Drain
15. Discharge Pump Switch (Optional)
14
13
Front
Back
2
3
4
1
5
6
10
8 79
12
11
15 12

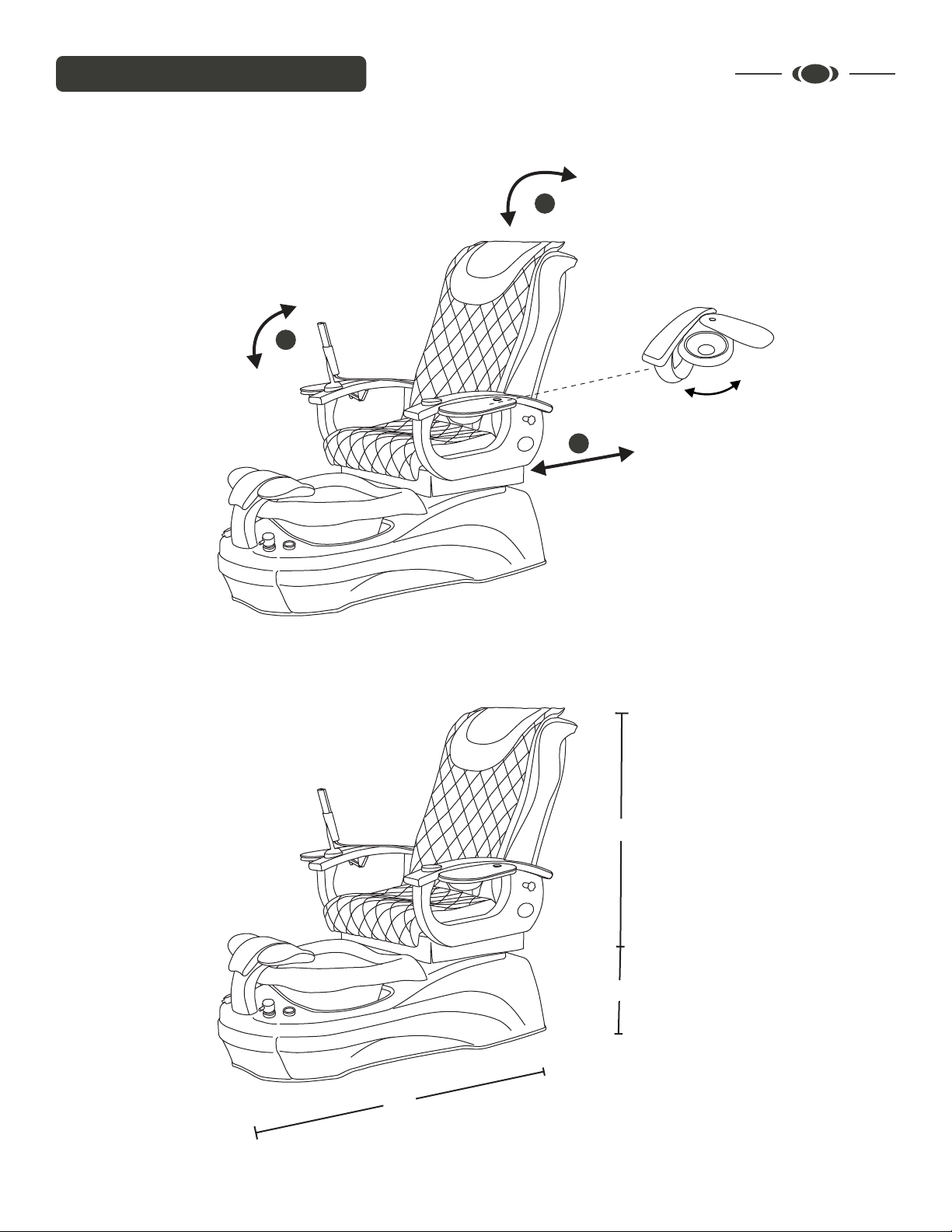

SEAT OPERATION
SPA DIMENSION
IDENTIFY YOUR FOOT-SPA 4
15’’
55’’
43’’
1
2
3
Armrest can be raised up/down
Manicure tray can be folded up/down
Chair Sliding
Reclining 25°
Swing out manicure tray to use
accessories bowl
(Swing-out Accessories Bowl Access is
available in the 9622 and 9620-1 chairs.)

TYPICAL FOOT-SPAS
WALL CLEARANCE
Wall
20’’
34.5’’
Distance from center drain
to the back of the spa
60’’
60’’
16’’16’’ 16’’ 16’’
28’’
Foot-spa #1
Center Center
Foot-spa #2
Clearance
27’’ 27’’
FOOT-SPA CLEARANCE 5

INSTALLATIONS 6
Attaching The Seat to The Base
Align the seat with the pre-drilled holes on the base then
tightly secure with the nuts and bolts provided.
Attach trays or remote stand to armrest with screws provided.

Cleanjet Unit Removal
Plate & Anchors located on tub/bowl wall
Impeller HousingBanana Plug
Top Plate
Wall
Ball
Bushing
Anchor Pegs
To remove the jet unit from tub/bowl.
Gently pull out the jet unit from the anchor pegs
To remove the jet unit components. Pull-out Banana Plug then
turn the top plate counter-clockwise in the arrow direction
Jet Unit Components
Screws
To install the jet unit. Assemble all jet unit components in order as before removal, snap the jet unit onto the anchor pegs
located on tub/bowl wall securely.
Note: All jet unit components must be assembled in sequence of order to avoid malfunction.
Please call manufacturer for repair or replacement
INSTALLATIONS 7

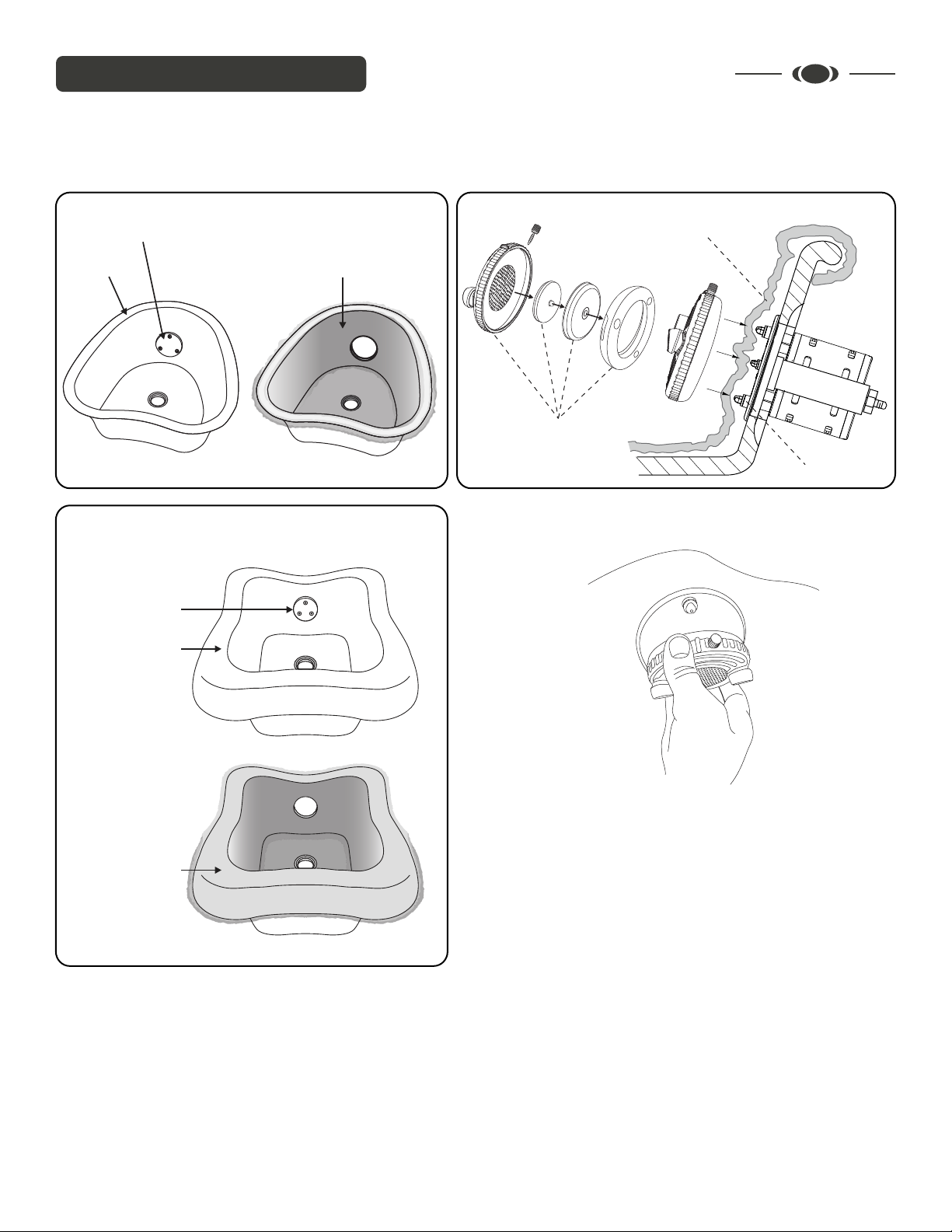

Poly Liner Installation
Fit elastic edge over bowl rim and form liner to bowl contours as
shown in the Fig.1
Align the impeller unit onto the anchor pegs and pushit onto the
base plate as shown in Fig.2
To remove, gently pull the impeller unit as shown in Fig.3 from the
base plate and pierce liner over drain, then once drained, pull up
the plastic liner.
To avoid risk of infection disease, discard the liner after each use.
INSTALLATIONS 8
Fig.3
Soft Plastic Liner
on the Glass Bowl
Soft Plastic Liner
on the Glass Bowl
Base Plate Fixed
to Motor Behind
Fig.1 (La Tulip 3)
Glass Bowl
Fig.1 (La Tulip 2)
Base Plate Fixed
to Motor Behind
Glass Bowl
Soft Plastic Liner
Impeller Housing
Anchor Pegs
Fig.2

INSTALLATIONS 9
Typical Gravity Sink (Direct Drain)
Installation Wall
GFI Outlet Required
Floor
½” Hot & Cold Hoses
Optional
P-Trap supplied by plumber
Gravity Sink
2’’ - 3’’ drain pipe
to sewer line
16’’-24’’
Existing ½’’ Hot & Cold
Water Supply
Backwater valve sold
separately
Plumbing Connections
1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up to 7 ft high, but this
will increase the length of the drain time. The drain connection is at the rear of the unit by a 3/4” fitting.
2. Gravity drain uses a standard gravity drain. A floor drain is recommended. P-Trap is not installed nor supplied.
The floor drain should already have a P-Trap and the UPC codes do not allow double P-Traps in the system.
3. Hot and cold water supply connections are located at the rear of the unit (½” fittings).
Please be advised that the hot and cold water supply lines are not fitted with optional back flow Preventers unless
ordered at initial sale.
4. Have a qualified licensed electrician to install the wiring according to local codes.
The Cleanjets are 1/18 HP, 120V A.C., 0.55 AMP. 60HZ. GFI protected circuit must be used to supply power to
the unit. The roller back massage chair uses a 115V A.C. supply.
5. Spa base should be anchored securely to the floor. The base may be anchored through
the opening in the back of the base wherever access is convenient for the installer.
6. Hand held sprayer is Model ST700.20. It has complied with applicable requirements of ASME A112.18.1-2005/CSA
B125.1-05
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE UNIT. DAMAGE
AS A RESULT WILL VOID THE WARRANTY.

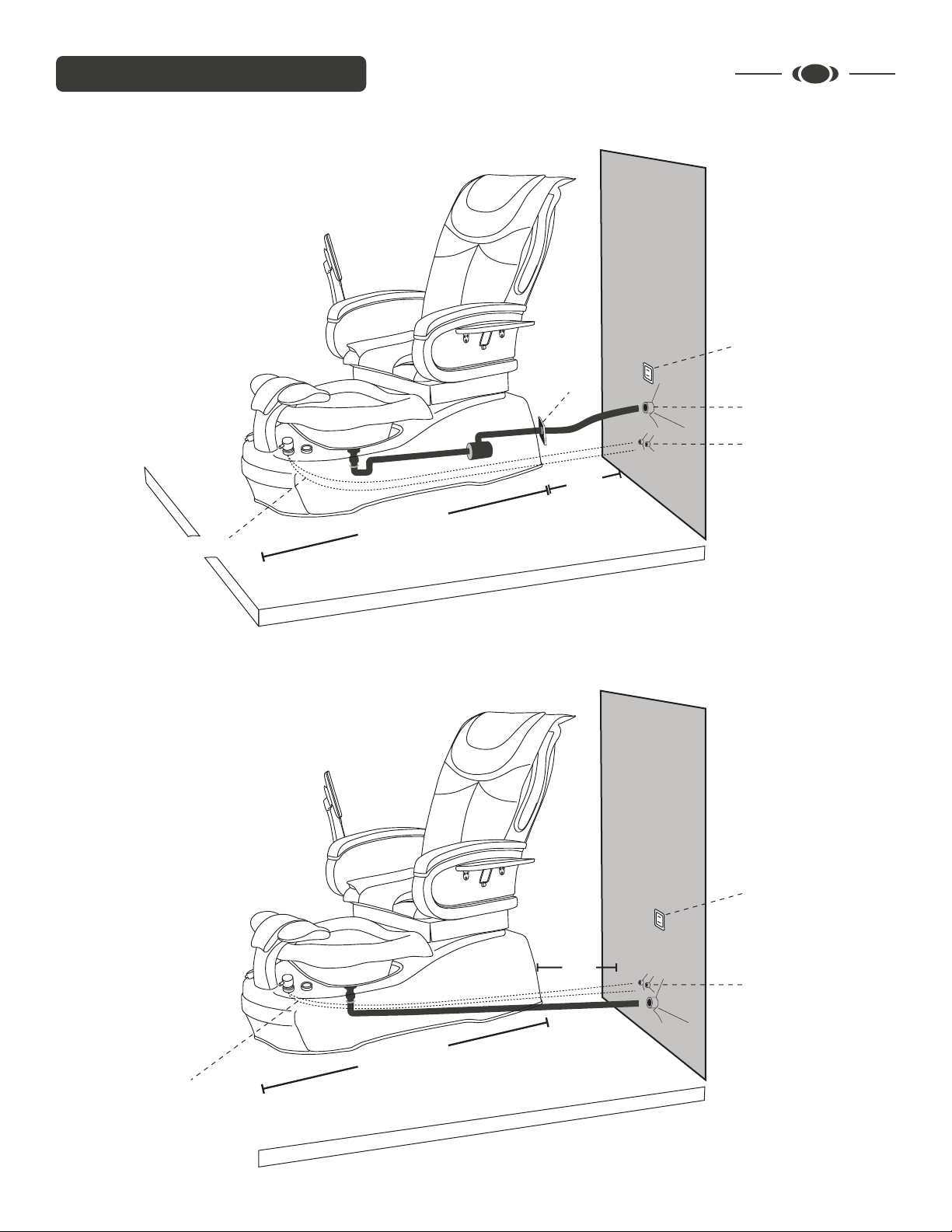

Typical Discharge Pump Installation
Wall
GFI Outlet Required
Floor
P-Trap supplied by plumber
½” Hot & Cold Hoses
16’’-24’’
Existing ½’’ Hot & Cold
Water Supply
Backwater valve sold
separately
Foot-spa Length
Foot-spa Length
Existing
Drain
Pipe
INSTALLATIONS 10

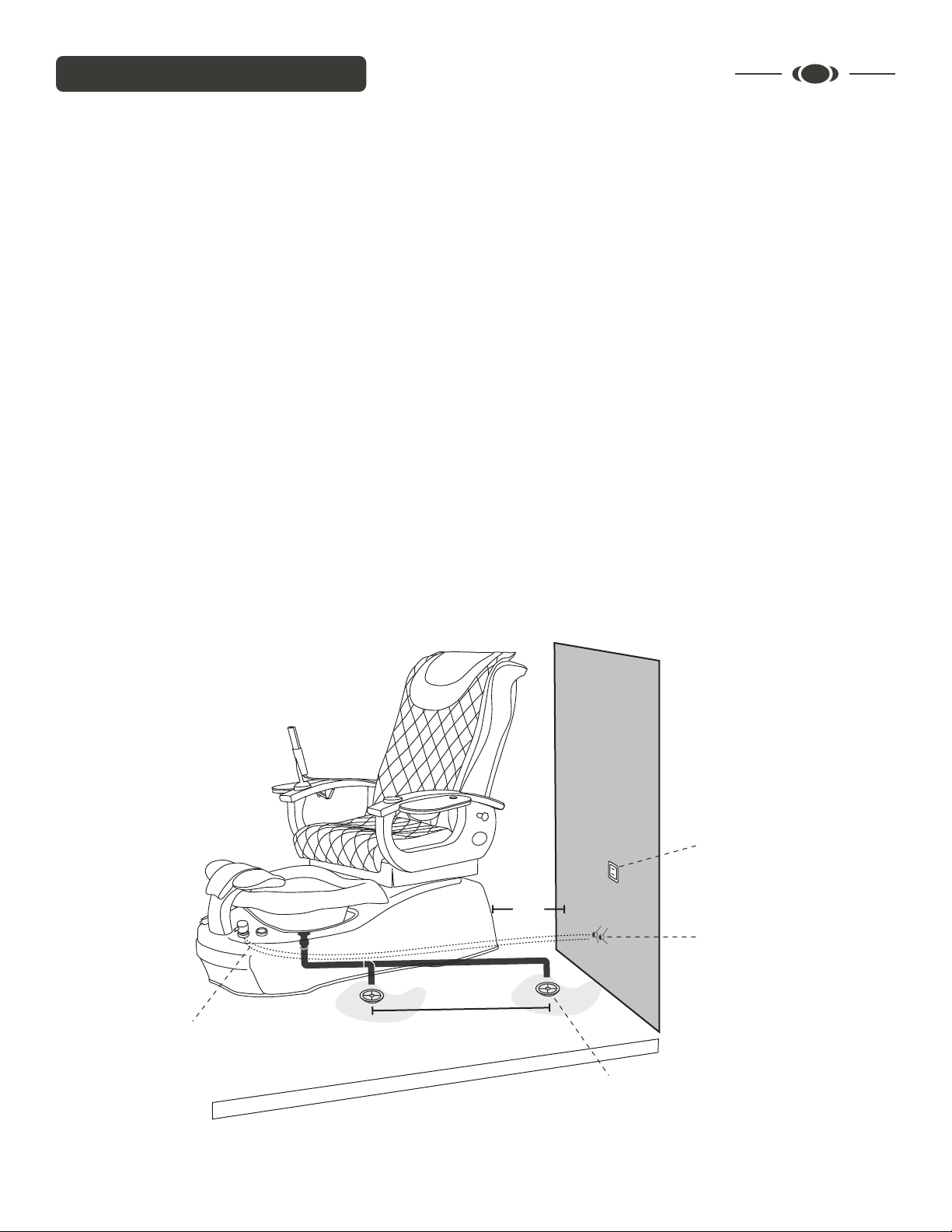

Typical Gravity Sink (Direct Drain)
Installation
Wall
GFI Outlet Required
Floor
½” Hot & Cold Hoses
Existing ½’’ Hot & Cold
Water Supply
Backwater valve sold
separately
Existing Drain Pipe
Backwater Valve
sold separately
16’’ - 24’’

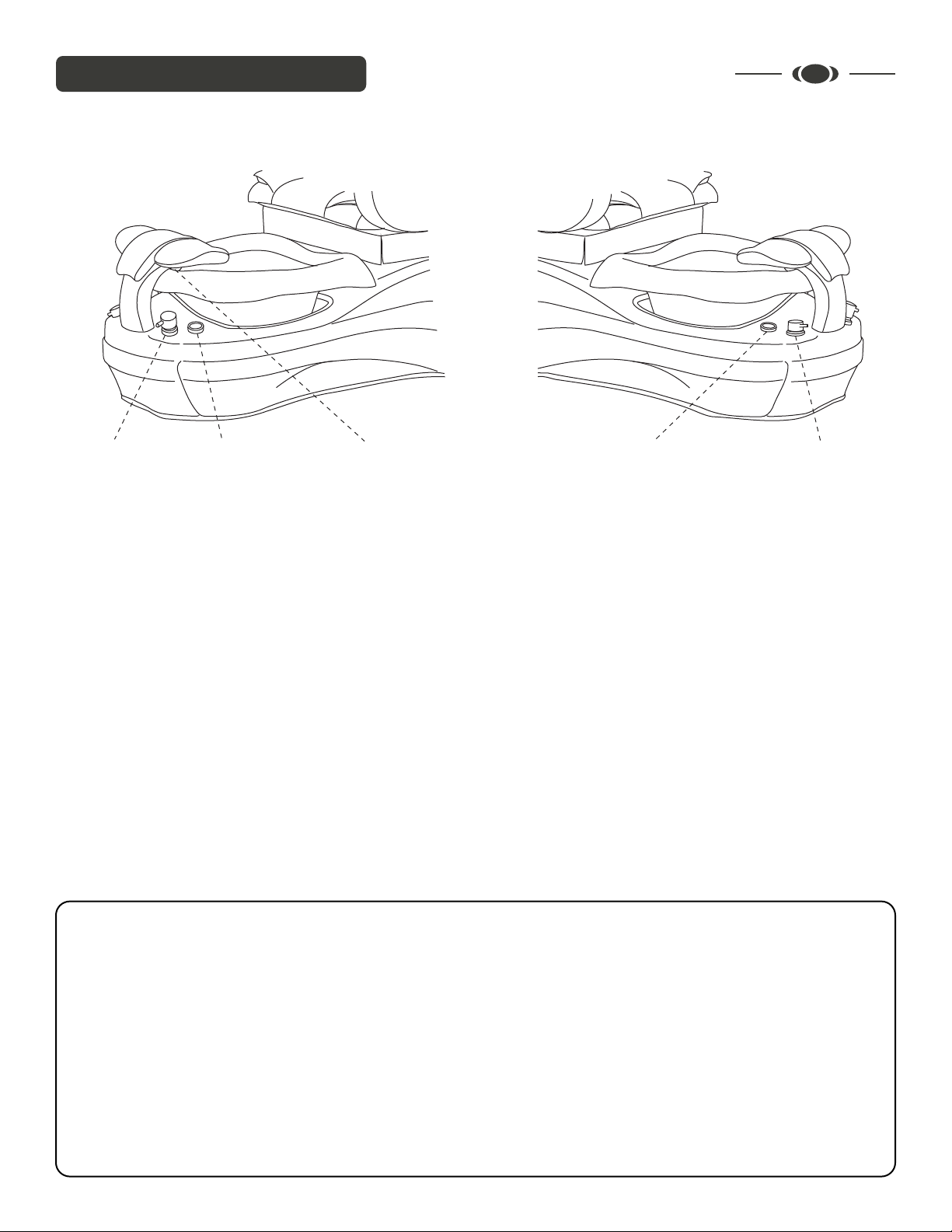

Control Panel (Left and Right Side)
OPERATIONS & USE 11
1. To fill water:
The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa.
This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to the
temperature that is desired. The clean jet motor must be completely submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING OR MINERAL OIL BASED ADDITIVES IN THE WATER.
2. To start whirlpool:
Press the button as shown. This will start your Clean Jet motor. You may stop the whirlpool function at any time by
pressing the button again.
3. To drain whirlpool tub:
The spa is equipped with a built in optional discharge pump. Open the drain plug by turning the control knob on the
front of the spa base. Press discharge pump timer button as shown (pump will run for approx. 2 min.) Average time
for drain 1 minute.
4. Chairs Shiatsu Roller back massage is equipped with a state of-the-art massage system. The massage system is
easy to use; the remote has a one touch power that starts select your own massage. You can also adjust the front to
rear position of the chair and the reclining back. By using the remote your client can adjust the back to the most
comfortable position.
Note: Read and Follow Chair Manual Instructions
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised
at all times.
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
Hand Spray under Footrest
Water Mixer Jet (On/Off) Discharge Pump Switch (Optional) Drain Control

Shiatsu Remote Control
9620-1 / 9622 9640
Please refer to instruction manual for operations
power
timing
auto programs
manual modes upper
lower
comfort
seat massage
position
seat back
speed
position
pause
neck&shoulder
percussion+knead
percussion
vibrating
massage
intensity
kneading
back&waist
auto
width
AUTO
MODE
UPPER BODY
BACK
WAIST
POWER TIMING
NECK
SHOULDER
KNEAD FLAP
PRESS
SPEED
MANUAL
BACK
STRETCHING
WIDTH
KNOCK
KNEAD
& FLAP
LOWER BODY AIRBAG
On/off
SEAT INTENSITYMODE
OPERATIONS & USE 12

131313
Please refer the diagrams to remove jet covers for cleaning
Gulfstream Inc. highly recommends the following cleaning regimen. You should always contact your local governing
agency for their specific cleaning and disinfecting requirements and regulations for pedicure spas. For your clients
safety, always use the regulations as a minimum standard for cleaning and disinfecting. Combining your states
standards with the regimen listed below will provide your clients with a safe and healthy pedicure spa environment
experience.
Routine maintenance:
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge, are all that are usually
needed. A soft bristled brush may be used when excessive residue is present. Use a mild soap and water solution to
clean the upholstery, but do not over wet. Wipe dry with a clean towel. No internal maintenance of the spa
components is necessary. Remove clean jet caps and spray with disinfectant after each use. For extra protection,
our recommendation is that the system be flushed daily or weekly depending on use. To flush the clean jet system fill
spa with hot water to just above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry with
clean soft cloth.
The use of oil based products can build up in the whirlpool system causing clogging in the jets. Adherence to the
above cleaning will minimize build up. Gulfstream Inc. does not recommend the use of mineral oil based products.
TESTING/FLUSHING FOOT SPA
After foot spa has been installed, fill tub with water just above the jets. Carefully check for leaks at drain and motor
mount. After checking underside for leaks turn on system by pushing whirlpool button and watch for leaks as water
circulates. Let tub run full cycle. Open drain plug for water discharge.
NOTE:
Cleaning or sanitizing is NOT disinfecting. According to the Centers for Disease Control and Prevention (CDC), and
the US Environmental Protection Agency (EPA), disinfecting occurs only when there is a reduction of pathogenic
microbes at 99.999%. Sanitizing is only a reduction of 99.9%. Cleaning of whirlpool pedicure spas requires surfactant
and chelating detergents that are low-foaming and have the ability to remove body oils, organic oil additives, mineral
oil, skin cells, nail clippings etc that can accumulate both in the basin and the jets which may become a fertile area
for micro organisms to grow.
CLEANING & MAINTENANCE& USE

Cleaning The Magnet Jet (Step by Step)
Magnet Jet Components
1. Pull Magnet Jet Cap off from the Retainer Plate in the pedicure bowl.
2. Remove blackheaded banana plug from outside rim.
3. Turn the Top Cover off the Magnetic Jet Cap counter-clockwise.
4. Separate the three components of the Magnetic Jet Cap: Top Cover, Magnet and Back Cover.
5. Wash each component of the Magnetic Jet Cap in a recommended or high quality solution or cleaning agent.
6. Reassemble the Magnet Jet Cap using the following directions:
- Put the Magnet, with the three circles facing upwards, in the center of the Back Cover.
- Take Top Cover and place over Magnet, offset pre-drilled holes on the outer edge, twist Top Cover,
clockwise with Back Cover until holes are aligned, push in banana plug.
- Remount the Magnetic Jet Cap over the white pegs on Retainer Plate in pedicure bowl
so that the banana plug is at the top.
Back Plate
with Insert
Back Plate
Insert
Magnet front
Rubber Ring
Top Plate
(Wet end)
Magnet back
with ball
Banana Plug
Warning
!
- Do not run Cleanjet®MAX without water. This will void your warranty
- Do not place two wet ends in the same bowl when cleaning
the jet’s strong magnets could cause injury (pins your fingers)
- Do not attach two wet ends to each other. Doing so will cause
breakage to wet ends and will void the warranty
CLEANING & MAINTENANCE& USE 14

No dealer or other person has any authority to bind Gulfstream Inc. to changes or additions to this warranty or its products.
Accordingly, Gulfstream Inc. Is not responsible for such warranties or representations.
OPERATIONS & USE 13 OPERATIONS & USE 13 WARRANTY & SERVICE 15
Gulfstream warrants to the original purchaser that the new pedicure spa will be free from defect during the Standard Warranty Period
(listed below). The shipping date and the uniquely-coded Serial Number on the back of each spa chair will justify the start of the
warranty period for the product. The warranty is null and void if the pedicure spa is taken from its initial place of installation, or it is not
installed in accordance with federal, state or local codes and ordinances. Also, this warranty does not apply if the pedicure spa has
been subject to misapplication, improper installation or maintenance, negligence, improper cleaning or other circumstances beyond
Gulfstream's control.
Warranty
1. Limited Three(3) Years warranty on Spa Shell.
2. Limited One(1) Year warranty on the Whirlpool Pump.
3.. Limited One(1) Year warranty on the Clean Jet.
4. Limited One(1) Year warranty on the Glass Bowl.
5. Limited One(1) Year Parts-Only warranty which covers the Hydraulic System, Discharge Pump, Massage System and All
Electrical Components.
6. Gulfstream will pay standard shipping charges on all replacement parts during the first 90 days of the stated Warranty Period.
After 90 days the consumer is responsible for all labor and shipping costs incurred.
Exclusions
1. Damage to pump parts and/or motor parts due to obstruction in plumbing lines etc.
2. Staining, fading or discoloration of plastic surfaces due to exposure and/or the use of harmful cleaning agents or chemicals.
3. Staining, fading or discoloration caused by improper or poor water additives not related to the maintenance of proper water
are not covered by this warranty.
4. Staining, fading or discoloration of the seat, armrests or footrests.
5. Freight damage, misuse, neglect, accident, natural disaster and abuse.
6. Unauthorized repairs.
Service
1. The Dealer shall forward all warranty-related matters to our Customer Service Department.
2. Serial Numbers and Original Invoice must accompany all warranty claims.
3. Customers are responsible for shipping defective parts back to Gulfstream. These parts must be packaged correctly in order to
protect against any further damage.
4. All parts are to be shipped by UPS Ground Service, average 2-5 days.
5. All defective parts must be shipped back to Gulfstream within 30 days of receiving the new replacement parts or
warranty will be void.
6. Any warranty claim that cannot be determined over the phone, the customer must send photos and original
invoice directly to Gulfstream before any repairs can be performed.
7. Any service performed on the product without Gulfstreams authorization will also void the Warranty.
8. Each service call from the customer will be assigned a Claim Number. The Claim Number will stay open until the
problem is resolved.

Gulfstream Inc.
Cambridge, Ontario, Canada N1R 5X5
Manufacturer of Luxurious Pedicure Spas,
High Quality Salon and Spa Furnitures.
Cleanjet MAX®, La Tulip2 and La Tulip 3™, Gulfstream Inc.®are trademarks of Gulfstream Inc.
Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444,
#D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882,
#D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182
© 2014 All rights reserved. Design and Specifications are subject to change without notice.
