Gwerder DA-7 User manual

Swiss precision
Digital Accordion
J. Gwerder & Son
Accordeon factory
Steinen (Switzerland)
user manual
Version 1.8
your agent:
Peter Canziani
30 Herekiekiestreet, Turangi – New Zealand
Phone: [phone] Fax: [phone] E-Mail: [email protected]

Contents
Welcome
Title Page
Welcome - 2 –
Security issues - 3 –
Copyright advise - 3 –
Contents of order - 3 –
Basic operation - 4 –
Sound select - 5 –
Save and load registers - 6 –
Styles (auto accompaniment) - 7 –
Display instructions - 8 –
Setup basic settings - 9 –
- treble, bass, accord sensoric
- auto off timer
- display brightness
- keyboard layout
- volume of the accompaniment
Connections - 10 –
Congratulations to your choice of a Gwerder Digital Accordion
We are sure, that after you have read this manual, you will be able to manage this
superb instrument without any problems and you will get the best out of it.
This Digital Accordion is the product of 8 years experience in the field of electronic
keyboard instruments for live musical performances.
Our digital accordions have been able to compete in recent years in the rough live
operation successfully and reliably, but also for musicians who arrange their own
pieces. It’s also excellent for students who want to practice at rest with the
headphones.
The accordion has a full range of advanced operations, but is very easy to handle, so
you can start making music without much preparation.
We wish you lots of fun with your digital accordion.
-2-

Safety measures
Copyright notice
- Read the instructions carefully.
- Make sure that the power cord is not bent, twisted or squeezed.
- Don’t put the instrument to extreme conditions such as high humidity or rain,
high temperatures, direct sunlight, excessive vibration or dust.
- Never touch the power supply/charger with wet hands.
- Either the accordion nor the adapter/charger may be altered in any way.
- Do not attempt repairs on the instrument. To avoid electrical shock, do not
open the casing. Otherwise your warranty will expire.
- The instrument can be very loud. Be considerate of your environment.
- Note for models with built-in Ni-MH battery: It may only be connected with our
original charger. The built-in Ni-MH battery is very sensitive, but requires no
major attention, as our charger monitors the entire loading process. Failure to
observe this requirement will void the warrenty.
- The power supply/charger will not be set to the voltage. It has an automatic
multi-area input (100 – 240 V 50/60Hz)
The samples and sounds of this instrument are protected by copyright.
Any reproduction or processing of samples or the disclosure to third
parties is prohibited.
Contents of Delivery
Quantity Description
1 Digital Accordion
1 Charger
1 User manual
1 Warranty
Optional extras are: footpedal, headphones, midi cable, USB adapter, case, backpack
-3-

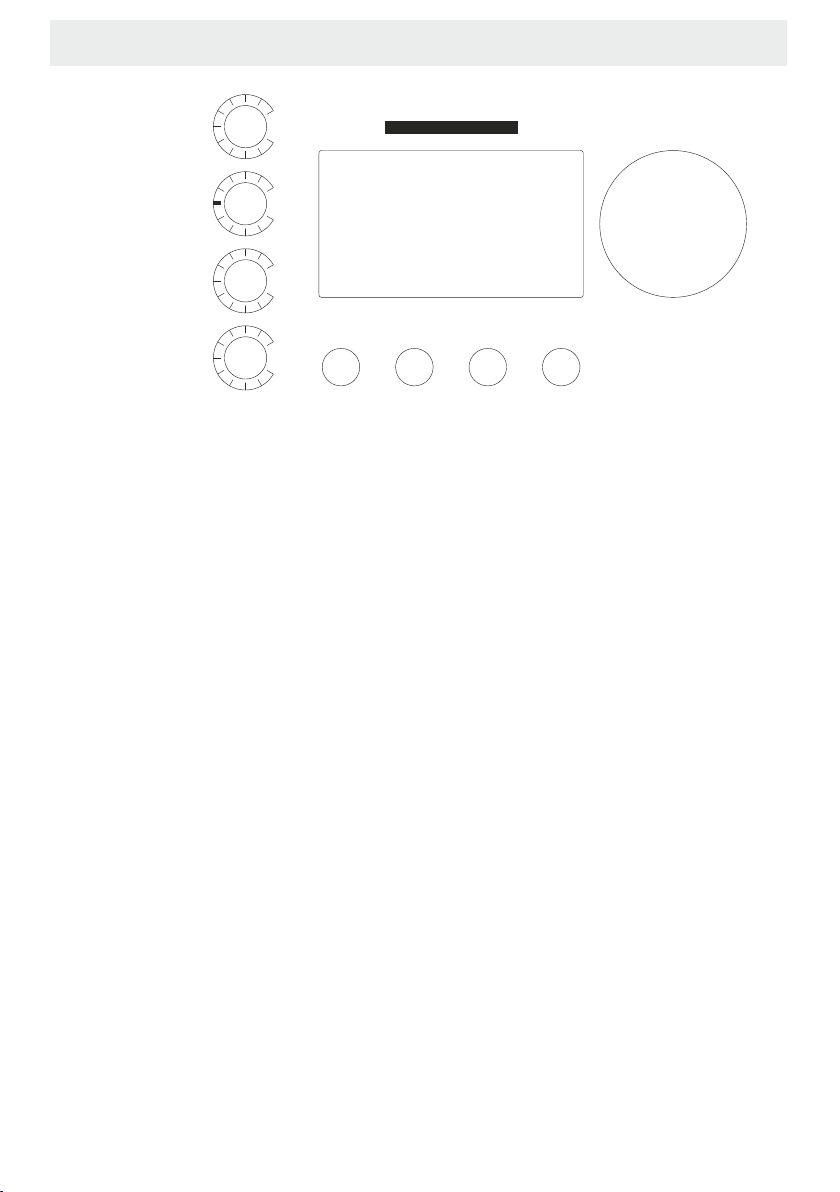

Basic Operation
AKKORD 1
..AKKORD 2
STYLES
..SETUP
VOLUME
BALANCE
ECHO
MAX
R
MAX
MIN
L
MIN
BELLOW
EASY
STRONG
Sound
pro cessing
Digital
Lautstärke
Balance
right = treble
left = bass/chord
Echo
Bellows
Dynamik
Treble 1 By short touching you come into the selection menu of the first
voice of the treble keyboard (melody).
…Treble 2 Holding down long you come into the second voice of the treble
keyboard (melody)
Bass 1 By short touching you come into the selection menu of the first
voice of the bass keyboard (bass / alternating bass)
...Bass 2 Holding down long you come into the second voice of the bass
keyboard (bass / alternating bass)
Chord 1 By short touching you come into the selection menu of the first
voice of the chord keyboard (accompanying bass).
...Chord 2 Holding down long you come into the second voice of the chord
keyboard (accompanying bass)
Style By short touching you come into the selection menu of the styles
(accompanying rhythms and demos)
…Setup Holding down long you come into the setup-menu for all basic
settings (only for experienced users)
Bellows dynamics: constant 100% = volume always minimum 100%, can be
raised with bellows to 127. The same also with permanent 75% or 25%.
Extreme powerful, powerful, normal, light, extreme light. That’s how to set the
bellows dynamic curve - from 0 to 127 expression.
-4-
BASS 1
..BASS 2
DISKANT 1
..DISKANT 2
Wheel
clockwise = +
counter-clockwise = -
select by pressing the dial

The choice or change of the sound of an instrument is always the same
operation, whether melody, bass or chord.
1. Select with one of the 3 buttons (treble, bass, chord) the sound you
wish to change (refer to page 4 – 1. and 2. voice)
2. You can check all instrument sounds with the wheel or select direct
with the treble registerbuttons (register 1-10 (10=0), 11-30 deletes the
input.
3. Have you chosen the suitable sound, confirm it by pressing the wheel.
4. You will come automatically to another menu.
5. You can now choose the volume of the previously selected sound by
the wheel.
6. You confirm here again the volume by pressing the wheel.
7. After confirming the volume, you can select the octave change by
pressing the wheel to confirm it.
8. Now you come back to the main menu automatically.

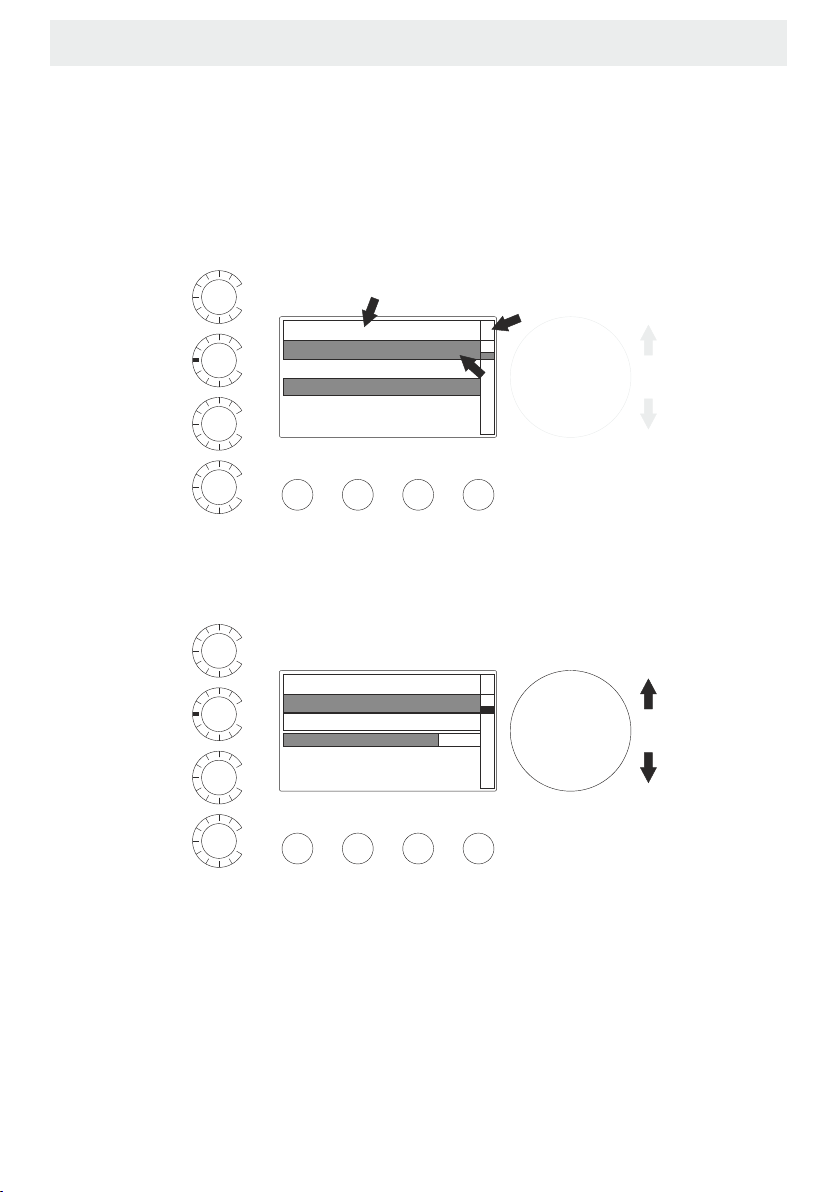

Instrument (sound) selection
AKKORD 1
..AKKORD 2
BASS 1
..BASS 2
STYLES
..SETUP
Diskant 1. Stimme 153
Lautstärke 100
Gola T
AKKORD 1
..AKKORD 2
BASS 1
..BASS 2
STYLES
..SETUP
VOLUME
BALANCE
ECHO
BELLOW
MAX
R
MAX
EASY
MIN
L
MIN
STRONG
Diskant 1. Stimme 153
Excelsior Akkord
Gola T+M+MM
Gola T+M+H
Akkordeon (142-174)
Gola T
the sound to be changed
is always displayed
VOLUME
BALANCE
ECHO
BELLOW
MAX
R
MAX
EASY
MIN
L
MIN
STRONG
DISKANT 1
..DISKANT 2
DISKANT 1
..DISKANT 2
digit of the chosen
instrument sound
group of the chosen
instrument sound
-5-

Save and storing of sounds
Loading Registers + Masterbar
MIDI-Out channels
If the instrument is adjusted to your taste you can store it in bank “B”. Push
the desired register on your accordion and release the button only when a
sound (Ping) occures. Now all settings will be overwritten on the memory
space in “B”. This process can be repeated on all memory spaces as often as
you wish.
Attention: When switching on the accordion, the parameter of memory space
1 will be selected automatically.
The bank “A” is set by the producer and can not be changed. So you have the
possibility of 60 different settings.
With a short touch of the desired register (memory space) only the 1. treble
voice is loaded and is ready to be played. With two short pushes of the
desired register, you will get the entire memory space of all the 6 parameters
(treble 1+2, bass 1+2, chord 1+2.
Please note: switching on the accordion, it will always load the parameter of
memory space position 1 A.
With the masterbar you can switch between the two previously selected
registers back and forth. It’s in each case only the first treble voice chosen.
The bass voices remain unchanged.
The MIDI-Out channels are assigned as follows:
Channel 1 treble 1. voice
Channel 2 chord 1. voice
Channel 3 bass 1. voice
Channel 4 treble 2. voice
Channel 5 chord 2. voice
Channel 6 bass 2. voice
-6-

Styles (accompaniment)
Select as descriped the desired style.
Start:
Preparation by pressing the start button (bass register). Final start by
pressing the chord tone.
Intro / Start:
Press Intro first and then Start, so style will count down first. Final start by
pressing the chord tone.
Variation:
By pressing the “variation” it will always change to the next variation (A to B
etc.)
Ending:
By pressing the ending button, the style will end accordingly – not
immediately, but with the beat. Press the accord button two times, the style
will also end.
Speed:
Is the accompaniment in use, the speed can be changed by the dial wheel.
Drums / Solo:
Changes to “drums only” and back again.
Volume + / -
So you can choose the volume of the accompaniment.
Ending – immediately
By pressing the dial wheel, style ends immediately, but is still active
charged and will end only by pressing the dial wheel twice. Only after this
process, you can select a new style.
Attention: The 4 buttons (styles, chord, bass, treble) are disabled while style
is active.
START
INTRO
STYLE VOLUME +STYLE VOLUME -
Knee
DRUMS / SOLO
ENDINGVARIATION +
Chin
-7-

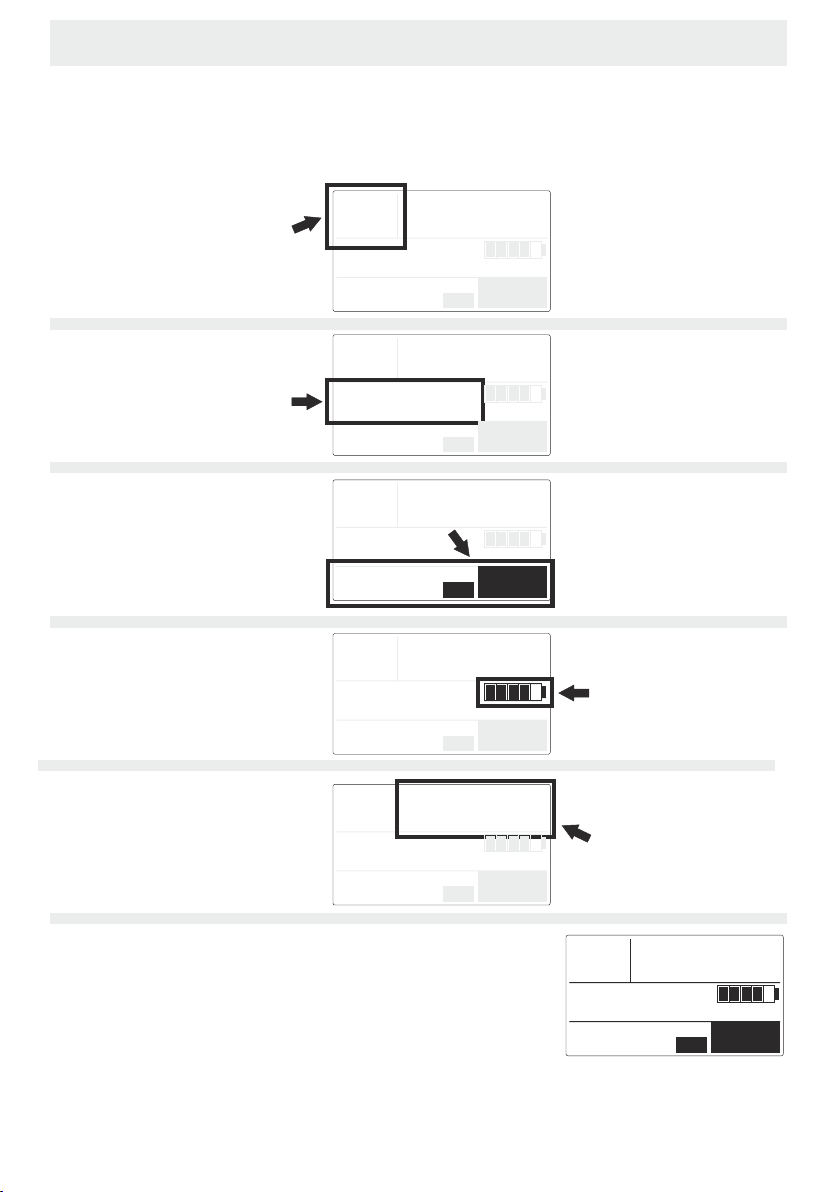

Display Guide
The Gwerder Digital Accordion has a graphic display which is illuminated.
Below we explain what is where to see in the main menu. The contents change of
course, depending on what you have selected.
D=Steirische 2
B=Bariton
A=Trompete
D=Steirische 2
B=Bariton
A=Trompete
D=Steirische 2
B=Bariton
A=Trompete
D=Steirische 2
B=Bariton
A=Trompete
D=Steirische 2
B=Bariton
A=Trompete
D/S
Speed
120
D/S
Tempo
120
D/S
Tempo
120
D/S
Tempo
120
D/S
Tempo
120
Volks. Polka 1
-> Main A
Volks. Polka 1
-> Main A
Volks. Polka 1
-> Main A
Volks. Polka 1
-> Main A
Volks. Polka 1
-> Main A
display of the actual speed
of the styles or demos
D/S = drums solo active
display of the active/selected
style or demo and also
the variation
here you see the
active/selected register
with number 27 of bank “A”
as well as change register 1
(Masterbar)
briefly repeatedIn this example
the style Volks. Polka 1 is selected. With speed 120.
The register is A 27. 1st treble voice is Steirische 2,
1st bass voice is Bariton and 1st accord voice is trumpet.
Battery life is 80% (8 hours left to play).
The Masterbar causes the change between treble 1 and 27.
-8-
D=Steirische 2
B=Bariton
A=Trompete
D/S
Tempo
120
Volks. Polka 1
-> Main A
A27
A27
A27
A27
A27
A27
display of the current
battery level
(in this example 80%)
display of the current
selected instruments
of the 1. voice
1
1
1
1
1
1

Press the SETUP button until you get into the setup menu.
The various parameters/settings change by turning the wheel.
- treble 1 responds to (volume of the 1st voice of treble keyboard)
- treble 2 responds to (volume ot the 2nd voice of treble keyboard)
- bass 1 responds to (volume of the 1st voice of bass keyboard)
- bass 2 responds to (volume of the 2nd voice ot bass keyboard)
- chord 1 responds to (volume of the 1st voice ot the chord keyboard)
- chord 2 responds to (volume of the 2nd voice of the chord keyboard)
Would you like to change the volume, press the dial wheel. The current value will be noted
in white. Now you can change the desired volume with the dial wheel. Have you chosen the
desired parameter, press the dial wheel again. The value is now loaded and the white
display disappears.
The meaning of the parameters is as follows:
- Pedal normal (you determine the volume of the actual voice with the
pedal. If no pedal is connected, you adjust the volume
level automatically with the bellows.)
- Pedal inverted (you determine the volume of the actual voice with the
pedal, but vice versa.)
- Bellows dynamic (you determine the volume of the actual voice with the
bellows)
- without dynamics (the volume is always identical)
- Auto power off timer (always switched on – 10, 15 or 20 min)
- Display brightness (luminosity of the LCD display 0 – 127)
- Treble keyboard (keyboard layout of the treble)
- chromatic forward (C)
- chromatic reverse (B)
- diatonic Schwyzerörgeli
- diatonic Club version
- Bass keyboard (keyboard layout of the bass)
- forward 2 bass rows, - forward 3 bass rows
- reverse 2 bass rows, - reverse 2 bass rows,
- free bass minor 3rd, -free bass bajan, -free bass 5th,
- free bass north europe, -diatonic club version
- Style volume = (volume control of the accompaniment)
- from the pedal (You determine the volume of the accompaniment with
the pedal)
- constant (the style volume stays always identical)
To exit the setup menu, press the setup button
Setup (*only for experienced users) -9-

Connections
switch ON*
* press at least 0.5 seconds
switch OFF*
Line OUT (Stereo)
Headphones (Stereo)
Pedal
Midi OUT
Midi IN
Charging Jack (it may only be used our charger. Charge only
if the instrument is turned off!)
MIDI IN NIMH
CHARGER
MIDI OUT
PHONES PEDAL
LINE OUTOFF
ON
-10-
