Gyration GYR3101US User manual

GYR3101US
UNIVERSAL MEDIA CENTER
AND PC REMOTE CONTROL
United States Version
All manuals and user guides at all-guides.com
all-guides.com

Table Of Contents
Introduction...................................................1
Battery Installation and Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BatterySaver..................................................1
GyroOperation.................................................2
ProductDiagram ...............................................3
ButtonClusterLocations..........................................3
RCUModeSelection.............................................4
TransportControl..............................................5-6
MenuNavigation..............................................7-8
GyroActivation/Select...........................................8

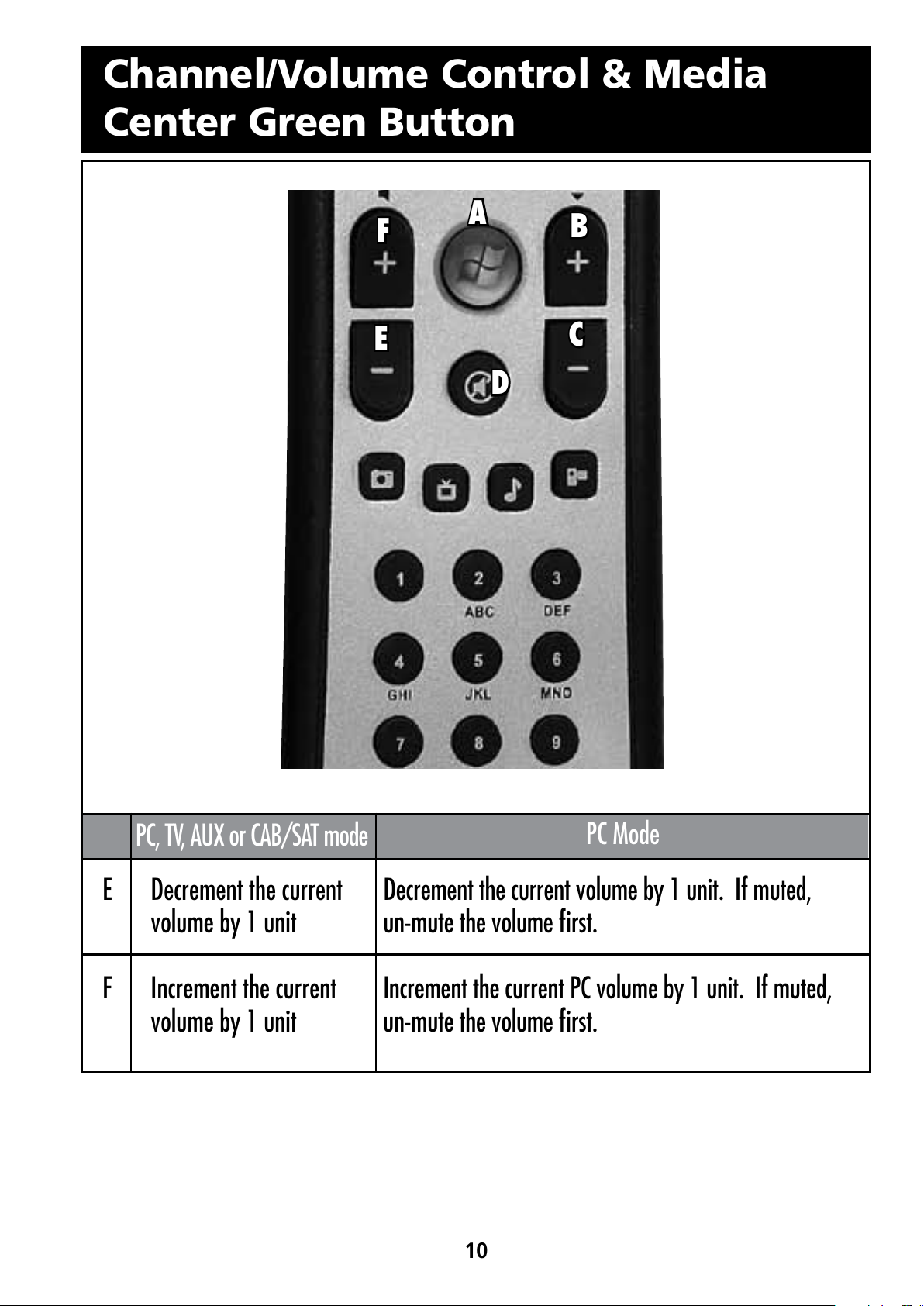

Channel/Volume Control & Media Center Green Button . . . . . . . . . . . . . . . . .9-10

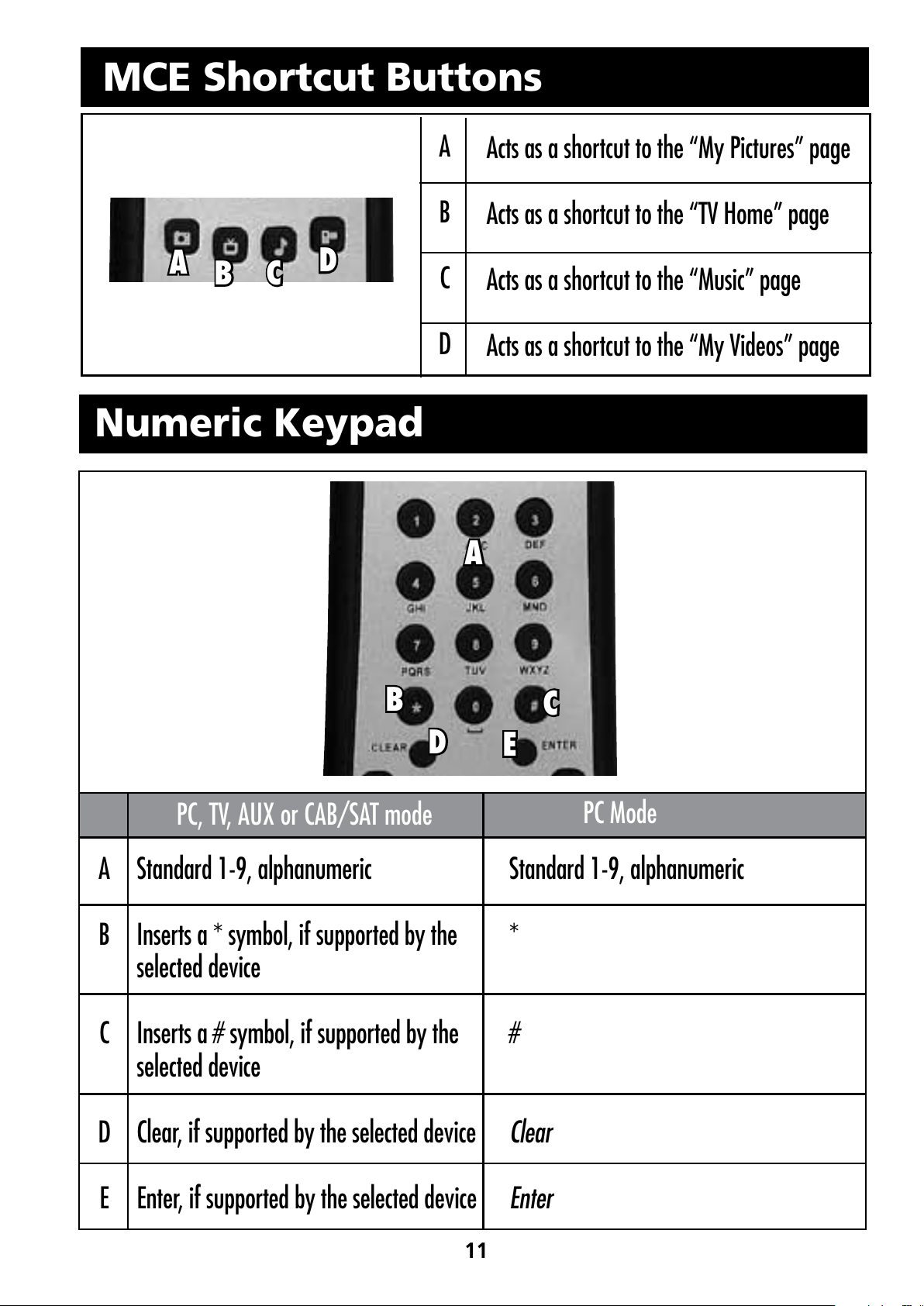

MCEShortcutButtons...........................................11
NumericKeypad...............................................11

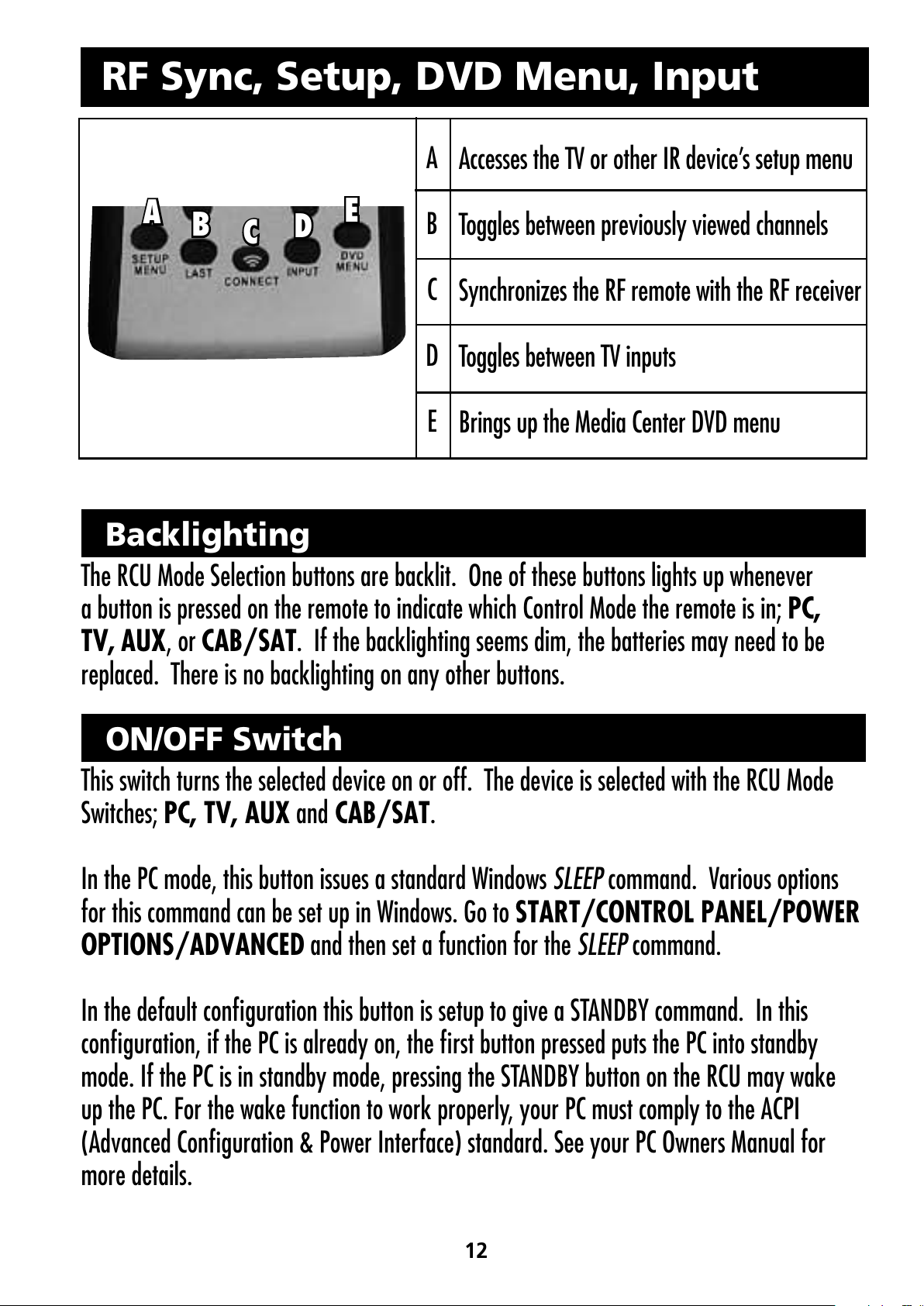

RFSync,Setup,DVDMenu,Input ..................................12
Backlighting..................................................12
ON/OFFSwitch................................................12

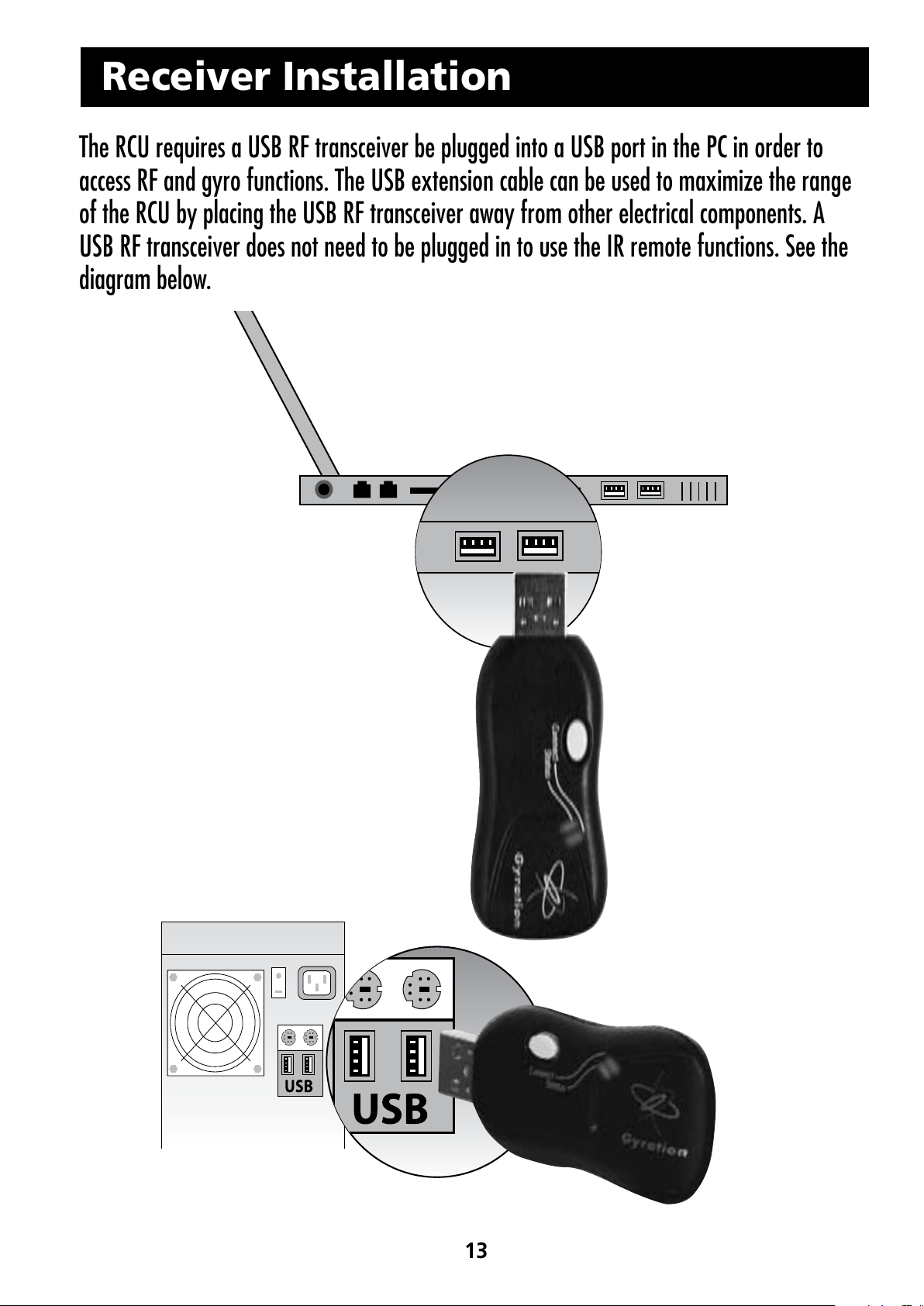

ReceiverInstallation............................................13
Setting Up and Synchronizing the Remote and the Transceiver . . . . . . . . . . . . . 14
ProgrammingtheRemote........................................14
Find Out If You Need to Program the Remote. . . . . . . . . . . . . . . . . . . . . . . . . . 14
ProgrammingMethods........................................15-16
UsingAutomaticCodeSearch .....................................15
UsingDirectEntry..............................................16
Using the Remote to Control Your Components. . . . . . . . . . . . . . . . . . . . . . . . . 16
VolumePunchThrough..........................................16
Learning ..................................................17-18
LearningTips.................................................17
CodeLearning ................................................17

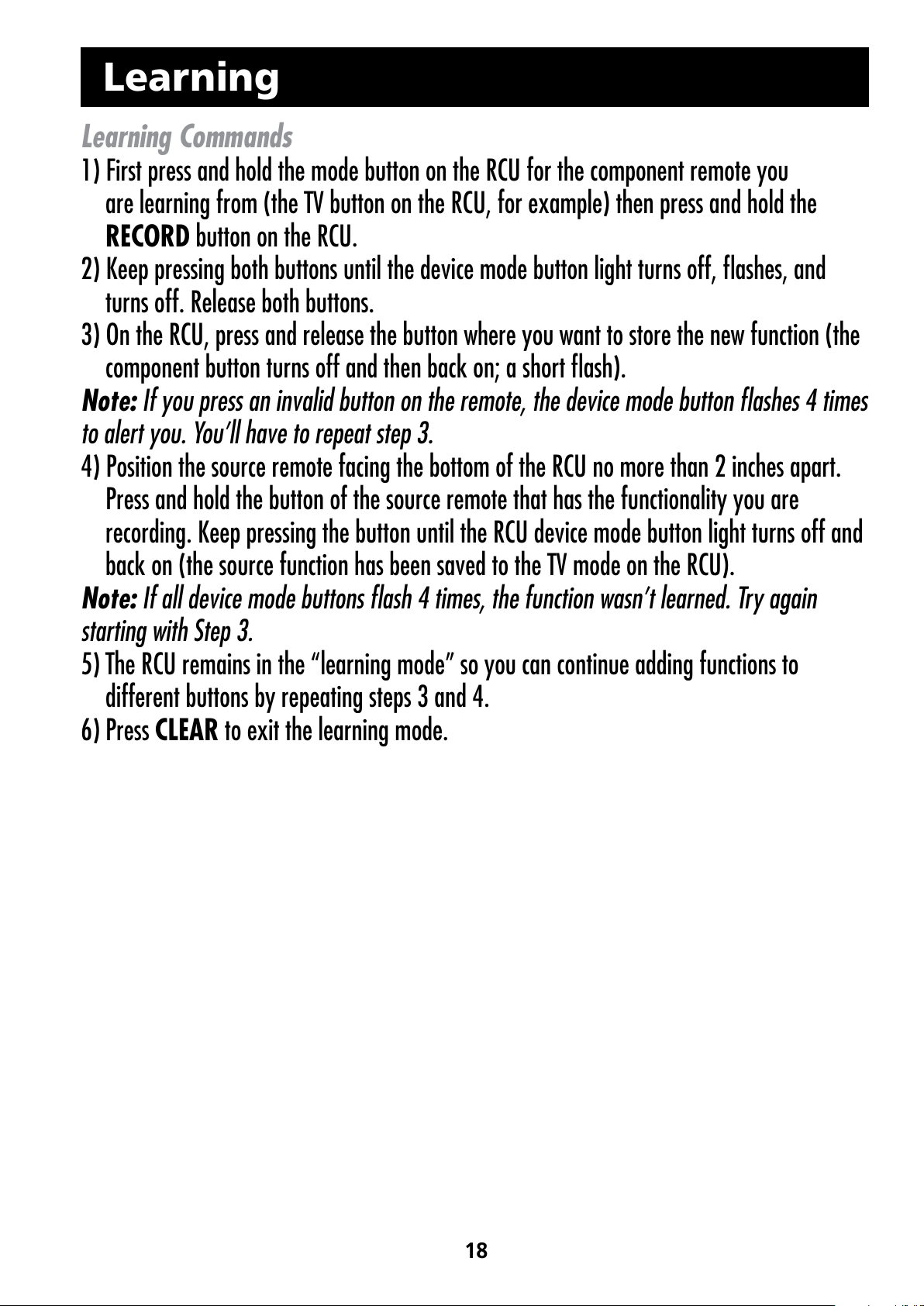

LearningCommands..........................................17-18
Clearing an Individual Learned Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DeletingAllLearnedFunctions.....................................20
Troubleshooting.............................................20-21
RemoteCodeList............................................22-50
All manuals and user guides at all-guides.com

Introduction
This users’ manual describes the operation of the Gyration Universal 4-in-1 (3 IR devices
+ 1 RF device) Media Center and PC Remote Control Unit (RCU). The RCU contains an
embedded micro gyro for motion sensing and in-air control of floating cursor. This RCU
features IR code database and IR learning capabilities to universally control standard home
theater devices such as TVs, VCRs, Digital Video Recorders (DVR), DVD players, CD players,
cable/SAT boxes, etc.
The RCU is also equipped with a 2.4 GHz RF transceiver to send cursor movement
information and other commands to the PC via a USB transceiver. The radio frequency (RF)
transceiver delivers a range of up to 100 feet with no line-of-sight requirement. The 800
possible channels of the RF transceiver provide high resistance to interference from other
radio devices.
Battery Installation and Information
The Media Center and PC RCU requires two AA Alkaline batteries. To install the batteries:
1. Remove the battery compartment cover.
2. Insert the batteries, matching the batteries to the (+) and (-) marks inside the battery
compartment.
3. Replace the battery compartment cover and snap it into place.
Note: Reprogramming may be required after batteries are replaced.
Battery Saver
The RCU saves battery power by automatically going into a low-power state if no button is
pressed after a few seconds. See the Gyro section for gyro battery saver mode.
Product Registration Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase.
Attach it here and record the serial number in case you need it. The serial number is located
on the product.
Model Number _______________________________
Serial Number ______________________ Purchase Date _____________
Dealer/Address/Phone ________________________________________
1
All manuals and user guides at all-guides.com

Gyro Operation
The RCU provides in-air control of the PC’s
cursor via patented gyroscopic motion
sensing technology. This means mouse-like
cursor control, from anywhere in the
room, without the need of a flat surface.
There is no line-of-sight requirement
so you don’t have to point the RCU at the PC
you are controlling. Remember the
following things when using the in-air cursor
control feature of the RCU:
• Use your thumb to press the gyro and
mouse buttons.
• Click the center button to activate the
gyro motion-sensing control. Single click
and hold to move the cursor and release
it to “park” the cursor where you want it.
Double click the center button and release it
for continuous cursor movement similar to a
standard mouse.
• The right and left buttons function like
standard mouse right-click and left-click
buttons.
• Move the cursor by flexing your wrist, not
your arm or body, much as you would with
a flashlight; side to side and up and down.
Placing your arm on an armrest or on your
lap will make this motion more comfortable.
• The RF Transmit LED indicates when gyro
motion or other information is being sent
independent of which mode is selected on
the RCU.
2
All manuals and user guides at all-guides.com

Product Diagram
Remote Control Unit
mode selection
and power
Transport control
Menu navigation
Gyro button cluster
Volume and Channel
control, (MCE Green
Button), Mute
Media Center shortcuts
Alphanumeric keypad
Setup and Device
Control
Selects device mode (PC, TV,
CAB/SAT, AUX). Powers
on/off selected device.
AV control for selected transport
or Windows Media Player,
Windows Media Center, DVR, etc.
Menu navigation: up, down, left,
right, OK. Includes LIVE TV,
GUIDE, BACK and MORE.
Center button activates gyro for
in-air cursor control. Outer
buttons function like standard
left and right mouse buttons.
Volume up/down, channel
up/down, Media Center (The
Green Button) and volume mute.
Shortcuts buttons include:
MY TV, MY PICTURES, MY
MUSIC, MY VIDEOS.
0-9 keys with alpha characters,
plus*, , CLEAR and ENTER
CONNECT, SETUP, LAST,
DVD, MENU, INPUT
Button Cluster Locations
A
B
C
D
E
F
G
H
Button Cluster Function
A
B
C
D
E
F
G
H
3
All manuals and user guides at all-guides.com

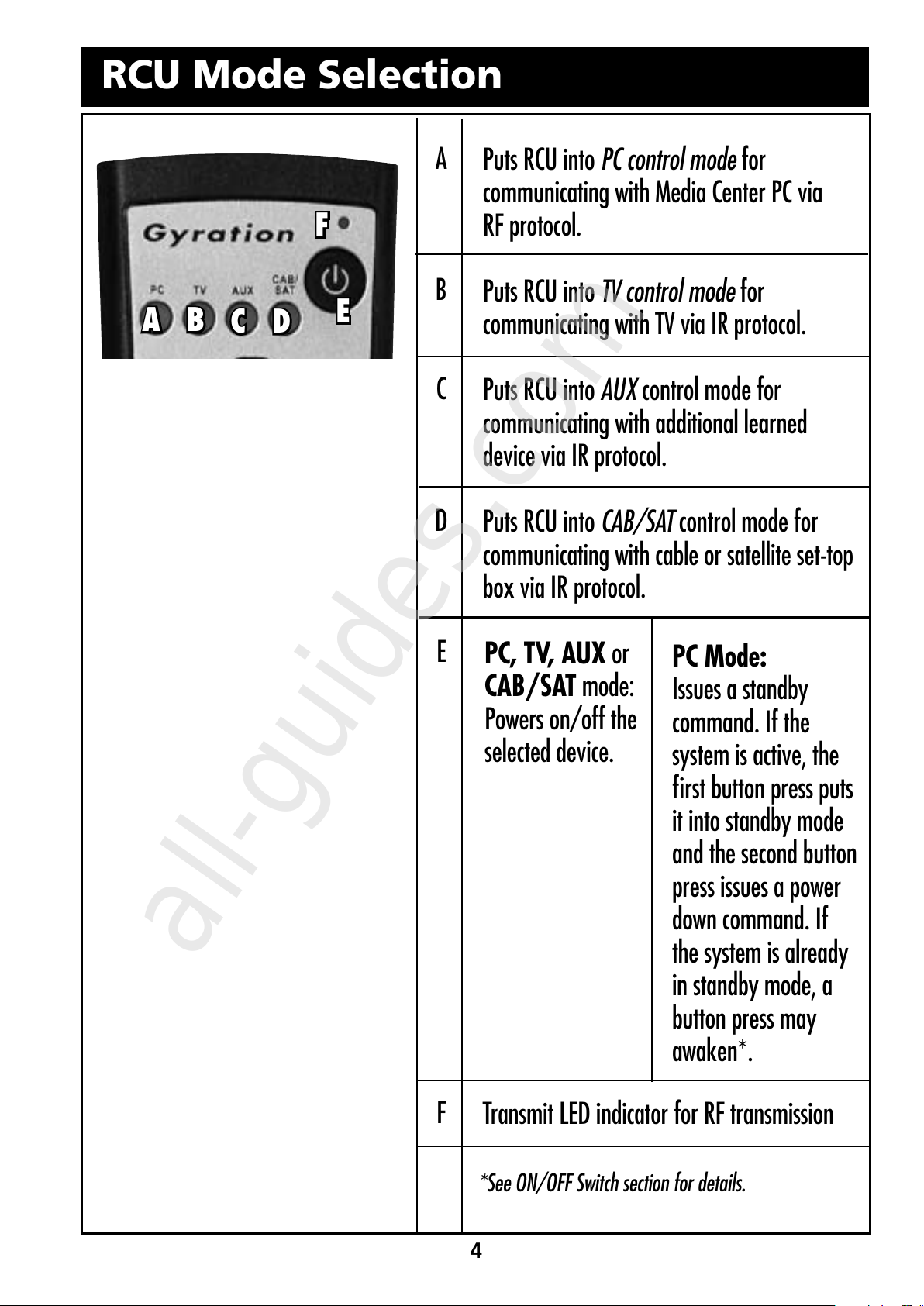

RCU Mode Selection
Puts RCU into PC control mode for
communicating with Media Center PC via
RF protocol.
Puts RCU into TV control mode for
communicating with TV via IR protocol.
Puts RCU into AUX control mode for
communicating with additional learned
device via IR protocol.
Puts RCU into CAB/SAT control mode for
communicating with cable or satellite set-top
box via IR protocol.
Transmit LED indicator for RF transmission
A
B
C
D
E
F
PC, TV, AUX or
CAB/SAT mode:
Powers on/off the
selected device.
PC Mode:
Issues a standby
command. If the
system is active, the
first button press puts
it into standby mode
and the second button
press issues a power
down command. If
the system is already
in standby mode, a
button press may
awaken*.
*See ON/OFF Switch section for details.
4
A B C D E
F
All manuals and user guides at all-guides.com
all-guides.com

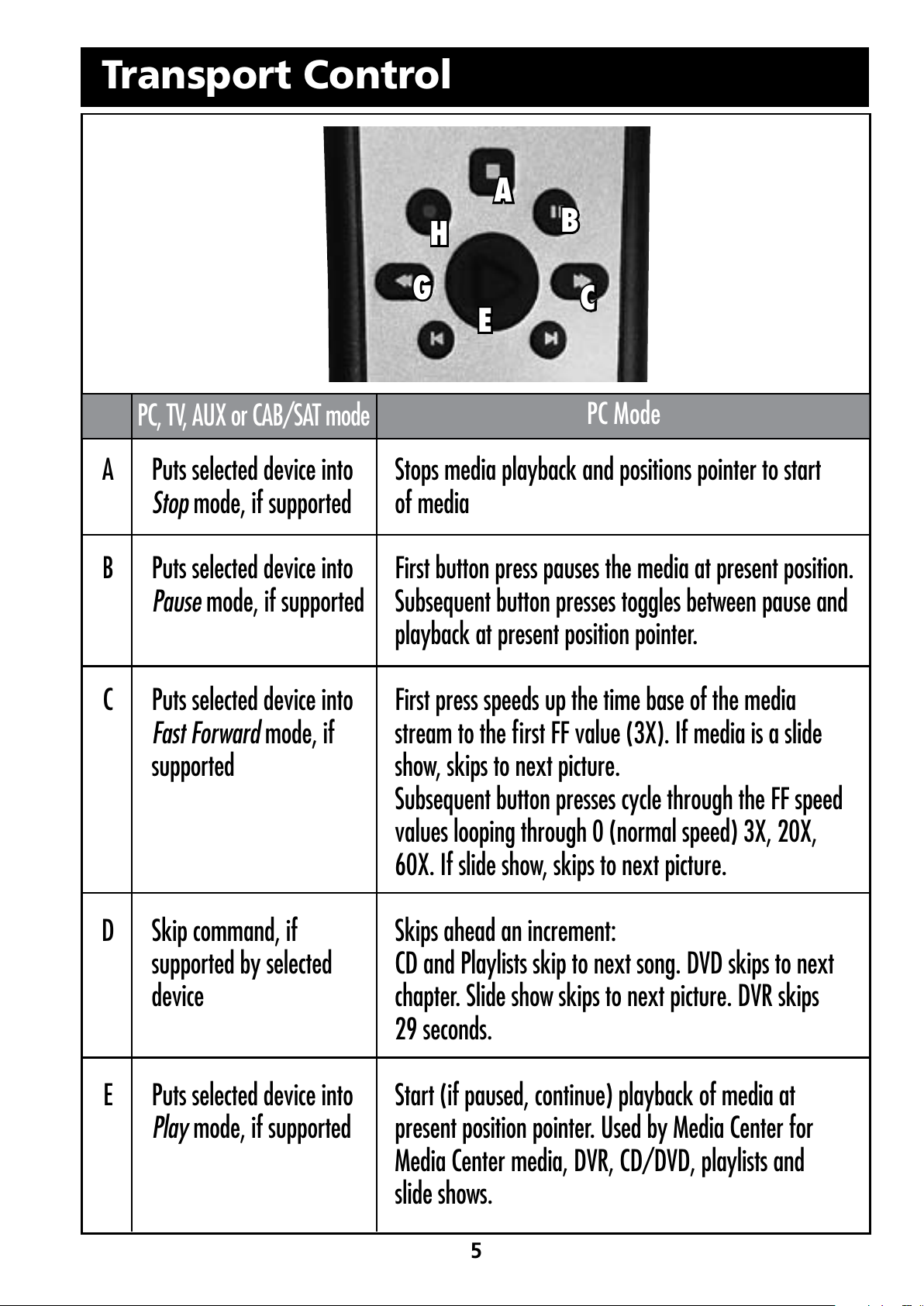

Transport Control
Puts selected device into
Stop mode, if supported
Puts selected device into
Pause mode, if supported
Puts selected device into
Fast Forward mode, if
supported
Skip command, if
supported by selected
device
Puts selected device into
Play mode, if supported
A
B
C
D
E
Stops media playback and positions pointer to start
of media
First button press pauses the media at present position.
Subsequent button presses toggles between pause and
playback at present position pointer.
First press speeds up the time base of the media
stream to the first FF value (3X). If media is a slide
show, skips to next picture.
Subsequent button presses cycle through the FF speed
values looping through 0 (normal speed) 3X, 20X,
60X. If slide show, skips to next picture.
Skips ahead an increment:
CD and Playlists skip to next song. DVD skips to next
chapter. Slide show skips to next picture. DVR skips
29 seconds.
Start (if paused, continue) playback of media at
present position pointer. Used by Media Center for
Media Center media, DVR, CD/DVD, playlists and
slide shows.
PC, TV, AUX or CAB/SAT mode
PC Mode
D
F
5
A
B
C
E
G
H
All manuals and user guides at all-guides.com

Transport Control
Replay command, if
supported by selected
device
Puts selected device
into Rewind mode, if
supported
Puts selected device into
Record mode, if supported
F
G
H
Move the position pointer back an increment:
CD and Playlist: skips back to previous song. DVD:
skips back to previous chapter. Slide show: skips back
to previous picture. DVR skips back 7 seconds
First press speeds up the time base and reverses
direction of the media stream to the first rewind value
(3X). If media is a slide show, skips to previous picture.
Second press cycles through the RWD speed values
looping through 0 (normal speed) 3X, 20X, 60X. If
media is a slide show, skips to previous picture
Records the TV show to disk. Starts recording at the
beginning of the show as defined by on-screen TV
program guide (if the pause buffer enables it)
PC, TV, AUX or CAB/SAT mode
PC Mode
A
B
C
D
E
F
G
H
6
All manuals and user guides at all-guides.com

Menu Navigation
No action, or as defined
by selected device
No action, or as defined
by selected device
No action, or as defined
by selected device
No action, or as defined
by selected device
Menu Navigation Up
Menu Navigation Right
Menu Navigation Down
A
B
C
D
E
F
G
Brings live TV to the front to the last channel user was
watching.
Invokes the on-screen TV program guide via Media Center
Goes back one location of the user interface back stack
Provide information if available for the focus point
Moves the focus point up one location, if at top of the
screen takes no action
Moves focus point right one position, if at rightmost
position takes no action
Moves the focus point down one location, if at bottom of
the screen takes no action
TV, AUX or CAB/SAT mode PC Mode
A B
CD
E
F
G
H
7
All manuals and user guides at all-guides.com

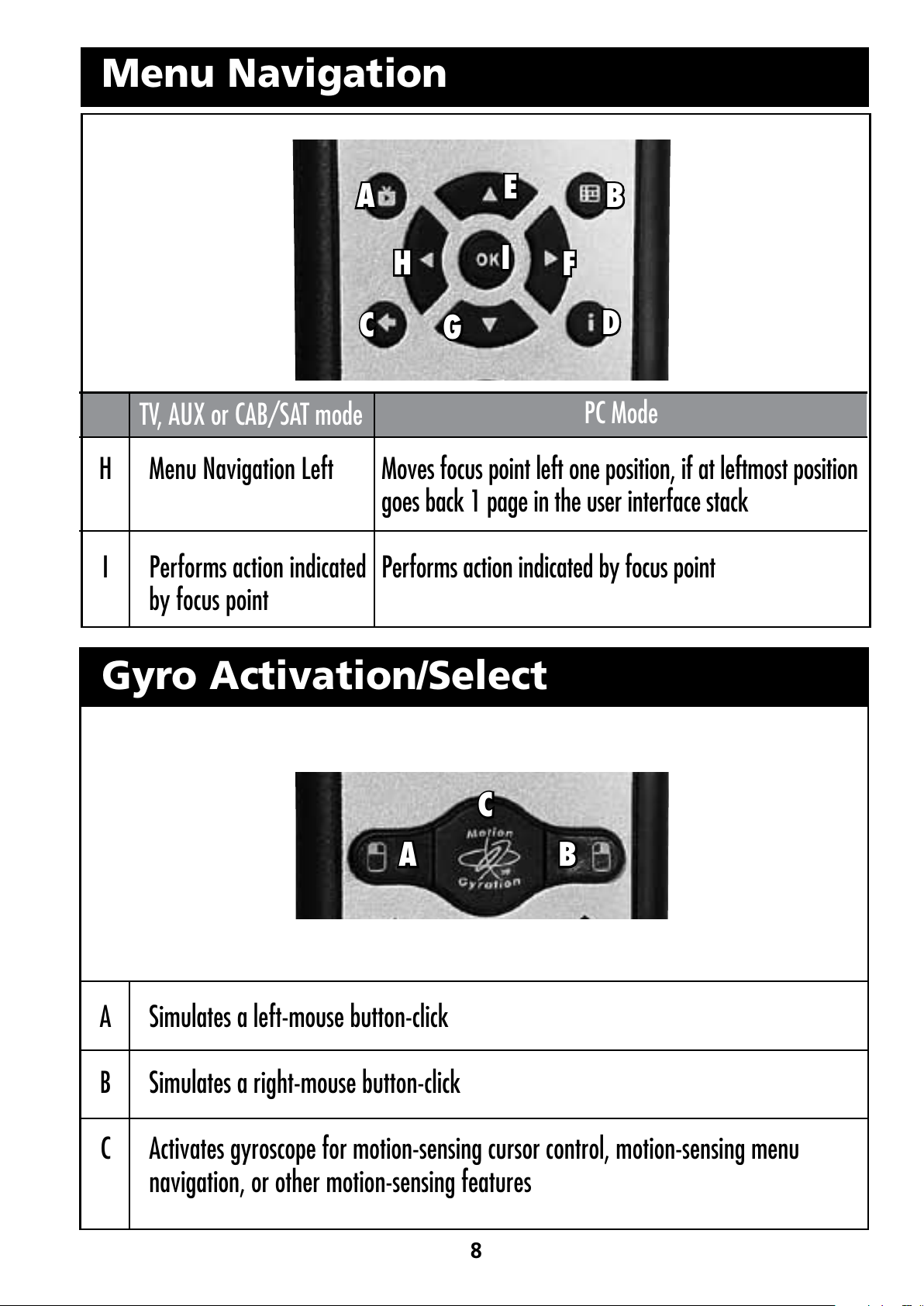

Menu Navigation
Menu Navigation Left
Performs action indicated
by focus point
H
I
Moves focus point left one position, if at leftmost position
goes back 1 page in the user interface stack
Performs action indicated by focus point
TV, AUX or CAB/SAT mode PC Mode
Simulates a left-mouse button-click
Simulates a right-mouse button-click
Activates gyroscope for motion-sensing cursor control, motion-sensing menu
navigation, or other motion-sensing features
A
B
C
AB
C
Gyro Activation/Select
A B
CD
E
F
G
HI
8
