Häfele HF-BI60X User manual

11
English
Instruction
Manual
Product name: BUILT-IN FRIDGE HF-BI60X
Product applied: 534.14.080

2
CONTENTS
Important Safety Caution
First Use of Product
Instruction Manual
Attentions before installation
Parts list for installation
Product and cabinet dimensions
Preparation before installation
Steps to put the refrigerator inside cabinet
Steps for first use of product
Major Function Introduction

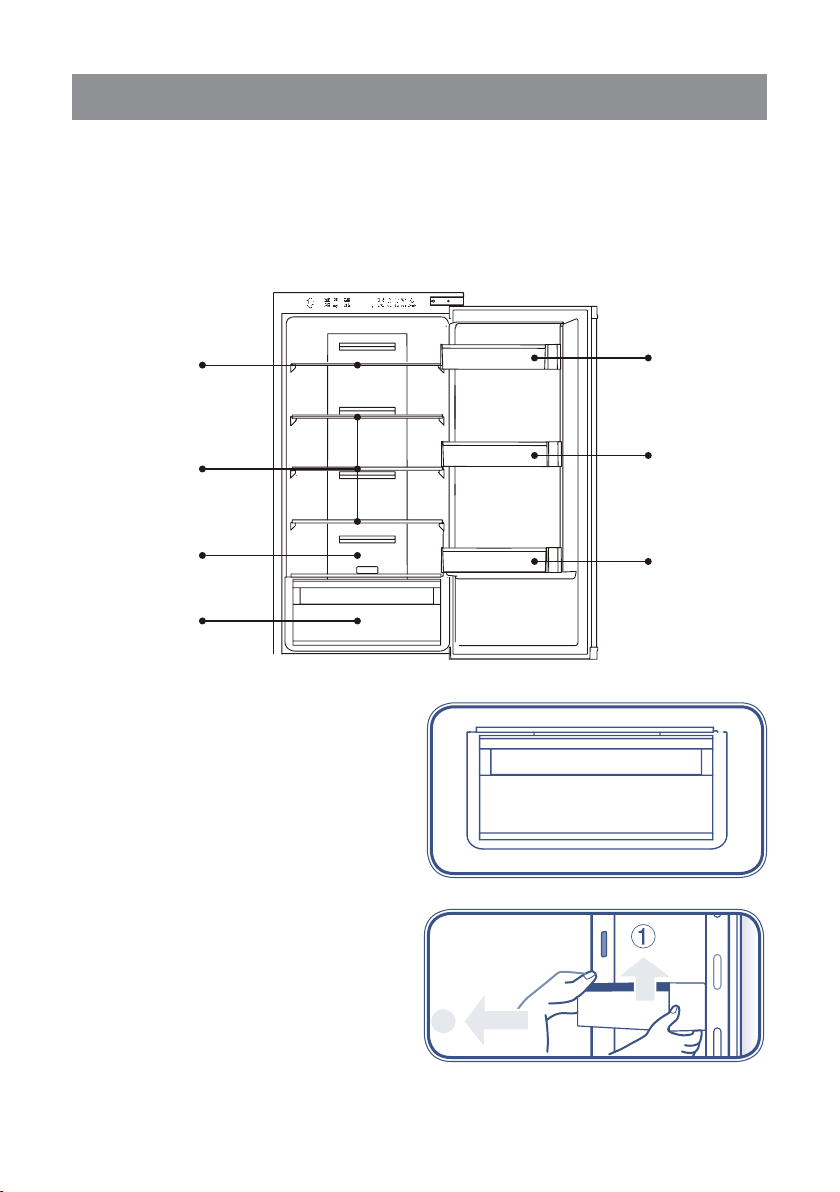

Name for refrigerator components

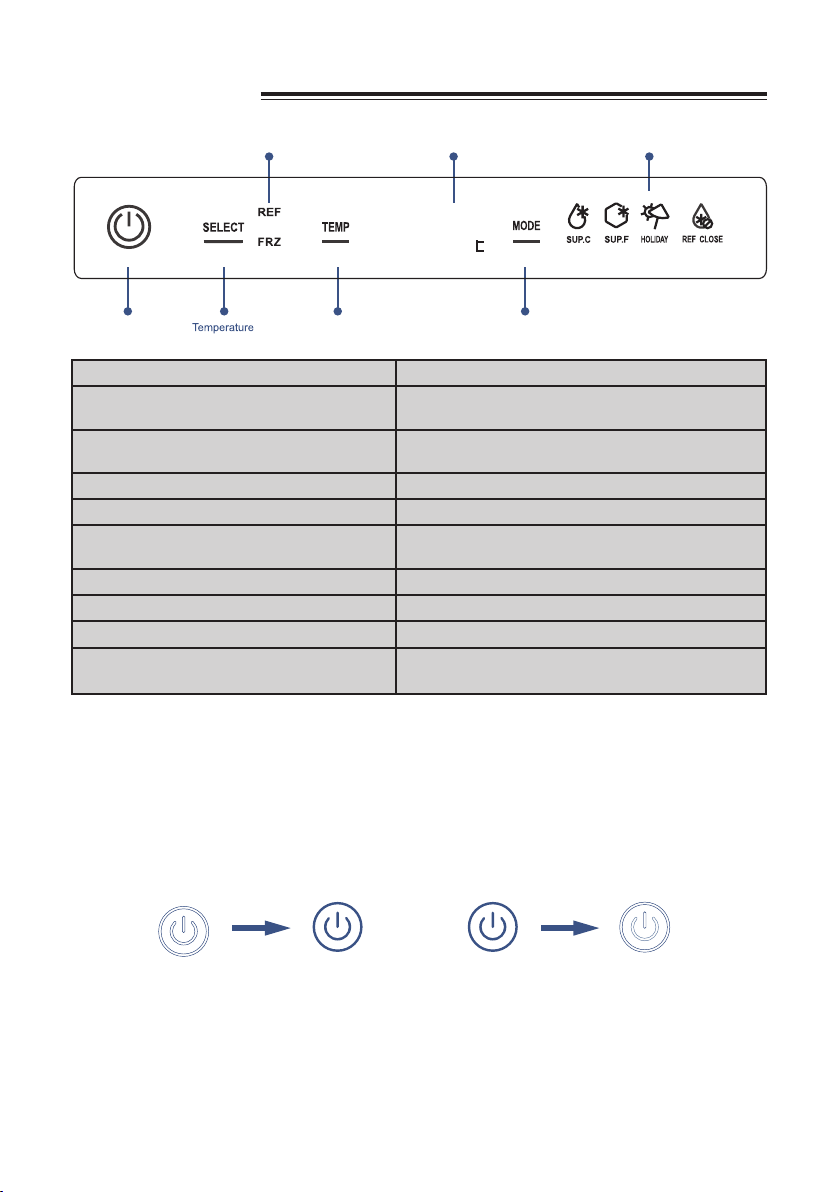

Control panel
1. Power switch

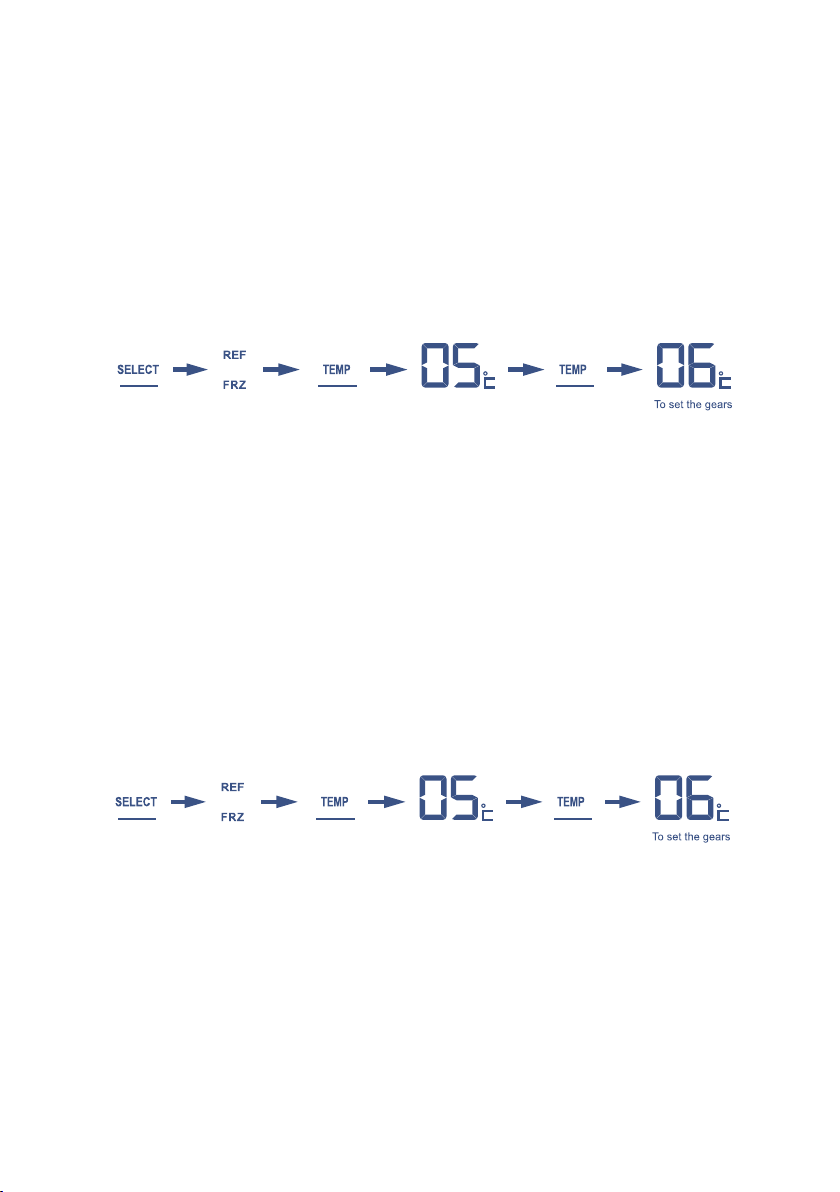

2. Temperature adjustment in fresh compartment
3. Temperature adjustment in frozen compartment
4. Fast freeze function
5. Fast cooling function

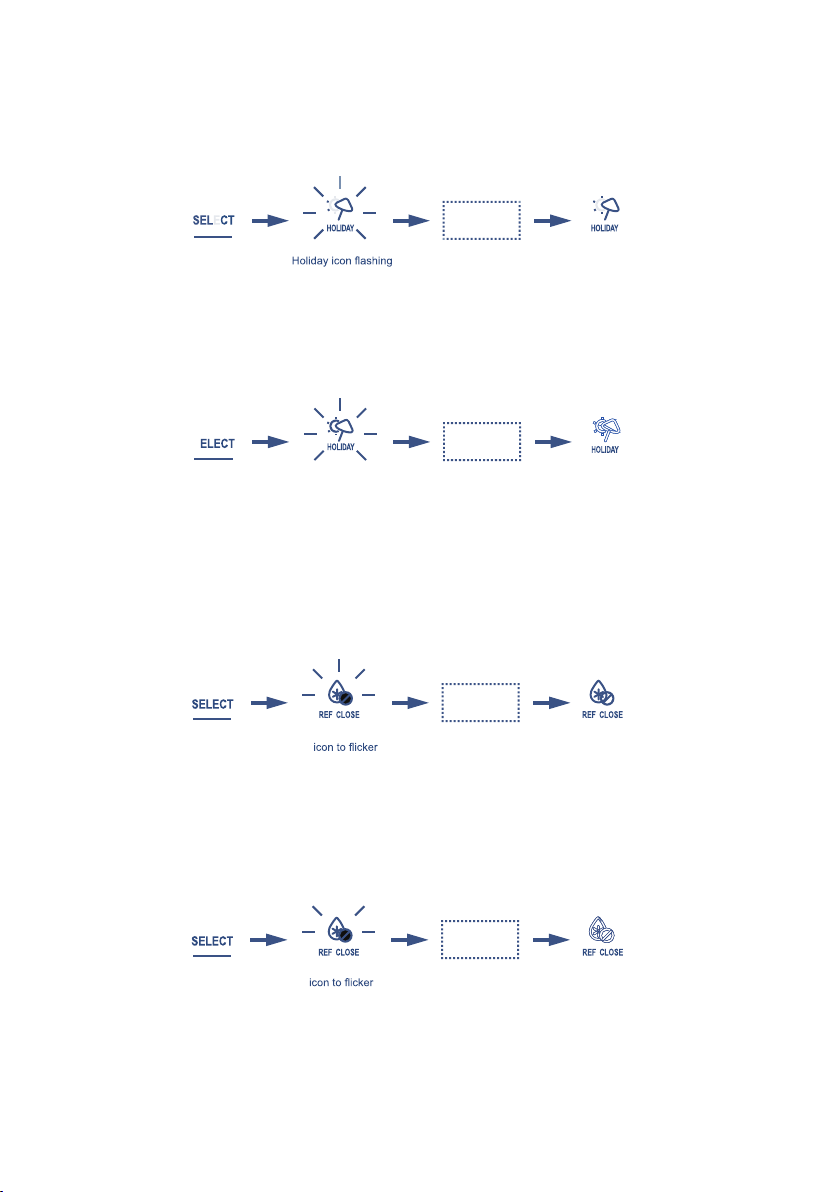

6. Holiday mode function
7. Fridge compartment refrigeration power off function
8. Open door alarm function
Instruction and attentions for usage of refrigerator compartment
Suggested storage area for various foods
Usage of crisper box
Usage of bottle rack

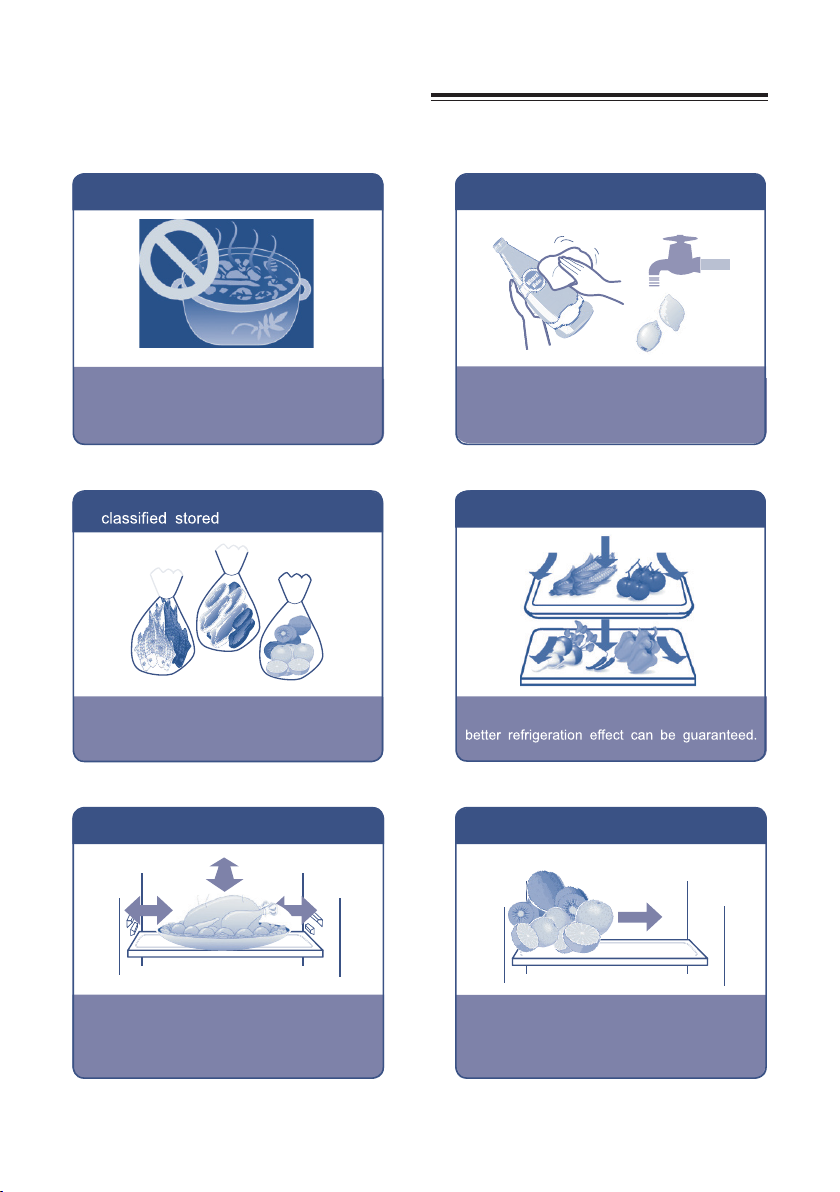

Attentions for food storage in refrigerator compartment

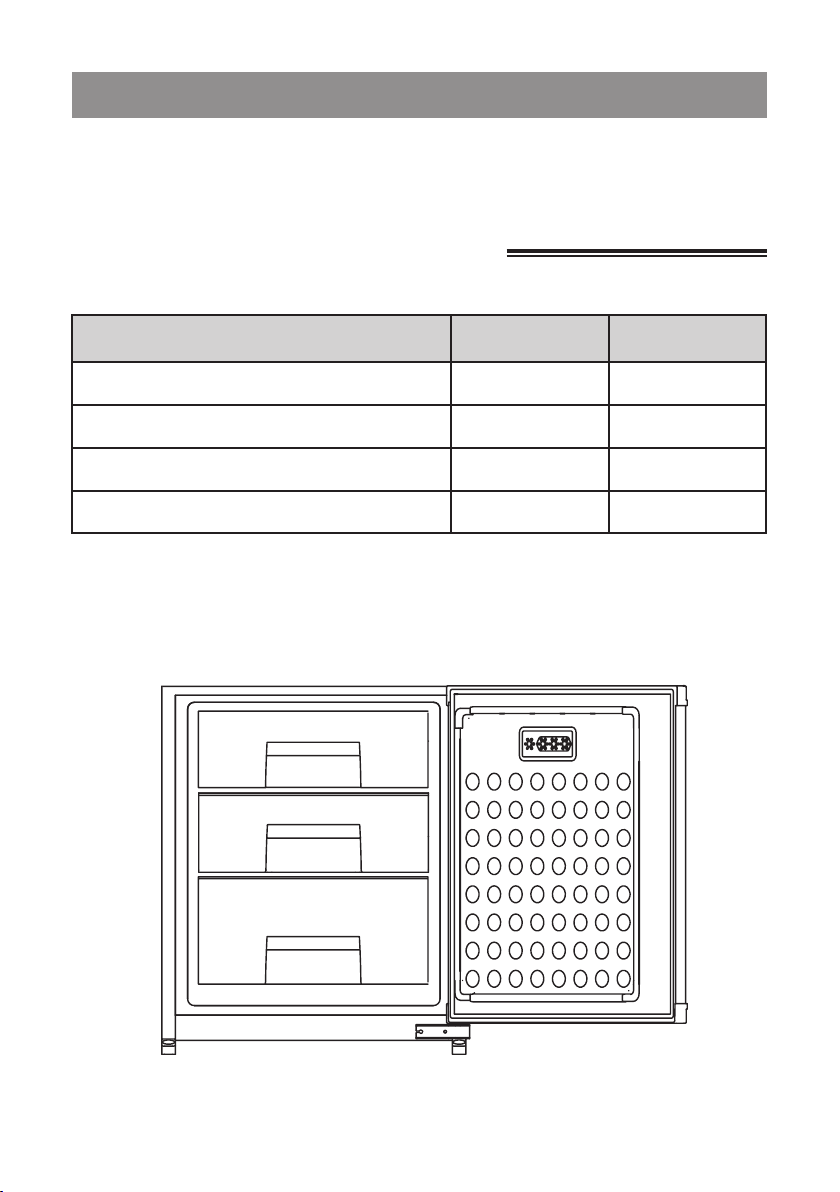

Instruction and attentions for usage of freezer compartment
Attentions for food storage in refrigerator compartment

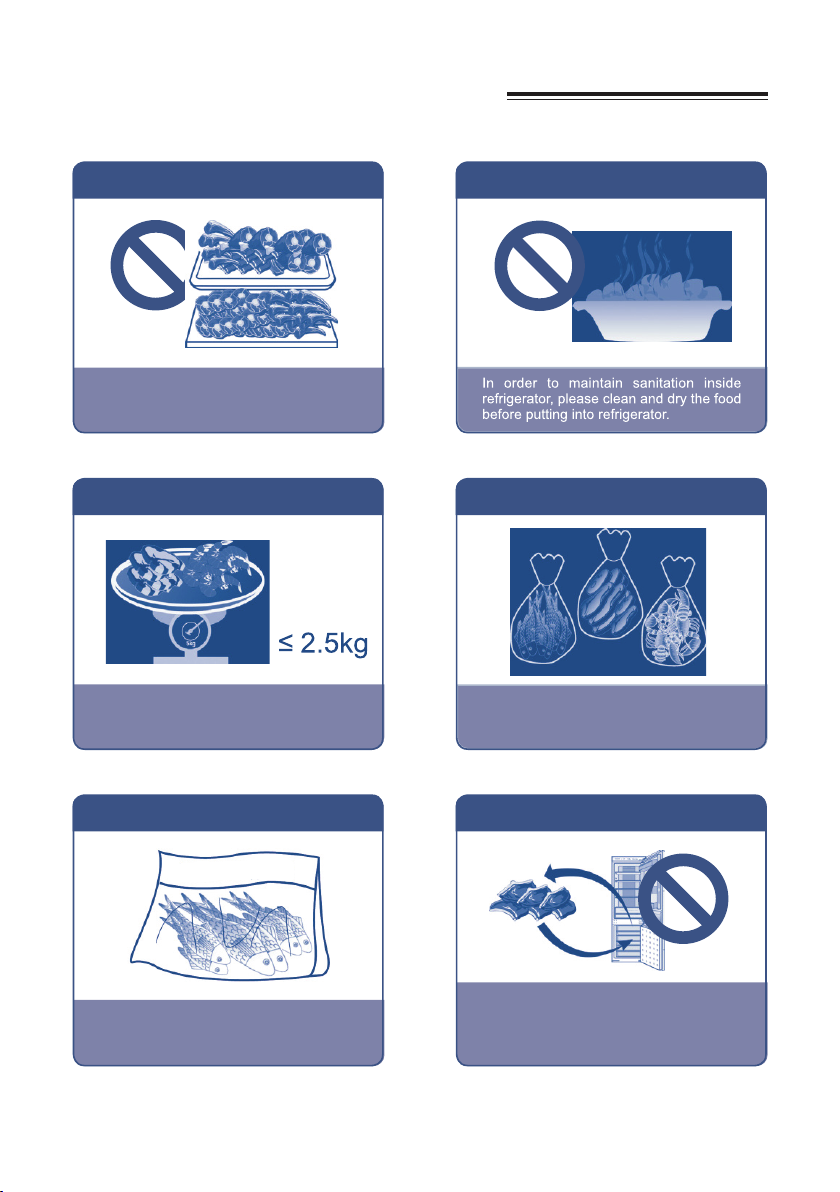

Attentions for food storage in freezer compartment
Daily maintenance for refrigerator
Clean refrigerator
Transportation of refrigerator
Abandon refrigerator
Wiring diagram
3
5
6
6
6
7
8
9-11
12
12
12
13
13
14
14
15
15
16
16
16
17
17
17
17
18
19
19
20
21
21
21
22
23

3
Important safety instructions
Dear customer:
Thanks for choosing our products. In order to guarantee the proper usage of
refrigerator and avoid personal injury, please carefully read the contents with below
symbols in this manual:
Warning
Attention
Mistaken operation may
result in personal injur y
Mistaken operation may
result in personal injur y
Strictly forbidden behavior
or operation
Behavior or operation that
must be observed
Electricity
Power
alternating current of this refrigerator is 220V/50H, if voltage fluctuate too large
( exceed the range of 187-242V), the refrigerator may not start to work, The
thermostat compressor will burns out and compressor may sound abnormally,
at this time, it must be equipped with an automatic voltage stabilizer of more
than 750W
In case of leakage of flammable gas, please open the doors and windows,
do not plug or unplug the power plug
The refrigerator has to be powered with a special independent socket and
reliably grounded.
Please do not pull out the plug with jerk. Hold the power plug tightly, then
pull it out from socket directly. Make sure the power cord is not squeezed
by the refrigerator or user. Please be cautious to avoid damaging the power
cord when moving refrigerator away from the wall.
Do not use the damaged power cord or worn power plug. Please ask the
authorized service personals to replace the damaged power cord.
Please disconnect the refrigerator with power supply before cleaning,
maintenance and replacing LED light.
Grounding
Power cord and plug
Leakage of flammable gas

4
Usage
Maintenance
This is household refrigerator which can only be used for food storage,
please do not store blood, medicine or biological in refrigerator. The
flammale and explosive dangerous products, highly corrosive acid or alkali
shall not be stored in refrigerator.
Do not put bottled beer or drink inside the freezer compartment to avoid
frost crack.
When the refrigerator is running, do not touch the freezing surface in
freezer compartment with wet hands to avoid the skin adhered to the
freezing surface.
The refrigerator should be built-in the cabinet, please refer to the
“Installation instruction” for the specifications of cabinet.
The refrigerator shall be placed away from heat source and avoid direct
sunshine to guarantee the performance.
Do not expose the refrigerator to freezing environment, outdoors or rain.
Do not place the refrigerator in moisture, if the refrigerator is splashed with
water, wipe the water out immediately in order to avoid rusting or damage of
electrical insulation performance.
Do not place the heavy or container filled with water on top of refrigerator
in order to avoid the personal injury or leakage of electricity caused by falling
of the heavy or container.
Do not place or use electrical appliances such as power plug, stabilized
voltage supply, microwave on top of or inside refrigerator to avoid
electromagnetic interference.
Do not store or use gasoline or other flammable substances near to
refrigerator to avoid fire disaster.
Do not use water to spray the refrigerator, make sure the refrigerator is not
placed in wet environment to avoid damage of electrical insulation performance.
When clean the refrigerator, please pull out the power plug. Make sure the
refrigerator is powered off for at least 5 minutes before connecting to power
supply again, or else the compressor may breakdown due to consecutive
operation.
Do not use water to spray the refrigerator, make sure the refrigerator is
not placed in wet environment to avoid damage of electrical insulation
performance.
The refrigerator can only be disassembled or repaired by qualified
serviceman
Danger: Risk of child entrapment. Before you throw away your old
refrigerator or freezer:
Take off the doors
Leave the shelves in place so that children may not easily climb inside.
Clean
Clean
Food storage
Usage environment

5
Preparations before using refrigerator
Steps for first use of product
Remove all packaging materials including the foaming base and the adhesive
tapes to fix the accessories.
Check the accessories and materials
Please check the parts inside package according to packing list. If there is
difference, please consult the seller.
Place the refrigerator in proper position
Please clean the refrigerator before use(refer to the chapter “clean of
refrigerator” on page 21)
After the refrigerator is leveled and cleaned, please wait 2 hours before
connecting to the power supply.
Remove the protection film
Please remove the protection film before use to guarantee the heat dissipation of
refrigerator.
Connect to
power supply
After frist connecting to power
supply, it will take several hours
for refrigerator to complete the
refrigeration.
The default preset tem -
perature is: refrigerator
compartment(5 oC) freezed
compartment(-18 oC)
Put the food
inside refrigerator
The food can be put into refrigerator
2-3 hours after connecting to power
supply. Please do not store too much
food in freezer conpartment. The
total weight of the food stored
in each shelf should not be more
than 24kg.
Using
refrigerator
Keep the refrigerator
running for 24 hours to
reach the steady state
after putting the food
inside refrigerator. After
that, the temperature
can be changed.
Tips: After changing the temperature setting, it will take some time before the
cabinet temperature reach balance.The length of time depends on ambient
temperature,frequency of opening refrigerator doors and the food storedin
refrigerator
1 2 3

6
Attentions before installation
Installation instruction
In order to make the refrigerator work well, please obey below installation steps.
Installation position
Please keep the refrigerator away from direct sunshine and heating appliances such
as stove top, over and dishwashers.
Power supply
• Make sure the power plug can be easily pulled in and out when installing the
refrigerator.
• The power plug should be inserted into a special socket to avoid the unexpect -
ed power off of refrigerator. Do not use extension cord or porous adapter.
• Tho understand the requirement for power supply by referring to the nameplate
in left side of refigerator.
• The refrigerator should be correctly grounded.
Installation parts list
1.front top plate 2.Hinge plate 3.Mounting plate
5.sealing strip
6.Stainless steel
countersunk head screw
7.anchor screw
9.screw
10.the screw cap
10
10 32
(already installed)
Pcs Pcs Pcs Pcs
Pcs Pcs Pcs Pcs
Pcs
8Pcs

7
Cabinet size (mm) Product size (mm)
Net empty width 573+3 Width 540
Net empty depth >560(recommend
600) Depth 545
Net empty Height 1782+3 Height 1770

8

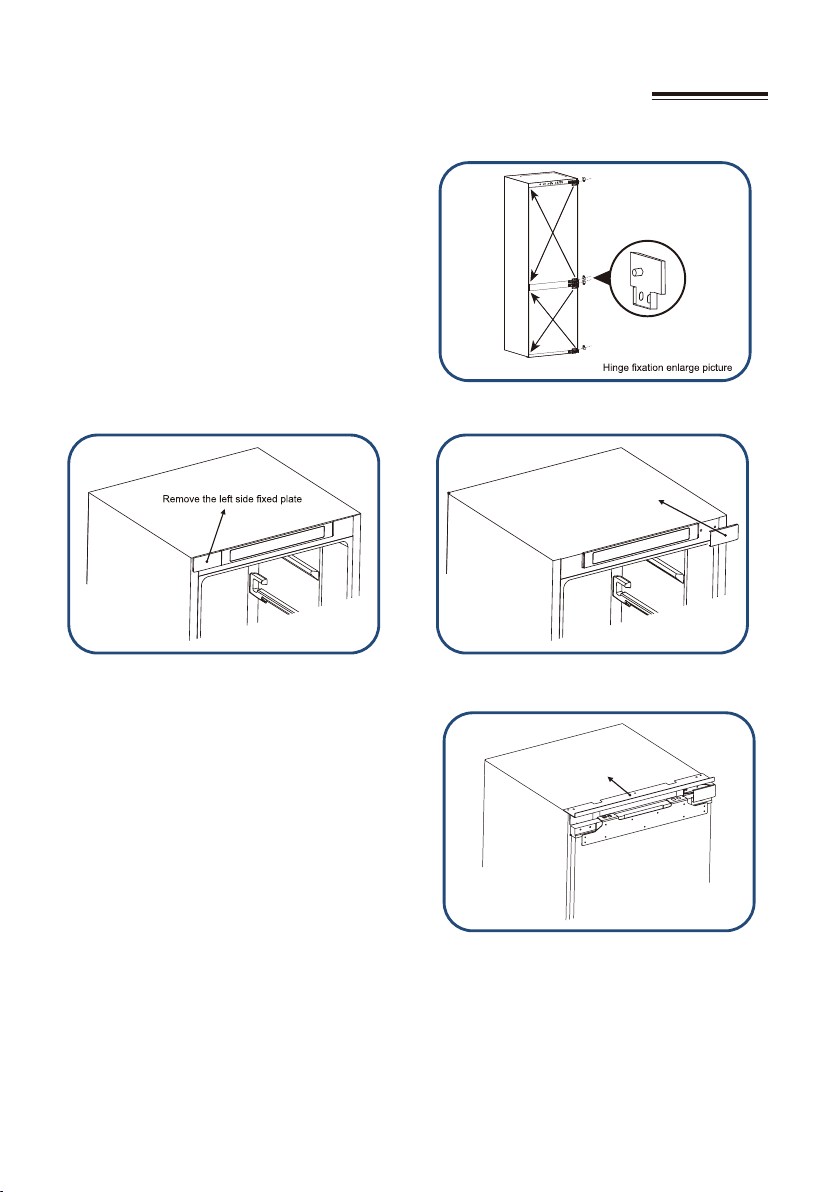

Preparations before installing the refrigerator
1. Confirm the direction of opening the door
2. Install the front top plate
Fix the front top plate in front top of
refrigerator with screws.
The refrigerator door is opened from left side.
If change to open door from right side,please
install the upper and lower hinge on left side
after reversing the hinges. The reversing
direction is shown as arrow in the diagram.
Install the hinge fixing palte remove the small
fixing plate in left side, then install the small
fixing plate in right side after changing the
direction of opening the door.
Hinge alignment indication
install the right mounting plate
front top plate

9

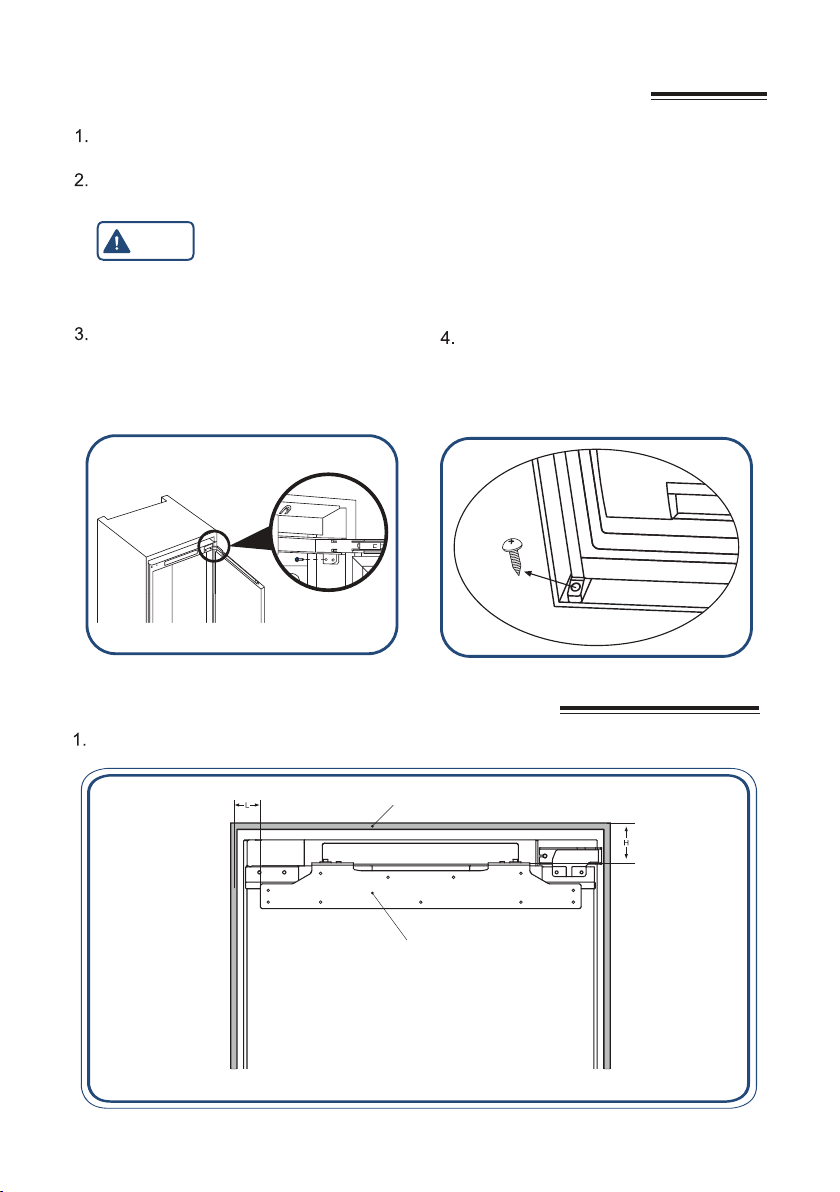

The steps to put the refrigerator inside cabinet
Pass the power cord through the hole on the back of the cabinet. If the power socket is inside cabinet, firstly
plug the power plug into socket then put the refrigerator inside cabinet
Move the refrigerator into cabinet, adjust the refrigerator position in fore-and-aft direction to ensure the front
of hinge fixing plate is leveled with cabinet.
CAUTION
Do not squeeze the power cord. A broken power cord may lead to fire disaster.
Fix the side of hinges with 2 screws(one screw
to fix the first hinge, the other screw to fix the
fourth hinge), after installing the cabinet door ,
insert other screws into the screw holes on the
hinge,then tighten the screws.
Fix the lower bottom feet to cabinet with screws.

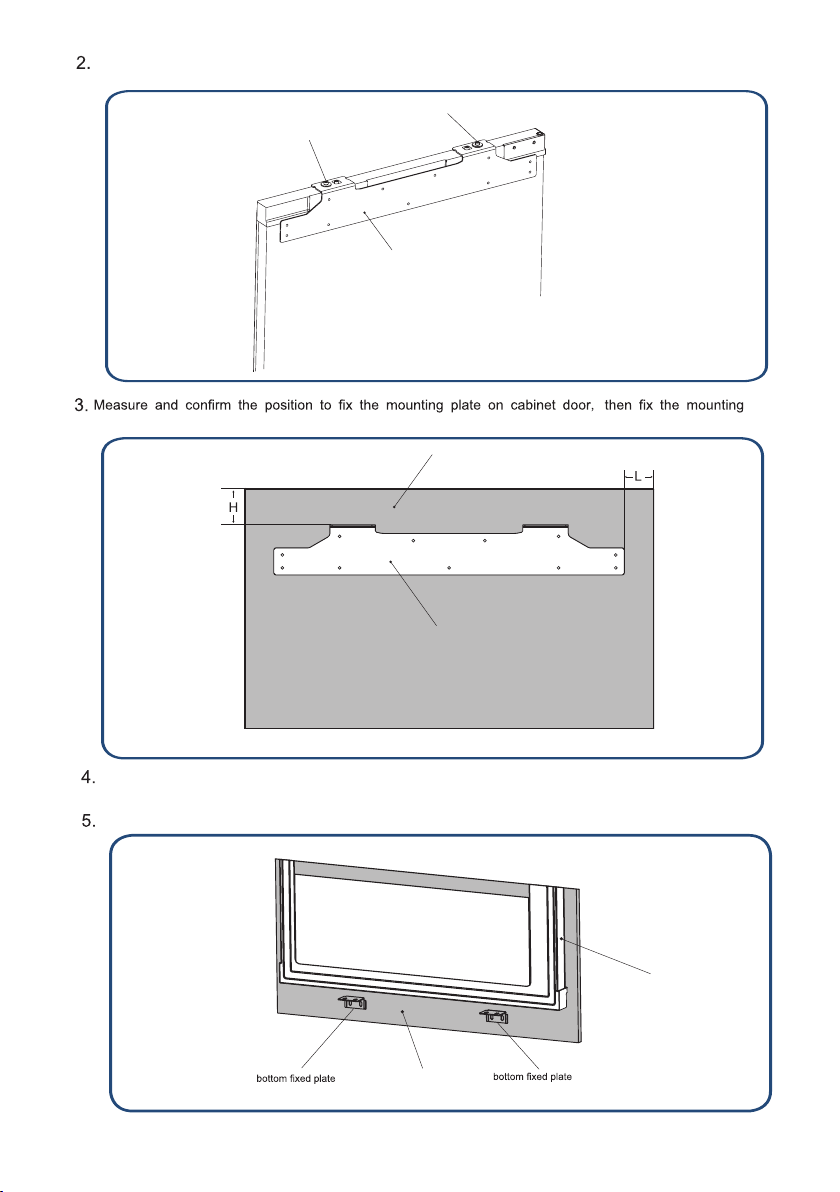

The steps to install the upper cabinet door
Measure the distance between upper mounting plate of refrigerator compartment door and top/left of
cabinet and record the position.
cabinetbody
Mounting plate

10
Loosen cap screws, then remove the mounting plate.
The cap screw
The cap screw
Mounting plate
plate to cabinet door with screws.
Fix the cabinet door to refrigerator compartment door with mounting plate, then tighten the screws ( please
do not overtighten the screws
because the screws need to be loosened later).
cabinet shutter
Mounting plate
Fix the refrigerator door to cabinet door with lower mounting plate.
cabinet shutter
The refrigerator door

11
The procedure of installing the cabinet door to freezer compartment door is the same with the
procedure of installing the cabinet door to refrigerator compartment door .
Tuck the sealing strip into the gap between refrigerator and cabinet.
The steps to adjust the refrigerator cabinet door
Steps to adjust the upper end of refrigerator cabinet door
1.Adjustment of cabinet door in upward and downward direction
Adjustment in upward direction: Firstly adjust the cap screw A
upwards, then adjust the cap screw B upwards.
Adjustment in downward direction: Firstly adjust the cap screw
B downwards, then fix the cap screw A.
2. Adjustment of cabinet door in leftward and downward/fore-and-aft direction
Adjustment in leftward and downward direction: Loosen cap screw A, move the mounting plate to
right position, then fix cap screw B.
Steps to adjust the lower end of refrigerator cabinet door
1. Loosen the screws slightly , then adjust
the
depth( Z) and tighten the screw.
.
adjust the depth
cabinetdoor
srew
2. Affter adjusting the horizontal position of refrigerator cabinet door fix the lower fixing pate refrigerator door
with screws.

12
Main function introduction
Tips for energy saving
During the installation process
•Install the refrigerator in the place with the lowest indoor temperature, keep away from direct
sunlight, heating pipe, ventilation adjustment device and other heating appliances.
•Make sure the refrigerator is well ventilated.
During use process
•Do not make the refrigerator full of foods to guarantee the air circulation.
•Do not pad the shelves with anything such as aluminum foil, waxed paper or tissue.
•Do not make the refrigerator full of foods to guarantee the air circulation.
•Shorten unnecessary time of opening the door.
Before putting the food into refrigerator
•Remove all packages.
•Clean the cabinet with warm dish detergent to remove the dust during manu facturing
and transportation.
•There is odor when first use the refrigerator, but the odor will disappear after the
temperature inside refrigerator is low enough.
•Have the refrigerator running for 2-3 hours with no food inside to make every
compartment reach adequate temperature.
During use process
main panel
The glass shel f
Fruit crisper
drawer
door rack

13
Control panel
power switch
temperature
area displays icon
range to choose
temperature
area displays icon The function icon
temperaturecontrol The function icon
Power switch: Power on/off the refrigerator
Temperature zone selection: Select the temperature zone of refrigerator and freezer
compartment
Temperature adjustment: Adjust the temperature settings in selected temperature
zone
Function selection: Sekect functions of fast cooling, fast freeze, holiday
Temperature zone displaying icon: Display current temperature zone
Temperature displaying icon: Display the temperature setting or value for current
temperature zone
Fast cooling icon: Indicate the refrigerator is in fast cooling status
Fast freeze icon: Indicate the refrigerator is in fast freeze status
Holiday mode icon: Indicate the refrigerator is in holiday mode status
Fridge compartment refrigeration power off
icon: Indicate the fridge compartment refrigeration is power off
1. Power switch
Power on the refrigerator
When the refrigerator is in power off status, press “ power switch “ button for 3 seconds, the
indicator is on and the refrigerator starts running.
Power off the refrigerator
Press “ power switch “ button for 3 seconds, the indicator is on and the refrigerator stops
running.
Press 3 seconds the indicator goes
on( the
�refrigerator
starts running)
press 3 seconds agai nt he indicator goes
off( the
�refrigerator �
stops running)

14
2. Adjust the temperature inside refrigerator compartment
3. Adjust the temperature inside freezer compartment
1. Press the “temperature zone selection”button, the refrigerator and freezer
temperature zone displaying icon will be lighted in turn.
2. Select refrigerator compartment temperature zone, the corresponding
displaying icon will be lighted and the actual temperature inside refrigerator
compartment will be displayed.
3. Press “temperature regulation”button, the temperature displaying icon will
display current setting of refrigerator compartment and blink.
4. Press “temperature regulation”button again,the refrigerator compartment
temperature setting will cycle in turns:”02”-”03”-”04”-”05”-”06”-”07”-”08”-”02”.
If there is no pressing button operation in 5 seconds, current setting will be
confirmed.
1. Press the “temperature zone selection”button, the refrigerator and freezer temperature zone
displaying icon will be lighted in turn.
2. Select freezer compartment temperature zone, the corresponding displaying icon will be
lighted and the actual temperature inside freezer compartment will be displayed.
3. Press “temperature regulation”button, the temperature displaying icon will display current
setting of freezer compartment and blink.
4. Press “temperature regulation”button again, the refrigerator compartment temperature setting
will cycle in turns: ”12”-”13”-”14”-”15”-”16”-”17”-”18”-”19”-”-20”-”-21”-”-22”-”-23”-”-24”-”-12”
If there is no pressing button operation in 5 seconds, current setting will be
confirmed.
Press select the refrigerate
temperature area
Press select Set the current gear Press select agains
Press select the refrigerate
temperature area
Press select Set the current gear Press select agains

15

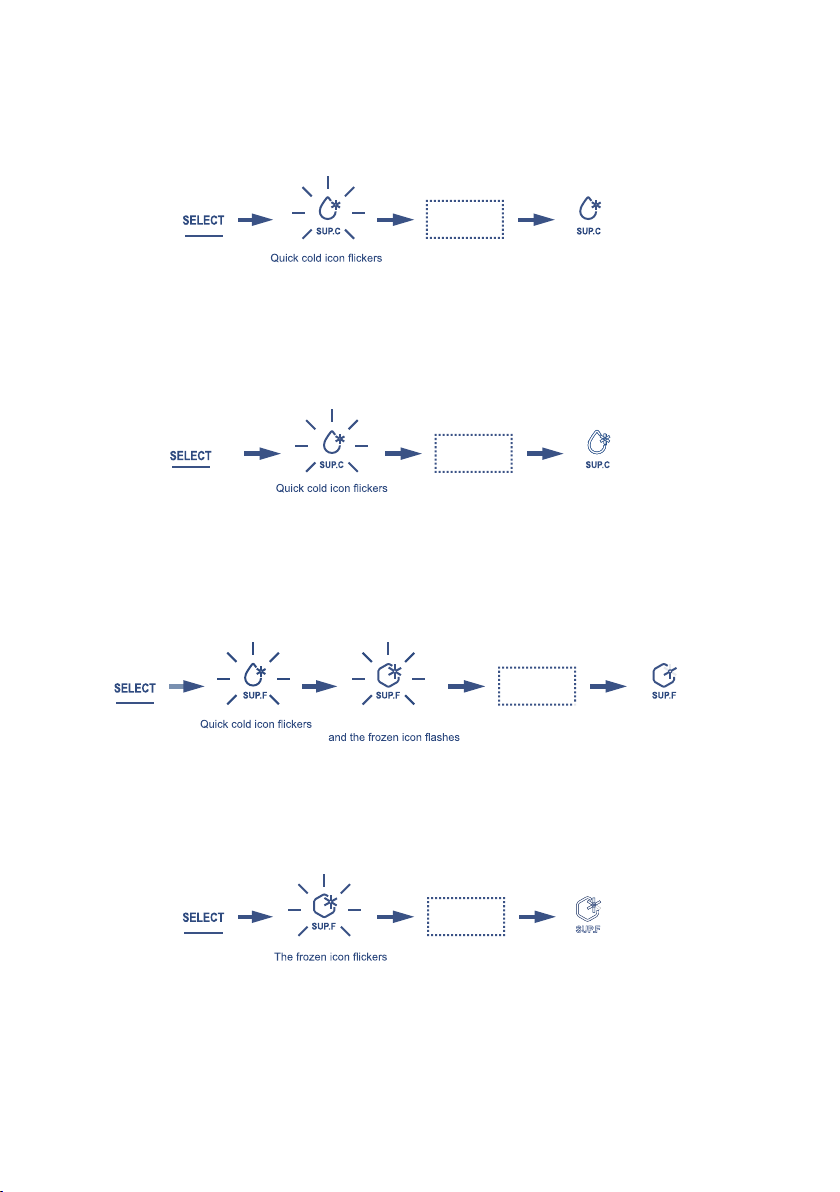

4. Fast cooling function
5. Fast cooling function
Turn on fast cooling function
Press “mode selection”button, ”fast cooling” icon will blink. After 5 seconds,”fast cooling” icon
will be lighted and fast cooling function is enabled.
Turn on fast freeze function
Press “mode selection”button, ”fast freeze” icon will blink. After 5 seconds, the “ fast
freeze “ icon turns off and the refrigerator quits fast freeze mode
Turn on fast freeze function
In fast freeze mode, press “mode selection” button, the “fast freeze” icon will blink.
After 5 seconds, the “fast freeze” icon turns off and the refrigerator quits fast freeze
mode.
Turn off fast cooling function
In fast cooling mode, press “mode selection” button, the “fast cooling” icon will blink.
After 5 seconds, the “ fast cooling “ icon turns off and the refrigerator quits fast cooling mode.
Press select Quick freeze icon lights
up and enters quick freeze
Wait for 5
seconds
Press select
Wait for 5
seconds
The quick freeze icon
goes out exit quick-freeze state
Press select Press the selection again Quick freeze icon lights
up and enters quick freeze
Wait for 5
seconds
Press 2 times
Wait for 5
seconds
The quick freeze icon goes
out exit quick-freeze state

16
6. Holiday mode function
7. Fridge compartment refrigeration power off function
8. Open door alarm function
Turn on holiday mode function
Press “mode selection”button 3 times, ”holiday mode” icon will blink. After 5 sec onds,
” holiday mode” icon will be lighted and holiday mode function is enabled.
Turn on fridge compartment refrigeration power off function
Press “ mode selection “ button 4 times, “ fridge compartment refriigeration power off “ icon
will blink. After 5 seconds, “ fridge compartment refrigeration power off “ icon will be lighted
and fridge compartment refrigeration power off function is enabled.
If the refrigerator door is open for 180 seconds, the buzzer will sound alarm 3 times by 0.5
second interval.
If the refrigerator door is still open after 30 seconds, the buzzer will repeat sounding alarm 3
times by 0.5 second interval until the refrigerator door is closed.
Turn off fridge compartment refrigeration power off function
In fridge compartment refrigeration power off mode, press “ mode selection “ but ton 4 times,
the “fridge compartment refrigeration power off “ icon will blink. After 5 seconds, the “ fridge
compartment refrigeration power off “ icon turns off and the refrigerator quits fridge compartment
refrigeration power off mode.
Turn off holiday mode function
In holiday mode function, press “mode selection” button 3 times, the “holiday mode” icon will
blink. After 5 seconds, the “ holiday mode “ con turns off and the refrigerator quits holiday mode.
Wait for 5
seconds
Press 3 times Holiday icon lighting
Wait for 5
seconds
Press 3 times Holiday icon lighting Holiday icon quench
Wait for 5
seconds
Press 4 times Close the refrigerated Close the refrigerator
icon and light up
Wait for 5
seconds
Press 4 times Close the refrigerated Close the refrigerated
icon and extinguish

17
The average temperature in refrigerator compartment is 0~10 oC, so it can only be
used for short-term storage of food.
The temperature in different areas of refrigerator is different, so the food should be stored in
recommended area shown as beloew figure:
The food and vegetable stored in
refrigerator compartment lose moisture
soon. Maintain the humidity in the
crisper to keep more moisture of food
and vegetable, fresh food and
vegetable is good for health.
The position of bottle rack can be
moved according to storage
requirement. The bottle rack can be
pulled out by lifting up.
When assemble the bottle rack, first
place the bottle rack in restraint of door
liner, then push it down to postiton.
Suggested storage area for various food
Usage of crisper box
Usage of bottle rack
Instruction and attentions for usage of refrigerator compartment
Salted food
canned food, etc
Canned food
spices, etc
Pasta, canned and
milk, tofu, etc
Drinks and
bottled foods
Cooked meat
sausage, etc
Fruit, vegetables
salad, etc
Eggs, butter, etc

18
Attentions for food storage in
refrigerator compartment
Do not place hot food in refrigerator The food need to be cleaned before
putting into refrigerator
Cool the hot food to room temperaturebefore
putting into the refrigerator. Directly putting
hot food will not only result in the
temperature rise insiderefrigerator but also
reduce the freshnessof other food.
Cool the hot food to room temperaturebefore
putting into the refrigerator. Directly putting
hot food will not only result in the
temperature rise insiderefrigerator but also
reduce the freshnessof other food.
The food need to be sealed and
Seal the food before putting into refrigerator.
Classify the food and store separately, this
can not only help to keep freshness of food,
but also avoid the smell pollution.
Do not place too much food in
refrigerator
The food should be stored separately to
leave enough room for air circulation, thus
Prevent oil food contacting the liner
Contact of food especially oil food with liner
will result in corrosion of liner. The liner
being polluted with oil should be cleaned
immediately.
Do not place food too close to liner
Please keep the food a little distance from
liner to avoid being frozen.

19
Attentions for food storage in freezer compartment
The low temperature of freezer compartment is helpful to keep freshness of food, so the food
need to be stored for a long time is recommended to be stored inside freezer compartment,
but please pay attention to the suggested storage period on food package.
Please refer to the instructions on the package of the food manufacturer or the professional
refrigeration manual for detailed instructions.
The specific storage time depends on the quality of the food, the pretreatment before freezing
and the different requirements of each family for the food quality.
Recommended preservation period
and quality guarantee period for various food
Food preservation peri -
od(month)
quality guarantee
period(month)
chicken,beef,mutton,shrimp 4 9
dumpling,frozen bun,spareribs,popsicle 4 6
cake,bread,sliced meet,cheese 2 6
crab,sea food,sausage,ice cream 1 3

20
Attentions for food storage in freezer
compartment
Do not place too much
food inside freezer compartment Do not place hot food in freezer compartment
Do not place too much fresh food inside
freezer compartment, please refer to the
frozen capacity data of the refrigerator.
Divide food into proper portions
Small portions of food with no less than
2.5kginweightareeasilytobefrozen
and unfrozen.
Food need to be packed before
placing into freezer compartment
The outside package of food need to be dry
to avoid frozen of food. The package should
be no smell,air proof,water proof,no toxicity,
no pollution to avoid the smell pollution and
quality decrease of food.
The food should be dated
according to storage period
The frozen date and period should be
marked on package according to storage
period of various food in order to avoid
the food being spoiled.
Avoid the repeat frozen of food
In principle, the frozen food can not be
frozen again unless it has been cooked,
or else the food quality will be reduced.
past due on
