H.Koenig toad8 User manual

toad8
Retro minibar
Minibar retro
Retro-Minibar
Retro minibar
Minibar retro
Minibar retro
Retro mini-bar

ENGLISH
WARNING:
1. This appliance may be used by
persons with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge provided
they have received supervision or
instruction in the safe use of the
appliance and understand the hazards
involved.
2. Children should be supervised to
ensure that they do not play with the
appliance.
3. This appliance may be used by
children of at least 8 years of age, as
long as they are supervised and have
been given instructions about using the
appliance safely and are fully aware of
the dangers involved.
4. Cleaning and maintenance should not
be carried out by children unless they are
at least 8 years of age and are supervised
by an adult.

5. Keep the appliance and its power cord
out of reach of children under 8 years of
age.
6. When using electrical equipment,
safety precautions must always be taken
to prevent the risk of fire, electric shock
and/or injury in the event of misuse.
7. Make sure that the voltage rating on the
typeplate corresponds to your main
voltage of your installation. If this is not the
case, contact the dealer and do not
connect the unit
8. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
9. To avoid a hazard due to instability of
the appliance, it must be fixed in
accordance with the instructions.
10. When positioning the appliance,
ensure the supply cord is not trapped or
damaged.
11. Do not locate multiple portable
socket-outlets or portable power

supplies at the rear of the appliance.
12. Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
13. Do not use mechanical devices or
other means to accelerate thedefrosting
process, other than those recommended
by the manufacturer.
14. Do not damage the refrigerant
circuit.
15. Do not use electrical appliances
inside the drink storage compartments
of the appliance, unless they are of the
type recommended by the manufacturer.
16. Do not store explosive substances
such as aerosol cans with a flammable
propellant in this appliance.
17. Children aged from 3 to 8 years are
allowed to load and unload refrigerating
appliances.
18. The device must not be used if it has
been dropped, it obvious signs of damage
are visible or if it has leaks.
19. Please keep this document at hand
and give it to the future owner in case of

transfer of your device.
20. Do not operate this appliance if it has
a damaged cord or plug, if it is not working
properly or if it has been damaged or
dropped. If the supply cord is damaged, it
must be replaced by the manufacturer or
its service agent or a similarly qualified
person in order to avoid a hazard.
21. Read the operating instructions
carefully before putting the appliance into
operation and keep the instructions
including the warranty, the receipt and, if
possible, the box with the internal packing.
If you give this device to other people,
please also pass on the operating
instructions.
22. This appliance is intended to be
used in household and similar
applications such as
-staff kitchen areas in shops, offices
and other working environments;
-farm houses and by clients in hotels,
motels and other residential type
environments;
-bed and breakfast type environments;

catering and similar non-retail
applications.
23. To avoid contamination of drink,
please respect the following
instructions:
24. Opening the door for long periods can
cause a significant increase of the
temperature in the compartments of the
appliance.
25. Clean regularly surfaces that can
come in contact with drink and
accessible drainage systems.
26. Clean water tanks if they have not
been used for 48 h, flush the water
system connected to a water supply if
water has not been drawn for 5 days.
27. If the refrigerating appliance is left
empty for long periods, switch off,
defrost, clean, dry, and leave the door
open to prevent mould developing within
the appliance.
Note :
The refrigerant gas contained in the circuit of this appliance is
isobutane (R600a), a low-polluting but flammable gas.
- When transporting and installing the appliance, take care not to
damage any part of the refrigerant circuit.
- Do not use any sharp or pointed tools to defrost the unit.

- Do not use any electrical appliances inside the unit.
If the refrigeration system is damaged:
Do not use a flame near the appliance.
Avoid sparks - do not light any electrical appliance or electric lamp.
Ventilate the room immediately.
Indication of Parts
Cabinet
Shelf
Door
Door rack
Bottom hinge
Feet
Upper hinge

·Operating your refrigerator

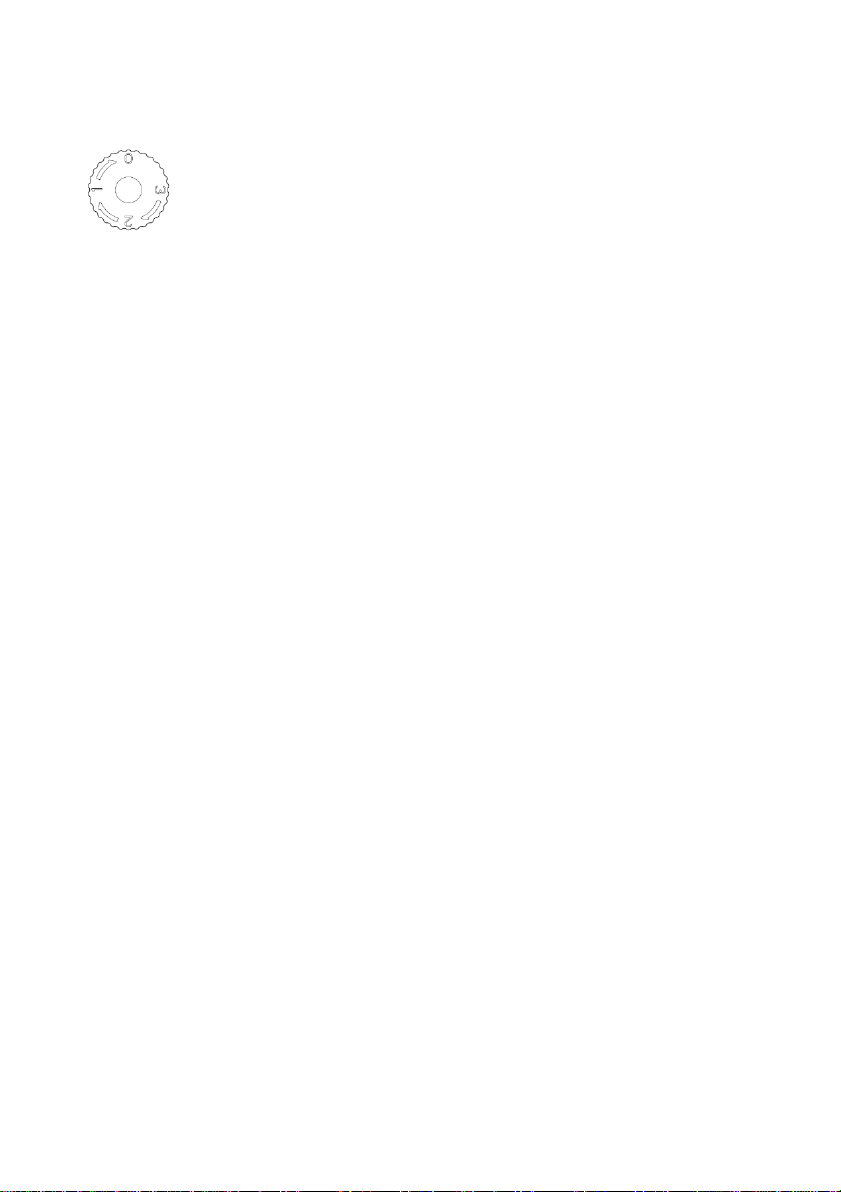

Temperature Control
Setting the Temperature Control
•Your refrigerator has only one control for regulating the temperature.
The temperature control is located on the top of the refrigerator
inside
•To control the internal temperature,adjust the control knob according
to the ambient temperature or purpose of use.
•The range of the temperature control is from position "0" to"3".
·Instruction for use
Note
·Position your refrigerator so that the plug is accessible.
·Keep your refrigerator out of direct sunlight.
·Do not place next to heat generating appliance.
·Do not place directly on the ground. Provide suitable stand.
Very important
·The refrigerator will have better performance at ambient of 20-25
degree; We suggest the refrigerator be powered off if the ambient
temperature is lower than 10 degree.
·After plugging the appliance, allow the unit to cool down for 2-3 hours
before placing beverage into the refrigerator compartment.
·Ventilation is very important for this kind thermoelectric refrigerator.
Poor ventilation could damage your refrigerator, and could damage the
interior PCB.
·The refrigerator applies automatic defrosting system, so there is no
need to defrost it manually.

Power supply
·The refrigerator must be connected to a properly earthed socket in line
with relevant valid country regulations before operating;
·Check the data label (which is on the side of the refrigerator) for voltage
and frequency corresponds to your local one; If not, don't plug your
cable into the socket;
WARNING: To avoid a hazard due to instability of the appliance, it
must be fixed in accordance with the instruction.

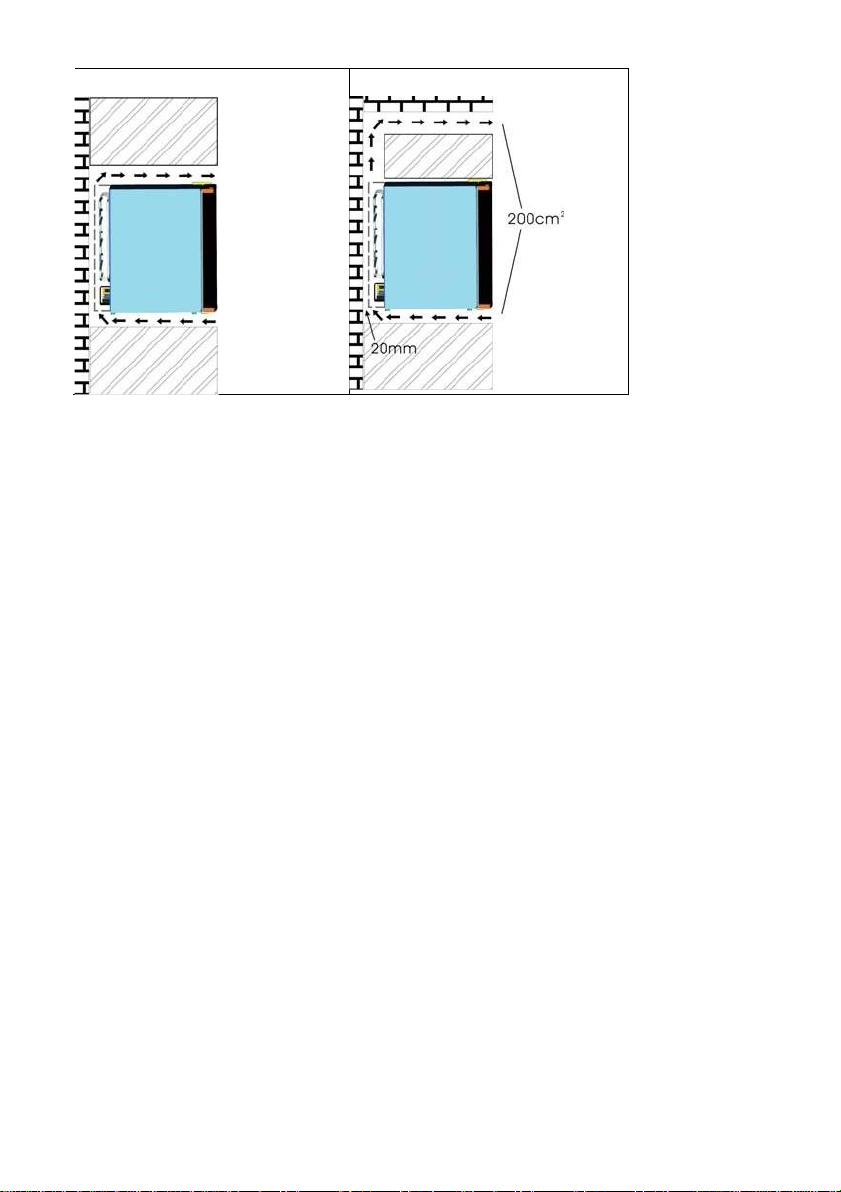

·Installation instructions
When install, ventilation should be considered seriously, please refer to
the following:
·There should be left at least 200 cm³ for ventilation
·The distance between wall and refrigerator side should be at least
20mm
·The bottom should be left at least 50mm for air flowing air passing
through must not be preheated
·Entire cooling system should be considered in the ventilation
·The following four pictures show four installation ways:

· Trouble Shooting Guide
PROBLEM
POSSIBLE CAUSE
Refrigerator does not operate
Not plugged in.
The circuit breaker tripped or a blown
fuse.
Refrigerator does not operate.
The room temperature is hotter than
normal. The door is opened too often.
The door is not closed completely.
The temperature control is not set
correctly. The door gasket does not
seal properly.
The refrigerator does not have the
correct clearances.
Abnormal voltage.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown
fuse. The LED light has burned out.
Vibrations.
Check to assure that the refrigerator is
level.
The door will not close properly.
The refrigerator is not level.
The door was reversed and not
properly installed.
The gasket is dirty.
The shelves, bins, or baskets are out
of position.

·Electric Diagram
·Energy Saving Tips
·The refrigerator should be located in the coolest area of the room,
away from heat producing appliances, and out of the direct sunlight.
·Overloading the refrigerator forces the thermoelectric cooling system
to run longer.
·Reduce door openings and extended searches, remove as many item
as needed at one time, and close the door as soon as possible.
·One characteristic of heat-pipe units is the length of time it requires to
recover from having the door opened and shut frequently. It may be
necessary to wait longer for thetemperature to return to its former level
once the door has been opened for too long. This is normal for the type
of unit.
·Heat-pipe technology costs just pennies to operate. It is
environmentally friendly due to the lack of CFC's.
·PRODUCT FUNCTION DESCRIPTION
1. It is intended to be used exclusively for the cooler.
2. This refrigerating appliance is not suitable for the freezing
foodstuffs.
3. The cooler is recommended to be designed at 12℃.
4. The shelves placed in factory mode is the most efficient use of
energy for the refrigerating appliances.
5. The following combination of shelves is recommended for energy
to be used as efficiently aspossible by the refrigeration unit.

The first shelf
The second shelf
6. When the surrounding temperature is 25℃and the cooler has no
load, it will take around
3.5 hours to decrease the cooler’s temperature from 25℃to 12℃.
7. The cooler is recommended to be designed at 12℃.The energy
consumption is 0.208kWh/24h. If the setting temperature ishigher than
12℃, the energy consumption will be lower. If the setting temperature
is lower than 12℃, the energy consumption will be higher.

·TECHNICAL DATA
Net Volume liters
31
Voltage (V)
220-240
Frequency (Hz)
50/60
Rated Power (W)
58
Dimension (mm)
402x435x537
Packing (mm)
476x508x615
Net Weight (kg)
11.5
Gross Weight (kg)
13.0
Approval
CB/CE

List of parts :
1. Door
2. Fixing bolts
3. Handle
4. M5*6 screw
5. M5*8 screw
Installation guide :
1. Install the fixing bolts on the door
2. Insert the handle into the fixing bolts
3. Fix the handle from below with the screws.

WARRANTY
The warranty period for ourproducts is 2 years, unless otherwise stated,
starting from the date of initial purchase or the date of delivery.
If you have any problems or questions, you can easily access our help
pages, troubleshooting tips, FAQ, and user manuals on our service site:
https://sav.hkoenig.com.
By typing the reference name of your device in the search bar, you can
access all available online support, designed to best meet your needs.
If you still cannot find an answer to your question or problem, then click
on “Did the answer solve your problem?”. This will direct you to the
Customer Support Request Form, which you can fill out to validate your
request and get help.
WARRANTY CONDITIONS
The warranty covers all failures occurring under normal use, in
accordance with the usage and specifications in the user's manual.
This warranty does not apply to packaging or transportation problems
during shipment of the product by the owner. It also does not include
normal wear and tear of the product, nor maintenance or replacement
of consumable parts.
EXCLUSION OF WARRANTY
- Accessories and wearing parts (*).
- Normal maintenance of the device.
- All breakdowns resulting from improper use (shocks, failure to comply
with power supply recommendations, poor conditions of use, etc.),
insufficient maintenance or misuse of the device, as well as the use of
unsuitable accessories.
- Damage of external origin: fire, water damage, electrical surge, etc.
- Any equipment that has been disassembled, even partially, by persons
other than those authorized to do so (notably the user).
- The products whose serial number would be missing, deteriorated or
illegible that would not allow its identification.
- The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables,
deteriorate with time and frequency of use of your device. This wear and
tear are normal but can be accentuated by poor conditions of use or
maintenance of your device. These parts are therefore not covered by
the warranty.
The accessories supplied with the device are also excluded from the
warranty. They cannot be exchanged or refunded. However, some
accessories can be purchased directly through our website:
https://sav.hkoenig.com/.
ENVIRONMENT
CAUTION:
Do not dispose of this product as it has with other household
products. There is a separation
of this waste product into communities, you will need to inform
your local authorities about
the places where you can return this product. In fact, electrical and
electronic products contain
hazardous substances that have harmful effects on the environment or
human health and
should be recycled. The symbol here indicates that electrical and
electronic equipment should be
chosen carefully, a wheeled waste container is marked with a cross.
Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory
- France
www.hkoenig.com - [email protected] - [e-mail] - Tél:
[phone]

FRANÇAIS
AVERTISSEMENT
1. Cet appareil peut être utilisé par des
personnes ayant des capacités physiques,
sensorielles ou mentales réduites ou un
manque d'expérience et de
connaissances, à condition qu'elles aient
reçu des instructions ou qu’elles soient
supervisées pour utiliser l'appareil en toute
sécurité, et qu'elles comprennent les
dangers encourus.
2. Les enfants doivent être surveillés
pour s'assurer qu'ils ne jouent pas avec
l'appareil.
3. Cet appareil peut être utilisé par des
enfants âgés d'au moins 8 ans, à condition
qu'ils soient surveillés et qu'ils aient reçu
des instructions surl'utilisation de l'appareil
en toute sécurité, et qu'ils soient
pleinement conscients des dangers
encourus.
4. Le nettoyage et l'entretien ne doivent
pas être effectués par des enfants, sauf
s'ils ont au moins 8 ans et sont supervisés
par un adulte.

5. Gardez l'appareil et son cordon
d'alimentation hors de portée des enfants
de moins de 8 ans.
6. Lors de l'utilisation d'un équipement
électrique, des précautions de sécurité
doivent toujours être prises pour éviter tout
risque d'incendie, de décharge électrique
et/ou de blessure en cas de mauvaise
utilisation.
7. Assurez-vous que la tension nominale
sur la plaque correspond à la tension
principale de votre installation. Si ce n'est
pas le cas, contactez le revendeur et ne
branchez pas l'appareil
8. Si le cordon d’alimentation est
endommagé, il doit être remplacé par le
fabricant, son technicien ou toute autre
personne de même qualification, afin
d’éviter tout accident.
9. Pour éviter les risques dus à
l’instabilité de l’appareil, il doit être fixé
conformément aux instructions.
10. Quand vous positionnez l'appareil,
assurez-vous que le cordon d'alimentation
n'est pas coincé ou endommagé.
11. Ne placez pas plusieurs prises de
courant portables ou blocs d’alimentation

portables à l’arrière de l’appareil.
12. Assurez-vous que les grilles de
ventilation de l'appareil ou de la structure
intégrée ne sont pas obstruées.
13. N'utilisez pas de dispositif mécanique
ni toute autre méthode non recommandée
par le fabricant pour accélérer le processus
de dégivrage.
14. N'endommagez pas le circuit de
réfrigération.
15. N'utilisez pas d'appareils électriques à
l'intérieur des compartiments du
réfrigérateur, à moins qu'ils ne soient du
type recommandé par le fabricant.
16. N’entreposez pas de substances
explosives, tels que des aérosols à gaz
propulseur inflammable, dans cet appareil.
17. Les enfants âgés de 3 à 8 ans sont
autorisés à charger et décharger des
appareils frigorifiques.
18. L'appareil ne doit pas être utilisé s'il
est tombé, s'il présente des signes
évidents de dommages ou des fuites.
19. Veuillez garder ce mode d’emploi à
portée de main et le remettre au futur
propriétaire en cas de transfert de votre
appareil.
