Chapter 1 Overview
H3C video encoder/decoder frame (hereinafter referred to as the frame) is a hardware
component of the video surveillance system developed by Hangzhou H3C
Technologies Co., Ltd. (hereinafter referred to as H3C). It is used to install video
encoders and decoders (for example, H3C EC1001-HF and H3C DC1001-FF) in a
centralized way, and to provide power supply module and ground terminals for the
encoders and decoders.
The frame falls into two types: single-power supply frame and dual-power supply frame.
1.1 Specifications
Table 1-1 Specifications of the frame
Item Single-power supply
frame Dual-power supply frame
Model VS0E1ECDC VS0M3ECDC
Number of
encoder/decoders that the
frame can hold 9 8
Supported
encoder/decoders H3C EC1001, H3C EC1000 series and H3C DC1000 series
1 2
Number of power supply
modules 90V to 264V AC,12V/12.5A
Physical dimensions (H x
W x D) 219.5 × 440 × 254 mm (8.64 × 17.32 × 10 in.)
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating humidity
(noncondensing) 5% to 95%
1.2 Appearance
The single-power supply frame is similar with the dual-power supply frame in their
appearance. The following takes the dual-power supply frame for description.

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 1 Overview
1-2
(1)
(3)
(2)
(4)
(1)
(3)
(2)
(4)
(1) Mounting bracket (2) Power supply module
(3) AC power interface (4) Slide rail for installing EC/DC
Figure 1-1 Front view (dual-power supply frame)
(1)
(3)
(2)
(4)
(1)
(3)
(2)
(4)
(1) Cable guide for power cable (2) Power cable X9
(3) Power supply status detection wire (4) Ground terminal
Figure 1-2 Rear view (dual-power supply frame)
Note:
The power supply status detection wire (as shown in Figure 1-2) is connected with the
alarm input interface of the encoders/decoders, and used to detect the status of the
power supply module of the frame.

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-1
Chapter 2 Installing the Frame
After unpacking the frame, ensure the components are complete and intact according
to H3C Video Encoder/Decoder Frame Packing List. If any problem is found, please
contact the local agent of H3C.
2.1 Installing the Frame Components
Before using the frame, follow the installation procedures in Figure 2-1 or Figure 2-2 to
install the frame components according to the frame type.

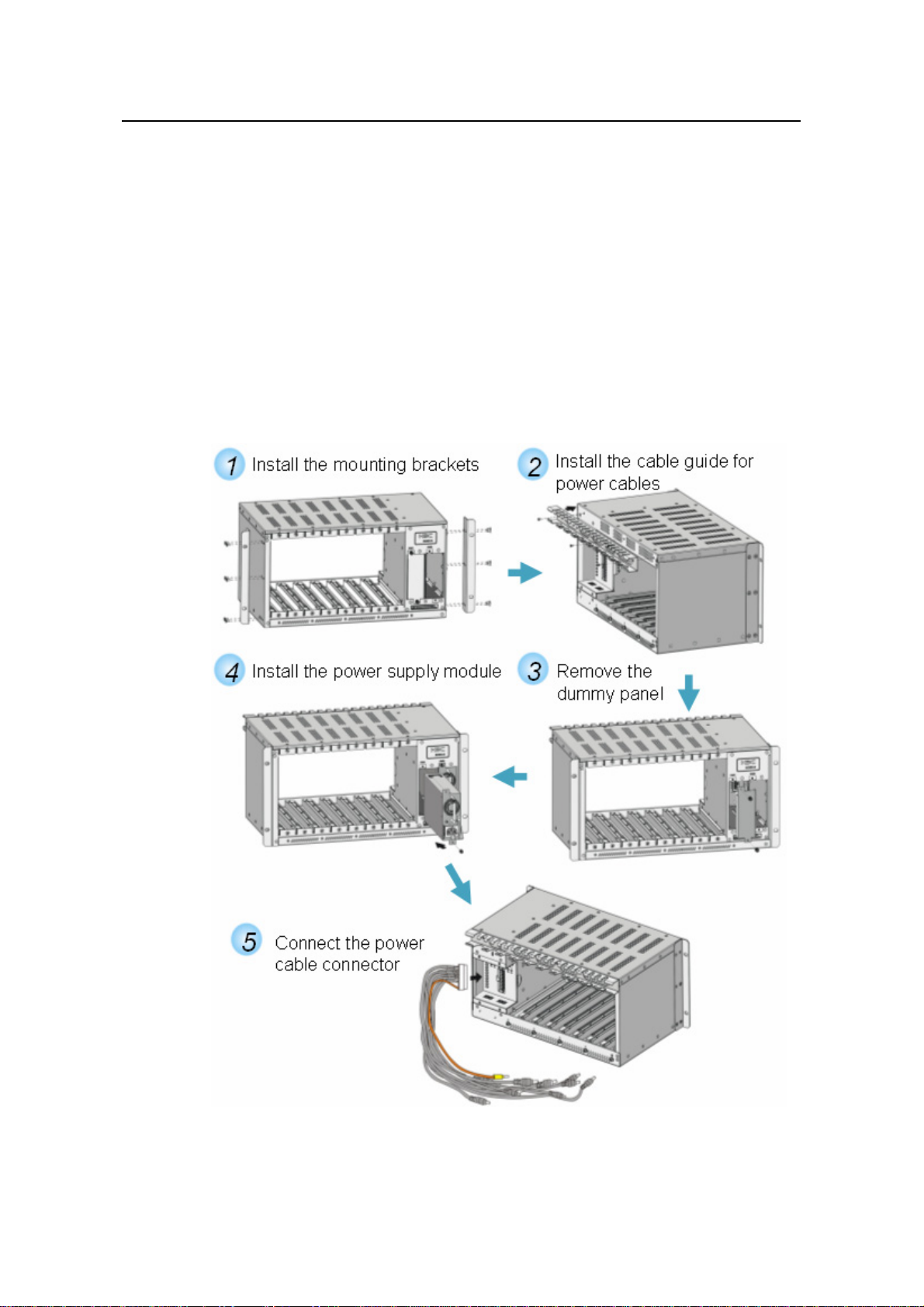

Figure 2-1 Install dual-power supply frame

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-2

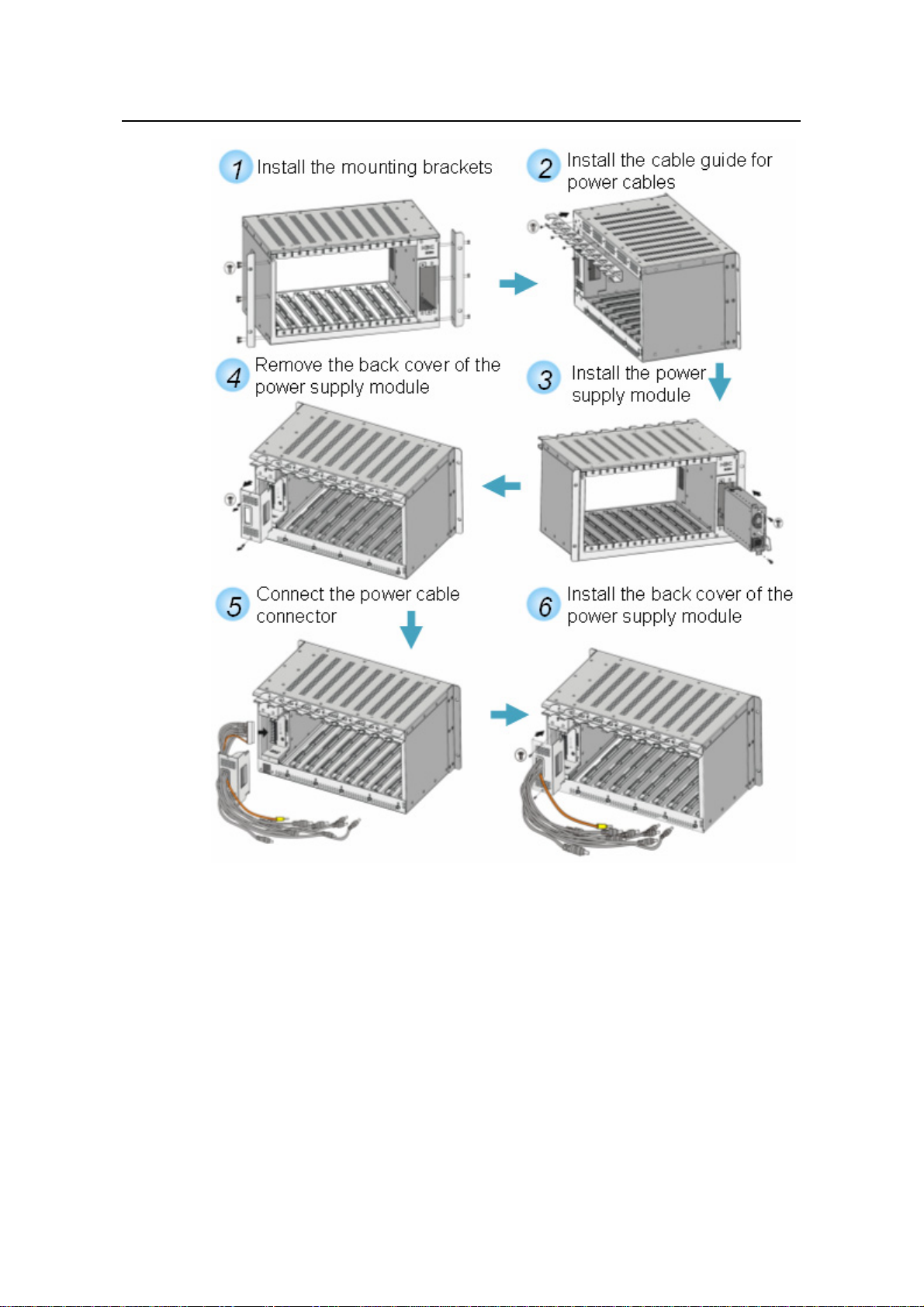

Figure 2-2 Install single-power supply frame

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-3
Note:
zThe frame ships with cable guide for laying power cables and front cable guide for
laying network cables.
zTo install the front cable guide, refer to the installation of the cable guide for power
cables. If an H3C rack is used, it is not required to install the front cable guide.
zAfter inserting the video encoder/decoder into the frame, use ground wire to connect
the ground terminals of the encoders/decoders with those of the frame. Two
encoders/decoders share one ground terminal on the frame. Finally, ground the
frame to the earth directly or through the rack.
2.2 Installing the Encoder/Decoder in a Rack with a Frame
2.2.1 Install the Frame in the Rack
Caution:
When installing a frame in a rack, leave a 1U space high above the frame for cabling
and heat dissipation.
1) Remove the blank filler panel from the rack where the frame is to be installed.
Keep the screws for later use at step 4).
2) Install support in the rack (such as bracket slide rails or brackets).For a support
fixed to the rack post, the rack post must have nuts installed on it already.
3) Lift the frame a little bit higher than the desired installation position. Put the rear
part of the frame on the support, keep the front part a little higher than the rear, and
push the frame slowly into the rack till the mounting brackets on the frame touch
the front rack post.
4) Use screws to fix the mounting brackets on the frame to the front rack post, as
shown in Figure 2-3. After the installation, verify that the installation position is
correct, and the frame and the support are fixed firmly.

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-4

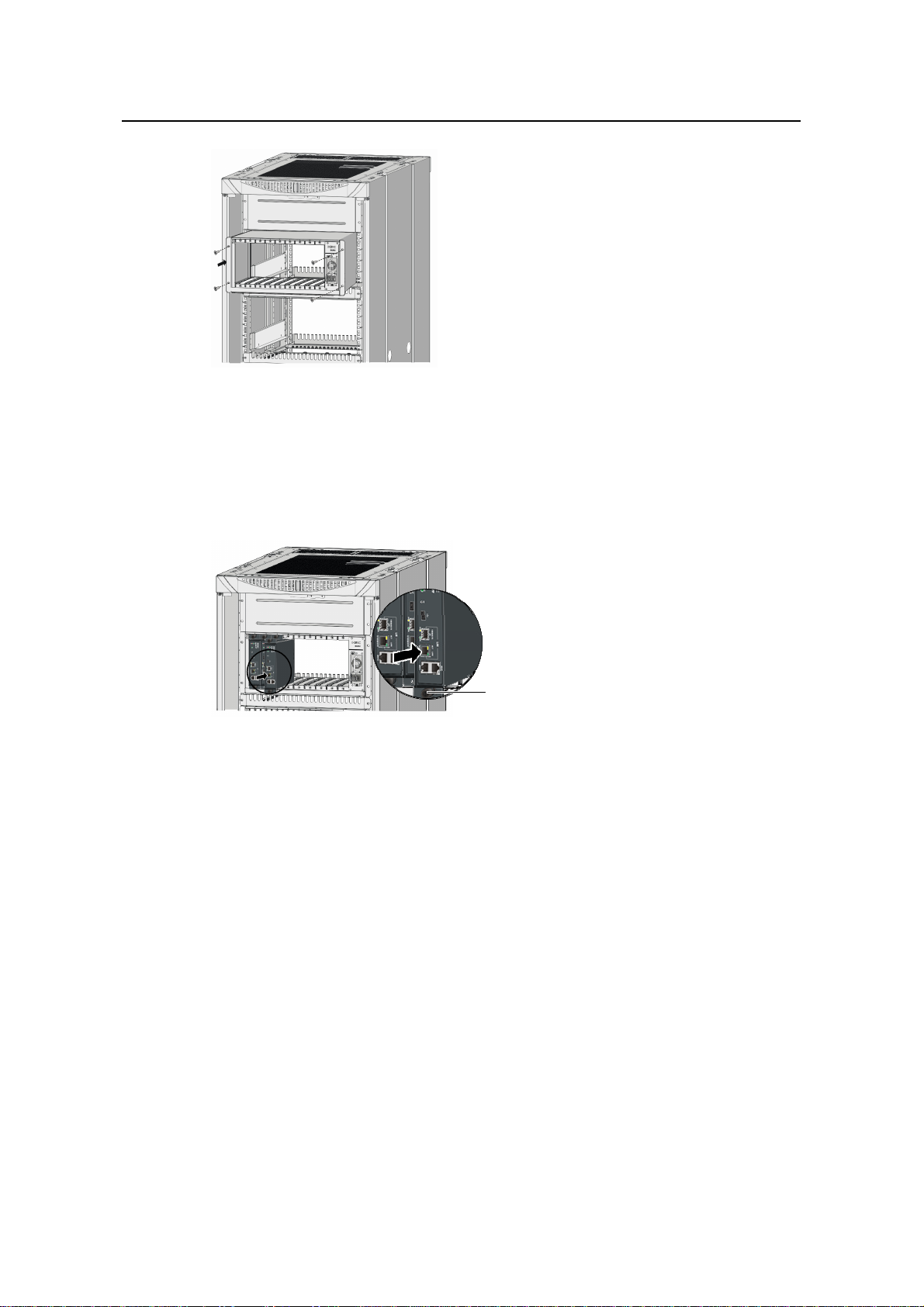

Figure 2-3 Install the frame in the rack
2.2.2 Install the Encoder/Decoder to the Frame
Push the encoder/decoder into the frame slowly and fix it to the frame with strain-relief
screws on the mounting brackets at two sides.
(1)(1)
(1) Strain-relief screw
Figure 2-4 Install the encoder/decoder to the frame
2.2.3 Installing the Cables
This section describes how to connect the ground wire, network cable, video cable, and
power cable. As for the installation of other cables, refer to the Quick Start of
corresponding device.
I. Connect the ground wire
The frame is shipped with nine short ground wires and one long ground wires. The
short ground wires connect the encoder/decoder to the frame ground, and the long
ground wire connects the frame to the external ground (using the rack ground or the
real ground). The cabling is as shown in Figure 2-5.

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-5
(1) (2) (1) (2)
(1) Short ground wire (2) Long ground wire
Figure 2-5 Connect ground wires
II. Connect the network cable
1) As shown in Figure 2-9, lead the network cable of the encoder/decoder to the rear
of the rack through the 1U space under the cable management bracket in front of
the frame.
2) Lead the network cable downward along the cable guide at the rear left side of the
rack, as shown in Figure 2-6.
(1) (2) (1) (2)
(1) Cable guide (2) Network cable
Figure 2-6 Encoder/decoder network cable layout
III. Connect the video cable
Lead the video cable upward along the cable guide at the rear left side of the rack, as
shown in Figure 2-7.
(1)
(2)
(1)
(2)
(1) Connecting camera (2) Video cable
Figure 2-7 Encoder video cable layout

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 2 Installing the Frame
2-6
IV. Install the power cable
1) After installing the frame, route the DC power cable on the rear panel of the frame
as shown in Figure 2-8.
(1)(1)
(1) DC power cable
Figure 2-8 Encoder/decoder DC power cable layout
2) Route the AC power cable as shown in Figure 2-9. Pass the AC power cable
through the 1U space under the cable guide in front of the frame, and connect it to
the appropriate power distribution unit (PDU).
(2)
(1) (2) (1)
(1) Network cable (2) AC power cable
Figure 2-9 Frame AC power cable layout

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-1
Chapter 3 Compliance and Safety Guide for the
Frame
3.1 Regulatory Compliance Information
3.1.1 Regulatory compliance standards
Table 3-1 Regulatory compliance standards
Discipline Standards
EMC
FCC Part 15 (CFR 47) CLASS A
ICES-003 CLASS A
VCCI-3 CLASS A
VCCI-4 CLASS A
CISPR 22 CLASS A
EN 55022 CLASS A
AS/NZS CISPR22 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
GB 9254
GB 17625.1
YD/T993
Safety
UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
FDA 21 CFR Subchapter J
GB 4943

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-2
3.1.2 European Directives compliance
I. LVD/EMC Directive
VS0E1ECDC and VS0M3ECDC products comply with the European Low Voltage
Directive 2006/95/EC and EMC Directive 2004/108/EC.
A copy of the signed Declaration of Conformity can be downloaded from:
http://www.h3c.com/portal/Technical_Documents
II. WEEE Directive–2002/96/EC
The products this manual refers to are covered by the Waste Electrical & Electronic
Equipment (WEEE) Directive and must be disposed of in a responsible manner.
3.1.3 USA regulatory compliance
I. FCC Part 15
VS0E1ECDC and VS0M3ECDC comply with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may
cause undesired operation.
If the customer modifies the equipment without the authorization of H3C, which directly
or indirectly contribute to the equipment incompliance with FCC requirements for Class
B (Class A) digital devices, H3C is not liable for such interference problem and the
expenses incurred therefrom shall be covered by the customers.

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-3
Note:
This equipment has been testedand found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction anual,
may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
3.1.4 Canada regulatory compliance
I. ICES-003
This ClassA digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classeA est conforme à la norme NMB-003 du Canada.
3.1.5 Japan regulatory compliance
I. VCCI
VS0E1ECDC and VS0M3ECDC comply with the requirements of VCCI Class A
Information Technology Equipment (ITE).
Warning: If this equipment is used in a domestic environment, radio disturbance may
arise. When such trouble occurs, the user may be required to take corrective actions.
3.1.6 产品符合中国 CCC 认证要求
VS0E1ECDC 和VS0M3ECDC 产品符合国标 GB9254 Class A YD/T993 和GB4943 的
要求。
声明：
此为 A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需
要用户对其干扰采取切实可行的措施。

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-4
3.2 Safety Information Sicherheits informationen安全信息
3.2.1 Overview Überblick 概述
This section introducespart of the safety precautions that should be followed during the
installation and maintenance of the equipment. And for the safety statements and
warnings, there followed the translations of both German and Chinese to comply with
the national requirements.
Dieser Abschnitt macht Sie mit den Sicherheitsvorschriften vertraut, die Sie bei der
Installation und Instandhaltung der Ausrüstung beachten müssen.
本章节介绍了在安装、日常维护本系列设备时，必须遵循的安全预防规范。
Note:
Before any operation is performed, please read the operation instructions and
precautions carefully to minimize the possibility of accidents. The Note, Caution,
Warning and Danger items in other manuals do not cover all safety precautions that
should be followed. They are only the supplements to the safety precautions for
operations as a whole. Therefore, the personnel in charge of the installation and
maintenance of the products are required to understand these basics of safety
operation.
In performing various operations, please follow the local safety regulations. The safety
precautions introduced in the product manuals are supplementary and subject to the
local safety regulations.
When various operations are executed on the products, the precautions and special
safety instructions provided with the products must be followed to the full.
The personnel in charge of the installation and maintenance of the products must be
trained as professionals to master the proper operating methods and all safety
precautions. Only the trained and qualified personnel can perform operations such as
equipment installation and maintenance.
Anmerkung:
Lesen Sie bitte alle Arbeitsanweisungen und Sicherheitvorschriften sorgfältig durch,
bevor Sie mit dem Arbeiten beginnen. Nur durch Beachtung dieser Hinweise lässt sich
das Unfallrisiko minimieren. Die in anderen Handbüchern aufgeführten Symbole
Anmerkung, Achtung, Warnung und Gefahr beinhalten nicht alle zu beachtenden
Sicherheitvorschriften. Sie dienen lediglich der Ergänzung. Deshalb muss sich das für
die Installation und Instandhaltung der Ausrüstung verantwortliche Personal mit allen
Sicherheitshinweise vertraut machen.
Bei der Durchführung der verschiedenen Arbeitsschritte müssen außerdem die
örtlichen Sicherheitsvorschriften beachtet werden. Die in den Handbüchern der

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-5
einzelnen Produkte aufgeführten Sicherheitshinweise sind Ergänzungen und
unterliegen den nationalen Sicherheitsvorschriften.
Während der Arbeit mit den Produkten sind deshalb grundsätzlich alle
Sicherheitsvorschriften und spezifischen Sicherheitshinweise genau zu beachten.
Das für die Installation und Instandhaltung der Produkte verantwortliche Pesonal muss
geschult werden, um alle Sicherheitsvorschriften zu kennen und die richtigen
Arbeitsmethoden anwenden zu können. Nur geschultes und qualifiziertes Personal
kann die Installation und Instandhaltung in korrekter Weise durchführen.
说明：
为了避免可能发生的事故，请在进行任何操作前，仔细阅读设备操作手册和本章节的安
全规范。手册中 出现的说明、注意、警告、危险，不能涵盖所有的安全预防，仅仅是在
整个操作过程中的安全提示和补充。因此，负责安装和日常维护本设备的人员必须具备
安全操作基本技能。
操作人员要按照当地的安全规范进行操作。出现在产品手册中的安全预防措施仅仅是当
地安全规范的补充。
在操作本设备时，请认真执行产品手册规定的安全规范。
设备安装、维护人员必须通过专业培训，并且掌握足够的操作技能和安规预防意识。只
有专业人员才能担任本设备的安装和维护工作。
I. Conventions Used Symbole Erläuterung 应用惯例
The symbols in this manual are shown in the following table. They are used to remind
the reader of the safety precautions during equipment installation and maintenance.
Die Symbole in diesem Handbuch verwendeten sind in der folgenden Tabelle
dargestellt. Diese Symbole sollen das Personal während der Installation und
Instandhaltung der Ausrüstung an die Wichtigkeit der im Handbuch aufgeführten
Sicherheitsvorschriften erinnern.
以下表格中的安全标识，是用来提示读者在进行设备安装和维护时的安全预防要求。
Table 3-2 Safety symbol and description
Sicherheitssymbole und Beschreibung安全标识和描述
Safety Symbol
Symbole
安全标识
Description
Erläuterung
描述
Generic alarm symbol: To suggest a general safety concern
Alarm: Hinweis auf ein generelles Sicherheitsproblem
一般注意标识：用于一般安全提示

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-6
Safety Symbol
Symbole
安全标识
Description
Erläuterung
描述
ESD protection symbol: To suggest electrostatic-sensitive
equipment.
ESD-Schutz: Hinweis auf Beschädigung infolge
elektrostatischer Entladung
防静电标识：用于表示静电敏感的设备
II. General Requirements Allgemeine Anforderungen 通用要求
In order to reduce the technically unavoidable residual risk to a minimum, it is
imperative to follow the rules below:
Um das technisch bedingte Restrisiko auf ein Minimum zu begrenzen, ist es unbedingt
erforderlich, die folgenden Regeln zu beachten:
为了避免对人和设备造成伤害，请认真执行下列要求：
zRead all the instructions before operation.
zLesen Sie alle Anweisungen sorgfältig durch, bevor Sie mit dem Arbeiten
beginnen.
z在进行操作前仔细阅读手册内容。
zWhen installing the unit, always make the ground connection first and disconnect it
last.
zBeachten Sie, dass bei der Installation des Systems stets zuerst die
Erdverbindung angebracht wird und das die Erdverbindung stets als letztes
getrennt wird.
z进行设备安装时，必须确保接地连接是最先连接和最后断开。
zDo not block ventilation openings while the system is on, and keep at least 5 cm
distance from ventilation openings and walls or other things which may block the
openings
zSorgen Sie dafür, dass die Öffnungen der Ventilation zu keinem Zeitpunkt
verschlossen, verstopft oder anderweitig blockiert sind. Zwischen den
Ventilationsöffnungen und Wänden bzw. anderen Gegenständen muss stets ein
Abstand von mindestens 5cm bestehen.
z设备在工作时必须确保通风口的畅通，确保设备离墙壁或是其它的可能堵塞通风口
的物体的间距至少 5cm。
zNever defeat the ground conductor or operate the equipment in the absence of a
suitably installed ground conductor. Contact the appropriate electrical inspection.
zBetreiben Sie die Ausrüstung niemals ohne Erdung. Trennen Sie das System
nicht von der Erdung.
z不允许破坏设备的接地导线或是在无接地连接的情况下操作设备，要进行适当的电
气检查。

Installation Guide
H3C Video Encoder/Decoder Frame Chapter 3 Compliance and Safety Guide for the Frame
3-7
zThe unit/system must be connected to the protection ground before operation
permanently. And the cross-section of protective earthing conductor shall be at
least 1mm2
zDas System muss vor der ständigen Inbetriebnahme geerdet werden. Der
Querschnitt der Erdverbindung sollte mindestens 1mm2betragen.
z进行设备/系统操作前，请确保永久接地，并且用于进行保护接地连接的接地线截面
不小于 1mm2。
zFor AC supplied model: The device applies to TT power systems.
zMit Wechselstrom betriebenes Modell: Das Gerät arbeitet mit einem
Phase-Nullleiter-System.
zAC 电源输入：此设备用于 TT 电源系统。
zFor AC supplied model: The plug-socket combination must be accessible at all
times because it serves as the main disconnecting device.
zMit Wechselstrom betriebenes Modell: Der Netzstecker muss jederzeit leicht
zugänglich sein.
zAC 供电：插座必须随时可用，因为它是主要的切断电源装置。
zBecause the device has several power supplies, disconnect all of them to switch
off the device.
zDa das Gerät mehrere Energiequellen hat, ist es notwendig stets alle
Verbindungen zu unterbrechen, um den energiefreien Zustand zu erreichen.
z因为设备存在多种电源输入，在关闭设备时确保切断所有电源连接。
3.2.2 Electricity Safety Elektrische Sicherheit 用电安全
I. High Voltage Hochspannung 高电压
Danger:
High voltage power supply offers electric power for equipment operation. Direct contact
or indirect contact (via damp objects) with high voltage and AC mains supply may result
in fatal danger.
Gefahr:
Die Hochspannungsleitungen stellen für die Arbeit der Ausrüstung erforderliche
Energie zur Verfügung. Direkter oder indirekter Kontakt (z. B. durch feuchte
Gegenstände) mit Hochspannung und Wechselstromversorgung kann zu tödlichen
Unfällen führen.
