Habey EPC-6668 User manual

21015 Commerce Pointe Drive, Walnut, CA 91789
www.habeyusa.comwww.habeyusa.com
Quick Setup Guide
EPC-6668
Description QTY
EPC-6668 1
Power Cable 1
Power Adaptor 1
Drive Mounting Screws 4
Packing List
Safety Warning:
The use and installation of this system should only be performed by
professionals. Improper installation of any electronic device or electrical
component can result in serious injury or death. Please make sure that all
safety precautions are taken into account.

www.habeyusa.comwww.habeyusa.com

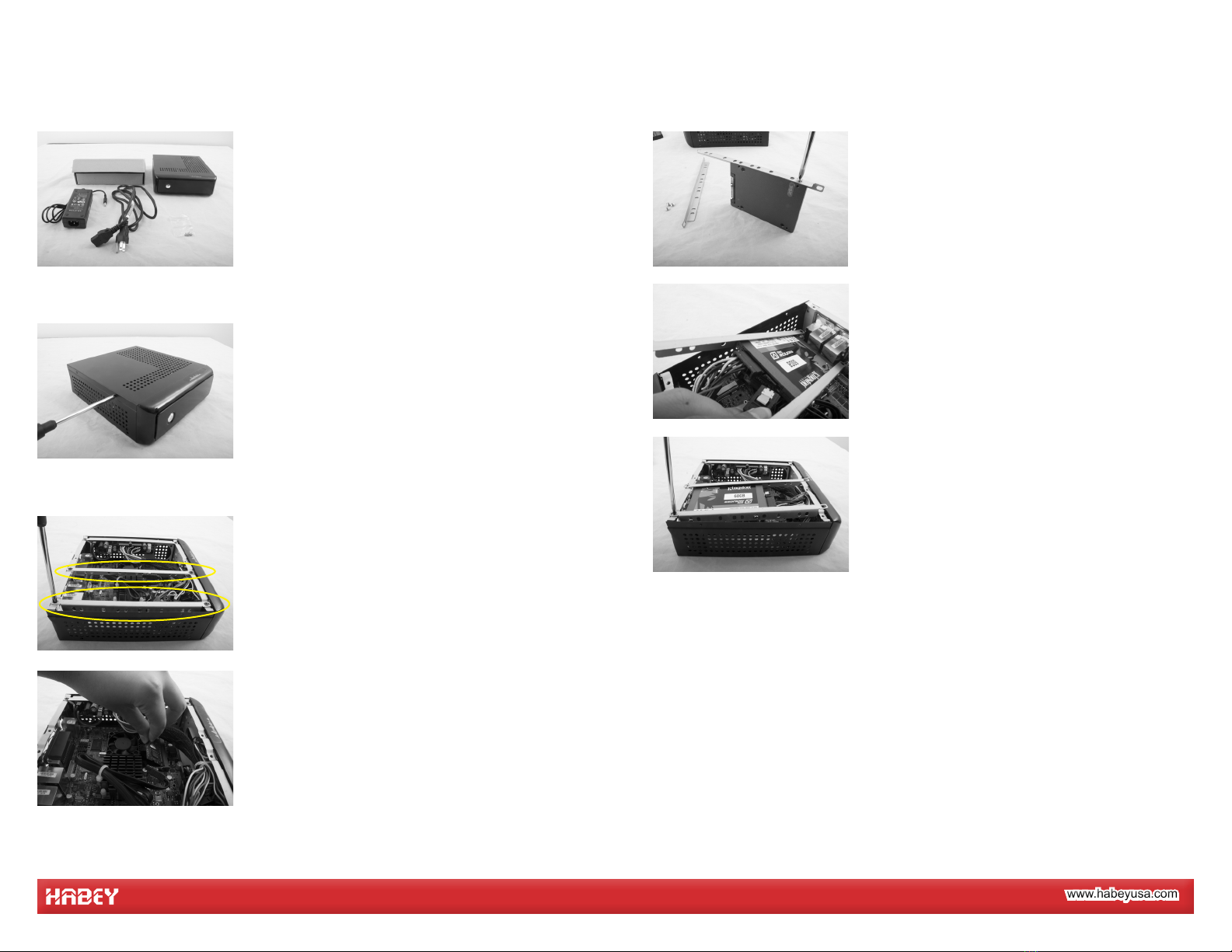

Install Guide
Unpack all package contents and inspect each
component. Make sure all included parts and
accessories are present.
Step 1 - Inspect Contents
Using a phillips head screw driver, remove the
four screws on the sides of the enclosure.
Step 2 - Remove Top Cover
Locate the memory slot. Ensure memory is
a 204-Pin SO DIMM. Align notch in memory
circuit with corresponding guide on the
memory slot. Insert the memory circut at a 45°
angle and press the circuit at and secure it to
the memory slot with an audible click on each
side of the memory slot.
Remove the two drive trays as illustrated in the
picture from the enclosure by twisting off the
four screws.
Step 3 - Install Memory
Step 4 - Install a 2.5” HDD
Mount the complete HDD bracket to the
enclosure.
Mount the 2.5” drive between the two trays
with the four screws in the plastic screw
package.
Your system is now ready. Connect the power cable to a power source and
press the power button on the front of the system.
Step 5 - Hardware Installation Complete
Connect the SATA cable to the complete HDD
.

Input / Output
Dimensions
21015 Commerce Pointe Drive, Walnut, CA 91789
www. habeyusa.com
Copyright@2014. Habey USA. All Rights Reserved. Version 1.
VGA 4x USB2.0
2x LAN
2x PS/2
LPT Audio I/O
190 mm/7.5”
65 mm/2.4”
215 mm/8.5”
