Haicom HI-FLMFA User manual

FLMTA/FLMFA
GPS/Cellular/Wi-Fi
Antenna
-3F-11,130,Jian-Kang Rd., Chung Ho,Taiwan, R.O.C.
Tel: [phone] Fax: [phone] E-Mail: [e-mail]
www.haicom.com.tw
Haicom Electronics CORP.

Page 1 of 11
1. Electrical Specification........................................................................................................... 2
1.1 Electrical Date.............................................................................................................2
2. Mechanical Specification........................................................................................................ 2
2.1 Mechanical Data ......................................................................................................... 2
2.2 Dimensions ................................................................................................................. 3
2.3 Connectors ..................................................................................................................3
2.4 Installation Location ................................................................................................... 4
2.5 RF Cable ..................................................................................................................... 4
RG-174/U........................................................................................................................4
3. Environmental Specification................................................................................................... 5
4. Ordering Information.............................................................................................................. 5
4.1 Model NO. .................................................................................................................. 5
4.2 Housing Type.............................................................................................................. 5
4.3 Connector Type........................................................................................................... 5
4.4 Cable Type ..................................................................................................................6
4.5 Cable Length............................................................................................................... 6
4.6 Label Type................................................................................................................... 7
4.7 Package Type .............................................................................................................. 7
5. Appendix................................................................................................................................. 8
5.1 Appendix 1：FLMTA/FLMFA ROSH Report........................................................... 8
5.2 Appendix 2：Gain Pattern and VSWR ...................................................................... 9

Page 2 of 11
1. Electrical Specification
1.1 Electrical Date
GPS Active Antenna:
Patch Antenna
Frequency 1575.42 ±3 MHz
VSWR 1.5 Max.
Bandwidth 20 MHz Min. at -10 dB
Axial Ratio 3 dB Typical
Impedance 50 Ω
Peak Gain 4 dBic Min. （7㎝×7㎝ground plane）
Gain Coverage ≥-4dBic at –90°≤ θ≤90°(over 75% volume)
Polarization RHCP
Amplifier Module
Amplifier Gain without cable Noise Figure Output VSWR DC Voltage DC Current
27dB Typical 1.8dB Typical 2.0 Max. DC 2.7V to 6.0V 8.5±4.5mA
CellularAntenna:
Frequency 824~960MHz 1850~1990MHz
Peak Gain 4dBi Typical 3dBi Typical
VSWR 2.0：1
Impedance 50Ω
Pattern Type Omni-direction
Wi-Fi Antenna:
Frequency 2.4~2.4835GHz
Peak Gain 3dBi Typical
VSWR 2.0：1
Impedance 50Ω
Pattern Type Omni-direction
＊Gain Pattern and VSWR see appendix 2
2. Mechanical Specification
2.1 Mechanical Data
Item Specification
Weight (Without Cable) 56 grams max.
Size 143mm x 54.4mm x 16mm
Connector See 2.3
Cable See 2.5
Label See 4.6
Mounting Options Double stick tape
Housing Color Black

Page 3 of 11

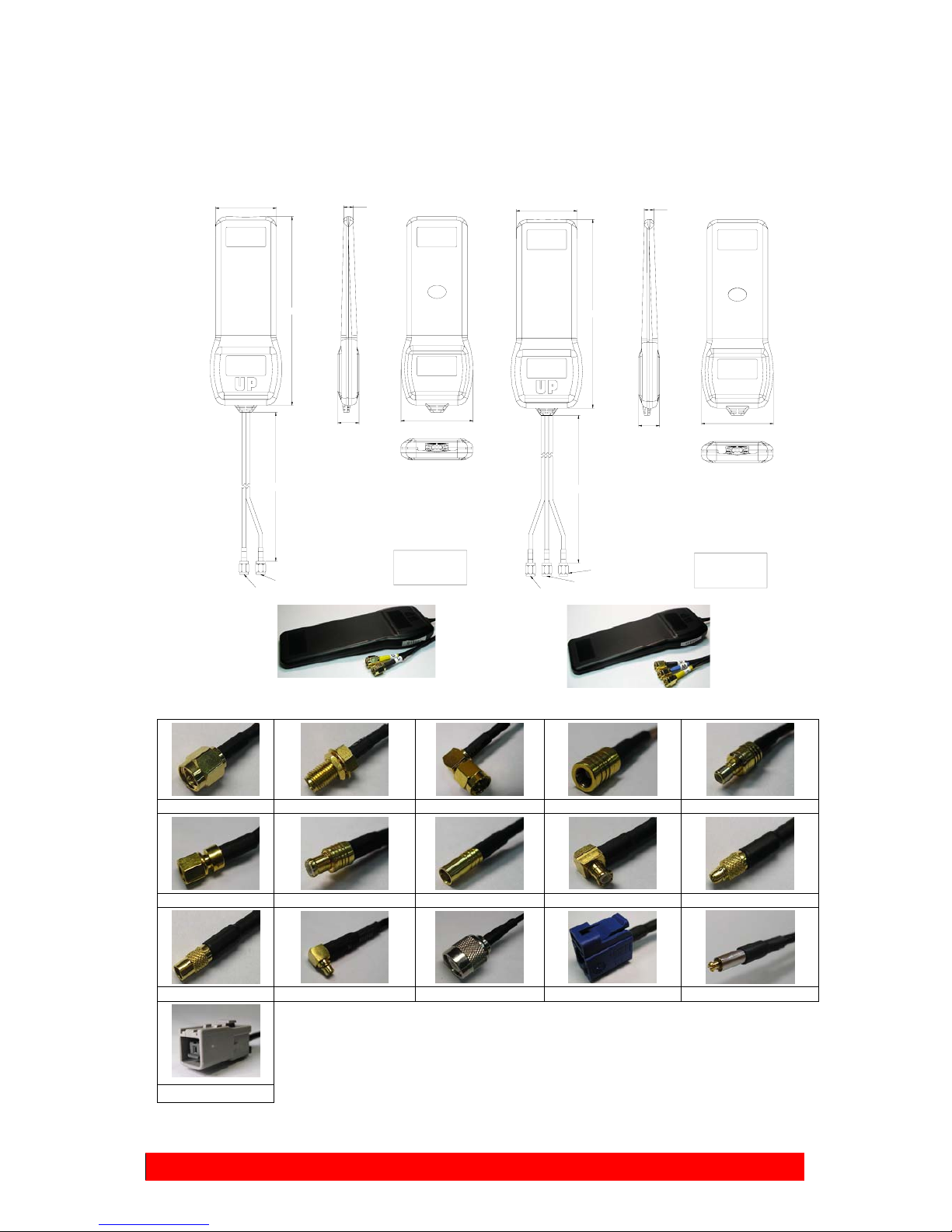

2.2 Dimensions
Cable Length
GPS Connector
Cellular Connector
C G
54
46
143
FLMTA
Unit: mm
Material:ABS
Colar:Black
16
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETER
TOLERANCES:
ANGLE ±1°
1 PLACE DECIMALS ± 0.2
2 PLACE DECIMALS ± 0.15
3 PLACE DECIMALS ± 0.05
7.1
7.1
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETER
TOLERANCES:
ANGLE ±1°
1 PLACE DECIMALS ± 0.2
2 PLACE DECIMALS ± 0.15
3 PLACE DECIMALS ± 0.05
16
Colar:Black
Material:ABS
Unit: mm
FLMFA
143
46
54
Cellular Connector
GPS Connector
Cable Length
WLAN Connector
W
C G
2.3 Connectors
SMA Plug(MB) SMA Jack(FB) SMA R/A Plug(MQ) SMB Plug(MC) SMB Jack(FC)
SMC Plug(MH) MCX Plug(ME) MCX Jack(FE) MCX R/A Plug(MP) MMCX Plug(MF)
MMCX Jack(FF) MMCX R/A Plug(MT) TNC Plug(MG) Fakra SMB Plug(KA) MC CARD Plug(MK)
GT5 Jack(FM) ＊Please see 4.3,if you need other connectors.

Page 4 of 11
GPS
DOUBLE STICK TAPE
or
VELCRO TAPE
2.4 Installation Location
2.5 RF Cable
SheathBraid ShieldConductor Insulation
RG-174/U
Structure：
Conductor
Bare Strand Copper Wire CPE Insulation XLPE (Cross-Linked Polyethylene) Braid Shield Tinned Copper Wire Sheath PVC ( Polyvinyl Chloride)
AWG Construction Diameter Min.
Thickness Nominal Thickness Diameter Construction Diameter Min.
Thickness Nominal Thickness Diameter
26 7 / 0.16A approx.
0.48 mm 0.40 mm 0.485 mm 1.45 ±
0.10 mm 16/5/0.10 approx.
0.31 mm 0.31mm 0.375mm 2.70 ±
0.10 mm
Characteristics：
Items Specification
Rating 80 30V℃
AC 500V / min.(Between Conductor and Shield)
Dielectric Strength Spark Test AC 2000V / 0.15sec.
Insulation Resistance Min.1000MΩ- Km (20 ) at DC 500V℃
Characteristic Impedance 50Ω±5Ω(1MHz)
＊ If you need other cables, please see 4.4.

Page 5 of 11
3. Environmental Specification
Items Specification
Working Temperature -40°C<T<+85°C
Storage Temperature -50°C<T<+85°C
Humidity 95%~100% RH
4. Ordering Information
Item NO. XXXXX-SXXXXXXXXX
4.1 Model NO.
4.2 Housing Type
4.3 Connector Type
4.7 Package Type
4.6 Label Type
4.5 Cable Length
4.4 Cable Type
4.1 Model NO. Item NO.:xxxxx-sxxxxxxxxx
4.2 Housing Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
SB Black
＊”S” means ROSH, please see appendix 1
4.3 Connector Type Item NO.:xxxxx-sxxxxxxxxx
Model NO. GPS
1575.42 ±3 MHz
Cellular
824~960MHz
1850~1990MHz
Wi-Fi
2.4~2.4835GHz
FLMTA √√
FLMFA √√√
NO. Specification
(GPS Connector + Cellular Connector ) NO. Specification
(GPS Connector + Cellular Connector )
DA SMA plug + TNC plug DB SMA plug + SMA plug
DC MCX plug + SMA plug DD SMAplug + Mini UHF plug
DE SMB plug + SMA plug DF FAKRA SMB plug(Blue) + FAKRA SMB
plug(Bordeaux Violet)
FF FAKRA SMB jack(Blue) + FAKRA SMB
jack(Bordeaux Violet) DG MMCX plug + MMCX plug
DJ SMA plug + BNC plug DK BNC plug + SMAplug
DL MMCX R/A plug + MMCX R/Aplug DM SMB plug + TNC plug
DN MMCX R/A plug + SMA plug DI SMA plug + FME plug
DP SMA R/A plug + SMA plug DQ SMC plug + SMA plug
DR MCX plug + TNC plug DS SMA plug + FME jack
DT SMA plug + SMA R/P plug DU SMA jack + SMA plug
DV MMCX R/A plug + SMA plug

Page 6 of 11

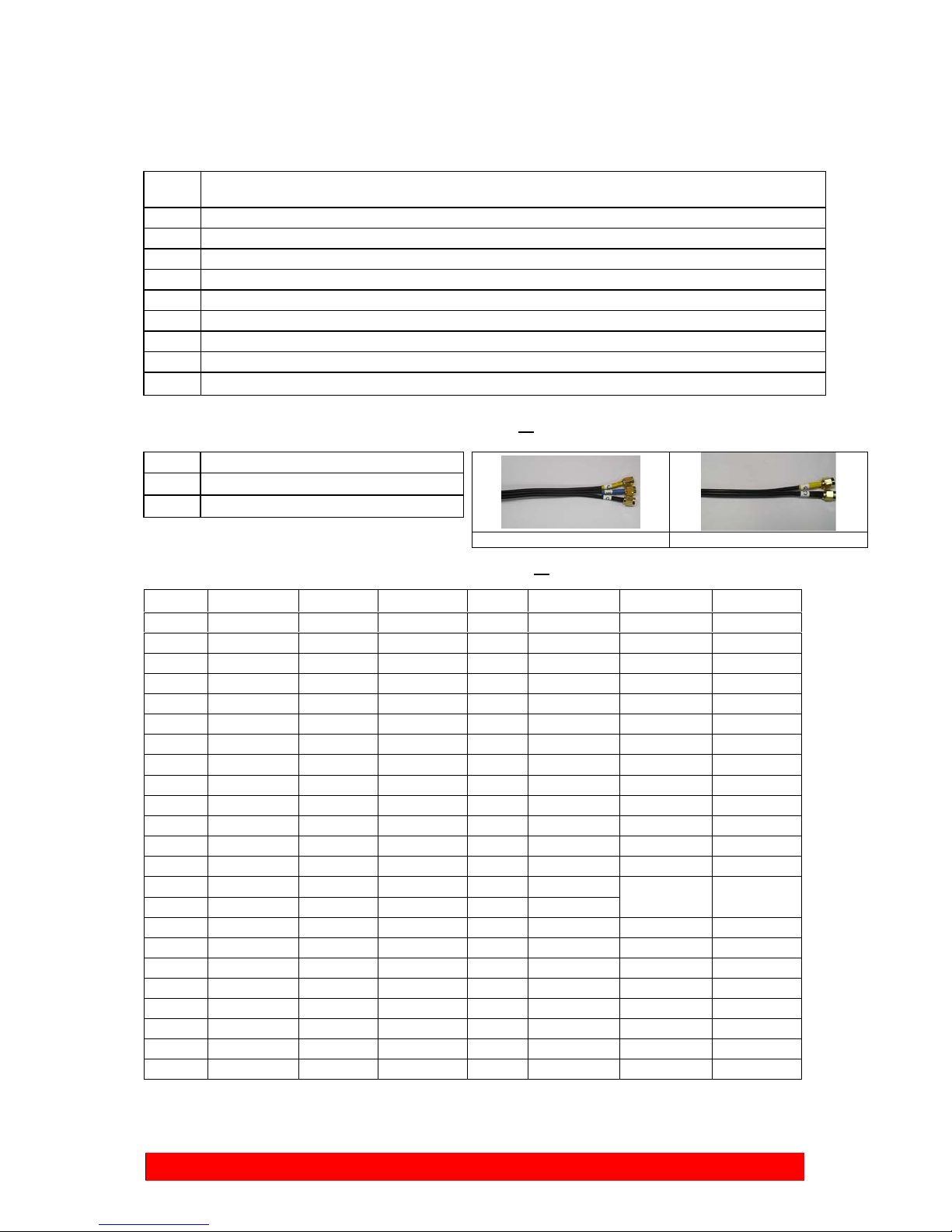

4.4 Cable Type Item NO.:xxxxx-sxxxxxxxxx
4.5 Cable Length Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
(GPS Connector + Cellular Connector + Wi-Fi Connector )
TA SMA plug + SMA plug + SMAplug
TB FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+FAKRA SMB plug(Blue&Gray)
TC FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+ FAKRA SMB plug(Black)
TD TNC R/P plug + TNC plug + TNC plug
FA SMA plug + SMA plug + MMCX plug
FD SMA plug + BNC plug + TNC R/P plug
FE SMA R/A plug + SMA R/A plug + SMA R/A plug
FF SMA plug + TNC plug + SMA R/P plug
FG SMA plug + TNC plug + TNC R/P plug
NO. Specification
SA Dual bonded RG174 cable for FLMTA
SB Three bonded RG174 cable for FLMFA
Three bonded RG174 cable (SB) Dual bonded RG174 cable (SA)
NO. Length NO. Length NO. Length NO. Length
LX Without Cable MA 1m EA 3" FA 1 feet
CA 2.7cm MB 1.5m EB 4" FB 4 feet
CB 4.0cm MC 2 m EC 5” FC 25 feet
CC 4.84cm ME 2.5m EE 5.5" FD 103 feet
CE 5cm MF 3m EF 6" FE 120 feet
CF 8cm MG 3.5m EG 7" FG 130 feet
CG 10cm MH 4m EH 8" FH 2 feet
CH 11cm MJ 5m EJ 8.5" FJ 20 feet
CJ 12cm MK 6m EK 9" FK 3 feet
CK 15cm ML 8m EL 9.5" FL 8 feet
CL 17cm MM 9m EM 10" FM 10 feet
CM 18cm MN 10m EN 12"
CN 19.5cm MP 10.5m EP 25"
CP 20cm MQ 12m EQ 72"
CQ 25cm MR 12.5m ER 4.5" GA GPS:5m
Cellular:3m
CR 30cm MS 15m ES 2.4"
CS 50cm MT 20m ET 19"
CT 40cm MU 30m EU 6.3"
CU 122cm MV 25m EV 18"
CV 60cm MW 2.15m EW 10.82"
MX 3.3m EX 15"
MY 7m EY 16"
EZ 2.75"

Page 7 of 11

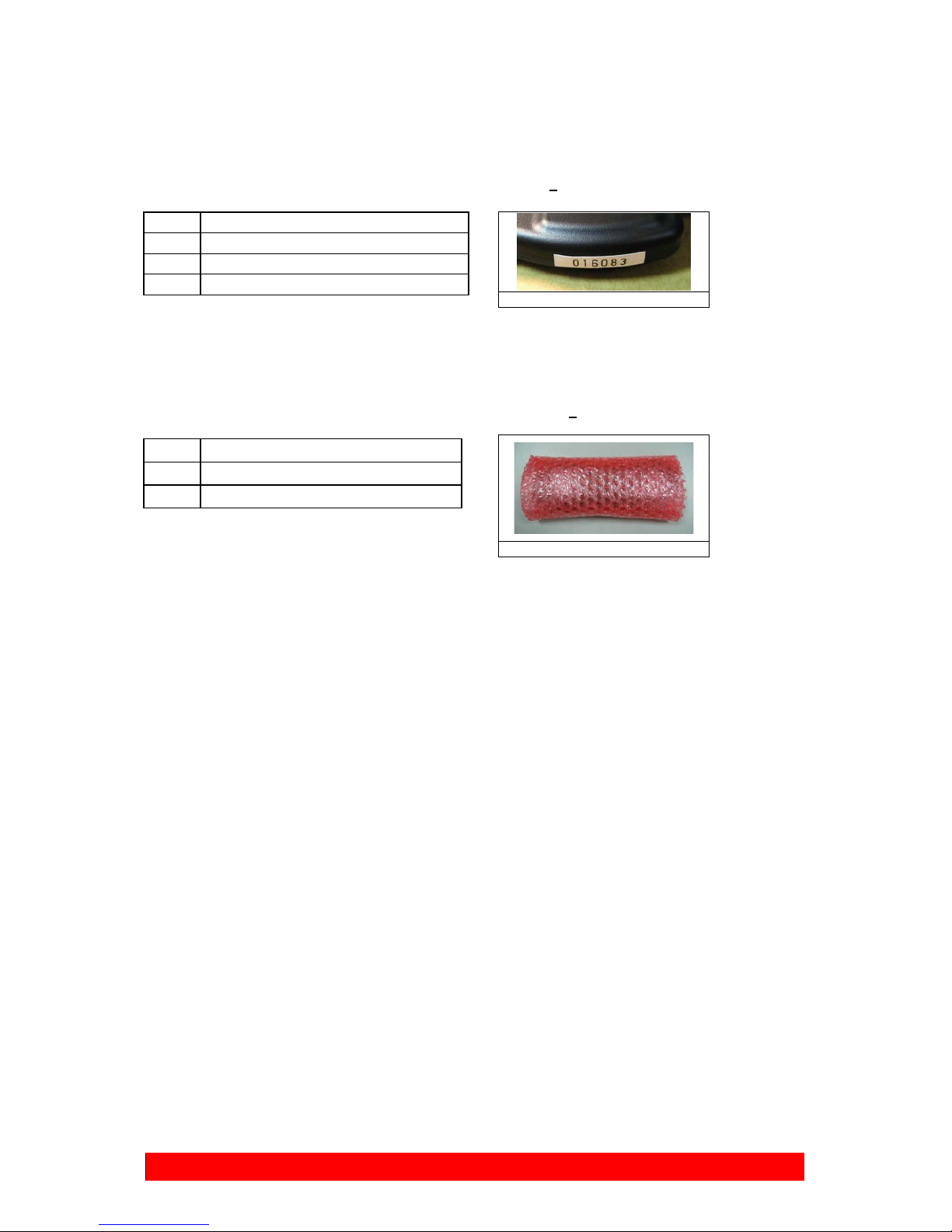

4.6 Label Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
X Without Label
A ACC Label
C Customer Label
4.7 Package Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
S Standard
C Non-Standard
Label(A)
Standard

Page 8 of 11
5. Appendix
5.1 Appendix 1：FLMTA/FLMFA ROSH Report
Component Original Report No. Report refer to Cadmium
(Cd) Lead(Pb) Mercury (Hg) Hex.Chromium (Cr+6) PBB PBDE
ET94O-02-013 Taiwan ETC N.D. N.D. N.D. N.D. N.D. N.D.
SHEC0051237898-1 SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
SHEC0050719293-1 SGS Ltd. N.D. 6.0 N.D. N.D. N/A N/A
GZ050606340EC-2.1 SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
Patch antenna
GZ050606340EC-2.2 SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
CE/2005/72610 SGS Ltd. - - - - N.D. N.D.
PCB SMT CE/2004/B2398 SGS Ltd. N.D. 12.70 N.D. N.D. - -
CE/2005/63784 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
PCB CE/2005/63784A SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
ET94O-02-013 Taiwan ETC N.D. N.D. N.D. N.D. N.D. N.D.
Filter SH304686/CHEM SGS Ltd. N.D. 40.0 N.D. N.D. N/A N/A
Transistor CE/2004/83087 SGS Ltd. N.D. 33.9 N.D. N.D. N.D. N.D.
Capacitor CE/2005/21030 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
KA/2005/70988 SGS Ltd. - 10.80 - - - -
KA/2005/70978 SGS Ltd. - - - 59.3 - -
Resistor KA/2005/70989 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
KA/2005/11024 SGS Ltd. 22.8. 15800 N.D. N.D. N/A N/A
KA/2005/11027 SGS Ltd. N.D 1640 N.D. N.D. N/A N/A
KA/2005/11025 SGS Ltd. 63.9 12100 N.D. N.D N/A N/A
KA/2005/11031 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
Connector
KA/2004/A0299 SGS Ltd. N.D. 22.8 N.D. N.D. N/A N/A
CE/2004/B3818 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
CE/2004/C0308 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
RG174 Cable CE/2004/B3819 SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
CE/2005/90520 SGS Ltd. N.D. 13.0. N.D. N.D. N.D. N.D.
Shield CE/2005/20333 SGS Ltd. N.D. 34.1 N.D. N.D. N/A N/A
CE/2005/403010 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
CE/2005/402890 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
Label CE/2005/40307C SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
TOP COVER
BOTTOM COVER KE/2005/51/51620 SGS Ltd N.D. N.D. N.D. N.D. N.D. N.D.
C418487 Intertek Ltd. N.D N.D N.D N.D - -
Screw C418489 Intertek Ltd. N.D N.D N.D N.D - -
CE/2005/94309 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
PE Bag CE/2004/C1701 SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
Double coated PE foam tape CE/2005/41225 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
Solder CE/2004/C0246A SGS Ltd. N.D. 327 N.D. N.D. N/A N/A
CE/2004/A0493C SGS Ltd. N.D. 17.2 N.D. N.D. N/A N/A
CE/2004/A0490C SGS Ltd. N.D. 16.2 N.D. N.D. N/A N/A
Cartons CE/2004/11915A SGS Ltd. N.D. 71.1 N.D. N.D. N/A N/A
Paper carton CE/2005/22402A SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
None detect
Not available
Result: Complied with 2005/618/ECArticle

Page 9 of 11
5.2 Appendix 2：Gain Pattern and VSWR
Test Equipment：NSI Spherical near-field measurement system
HP8722D Network analyzer
zGPS
Test Voltage : 5V
Cable length: 5m
Cable loss≒6dB
zCellular(824~960MHz 1850~1990MHz)
VSWR: Gain Pattern:
Cable length: 24cm Cable loss≒1dB

Page 10 of 11
Gain Pattern:
Cable length: 24cm
Cable loss≒1dB
zWi-Fi(2.4~2.4835GHz)
VSWR: Gain Pattern:
Cable length: 24cm Cable loss≒1dB

Page 11 of 11

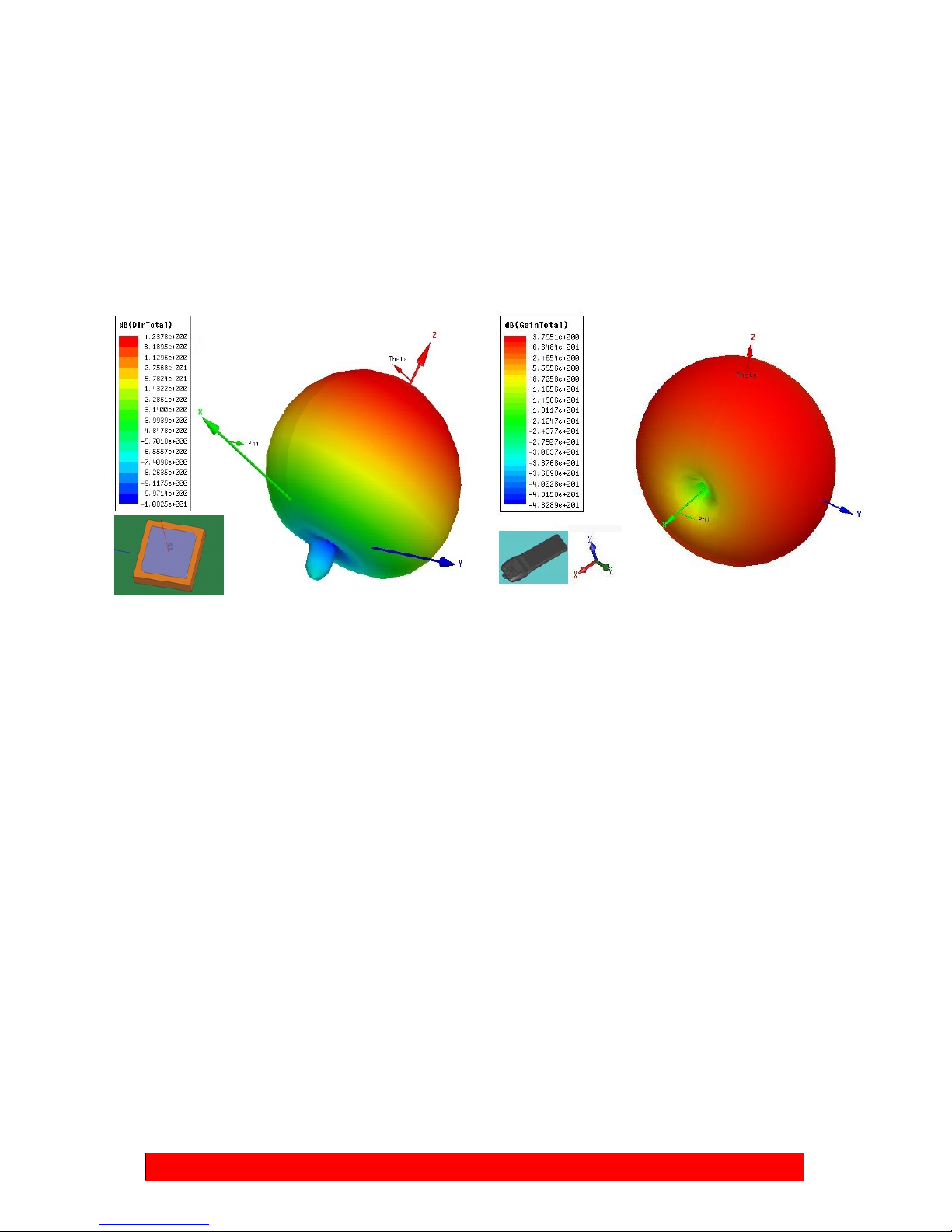

zPatch Antenna simulation zFLMTA/FLMFAAntenna simulation
Frequency: 1.575GHz Frequency: 860MHz
