Haier Thermocool LE55K6500A User manual

LED LCD TV
OWNER' S MANUAL
Please READ this manual carefully
before operating your TV, and retain
it for future reference.
LE55K6500A

Welcome
Important Information
01 Safety Warnings
2
2
Safety notice
Warning and cautions
3
4
Main Parameter
Base Stand Assembly Instruction
02 Introduction
5
6
Wall Mounting Installation Guidelines
Front Control Panel
7
8
Rear/Side Sockets 8
Connecting to your Haier TV 9
Remote Control
03 Remote Control
11
04 Operation
Trouble shooting
05 Trouble shooting
20
Specification 23
06 Specification
Operation 14

IMPORTANT INFORMATION
READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE.
FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN
THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF
CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.
THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR
SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE
THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT
DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.
Now you can get started!
01 Safety warnings
Thanks for buying this 55" LED LCD TV. This guide will help you set up and begin using your TV.
02
55"UHD Digital LED LCD TV
Stand
Remote control
AAA battery x 2
Instruction Manual
Quick start guide

Safety notice
03
Warning: To avoid any injury caused by lean
of the product, please always ensure the
whole product was placed within the table
surface in horizontal.
CAUTION:When the apparatus was in
electrostatic circumstance, it maybe
malfunction and need to reset by user.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.

Dim:51 5*320mm(不包 括底座）

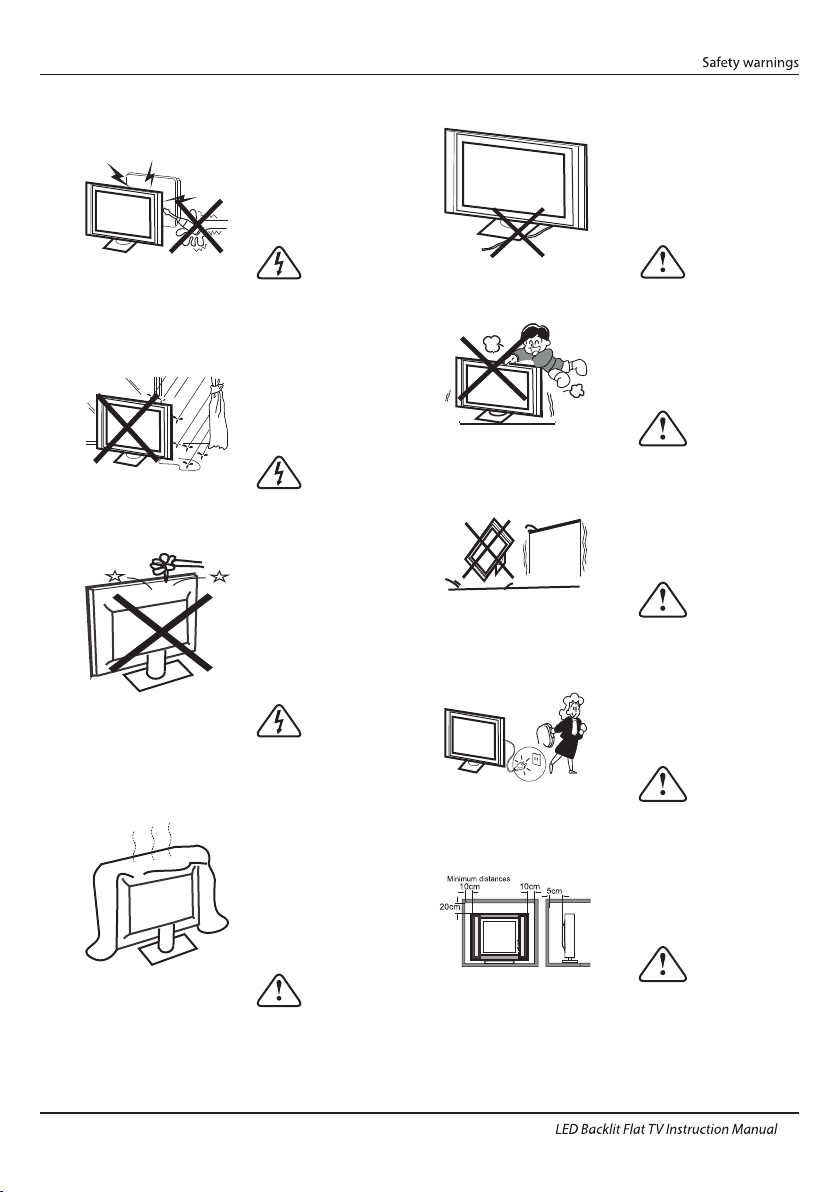

Warning
High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set. Refer servicing to qualified
service personnel.
Warning
To prevent fire or electrical shock hazard, do
not expose the television receiver to rain or
moisture.
Warning
Do not drop or push objects into the
television cabinet slots or openings. Never
spill any kind of liquid on the television
receiver.
Caution
Do not block the ventilation holes in the back
cover. Adequate ventilation is essential to
prevent failure of electrical components.
Caution
Do not trap the power supply cord under the
television receiver.
Caution
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if
it should fall.
Caution
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an
individual , and damage to the television, may
result if it should fall.
Caution
When the television receiver is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the AC
outlet.
Caution
If the television is to be built into a compartment
or similar enclosure, the minimum distances must
be maintained. Heat build-up can reduce the
service life of your television, and can also be
dangerous.
WARNING AND CAUTIONS
04

INSTALLATIONCAUTION
*Locate the TV in the room where light does
not strike the screen directly.
*Total darkness or a reflection on the picture
screen can cause eyestrain. Soft and indirect
lighting is recommended for comfortable
viewing.
*Allow enough space between the TV and the
wall to permit ventilation.
*Avoid excessively warm locations to prevent
possible damage to the cabinet or premature
component failure.
*Do not cover the ventilation openings when
using theTV.
Main parameter
Main features
4 NICAM；
5 T；ime-shift
3
HDMI interface ;
High luminance, wide viewing
angle；
2
Used as Television, display terminal,
PC display；
1
Never tamper with any components inside the
TV, or any other adjustment controls not
described in this manual. All LED-TV's are high
voltage electrical equipment.
When you clean dust or any water drops off the
SCREEN or CABINET or around any of the
buttons or connectors, the power cabled should
be removed from the power socket. Wipe the TV
with a soft, dry, dust free cloth.
During thunderstorms, unplug the power cable
and aerial / antenna cable to prevent damage to
your TV and any other devices connected to it.
All repairs to this TV should only be performed
by qualified TV service
personnel.
02 Introdution
Introduction
Panel
PAL-B/G ,I ,D/K
PAL/NTSC/SECAM
AC 100 -240 V 50/60Hz
Composite video input >=350
YPbPr >=400
TV System
Video Signal System
Input Power Voltage
Power consumption
Standby Power consumption
Audio Output Power(THD ≤7%)
Signal Input/Output
Horizontal definition (TV line)
SECAM-B/G , D/K , L ,
DVB-T, DVB-C,DVB-T2
1000(DTV);99(ATV)Storage channel number
150W
2x10W
≤0.50W
55"
05
High-Definition Multimedia Interface (HDMI) x 3
Composite Video Input x 1
Audio Input x 1
Y Cb (Pb )Cr (P r) x 1
USB x 2
RF x 1
TF x 1
LAN x 1
Headphone Output x 1
OPTICAL Output x 1

Base Stand Assembly Instruction
INSTALLATION NOTES
Locate the TV in a room where light does not strike the screen directly. Total darkness or a
reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for
comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature
component failure.
Please do not attempt to rotate the TV on the stand.
Introduction
06
M4X14MM M4X14MM
1. Place the TV with the display side down on a
flat surface. Use a cloth to protect the display.
Locate the 2PCS of bottom bracket into the gap
in the bottom of the TV.
2. Lock 4PCS screws below and check each
screw is firmly tightened.

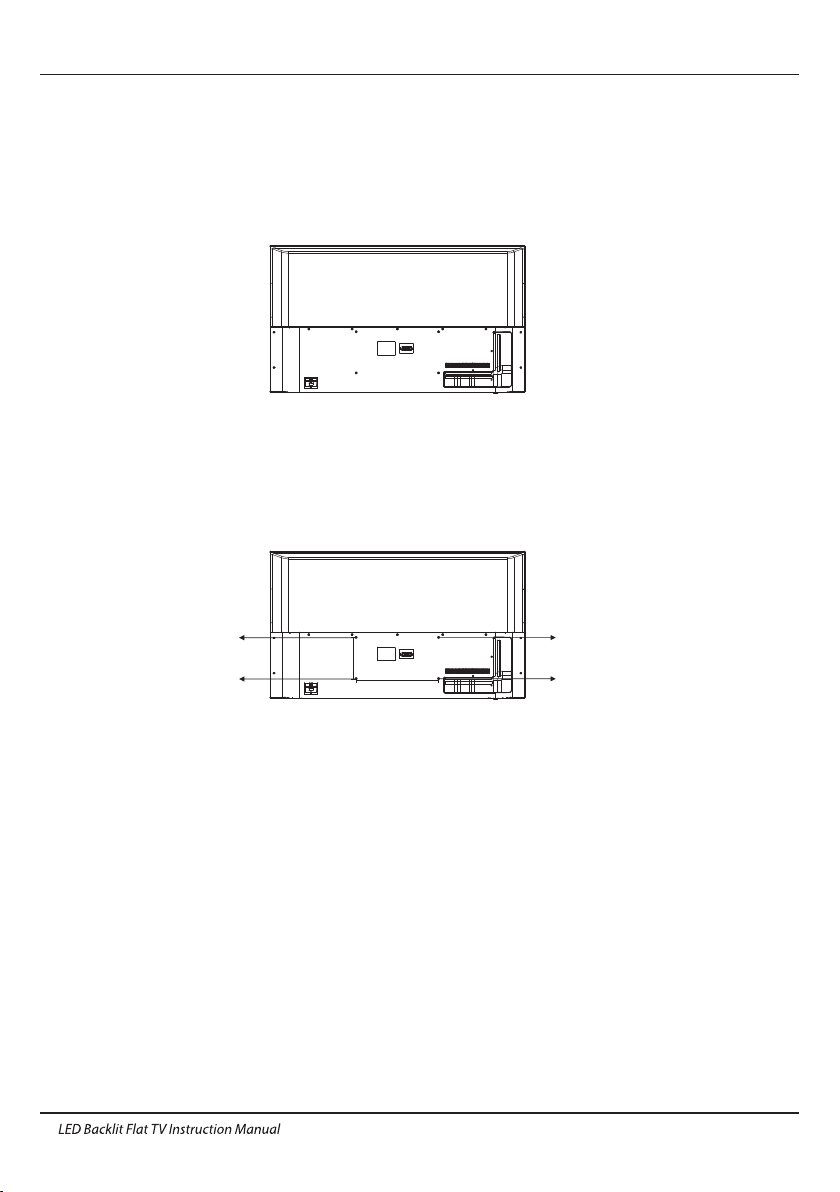

WALL MOUNTING INSTALLATION GUIDELINES
2.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
Introduction
This television can be wall mounted as follows:
1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of
the screen to protect it from any damage.
07
400mm
200mm
M6X12MM M6X12MM
M6X12MM M6X12MM

Introduction

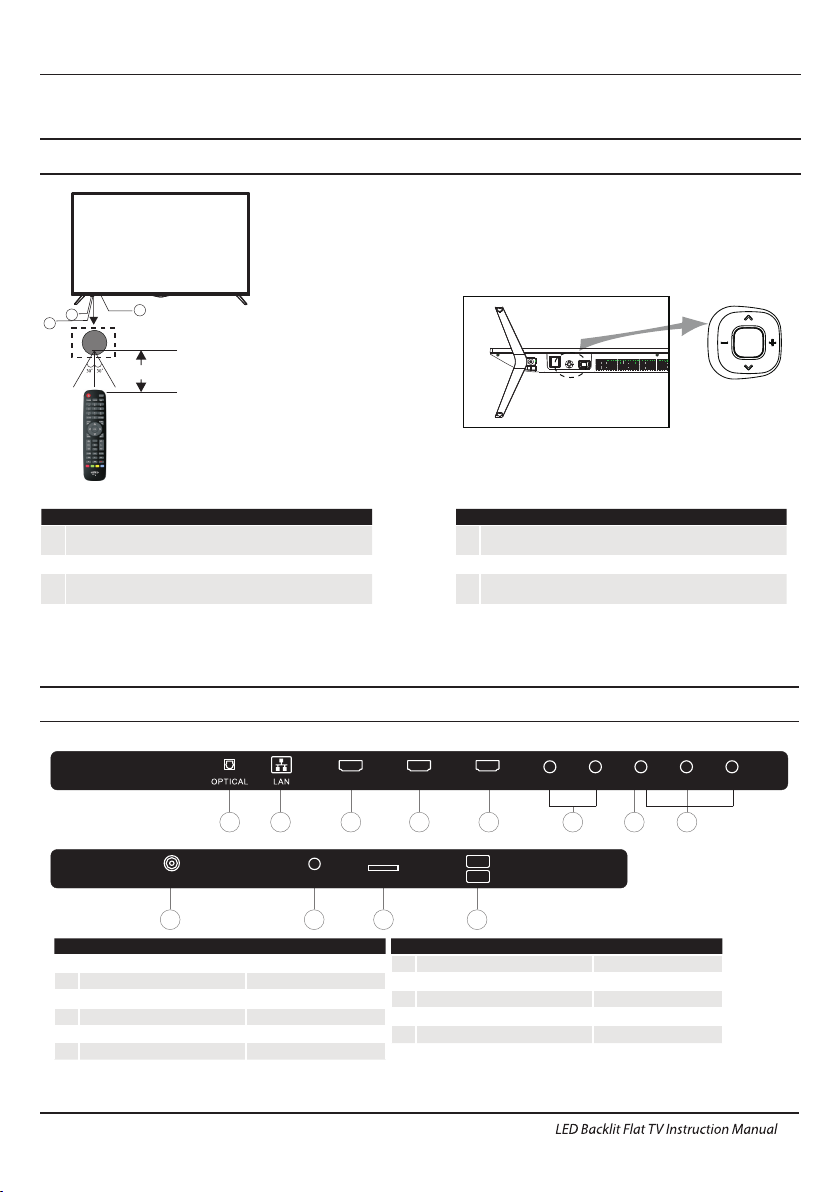

Front control panel
Rear/Side Sockets
1
2
output
3HDMI3
input
4
input
5
8
TF
input
9ANT
input
10
OPTICAL
analogue audio output
11
12
input
HDMI2
6
input
HDMI1(ARC)
YPbPr
HEADPHONE
USB
input
L/R AUDIO
7
input
VIDEO
LAN
input
input
1 2 3 4 5 6
9 11 1210
08
7 8
1
2
3
Remote control sensor.
Indicator LED:
RED: STANDBY.
Key board.
3
21
≤8m
Bottom
1
2
3
Middle Button: press longtime for “power”
function; press once for “source” function
Left/Righ: VOL-/+
Up/Down: CH+/-
APP
STORE
10E
HDMI3 HDMI2 HDMI1(ARC) L R VIDEO/Y Pb Pr
RF HEADPHONE USB
USB
TF

Introduction

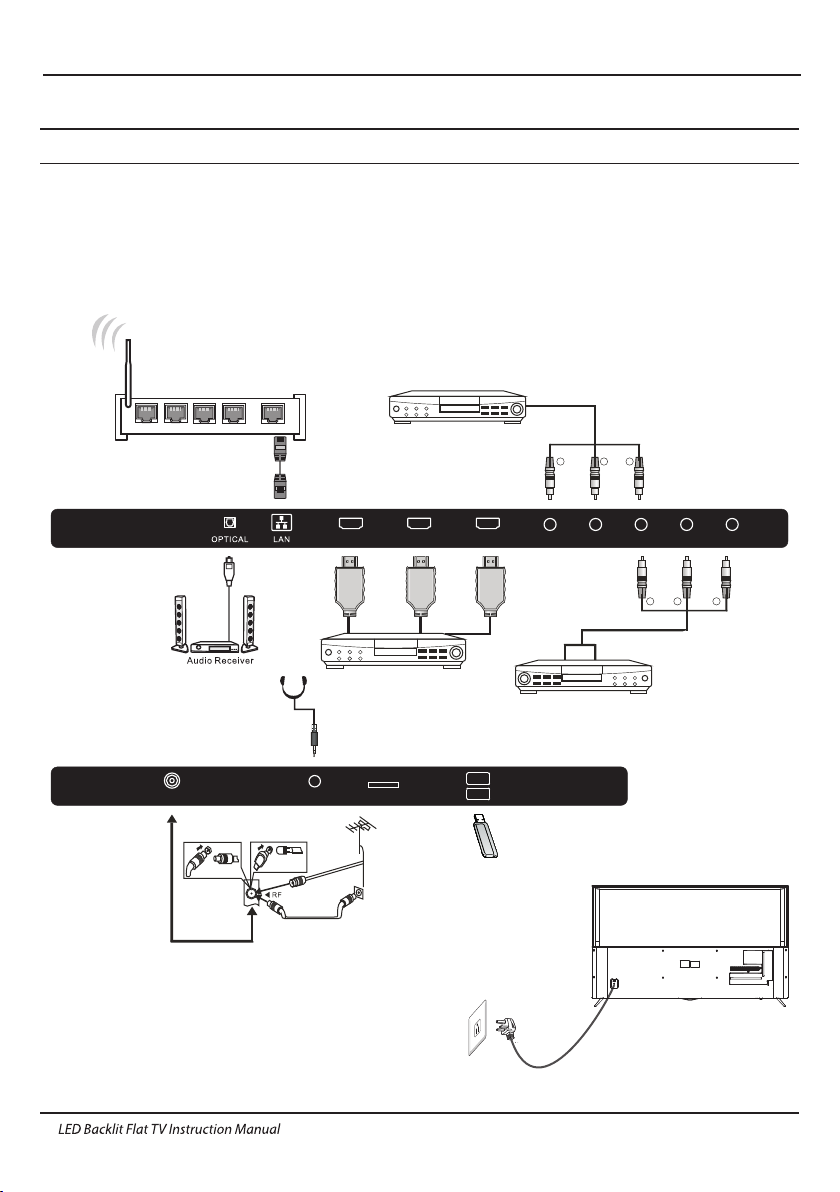

Connecting to your TV
09
G Green (Y)
B Blue (Pb/Cb)
W White(AUDIO-L )
R Red (AUDIO-R, Pr/Cr)
Y Yellow (VIDEO)
Audio/Video machine
with HDMI interfaces
1 WAN2
3
4
Connect USB receiver
to USB slot of the TV
HDMI3 HDMI2 HDMI1(ARC) L R VIDEO/Y Pb Pr
RF HEADPHONE USB
USB
TF
CVBS, DVD Player or other
machine with CVBS/S-Video.
Y
R
W
CVBS, DVD Player or other
machine with YPbPr/YCbCr.
GR
B

Introduction
Connecting a DVD player / Satellite / cable
set top box receiver / games console / PC or
Laptop
There are several options to connecting a DVD
player / Satellite or Cable set top box receiver /
games console / PC or Laptop to your TV.
Option 1 HDMI
If the device you want to connect to the
is switched on, switch off the device first.
Connect a HDMI cable (not supplied) from
the HDMI socket on the TV to the DVD player cable
receiver or games consol.
Switch on the device you have just
connected to the TV
To select the device connected with the
HDMI cable press the SOURCE button on the
remote and use the▼▲keys to select HDMI and
press the OK button.
Option 2 AV Audio Visual
(Yellow/White/Red)
Make sure that both TV and the device are
switched off before connecting.
Connect the AV cables (not supplied) from
the Video (yellow) and Audio (white, red)
sockets on the TV to the DVD player or games
console etc.
To select the device connected with the
AV cable press the SOURCE button on the
remote and use the▼▲keys to select AV and
press the OK button.
Option 3 COMPONENT
(Green/Blue/Red)+(White/Red)
Make sure that both TV and the device are
switched off before connecting.
TV
Connect the cables (not supplied) from the
COMPONENT IN sockets Y, Pb, Pr (green,
blue, red) and L-Audio-R (white, red) on the TV
to the DVD player or games console etc.
To select the device connected with the
COMPONENT cable press the SOURCE button on the
remote and use the keys to select and
press the OK button.
Option 4 USB
Most USB sticks can be connected to your TV
and some digital cameras may also work.
Connect USB stick (not supplied) or a USB
cable (not supplied) to the TV.
To select the USB device connected to the TV,
press the SOURCE button on the remote and
use the keys to select USB and press the
OK button.
Note1:Only *.jpg and *.mp3 files will work,
other file types are not guaranteed and may not.
Note 2. Apple iPhones and iPods are not
compatible with your TV.
Note 3. When connecting any device to the USB
connection, keep the USB cable length as short
as possible.
Option 5
Option 6
▼▲
▼▲
YPbPr
LAN INPUT
Connects your TV to the internet router by an Ethernet
cable.This is for future services such as the red
button,and on demand / catch up TV services.
Option 7 OPTICAL OUTPUT
Use an optical cable to connect the TV’s OPTICAL
socket to an external audio receiver’s audio coaxial
input socket.Plug the connected devices into the
mains socket before switching on the TV.
HEADPHONE OUTPUT
Insert the plug of the earphone into the headphone
socket on the TV. The TV speakers are now muted.
Alternatively you can also plug in external speakers if
required.
Connecting to your Haier TV
10

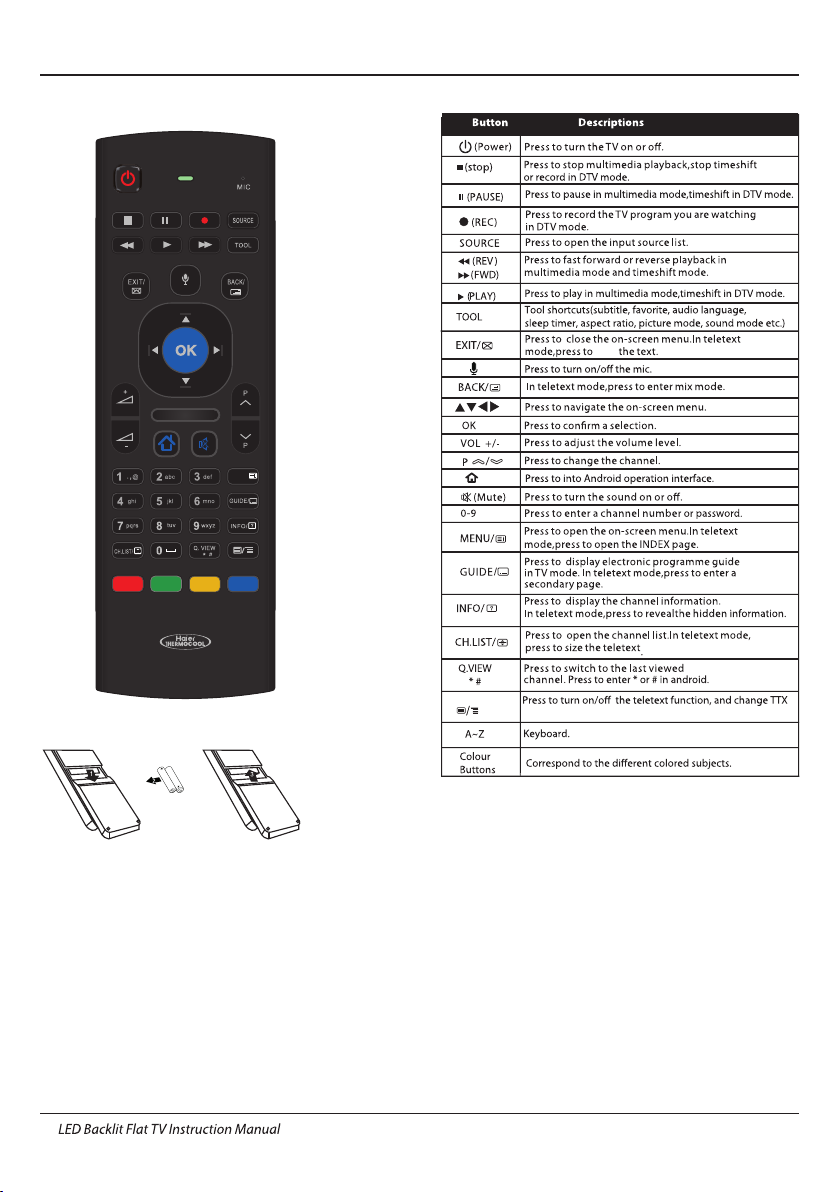

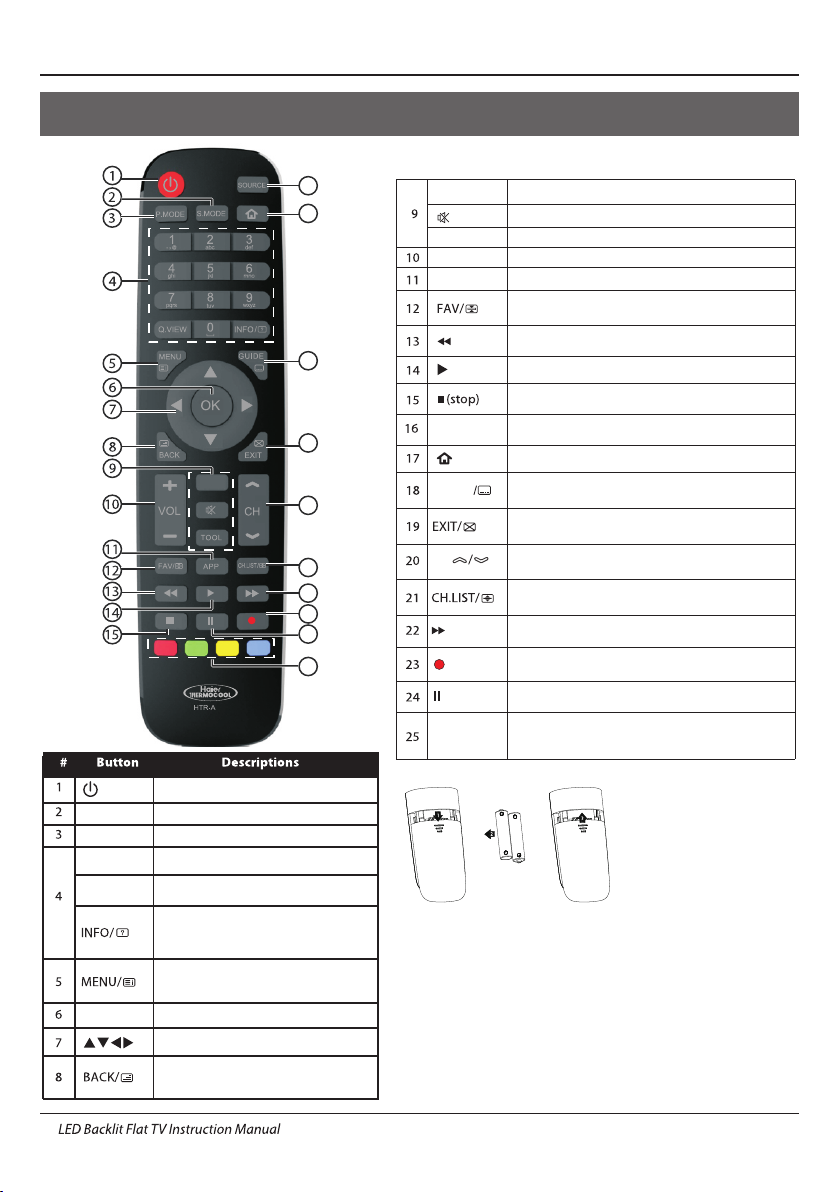

03 Remote Control
Remote Control
11
Programme Edit: Delete, Rename, Move, Skip.
EPG: Record, Info, Schedule, Reminder.
Press to open Menu App Page.
Press to open the Home Page.
Press to open the application store.
Press to turn the TV on or off.
(Power)
S.MODE Press to select the sound mode.
P.MODE Press to select the picture mode.
0-9 Press to enter a channel number
or password.
Q.VIEW Press to switch to the last viewed
channel.
Press to open the on-screen menu. In
teletext mode, press to open the INDEX
page.
Press to navigate the on-screen menu.
Press to confirm a selection.
OK
Press to return to the previous screen.
In teletext mode,press to enter mix
mode.
SOURCE Press to open the input source list.
CH Press to change the channel.
Press to display the channel information.
In teletext mode,press to revealthe
hidden information.
Press to open the channel list.In teletext mode,
press to switch the image to top,bottom or full.
Press to close the on-screen menu.In teletext
mode,press to hide the text.
Press to stop multimedia playback, REC& Timeshift
mode.
GUIDE Press to display electronic programme guide
in TV mode. Press to enter the teletext subpage.
(REC) Press to record the TV program you are watching
in DTV mode.
(Mute) Press to turn the sound on or off.
TOOL Press to open the shortcut menu of tool.
VOL +/- Press to adjust the volume level.
APP
Press to open a favorite channel list. In teletext
mode, press to hold a page.
(reverse) Press to reverse playback in multimedia & Timeshift
mode.
Press to play in multimedia mode & Timeshift mode.
(Play)
(forward) Press to fast forward in multimedia & Timeshift mode.
Press to pause in multimedia mode & Timeshift
mode.
(Pause)
Insert Batteries into the Remote Control
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity
(+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the
TV set begins to show the following symptoms:Operation is
unsteady or erratic. Sometimes the TV set does not function
with Remote Control Unit.
Remark:
1) Alkaline Battery Recommeded.
2) Remove batteries when they are exhausted or if the remote
control is not to be used for long time.
Coloured
buttons
APP STORE
10E
16
17
18
19
21
22
24
25
20
23
APP
STORE

12
Remote Control

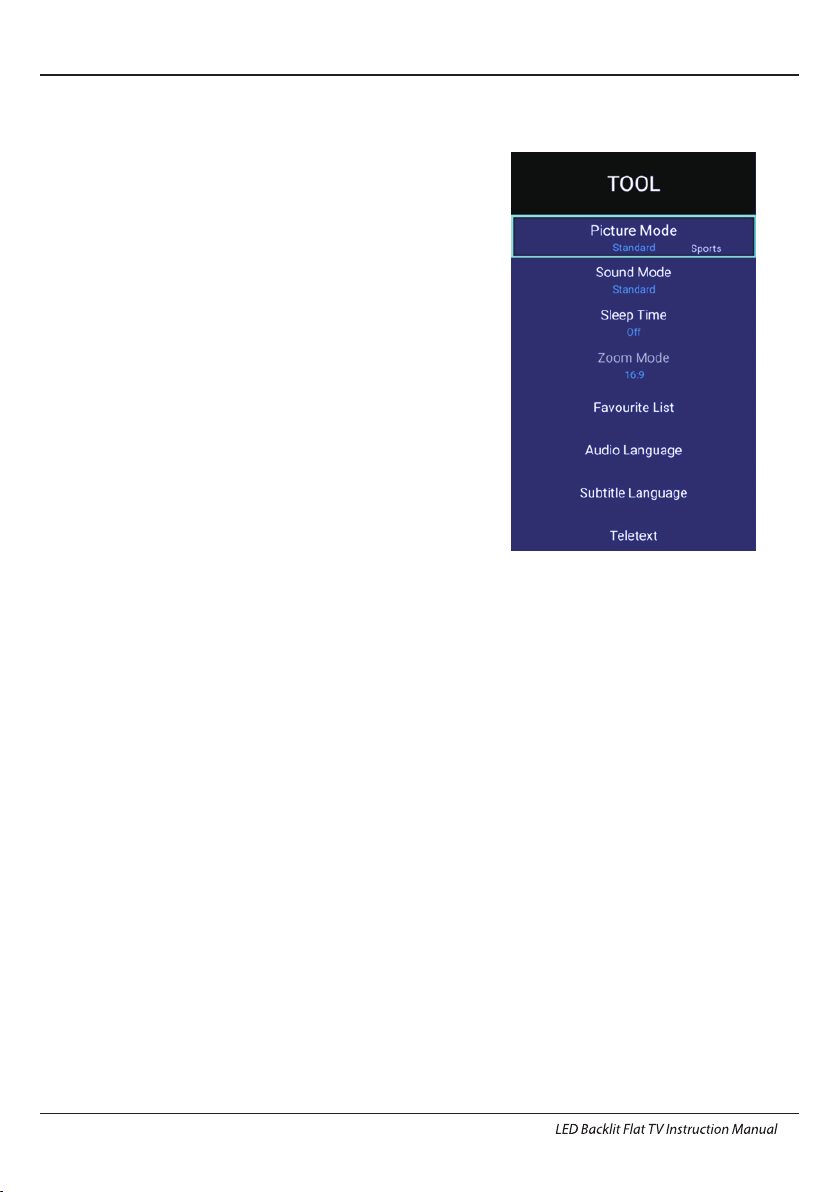

DVB Tool Button Description
1.Picture Mode
You can adjust picture effect here, such as Standard, Sports,
Soft, Vivid, User, ECO etc.
2.Sound Mode
You can adjust sound effect here , such as Standard, Music,
Movie, Sports, User.
3.Sleep Time
You can set sleep time , such as off, 10minuts, 20minuts,
30minuts, 60minuts, 90minuts, 120minuts,180minuts,
240minuts.
4.Zoom Mode
You can set Zoom Mode, such as Auto/4:3/16:9/Zoom1/
Zoom2/Just scan.
5.Favorite List
You can enter Favorite List.
6.Audio Language
You can enter Audio Language
7.Subtitle Language
You can enter Subtitle Language
8.Teletext
You can enter Teletext

Insert Batteries into the Remote Control
The " Keypad " under the (U12) Remote Control's
backboard : is only useful when you open the Internet
Explorer or you need enter the characters.
HT R-U 12
MENU/
exit
mode.
Shaking remote control to open the mouse function, the
remote control light on long light, press any direction
button among the four direction buttons to close mouse
function. When keyboard face up also close mouse function.
Without using remote control, put remote control on table,
after 30s,will enter to sleep state, in sleep state ,need press
button to wake up, then can operate mouse function.
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity
(+ or -) of the batteries matches the polarity marks inside the
unit.
3. Mount the battery cover. Replace with new batteries when
the TV set begins to show the following symptoms:Operation
is unsteady or erratic. Sometimes the TV set does not
function with Remote Control Unit.
Remark:
1) Alkaline Battery Recommeded.
2) Remove batteries when they are exhausted or if the
remote control is not to be used for long time.
Remote Control
13

04 OPERATION
Press ▲/▼ button to navigate the menu and change the
settings. Select your desired language to be displayed on
the menu. Press ▶button to next.
Input password and Press ▼ button to select Connect and
then press the OK button. Press ▶ button to next . If you
want to back ,press ◀ button.

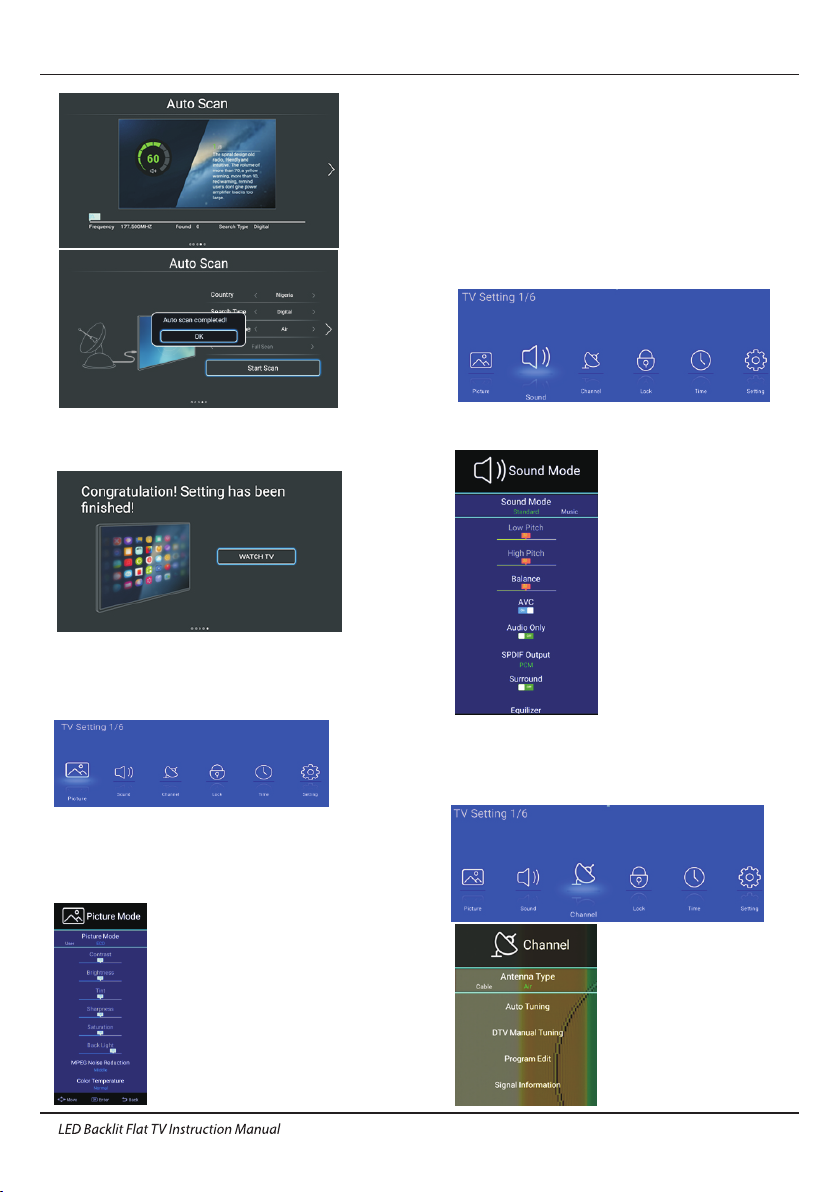

Auto Scan
Press ◀/▶ button to select Country.
Press ◀/▶ button to select Air / Cable.
Press ◀/▶ button to select Analog / Ditigal.
If set success , Select Start Scan button and Press OK button.
Channel tuning will commence. This operation may take
up to some minutes. The display will show the progress of
the tuning and the number of channels found.
Power supply to switch on/off this Unit.
Before switch on, ensure that all connections will be proper
and correct.Press the Key at the bottom of the panel of this
Unit to turn on this Unit.Press the Key to show Menu and
select Power Logo to turn off this Unit.When the power
indicator turns red, this Unit accesses standby state.
Basic Operation
Press key to start this Unit.The power indicator turns
Press key once again to switch off this Unit.
If there is no signal for the current signal source, this unit will
automatically set to the standby state minutes later.
If not to use the main Unit for a long time, unplug the AC
power cord from the AC outlet.
off.
15

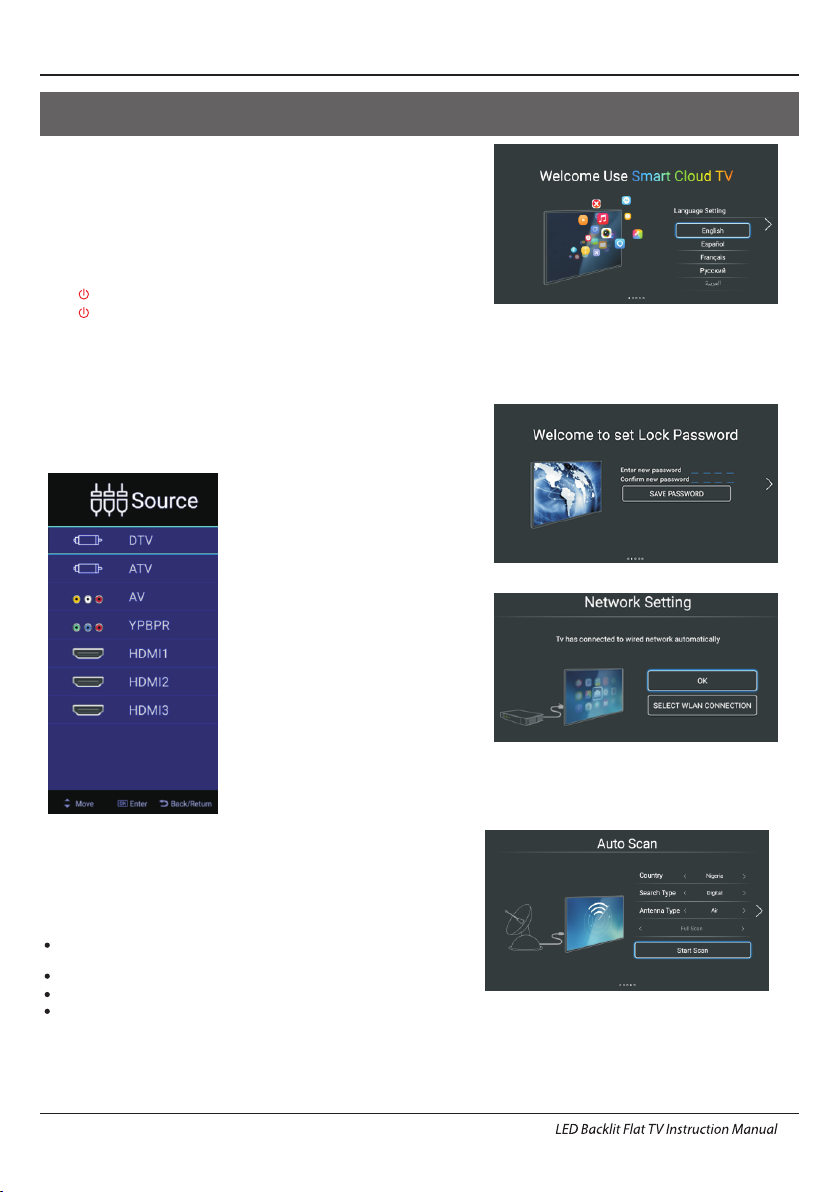

Select input signal sources
After turn on the main unit, press source to select proper input
source. Press ▼/▲ button to select the main signal source.
Press OK button to confirm.
Setting the OSD Menu
Press MENU button, and the main menu appears. the main
menu display in turn as below:
Picture→Sound→Channel→Lock→Time→Setting
When display of some menu option is gray, it indicates that
such options are not available under the current mode.
General Step for Menu Setup:
For each main menu, first press OK button to enter the
submenu.
 Press ▲/▼ button to select the desired adjustable option.
 Press ◀/▶ button to adjust to suitable value.
 After the selection of option is completed, press Menu
button to be able to quit the menu.
Installation Guide
The installation guide only appear when the TV first time turn
on or reset to factory set .
Language Setting
LOCK Password
Input your password and press Confirm to complete.
Note: The default password is 0000
Network Setting
Press ▼/▲ button to select Wi-Fi and press the OK button.
Operation
14

If you want to skip the Auto tuning, press the Back button to
interrupt the tuning half way.
A pop-up screen will be displayed, press the OK button to
confirm.
After tuning is complete, You can watch TV .
1. Picture MENU
1). Press the MENU button and then press ◀/▶ button to select
the Picture menu and then press the OK button.
2). Press ▲/▼ button to select submenu.
Picture Mode
You can adjust picture effect here, such as Standard, Sports, Soft,
Vivid, User, ECO etc.
User Mode
You can adjust picture effect here, such as Contrast, Brightness,
Back Light etc.Tint, Sharpness, Satuation,
Noise Reduction
Press ◀/▶ button to select to select
Color Temperature
Press ◀/▶ button to select Nature/Cool/Warm.
Zoom Mode
Press ◀/▶ button to select Auto/4:3/16:9/Zoom1/Zoom2/Just scan.
DLC
Press ◀/▶ button to select On or Off.
MPEG
Off/Low/Middle/Strong.
2. Sound MENU
1). Press the MENU button and then press ◀/▶ button to
select the Sound menu and then press the OK button.
2). Press ▲/▼ button to select submenu Standard/Music/
Movie/Sports/User
User Mode:
You can adjust the sound effect here, such as Low Pitch, High
Pitch, Balance etc.
3. Channel MENU
1). Press the MENU button and then press ◀/▶ button to
select the Channel menu and then press the OK button.
2). Press ▲/▼ button to select submenu Antenna Type, Auto
Tuning, DTV Manual Tuning, Program Edit, Signal Information.
Operation
15

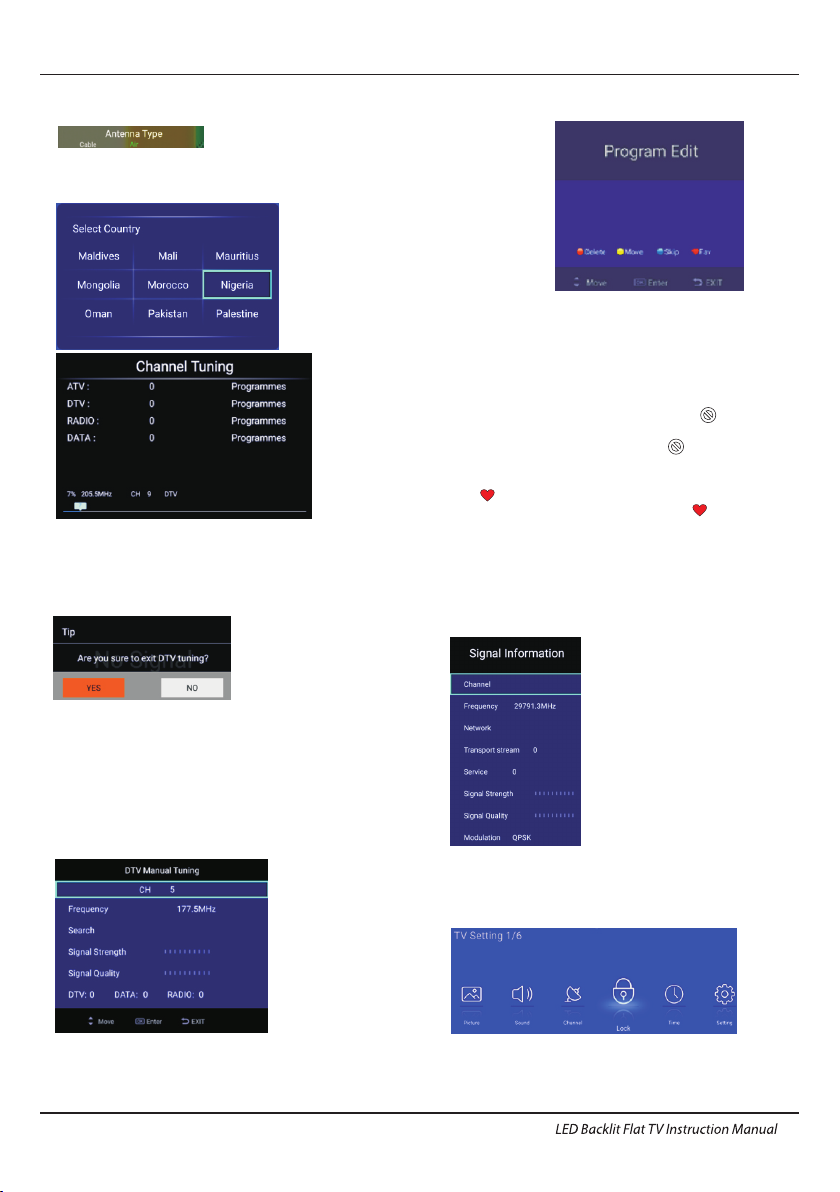

3.1 Antenna Type
Press ◀/▶ button to select Air or Cable.
3.2 Auto Tuning
Press ◀/▶/▲/▼ button to select the country where you will
operate the TV. Press the OK button to Confirm.
Channel tuning will commence. This operation may take up to
some minutes . The display will show the progress of the tuning
and the number of channels found.
If you want to skip the Auto tuning, press the Back button to
interrupt the tuning half way.
A pop-up screen will be displayed, press the OK button to confirm.
After tuning is complete, the channels are arranged in a preset order.
If you wish to skip channels, modify the preset order or rename
channels, select Program Edit under the channel menu.
3.3 DTV Manual Tuning
Press the MENU button and then press ◀/▶ button to select the
Channel menu and Press the OK button.
Press ▲/▼ button to select DTV Manual Tuning and press OK to
Confirm.
Press◀/▶ button the select CH.
Select Search button and Press OK to Search.
3.4 Program Edit
1). Press the MENU button and then press ◀/▶ button to select
the Channel menu and Press the OK button.
Delete
Press ▲/▼button to choose the program, Press the red button and
the selected channel will be deleted.
Move
Press ▲/▼button to choose the program, Press the yellow button
to change the channel's relative position.
Skip
Press ▲/▼button to choose the program, press blue button to skip
this program, Choose the skipped program, The will show on the
right side of the program. Choose the skipped program, press blue
button again, you can cancel the skip.The will disappear.
Favorite
Press ▼/▲ button to choose the program, press FAV button, it will
show on the side of the program. Choose the FAV program, press
FAV button again, you can cancel the FAV, the will disappear.
Once you favorite group is created, you can press the FAV key to
quickly access your favorite channel.
3.5 Signal Information
1). Press the MENU button and then press ◀/▶ button to select
the Channel menu and then press the OK button.
2). Press ▲/▼ button to select Signal Information and press OK
to Confirm.

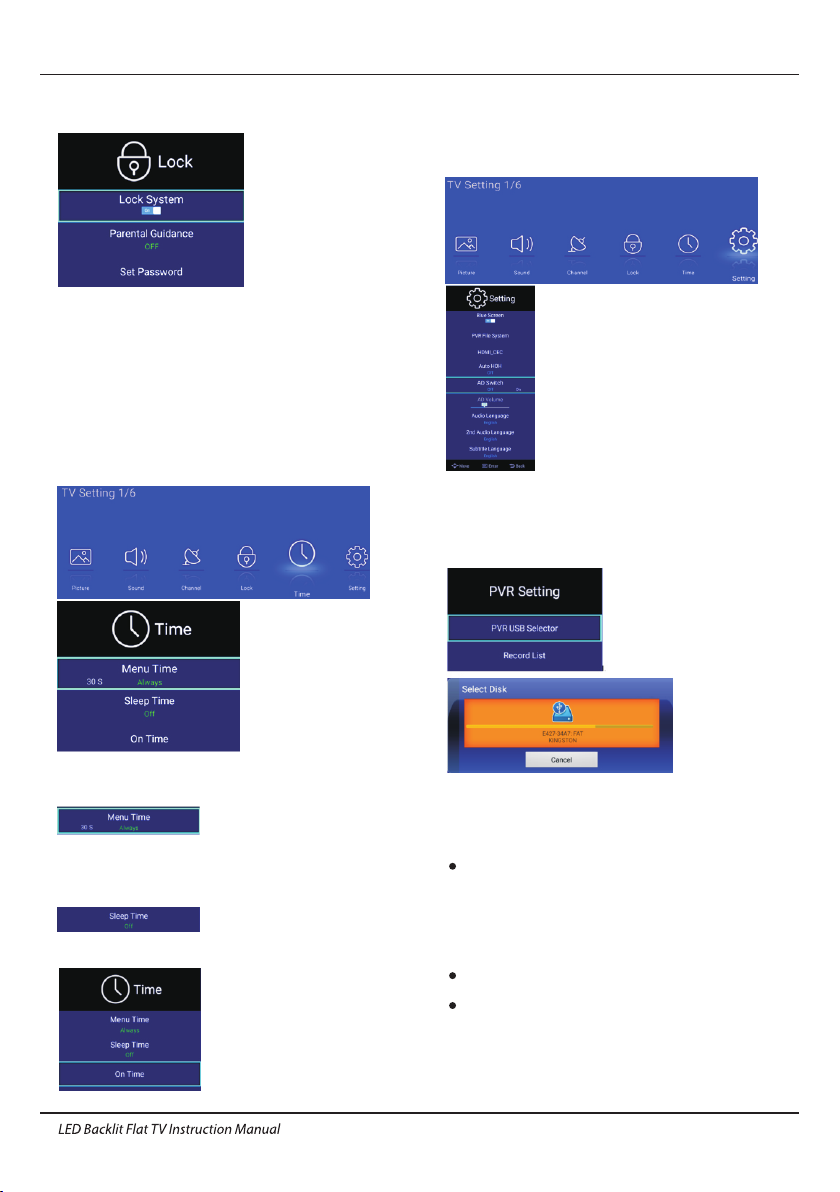

4.Lock MENU
Press the MENU button and then press ◀/▶ button to select the
Lock menu and then press the OK button.
Press ▲/▼ button to select Lock submenu Lock System, Parental
Guidance, Set Password.
2). Press ▲/▼ button to select Program Edit and press OK to
Confirm.You can Delete,Move,Skip, Favorite.
Operation
16

Note: The default password is 0000. if you forget the password,
you can input the super password:9443.
Lock System
Press ◀/▶ button to select On or Off.
Parental Guidance
Press ◀/▶ button to choose rating.
Set Password
Change Password.
Channel Lock
5. Time MENU
1). Press the MENU button and then press ◀/▶ button to select
the Time menu and then press the OK button.
2). Press ▲/▼ button to select submenu Menu Time, Sleep Time,
On Time.
Menu Time
The Menu display Time , You can adjust it. Press ◀/▶ button to
select submenu 5s,10s,15s,20s,30s,Always.
Sleep Time
The Shutdown Time, You can adjust it. Press ◀/▶ button to select
submenu off, 10minuts,20minuts,30minuts,60minuts,90minuts,
120minuts,180minuts,240minuts
On Time
The Boot Time, You can adjust it. Press OK button to enter and setup.
6. Setting MENU
Press the MENU button and then press ◀/▶ button to select the
Setting menu and then press the OK button.
Press▲/▼ button to select submenu Blue Screen, PVR File
System, HDMI_CEC, Restore to Default.
Blue Screen
Press ◀/▶ button to select On or Off.
PVR File System
PVR function only works in DTV. In Setting MENU, please
select PVR File System, select PVR USB Selector and select
Your Disk, you can press blue button into PVR .
Time Shift
You can press Red button into Time Shift in DTV. This TV allows
you to pause and record the currently watched digital to a USB
storage device, and to resume to the point where it was paused.
Note
 Formatting a USB2.0 storage device will be needed. Save your
original data before formatting. All the data stored in the USB
device will be erased after formatting.
USB Driver Storage Format
Select to format the USB device and allocate the amount of space
for the Time Shift function.
Note
 The format process will take at least 2 minutes. Please do not
turn off the power or remove the USB device during formatting.
 During formatting, a speed test will be done on the USB device.
If it fail, it means the USB device may not support the Time Shift
function.
Channel Lock
Operation
17

HDMI_CEC
Press the MENU button and then press ◀/▶ button to select the
Setting menu and then press the OK button.
Press ◀/▶ button to select HDMI_CEC and press OK to confirm.
If the HDMI_CEC is On, you can through the TV remote control
to control the Blu-rayplayer. ARC is to select the sound equipment.
Auto HOH Hearing impaired pattern.
AD Switch Visual impairment mode.
AD Volume Set the AD volume.
Audio Language,2nd Audio Language
Set the priority of the voice language.
Subtitle Language,2nd Subtitle Language
Set subtitle language priority.
Restore To Default
Press the OK button to reset TV.
Wire network
Insert the Ethernet cable ,and select Auto get IP address to
connect the Ethernet.
Wireless Network
Select the WIFI ,and press the password to connect.
Time
Press the ◄ / ► to select the Time to set.
Auto Attach
Get the current time and date automatically.
24 Hours
Select the 12 hours or 24 hours.
Time Zone
Select the local time zone.
Time Edit
Edit the current time and date.
Date Format
Set current date format.
General
Press the ◄ / ► to select the General to set.
Select OK and Press OK button.
Now you are in the Android Mode.
Main Menu
In Home menu you can choose a few here in some app. such as
Facebook, Skype, Browser, APP Store, APP Center etc.
Note: The Apps listed in the photo are just for reference. Apps
may vary in different places
System Setting
Select the Setting in the Main Menu to enter the System Setting.
Android Mode
If you are in the TV Mode, You can press BACK button to go to
Android Mode. When you press the BACK button, the following
menu will displayed.
Network
Press the ◄ / ► to select the Network to set.
Operation
18

Language
Setting Select current display language.
Input Method
Select the Input method.
System Upgrade
Upgrade to the newest system version.
System Recovery
Recovery system to original state.
About
Information about the TV.
Apps List Menu
There are some Apps, you can choose your like application,
and press OK button to open it.
Media Menu
Select the Multimedia in the Main Menu to enter the Multimedia
Video
Music
Operation
19
