Haier HR-V03P User manual

Quick Start Guide
Haier mini PC：HR-V03P
Version is 1.1
P/N: 8444020100100
Copyright ©2016 Haier Information Technology (Shenzhen) Co., Ltd. All Right Reserved.
Production and corporate names appearing in this manual may or may not be registered
trademarks or copyright of their respective companies, and are used only for identification
or explanation and to the owners’ benefit, without intent to infringe.

Introduction
Thank you for choosing the Haier mini PC!
The Haier mini PC-HR-V03P is a personal computer with windows 10
and Intel’s CPU. The mini PC supports 2GB of system memory using
DDR3L-RS 1333, Intel HD graphics integrated. This guide serves to
enable user to get to know and familiar with our product as soon as
possible. Read and follow all instructions in the documentation before
you operate your system.
Federal Communications Commission
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with manufacturer’s instructions, may cause harmful

interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna
●Increase the separation between the equipment and receiver.
●Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please recycle. For
more information on the Waste from Electrical and Electronics Equipment (WEEE)
regulations.
Safe Information
zDo not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks. Refer all servicing to qualified service personnel.
zDo not expose the mini PC to direct sunlight. Do not place it near

sources of heat, such as a radiator.
zDo not expose the mini PC to temperature below 0℃or above 35℃.
zDo not subject the mini PC to magnetic fields.
zDo not expose the mini PC to Rain or moisture.
zDo not spill water or any liquid on the mini PC.
zDo not subject the mini PC to heavy shock or vibration.
zDo not expose the mini PC to dust or dirt.
zNever place objects on top of the computer.
zYour device and its enhancements may contain small parts. Keep
them out of the reach of small children.
zDo not connect the adapter to any other device.
zWhen unplugging the adapter, do not pull on the cord itself but pull
on the plug.
zDo not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
zIf an extension cord is used with this product, make sure that the
total ampere rating of the equipment plugged into the extension
cord does not exceed the extension cord ampere rating. Also, make
sure that the total rating of all products plugged into the wall outlet
does not exceed the fuse rating.
zTo prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.

zWhen adding or removing devices to or from the system, ensure that
the adapter for the devices are unplugged before the signal cables
are connected.
zIf the power adapter is broken, do not try to fix it by yourself.
Contact a qualified service technician or your retailer.
zBefore using the product, make sure all cables are correctly
connected and the power adapter are not damaged. If you detect any
damage, contact you dealer immediately.
zTo avoid short circuits, keep paper clips, screws, and staples away
from connectors, Thermal Louvers, and circuitry.
zIf you encounter technical problems with the product, contact a
qualified service technician or your retailer.
zPlease disconnect the AC power cable from LCD monitor when you
install the bracket of mini PC to LCD Monitor.
zThis production is suitable for use in non-tropic areas below
2,000meters.
Accessories List
●mini PC (1)

●Power adapter(1)
●Quick Start Guide(1)
●HDMI Cable(1)
●HDMI-To-VGA Cable(1)
●VESA Bracket(1)
●Screws(4)
Specification
Components Specification
Processor Intel ® BayTrail-T CR Z3735F,Cores 4, Threads 4, Cache
2MB,
Processor Base Frequency 1.33GHz, Burst frequency
1.83GHz
Intel HD Graphic Intel HD Graphic(Gen7 LP)
Graphics Base Frequency. 313MHz, Graphics Burst
Frequency. 646MHz
Memory Memory Types DDR3L-RS 1333MHz, Max Memory
Bandwidth 10.6GB/s
Disk eMMC 32GB
WiFi IEEE 802.11 b/g/n
I/O port 1×Mini DP port,
1×HDMI port
1×RJ45 10/100M LAN port

4×USB 2.0 port
1×Audio 3.5mm output
1×Audio 3.5mm line-in(microphone port)
1×DC-In
1×IR Blast port
1×Micro TF card
Power adapter Input:AC100-240V~50/60Hz Output:5.0V/3A
Video encoding Support Video(H264,H263,mpeg4,vp8,vp9)
File Type(*.3gp,*.mp4,*.ts,*.mkv,*.avi)
Audio encoding Support
audio(aac,ammb,amrwb,g711-alaw,g711-mlaw,mp3,vor
bis, Alac,raw,flac,gsm)
File
Type(*.mp3,*.wav,*.ogg,*.flac,*.mid,*.amr,*.aac,*.ts,*.mp
4,*.m4a, *.3gp,*.mkv)
Description 107*107*25mm
Weight 250g
Operating System Win10
Note: Above specification are for reference only and shall not constitute any
commitment in any way. Concerning the product improvement, we shall
reserve the right to change the product specifications without further notice.
Chapter 1. Getting to know your mini PC

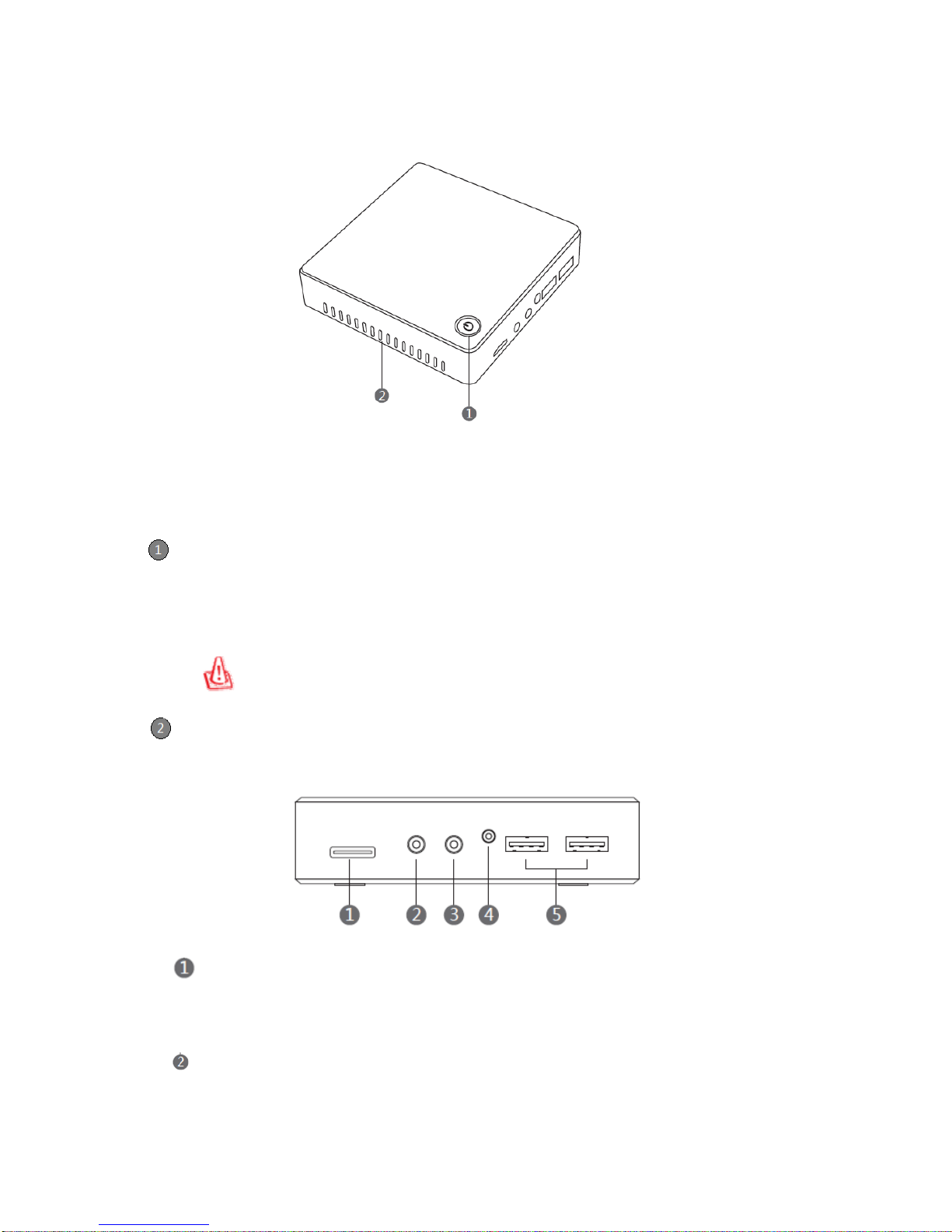

1.1 TOP View

Power button+ Power Indicator: The power switch turns ON and OFF the
mini PC or putting the mini PC into sleep or hibernation modes. Actual
behavior of the power switch can be customized in Windows Control Panel
“Power Options”
The power indicator lights when the mini PC is turned ON and shows the
Blue. The indicator LED is OFF when the mini PC is in the Suspend mode and
turned OFF.
Thermal Louvers: Dissipate internet heat.
Note: Make sure that none of the thermal louvers are blocked or else
overheating of the computer may occur.
1.2 Front Panel
Card Reader
The built-in memory card reader enables your Mini PC to read and write data
and from Micro SD cards.
Headphone jack (3.5mm): Connects to external headphones or
loudspeaker

Note: Listening to music at high volume over extended periods of
time may damage your hearing.
Microphone jack (3.5mm): Connects to external microphones.
IR Blaster port (on selected models): IR port receive infrared
signal from the remote control when you operate computer with remote control.
Note: Remote control is optional part.
USB 2.0 ports: Connecting a USB Device
The USB port is compatible with USB2.0 or USB 1.1 devices such as keyboard,
Mouse, Camera, hard disk drives, Printer, and Scanner.
1.3 Rear side
USB 2.0 ports: The USB port is compatible with USB2.0 or USB 1.1
devices such as keyboard, Mouse, Camera, hard disk drives, Printer, and
Scanner connected.
LAN port: The RJ-45 LAN port with 8pins and supports a standard
Ethernet cable for connection to a local network. The build-in connector allows
convenient use without additional adapters.
DisplayPort: The Display port sends high-performance digital output
from your computer to a display device such as an LCD TV or HD monitor.
HDMI port: The HDMI (High Definition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to allow
viewing on a larger external display. Also, you can connect to a
traditional LCD monitor with attached HDMI-to-VGA cable.

Note: HDMI is an uncompressed all-digital audio/video interface. If
you want to output audio by HDMI port, Please ensure your LCD have
built-in speaker. Otherwise, audio is output from headphones port.
Power Input (DC 5v): The supplied power adapter converts AC
power to DC power for use with this jack. Power supplied through this
jack supplies power to the Computer. To prevent damage to the
Computer, Please always use the supplied power.
Note: The adapter may become warm to hot when in use. Ensure
not to cover the adapter and keep it away from your body.
1.4 Mounting Brackets

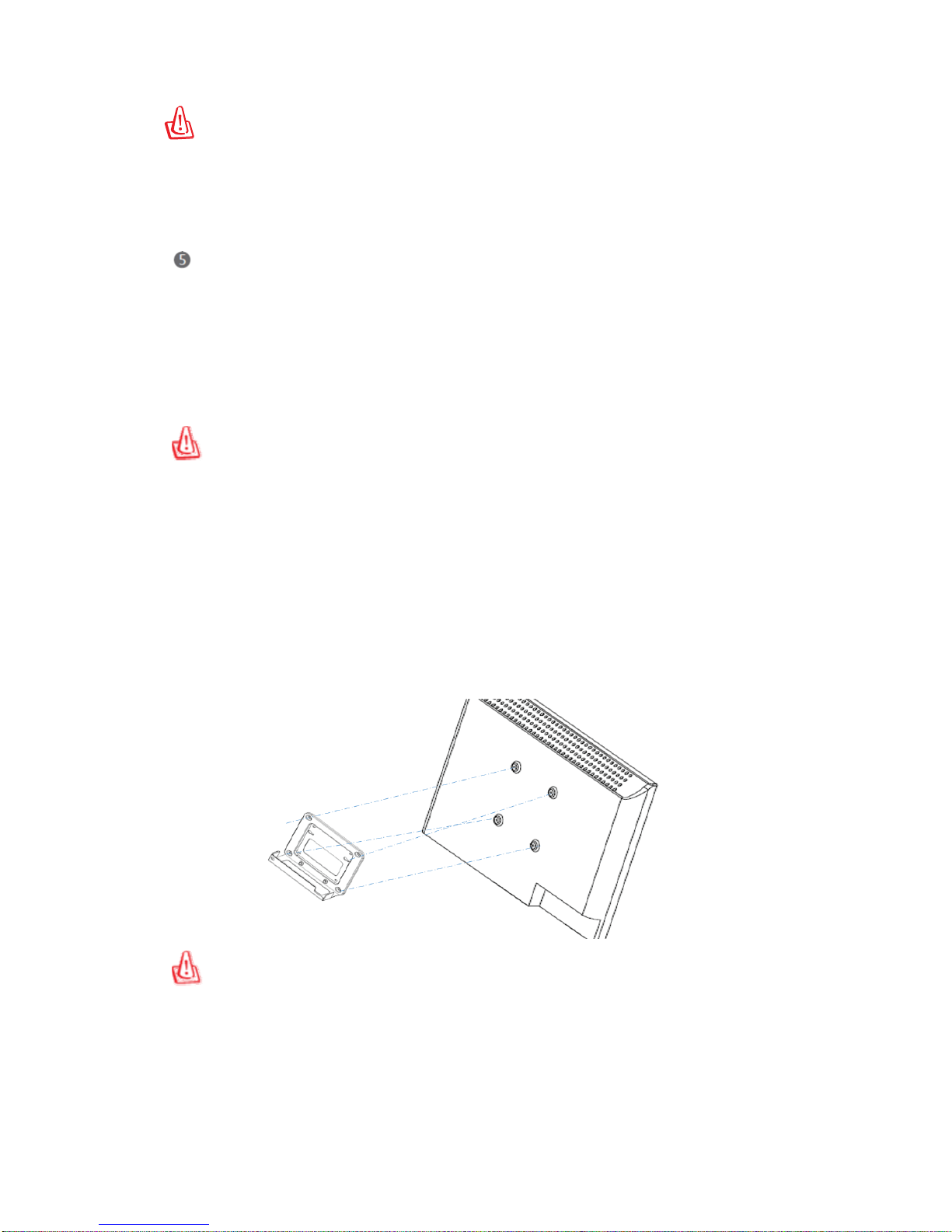

●STEP 1: To install the brackets to the LCD monitor with accessary
screws.(Picture for reference)
Note: please ensure the LCD monitor with VESA hole.
●STEP 2: Put the mini PC into the brackets
VES

Chapter 2. Getting Started
2.1 Connecting to power adapter
The power adapter converts AC power from a wall outlet to the DC
power required by the computer. This computer comes with a universal
AC-DC adapter. That means that you may connect the adapter to any
100v-120v as well as 220v-240v outlets without setting switches or
using power converters. Different countries may require that an adapter
be used to connect the provided US-standard wall outlet.
IMPORTANT! Damage may occur if you use a different adapter to
power the mini PC or use the mini PC’s adapter to power other electrical

devices. The power adapter may become warm to hot when use. Be sure
not to cover the adapter and keep it away from your body. Unplug the
power adapter or switch off the AC outlet to minimize the power
consumption when the mini PC is not in use.
2.2 Connecting to LCD monitor/TV
2.3 Turning on the power
Press and release the power button
The power button allows powering ON and OFF the mini PC and restore from
suspend mode. Use the switch once to turn On and once to turn OFF the mini
PC.
Emergency Shutdown
In case your operating system cannot properly turn OFF or restart, there
is an additional way to shut down your mini PC:

Hold the power button over 10seconds.
Note: DO NOT use emergency shutdown while data is being written,
doing so can result in loss or destruction of your data.
2.4 Preparing initial system configuration

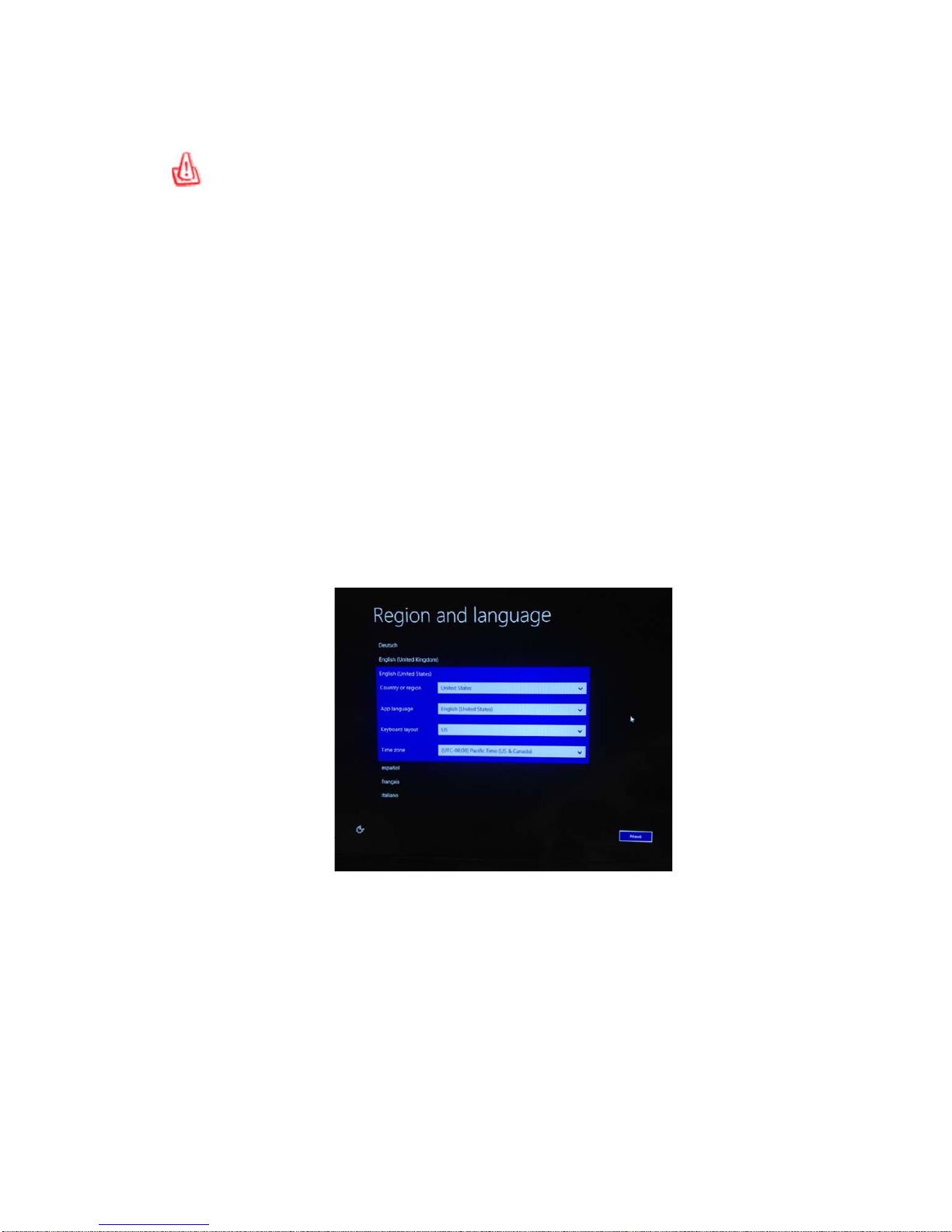

Step 1. Region and language
If you prefer the English keyboard, Please choose the US in keyboard
layout.
If you prefer the Spanish keyboard, Please choose the Spanish in
keyboard layout

Step 2. License terms
Please click the ‘I accept’
Step 3. Personalize
Key in the PC name, then click ‘next’

Step 4. Getting online
Please click the ‘Skip this step’
Step 5. Settings
Please click ‘user express setting’

Step 6. Your account
Key in the account, then to click ‘finished’
Appendix
Troubleshooting
●Your device can not be turned ON
Please check the LED indicator is light, if not, please check the DC is
connected OK or NOT, and the AC adapter is connected OK or NOT.
●Your device can not access to the internet by WiFi
Make sure your device can receive any WiFi signal. If you have found
the WiFi signal quality is low or not stability, Please check with your
device does have any metallic materials covered in mini PC, it will
affect the signal quality.
Make sure the Router support function of DHCP, if not, please
configure a static IP address.
●Your device does not responds or responds too slowly to device.

Maybe too many apps are running in the backstage.
Maybe any incompatible-version app has been installed.
Use the antivirus software to scan and kill the virus (if any).
●Your device gets warm in use
It is normal that your device gets warm in a long-time use.
●Your device crashes and its keys do not work
Press and hold the power button 4sec. to force a system shut down,
and if the device is working abnormal please restart it firstly.
●The total memory is smaller than the specification
A certain space has been used to store the system files and install
user app, so it appears that the total memory is smaller than the
defined memory.
Important Statements
All contents and services obtained through your device shall belong
to a third party under the protection of copyright, partner, trademark
or other intellectual properties, and shall be used for your personal
non-commercial purposes only. You are not allowed to use any
content or service in any way without the authorization of the
content or service provider.
In no case shall we be held responsible for any direct, indirect or
accidental loss or damage caused by your accessing any content,

service, information or third-party software through your device.
Third-part services are subject to change, deletion or may stop
without prior notice. We shall not be responsible for providing any
related customer service for any third-party service requests directly
to the relevant content or service provider.
Please remember to backup data when using your device. We shall
not be held responsible for any personal data loss or damages
caused by software or hardware incorrect operation.
FCC Radiation Exposure Statement
The antennas used for this transmitter must be installed to provide
a separation distance of at least 20 cm from all persons and must
not be co ‐located for operating in conjunction with any other
antenna or transmitter
