Haier DW9-TFE3 Series User manual

Dishwasher
DW9-TFE3 Series
DW9-UFE3 Series
Instructions for Use
en
1
2
3
4
5
6
7
1
2
3
4
5
6
7
DW9-TFE3
1
2
3
4
5
6
7
1
2
3
4
5
6
7
DW9-UFE3

1
Index
en
Safety information
Installation
Getting to know your appliance
How to fill the salt container
How to fill the rinse aid container
How to fill the detergent dispenser
Not suitable for the dishwasher

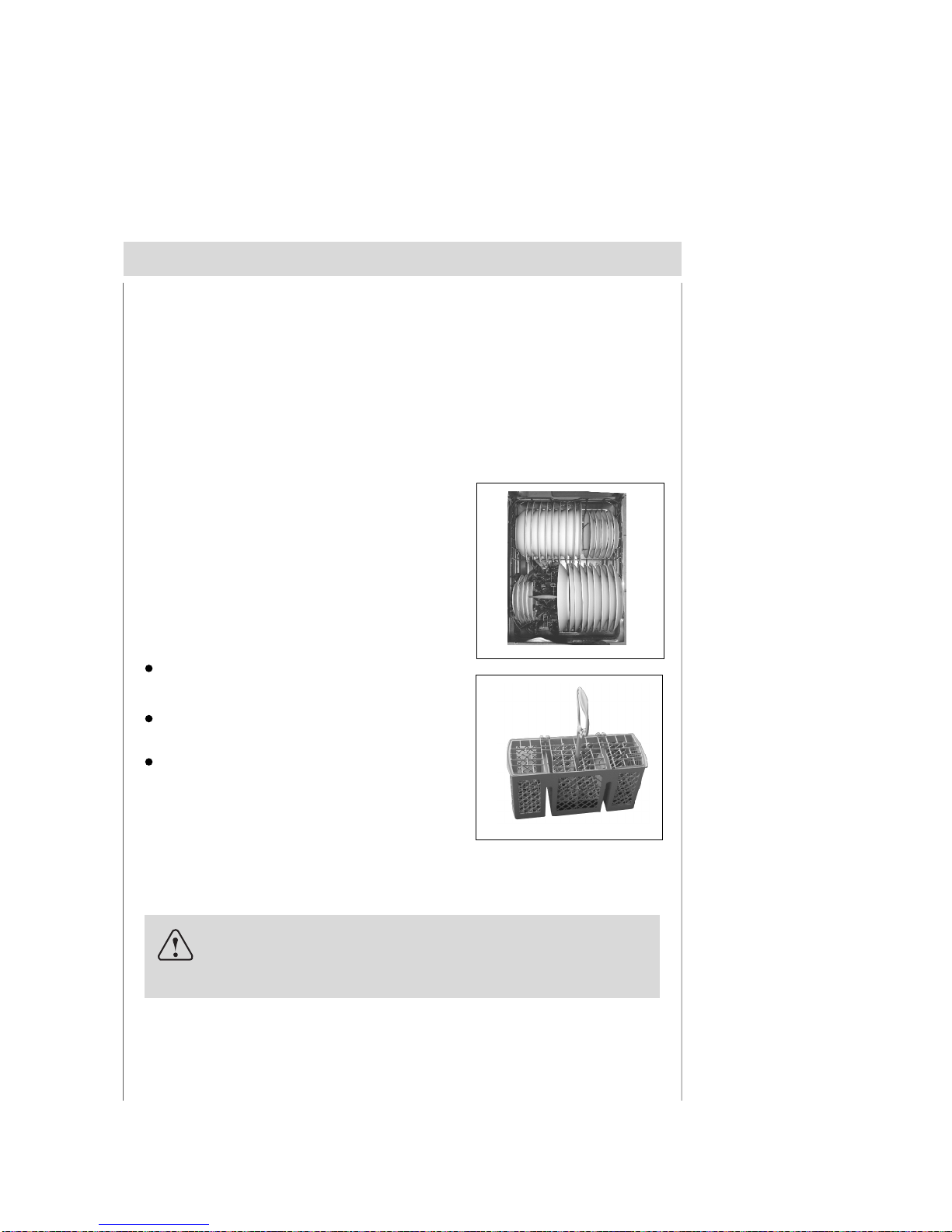

Arranging crockery, glasses, etc. in the dishwasher

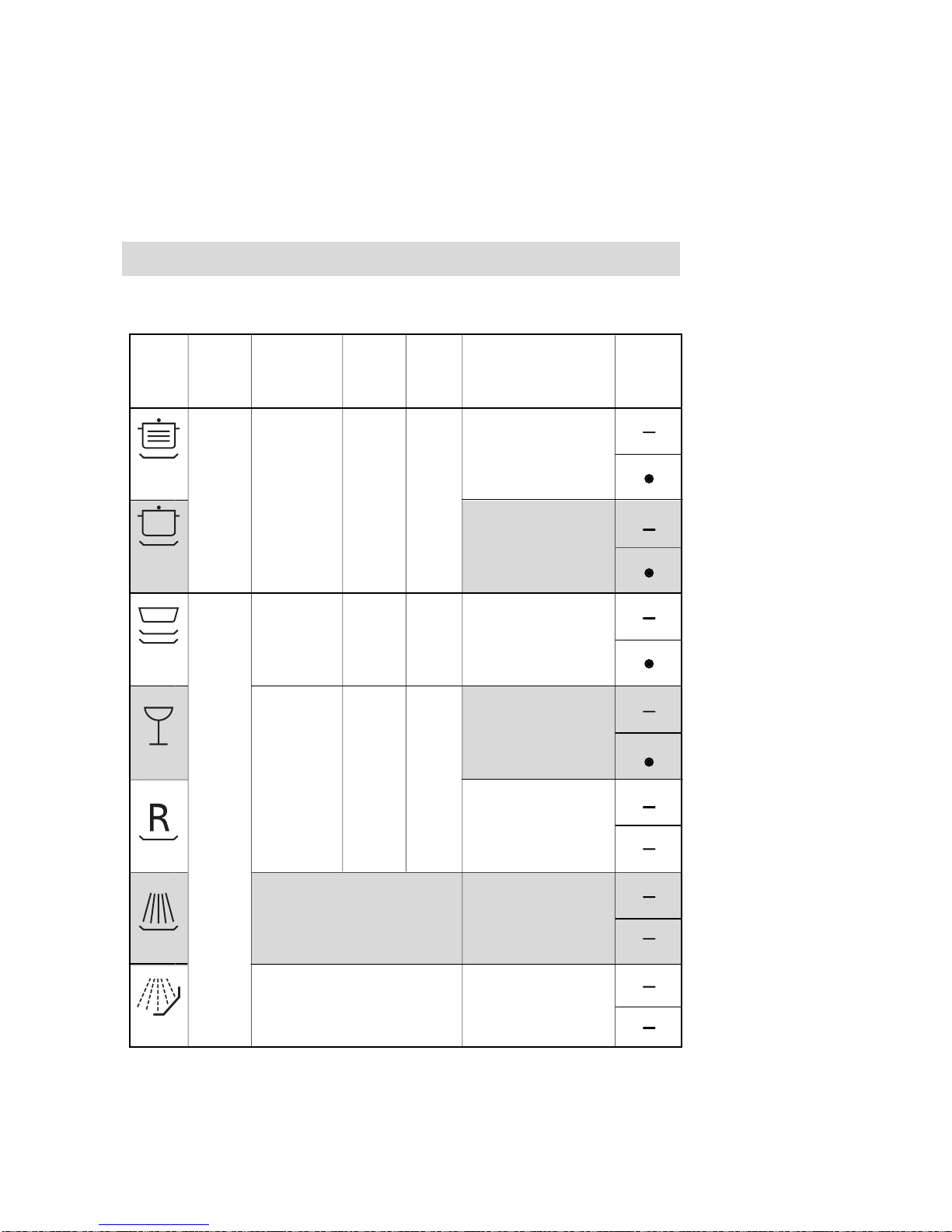

Programme overview
Washing dishes
How to keep your dishwasher in shape
Care and maintenance
Trouble shooting
Technical data
Important information
2
4
7
8
9
9
10
11
13
15
18
19
21
25
25

2
Safety information
At time of delivery
Check packaging and dishwasher immediately for signs of transport damage. If the appliance is
damaged, do not use it and contact the retailer or our approved customer service department without
delay.
Please dispose of packaging materials properly.
en
The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.
Do not place any heavy objects on the door or stand on the door when it is open. The appliance could
tip forward.
The water inside the dishwasher is not suitable for drinking.
Do not use solvents of any kind inside your dishwasher. There is a risk of explosion.
Open the door carefully if the dishwasher is operating. There is a risk of water coming out.
During normal use
Do not touch the heating element during or after a wash cycle.
Fundamental rules to follow when using the appliance:
- Never touch the dishwasher when barefoot or with wet hands or feet.
- Do not use extension cords and multiple sockets.
- If the appliance is not operating properly or maintenance must be performed, disconnect the appli
ance from the power supply.
Site the dishwasher and connect it up in accordance with the installation instructions.
The dishwasher must not be connected to the electricity supply while installation is being carried out.
Ensure that the domestic wiring is properly earthed.
The mains electricity supply must conform to the details shown on the dishwasher rating plate.
Do not connect the dishwasher to the electricity supply using an extension cable.
After the appliance has been installed, the mains plug should still be easily accessible.
During installation, the power cable must not be excessively or dangerously kinked or flattened.
This appliance cannot be installed outdoors, even if the area in which it is installed is covered by a
roof. It is very dangerous to leave the appliance exposed to rain and the elements.
During installation

3
If your family includes children or the infirm
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Keep detergents out of the reach of children.
If a fault occurs
If the appliance malfunctions, turn off the water supply to the appliance, switch it off and disconnect
the plug from the wall socket. Then, consult the section entitled "Trouble shooting". If you cannot
solve the problem, contact a service centre.
Only specialised personnel are authorised to make repairs.
If the power cable is damaged, it must be replaced by the manufacturer or a manufacturer-approved
service engineer.
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
- Call only the service centres authorised by the manufacturer, or the approved service agents.
- Always use original spare parts.
When disposing of old appliances
Appliances which are no longer being used must be made inoperable by disconnecting the plug from
the wall socket, cutting the power cable and removing the door lock.
Take the appliance to a designated waste disposal centre.
Warning
Children could get locked or stuck in the appliance (risk of
suffocation). Therefore: Remove the mains plug and cut themains
wire. Damage the door lock so that the door can no longer be
closed.
Dangerous voltage
en

4
Positioning the appliance
Positioning the appliance in the desired location. The appliance is equipped with water supply and drain
hoses that can be positioned to the right or the left of the appliance to facilitate proper installation.
Levelling the appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to level the appliance. If the
appliance is level, it will help to ensure proper performance.
Installation

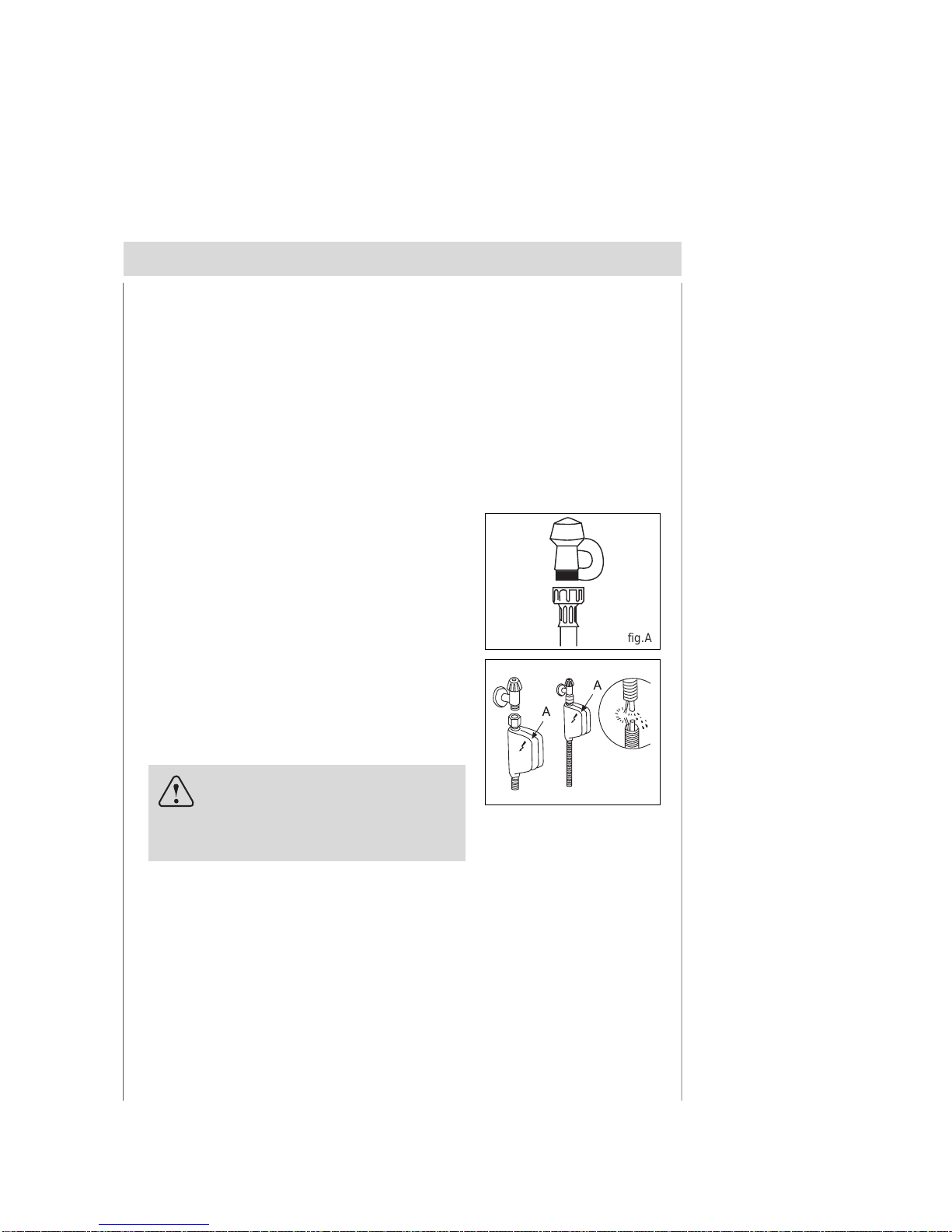

fig.A
Cold water connection
Connect the water supply hose to a threaded 3/4 inch (ca. 19mm)
connector, making sure that it is fastened tightly in place (see
Fig. A).
If the water pipes are new or have not been used for an extended
period of time, let the water run for a while until the water is clear
and free of impurities.
If this precaution is not taken, there is a risk that the water inlet
can get blocked and damage the appliance.
Anti-Flooding protection
The dishwasher is equipped with a system that stops the supply of water in the event of a problem with
the water supply hose or leaks within the unit, in order to prevent damage to your home. If for any reason
the box containing the electrical components happens to get damaged, turn off the power supply and
unplug the appliance immediately. In order to guarantee that the anti-flooding feature operates properly,
box "A" with the water supply hose must be attached to the water supply tap as shown in Fig. B. If the
length of the hose is not adequate to make a proper connection, the hose must be replaced with one
which is long enough. This hose is available upon request from specialised retailers and approved ser-
vice centres.
fig.B
Warning
The appliance is to be connected to the
mains water using new hose sets. Old
hose sets should not be reused.
en

5
Electrical connection
After making sure that the voltage and frequency values for your domestic electricity supply correspond
to those on the rating plate (located on the inner door of the appliance), insert the plug into an electrical
socket which is properly earthed (the earthing of the appliance is a legal safety requirement).
Caution:
The dishwasher's mains plug must be accessible even when the
appliance is installed as a built-in unit so thatmaintenance can be
carried out safely.
Drain hose connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, making sure to avoid kinking or
pinching. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (Fig. C). The
free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water.
Attention:
The syphon trap (U-bend) must be securely fastened to the wall to
prevent the drain hose from moving and thus causingwater to be
spilt.
fig.C
en

6
ELECTRICAL CONNECTION (UK ONLY)
For your safety please read the following information.
Warning: This appliance must be earthed.
The appliance must be connected to a socket by means of a three pin plug, suitably earthed and should
be protected by a 13 amp fuse.
The appliance is supplied with a rewireable 3-pin plug fitted with a 13-amp fuse. Should the fuse require
replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is replaced. In the event of
the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been
obtained.
Caution:
The plug must be accessible even when the appliance is installed as a built-in unit so that maintenance
can be carried out safely.
en

7
Getting to know your appliance
Close-up view (control panel)
Dishwasher interior
Upper Rack
a
b
c
d
e
f
Top Spray Arm
Silverware Basket
Bottom Spray Arm
Lower Rack Detergent and Rinse Aid Dispenser
g
h
i
j
k
Salt Container Cap
Washing Filter
Water Inlet Hose
Drain Hose
Power Supply Cord
"3 in 1" Indicator Low Salt Indicator
Time-remaining Indicator
F
G
H
I
J
A
B
C
D
E
ON-OFF Indicator
ON-OFF Button
Delayed Start Button
Delayed Start Indicator
Low Rinse Aid Indicator
Programme selection dial.
"3 in 1" Button
B
A
DF
C
G
E
I
H
J
B
A
DF
C
G
E
I
H
J
a
de
f
h
b
ci
j
k
g
en

8
Salt
The hardness of water varies from place to place. If hard water is used in the appliance, deposits will form on the
dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals
from the water.
How to fill the salt container
Filling the container with salt
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:
Adjusting salt consumption
You can adjust the amount of salt used to suit the hardness of the water in your area. This is intended to
optimize the level of salt consumption so that it remains at a minimum.
To adjust salt consumption, proceed as follows:
It is recommended that adjustments be made in accordance with the following table:
When the low Salt indicator "1" lights, you must add salt.
Remove the lower rack and then unscrew and remove the cap from the
salt container.
If you are filling the container for the first time, fill it with water.
Place the end of the funnel (supplied) into the hole and introduce about
2 kg of salt. It is normal for a small amount of water to come out of the
salt container.
Carefully screw the cap back on.
1
Important
To prevent the formation of rust, fill with salt just before beginning a wash cycle.
Unscrew the cap from the salt container;
There is a ring on the container with an arrow on it (see figure to the
side).
If necessary, rotate the ring in an anticlockwise direction from the "-"
setting towards the "+" sign, based on the hardness of the water being
used.
Water Hardness
Clarke
degrees ºdH mmol/l Selector
position Salt
consumption
(Grams/cycle) Autonomy
(cycles/2kg)
0-14 0-17 0-1,7
1,8-4,418-4414-36
36-71 45-89 4,5-8,9
>89>71 >8,9
/
"-"
Middle
/0
20
40
60"+"
60
40
25
Level
1
2
3
4
en

5
4
9

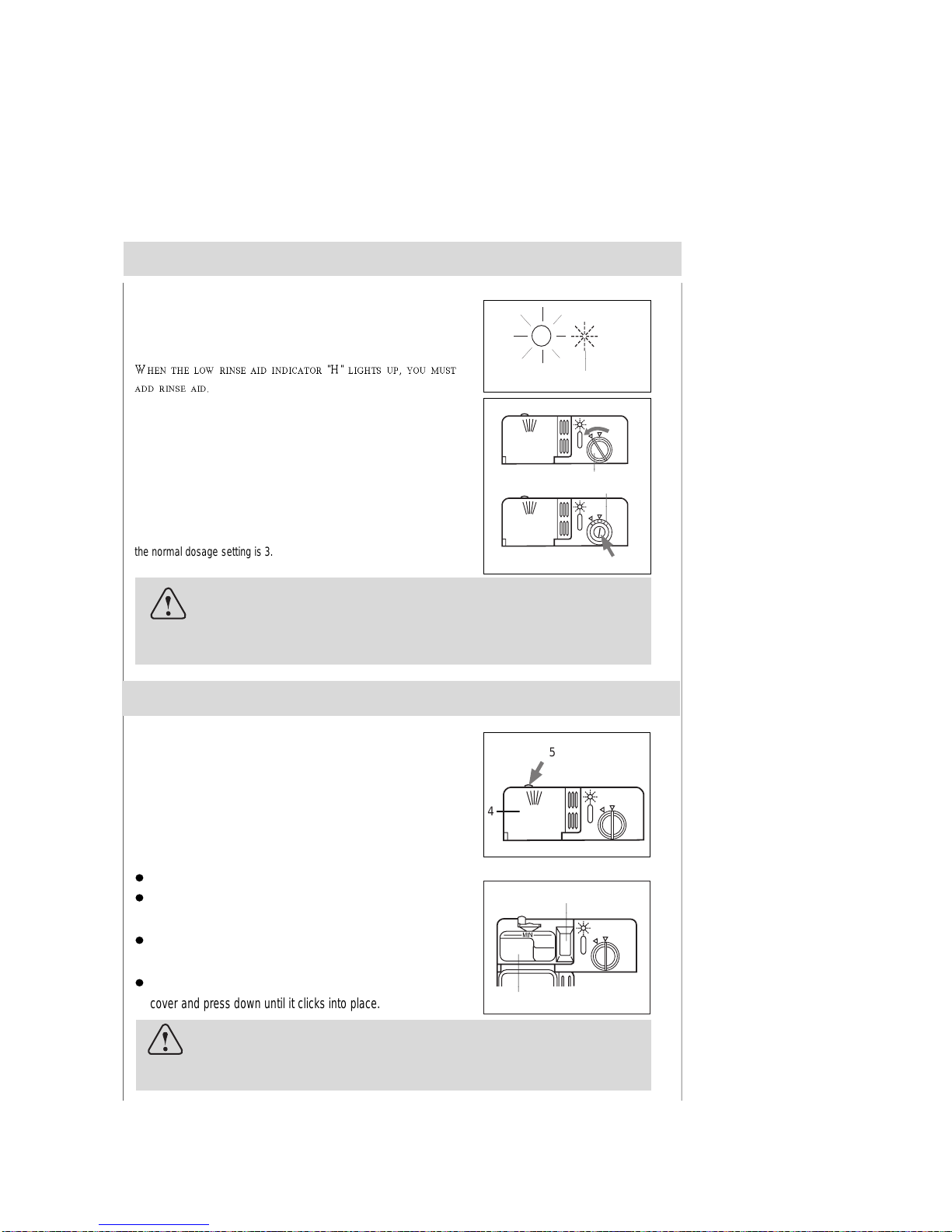

Rinse aid
This product makes dishes sparkle and helps them to dry without spotting.
The dispenser is located on the inside panel of the door.
Adding rinse aid
Regardless of the type of detergent dispenser installed on your appliance,
you must proceed as indicated below when loading the rinse aid.
To open the dispenser, turn the cap "2" in an anti-clockwise direction and
then pour in the rinse aid, making sure not to overfill. The amount of rinse
aid used for each cycle can be regulated by turning the dose adjustor "3",
located beneaththe cap "2", with a screwdriver. There are 6 differentsettings;
the normal dosage setting is 3.
How to fill the rinse aid container
How to fill the detergent dispenser
H
Important
Correct dosage of rinse aid improves drying. If drops of water remain on the dishes
or spotting occurs, the dosage adjustor should be turned to a higher setting. If the
dishes have white streaks, turn the dosage adjustor to a lower setting.
Detergent
Detergent specifically intended for use with dishwashers must be used. The
dispenser must be refilled before the start of each wash cycle following the
instructions provided in the "Programme overview". The detergent dispenser
is located on the inside panel of the door.
To open cover "4" on the dispenser, press button "5".
The detergent for the wash cycle should be poured into
compartment"6“.
The detergent for the pre-wash cycle should be poured into
compartment"7".
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks into place.
Notice:
To facilitate closing the cover, remove any excess detergent on the
edges of the dispenser.
23
6
7
en
Adding detergent

10
Not suitable for the dishwasher
What you should not put into the dishwasher
Cutlery and tableware manufactured in whole or part from wood. These will become faded and unsightly
in appearance. Furthermore, the adhesives that are used are not suitable for the temperature inside the
dishwasher.
Delicate decorative glassware and vases, special antique or irreplaceable china. The decorative pat-
terns on such items will not be dishwasher-proof.
Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable.
Items with decorative patterns printed or painted onto the surface of crockery, glasses, etc.
Aluminium and silver items tend to become discoloured or faded if washed in the dishwasher.
Some types of glass can become opaque in appearance after they have been washed many times in a
dishwasher.
Highly absorbent materials, such as sponges and towels, should never be placed in the dishwasher.
Our recommendation
In the future, only purchase table or kitchenware that is dishwasher-proof.
Important
Items that have been soiled by tobacco ash, wax, lubricating grease
or paint, should not be put in the dishwasher.
Damage to glassware and other dishes
Possible causes
Type of glass or manufacturing process.
Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Use glassware or porcelain dishes that have been marked ‘dishwasher-proof’ by the manufacturer.
Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from
detergent manufacturers.
Select a programme with a low temperature and as short a duration as possible.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
Suggested remedy
en

11
Arranging crockery, glasses, etc. in the dishwasher
Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be-
coming clogged, which results in reduced performance.
If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are
soaked before being washed. This will eliminate the need for extra wash cycles.
Pull out the rack to load the appliance.
How to use the lower rack
We recommend that you place the most difficult to clean items
on the bottom rack: pots, pans, lids, serving dishes and bowls,
as shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of
the racks in order to avoid blocking the rotation of the top spray
arm.
Pots, serving bowls, etc, must always be placed face down
(see Fig. C).
fig.D
Normal daily load
fig.E
Large pots should be placed at an angle to allow the water
to flow out.
Warning
Knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position.
The cutlery basket cannot be doubled (see Fig. E).
en

12
The upper rack is designed to hold more delicate and lighter
crockery, such as glasses, cups and saucers, plates, small
bowls and shallow pans (as long as they are not too dirty).
How to use the upper rack
fig.G
fig.F
Shelf
Lean tall glasses and those with long stems against the shelf
and NOT against other items to be washed.
Place glasses, cups and small bowls on the additional cup rack.
The additional cup rack can be swivelled in or out as required
(see Fig. G).
Adjust the upper basket to the higher level and you have more
space to accommodate larger pans and trays in the bottom
basket.
Position items so that they do not get moved by the spray of
water.
The upper rack can be adjusted for height by using the knobs
located on both sides of the rack itself (see Fig. F).
Knife rack
The knife rack clips onto the side of the top basket, giving you
the freedom to wash large sharp knives separately and out of
harm’s way (see Fig. H).
fig.H
en

13
Programme overview
Wash
programme
Type of
crokery e.g.
china, pots/
pans,
cutlery,
glasses, etc
Amount of
food
remains Description of cycle
Condi-
tion of
food
remains
Pre-wash with warm water.
Extended wash at 70°C.
Rinses with cold water.
Rinse with hot water.
Drying.
Pre-wash use cold water.
Extended wash at 55°C.
Rinse with cold water.
Rinse with hot water.
Drying.
Short wash at 40°C.
Cold rinse.
Short cold wash to pre-
vent food residue from
drying on the dishes .
Pre-wash use cold water.
Pre-wash use cold water.
Extended wash at 48°C.
Rinse with hot water.
Drying.
Wash at 45°C.
Rinse with warm water.
Hot rinse.
Drying.
Soups,
casseroles,
sauces,
potatoes,
pasts, rice,
eggs, roast or
fried food.
a lot
a little
stuck
on hard
Soups,
potatoes,
pasta, rice,
eggs, roast or
fried food.
loosely
attached
Coffee,cakes,
milk, sausage,
cold drinks,
salads
Very little loosely
attached
Rinse off if the dishes have been
stacked for several days in the dish-
washer prior to washing.
Type of
food
remains
Non-
delicate
Mixed
Intensive
Wash
Normal
Wash
Glass ware
Soak
Rapid wash
3 in 1
Heat
Hot rinse at 65°C.
Drying.
For dishes that need to be rinsed
and dried only.
en
Light Wash

14
Delayed
Start
Detergent
Extended
Wash
Prewash Rinse Aid Duration in
minutes
Energy
consump-
tion in kWh
Water
consump-
tion in litres
112
102
162
92
32
54
12
1.44
1.25
1.11
1.00
0.80
0.76
1.01
0.95
0.40
0.30
0.90
0.78
0.02
0.02
18
16
15
14
14
13
12
10
9
8
5.5
5
3
3
en
5g
5g
5g
5g
5g
5g
25g
25g
25g
25g
25g
25g
15g
10g
15g
10g

15
Washing dishes
Programme selection
The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., and
the amount and condition of food residue, with the details contained in the Wash Cycle Table. The
corresponding programme sequence, duration and consumption details are shown in the right half of the
overview. For example:
Use the« normal» programme for dishes and utensils which have plenty of food residue stuck on.
Make savings
If only a small number of dishes have been loaded into the dishwasher, selecting a programme that
operates at the next lowest temperature will usually be sufficient.
Programme data
The stated programme data are based on standard operating conditions. The values can vary consider-
ably according to:
Amount of dishes.
Temperature of mains water supply.
Pressure of mains water supply.
Ambient temperature.
Fluctuations in mains voltage.
Machine-related factors (e.g. temperature, water volume).
Switching the dishwasher ON
Close the door after loading the appliance.
Set On-Off button "B" to On. The indicator light "A" comes on.
Rotate the dial to select the required programme. The time-
remaining indicator displays the time required for the
programme you have selected. After 3 seconds the appliance
emits a short warning signal, and starts the programme. The
indicator light "A" starts to blink.
Warning
When the dishwasher is on, if the programme to which the dial is pointing cannot be
carried out, you must rotate the dial to another programme and then back to the programme
you require.
B
A
DF
C
G
E
I
H
en

16

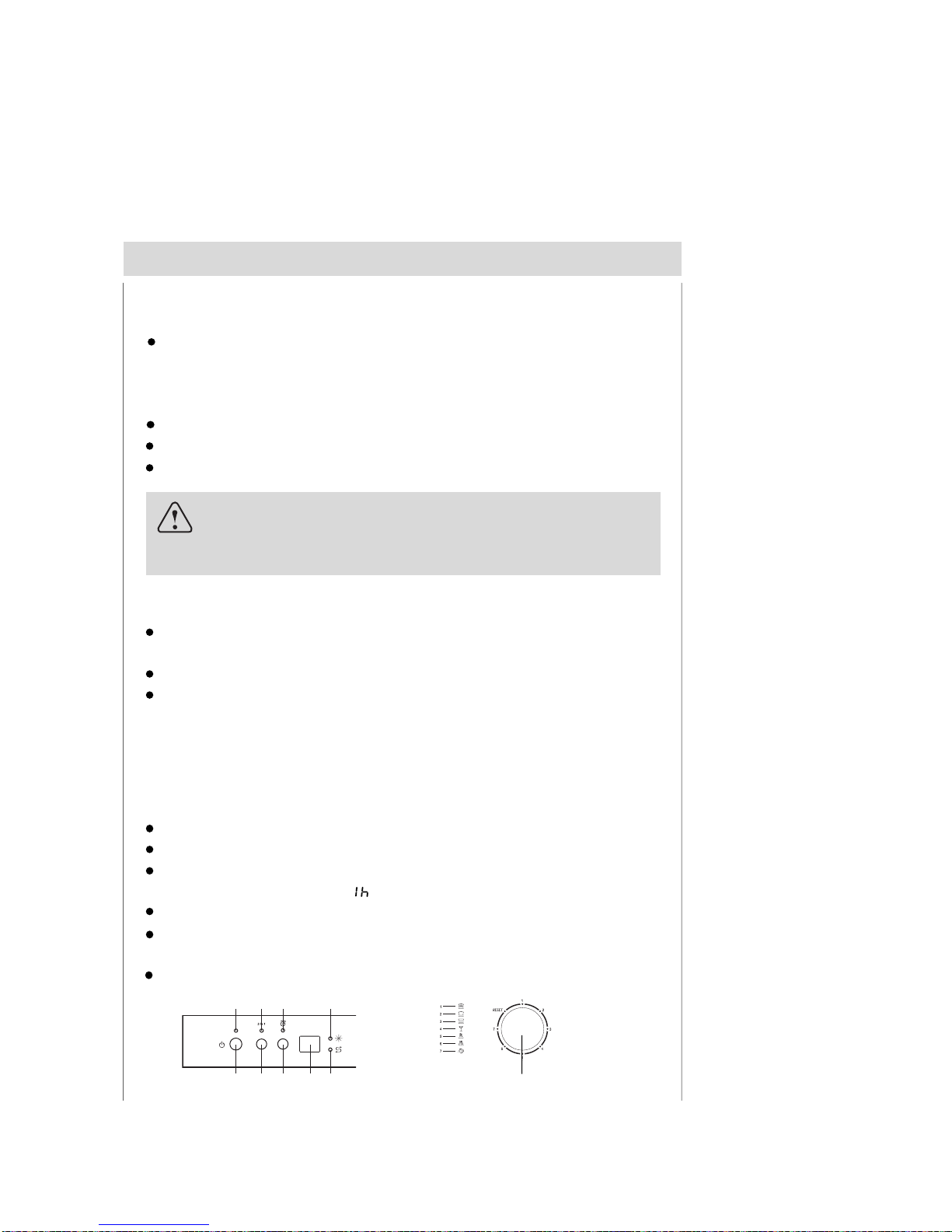

End of programme
Six beeps will indicate that the wash cycle has finished and the indicator light "A" comes on.
Switching the dishwasher OFF
Several minutes after the programme has ended:
Set On-Off button to Off.
Open the door.
Remove dishes, etc. when they have cooled down.
Interrupping the programme
Open the door. Caution! There is a risk of water coming out from inside the appliance. Do notopen the
door fully until spray arm has stopped rotating.
When you open the door, the dishwasher will beep ten times every thirty seconds.
If the appliance has already heated up or the hot water was switched ON and then the appliance door
was opened, leave the door ajar for several minutes before closing. Otherwise, the appliance door
may not close properly due to expansion.
Delayed start programming
You can delay the start of a programme in increments of 1 hour up to 24 hours.
B
A
DF
C
G
E
I
H
Switch dishwasher ON.
Immediately press the Delayed Start button "F". The delayed start indicator "E" blinks and the time
remaining indicator "G" changes to " ".
Press the Delayed Start button for 2 seconds until the numerical display shows the required delay.
To cancel the time delay setting, press the Delayed Start button until the delayed start indicator “E"
goes out.
Rotate programme dial "J" to select the desired programme.
J
en
Close the door after loading the appliance.
Notice:
If the programme is already underway press the button "B" for 3 seconds. All of the
settings will be cancelled.

17
After 3 seconds the delayed start indicator "E" blinks. The time-remaining indicator "G" will also blink.
The programme will start when both lights fade.

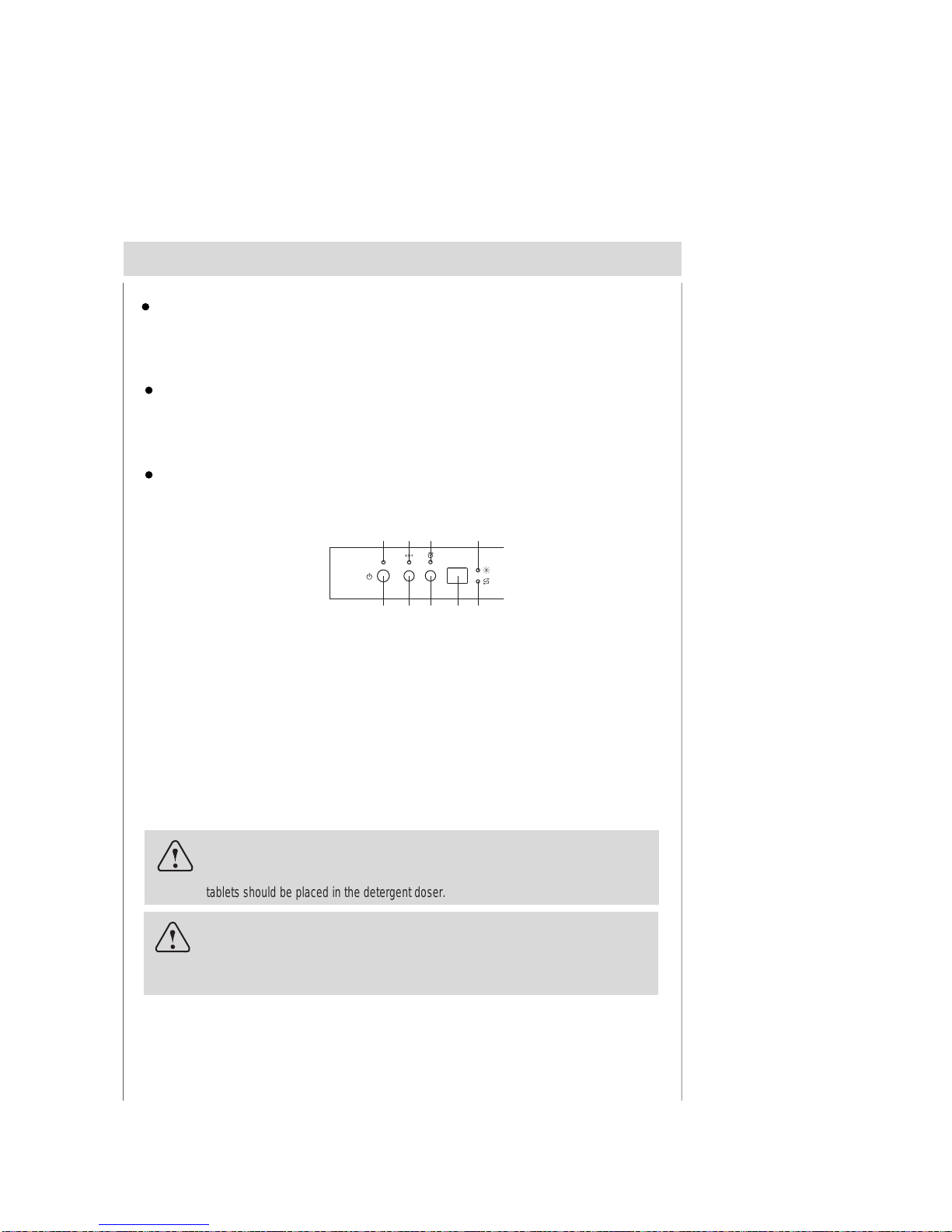

3in1 function
When using "3 in 1" combination products, the rinse-aid and salt indicator lights are no longer relevant.
It may be helpful to select the lowest possible setting for water hardness.
If you decide to switch to using a standard detergent system we advise you to:
1: Refill both the salt and rinse aid compartments.
2: Switch the water hardness setting to the highest possible position and run for three normal cycles
with the appliance left empty.
3: Readjust the water hardness setting again according to the conditions for your region.
Reset drain function
You can use the "Reset" function to stop the wash cycle when running by rotating the dial to "Reset".
The appliance will stop after a few minutes drain phase.
Warning
Do not place the tablets in the cutlery basket as this will result inpoorer wash results. The
tablets should be placed in the detergent doser.
Cancelling or modifying a cycle
Acycle that is underway can be modified if it has only been running for a short time. Otherwise, the
detergent may have already been used and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the paragraph entitled, "Adding
Detergent").
To modify a cycle that is already underway, follow the instructions contained in the paragraph entitled
"Reset function" and select the programme you require (see the paragraph entitled "Switching the
dishwasher ON").
B
A
DF
C
G
E
I
H
Notice:
3 in 1 or similar tablets should not be used when Heat Wash, Rapid
wash or Soak programmes are selected.
en

18
How to keep your dishwasher in shape
After every wash
After every wash leave the door slightly ajar so that moisture and odours are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always switch off the machine and remove the plug from
the socket.
No solvents or abrasive aleaning products
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. It is recommended that you use only a cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little
white vinegar or a cleaning product made specifically for dishwashers.
Moving the appliance
If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this from occurring.
The door should not be left in the open position since this could present a tripping hazard.
When you go on holiday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and
then remove the plug from the socket, turn off the water supply and leave the door of the appliance
slightly ajar. This will help the seals last longer and prevent odours from forming within the appliance.
en

19
Care and maintenance
Dishwasher salt
Check the LOW SALT indicator "G". Top upwith saltif required.
Regular inspection and maintenance of your appliance helps to prevent problems from occurring. This
saves time and aggravation. You should therefore carefully inspect the inside of your dishwasher from
time to time.
Overall condition of appliance
Check that no grease or scale has accumulated on the inside of the dishwasher.
If you discover any deposits:
Clean the interior of the dishwasher thoroughly with a dishwasher detergent solution.
Rinse-aid
Check the LOW RINSE AID indicator "H", on the front panel.
Top up with rinse-aid, if required.
Filters
The filters"8" and"9" prevent larger particles of food in the
water from reaching the pump. These particles can occasion-
ally block the filters.
When the appliance has finished washing, check the filters
for particles of food and, if required, clean.
After undoing the coarse micro-filter "8", the filter unit "9"
can be removed. Remove any particles of food and rinse
the filters under running water.
Insert the filter unit "9" and tighten the coarse micro-filter.
8
9
H
G
en
