Haier HDW13V1W1 User manual

User Manual
Dishwasher
HDW13V1W1
HDW13V1S1
HDW13V1G1

1
Please read these instructions carefully before using this appliance. The
instructions contain important information which will help you get the
best out of the appliance and ensure safe and proper installation, use and
maintenance.
Keep this manual in a convenient place so you can always refer to it for
the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging
in applicable containers to recycle it.Help to recycle waste of elec-
trical and electronic appliances. Do not dispose appliances marked
with this symbol with the household waste. Return the product to
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the mains
cable and dispose of it. Remove the door catch to prevent children
and pets to get closed in the appliance.
Thank you for purchasing a Haier product

2
Safety............................................................................................... 3
Product Description....................................................................... 5
Control Panel ................................................................................. 6
Programmes ................................................................................... 8
9
..............................................................................
Daily Use ....................................................................................... 12
Care and Cleaning........................................................................ 20
Troubleshooting .......................................................................... 22
Economic and Environmental Use ............................................. 25
Installation .................................................................................... 26
Technical Data ............................................................................. 30
Customer Service ........................................................................ 31
Content
Standards Test ............................................................................. 32

3
Intended Use
The appliance is designed for domestic use inside the house. It is not
intended for commercial or industrial use. Do not use it for purposes other
than that for which it was designed.
may cause hazards and loss of warranty claims.
Standards and Directives
This product meets the requirements of all applicable EC directives with
the corresponding harmonised standards, which provide for CE marking.
Safety
Before Switching on the Appliance for the FirstTime
Do…
▶
make sure all packaging is removed and is kept out of children’s reach.
▶make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
▶use a separate earthed socket for the power supply.The appliance
must be earthed.
▶make sure the plug is easy accessible.
▶make sure only the delivered electric cable and hose set are used.
▶hold the plug and not the electric cable when unplugging the power
supply.
▶make sure not to damage the electric cable and the plug. If damaged,
have it replaced by an electrician.
▶
leakage.
Do not…
install or use the appliance where the temperature is below 5 °C.
use multi-plug adapters and extension cables.
let persons,children included,with reduced physical sensory,reduced
mental functions or lack of experience and knowledge use the appli-
ance if not supervised by a person responsible for their safety.
products in, near, or on theappliance.

4
During Daily Use
Do…
▶supervise children to prevent them playing with the appliance.
▶put sharp pointed objects (e.g. knives) in a way that there is no
danger of injury.
Do not…
open the door while a programme operates. The appliance can
release hot steam.
keep the appliance door open without supervision to prevent trip-
ping and falling.
let children or pets come close to the appliance when the door is
open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is
completed.There can still be detergent on the dishes.
drink the water in the appliance. The water may be contaminated
with detergent residues.
cover any ventilation openings in the base by a carpet or similar
object.
use water spray or steam to clean the appliance.
Safety
let the children make the cleaning and user maintenance without
supervision.
WARNING:
Some dishwasher detergents are strongly alkaline.They can be extremely
dangerous if swallowed.Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.Check that
the detergent receptacle is empty after completion of the wash cycle.

5
Product Description
1.
8.

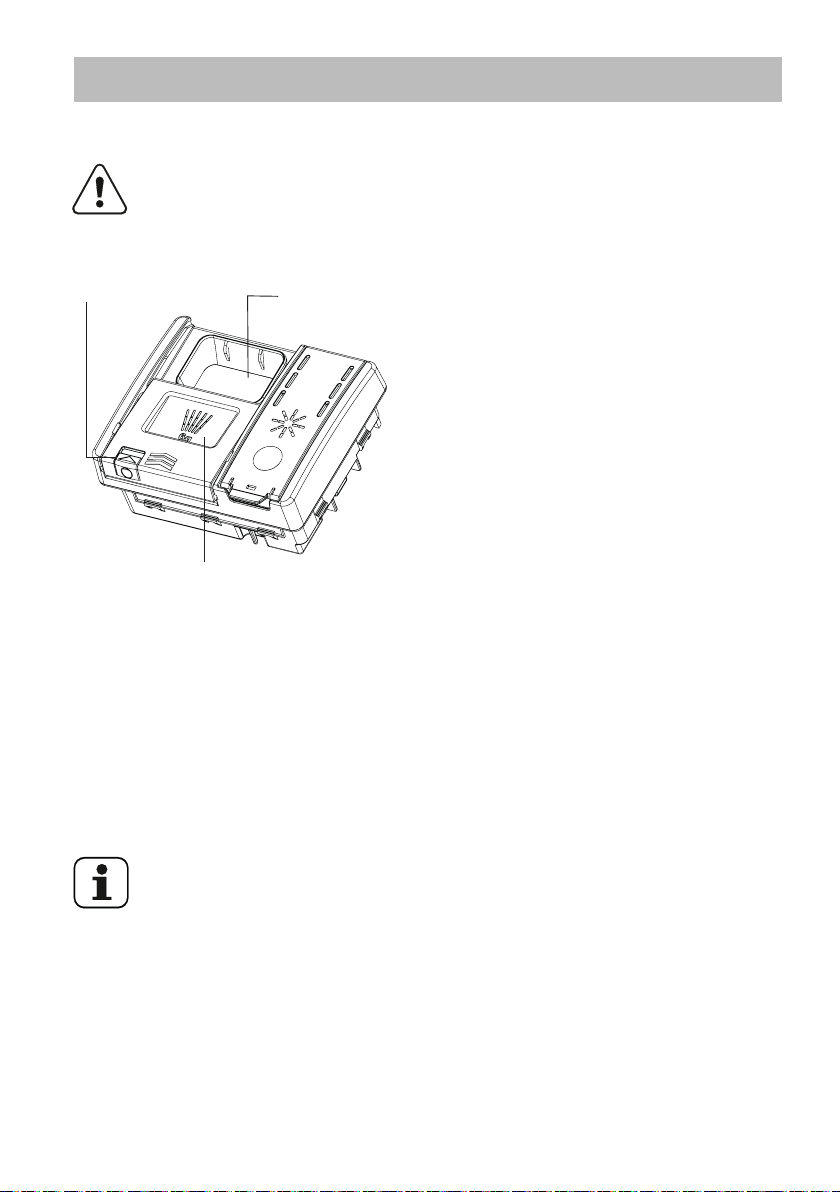

Detergent dispenser
2.
9.
Rating label
3.

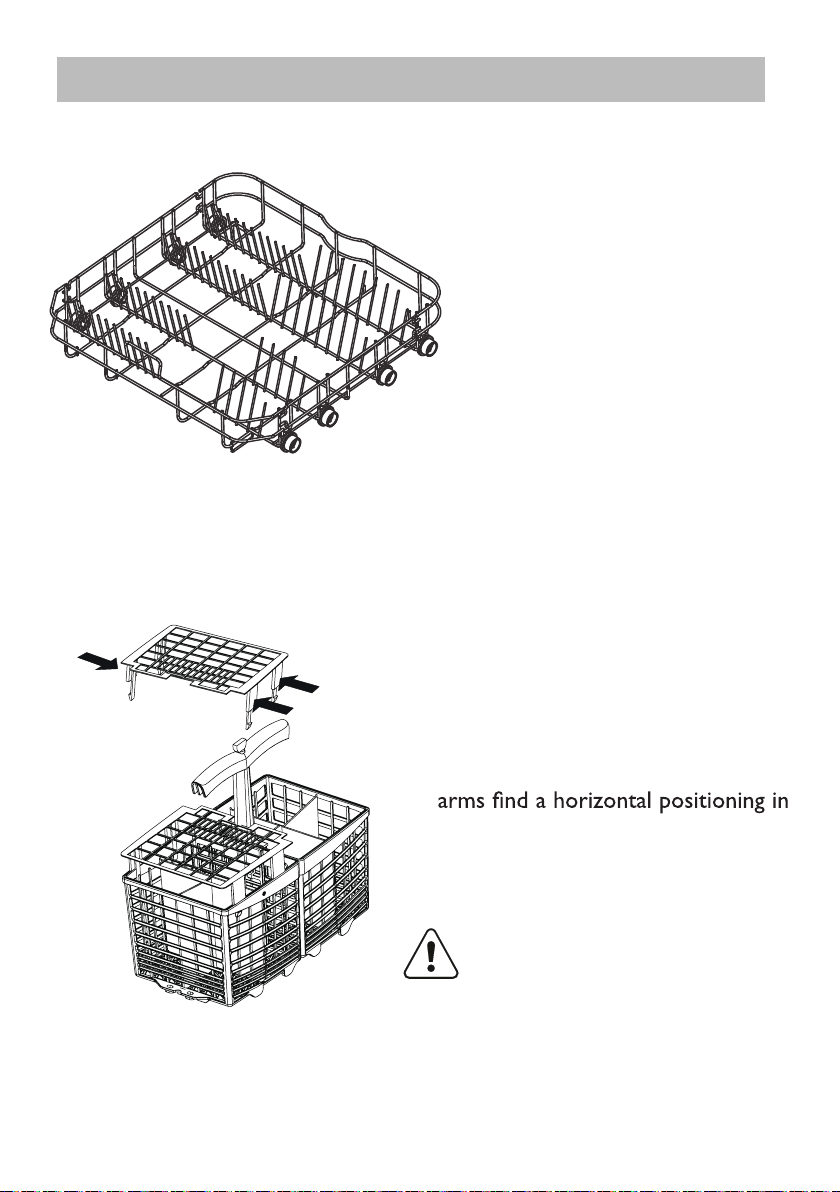

Cutlery basket
4. Filters

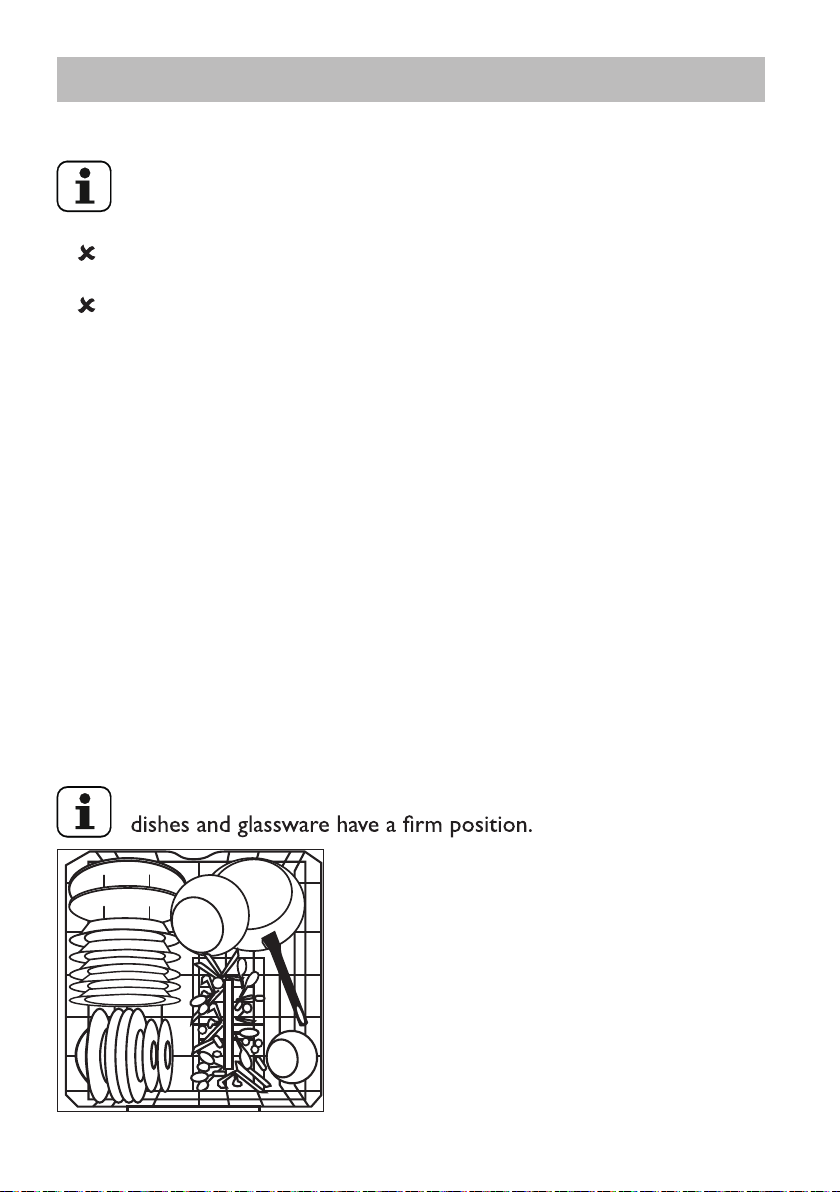

Lower basket
5.
6.
Rinse aid dispenser
User manual
Accessories
Check the accessories and literature in accordance with this list:
U-support
water inlet hose
7.
Upper basket
Upper spray arm
Lower spray arm

6
Control Panel
12433 7
5
6
1. ON / OFF button
PROGRAMME SELECT button
Programme Indicators
Status Indication
Time & Info Display/Indicator Icon
START DELAY button
3.
5.
4.
6.
START / PAUSE button
7.
2.
Time & Info display
like
►Programme cycle time
►Programme start delay time
►Error codes and service information
►Remaining time in hours of a delayed programme starts, e.g.
►Remaining programme cycle time in hours +minutes, e.g.
running it may vary due to local conditions and daily
working load.
While

Control Panel
7
Rinse aid
Water tap
If the indicator lights up
If the indictor lights up:Child lock mode has been opened
If the indictor lights up:Delay start mode has been opened
:Rinse aid is empty!
After adding Rinse Aid, press for 3 seconds
and the light goes out.
water.
Check section:“TROUBLESHOOTING”
Child Lock
Delay start
Status Indicators
Wash If the indicator lights up: the Dishwasher is washing.
Rinse If the indicator lights up: the Dishwasher is rinse washing.
Dry If the indicator lights up: the Dishwasher is drying.
Indicator Icon
Option Indication
Delay start
You can delay the start of a programme in 1 hour steps up
to 24 hours. Check the according paragraph under “Daily
use”.
Child Lock To activate or cancel Child lock , hold and
the Child lock indicator comes on or turn off.
until

8
Programmes
Light to heavy soil:
Casseroles, sauces, potatoes,
roasted or fried food
Non-delicate:
Dinnerware, cutlery,
pots and pans
Auto
Heavy
ECO
Heavy soil:
Casseroles, sauces, potatoes ,
rice,
roasted or fried food
Non-delicate:
Dinnerware,
pots and pans
Normal soil:
Soups, eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware cutlery,
glassware
Fresh soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Non-delicate:
Dinnerware,
cutlery, glassware
Light soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Delicate:
Glassware, dinnerware,
cutlery
Dishes to be stored
for a few days
before washing
All:
Dinnerware, cutlery,
glassware, pots and pans
Glass
Rinse
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically
adjusts the temperature and quantity of water, energy consumption and programme duration.
2)
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a
short time.
Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on
the dishes and bad odours to come out from the appliance. Do not use detergent with this
programme!
Light
pasta, rice,
pasta,
cutlery,
1)
2)
3)

9
First Steps
Remove all packaging materials, keep them out of children’s reach and
dispose them in an environmentally friendly manner.There could be water
residue inside the appliance due to quality checks in the factory.
Perform the following steps:
1. Install the appliance.
▶Refer to section INSTALLATION.
2.
3.
4.
Only for use of Multitabs:Adjust the rinse aid setting.
▶Refer to section DIFFERENT SETTINGS FOR RINSE AID.
Fill the rinse aid dispenser.
▶Refer to section HOW TO FILL THE RINSE AID DISPENSER.
Open the water tap.
Start any wash programme (apart from Rinse programme）
with detergent but no load to remove possible manufacturing resi-
dues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal
can be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the -setting:
▶If the display shows the signal is switched off.
▶If the display shows the signal is switched on.
5.
