Haier H3F285 EH1 Series User manual

EN
User Manual
●
Upright F
reezer
-Colour code
H3F285*EH1
H3F330*EH1

Thank You EN
2
Legend
●
General information and tips
Warning – Important Safety information
Environmental information
●
Disposal
●
Help protect the environment and human health. Put
●
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
Warning!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the door, the door catch and seals, to prevent children and pets to get closed in the ap
●
-
pliance.

EN Content
3
1 - Safety .............................................................................................................................4
2 - Intended Use .................................................................................................................8
3 -ProductDescription ........................................................................................................9
4 - Control panel ............................................................................................................... 10
5 - Use ............................................................................................................................... 11
6 - Energy saving .............................................................................................................. 11
7 - Equipment ................................................................................................................... 11
8 - Care and Cleaning ....................................................................................................... 15
9 - Troubleshooting ........................................................................................................... 17
10 - Installation ................................................................................................................. 20
11 - Technical Data ............................................................................................................ 24
12 -CustomerService......................................................................................................... 25
13-Connectivity Wi-fi....................................................................................................................26

1 - Safety EN
WARNING!
Make sure there is no transport damage.
●
Remove all packaging and keep out of children´s reach.
Wait at least six hours before installing the appliance in order to
Handle the appliance always with at least two persons because it
is heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure
●
a space of at least 10 cm above and around the appliance.
Do not cover air vent openings.
Never place the appliance in a damp area or location where it
●
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
Keep ventilation openings in the appliance or in the in-built struc-
ture clear of obstruction.
Make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power sup-
to start, or damage to the temperature control or compressor, or
there may be an abnormal noise when operating. In such case, an
●
automatic regulator shall be mounted.
Use a separate earthed socket for the power supply which is ea-
syly accessible during cleaning. The appliance must be earthed.
Only for UK:
●-
pliance is installed, the plug should be accessible.
Do not use multi-plug adapters and extension cables.
Ensure that the power cable is not trapped by the freezer. Do not
step on the power cable.
Do not damage the refrigerant circuit.
4
hints!:

EN 1 - Safety
5
WARNING!
Daily use
This appliance can be used by children aged from 8 years and above
●
Keep away children under 3 years of age from the appliance unless th-
Children shall not play with the appliance.
●
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and unde-
rstand the hazards involved.
ey are constantly supervised.
of the app-
d windo-
ws and do not unplug a plug in the power cable of the freezer or any
other appliance.
ient ra-
nge between 10 and 43 °C. The appliance may not work properly if it is
left for a long period at a temperature above or below the indicated ra-
●
nge.
with wa-
ter) on top of the freezer, to ovoid personal injury caused by falling or
electric shock caused by contact with water.
Open and close the doors only with the handles. The gap between the
doors and between the doors and the cabinet is very narrow. Do not
. Open
or close the freezer doors only when there are no children standing w-
ithin the range of door movement.
s in
the appliance or in the vicinity.
Do not store medicines, bacteria or chemical agents in the appliance.
●
This appliance is a household appliance. It is not recommended to st-
ore materials that require strict temperatures.
On refrigerating mode without a 4-star compartment: this refrigerati-
g mode
with a 4-star compartment: this freezing appliance is not suitable for
●
Never store liquids in bottles or cans (besides high percentage spirits)
especially carbonated beverages in the freezer, as these will burst du-
ring freezing.
Check the condition of food if a warming in the freezer has taken place.
Do not set unnecessarily low temperature in the freezer compartme-
nt. Attention: Bottles can burst.

1 - Safety EN
6
WARNING!
Daily use
Do not touch
●
frozen goods with wet hands (wear gloves). Espe
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation
of frost blisters. FIRST aid: keep immediately under running cold
water. Do not pull away!
Do not touch the inside surface of the freezer when in operation,
especially with wet hands. Your hands may freeze onto the sur
face.
Unplug the applian
●
ce in the event of a power interruption or be
fore cleaning. Allow at least 5 minutes before restarting the appli
ance, as frequent starting may damage the compressor.
Do not use electrical devices inside the food storage compart
ments of the appliance, unless they are of the type recommend
ed by the manu
●
facturer.
Maintenance/cleaning
Make sure children are supervised if they carry out cleaning and
maintenance.
Disconnect the appliance from the electrical supply before un
dertaking any routine maintenance. Allow at least 5 minutes be
fore restarting the appliance, as frequent starting may damage
the compressor.
Hold the plug, n
●
ot the cable, when unplugging the appliance.
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic parts.
Do not use mechanical
●
devices or other means to accelerate the
defrosting process, other than those recommended by the man
ufacturer.
Do not use water spray or steam to clean the appliance.
If the supply cord is damaged, it must be replaced by the manu
avoid a hazard.
If the illuminating lamps is damaged, it must be replaced by the
nance provider.

EN 1 - Safety
7
WARNING!
(R600a). Ma
●
ke sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
sou
●
rces, thoroughly ventilate the room, do not plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi
ately it under running water and call immediately the eye specialist.
Refrigerant gas information
WARNING!
WARNING:
●
When positioning the appliance, ensure the supply
cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Do not store explosive substances such as aerosol cans with a
ful when installing, handling, serving and recycling the appliance.
Please contact to the service agent to dispose the appliance be
Do not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.

2 - Intended use EN
8
2.1 Intended Use
“This appliance is intended to be used in household and similar applications such as
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
This appliance is intended for freezing food. It has been designed exclusively for use in dry-
interior house-holds.
●
It is not intended for commercial or industrial use. On demand this
appliance can be used as fresh food compartment.
ards and loss of
●
warranty claims.
2.2 Accessories
Check the accessories and literature in accordance with this list:
User manual
●
Warranty card Connectivity
Quick Guide
Energy
label
Twist Ice Maker Axe covers
Upper left
hinge for door
reversibility
Upper left
hinge cover
2.2

EN 3 - Product description
9
Picture of appliance (Fig. 3)
1 Control panel
●
2 LED light
3
4
●
Glass shelves
5 Drawers
6 Adjustable feet
7 Removable door racks
8 Door handle
3
7
8
2
1
3
6
4
5
Note This product c

4 - Control panel EN
10
Control panel (Fig. 4)
A
●
Fridge mode
B
●
Freeze temperature - Eco
C
●
Freeze temperature
D Freeze temperature
E Freeze temperature and
Super freeze mode
F Fresher zone
A
a
D
d
C
c
B
b
G
g
E
e
F
f
G Child lock

EN 5 - Use
11
Remove all packaging materials, keep them out of childrens reach and dispose them
in an environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent before
putting any f
●
ood in it.
After the applian
●
ce has been levelled and cleaned, wait for at least 6 hours before con
necting it to the power supply. See Section INSTALLATION.
Precool the compartment for 2 hours at high settings before loading with food. To do
so, please set the temperature to -20 °C or -24 °C.
The appliance is in ope
●
ration as soon as it is connected to the power supply.
The freezer temperature is automatically set to -18 °C. This is the recommended set
ting and the ideal temperature for frozen goods. If desired, you can change the tem
peratures manually. Please see ADJUSTING THE TEMPERATURE.
after 30 seconds. The panel lock might be active.
Notice: Presettings
The appliance is preset to the recommended temperature of -18 °C. Under normal
ambient condition y
●
ou don´t need to set a temperature.
When the appliance is switched on after being disconnected from the main power
supply, it may take up to 12 hours for the correct temperature to be reached.
5.3 Standby-mode of display
operation. The display locks automatically. It lights up automatically when touching any but
ton or opening the door.
5.4 Display lock and unlock
Automatic locking
Display is automatically locked after 30 seconds without operation.
Manual locking
When the display is unlocked, press “Child lock” (G) and hold for 3 seconds, after a beep,
“Child lock”(g) indicator is light, display is locked. When the display is locked, press “Child
locked.
Notice: Displ
●
ay lock
When display is locked, functions such as temperature setting or super freeze are di
sabled. When above operation is attempted, Child lock indicator will blink for 3 times, to
remind that the display is locked.

5 - Use EN
12

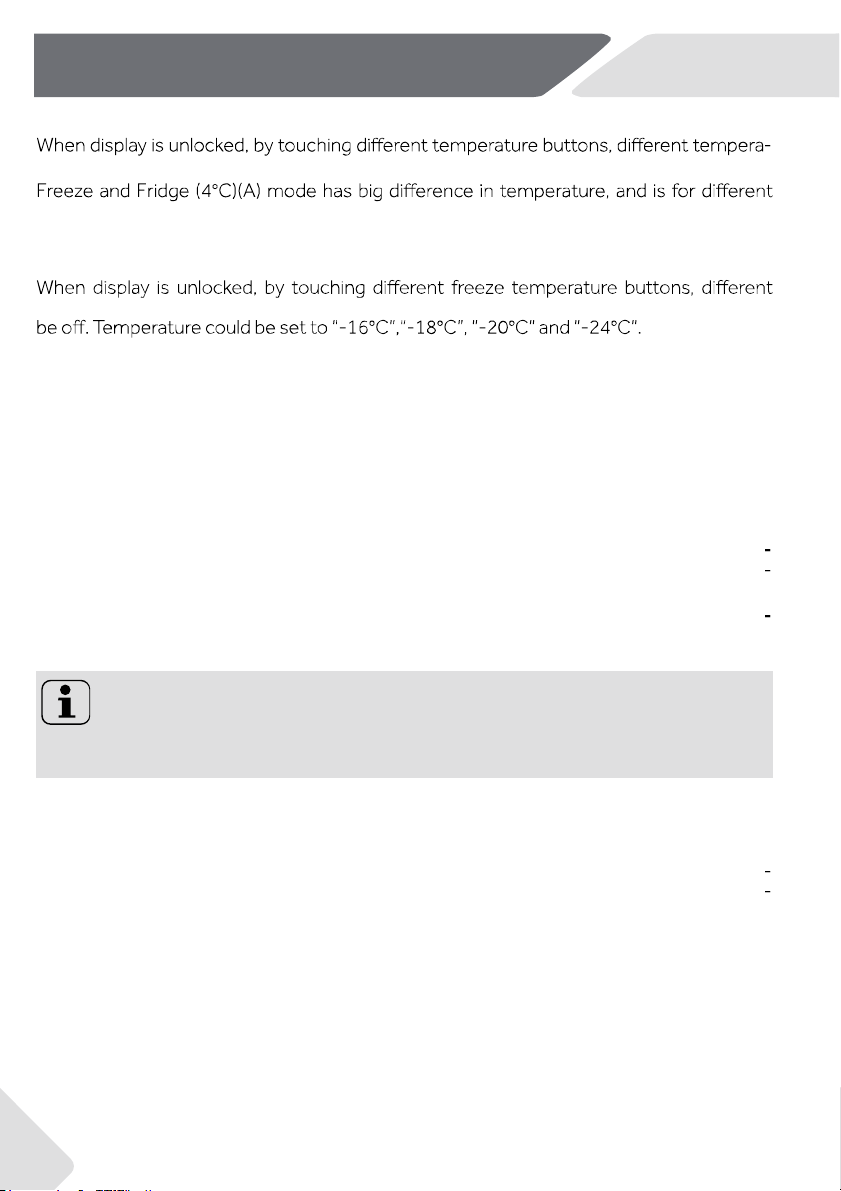

5.5 Temperature setting
ture could be set, this process will be accompanied by beeps.
food storage. Prior
●
to making any mode change, please make sure to change the food
inside the freezer, so that
●
food will not be damaged because of mode change.
5.6 Freeze mode (-16°C to -24°C) (B - E)
temperature could be set, indicators on left of the touch button will be light and others will
5.7 Fridge mode(4°C) (A)
When display is unl
●
ocked, by touching (4°C) (A) and hold for 3 seconds, indicators “4°C” (a)
will be light, the freezer works in fridge mode. After stabilization, temperature is around 4°C.
5.8 Super freeze mode (E)
Super freeze mode is optimal for preserving food nutrition, it could freeze food in less
time. Before putting lots of food inside the freezer, activate super freeze function to have
lower temperature, to make sure better freeze result.
When display is unlocked, touch and hold (-24°C) (E) for 3 seconds, indicators (b - e) will be
light, the freezer works in super freeze mode. To deactivate manually super freeze func
tion, repeat steps above. If not deactivated manually, the function will be deactivated au
tomatically after 50 hours.
●
If you have a large amount of food to freeze at one time, it is recommended that the func
tion is activated 24 hours before inserting food. Function will stop automatically after 50
hours or manually. Power consumption will increase when this function is on.
Notice: Super freeze
In super freeze mode, temperature could not be adjusted. If you do so, super freeze
indicator will blink for 3 times to remind that the freezer is in super freeze mode.
5.9 Fresher Zone (F)
In the Freezer mode, FresherZone works as SHOCK FREEZE, the entire zone can be
quickly cooled to the freezing temperature.
When temperature is set at -16°C or lower, touch FresherZone button(F), the FresherZo
ne indicator(f) illuminates, then the blast function is activated. When activated, the func
tions will be automatically deactivated when temperature is reached or after 24 hours.
Repeat the operation to deactivate manually.
In the Fridge mode, FresherZone works as QUICKCOOL, the entire zone can be quickly coo-
led to the freezing temperature.
●
When temperature is set at 4°C, touch FresherZone button (F), the FresherZone indicator(f)
illuminates, then the FresherZone function is activated. When activated, the functions
will be automatically deactivated when temperature is reached or after 3 hours.
Repeat the operation to deactivate manually.
Deactivate FresherZone before switching from freezer to fridge temperature, or switching
from fridge to freezer temperature.

EN 5 - Use
13
Child lock is not memor
●
ized, after power back on, display is unlocked.
according to their properties (Fig. 5).
1 Pickled foods, canned food, fruit, vegetables,
salad, etc.
2 Eggs, canned food, spices, drinks and bottled
foods, etc.
3 Meat products, snack foods, etc.
On refrigerating mode without a 4-star compart-
ment: this refrigerating appliance is not suitable for
ar compartment this freezing appliance is not sui-
Food can be stored in the freezer at a temperature
of at least -18°C for 2 to 12 months, depending on
its properties (e.g., meat: 3-12 months, vegetables: 6-12 months).
In order to avoid expiration of storage periods, please note the freezing date, time limit a-
nd name of the food on the packaging according to the storage p
5.12 Door open alarm
●
When freezer is kept open for more than 1 minute, beeper will make 3 beeps with inter
val of 0.5 second. The beeps will be repeated every 30 seconds if door is kept open. The
beeps will stop until door is closed or after 7 mins of door opening. The beeper stops bee
5.13 High temperature alarm
This freezer is equipped with high temperature alarm. In freeze mode or super freeze
mode, if current temperature setting indicator blinks with beeps, touch any button, the
beep
●
will stop, but current temperature setting indicator keeps blinking, that means tem
perature in the freezer is too high. Please check if freezer door is tightly closed or if large
amount of warm food is put inside the freezer. After a period, current temperature indi
cator will stop blinking. If it does not stop blinking for a long period, and beeps that are
manually cancelled come back, please contact aftersales service.
5.10 Eco mode (-16°C) (B)
When display is unlocked, by touching (-16°C) (B) the appliance is set into Eco mode. In
this mode the energy consumption is lower, while apropriate freezing performance is still
guaranteed. To exit the Eco mode select other temperature.
Fig. 5
3
1
2

14
5.14 Error indication
This freezer is equipped with error indication. When an error is encountered, display will
could still freeze but
●
user should contact aftersales service as soon as possible for optimal
control of the freezer.
5.15 Wi-Fi
When the appliance is connected with Wi-Fi, it could be controlled from distant [tempe
rature setting adjustment, activation and deactivation of super freeze and FresherZone
function]. When the door is left open or when there is temperature deviation, real time
information could be informed through the application.
6 - Energy saving tips EN
7 - Equipment
●
Energy saving tips
Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g.
stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption in
creases the lower the temperature in the appliance is set.
Allow warm food to cool down before placing it in the appliance.
Make sure the door always closes correctly and unimpaired by food position. Keep
door seals clean.
Defreeze frozen food in a fridge.
Clean the rear of the appliance regularly. Dust increases energy consumption.
nd shelves to be
positioned in the appliance on factory-fresh condition, and food to be placed without
blocking the air outlet of the duct.
7.1 Removable door racks
T
●
he door rack can be removed for cleaning:
Place hands on each side of the rack, lift it upwards (1)
and pull it out (2) (Fig. 7.3).
In order to insert the door rack, the above steps are
carried out in reverse order.
7.2 Glass shelves
1. edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and
push it to the most rearward position until the rear
1
2
1
.

EN 8- Care and Cleaning
15
WARNING!
●
Disconnect the appliance from the power supply before cleaning.
8.1 General
Clean the appliance when only little or no food is stored.
WARNING!
D
●
o not clean the appliance with hard brushes, wire brushes, detergent powder, petrol,
amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please
clean with special f
●
reezer detergent to avoid damage.
Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other
sources of heat in order to avoid damage to the plastic parts.
Do not clean the cold glass shelves with hot water. Sudden temperature change may
cause the glass to break .
Do not touch the inside surface of the freezer storage compartment, especially with
wet hands, as your hands may freeze onto the surface.
In case of heating check the
●
condition of frozen goods.
Do not try to repair the appliance by yourself. In case of repair please contact our
customer service.
Always keep the door gasket clean.
Clean the inside and housing of the appliance with a
soft cloth or sponge dampened in warm water and
neutral detergent (Fig. 8.1).
Rinse and dry with soft cl
●
oth.
Do not clean any of the parts of the appliance in a
dishwasher.
Clean the accessory only with warm water and mild
neutral detergent.

8- Care and Cleaning EN
16
8.2 Non-use for a longer period
If the appliance is not used for an extended period of time:
Take out the food.
Unplug the power cord.
Clean the appliance as described above.
Keep the door and freezer drawers open to prevent the creation of bad odours inside.
Remove the door of the appliance (open the door and hold it before removing the screws)
to avoid children entering into the appliance and getting locked in.
8.3 Moving the appliance
●
1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the freezer with adhesive tape.
3. Close the door and secure it with tape.
4. Do not tilt the freezer more than 45° to avoid damaging the refrigerating system.
5. forcefully.
WARNING!
Do not lift the applian
●
ce by its handles.
Never place the appliance horizontally on the ground.

EN 9 - Troubleshooting
17
of a problem please check all shown possibilities and follow below instructions before you
contact an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
improper repai
●
rs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or
9.1 Troubleshooting
Problem Possible Cause Possible Solution
The compressor
does not work.
Mains plug is not connected in the
mains socket.
Connect the mains plug.
The appliance runs
frequently or for a
too long period of
●
time.
The indoor or outdoor tempera
ture is too high.
for a period of time.
The door of the appliance is not
tightly closed.
T
●
he door has been opened too
frequently or for too long.
The temperature setting is too low.
The door gasket is dirty, worn,
c
●
racked or mis-matched.
The required air circulation is not
gua
●
ranteed.
The interior is covered in ice.
In this case, it is normal for the
appliance to run longer.
Normally, it takes 8 to 12 hours
for the appliance to cool down
completely.
Close the door and ensure the
appliance is located on a level
ground and there is no food or
container jarring the door.
Do not open the door too fre
quently.
Set the temperature higher un
til a satisfactory temperature is
obtained. It takes 24 hours for
the temperature to become
stable.
Clean the door gasket or re
place them by the customer
service.
Ensure adequate ventilation.
Defrost the appliance.
The appliance
makes abnormal
sounds.
The appliance is not located on
level ground.
The appliance touches an object
close to it.
The appliance stands on a wooden
Level the appliance.
Remove objects around the
appliance.
the appliance somewhere else.

9 - Troubleshooting EN
18
Problem Possible Cause Possible Solution
The appliance
makes a clicking
sound
This is normal. It is caused by the
refrigeration unit switching on or
A slight sound is to
be heard similar to
ter.
This is normal.
The appliance makes a
motor sound
The refrigeration unit has just
t
●
urned itself on. This is normal
It is not cold enough
inside the appli
ance.
The temperature is set too high.
Goods that are too warm have
been stored.
Too much food has been stored at
a time.
The goods are too close to each
other.
The door is not tightly closed.
The door has been opened too
frequently or for too long.
Reset the temperature.
Always cool down goods be
fore storing them.
Always store small quantities of
food.
Leave a gap between several
Close the door.
Do not open the door too fre
quently.
It is too cold inside
the appliance.
The temperature is set too low.
The Fast-freezing function is ac
tivated or has been running too
long.
●
Reset the temperature.
function.
Moisture accumu
lates on the surface
of the appliance.
The climate is too warm and too
damp.
This is normal in damp climate
and will change when the hu
midity decreases. Wipe dry with
a cloth.
Strong ice and frost
in the freezer com
partment.
The goods were not adequately
packaged .
T
●
he door is not tightly closed.
The door has been opened too
frequently or for too long.
The door gasket is dirty, worn,
cracked or mis-matched.
Something on the inside prevents
the door f
●
rom closing properly.
Always pack the goods well.
Close the door.
Do not open the door too fre
quently.
Clean the door gasket or re
place them by the customer
service.
Reposition the shelves, door
racks, or internal containers to
allow the door to close.
The cooling system
does not work. Mains plug is not connected to the
mains socket.
T
●
he power supply is not intact.
Connect the mains plug.
Check the electrical supply to
the room. Call the local elec
tricity company!

EN 9 - Troubleshooting
19
Problem Possible Cause Possible Solution
The sides of the
cabinet and door
●
strip get warm.
This is normal.
You hear an alarm
●
signal. The door is open The temperature inside product is
too high
Close the door or silence the
alarm manually.
to open. Once the appliance runs, it has an internal vacuum. Open the door seal gently to let air enter the appliacne.
The door can’t be
closed properly. It
always leaves a gap.
Because of the appliances’s low
temperature, the door seal can
easily get hard and deformed.
Use a hair dryer or put a hot
towel on the spot where the
gasket is deformed.
When the gasket is soft once
again, close the door and com
press it tightly.
9.2 Power Interruption
●
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK,
1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 ye-
ar for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
Thermostats, temperature sensors, printed circuit boards and light sources are
available for a minimum period of seven years after placing the last unit of the
model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven ye-
ars and door gaskets for a minimum period of 10 year, after placing the last unit
of the model on the market.
In the event of
●
a power cut, food should remain safely cold for about 18 hours. Follow
these tips during a prolonged power interruption, especially in summer:
Open the door as few times as possible.
Do not put additional food into the freezer during a power interruption.
If prior noti
●
ce of a power interruption is given and the interruption duration is longer
than 15 hours, make some ice and put it in a container in the top of the freezer com
partment.
As temperature in the freezer will rise during a power interruption or other failure,
the storage period and edible quality of food will be reduced. Any food that defrosts
should be either consumed, or cooked and refrozen (where suitable) soon after
wards in order to prevent health risks.
Notice: Memory function during power interruption
After restoration of power the appliance continues with the settings that were set be
fore the power failure.

10 - Installation EN
20
10.1 Unpacking
WARNING!
●
The appliance is heavy. Always handle with at least two persons.
Keep all packaging
●
materials out of childrens reach and dispose them in an environ
mentally friendly manner.
Take the appliance out of the packaging.
Remove all packaging materials.
10.2 Environmental conditions
the temperature inside the appliance and its energy consumption. Do not install the appli
ance near other heat-emitting appliances (ovens, refrigerators) without isolation.
10.3 Space requirements
●
Required space to open the door (Fig. 10.3):
Width
in mm Depth in mm Distance to wall in mm
W1
●
W2 D1 D2 D3 D4
595 955 592 1105 1215 100
10.4 Ventilaton cross-section
FOR a free standing appliance: this refrigerating
appliance is not intended to be used as a built-in
appliance.
sa
●
fety reasons, the information of the required ventila
tion cross sections must be observed (Fig. 10.4).
10.5 Aligning the appliance
The appliance should be placed on a at and solid sur
face. If the appliance is placed on a pedestal, strong and
foam packing material as a pedestal.
1. Tilt the appliance slightly backwards (Fig. 10.5).
2. Set the feet to the desired level.
3. The stability can be checked by alternately bump
ing on the diagonals. The slight swaying should be
the same in both directions. Otherwise the frame
can warp; possible leaking door seals are the result.
A low tendency to the rear eases the closing of the
door.
W2
D1 D3
D2
W1 D4
10.3
10 cm
10 cm
10 cm
10 cm
10.4
10.5
