Haier 2U18MS2VHB User manual
INSTALLATION PAGE 1
ENGLISH
Ductless Split Heat Pump
Wall Mount Type Indoor
7K: AW07LC2VHA
9K: AW09LC2VHA
12K: AW12LC2VHA
18K: AW18LC2VHA
Installation Manual
Table of Contents
Outdoor Unit Installation ........................................................................... 2-13
Introduction - Overview ................................................................................................................ 2-4
Step 1 - Preparation........................................................................................................................... 5
Step 2 - Installation of the Outdoor Unit .......................................................................................... 6
Step 3 - Refrigerant Line Connections ......................................................................................... 6-8

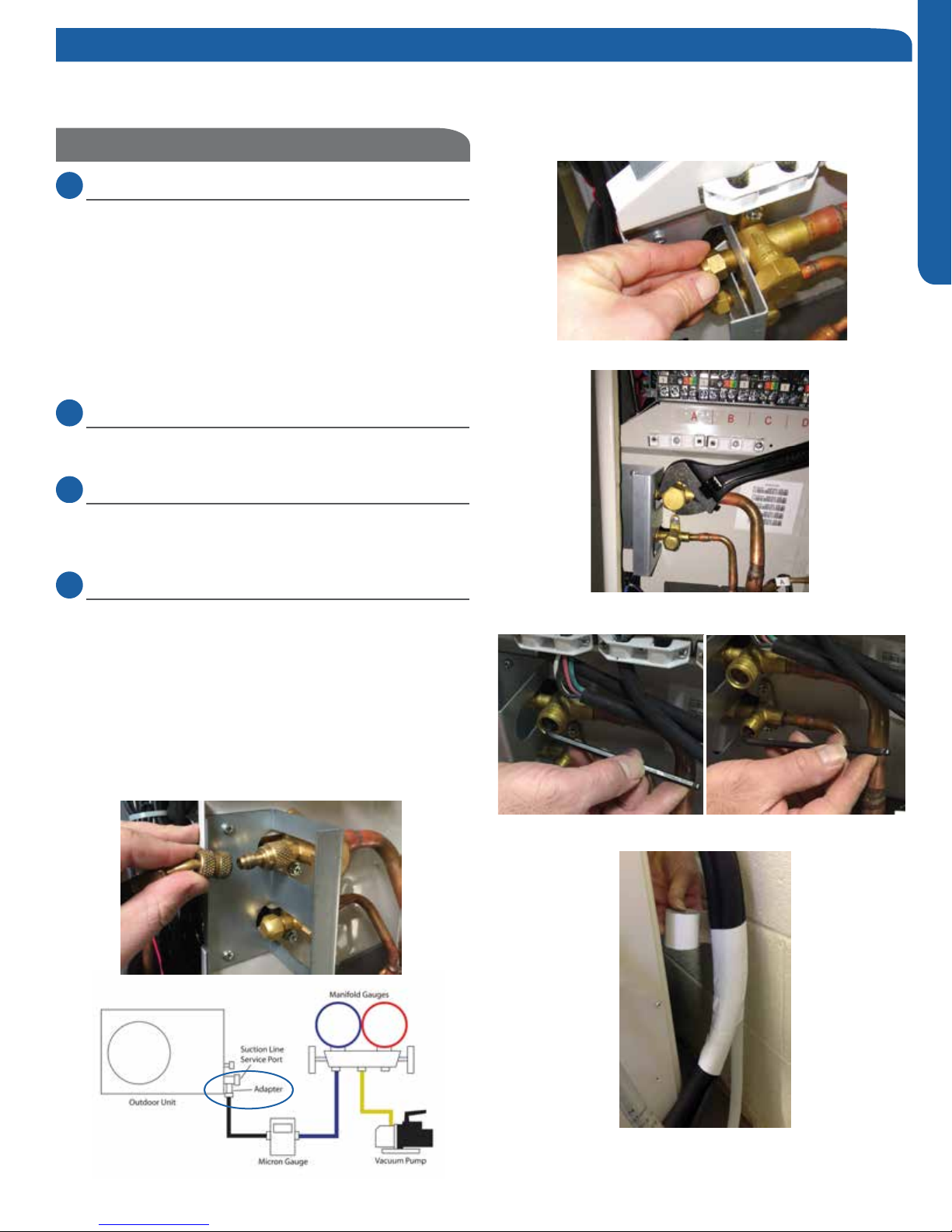

Step 4 - Leak Test and Evacuation................................................................................................ 8-9

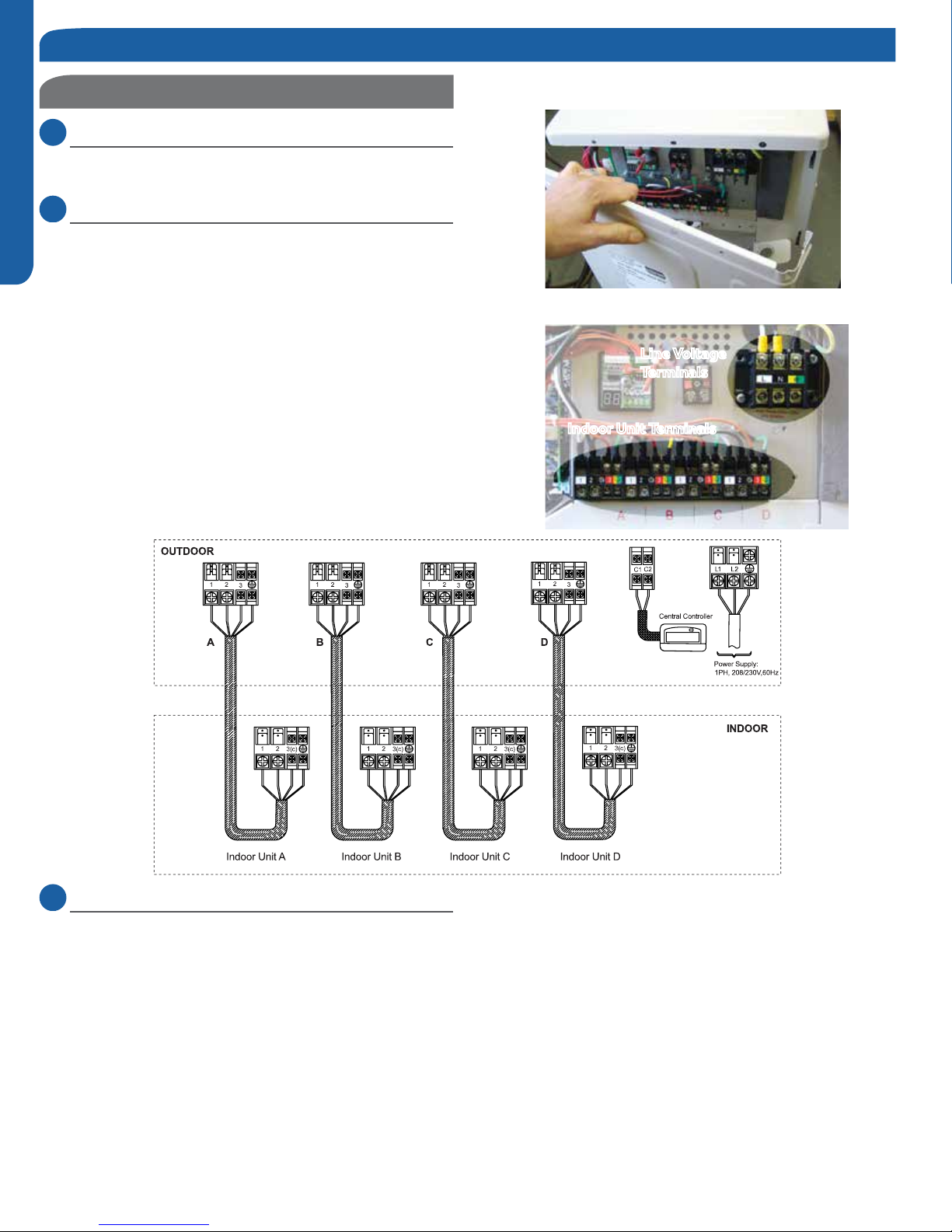

Step 5 - Electrical Connections................................................................................................. 10-11
Step 6 - Charging ............................................................................................................................. 12
Step 7 - System Test ....................................................................................................................... 12
Step 8 - Explaining Operation to the End User............................................................................... 12

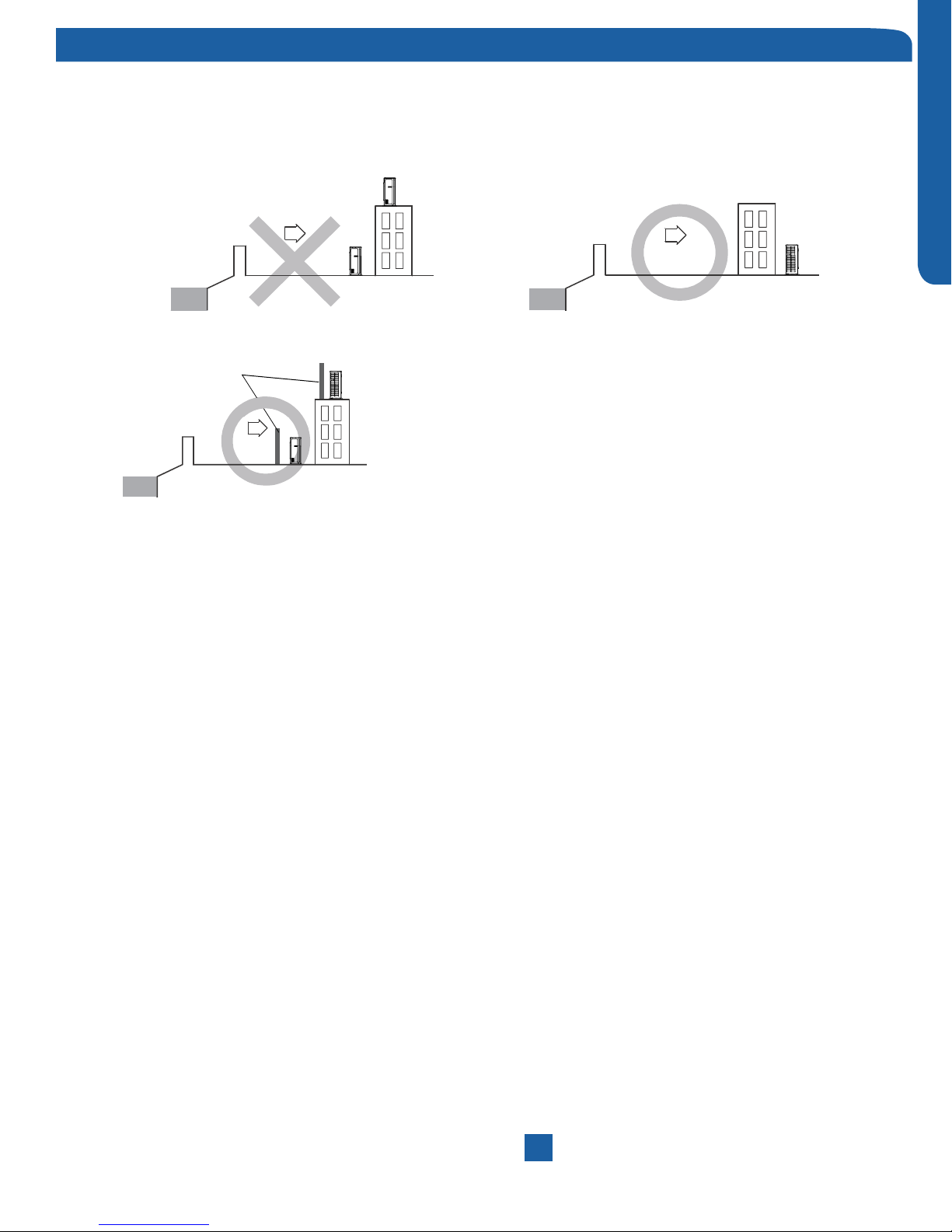

Seacoast Application ....................................................................................................................... 13
Indoor Unit Installation - Cassette ........................................................... 14-19
Introduction - Overview ............................................................................................................ 14-15
Step 1 - Preparation......................................................................................................................... 16

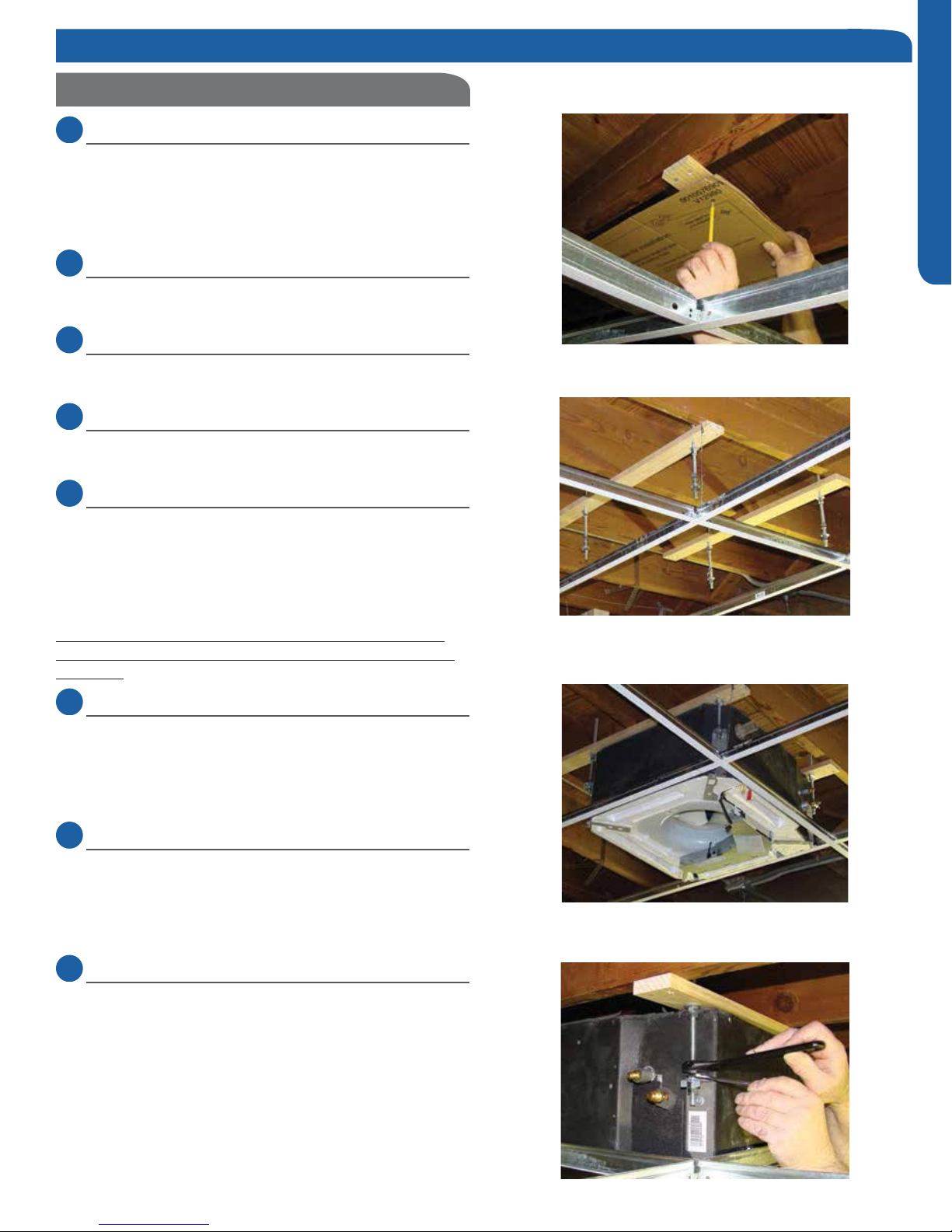

Step 2 - Installation of the Cassette Unit ................................................................................. 17-18
Step 3 - Electrical Connections....................................................................................................... 19
Step 4 - Louver Installation ............................................................................................................. 19
Step 5 - Pull Vacuum on System...................................................................................................... 19
Indoor Unit Installation - Wall Mount ........................................................ 20-24
Introduction - Overview .................................................................................................................. 20
Step 1 - Preparation......................................................................................................................... 21
Step 2 - Installation of the Wall Mount Unit .............................................................................. 22-23
Step 3 - Electrical Connections....................................................................................................... 24
Step 4 - Pull Vacuum on System...................................................................................................... 24
Remote Controller ................................................................................... 25-28
Outdoor Unit
18K: 2U18MS2VHB
24K: 3U24MS2VHB
36K: 4U36MS2VHB
Compact Cassette Type Indoor
7K: AD07SL2VHA
9K: AD09SL2VHA
12K: AD12SL2VHA
18K: AD18SL2VHA
INSTALLATION
PAGE 2
ENGLISH
Outdoor Unit Product Information
The FlexFit Multi-zone Heat Pump systems feature DC
The inverter technology operates variable speed
compressors and fan motors. The outdoor is equipped
with electronic expansion valves , which control
is installed. All of the outdoor units feature an internal
oil separator to increase compressor live. These
systems use R-410A refrigerant.
Some models feature self diagnostic boards that will
system start up.
All outdoor units have built in diagnostic error
detection circuits. If an error is detected, the
system will take the necessary steps to either make
adjustments or shut down to prevent damage from
occuring. Some error codes will be displayed on the
indoor unit display panel.
These systems can be connected to up to 4 individual
indoor units. It is not necessary to use all of the
available ports. The available combinations of indoor
and outdoor unit capacities are listed in this manual.
Available indoor units include high wall type, cassette
type and ducted/concealed type.
The outdoor unit provides power to indoor units via
terminal connections on the outdoor unit.
Flare Connections
and Ports
Self Diagnostic Board
Indoor Unit Power and Comm Wiring
Control Boards
Outdoor Unit Installation
Introduction - Overview
INSTALLATION PAGE 3
ENGLISH
Introduction - Overview
Outdoor Unit Product Information
Temperature Control and the Inverter
The outdoor unit inverter will operate the compressor,
outdoor fan motor and indoor fan motor at the proper speed
to provide enough capacity to satisfy the heat load from all
operating indoor units.
As the temperature in the zones gets closer to the setpoint
requirement, the inverter will slow everything down. This is
normal operation.
As temperature setpoint is reached, the inverter will run
everything slowly to provide small amounts of capacity to
keep the rooms comfortable. At times, the air coming out of
the indoor units will be close to or at room temperature. This
is normal.
This precise match of capacity and load is how ductless air
Matching up the outdoor unit to indoor units
The approved combinations of indoor unit capacity and
outdoor unit model are shown at the right. The capacity
ratings can be matched to any of the high wall, cassette, or
ducted concealed models.
The systems are not rated for use of only 1 indoor unit. Do
not vary from the available combinations in these tables.
When ports are not used, always connect the refrigerant
lines to circuits located at the outdoor units lowest possible
outdoor port size to the required port size of the indoor unit.
Operating Temperature Ranges
• Cool Mode: 14OF - 114OF
• Heat Mode: 5OF - 74OF
INSTALLATION
PAGE 4
ENGLISH
Product Specications
Model Number Outdoor 2U18MS2VHB 3U24MS2VHB 4U36MS2VHB
Cooling Non-ducted
Rated Capacity Btu/hr 17,400 22,500 34,000
Capacity Range Btu/hr 4,400-19,400 5,000-24,500 5,000-36,000
Rated Power Input W 1,650 2,250 3,770
SEER 16.0 18.0 18.0
EER 10.5 10.0 9.0
Cooling Ducted
Rated Capacity Btu/hr 16,500 21,000 31,000
Capacity Range Btu/hr 4,400-19,400 5,000-23,000 5,000-34,000
Rated Power Input W 1,800 2,416 3,590
SEER 15.5 16.0 16.0
EER 8.5 8.5 8.5
Heating Non-ducted
Rated Heating Capacity 47°F Btu/hr 19,100 23,000 34,500
Heating Capacity Range Btu/hr 6,100-22,100 6,100-25,500 6,100-36,500
Rated Power Input W 1,570 1,700 2,650
HSPF 8.6 9.5 9.0
Rated Heating Capacity 17°F Btu/hr 13,000 15,000 22,000
Max. Heating Capacity 17°F Btu/hr 14,000 18,000 26,000
Max. Heating Capacity 5°F Btu/hr 12,000 16,000 24,000
Heating Ducted
Rated Heating Capacity 47°F Btu/hr 18,000 22,000 33,000
Heating Capacity Range Btu/hr 6,100-22,100 6,100-25,000 6,100-35,000
Rated Power Input W 1,700 2,100 3,000
HSPF 8.2 8.5 9.0
Rated Heating Capacity 17°F Btu/hr 10,000 14,000 21,000
Max. Heating Capacity 17°F Btu/hr 12,000 17,000 25,000
Max. Heating Capacity 5°F Btu/hr 10,000 15,000 23,000
Operating Range Cooling °F(°C) 14~115(-10~46) 14~115(-10~46) 14~115(-10~46)
Heating °F(°C) 5~75(-15~24) 5~75(-15~24) 5~75(-15~24)
Power Supply Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Outdoor Unit
Compressor Type DC Interver Driven Rotary
Maximum Fuse Size A 25 25 30
Minimum Circuit Amp A 15 18 23
Outdoor Fan Speed RPM 300 ~ 900 300 ~ 900 300 ~ 900
Outdoor Noise Level dB 53 54 56
Dimension: Height in (mm) 27 1/16(688) 28 3/4(730) 33 1/16(840)
Dimension: Width in (mm) 31 7/8(810) 33 7/8(860) 37 5/16(948)
Dimension: Depth in (mm) 11 5/16(288) 12 1/8(308) 13 3/8(340)
Weight (Ship/Net)- lbs (kg) 102.5/95.9(46.5/43.5) 123.4/116.8(56/53) 191.8/167.5(87/76)
Indoor Unit Max Indoor units 2 3 4
Refrigerate Line
Connections Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 1/2
Factory Charge Oz 49.5 74.0 113.0
Maximum Line Length Ft / m 100/30 200/60 230/70
Maximum Height Ft / m 50/15 50/15 50/15
Maximum Line Length for each indi-
vidual indoor unit Ft / m 82/25 82/25 82/25
Introduction - Overview
INSTALLATION PAGE 5
ENGLISH

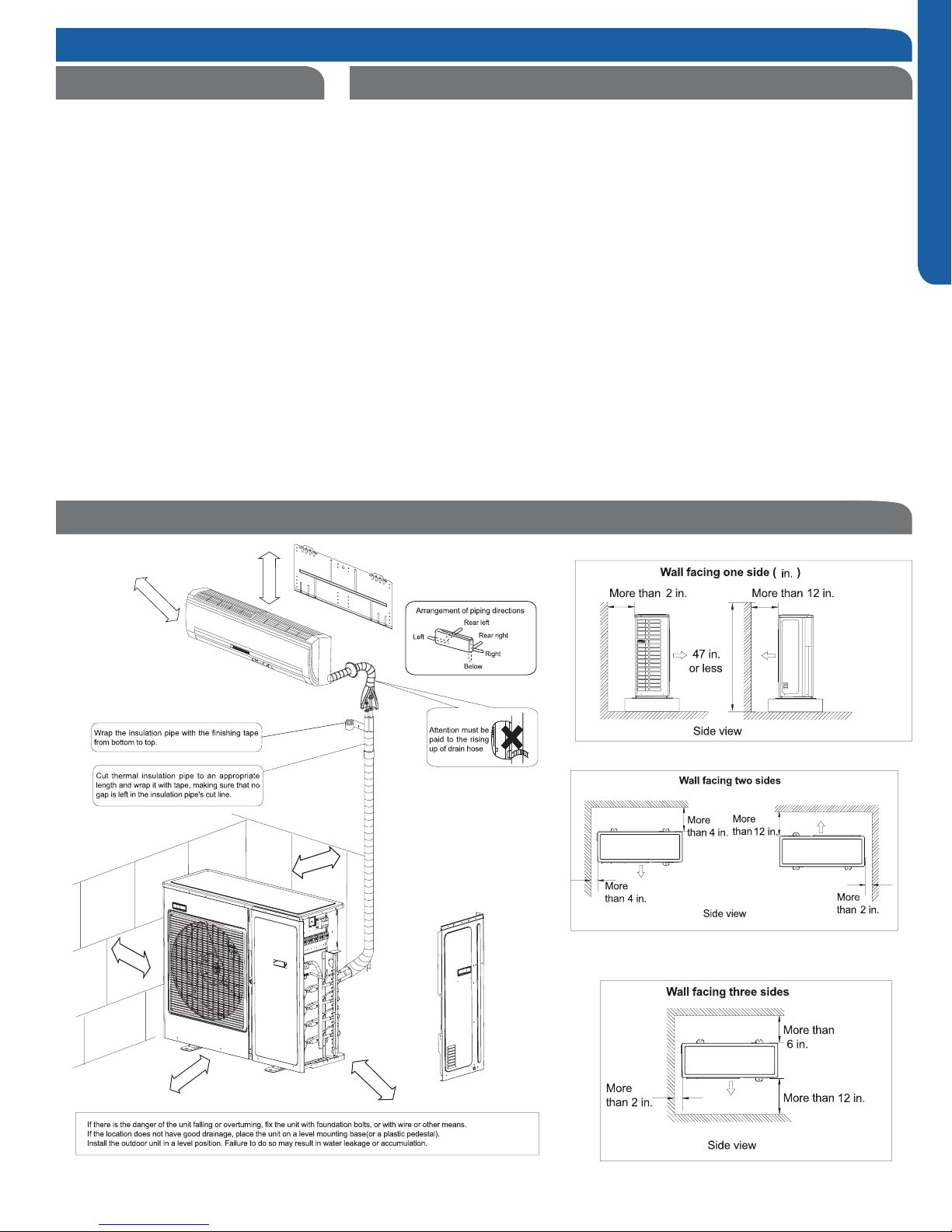

Outdoor Unit Clearances
Step 1 - Preparation
more than 8 in.
more than 6 in.
more than 4 in.
more than 4 in.
more than 24 in.
more than 10 in.
Required Tools for Installation Procedure for Selecting the Location
Drill
Wire Snipper
Hole Saw 2 3/4”
Vacuum pump
Soap-and-water solution or gas leakage
detector
Torque wrench
17mm, 22mm, 26mm
Tubing cutter
Flaring tool
Razor knife
Measuring tape
Level
Micron gauge
Nitrogen
Mini-Split AD-87 Adapter (1/4” to 5/16”)
A - Non-adhesive Tape
B - Adhesive Tape
C - Saddle (L.S.) with screws
D - Electrical wiring
E - Drain hose (Included)
F - Insulation
G - Piping hole cover (Included)
more than 10ft away depending on radio
wave conditions.)
do not place anything under the unit that
must be kept away from moisture.
Note:
1) Cannot be installed hanging from ceiling
or stacked.
2) If installing on a high place such as a roof,
with a fence or guard rail around it.
3) If there is a potential for accumulated
snow to block the air inlet or heat ex-
changer, install the unit on a higher base.
4) R-410A refrigerant is a safe, nontoxic and
there is a concern about a dangerous level
of refrigerant concentration in the case of
refrigerant leakage, add extra ventilation.
5) Avoid installing the outdoor unit where
corrosive gases, such as sulfur oxides, am-
monia, and sulfurous gas, are produced. If
unavoidable, consult with an installation
specialist about using a corrosion-proof or
anti-rust additive to protect the unit coils.
Choose a place solid enough to bear
the weight and vibration of the unit and
where the operation noise will not be
Choose a location where the hot air
discharged from the unit or the operation
noise and will not cause a nuisance to the
neighbors of the user.
carrying the unit into and out of the site.
passage and no obstructions around the
air inlet and air outlet.
The site must be free from the possibility
place.
Locate the unit to avoid noise and
discharged hot air will not annoy the
neighbors.
Install units, power cords and inter-unit
cables at least 10ft away from television
and radio sets. This is to prevent
interference to images and sounds.
(Noise may be heard even if they are
INSTALLATION
PAGE 6
ENGLISH
Set the Outdoor Unit
2.1 Step - 2.1
Set the unit on mount or pad. If located in snow area, use heat
pump risers to elevate the outdoor unit.
Make sure the outdoor unit is installed level and is stable.
Step 2.2
Attaching Drain Elbow to Outdoor Unit
2.2 Step - 2.2
If the unit is located in an area where freezing can occur, do
these instructions.
If attaching the supplied drain elbow to the outdoor unit,
do so prior to attaching the refrigerant lines and wiring.
Use drain plug for drainage.
surface, place additional foot bases of at least 1 1/6 in. in
height under the outdoor unit’s feet.
In cold areas, do not use a drain hose with the outdoor
unit. (Otherwise, drain water may freeze, impairing heating
performance.)
The maximum lift allowed between the outdoor unit and
COMBINED indoor units is 50 feet total of all installed units.
For example, 3 units with 15 elevation each is 45 feet.
The maximum allowable piping length for ALL INSTALLED
indoor units is a total of:
18K Outdoor Models: 100 Feet
24K Outdoor Models: 200 Feet
36K Outdoor Models: 230 Feet
The maximum refrigerant piping length allowable to a
Cassette unit is 82 feet.
Piping Limits Pipe Size
Use the refrigerant line size that is indicated in the
adapters to adapt size to the outdoor unit if necessary.
Step 2 - Installation of the Outdoor Unit
Step 3 - Refrigerant Line Connections
INSTALLATION PAGE 7
ENGLISH

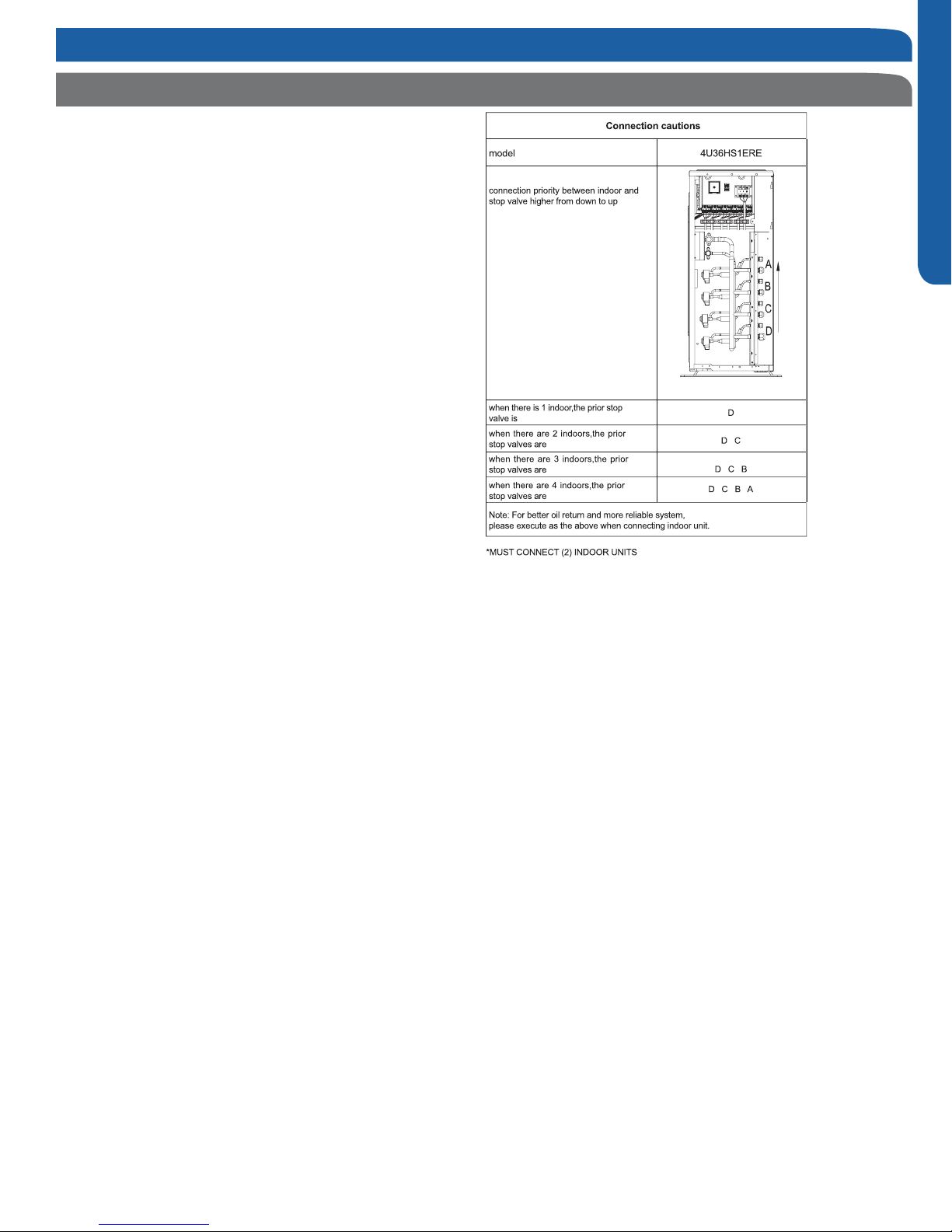

Connection Priority
The line sets are connected to the indoor
piping port connections labeled A thru up
the unit.
Note: Start the connections at the lowest
port. Always size the lines to the require-
ment of the indoor unit. Use a line size
the port size on the outdoor unit.
If any ports are not used, they remain
capped. Unused ports should be near the
top of the outdoor unit connection mani-
fold. Remember, always start from bottom
to top.
Step 3 - Refrigerant Line Connections
INSTALLATION
PAGE 8
ENGLISH
Leak Test
3.1 Step - 3.1
Refrigerant piping connections for the mini-split system are
use caution to prevent dirt or debris from entering the tubing.
Remember to place the nut on the pipe before creating the
3.2 Step - 3.2
To join the lineset piping together, directly align the piping
connection.
3.3 Step - 3.3
standard wrench, and one torque wrench. See Table 1 for the
Step 3.1
Half union Flarenut
Torque wrench
Spanner
Forced fasteningwithout carefulcentering may
damagethe threads and cause a leakageofgas.
Pipe Diameter(ǿ)Fastening torque
Liquid side6.35mm(1/4") 18N.m/13.3Ft.lbs
Liquid/Gas side9.52mm(3/8") 42 N.m/30.1Ft.lbs
Gasside12.7mm(1/2")55N.m/40.6Ft.lbs
Gasside15.88mm(5/8") 60 N.m/44.3Ft.lbs
Table 1
Step 3.2
Step 3.3
Hazard of Explosion! Never use an open ame to detect
gas leaks. Explosive conditions may occur. Use a leak test
solution or other approved methods for leak testing. Failure
to follow recommended safe leak test procedures could
result In death or serious injury or equipment or property
damage.
Use only dry nitrogen with a pressure regulator for
pressurizing unit. Do not use acetylene, oxygen or
compressed air or mixtures containing them for pressure
testing. Do not use mixtures of a hydrogen containing
refrigerant and air above atmospheric pressure for pressure
an explosion. Refrigerant, when used as a trace gas should
only be mixed with dry nitrogen for pressurizing units. Failure
to follow these recommendations could result in death or
serious injury or equipment or property damage.
Step 4.1
Piping Connection
Step 3 - Refrigerant Line Connections
Step 4 - Leak Test and Evacuation
4.1 Step - 4.1
Using a tank of nitrogen with attached regulator, charge
the system with 150 PSIG of dry nitrogen. Use adapter AD-
methods. If a leak is detected, repair and recheck. If no leaks
are detected, proceed to evacuate the system.
INSTALLATION PAGE 9
ENGLISH
Step 4.3
Step 4.5
Step 4.4A
Step 4.4B
System Evacuation
4.2 Step - 4.2
Attach a manifold gauge, micron gauge, and vacuum pump
(Illustration 5)
Evacuate the system to 350 microns.
Close the vacuum pump valve and check the micron
gauge. If the gauge rises above 500 microns in 60 seconds,
evacuation is incomplete or there is a leak in the system. If
the gauge does not rise above 500 microns in 60 seconds,
evacuation is complete.
4.3 Step - 4.3
Remove the adapter and hose connection from the suction
line port, and replace the cap.
4.4 Step - 4.4A & 4.4B
Remove the caps from the liquid line and suction line valves
valve. Using the hex wrench, open each of the valves, then
replace and tighten the caps.
4.5 Step - 4.5
Wrap the lineset, drain line, and wiring starting at the bottom
of the bundle with an overlap type wrap, concluding at the
piping hole. Use a sealant to seal the piping hole opening to
prevent weather elements from entering the building.
Verify the condensate drain line has a constant pitch
in the failure of the condensate to exit the piping.
Illustration 5
Step 4.2
Step 4 - Leak Test and Evacuation
Note: This system has one set of service valves. When evacuating the system, the service valve ports will have access to all in-
door units and refrigerant line sets. Evacuation at the service valve ports will evacuate the ENTIRE piping system including indoor
units.
INSTALLATION
PAGE 10
ENGLISH
Wiring Unit
5.1 Step - 5.1
Remove the cover plate of the outdoor unit to expose the
terminal block connections.
5.2 Step -5.2
Connect Line Voltage from Circuit Breaker/Disconnect to
outdoor unit wire terminal
Always follow local and national codes when installing
electrical wiring. The required fuse size can be found in the
Connect wiring from indoor units
Use14/4 AWG Stranded wire when connecting the outdoor
unit to the indoor unit. Connect the wiring to the correct
terminals based upon the piping connections. For example,
Circuit A wiring goes to the piping feeding Circuit A. Do not
cross the wiring and piping.
Step 5 - Electrical Connections
5.3 Step - 5.3
Replace the cover plate.
Step 5.1
Step 5.2
Line Voltage
Terminals
Indoor Unit Terminals
INSTALLATION PAGE 11
ENGLISH
Wiring Error Check
This unit is capable of automatically checking for wiring errors
between the indoor and outdoor units.
To enter the wiring error check test, place all 4 DIP switches
of the test board to the ON position. (Illustration 6) Remove
and reapply power to the unit, the system will enter the
operation of “Wiring Error Check”.
The numeric display will initialize and begin to alternate
between the compressor working frequency (a number
representing the Hz value) and “CH” (Checking).
As the check is being performed, all units that are properly
connected will be indicated by the corresponding LED for
that circuit being lit constantly. (LED 1 = piping circuit A, LED
2 = piping circuit B, ...)
After the check has completed, if all wiring is correct,
the numeric display will indicate “0” and the single LEDs
representing the individual circuits for the connected indoor
units will be lit constantly.
“EC” (error connection), and th corresponding LED for the
needed.
Refer to the chart shown below. (Table 2)
When the test is complete, remove power to the system and
return the 4 DIP switches to the OFF position. Reapply power
to the the system. The test is complete.
If the self-check is not possible, check the indoor unit wiring
and piping in the usual manner.
Illustration 6
Table 2
Step 5 - Electrical Connections
INSTALLATION
PAGE 12
ENGLISH
Check Items for Test Run
Put check mark in boxes
No gas leak from linesets?
Are the linesets insulated properly?
inserted to the terminal block?
Is condensate draining correctly?
Is the ground wire secure? Is the indoor unit secured?
Is power source voltage correct according to local code?
Is there any noise?
Is the lamp normally lighting?
Are cooling and heating performing normally?
Is the operation of room temperature sensor normal?
Step 6 - Charging
Step 7 - System Test
Using the OPERATING INSTRUCTIONS, explain to the user how to use the air conditioner (the remote controller, removing
operation, etc.)
Recommend that the user read the OPERATING INSTRUCTIONS carefully.
Step 8 - Explaining Operation to the End User
Charge the system using the weight method.
The unit comes with enough charge for 25 feet per circuit.
For example, the 2 port unit will come with 50 feet of charge,
the 3 port unit will come with 75 feet of charge, and the 4
port unit will come with 100 feet of charge. If the system
must have additional charge added, add .2 ounces of charge
for every additional foot of refrigerant line that is above
factory charge. If the total of distance of the installed line
Simply release the charge by opening the system service
valves.
INSTALLATION PAGE 13
ENGLISH
Seacoast Application
Outdoor Unit Installation Complete
The outdoor unit should be installed at least ½ mile away from the salt water, including seacoasts and inland waterways. If
the unit installed from ½ mile to 5 miles away from the salt water, including seacoasts and inland waterways, please follow the
installation instruction below.
ODU
ODU
Sea breeze
Sea
ODU
Sea breeze
Sea
ODU
Sea breeze
Sea
Protecti on walls
ODU
Install the outdoor unit in a place (such as near buildings etc.) where it can be protected from sea breeze which can damage
the outdoor unit.
If you cannot avoid installing the outdoor unit by the seashore, construct a protection wall around it to block the sea breeze.
A protection wall should be constructed with a solid material such as
concrete to block the sea breeze and the height and the width of the wall
should be 1.5 times larger than the size of the outdoor unit. Also, secure
over 28 in (700mm) between the protection wall and the outdoor unit for
exhausted air to ventilate.
Install the outdoor unit in a place where water can drain smoothly.
dust on the outdoor unit heat exchanger.
INSTALLATION
PAGE 14
ENGLISH

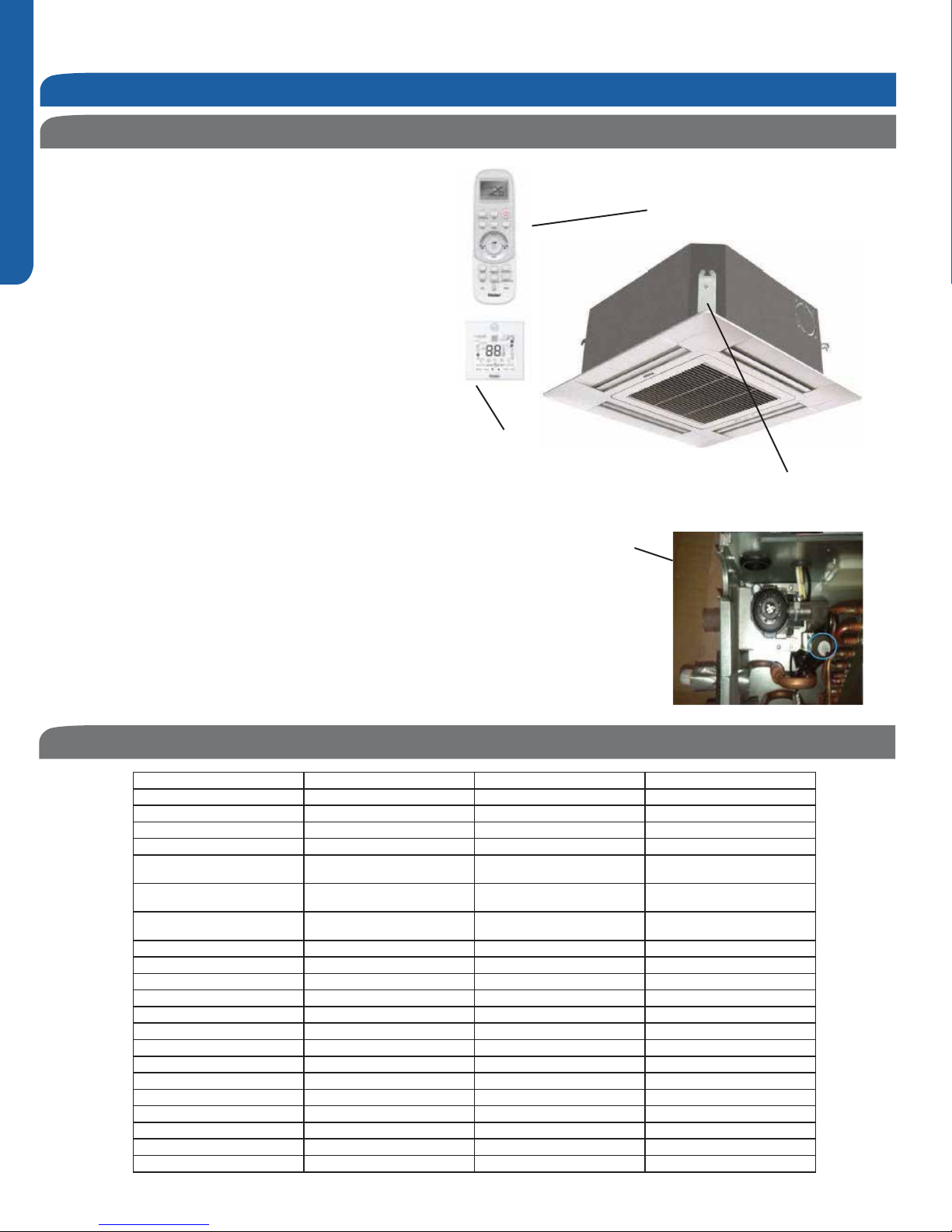

Cassette Indoor Unit Specications
Cassette Product Information
The Cassette Indoor Air Handler ships consists of a cassette
assembly and operational louver. The Cassette Indoor Unit
is operated via a factory supplied remote control. Wired
controller is optional.
The Cassette unit will install between standard dropped
brackets that are located at all four corners of the cassette
assembly.
The Cassette unit receives 230 volt line voltage from a
connection at the outdoor condensing unit. There is no
requirement for independent line voltage connections.
The cassette unit has a built in condensate pump and
Cassette unit. This hose connects the cassette condensate
drain outlet to the buildings condensate drain system.
The motorized louver is controlled via the remote control.
The louver has indicator lights that communicate function
and diagnostic information to the user and service technician.

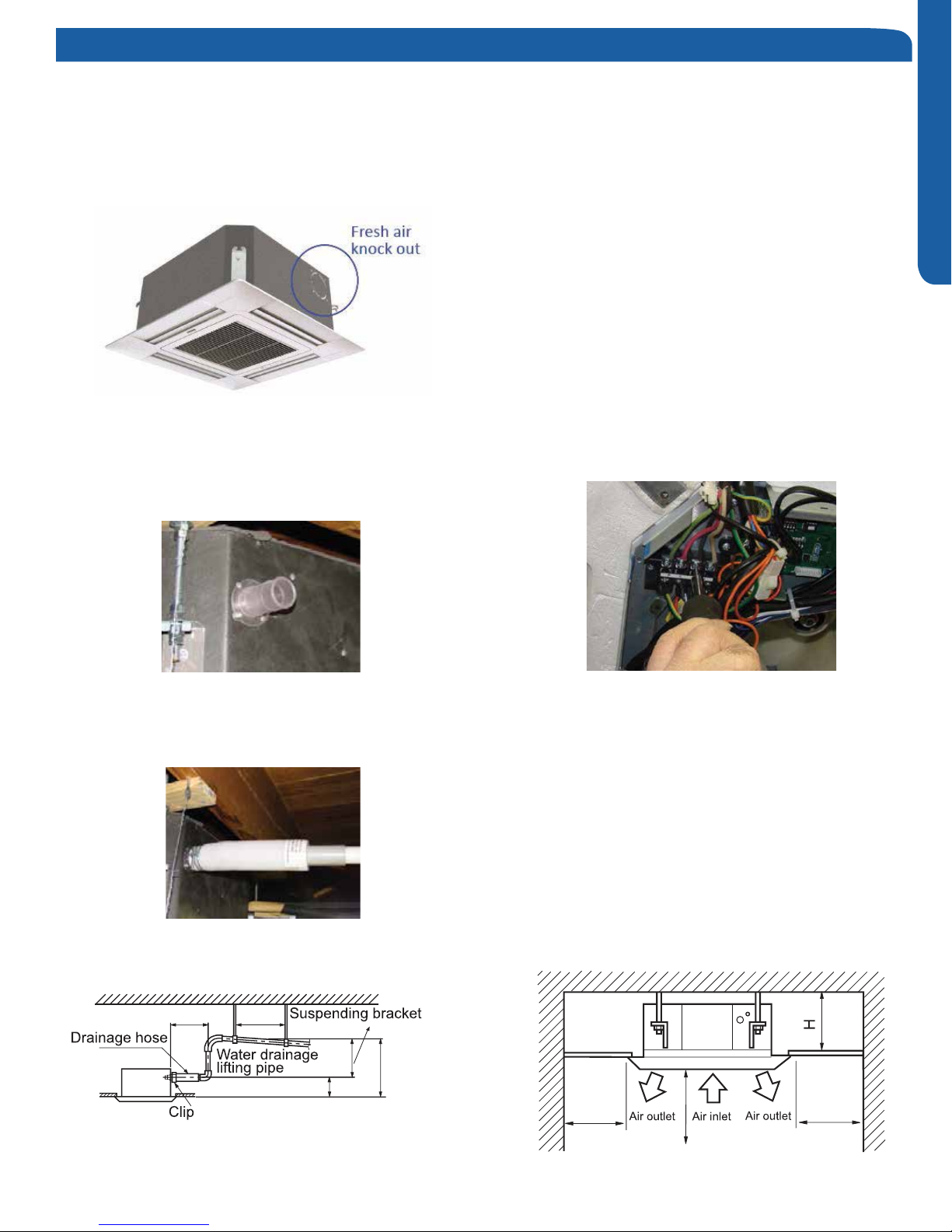

Optional fresh air can be piped into the cassette assembly.
The knockout is located on the side of the cassette assembly.
entering the cassette. A 4” galvanized pipe should be used to
pipe in the fresh air.
Included with the cassette unit is factory provide insulating
tape. This tape should be placed over the refrigerant piping
connections at the indoor unit to prevent sweating.
Built-in Condensate
Pump and Float Switch
Factory Supplied
Remote
Wired Controller is
Optional
Outside Air
Mounting Hangers
Indoor Unit Installation - Cassette
Indoor AB09SC2VHA AB12SC2VHA AB18SC2VHA
Rated Cooling Capacity Btu/hr 9,000 12,000 18,000
Rated Heating Capacity Btu/hr 10,000 13,000 19,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Fan Speed Stages 5+Auto 5+Auto 5+Auto
Quiet) CFM 410/365/305/265/205 410/365/305/265/205 470/410/365/295/252
Motor Speed (Turbo/High/Med/Low/
Quiet) RPM 750/690/620/560/500 750/690/620/560/500 830/750/690/610/550
Indoor Sound Level dB (Turbo/High/
Med/Low/Quiet) 42/40/36/32/25 42/40/36/32/25 45/42/40/36/32
Grill Model PB-700IB PB-700IB PB-700IB
Chassis Dimension: Height in (mm) 10 1/4 (260) 10 1/4 (260) 10 1/4 (260)
Chassis Dimension: Width in (mm) 22 7/16(570) 22 7/16(570) 22 7/16(570)
Chassis Dimension: Depth in (mm) 22 7/16(570) 22 7/16(570) 22 7/16(570)
Grill Dimension: Height in (mm) 2 3/8 (60) 2 3/8 (60) 2 3/8 (60)
Grill Dimension: Width in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Grill Dimension: Depth in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Weight (Ship/Net)- lbs (kg) 46.3/37.5 (21/17) 48.5/40.8 (22/18.5) 48.5/40.8 (22/18.5)
Connections Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 1/2
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4
Internal Condensate Pump Standard Standard Standard
Max. Drain-Lift height in(mm) 47 3/16(1,200) 47 3/16(1,200) 47 3/16(1,200)
Introduction - Overview
INSTALLATION PAGE 15
ENGLISH
Air Delivery Clearances
Make certain to maintain proper clearances around the
Standard clearances for cassette air handlers require 5
feet of clearance in each direction. There should be 8 feet
of clearance from the face of the cassette louver to the
temperature control problems.
Service and Maintenance Clearances
Make sure there are adequate clearances for future
maintenance and service. Allow enough room to access the
condensate pump assembly and the electrical control box.
Fresh Air Intake Option
The cassette has a marked area to cut out if outside air is
desired. The piping connection should be made with a 4 inch
entry into the cassette.
Electrical Power
Follow all local codes and regulations when installing electrical
wiring.
Route required electrical power to area where cassette is to
be located. Maintain at least a 10 foot separation between TV
and Radio wiring and the power to the indoor unit.
14 Gauge AWG stranded wire should be used to make the
electrical connection between indoor and outdoor units.
This wiring will serve to power the indoor unit and establish a
communication link between indoor and outdoor units.
The wiring is connected at the indoor unit electrical terminal
blocks screws 1, 2, 3 and ground. There should be no
splices in the wires connected to terminals 1 or 3 as these
serve as communication signal wires and electrical power
power to the indoor unit, break wire 2 only.
Condensate Handling
The Cassette unit has a built in condensate pump and water
level safety switch. There is no option for gravity drain. The
condensate pump is rated to lift water up to 48” from the
point of discharge on the cassette assembly.
The cassette unit comes with a grey connection hose with
clamp. This hose is connected to the cassette assembly
discharge hose port. The other end of the hose is sized to
accept 3/4 “ PVC piping.
here:
5 ft. 5 ft.
1 ft.
8 ft. Over
12 in. below 3-5 ft. 11 in. under
8.6 in.
8.6 in.
19.6 in. below
Introduction - Overview
INSTALLATION
PAGE 16
ENGLISH
Step 1 - Preparation
Procedure for Selecting the LocationRequired Tools for Installation
Drill
Wire Snipper
Hole Saw 2 3/4”
Vacuum pump
Soap-and-water solution or gas leakage
detector
Torque wrench
17mm, 22mm, 26mm
Tubing cutter
Flaring tool
Razor knife
Measuring tape
Level
Micron gauge
Nitrogen
Mini-Split AD-87 Adapter (1/4” to 5/16”)
A - Non-adhesive Tape
B - Adhesive Tape
C - Saddle (L.S.) with screws
D - Electrical wiring
E - Drain hose (Included)
F - Insulation
G - Piping hole cover (Included)
Note:
1) R-410A refrigerant is a safe, nontoxic and
there is a concern about a dangerous level
of refrigerant concentration in the case of
refrigerant leakage, add extra ventilation.
Place above the ceiling where you have
enough space to position the unit.
Place where the drainage pipe can be
properly positioned.
Place where the inlet and outlet air of the
indoor unit will not be blocked.
Do not install the unit in a place with
heavy oil or moisture (e.g. - kitchens and
workshops)
Do not install in a location with destructive
gas (such as sulfuric acid gas) or pungent
gas (thinner and gasoline) are used or
stored.
Choose a place solid enough to bear the
weight and vibration of the unit and where
Install where there are no expensive items
like a television or piano below the indoor
unit.
Leave enough space for maintenance.
Install at least 3 ft. away from televisions
and radios to avoid interference.
Threaded Rod Mounting Information
The Cassette unit should be mounted to the building
structure using threaded rods. The threaded rods should
have washers and nuts to allow the height and level of the
cassette to be adjusted.
items. The materials required for mounting to the brackets
on the cassette assembly include:
4- 3/8” Threaded Rods
4- Mounting Brackets
8- Washers
8- Nuts (Double nut the assembly as shown)
INSTALLATION PAGE 17
ENGLISH
Step By Step Guide To Cassette Installation
Step 2 - Installation of the Cassette Unit
2.1 Step 2.1
Use cardboard template to locate center point of cassette for
mounting. Use a plumb bob and string to position cassette
by referencing center hole of template. Mark the mounting
positions of the threaded rods using the guides on the
cardboard template.
2.2 Step 2.2
Install threaded rods to structure using appropriate
fasteners.
2.3 Step 2.3
Lift the cassette and position the threaded rods into the 4
mounting clips on each corner of the cassette unit.
2.4 Step 2.4
Using a level, adjust the nuts on the threaded rods to obtain a
level reading across the bottom of the cassette unit.
2.5 Step 2.5A & 2.5B
Prior to routing the refrigerant lines to the unit, install the
the ends of the refrigerant line connections at the cassette.
Holding gas should leak out.
Using a torque wrench, torque the ttings to the proper
specications. (See Outdoor Unit Section for are torque
settings.)
2.6 Step 2.6
cassette unit to the condensate pump discharge pipe of
the cassette. Tighten the clamp securely. Using 3/4 “ PVC,
system.
2.7 Step 2.7
Remove the electrical box cover. Remove the rubber
grommet and insert a 1/2 inch electrical connector and
reducing washer. Route electrical wiring into cassette unit.
Connect to wire terminas as indicated in schematic drawing.
(USE 14 AWG Stranded wire only.)
2.8 Step 2.8A & 2.8B ,C, D
Connect Louver assembly to cassette assembly. Connect
wires from louver to the harness on the cassette assembly.
There are two wire connections. (See photo for connections.)
Secure louver with four screws.
Reinstall electrical box cover.
Install return air grille into louver assembly.
Installation is now complete.
Step 2.1
Step 2.3
Step 2.2
Step 2.4
INSTALLATION
PAGE 18
ENGLISH
Step 2 - Installation of the Cassette Unit
Step 2.5B
Step 2.7
Step 2.8B
Step 2.5A
Step 2.6
Step 2.8A
Step 2.8D
Step 2.8C
INSTALLATION PAGE 19
ENGLISH
Step 3 - Electrical Connections
Step 4 - Louver Installation
Step 5 - Pull Vacuum on System
Electrical Connections Indoor and Outdoor Units
14 AWG Stranded Wire Only. (Central Controller Not Used)
Maintain 10 feet of separation between TV and any Radio wiring.
To mount the louver cover onto the cassette assembly. Install 2 screws at the keyhole slot positions shown in the
(White circle.) Install remaining 2 screws and tighten the 4 screws. Connect electrical plugs to socket shown below.
Install the electrical cover box and then snap the return air grille into position.
See Step 4.2 of the outdoor unit installation section for how to pull a vacuum.
Indoor Cassette Unit Installation Complete
INSTALLATION
PAGE 20
ENGLISH
Wall Mount Product Information
Introduction - Overview
The Wall Mount Indoor Air Handler consists of a single
compact unit, operated via a factory supplied remote control.
A display indicator located on the front panel of the unit
provides temperature and operating modes of the system. It
can also display error code conditions of the system.
The wall mount unit receives 230 volt line voltage from a
terminal connection at the outdoor condensing unit. There is
no requirement for independent line voltage connections.
Piping to the unit may be routed from one of several
directions. (Left, left back, left down, right, right back and
right down.)
A motorized louver at the front of the unit is controlled via the
remote control. The louver may be set to either oscillate or
remain in a stationary position.
Manual vanes located behind the louver may be set to help
Factory Supplied
Remote
Display
Mounting Bracket
Indoor Unit Installation - Wall Mount
Wall Mount Indoor Unit Specications
Indoor AW07LC2VHA AW09LC2VHA AW12LC2VHA AW18LC2VHA
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 18,000
Rated Heating Capacity Btu/hr 8,000 10,000 13,000 19,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
Fan Speed Stages 5+Auto 5+Auto 5+Auto 5+Auto
Quiet) CFM 410/350/295/235/205 410/350/295/235/205 440/380/320/265/215 636/530/483/430/383
Motor Speed (Turbo/High/Med/
Low/Quiet) RPM 1050/950/800/650/600 1050/950/800/650/600 1100/1000/850/700/620 1100/950/850/750/600
Indoor Sound Level dB (Turbo/
High/Med/Low/Quiet) 43/38/33/26/22 43/38/33/26/22 44/39/34/27/23 48/45/40/35/30
Dimension: Height in (mm) 11 (280) 11 (280) 11 (280) 12 3/4 (332)
Dimension: Width in (mm) 33 5/8 (855) 33 5/8 (855) 33 5/8 (855) 39 1/4 (997)
Dimension: Depth in (mm) 8 1/16 (204) 8 1/16 (204) 8 1/16 (204) 9 1/4 (235)
Weight (Ship/Net)- lbs (kg) 26.8/22(12.2/10) 26.8/22(12.2/10) 26.8/22(12.2/10) 35.3/28.6 (16/13)
Connections Flare Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 3/8 1/2
Drainpipe Size O.D. in 5/8 5/8 5/8 5/8
Other manuals for 2U18MS2VHB
2
This manual suits for next models
21
Table of contents
Other Haier Heat Pump manuals
Haier
Haier HP200S1 Manual
Haier
Haier hp250m1 Manual
Haier
Haier GE UUC112WC Series User manual
Haier
Haier HU062WAMNA User manual
Haier
Haier 4HP16 User manual
Haier
Haier AV08NMSETA User manual
Haier
Haier GE NS22HM User manual
Haier
Haier 2U18MS2VHB User manual
Haier
Haier 1U50JECFRA-3 User manual
Haier
Haier AW07EH2VHA User manual
Haier
Haier AU082FYCRA(HW) User manual
Haier
Haier MRV 5-RC VP1-112B User manual
Haier
Haier HR18A1VAR User manual
Haier
Haier HRG15 User manual
Haier
Haier GE Connect Series User manual
Haier
Haier MRVII-S AU282FHERA User manual
Haier
Haier 2U18MS2VHB User manual
Haier
Haier MRVII-S AU482FIERA Installation and operating instructions
Haier
Haier MRVII-S AU28FHEPA User manual
Haier
Haier GE APPLIANCES Connect Series User manual
Popular Heat Pump manuals by other brands
Gree
Gree A Series Installation, start-up and maintenance manual
Rinnai
Rinnai CHP020 Customer operation & installation manual
Dimplex
Dimplex SI 75TER+ Installation and operating instructions
Dimplex
Dimplex WI 14 ME Installation and operating instructions
Nordyne
Nordyne T4BD-018K Series user manual
Oasis
Oasis I Series Installation & operation manual
iglu
iglu Aleut Series installation manual
Olympus
Olympus IX2-DICD instructions
Samsung
Samsung RC090MHXEA Installation and maintenance manual
Panasonic
Panasonic WH-SXC09D3E5 operating instructions
Glen Dimplex
Glen Dimplex LA 3860 Installation and operating instruction
Panasonic
Panasonic WH-MDC09C3E5 Servise manual
Dimplex
Dimplex A Class user guide
LK Armatur
LK Armatur SmartSolar LK 202 instruction manual
Johnson Controls
Johnson Controls VBR09 Series Installation, operation and maintenance manual
Nibe
Nibe F2040 Series Installer manual
Daikin
Daikin Altherma 3 H HT EPRA14DAW1 Installer's reference guide
Ferroli
Ferroli ATLAS D 34 CONDENS K130 Instructions for use, installation & maintenance
