Haier AW09TE1VHA User manual

 .
PAGE 1
Indoor Out door
AW09TE1VHA
AW12TE1VHA
AW18TE2VHA
AW24TE2VHA
1U09TE1VHA
1U12TE1VHA
1U18TE2VHA
1U24TE2VHA
Indoor Out door
AW09TE1VHA
AW12TE1VHA
AW18TE2VHA
AW24TE2VHA
1U09TE1VHA
1U12TE1VHA
1U18TE2VHA
1U24TE2VHA

................................................................................................. 3
..................................................................................... 7
...................................................................................... 13
......................................................................................................... 19
............................................................................................................. 25
............................................................................................................................... .33
.............................................................................................. 43
.............................................................................................................. 55
.



W  VVAC.

Table of Contents











[
This page intentionally left blank.
]

INTRODUCTION PAGE 3
ENGLISH
Introduction
Safety Precautions............................................................................................................................................................. 4
Introduction to System
5
Theory of Operation
Table of Contents
Warning and Caution Icons ４
Specifications for Proper Operation
............................................................................................................................... .............................
............................................................................................................................... .............................
5
............................................................................................................................... .............................
5
............................................................................................................................... .............................

INTRODUCTION
PAGE 4
ENGLISH
WARNING:
CAUTION:

 
WARNING
CAUTION
Safety Precautions
· Read these Safety Precautions carefully to ensure correct installation.
Failure to follow any WARNING is likely to result in grave consequences such as death or serious injury.
Failure to follow any CAUTION may in some cases result in grave consequences.
The following safety symbols are used throughout this manual:
Be sure to observe this instruction Be sure to establish an earth connection Never attempt
 After completing installation, test the unit to check for installation errors. Give the user adequate instructions concerning the
use and cleaning of the unit according to the Operation Manual.
 This system should be installed by a licensed HVAC contractor.
Improper installation may cause electric shock, fire, leaks, injury, death, or property damage.


Use of other parts may create damage or cause the equipment to function improperly.

Always refer to local code for supporting requirements.

Insufficient capacity or incomplete electrical work may cause electrical shock or fire.
 
, and equipment or property damage.

(The refrigerant produces a toxic gas if exposed to flames.)
refrigerant circuit free from substances other than the
specified refrigerant(R410A), such as air.
(Any presence of air or other foreign substance in the refrigerant circuit causes an abnormal pressure rise or rupture, resulting in injury.)
rigerant piping.
If the compressor is still running and the stop valve is open drunning, causing

, or telephone earth.
In complete earth may cause electrical shock, or fire. A high surge current from lightning or other sources may
cause damage to the air conditioner.

If the gas leaks and builds up around the unit, it may catch fire.
Maintain a downward slope when installing condensate lines to ensure adequate drainage.

If the flare nut is tightened too hard, the flare nut may crack after a long time and cause refrigerant leakage.
Provide clearances around both indoor and outdoor units as specified in this manual.

INTRODUCTION PAGE 5
ENGLISH
Introduction to System
Introduction
Single Zone Ductless Split System Heat Pumps feature a wall
mounted indoor fan/evaporator unit that receives refrigerant
from an inverter driven variable speed outdoor condensing
unit. System operation is controlled by a hand-held remote.
The outdoor unit features a variable speed rotary
compressor, EEV metering device and DC fan motor. These
systems use R410A refrigerant and PVE oil. The outdoor units
are 208/230 volt rated systems for 18k/24k and 115 volt for
9k /12k. They are factory charged for up to 25 feet of
refrigerant piping.
The indoor section is wall mounted.
The unit has a room temperature sensor and a coil
temperature sensor that maintain room comfort.
 The systems are designed to operate in temperature
ranges of 60°F to 86°F in cooling mode and 60°F to 86°F in
heat mode.

Hydrolysis. There is no need to add a refrigeration drier
when servicing or installing this system.
 AWG stranded wire which connects the
indoor unit to the outdoor section. Do not splice these wires,
as a communication error may result, causing the indoor unit
to display an error code of E7.

indoor and outdoor units. Tubing must be sized per the
specifications of the unit being installed and must be
insulated. Any adjustments to the original factory charge
must be by weigh-in ONLY.
 The condensate system is a gravity type. A field installed
condensate pump may be added to the system. Always
follow the manufacturer’s installation instructions when
installing a condensate pump.
. Clearances to obstructions for both indoor and outdoor
units mustbe maintained according to the installation
manual.
Fundamental Theory Of Operation
The indoor unit will sense room temperature at the point
where the wall unit is installed. The indoor fan will run
continuously when placed in heating or cooling mode
operation and will not cycle on and off with the outdoor
unit. If it did, room temperature could not be sensed or
maintained.
The inverter compressor system in the outdoor unit will vary
the refrigerant flow and indoor air volume levels to match
the cooling requirement inside the conditioned space. If an
abnormal condition is detected by the system’s sensors, the
system has the ability to take reactive measures.
The amount of refrigerant flow and associated capacity
generated by the system will be determined by how fast the
variable speed rotary compressor is pumping.Thecompressor
operating speed requirement is determined bythe difference
between the conditioned space temperatureversus the set
point established by the remote control.
If a large amount of capacity is needed, the compressor will
operate at a high speed. As the need for capacity
reduces and the temperature of the room nears set point,
the compressor will slow down. When set point has been
reached, the compressor will shut off but the indoor fan
will continue to operate. Once a difference in temperature
is sensed between remote control set point temperature
and room temperature, the compressor will restart at a new
calculated speed.
If a system sensor determines there is a need to adjust
the frequency signal to prevent a system malfunction,
the compressor frequency may be over ridden and a new
frequency established. It should be noted that the frequency
signal level that is sent to the compressor cannot be
determined by a servicing technician.
In this manual, system components, operation, sensor
functions and diagnostic procedures will be explained in
greater detail.
Specifications for Proper Operation should be follow

INTRODUCTION
PAGE 6


OUTDOOR UNIT CONTROLS & COMPONENTS PAGE 7
ENGLISH
Outdoor Unit Controls & Components
Table of Contents
Outdoor Unit Introduction ................................................................................................................................................. 8
 .................................................................................................................................... 8
Outdoor Main Control Board .............................................................................................................................................. 9
.................................................................................................................................................................. 10
Reactor ............................................................................................................................................................................ 10
Compressor ..................................................................................................................................................................... 10
Outdoor Fan Motor........................................................................................................................................................... 10
Discharge Temperature Sensor ........................................................................................................................................ 11
Defrost Temperature Sensor............................................................................................................................................ 11
Outdoor Ambient Temperature Sensor ............................................................................................................................ 11
Suction Line Temperature Sensor..................................................................................................................................... 11
4-Way Valve ..................................................................................................................................................................... 12
Electronic Expansion Valve............................................................................................................................................... 12
Accumulator .................................................................................................................................................................... 12
Filters............................................................................................................................................................................... 12

OUTDOOR UNIT CONTROLS & COMPONENTS
PAGE 8
ENGLISH
Outdoor Unit Introduction
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
8
4
6
11
12
13
14
1
3
2
7
5
9
10
15
The outdoor condensing unit models are heat pump systems. The outdoor unit has two circuit boards, a Module Board that
drives the compressor and a Main Control Board that manages system functions and inverter calculations. Temperature
sensors monitor key temperatures throughout the system to manage operational decisions.
4-Way Valve
Accumulator
Compressor
Defrost Temperature Sensor
Discharge Temperature Sensor
Electronic Expansion Valve
Refrigerant Filters
Outdoor Ambient Temperature Sensor
Outdoor Fan Motor
Power Factor Reactor
Suction Line Temperature Sensor
Terminal Block
Main Control Board
Module Control Board
Fan Blade

OUTDOOR UNIT CONTROLS & COMPONENTS PAGE 9
ENGLISH
Outdoor Control Board
PCB (1) (Outdoor Control PCB)
CN3-Connector for ground
 indoor and outdoor unit
CN10-Connector for four way valve coil

CN8,CN9-Connector for CN8 CN9 on
the module board

18-24
CN23-Communication connector for control
board and the module board
CN1,CN2-Connector for power N and L

CN18,CN20-Connector for thermistors

CN22-Connector for DC POWER 15V
and 5V to the module board


CN24,CN26-Connector for P and N of the
module board

CN21-Connector for fan motor



 CN10-Connector for rhe DC power 5v and 15v
form the control PCB

 
CN11-Connector for communication between the
control board and the module board


P(CN1), N(CN5)- Connector for capacitance board



LI (CN7), LO(CN6) Connector for reactor


CN2,CN3,CN4-Connector for the U,V,W
wire of the compressor



61211 7


RV1,RV2,RV3 ,RV4 Varistor
1
2
3
5
4 6 7
8
9
10
11
PCB(3)(Module PCB for 18-24K)
CN10-Connect or for rhe DC power 5v and
form the control PCB
CN11-Connect or for communicate between the
control board and the module board
P(CN8), N(CN9)- Connector for capacitance board
LI (CN3), LO(CN4) Connector for reactor
CN5,CN6,CN7-Connector for the U,V,W
wire of the c ompressor
12
14
CN4-Connector for communication between
CN16-Connector for electronic expansion valves
FUSE 1 (25A, 230VAC) ; FUSE 2 (3.15A ,230V)
LED1 flashes normally. Intermittent flashes
indicate an error code has been detected

OUTDOOR UNIT CONTROLS and COMPONENTS
PAGE 10
ENGLISH
Terminal Block
Power Factor Reactor
Compressor
Outdoor Fan Motor
The 18K and 24K units are 208/230 volt single phase. The
9K and 12K units are 120 volt. All models use terminals 1
and 2 as incoming power wiring. Number 3 is the
communication terminal and the 4th terminal is the ground
connection. Be sure to match this wiring with the indoor
unit terminals.
External accessories such as a condensate overflow switch
should break the number 2 (line) terminal.
The indoor unit is powered from the same source as the
outdoor section and is connected by using 14/4 AWG
stranded wire.
There should be no splices in the wiring between the indoor
and outdoor unit number 3 terminal. Splices may create a
loss of communication and generate an E7 error code.
The Reactor is an inductive filter that will aid in correction of
electrical power factor influence of inverter capacitance. It is
unlikely to ever have an electrical failure of this component.
The Reactor is electrically connected to the Module Board on
terminal connections CN-6 and CN-7.
The compressor is a three phase DC inverter driven rotary
type. The compressor is capable of variable speed operation.
The compressor operating frequency will be determined by
the temperature difference between set point and room or
outdoor air temperature.
The compressor is electrically connected to the Module
Board on terminal connections CN-2, CN-3 and CN-4.
The compressor has an internal temperature overload that
will open if the compressor becomes too hot. Additional
protection of the compressor will be provided by the
Compressor Discharge Temperature Sensor and Suction
Line Temperature Sensor.
The outdoor fan motor is a variable speed DC motor. The
required motor speed is calculated by the Main Control
Board. The motor is electrically connected to the Main
Control Board via PLUG CN-9.
In COOL MODE operation, the motor will slow down as
outdoor air temperature falls. In HEAT MODE operation, the
motor will increase speed as the outdoor air temperature
falls.

OUTDOOR UNIT CONTROL S and COMPONENTS PAGE 11
ENGLISH
Discharge Temperature Sensor
Defrost Temperature Sensor
Outdoor Ambient Temperature Sensor
Suction Line Temperature Sensor
The Discharge Temperature Sensor is a negative coefficient
thermistor that senses the temperature of the compressor
hot gas. The Main Control Board monitors the temperature of
the compressor hot gas and will make inverter speed changes
in response to input from this device.
This sensor connects to the Main Control Board at PLUG CN-
20.
The Defrost Temperature Sensor is a negative coefficient
thermistor that will change resistance in response to outdoor
coil temperature changes. The Main Control Board monitors
the temperature of the outdoor coil to determine when a
defrost cycle is necessary.The sensor alsomonitors outdoor
coil temperature during defrost cycles todetermine termination
conditions.
This sensor connects to the Main Control Board at PLUG CN-
20.
The Outdoor Ambient Temperature Sensor is a negative
coefficient thermistor that will change resistance in response
to outdoor air temperature changes. The Main Control Board
monitors the temperature of the outdoor air to determine
outdoor fan speed requirements and compressor speed. The
sensor also plays a role in calculation of required defrost
conditions.
This sensor connects to the Main Control Board at PLUG CN-
20.
The Suction Line Temperature Sensor is a negative
coefficient thermistor that senses the temperature of
the suction line. The Main Control Board monitors the
temperature of the suction line to determine EEV orifice size
in an attempt to maintain proper operating superheat.
This sensor connects to the Main Control Board at PLUG CN-
18.

OUTDOOR UNIT CONTROL S and COMPONENTS
PAGE 12
ENGLISH
4-Way Valve
Electronic Expansion Valve
Accumulator
Refrigerant Filters
The 4-Way Valve redirects the flow of refrigerant in the piping
circuit to allow the system to reverse the functions of the indoor
and outdoor coils. When de-energized in COOL MODE, the
valve will direct the refrigerant hot gas to the outdoor coil.
When energized in HEAT MODE, the valve will direct the hot
gas to the indoor coil.
The direction of flow is changed by an electrical solenoid that
moves an internal slide mechanism when energized.
The 4-Way Valve is electrically connected to the Main Control
Board at PLUG CN-10.
The metering device is an electronic expansion valve .
The valve consists of an electrical operator and a valve
body with internal variable size orifice. When operating,
the Main Control Board will send pulses of voltage to the
electrical operator. The operator will then magnetically move
the position of the metering orifice pin to vary the flow of
refrigerant through the valve.
The metering device position is determined by input from
a Suction Line Temperature Sensor located in the outdoor
unit. The EEV will change the internal orifice size to maintain a
superheat level of around 10°F.
During COOL MODE operation, the valve meters low
pressure refrigerant to the indoor coil. During HEAT MODE
operation, the valve meters low pressure refrigerant to the
outdoor coil.
The Accumulator is located in the suction line circuit at the
entrance to the compressor. The accumulator helps prevent
liquid refrigerant from entering the compressor .
The system has debris-catching filters that protect internal
system components from contaminants in the refrigerant.
The filter is a permanent part that is not typically replaced.

INDOOR UNIT CONTROL S and COMPONENTS PAGE 13
ENGLISH
Indoor Unit Controls & Components
Table of Contents
Indoor Unit Introduction .................................................................................................................................................. 14
..................................................................................................................................... 14
Indoor Control Board........................................................................................................................................................ 15
Terminal Block.................................................................................................................................................................. 16
Display............................................................................................................................................................................. 16
Ambient Temperature Sensor .......................................................................................................................................... 16
Piping Temperature Sensor .............................................................................................................................................. 16
Louver Motor ................................................................................................................................................................... 17
Fan Motor......................................................................................................................................................................... 17
Emergency Button ........................................................................................................................................................... 17

INDOOR UNIT CONTROLS and COMPONENTS
PAGE 14
ENGLISH

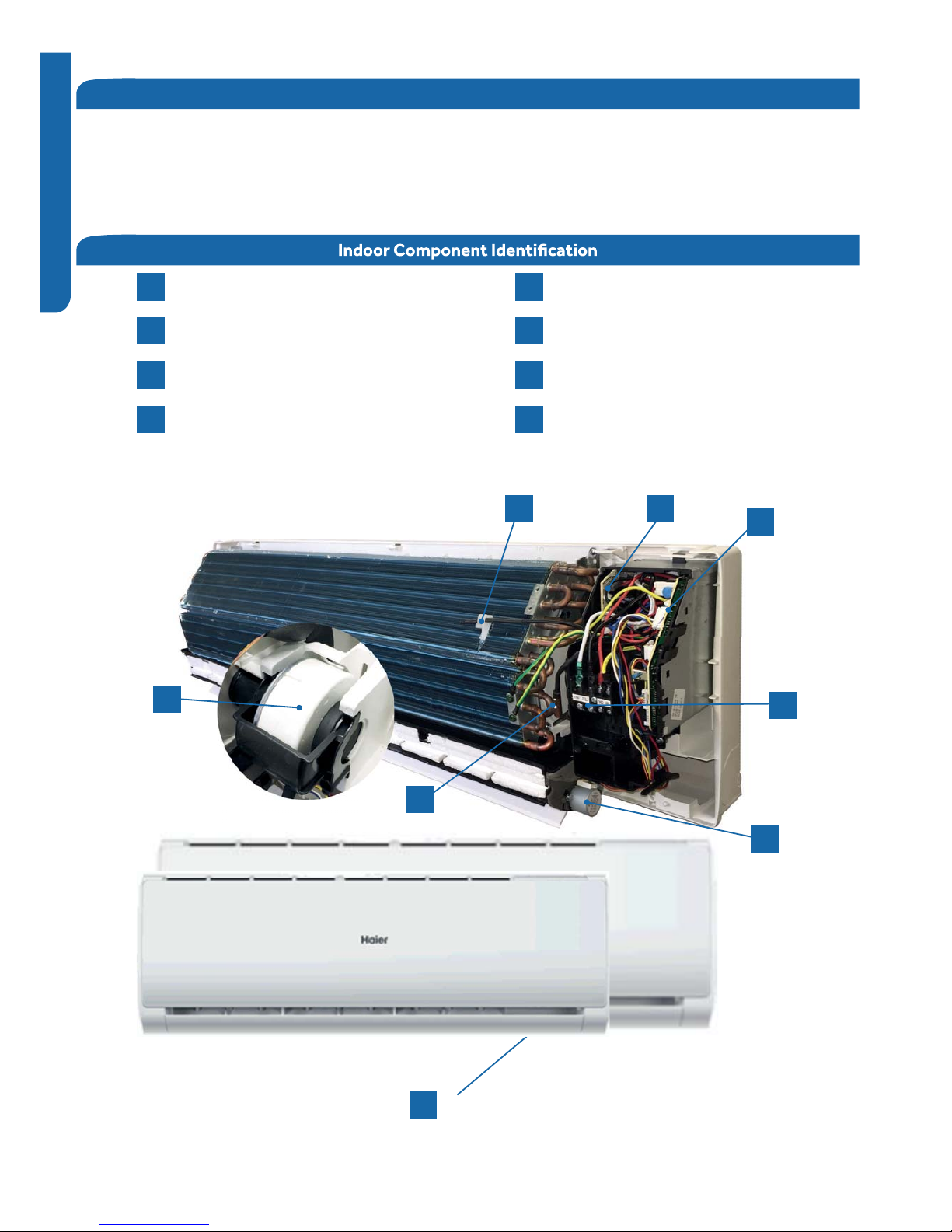

Indoor Unit Introduction
Display
Fan Motor
Louver Motor
1
2
3
4
Main Control Board
Piping Temperature Sensor
Power Supply Board
Terminal Block
5
6
7
8
5
7
6
4
8
1
3
2
The indoor unit is mounted high on the wall to provide conditioned air to the space.Features of the system include: variable
speed blower operation that speeds up and slows down with changes in demand,moving louvers to direct air, indoor air
temperature sensing, evaporator coil temperature sensing, consumer operation display,evaporator coil with metering
device located in outdoor unit, and an emergency operation switch.
Indoor Ambient Temperature Sensor

INDOOR UNIT CONTROLS and COMPONENTS PAGE 15
ENGLISH
Indoor Control Board
2CN23-Connector for communication between
indoor and outdoor unit
4CN8, CN9-Connector for fan motor
9CN35- Connector for Wi-Fi control
6CN11- Connector for up-down stepper motor
11 SW2-1-Select remote code A or B
CN3,CN1-Connector for Transformer
13
3,4- Select EEPROM code 22,25,33 or 35
CN21, CN52-Connector for power N and L
1
CN51-Connector for room card
8
CN7- Connector for display
5
2-Select enable or disable room card.
12
CN6-Connector for thermistors
3
SW1- Connector for Emergency operation ON/OFF switch
10
CN2-Connector for wiring control
7
FUSE1- Fuse 3.15A/230 VAC

INDOOR UNIT CONTROLS and COMPONENTS
PAGE 16
ENGLISH
Terminal Block
Display
Ambient Temperature Sensor
Piping Temperature Sensor
The indoor unit terminal block receives electrical power from
the outdoor unit. There are 4 connections for electrical wires.
Terminals 1 and 2 are connected to terminals 1 and 2 of the
outdoor unit. This wiring supplies power to the indoor unit.
Terminal 3 is a communication wire. The indoor unit sends
indoor air temperature, coil temperature and temperature
setpoint information to the outdoor unit on this wire. If a
splice or break in this wire is present, the indoor unit will not
be able to communicate with the outdoor unit. The ERROR
CODE will be code E7.
The Room Ambient Temperature Sensor is a negative
coefficient thermistor that will decrease in resistance with
increases in room air temperature. The sensor is located on a
clip mounted to the surface of the indoor coil.
The sensor connects to the control board at Plug CN-6.
The indoor display has an infrared communication circuit that
receives operating commands from the remote control. This
display will indicate operating modes, error codes, indoor air
temperature, timer status and power status. The Piping Temperature Sensor is a negative coefficient
thermistor that will decrease in resistance with increases in
coil temperature. The sensor is located in a socket soldered
to the surface of the indoor coil.
This sensor will monitor the temperature of the indoor coil
in both cooling and heating modes of operation. Should
abnormally cold or hot coil temperature be detected by this
sensor, the system will take steps to correct the condition or
report an error code.
The sensor connects to the control board at Plug CN-6.

INDOOR UNIT CONTROLS and COMPONENTS PAGE 17
ENGLISH
Stepper Motor and Louver
Fan Motor
Emergency Button
The Stepper Motor moves the louver up and down. The
motor is connected to the Indoor Control Board at Plug
CN-11. Louver left and right funcution is not available for
Tempo series
The Indoor Fan Motor is a variable speed DC motor. The
motor will vary speed with the speed of the compressor.
The speed can also be changed at the remote control
or automatically adjusted using the AUTO fan mode. When
in AUTO fan mode, the speed of the fan is calculated using
the indoor set temperature and the indoor room ambient
temperature. (Outdoor air temperature in heat mode.)
The Fan Motor is connected to the indoor control board via
PLUG CN-9.
If the remote control is non-functional, the Emergency
Button can be accessed by swinging open the front of the wall
unit. The button is located on the right side.
Pushing this button will activate AUTO MODE operation.
AUTO MODE activated with this button will maintain 75°F.
The system will stay in this mode until commands are
received by the indoor unit communication circuit via the
remote control.There is a discrepancy here. Some literature
indicates auto mode, others say cooling mode.

REMOTE CONTROL FUNCTIONS
PAGE 18


REMOTE CONTROL FUNCTIONS PAGE 19
ENGLISH
Remote Control Functions
Table of Contents
Remote Controller ........................................................................................................................................................... 20

CONTROLLER FEATURES & SETTINGSPAGE 2
ENGLISH
3
8
6
19
4
17
18
14
13
109
7
5
16
2
15
11
12
1
1Power Button
Press the ON/OFF button on the remote control to start
the unit.
2TURBO/QUIET Button
The TURBO function is used for fast heating or cooling.
Press the TURBO/QUIET button once and the remote
 icon on the bottom right

function.

fast rest or reading. Press the TURBO/QUIET button

display the QUIET icon on the bottom left side of the
remote display.
Press the TURBO/QUIET button a third time to cancel
TURBO/QUIET and return to normal operation.
Note:
-
der cooling or heating mode (not for auto or fan mode).
Running the unit in QUIET mode for a long period of time
may cause the room temperature to not reach the set

fan speed to a higher setting.
3COOL Button


fan speed according to room temperature. The 
displayed during COOL mode.
4HEAT Button

the time due to cold-air prevention function. When FAN is

fan speed according to room temperature. The 
displayed during HEAT mode.
5DRY Button



setting. The 
6Temperature +/- Buttons

setting increases.

setting decreases.

7AUTO Button


to set temperature. When FAN is set to AUTO the air condi-

temperature. The 
8FAN Button
Fan speed selection
Press the FAN 

Remote control:
LOW MED HI AUTO
Display
circulated

speed.


9Louver SWING Button - Vertical
Remote Controller
20
