Haier LT26K3 User manual

Please read this manual carefully before
operating the unit, and keep it for future reference.
DIGITAL LCD TELEVISION
INSTRUCTION MANUAL
MODEL:LT26K3/R3A
LY26K3/R3A
LTF32K3/R3A
LY32K3/R3A
LTF42K3/R3A

Contents
P.25
P. 3 8
P.
4 0
P. 4 4
P. 4 5
P.02
P.03
P.04
P.05
P.06
01 Safety Warnings
02 About your LCD TV
03 Getting Started
04 Using the features
05 Reference Sections
P.08
P.09
P.11
P.12
P.13
P.18
P.16
P.19
P.20
P.21
P.23
P.27
P.29
Welcome
Important information
Safety notice
Electrical connections
Get to know your TV
Get to know your remote control
Connecting your TV
Preparation of your remote control
Setting up
Tuning your TV
Common interface
Using your TV
Adjusting picture settings
Adjusting sound settings
Function settings
Time settings
Lock menu settings
Shortcut menu display
Teletext function
USB mode
Using External USB Disk For Recording
Using your DVD player(certain models only)
Troubleshooting
Specification
P.31

WELCOME
01 Safety Warnings
Thanks for buyingthis 26"/32"/42" HDReady Digital LCDTV.
This guide willhelp you setup and beginusing your TV.
First, check the contents of your box with the parts checklist below:
26"/32"/42"HD Ready DigitalLCD TV
Remote control
AAAbattery x2
Instruction Manual
Quick Start Guide
Now you can get started!

IMPORTANT INFORMATION
WARNING
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: Apotentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
Warning:
To avoid fire or electric hazards, never place your television receiver in an area
with heavy moisture. Attention should be paid to avoid accidental scratches or
impacts onto the screen.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution:
Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Caution:
Unauthorized disassembly of this product is prohibited.
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The product should be tightly fixed to avoid
drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.

Don't use or store inflammable materials
near the product to avoid explosion or fire
hazards.
Don't place the product in a humid area to
avoid fire hazards.
The antenna of the product should be away
from electric cable to avoid
electric shocks.
Never touch the plug when your hand is wet
as this might cause electric shocks.
Always make sure that the televisionis well
plugged as poor electric
connection might cause fire.
When antenna is used, measures should be
taken to prevent water
from flowing down
along the cable into
the television.
Unplug the television, use soft fabric, never
chemicals, if you are going to make
cleaning of the product.
Make sure that no
water drops in the
product.
The plug and electric cable must be kept
clean to avoid electric
shocks or fire
hazards.
Disconnect the television from power supply
and antenna when there is a
rainstorm or thunderstorm
to avoid electric shocks
or fire hazards.
Disconnect the television from power supply
to avoid electric shocks or fire
hazards in a long
vocation.

About your LCD TV

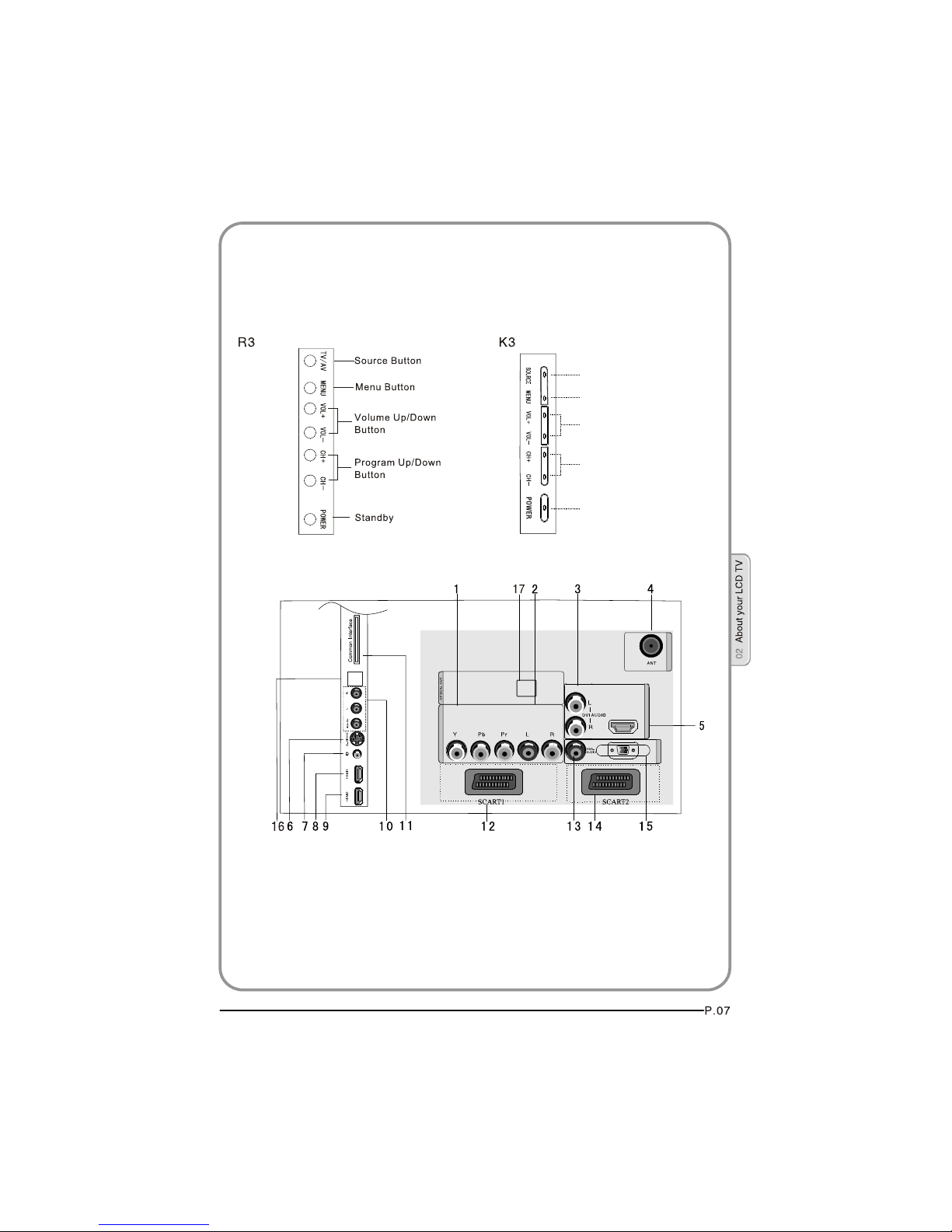

GET TO KNOW YOUR TV
USB
2 1REC
17.OPTICAL
Front control panel
Source button
Menu button
Volume up/downbutton
Program up/down button
Power button
1. YPbPr input
2. YPbPr AUDIO input
3. DVI AUDIO input
4. ANTENNA input
5. HDMI3 input
6. S-VIDEO input
7. EARPHONE output
8. HDMI1 input
9. HDMI2 input
10. AV-VIDEO input
11. Common Interface
12. SCART1 input
13. VGA AUDIO input
14. SCART2 input
15. VGA input
16. USB
COMPONENT IN
HDMI3
VGA IN
ANT IN
Rear Terminals Control

GET TO KNOW YOUR TV WITH DVD
17.OPTICAL
Front control panel
1. YPbPr input
2. YPbPr AUDIO input
3. DVI AUDIO input
4. ANTENNA input
5. HDMI3 input
6. S-VIDEO input
7. EARPHONE output
8. HDMI1 input
9. HDMI2 input
10.AV-VIDEO input
11. Common Interface
12.SCART1 input
13.VGA AUDIO input
14.SCART2 input
15.VGA input
16.USB
Source button
Menu button
Volume up/down
button
Program up/down
button
Power button
USB
2 1REC
COMPONENT IN
HDMI3
VGA IN
ANT IN
Rear Terminals Control

When using theremote control, aim it
towards the remotesensor on the TV Stand By
DVD Menu / REC
DVD open / close
Picture Mode
Sound Mode
Call Screen Display
Sleep button
DTV Audio / NICAM / DVD Audio
Aspect Ratio Control button
Channel list button
Subtitle button
Program Number Channel selection
Source Exchange
Q.VIEW / Swap Channel
V+/V- : Volume selection
P+/P-: Channel selection
Mute
Menu button
GUIDE button (only for DTV)
Favourite list button
OK button
Cursor Mover button
Back button (only for USB)
Exit Screen Display
REPEAT (only for DVD , USB , REC & Timeshift) /
CANCEL button
Zoom (only for DVD &USB)/Teletext index(only for
TV) / REC index
Play / Pause button (only for DVD &USB) / Timeshift
Stop (only for DVD, USB, REC & Timeshift)
Fast Reverse (only for DVD, USB, REC & Timeshift)
Fast Forward (only for DVD, USB, REC & Timeshift)
Previous (only for DVD, USB, REC & Timeshift)
Next (only for DVD, USB, REC & Timeshift)
DVD Set up / Text
DVD Title / Teletext Mix
DVD Search / Teletext Subcode
DVD 10+ / Teletext Hold
DVD Program / Teletext Reveal
DVD A-B Repeat / Teletext Size
DVD Call / Teletext Mode
DVD Angle /Teletext Time
NOTE:RED button ,GREENbutton
BLUE button andYELLOW button arefast
text button inanalog signal .Function
button in DVBT(just reference theOSD)
SCREEN
SCREEN
STOP
.
GET TO KNOW YOUR REMOTE CONTROL

LR YPbPr
DVD
CONNECTING YOUR TV
ANTENNA CONNECTION
Connect your aerialto the side of the TV into the ANTENNA IN socket.
IMPROVE YOUR SIGNAL
Toimprove picture quality in a poor signal area, use a signal amplifier
(not supplied).
CONNECT YOUR PC TO THE TV
You can use yourTV as a monitor foryour personal computer by connecting it
with a VGAcable (not supplied).
1.Read yourcomputer user guide and check it has a VGAconnector.
2.Turn the power off on your TV and PC.
3.Connect aD type 15-pin VGA interface cable to the VGA video interface
connector on thePC. Connect the other end of the cable to the PC interface
connector on theTV. Tighten the screws on the VGA connectors and connect
the audio cable(not supplied) to the audio input socket on the back of the TV.
4.Turn on the powerof the TV firstly andthen the PC.
5.Press the button on theTV or TV remote control to setthe video input mode
to VGA.
6. Oncethe image shows, if there is noise present, change the VGA mode to
another resolution, changethe refresh rateto another rate or adjust the
brightness and contraston the menuuntil the picture is clear.
CONNECT ADVD PLAYER TO YOUR TV
Connect the DVD video outputs (Y, Pb, Pr) to the
COMPONENT (Y, Pb, Pr)
IN socket onyour TV.
1 . Turn on the DVD player and insert a DVD.
2 . Press the button to select .
3 . Refer to the DVD player user guide for operating
instructions.

CONNECT ADVD PLAYER OR VCR TO YOUR TV
There are twoways in which you can connect a DVD player or VCR to your TV.
Make sure that both the TV and DVD player or VCR are switched off before you
connect them.
Connection Option 1
1.Connect theaudio and S-VIDEO cables from the VCR output jacks to the TV
input jacks.
2.Insert a video tape into the VCR and press PLAY on the VCR.
3.Turn on the power of the TV first, then the VCR.
4.Press theSOURCE button on the TV to set the video input mode to S-VIDEO.
Connection Option 2
1.Connect theAV DVD/VCR outputs to the AV IN socket on your TV.
2.Press theSOURCE button on the TV to set the video input mode to AV.
SCART INPUT
1.Connect the scart lead from the external device (DVD player, Set-top box
or games console)to the TV scart socket.
2.Press the SOURCE button to select SCART mode.
3.Press the PLAY button on the external device.
HDMI INPUT
1.Connect thecable from the HDMI device to the TV HDMI socket.
2.Press the SOURCE button to select HDMI mode.
3.Refer to the HDMI device user guide for how to operate.
MOUNT YOUR TV ONTO THE WALL
You can mount your TV onto the wall by using a wall bracket (not supplied).
Use M4/M6 machine screws (4 pcs) to screw the TV onto the bracket (not
supplied).

BATTERY INSTALLATION
1.Place the remote control face down, then open
the cover ofthe battery compartment.
2.Install two AAA batteries. (The + and- symbol
of the battery must match with the marks on the
remote).
3.Close thecover of the battery compartment.
BATTERY CAUTION
Confirm there isno object betweenthe remote
control and theremote sensor ofthe TV set.
Sunshine or otherstrong light willinterfere with
the signal sent by the remote control. In this
situation turn the TV set to avoid the direct light
source.
Do not put the remote control in direct heat or in
a damp place as you may damage the remote.
Please use two AAA 1.5V batteries. Do not mix
battery types. Install the batteries at the correct
polarities. Do notuse rechargeable batteries.
If your TV is to be stored for a period of time,
remove the batteries from the remote control.
PREPARATION OF YOUR REMOTE CONTROL

03 Getting Started
LOCATION
You will need toplace your TV near yourplug socket (so the power cable can comfortably
reach) and withinreach of your aerial socket orextension lead.
CONNECTION
1. Insert yourTV aerial lead into theAntenna input at the sideof the TV.
2. Insert thebatteries into the remote control. Make sure they are inserted the right
way around, matchingthe polarity as indicated inside the battery compartment.
SWITCHING YOUR TV ON
1.Press the STANDBY button on the right side of the TV once. Ared flashing lightwill
appear in thecorner of the screen.
2.Press STANDBY on the remotecontrol. The TV will turn on and the red light will turn
blue. This may take a few moments.
3.Select your chosenlanguage when prompted from the list that will appear on
screen. Use the button to scrollto the language you want and press to confirm.
Setting up

1. Press MENU button.
2. Press button to select Tuning menu, press button to enter.
3. Press button to select Country item.
Press button to select you needed.
4. Press button to select Auto Search item, press OK button to
enter.
Press button to select the OK option, and press OK button
to start searching.
Press the MENU button ,you can choose to skip the TV /DTV
Search or not.
5. Press EXIT button to stop auto search during searching.
Note: It may take a few moments to complete the Auto
Search.
1. Press MENU button.
2. Press button to select Tuning menu, press button to enter.
3. Press button to select Digital Manual Search item,
press button to enter.
4. Press button to select the Channel.
Press OK button to start searching.
5. Once a channel is located, you can press OK button to save it.
Press EXIT button to exit.
DIGITAL MANUAL SEARCH
If you have attached a DVD player or similar external device
to the TV, you will need to tell the TV to display the content
from it. Simply press SOURCE which will bring up the source
menu in the left corner of the screen, Use the and button
to highlight the required source and press OK select.
For details of how to plug in other equipment see GET TO KNOW
YOUR TV on page 6.
AUTO SEARCH
TUNING YOUR TV
SWITCHING TO AN EXTERNAL SOURCE OTHER THAT TV
Input Source
TV
AV
SCART1
SCART2
S-Video
Component1
Component2
PC
HDMI1
HDMI2
HDMI3
USB
TV
AV
SCART1
SCART2
S-Video
Component1
Component2
PC
HDMI1
HDMI2
HDMI3
USB
Input Source
TV
AV
SCART1
SCART2
S-Video
DVD
Component
PC
HDMI1
HDMI2
HDMI3
USB
TV
AV
SCART1
SCART2
S-Video
DVD
Component
PC
HDMI1
HDMI2
HDMI3
USB
OK
OK
OK
OK
OK
OK
Menu
OK
EXIT OK MENU
OK
OK
OK
OK
OK
OK CANCEL
OK
OK
OK
OK
OK
OK
Menu
OK
UHF CH 26
OK
OK
OK
OK
OK
OK
Menu
OK

EXIT SAVE
Sound System
Current CH
Press button toselect the channel number to edit.
Storage To
Press button to select the program number you
want to storageto.
Fine tune
Press button toselect "Sound System", then press
button to select the correct sound system.
1 Repeat abovesteps 1-3, thenpress button toselect
the Fine Tuneitem.
2 Press button repeatedly to carryout fine tune,till the
best picture andsound are obtained, then loosen the button.
If the pictureand/or sound are poor, try using the FINE
TUNE feature. Donot use thisfeature unless reception
is poor.
Analog Manual Search
Follow the belowsteps when you need to have a manual search.
1. Press MENUbutton.
2. Press button to select Tuning menu, press button to enter.
3. Press buttonto select Analog Manual Search item,
Press button toenter.
4. Press buttonto select Search item, press button is used
to select thehigher frequency channel.
Press button isused to select the lower frequency channel.
5. Andthen select Storage To,press button to select the position
number you wantthe channel on. Once a channel is located,
you can pressred button to save it. Press EXIT button to exit.
TUNING YOUR TV
OK
OK
OK
OK
OK
OK
Menu
OK

NAME MOVE SKIP FAV
Channel Edit
Using this function,you can rename, move, set favorite
channel and skipthe channel in the analogue mode.
1.Press MENU button.
2.Press button toselect TUNING menu, press button
to enter.
3.Press button toselect CHANNEL EDIT item,
Press button toenter the sub-menu.You can pressred,
green , yellow or blue button to enter the menu you need.
RENAME
1.Press button toselect the channel , and press green
button to rename.
2.Press button toselect the number position of channel
name, Press buttonto select number.
3.You can press the EXIT button to cancel the changes
at anytime.
NOTES:The RENAME functionis only available in ATV program.
MOVE
1.Press button toselect the channel any press yellow button to select the position.
2.Press button toselect the number position you want to remove to, press
yellow button to confirm.
3.You can press the EXIT button to cancel the changes at anytime.
Setting favourite channel
1.Press button toselect the channel ,press Red button to set your favourite channel.
2.You can press the Red button to cancel the changes at anytime.
3.Press FAV button onthe remote controland Favourite List will be displayed.
4.Press button toselect the channel, and press OK button to enter.
SKIP
1.Press button toselect the channeland press blue button to skip the current channel.
2.You can press the blue button to cancel the changes at anytime.
GUIDE (Electronic ProgramGuide)
Using this function,you can access the DTV program
information
1.Press MENU button.
2.Press button toselect TUNING menu.press
button to enter.
3.Press button toselect the guide item.
Press OK button to enter the submenu, the electronic
program guide is displayed.
You can quickly call up Guide menu by GUIDE
button on the remote control.
Notes: Only DTVmode.
TUNING YOUR TV
BBC ONE Wales
INFO Record Schedule DATE REMIND OK
OK
OK
OK
OK
OK
OK
Menu
OK
OK
OK
OK
OK
OK
OK
Menu
OK

COMMON INTERFACE
The common interface(CI) slot is designed to
accept the Conditional Access (CA) Module and
Smart card inorder to view the pay TV programmes
and additional services.Contact your Common
Interface service provider to get more information
about the modulesand subscription. Please noted
that CAmodules and smart cards are neither
supplied nor optionalaccessories from us.
Warning: switch off your TVbefore any module is inserted in the
Common Interface slot.
1 Insert the CAM correctly, then Smart Card to the
CI slot thatis located at the side of the TV.
2 Turnon the TV and itwill display the below
message if the CA module is detected. Wait
for few moments until thecard is activated.
3 Press the MENUbutton to display the Main
Menu and usethe and buttonto highlight
the "Common Interface"line and press
the "OK" button.
4 Detailed information on the CI card in use is displayed.
5 Press OKbutton to access the card menu. Refer to the module
instruction manual for setting details
6 When moduleis removed, the following message will appear on
the screen.
OK
OK
OK
OK
OK
OK
Menu
OK
CI module removed
Main Menu
Module information
Smart card information
Language
Software Download
Press OK to select,or Exit toquit
CI Module Insert

OK
OK
OK
OK
OK
OK
Menu
OK
OK
OK
OK
OK
OK
OK
Menu
OK
Software Update function
When you get the updating news from the TV shop's web,
you can update the operating software using the Download
menu. The data for various units are transferred consecutively
on a special receiving channel.
You need to search the channel with updating code stream.
Note: You can get information from the TV shop or internet.
1 Press MENU button.
2 Press button to select TUNING menu,
press button to enter.
3 Press button to select Software Upgrade item.
4 Press button to set it as On. The default is Off
5 If the updating code stream of the channel is suitable for
your set, Do System Update option can be selected. Otherwise
the Do System Update option is grey and cannot be selected.
6 Press button to select the System Update option and
use OK button to enter. Then the TV will restart and search
the upgrade information.
NOTES: If the upgrade information is received, the TV will begin
to upgrade. Or else, the TV will be back the DTV source.
7
you can press EXIT button to cancel the download
and your TV set will be standby.
8 After the download has finished, your TV set will enter burning
state and the indicator light is shining. The menu 4 of right appears.
The set will be standby when the update is completed.
Load the receiver identification. This process may also take
several minutes.
Operation
Are you sure?

USING YOUR TV
How to select the TV program
1.Using Program numberbutton Enter the channel number with the number keypad on
the remote control.
2.Using P+/P- button
Press the P+/P-button to select a channel number.
HOW to adjust volume
Press V+/V-button on the remote control or the side of the TV to adjust the volume level.
CH.LIST function
Press CH.LIST button on the remote control will display Channel List menu, and then
press button to enter.
Press button toselect the channel, and then press OK button to enter.
