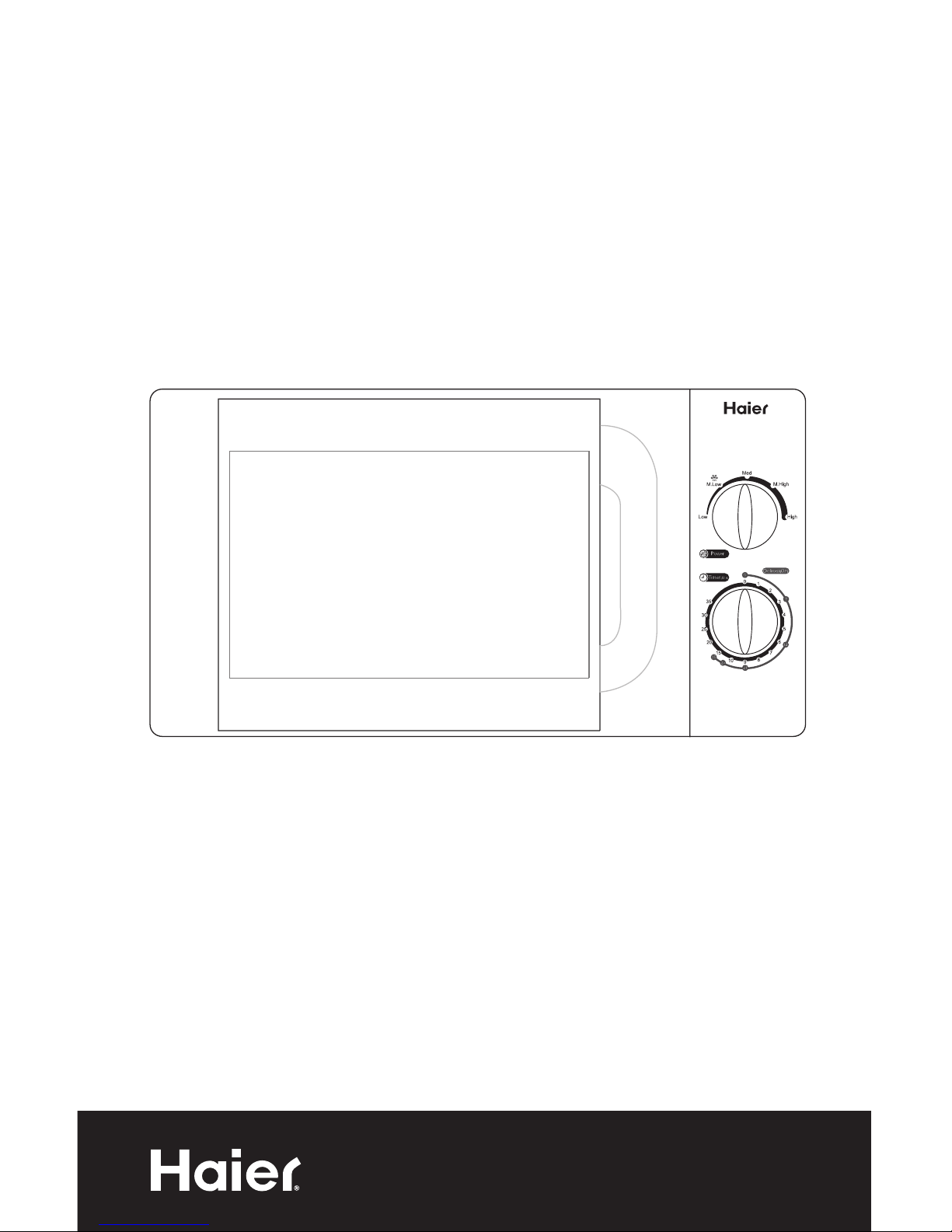

Haier MWM6600 User manual

0.6 CU. FT. / 600 WATT MICROWAVE OVEN
HORNO MICROONDAS DE 0.6 PIES CUBICOS
Y 600 VATIOS
User Manual
Model # MWM6600RW
Manual del Usuario
Para Modelo de # MWM6600RW
Quality ßInnovation ßStyle

English
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is important
not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the
oven door close properly and that there is no damage to the :
1. Door (bent)
2. Hinges and latches (broken or loosened)
3. Door seals and sealing surfaces
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Addendum
• If the apparatus is not maintained in a good state of cleanliness, its surface
could be degraded and affect the lifespan of the apparatus, leading to a
dangerous situation.
Before you call for service
If the oven fails to operate:
a) Ensure that the oven is plugged in securely. If it is not, remove the plug from
the outlet, wait 10 seconds and plug it in again securely.
b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem
to be operating properly, test the outlet with another appliance.
c) Ensure that the control panel is programmed correctly and the timer is set.
d) Ensure that the door is securely closed, engaging the door safety lock system.
Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT
A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE
MICROWAVE OVEN YOURSELF.
WARNING
1

2
Power Consumption:
Microwave Output: 600W
Frequency: 2450MHz
Outside Dimensions (HxWxD): 10-3/16 x 17 x 12-3/8 inches
Oven Capacity: 0.6 cu.ft.
Cooking Uniformity: Turntable System (9-5/8” )
Net Weight: Approx. 26.9 lbs.
Specifications
PAGE
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE .................................1
BEFORE YOU CALL FOR SERVICE ..........................................................1
SPECIFICATIONS ....................................................................................2
IMPORTANT SAFETY INSTRUCTIONS....................................................3
GROUNDING INSTRUCTION.................................................................5
UTENSILS................................................................................................6
COOKING TECHNIQUES........................................................................7
PARTS & ACCESSORIES .........................................................................8
INSTALLATION .......................................................................................8
OPERATION ...........................................................................................9
CONTROL PANEL ...................................................................................9
CLEANING AND CARE.........................................................................11
TROUBLESHOOTING............................................................................12
LIMITED WARRANTY ...........................................................................13
MICROWAVE TABLE OF CONTENTS
English
120V~60Hz, 950W

English
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be
followed, including the following:
WARNING! - To reduce the risk of burns, electric shock, fire, and injury to
persons or exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 4.
3. This appliance must be grounded. Connect only to properly grounded
outlet. See “GROUNDING INSTRUCTION” on page 8.
4. Install or locate this appliance only in accordance with the provided
installation instructions on page 11.
5. Some products such as whole eggs and sealed containers -for example,
closed glass jars- are able to explode and should not be heated in this
oven.
6. Use this appliance only for its intended use as described in this manual.
Do not use corrosive chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry food. It is not designed
for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used
by children.
8. To reduce the risk of fire in the oven cavity:
• Do not overcook food. Carefully attend appliance when paper, plastic,
or other combustible materials are placed inside the oven to facilitate
cooking.
• Remove wire twist-ties from paper or plastic bags before placing bag in
oven.
• If materials inside the oven should ignite, keep oven door closed, turn
oven off, and disconnect the power cord or shut off power at the fuse
or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils or food in the cavity when not in use.
9. Liquids, such as water, coffee, or tea can be overheated beyond the
boiling point without appearing to be boiling due to surface tension of
the liquid. Visible bubbling or boiling when the container is removed
from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of
injury to person:
3

• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave oven for a
short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into
the container.
10. Do not heat oil or fat for deep-frying. It is difficult to control the
temperature of oil in microwave oven.
11. Pierce foods with heavy skins such as potatoes, whole squash, apples
and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken
and the temperature should be checked before serving in order to avoid
burns.
13. Cooking utensils may become hot because of heat transferred from the
heated food. Potholders may be needed to handle the utensil.
14. Do not cover or block any openings on the appliance.
15. Do not store or use this appliance outdoors. Do not use this product near
water, for example, near a kitchen sink, in a wet basement, near a
swimming pool, or similar locations.
16. Do not operate this appliance if it has a damaged cord or a plug, if it is
not working properly or if it has been damaged or dropped.
17. Do not immerse cord or plug in water. Keep cord away from heated
surface. Do not let cord hang over edge of table or counter.
18. Use only thermometers, which are specifically designed for use in
microwave ovens.
19. Be certain the glass tray and roller rings are in place when you operate
the oven.
20. When cleaning surfaces of door and oven that comes together on
closing the door, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
21. This appliance should be serviced only by qualified service personnel
contact nearest authorized service facility for examination, repair, or
adjustment.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
English
4

WARNING
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current. The appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING! Improper use of the grounding plug can result in a
risk of electric shock.
Electrical Requirements:
• The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is
recommended that a separate circuit serving only the oven be provided. The
oven is equipped with a 3-prong grounding plug. It must be plugged into a
wall receptacle that is properly installed and grounded.
Power Supply Cord
1.
A short power supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
2.
Extension cords are available and may be used
if care is exercised in their use.
a) If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the
appliance. The marked rating of the
extension cord shall be equal to or greater
than the electrical rating of the appliance.
b)
The extension cord must be arranged so that
it will not drape over the
counter top or table top where it can be
pulled on by children or tripped over uninten-
tionally.
NOTE: 1. Consult a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
2.
Neither Haier nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the
electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio
or TV, check that the microwave oven is on a different circuit, relocated the radio
or TV as far away from the oven as feasible or check position and signal of
receiving antenna.
GROUNDING INSTRUCTION

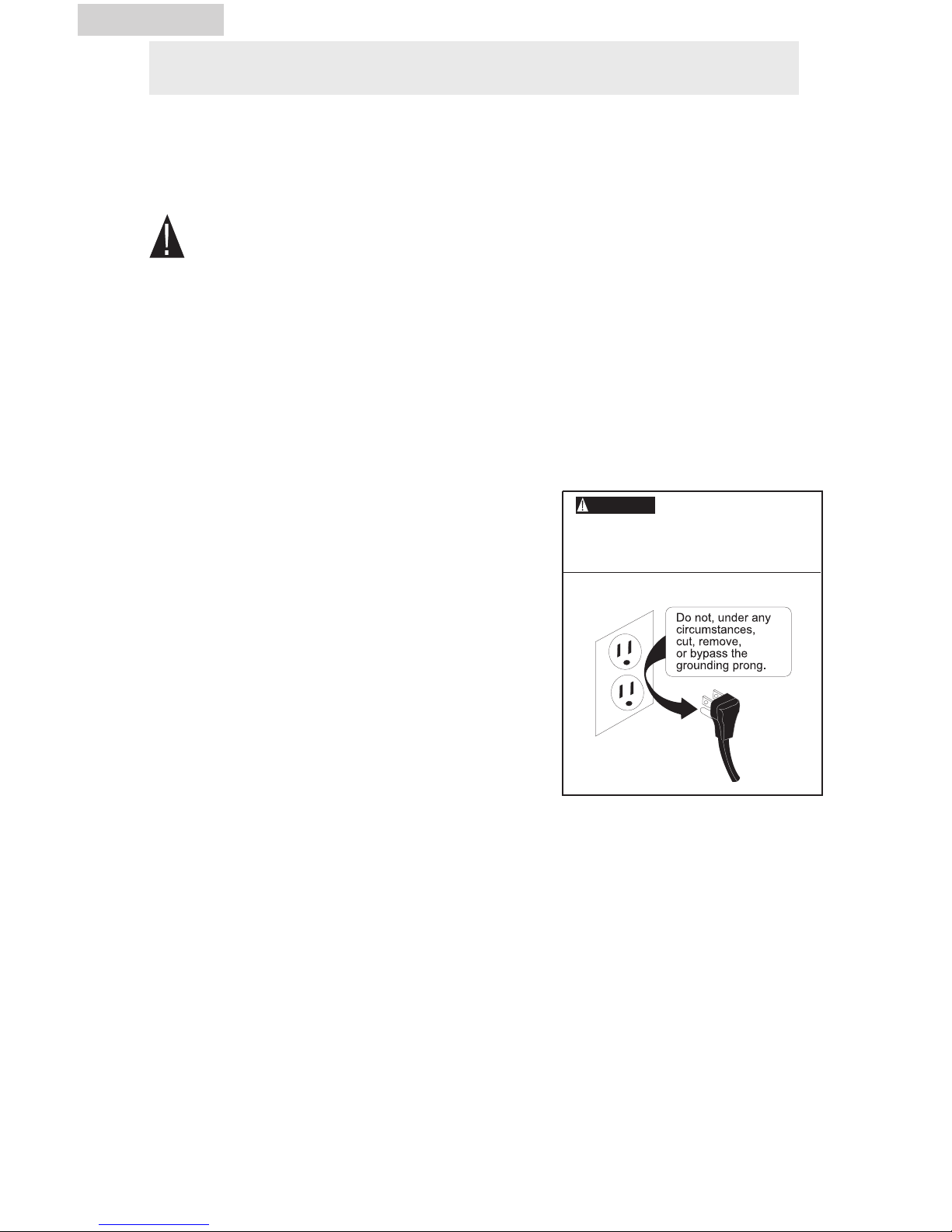

Avoid fire hazard or
electric shock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
WARNING
Grounding type
wall receptacle
Power supply
cord with 3-prong
grounding plug
English
5

UTENSILS
This section lists which utensils can be used in the microwave, which ones have
limited use for short periods, and which ones should not be used in the
microwave.
Recommended
• Microwave browning dish - Use to brown the exterior of small items such as
steaks, chops, or pancakes. Follow the directions provided with your
browning dish.
• Microwaveable plastic wrap - Use to retain steam. Leave a small opening for
some steam to escape and avoid placing it directly on the food.
• Paper towels and napkins - Use for short-term heating and covering; These
absorb excess moisture and prevent spattering. Do not use recycled paper
towels, which may contain metal and could ignite.
• Glass and glass-ceramic bowls and dishes - Use for heating or cooking.
• Paper plates and cups - Use for short-term heating at low temperatures. Do not
use recycled paper, which may contain metal and could ignite.
• Wax paper - Use as a cover to prevent spattering.
• Thermometers - Use only those labeled “Microwave Safe” and follow all
directions. Check the food in several places. Conventional thermometers may
be used on microwave food once the food has been removed from the oven.
Limited Use
• Aluminum foil – Use narrow strips of foil to prevent overcooking of exposed
areas. Using too much foil can damage your oven, so be careful.
• Ceramic, porcelain, and stoneware – Use these if they are labeled “Microwave
Safe”. If they are not labeled, test them to make sure they can be used safely.
• Plastic – Use only if labeled “Microwave Safe”. Other plastics can melt.
• Straw, wicker, and wood – Use only for short-term heating, such as warming
dinner rolls for a few seconds; baskets and bowls may be flammable.
Not Recommended
• Glass jars and bottles – Regular glass is too thin to be used in a microwave.
It can shatter and cause damage and injury.
• Paper bags – These are a fire hazard, except for popcorn bags that are
designed for microwave use.
• Styrofoam plates and cups – These can melt and leave an unhealthy
residue on food.
• Plastic storage and food containers – Containers such as margarine tubs
can melt in the microwave.
• Metal utensils - These can damage your oven. Remove all metal
before cooking.
NOTE: Should you wish to check if a dish is safe for microwaving, place the
empty dish in the oven and microwave on HIGH for 30 seconds.
A dish which becomes very hot should not be used.
WARNING
English
6

COOKING TECHNIQUES
Your microwave makes cooking easier than conventional cooking, provided you
keep these considerations in mind:
Stirring
Stir foods such as casseroles and vegetables while cooking to distribute heat
evenly. Food at the outside of the dish absorbs more energy and heats more
quickly, so stir from the outside to the center. The oven will turn off when you
open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops, with the
thicker, meatier parts toward the outside of the turntable where they receive more
microwave energy. To prevent overcooking, place delicate areas, such as
asparagus tips, toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum foil to prevent overcooking. Areas
that need shielding include poultry wing-tips, the ends of poultry legs, and
corners of square baking dishes. Use only small amounts of aluminum foil.
Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to expose all parts to microwave
energy. This is especially important with large foods such as roasts.
Standing
Foods cooked in the microwave build up internal heat and continue to cook for a
few minutes after heating stops. Let foods stand to complete cooking, especially
foods such as cakes and whole vegetables. Roasts need this time to complete
cooking in the center without overcooking the outer areas. All liquids, such as
soup or hot chocolate, should be shaken or stirred when cooking is complete.
Let liquids stand a moment before serving. When heating baby food, stir well at
removal and test the temperature before serving.
Adding moisture
Microwave energy is attracted to water molecules. Food that is uneven in
moisture content should be covered or allowed to stand so that the heat disperses
evenly. Add a small amount of water to dry food to help it cook.
English
7

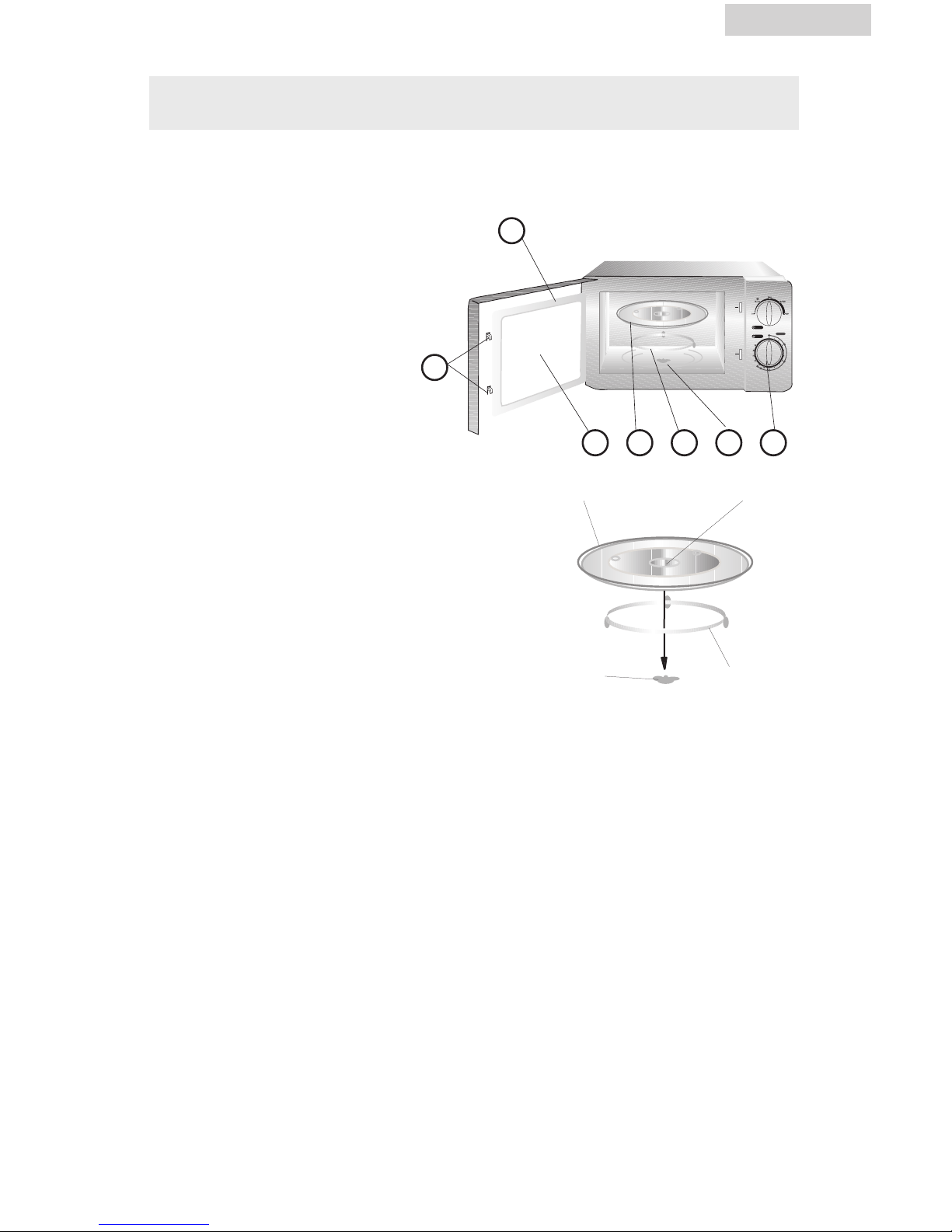

Hub (underside)Glass tray
Turntable shaft Turntable ring
assembly
SETTING UP YOUR OVEN
Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray ............................1
Turntable ring assembly
.........1
A.Control panel
B.
Turntable shaft
C.Turntable ring assembly
D.
Glass tray
E.Observation window
F.
Door assembly
G.Safety interlock system
Turntable Installation
a.
Never place the glass tray upside down.
The glass tray should never be restricted.
b.
Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest authorized service center.
Countertop Installation
Remove all packing material and accessories. Examine the oven for any
damagesuch as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet
surfaceDo not remove the light brown Mica cover that is attached to
the oven cavity to protect themagnetron.
Installation
1. Select a level surface that provide enough open space for the intake and/or
outlet vents.A minimum clearance of 3.0 inches (7.5cm) is required between
the oven and any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12 inches (30cm) above the oven.
(2) Do not remove the legs from the bottom of the oven.
(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible. Operation of
microwave oven may cause interference to your radio or TV reception.
ABCDE
F
G
English
8

OPERATION
CONTROL PANEL AND FEATURES
The control panel consists of two function operators. One is a timer knob, and
another a power knob.
Power/Action Selector
You use this operator knob to choose a cooking power level. It is the first step to
start a cooking session.
Timer Knob
Offers visual timing settings at an easy turn of the thumb to
select a desired cooking time, up to 35 minutes per
cooking session.
Microwave Cooking
For pure microwave cooking, there are five power levels from
which to choose as best fit to do the job at hand. Power level
increases as the knob turns clockwise. The power levels can
be classified as the following:
Power output Description
1 100% HIGH
2 77% M. HIGH
3 55% MED
4 33% M. LOW
5 33% DEFROST
6 17% LOW
2. Plug your oven into a standard household outlet. Be sure thevoltage and the
frequency is the same as the voltage and thefrequency on the rating label.
WARNING: Do not install oven over a range cooktop or otherheat-producing
appliance. If installed near or overa heat source, the oven could be
damaged and the warranty would be void.
English
9
