Haier HDPW5620 Series User manual

REFRIGERATOR
User Manual
HDPW5618*
HDPW5620*
HTW5618*
HTW5620*
*=Energy Label; Visible Features; Finishing And Color
EN
CZ
DA
DE
EL
ES
FI
FR
HU
IT
NL
NO
PL
PT
RO
SV
Please read this manual carefully before using refrigerator.
Retain it for future reference.

WARNING: Risk of fire/flammable material
EN
The symbol indicates there is a risk of fire since flammable materials are
used. Take care to avoid causing a fire by ingiting flammable material.
VAROVÁNÍ: Nebezpečí Požáru/Hořlavého Materiálu
CS
Symbol označuje riziko požáru, protože byly použity hořlavé materiály. Dbejte na to, aby nedo-
šlo ke vzniku požáru zapálením hořlavého materiálu.
ADVARSEL: Brandfare/brændbart materiale
DA
Symbolet viser, at der erbrandfare, da der er anvendt brændbart materiale. Sørg for at undgå
en brand som følge af antændelse af brændbart materiale.
WARNUNG:Brandgefahr/brennbares Material
DE
Das Symbol weist auf Brandgefahr hin, da brennbare Materialien verwendet werden.
Verhindern Sie die Entstehung von Bränden, die durch entflammbare Materialien verursacht
werden.
ΠΡΟΣΟΧΗ: Κίνδυνος φωτιάς/εύφλεκτο υλικό
EL
Το σύμβολο υποδεικνύει ότι υπάρχει κίνδυνος φωτιάς επειδή χρησιμοποιούνται
εύφλεκτα υλικά. Προσέχετε να αποφεύγετε την πρόκληση φωτιάς από ανάφλεξη
εύφλεκτου υλικού.
ADVERTENCIA: Riesgo de incendio o mate rial inflamable
ES
El símbolo indica que existe riesgo de incen dio, dado que se utilizan materiales inflamables.
Se debe procurar evitar incendios medi ante la combustión de materiales inflamables.
VAROITUS: Tulipalon vaara / syttyvää materiaalia
FI
Symboli osoittaa tulipalon vaaraa, joka johtuu käytetyistä syttyvistä materiaaleista. Varo, ettet
aiheuta tulipaloa sytyttämällä syttyvää materiaalia.
AVERTISSEMENT : Risque d’incendie/matière inflammable
FR
Le symbole indique qu’il y a un risque d’incendie, étant donné que des matières
inflammables sont utilisées. Évitez de provoquer un incendie en brûlant des matières
inflammables.
FIGYELMEZTETÉS: Tűzveszély/gyúlékony anyagok
HU
A szimbólum a tűzveszélyről tájékoztat, ami a gyúlékony anyagok használatából adódik.
Figyeljen a tűz megelőzésére, mivel a gyúlékony anyag lángra kaphat.
ATTENZIONE: Rischio di incendio/materiale infiammabile
IT
Il simbolo indica il rischio di incendio nel caso di utilizzo di materiali infiammabili. Fare attenzione
ed evitare l'insorgere di incendi a causa della caombustione di materiali infiammabili.
WAARSCHUWING: Risico op brand/ontvlambaar materiaal
NL
Het symbool geeft aan dat er brandgevaar bestaat doordat brandbare materialen worden
gebruikt. Let op dat u geen brand veroorzaakt door brandbare materialen te ontsteken.
ADVARSEL: Fare for brann/brennbart materiale
NO
Symbolet angir at det er fare for brann siden brannfarlige materialer er brukt. Vær forsiktig
så du unngår å forårsake brann ved å isolere brannfarlige materialer.

OSTRZEŻENIE: Ryzyko pożaru / materiał łatwopalny
PL
Ten symbol wskazuje na ryzyko pożaru, ponieważ urządzenie zawiera materiały
łatwopalne. Uważaj, aby nie spowodować pożaru przez podpalenie łatwopalnego materiał.
AVISO: Risco de incêndio e material inflamável
PT
O símbolo indica que existe um risco de incêndio, uma vez que são utilizados materiais
inflamáveis. Tenha cuidado para evitar provocar um incêndio acendendo material inflamável.
AVERTISMENT: Risc de incendiu/material inflamabil
RO
Simbolul indică riscul de incendiu, deoarece se utilizează materiale inflamabile. Evitați pro-
vocarea unuiincendiu cauzat de materialele inflamabile.
VARNING: Risk för brand/brandfarliga material
SV
Symbolenindikerar att det finns en brandrisk eftersom brandfarliga material används.
Var försiktig för att undvika att brandfarliga material fattar eld.

EN
Content
Safety Information..............................................................3Safety Information..............................................................3
Intended Use..............................................................11Intended Use..............................................................11
Product Description..............................................................12Product Description..............................................................12
Control Panel.....................................................1Control Panel.....................................................188
Use........................................................................19Use........................................................................19
Wi-Fi Use.................................................................24Wi-Fi Use.................................................................24
Energy Saving Tips...............................................................28Energy Saving Tips...............................................................28
Equipment..............................................................29Equipment..............................................................29
Care And Cleaning..............................................................33Care And Cleaning..............................................................33
Trouble Shooting...............................................................37Trouble Shooting...............................................................37
Installation...............................................................41Installation...............................................................41
Technical Data...............................................................44Technical Data...............................................................44
Customer Service...............................................................50Customer Service...............................................................50
3

EN
Thank you
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information that will help you better understand the appliance and
ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, please
make sure you also pass this manual so that the new owner can become familiar
with the appliance and safety warnings with the help of the manual.
4

EN
WARNING – Important Safety information
NOTICE-General infor mation and tips
Environmental information
Safety information
Disposal
Help protect the environment and human health. Put the
packaging in applicable containers to recycle it. Help to
recycle waste of electrical and electronic appliances. Do not
dispose appliances marked with this symbol with the house-
hold waste. Return the product to your local recycling facility
or contact your municipal offi ce.
WARNING!
Risk of injury or suff ocation!
Refrigerants and gases must be disposed of professionally. Ensure that the
tubing of the refrigerant circuit is not damaged before being properly disposed
of. Disconnect the appliance from the mains supply. Cut off the mains cable and
dispose of it. Remove the trays and drawers as well as the door catch and seals,
to prevent children and pets to get closed in the appliance.
5

EN
Safety information
Before switching on the appliance for the fi rst time read the
following safety hints!:
WARNING!
Before fi rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Wait at least two hours before installing the appliance in order to ensure the re-
frigerant circuit is fully effi cient.
▶Handle the appliance always with at least two persons because it is heavy.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure a space of at
least 10 cm above and around the appliance.
▶Never place the appliance in a damp area or location where it might be splashed
with water. Clean and dry water splashes and stains with a soft clean cloth.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
stoves, heaters).
▶Install and level the appliance in an area suitable for its size and use.
▶Keep ventilation openings in the appliance or in the in-built structure clear of
obstruction.
▶Make sure that the electrical information on the rating plate agrees with the
power supply. If it does not, contact an electrician.
▶The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal
voltage fl uctuation may cause the appliance to fail to start, or damage to the
temperature control or compressor, or there may be an abnormal noise when
operating. In such case, an automatic regulator shall be mounted.
▶Use a separate earthed socket for the power supply which is easily accessible.
The appliance must be earthed.
▶Only for UK: The appliance’s power cable is fi tted with 3-cord (grounding) plug
that fi ts a standard 3-cord (grounded) socket. Never cut off or dismount the
third pin (grounding). After the appliance is installed, the plug should be acces-
sible.
▶Do not use multi-plug adapters and extension cables.
▶Ensure that the power cable is not trapped by the refrigerator. Do not step on
the power cable.
▶Do not damage the refrigerant circuit.
▶Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
6

EN
Safety information
WARNING!
Daily use
▶This appliance can be used by children aged from 8 years old and above and per-
sons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge, if they have been given supervision or instructions concerning
the use of the appliance in a safe way and understand the hazards involved.
▶Children shall not play with the appliance.
▶Children aged from 3 to 8 years are allowed to load and unload refrigerating ap-
pliances, but not allowed to clean and install the refrigerating appliances.
▶Keep children under 3 years old away from the appliance unless they are under
supervision all the time.
▶Cleaning and user maintenance shall not be made by children without supervi-
sion.
▶The appliance must be positioned so that the plug is accessible.
▶If cool gas or other infl ammable gas is leaking in the vicinity of the appliance, turn
off the valve of the leaking gas, open the doors and windows and do not unplug a
plug in the power cable of the refrigerator or any other appliance.
▶Notice that the appliance is set for operation at a specifi c ambient range be-
tween 10℃ and 43℃. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
▶Do not place unstable articles (heavy objects, containers fi lled with water) on top
of the refrigerator/freezer, to avoid personal injury caused by falling or electric
shock caused by contact with water.
▶Do not pull on the door shelves. The door may be pulled slant, the bottle rack
may be pulled away, or the appliance may topple.
▶Open and close the door only with handles. The gap between the door and the
cabinet is very narrow. Do not put your hands in these ares to avoid pinching
your fi ngers. Open or close the refrigerator/freezer doors only when there are
no children standing within the range of door movement.
▶Never store bottled beer or beverages, liquids in bottles or cans (besides high
percentage spirits) especially carbonated beverages in the freezer, as these will
burst during freezing.
▶Do not store explosive substances such as aerosol cans with a fl ammable pro-
pellant in this appliance.
7

EN
Safety information
WARNING!
▶Do not store medicines, bacteria or chemical agents in the appliance. This ap-
pliance is a household appliance. It is not recommended to store materials that
require strict temperatures.
▶To avoid contamination of food, please respect the following instructions:
▶– Opening the door for long periods can cause a signifi cant increase of the tem-
perature in the compartments of the appliance.
▶– Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
▶– Clean water tanks if they have not been used for 48 h; fl ush the water system
connected to a water supply if water has not been drawn for 5 days.
▶– Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not
in contact with or drip onto other food.
▶– Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice-cream and making ice cubes.
▶– One-, two- and three-star compartments are not suitable for the freezing of
fresh food.
▶– If the refrigerating appliance is left empty for long periods, switch off , defrost,
clean, dry, and leave the door open to prevent mould developing within the ap-
pliance.
▶Check the condition of food if a warming in the freezer has taken place.
▶Do not set unnecessarily low temperature in the refrigerator compartment. Mi-
nus temperatures may occur at high settings. Attention: Bottles can burst.
▶Do not touch frozen goods with wet hands (wear gloves). Especially do not eat
ice lollies immediately after removal from the freezer compartment. There is the
risk to freeze or the formation of frost blisters. FIRST aid: keep immediately un-
der running cold water. Do not pull away!
▶Do not touch the inside surface of the freezer storage compartment when in
operation, especially with wet hands, as your hands may freeze onto the surface.
▶Unplug the appliance in the event of a power interruption or before cleaning. Al-
low at least 7 minutes before restarting the appliance, as frequent starting may
damage the compressor.
▶Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8

EN
Safety information
WARNING!
Maintenance/cleaning
▶Make sure children are supervised if they carry out cleaning and maintenance.
▶Disconnect the appliance from the electrical supply before undertaking any rou-
tine maintenance. Allow at least 5 minutes before restarting the appliance, as
frequent starting may damage the compressor.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not clean the appliance with hard brushes, wire brushes, detergent powder,
petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solu-
tions. Please clean with special refrigerator/freezer detergent to avoid damage.
Eventually use warm water and baking soda solution - about a tablespoon of
baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry.
Do not use cleaning powders or other abrasive cleaners. Do not wash removable
parts in a dishwasher.
▶Do not scrape off frost and ice with sharp objects. Do not use sprays, electric
heaters like heater, hair dryer, steam cleaners or other sources of heat in order
to avoid damage to the plastic parts.
▶Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
▶If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualifi ed persons in order to avoid a hazard.
▶Do not try to repair, disassemble or modify the appliance by yourself. In case of
repair please contact our customer service.
▶If the illuminating lamps are damaged, it must be replaced by the manufacturer,
its service agent or similarly qualifi ed persons in order to avoid a hazard.
▶Eliminate the dust on the back of the unit at least once in the year to avoid haz-
ard by fi re, as well as increased energy consumption.
▶Do not spray or fl ush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass shelves or glass door with hot water. Sudden tem-
perature change may cause the glass to break.
▶If you leave your appliance out of use for an extended period, leave it open to
prevent odour and unpleasant smells building up inside.
9

EN
Safety information
WARNING!
The appliance contains the fl ammable refrigerant ISOBUTANE (R600a). Make
sure the refrigerant circuit is not damaged during transportation or installation.
Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred,
keep away open fi re sources, thoroughly ventilate the room, do not plug or unplug
the power cords of the appliance or any other appliance. Inform the customer
service.
In case of eyes get into contact with the refrigerant, rinse immediately it under
running water and call immediately the eye specialist.
The refrigeration system is under high pressure. Do not tamper with it. Since the
fl ammable refrigerants are used, please install, handle and service the appliance
strictly according to the instruction and contact the professional agent or our
after-sales service to dispose of the appliance.
For refrigerators with ice-water function, please pay attention to the following
warning:
– For appliances not intended to be connected to the water supply: fi ll with porta-
ble water only.
– For appliances intended to be connected to the water supply: connect to pota-
ble water supply only.
– If you want to clean the water system, please refer to the User Manual. If you
have any questions, please contact the after-sales service.
Refrigerant gas information
10

EN
Intended use
Intended use
This appliance is intended for cooling and freezing food. It has been designed
exclusively for use in household and similar applications such as staff kitchen areas
in shops, offi ces and other working environments; farm houses and by clients in
hotels, motels and other residential type environments as well as in bed-and-bre-
ackfast and catering business. It is not intended for commercial or industrial use.
Changes or modifi cations to the device are not allowed. Unintended use may cause
hazards and loss of warranty claims.
Standards and directives and
This product meets the requirements of all applicable EC directives with the corre-
sponding harmonised standards and UK standards, which provide for CE and UKCA
marking.
Accessories
Check the accessories and literature in accordance with this list:
Ice cube tray
with cover
Door
hinges
Hinge
cover
Energy
lable
Warranty
card
Cap
insert
NOTICE
11

EN

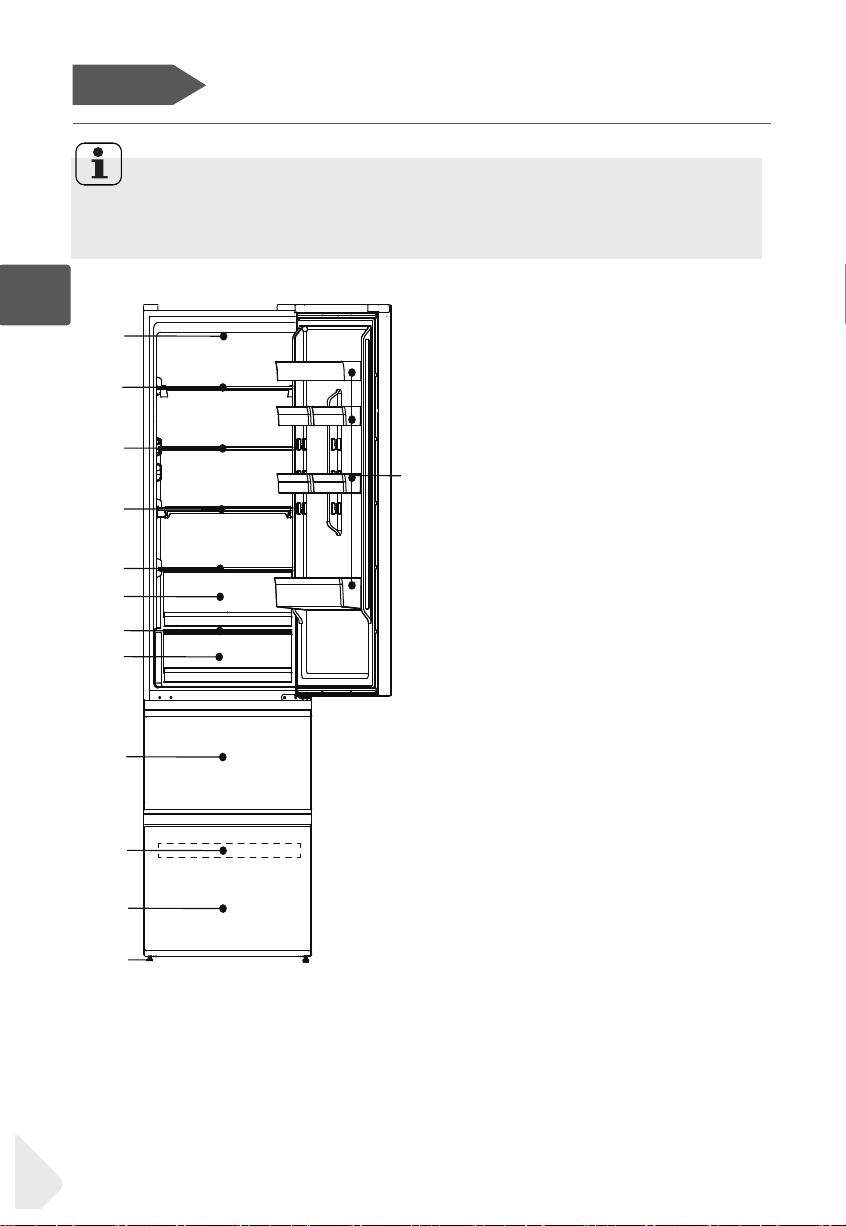

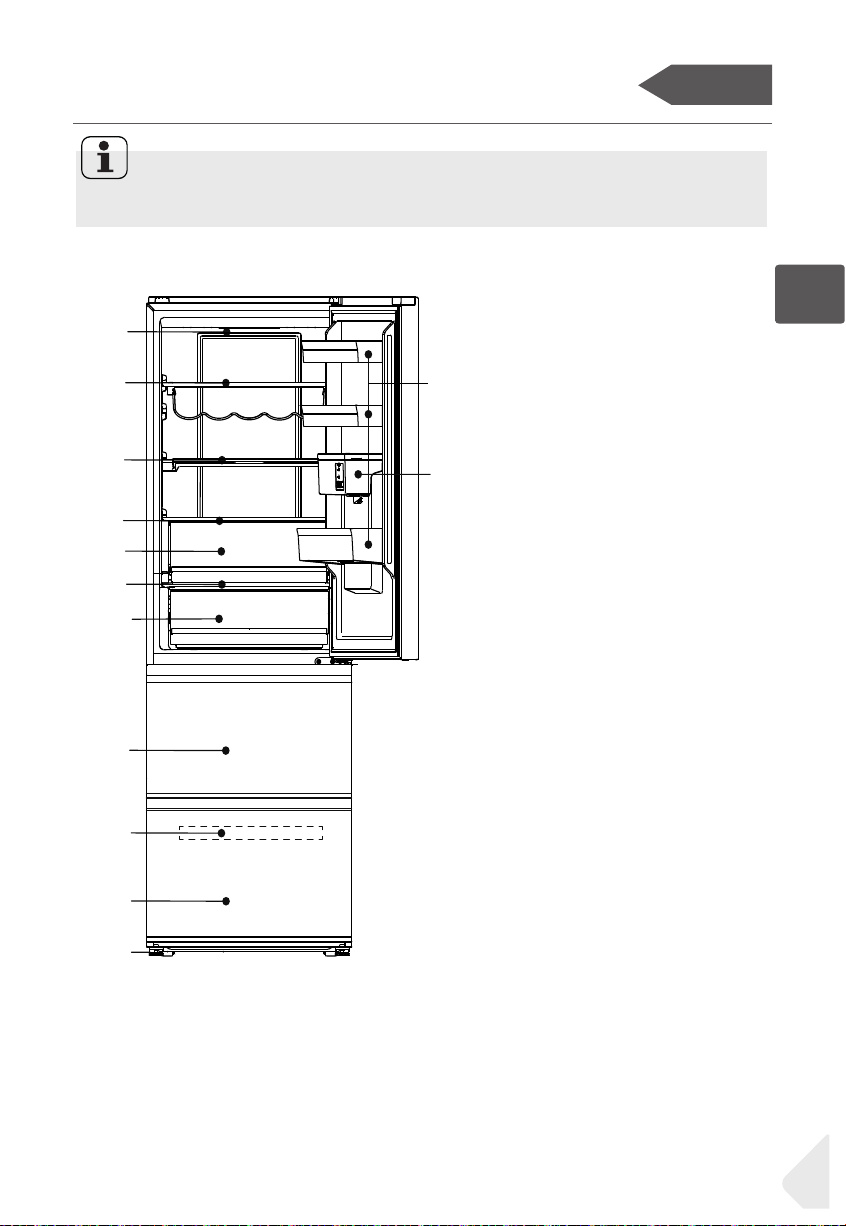

Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HTW5620*N*)
1
6
7
9
11
12
13
2
3
4
5
10
8
1-Refrigerator LED lamp
2-Wine rack
3-Glass shelf
4-Foldable shelf
5-Humidity Zone box cover
6-Humidity Zone box
7-My Zone box cover
8-My Zone box
9-Upper freezer storage drawer
10-Freezer tray
11-Lower freezer storage drawer
12-Adjustable feet
13-Door balcony
12

EN
Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HTW5618*N*)
1-Refrigerator LED lamp
2-Wine rack
3-Foldable shelf
4-Humidity Zone box cover
5-Humidity Zone box
6-My Zone box cover
7-My Zone box
8-Upper freezer storage drawer
9-Freezer tray
10-Lower freezer storage drawer
11-Adjustable feet
12-Door balcony
1
5
6
8
10
11
12
2
3
4
9
7
13

EN
Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HDPW5620*N*)
1
6
7
9
11
12
13
2
3
4
5
10
8
1-Refrigerator LED lamp
2-Wine rack
3-Glass shelf
4-Foldable shelf
5-Humidity Zone box cover
6-Humidity Zone box
7-My Zone box cover
8-My Zone box
9-Upper freezer storage drawer
10-Middle freezer storage drawer
11-Lower freezer storage drawer
12-Adjustable feet
13-Door balcony
14

EN
Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HDPW5618*N*)
1
5
6
8
10
11
12
2
3
4
9
7
1-Refrigerator LED lamp
2-Wine rack
3-Foldable shelf
4-Humidity Zone box cover
5-Humidity Zone box
6-My Zone box cover
7-My Zone box
8-Upper freezer storage drawer
9-Middle freezer storage drawer
10-Lower freezer storage drawer
11-Adjustable feet
12-Door balcony
15

EN
Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HDPW5618DW*)
1-Refrigerator LED lamp
2-Wine rack
3-Foldable shelf
4-Humidity Zone box cover
5-Humidity Zone box
6-My Zone box cover
7-My Zone box
8-Upper freezer storage drawer
9-Middle freezer storage drawer
10-Lower freezer storage drawer
11-Adjustable feet
12-Door balcony
13-Water tank
1
5
6
8
10
11
12
2
3
4
9
7
13
16

EN
Product description
NOTICE
Due to technical changes and diff erent models, some of the illustrations in
this manual may diff er from model.（HTW5618DW*)
1-Refrigerator LED lamp
2-Wine rack
3-Foldable shelf
4-Humidity Zone box cover
5-Humidity Zone box
6-My Zone box cover
7-My Zone box
8-Upper freezer storage drawer
9-Freezer tray
10-Lower freezer storage drawer
11-Adjustable feet
12-Door balcony
13-Water tank
1
5
6
8
10
11
12
2
3
4
9
7
13
17

EN
Control panel
Before fi rst use
Remove all packaging materials, keep them out of children’s reach and dispose
them in an environment friendly way.
Clean the inside and outside of the appliance as well as the interior and accessories
with water and a mild detergent, and dry it well with soft cloth.
After the appliance has been levelled and cleaned, please wait for at least 2 hours
before connecting it to the power supply. See Section INSTALLATION.
Precool the compartments at high settings before loading with food. The function
Super Freeze helps to cool down the freezer compartment quickly
A
C
B
D
K8
F
G
H
I
K1
K4
K5
K6
K7
K2
E
Eco Mode
Wi-Fi
Holiday
Super Freeze
Super Cool
ZONE
ARTIFICIAL
INTELLIGENCE
K3
Fridge My Zone Freezer

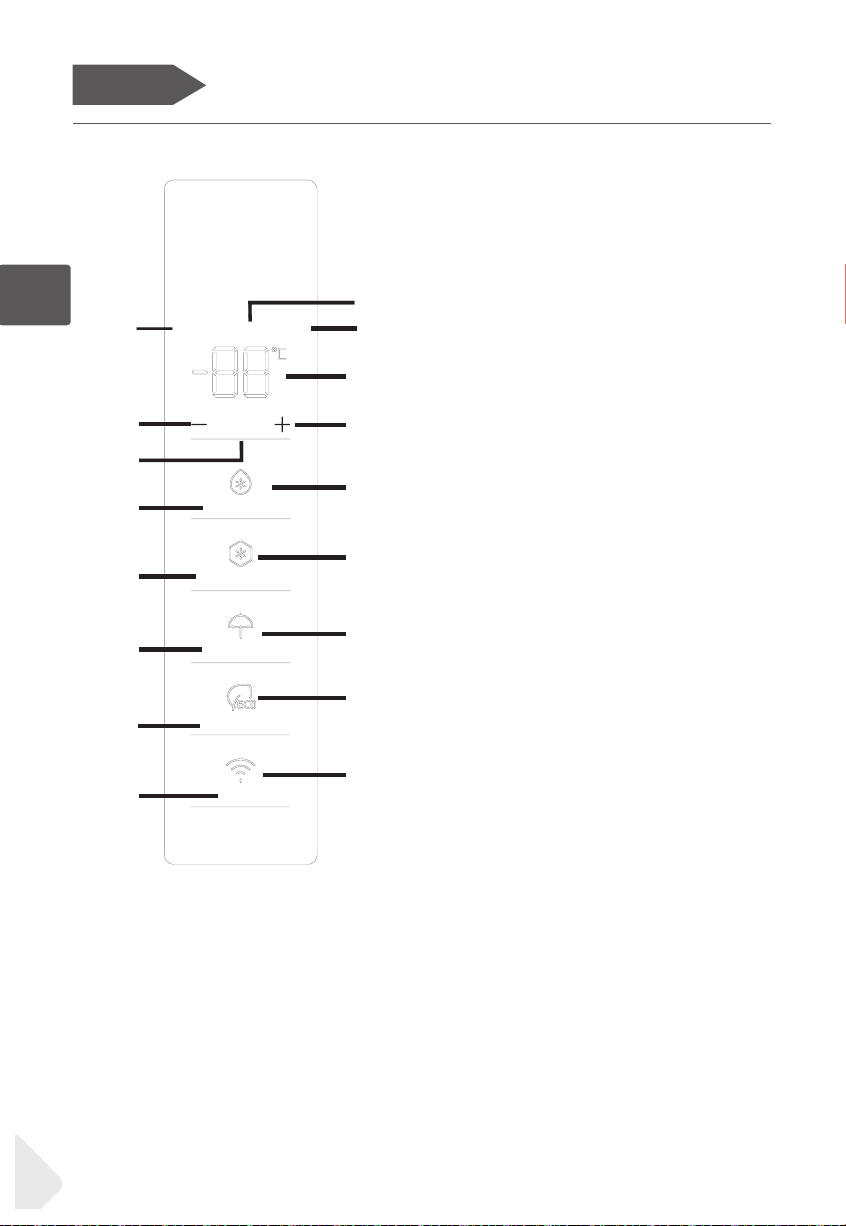

Control panel
Buttons:
A Fridge compartment
B My Zone compartment
C Freezer compartment
D Temperature display
E Super Cool function
F Super Freeze function
G Holiday function
H Eco Mode function
I Wi-Fi function
Indicators:
K1 Decrease temperature
K2 Fridge, My Zone and Freezer selection
K3 Super Cool function on/off
K4 Super Freeze function on/off
K5 Holiday function on/off
K6 Eco Mode function on/off
K7 Wi-Fi function on/off
K8 Increase temperature
18
