Haier HRB15N3 User manual

Installation and User Manual
Instructions d’installation et
Guide de l’utilisateur
Instrucciones de instalación y
Manual del usuario
HRB15N3
Bottom Mount Refrigerator
Réfrigérateur à congélateur inférieur
Refrigerador de montaje inferior
49-1000580 Rev. 0
03-21 GEA

249-1000580 Rev. 0

49-1000580 Rev. 0 3
TABLE OF CONTENTS
ENGLISH
REFRIGERATOR SAFETY ....................................................................................................................................................4
PARTS AND FEATURES.......................................................................................................................................................6
INSTALLATION REQUIREMENTS........................................................................................................................................7
Location Requirements ................................................................................................................................................................... 7
Electrical Requirements................................................................................................................................................................... 7
INSTALLATION INSTRUCTIONS.........................................................................................................................................8
Step 1 - Unpack the Refrigerator .................................................................................................................................................... 8
Step 2 - Door Reversing................................................................................................................................................................... 8
Step 3 - Complete the Installation ................................................................................................................................................13
Step 4 - Leveling and Door Adjustment........................................................................................................................................ 13
REFRIGERATOR USE ........................................................................................................................................................14
Using the Controls .........................................................................................................................................................................14
Features..........................................................................................................................................................................................16
REFRIGERATOR CARE ......................................................................................................................................................18
Cleaning.......................................................................................................................................................................................... 18
Lights..............................................................................................................................................................................................19
Vacation and Moving Care.............................................................................................................................................................19
Reinstalling/Using Refrigerator Again...........................................................................................................................................19
TROUBLESHOOTING.......................................................................................................................................................20
LIMITED WARRANTY .......................................................................................................................................................22

449-1000580 Rev. 0
REFRIGERATOR SAFETY
ENGLISH
CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.
¿Do not clean glass shelves or covers with warm water
when they are cold. Glass shelves and covers may
break if exposed to sudden temperature changes or
impact, such as bumping or dropping. Tempered glass is
designed to shatter into many small pieces if it breaks.
¿Keep fingers out of the “pinch point” areas; clearances
between the doors and between the doors and cabinet
are necessarily small. Be careful closing doors when
children are in the area.
¿Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet, skin may
stick to these extremely cold surfaces.
¿Do not refreeze frozen foods which have thawed
completely.
¿In refrigerators with automatic ice makers, avoid contact
with the moving parts of the ejector mechanism, or
with the heating element that releases the cubes. Do
not place fingers or hands on the automatic ice making
mechanism while the refrigerator is plugged in.
IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these
basic safety precautions:
¿This refrigerator must be properly installed and located
in accordance with the Installation Instructions before it
is used.
¿Unplug the refrigerator before making repairs, replacing
a light bulb, or cleaning.
NOTE: Power to the refrigerator cannot be disconnected
by any setting on the control panel.
NOTE: Repairs must be performed by a qualified Service
Professional.
¿Replace all parts and panels before operating.
¿Do not use an extension cord.
¿Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
¿Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
¿To prevent suffocation and entrapment hazards to
children, remove the fresh food and freezer doors from
any refrigerator before disposing of it or discontinuing
its use.
¿To avoid serious injury or death, children should not
stand on, or play in or with the appliance.
¿Children and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
can use this appliance only if they are supervised or have
been given instructions on safe use and understand the
hazards involved.
¿This appliance is intended to be used in household and
similar applications such as: staff kitchen areas in shops,
offices and other working environments; farm houses;
by clients in hotels, motels, bed & breakfast and other
residential environments; catering and similar non-retail
applications.
¿Do not apply harsh cleaners to the refrigerator. Certain
cleaners will damage plastic which may cause parts such
as the door or door handles to detach unexpectedly. See
the Care and Cleaning section in your Owner’s Manual
for detailed instructions.
WARNING EXPLOSION HAZARD Flammable Refrigerant
This appliance contains isobutane refrigerant, R600a, a natural
gas with high environmental compatibility. However, it is also
combustible. Adhere to the warnings below to reduce the risk
of injury or property damage.
1. When handling, installing and operating the appliance, care
should be taken to avoid damage to the refrigerant tubing.
2.
Service shall only be performed by authorized service personnel.
Use only manufacturer-authorized service parts.
3. Dispose of refrigerator in accordance with Federal and Local
Regulations. Flammable refrigerant and insulation material
used require special disposal procedures. Contact your local
authorities for the environmentally safe disposal of your
refrigerator.
4. Keep ventilation openings in the appliance enclosures or in the
built-in structure clear of obstruction.
5. Do not use mechanical devices or other means to accelerate
the defrosting process.
6. Do not damage refrigerant circuit.
7. Do not use electrical appliances inside the food storage
compartment of the appliance.
READ AND SAVE THESE INSTRUCTIONS

49-1000580 Rev. 0 5
REFRIGERATOR SAFETY
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
WARNING SUFFOCATION AND ENTRAPMENT HAZARD
Failure to follow these disposal instructions can result in death or serious injury
IMPORTANT: Child entrapment and suffocation are not
problems of the past. Junked or abandoned refrigerators
are still dangerous even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow the
instructions below to help prevent accidents.
Before You Throw Away Your Old Appliance
¿Take off the Refrigerator and Freezer doors.
¿Leave the shelves in place so that children may not easily
climb inside.
Refrigerant and Foam Disposal:
Dispose of appliance in accordance with Federal and Local Regulations. Flammable refrigerant and insulation material used
require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your appliance.
ENGLISH
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance
must be properly grounded.
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced with a
properly grounded 3-prong wall outlet. Do not use an adapter.
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
rating plate.
A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical
supply is required. This provides the best performance and also
prevents overloading house wiring circuits which could cause a
fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power cord.
Always grip plug firmly and pull straight out from the outlet.
Immediately discontinue use of a damaged supply cord. If
the supply cord is damaged, it must be replaced by a qualified
service professional with an authorized service part from the
manufacturer.
When moving the refrigerator away from the wall, be careful not
to roll over or damage the power cord.
CONNECTING ELECTRICITY
WARNING ELECTRICAL SHOCK HAZARD
Plug into a grounded 3-prong outlet
Do not remove the ground prong
Do not use an adapter
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
READ AND SAVE THESE INSTRUCTIONS

649-1000580 Rev. 0
B
C
C
A
E
F
G
H
I
I
I
J
D
D
D
D
D
D

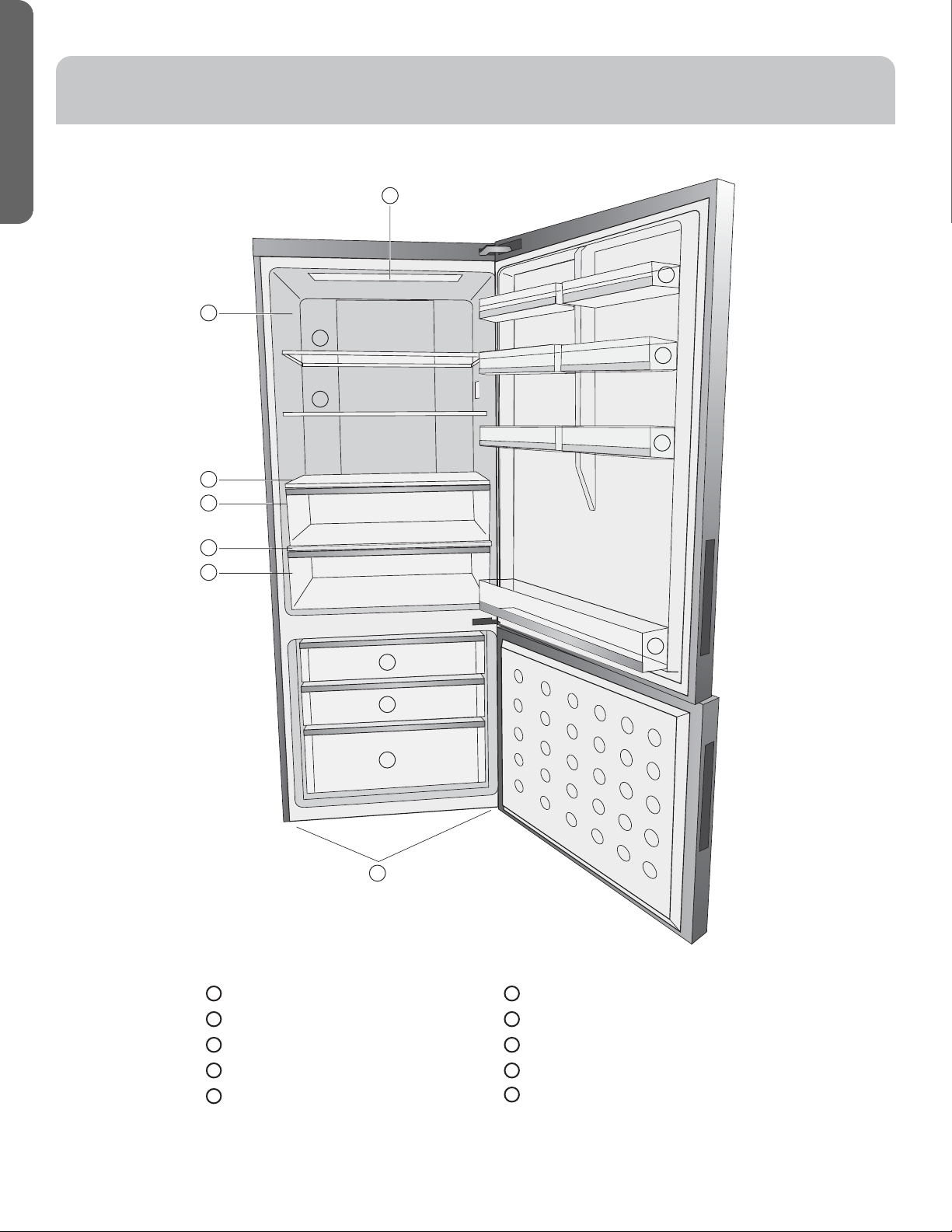

ALED Light
BRating Plate
CGlass Shelves (2)
DRefrigerator Door Bins (7)
ERefrigerator Drawer Cover
FRefrigerator Drawer
GMy Zone Cover
HMy Zone Drawer
IFreezer Storage Drawers (3)
JAdjustable Leveling Legs (2)
PARTS AND FEATURES
ENGLISH
READ AND SAVE THESE INSTRUCTIONS

49-1000580 Rev. 0 7
ENGLISH
INSTALLATION REQUIREMENTS
WARNING
LOCATION REQUIREMENTS ELECTRICAL REQUIREMENTS
IMPORTANT: This refrigerator is designed for indoor,
household use only.
To ensure proper ventilation for your refrigerator, allow
for 1” (2.54 cm) of space on each side and at the top. Allow
for 2” (5.08 cm) of space behind the refrigerator. When
installing your refrigerator next to a fixed wall, leave 4” (10
cm) minimum to allow for the door to swing open.
NOTE: This refrigerator is intended for use in a location
where the temperature ranges from a minimum of 55°F
(13°C) to a maximum of 110°F (43°C). The preferred room
temperature range for optimum performance, which
reduces electricity usage and provides superior cooling, is
between 60°F (15°C) and 90°F (32°C). It is recommended
that you do not install the refrigerator near a heat source,
such as an oven or radiator.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
Recommended Grounding Method
A 115 volt, 60 Hz, AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a
separate circuit serving only your refrigerator be provided.
Use an outlet that cannot be turned off by a switch. Do not
use an extension cord.
NOTE: Before performing any type of installation or
cleaning, disconnect the refrigerator from the electrical
source. When you are finished, reconnect the refrigerator
to the electrical source and reset the temperature controls
to the desired setting.
Explosion and Fire Hazard
Keep flammable materials and vapors, such as gasoline,
away from appliance.
Failure to do so can result in death, explosion or fire.
READ AND SAVE THESE INSTRUCTIONS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Ïäìïøõè÷òçòöòæäñõèöøï÷ìñçèä÷ëĤõèòõèïèæ÷õìæäïöëòæî

849-1000580 Rev. 0

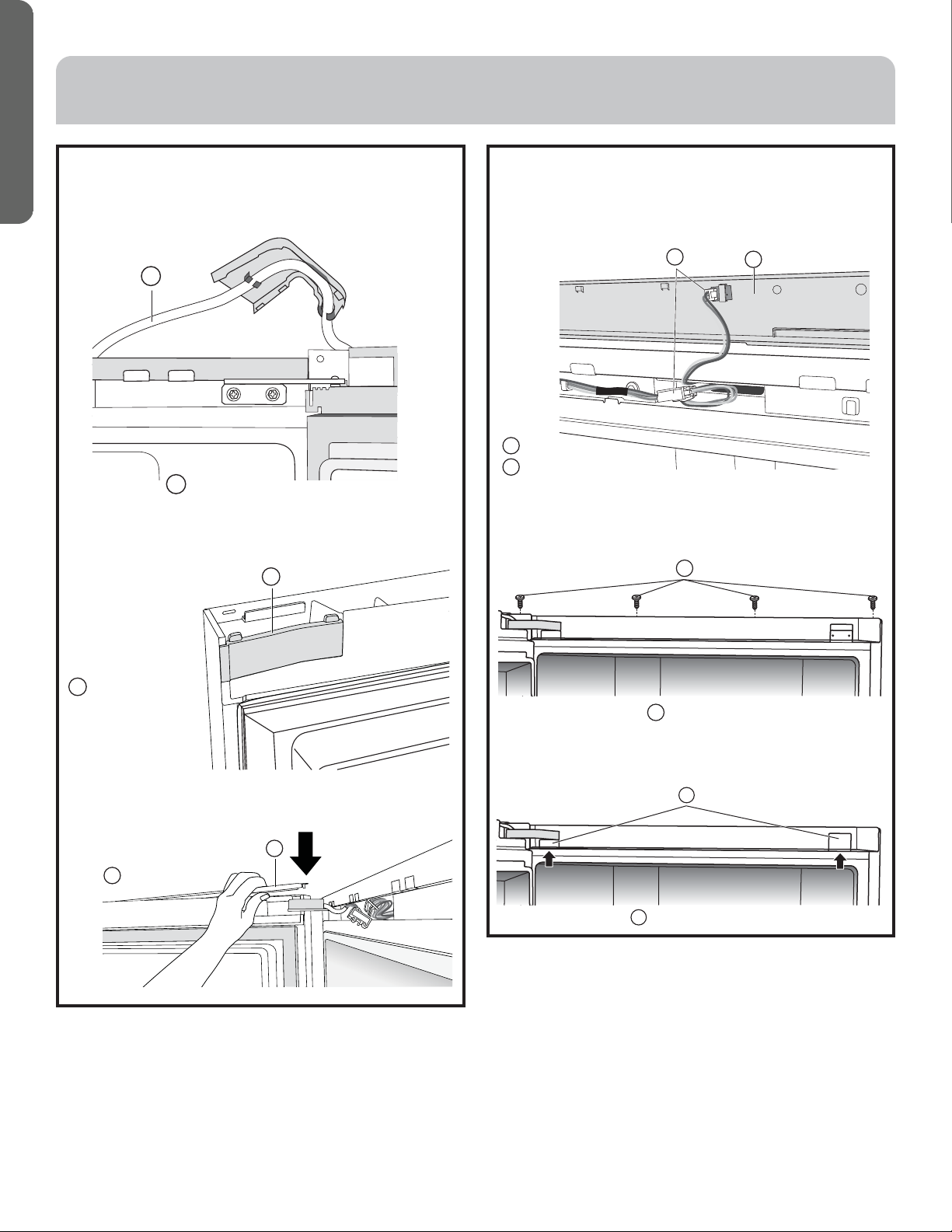

REMOVE AND REVERSE
REFRIGERATOR DOOR
1. Unplug refrigerator or disconnect power.
2. Pull down to remove the hinge screw covers from the
wiring cover.
NOTE: The wiring cover spans the width of the cabinet top.
STEP 1 - UNPACK THE
REFRIGERATOR
IMPORTANT: Handle with care when moving to avoid either
damaging the refrigerant tubing or increasing the risk of a leak.
INSTALLATION INSTRUCTIONS
ENGLISH
WARNING
Excessive Weight Hazard
Do not puncture refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
Failure to do so can result in death, explosion or fire.
READ AND SAVE THESE INSTRUCTIONS
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
éòõæïèäñìñêòõöèõùìæèåèöøõè÷òæòùèõ÷ëèĥòòõúì÷ë
æäõçåòäõçòõëäõçåòäõç÷òäùòìçĥòòõçäðäêèÊïúäüöóøïï
the refrigerator straight out when moving it. Do not wiggle
òõēúäïîĔ÷ëèõèéõìêèõä÷òõúëèñ÷õüìñê÷òðòùèì÷äöĥòòõ
damage could occur.
Important information to know about glass shelves and
covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebblesize pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
Wiring Cover Hinge Screw Covers
A
AB
B
REMOVE THE PACKAGING
• Remove tape and glue residue from surfaces before
turning on the refrigerator. Rub a small amount of liquid
dish soap over the adhesive with your fingers. Wipe with
warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see “Refrigerator Safety.”
• Dispose of/recycle all packaging materials.
STEP 2 - DOOR REVERSING
(OPTIONAL)
The door hinges are factory installed on the right-hand
side. If you want the doors to open from the opposite
direction, you can reverse the door swing.
IMPORTANT:
• Before you begin, unplug the refrigerator, or disconnect
power.
• Remove food and the bins from the refrigerator door.
• The door hinges are designed to be right-hand swing or
lefthand swing specific. Replace the right-hand hinges
with the lefthand hinges provided in the parts bag. After
removing, keep the right-hand hinges in case you would
need to reverse the door swing.
Parts Provided:
• Top Hinge
• Center Hinge
• Bottom Hinge
Tools Needed:
• Flat-blade Screwdriver
• Phillips-head Screwdriver
• 8 mm Socket Wrench
CLEAN BEFORE USING
After you remove all of the packaging materials, clean the
inside of the refrigerator before using it. See the cleaning
instructions in “Refrigerator Care.”

49-1000580 Rev. 0 9
3. Using a Phillips screwdriver, remove the four screws
attaching the wiring cover to the top of the refrigerator
cabinet. Lift up on the wiring cover and allow it to rest on
the top of the cabinet.
4. Disconnect the wiring harnesses, by pinching each end
and gently pulling them apart. Set wiring cover aside.
5. With your thumbs in the opening next to the hinge,
press upward on the top plate to release and remove it
from the refrigerator door. Set the top plate aside.
6. Lift up to remove the hinge cover, and keep it for
possible future use.
7. Using an 8 mm socket wrench, remove the two screws
attaching the top hinge to the cabinet.
8. Slide the top hinge to disengage it from the third screw
on the cabinet, and then lift up to remove the hinge pin
from the door.
NOTE: Save the top hinge for possible future use.
9. Lift the refrigerator door off of the center hinge, and
gently lay the door on a covered surface.
10. Using a Phillips screwdriver, remove the plastic door
closure and the metal door stop from the bottom of the
door.
11. Remove the screw from the door closure, and replace
the screw into the hole from which it was removed.
12. Move the door stop to the opposite side. Insert screw
into the center hole and fasten.
INSTALLATION INSTRUCTIONS
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
A
AScrews
A
AB
B
Wiring Harnesses
Wiring Cover
Door Closure
Door Stop
A
A
B
B
A
A
B
B
Screw
Door Stop
A
A
Top Plate
Hinge Cover
A
A

10 49-1000580 Rev. 0

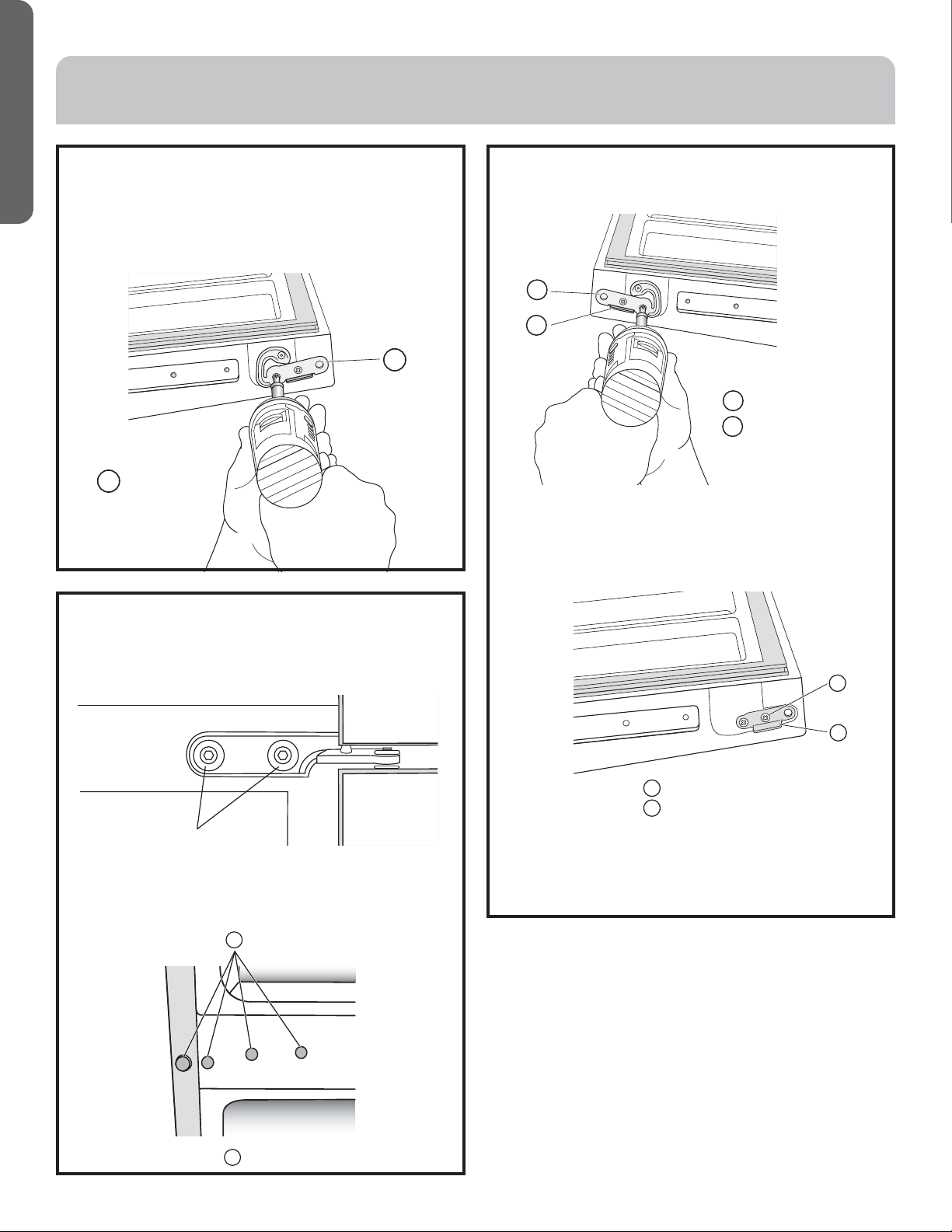

13. Move the door closure to the opposite side. Flip over
the door closure so that the curved edge of the closure
is toward the center of the door.
14. Remove innermost screw. Fit the door closure on top
of the door stop screw, and fasten with the innermost
screw.
4. Using a Phillips screwdriver, remove the two screws
fastening the plastic door closure and the metal door
stop to the bottom of the door.
5. Remove the screw from the door closure, and replace
the screw into the hole from which it was removed.
6. Move the door stop to the opposite side. Insert screw
into the center hole and fasten.
7. Move the door closure to the opposite side. Flip over the
door closure so that the curved edge of the closure is
toward the center of the door.
REMOVE AND REVERSE FREEZER DOOR
1. Remove the two screws attaching the center hinge to
the bottom of the refrigerator compartment. Remove
the center hinge and save for possible future use.
2. Lift the freezer compartment door from the bottom
hinge.
3. Move the hole plugs and the screw to the opposite side.
ENGLISH
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
A
ADoor Closure
A
A
B
B
Door Closure
Door Stop
Screws
A
AHole Plugs
Screw
Door Stop
A
B
A
B

49-1000580 Rev. 0 11
8. Remove innermost screw. Fit the door closure on top
of the door stop screw, and fasten with the innermost
screw.
9. Using two or more people lay the refrigerator on the
ĥòòõ
10. Remove the three screws attaching the bottom hinge
to the cabinet. Remove the bottom hinge and save for
possible future use.
11. Remove the new bottom hinge from the accessory
bag. Using the three screws removed earlier, fasten the
bottom hinge to the opposite side of the cabinet.
REINSTALL DOORS
1. Align the hole in the bottom of the freezer compartment
door with the hinge pin and gently lower the door onto
the bottom hinge.
2. Align the edge of the freezer door with the side of the
cabinet before installing the center hinge.
3. Remove the new center hinge from the accessory
bag, insert the hinge pin into the top of the freezer
compartment door, and then fasten the hinge to the
bottom of the refrigerator compartment opening.
4. Remove the new top hinge from the accessory bag.
Insert the hinge pin into the hinge hole in the top of the
refrigerator door, and then gently lower the door onto
the center hinge.
5. Align the edge of the refrigerator door with the side of
the cabinet before fastening the top hinge.
6. Using the top hinge screws, removed earlier, fasten the
top hinge to the refrigerator cabinet.
ENGLISH
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Bottom Hinge
Screws
A
A
B
B
Bottom Hinge
Screws
A
A
B
B
Bottom Hinge
Screws
A
A
B
B
Screws
WARNING
Excessive Weight Hazard
Use two or more people to move and
install refrigerator.
Failure to do so can result in back or other injury.

12 49-1000580 Rev. 0
7. Remove the new hinge cover from the accessory
bag. Insert the wiring cable through the clips on the
underside of the cover, and then fit the cover over the
hinge.
8. Flip the hinge screw cover, and insert it into the interior
edge of the door.
9. Replace the door top plate.
10. Connect the ends of both wire harnesses.
NOTE:Öäîèöøõè÷ëèúìõìñêìöóõèööèçĤõðïüìñ÷ò
÷ëèæïìóöäñçĤ÷÷ëèèûæèööïèñê÷ëìñ÷ò÷ëèæäåìñè÷
opening.
11. Replace the wiring cover on top of the refrigerator
cabinet, and fasten with the four screws.
12. Insert the hinge screw covers into the wiring cover on
the top of the cabinet.
ENGLISH
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
A
AWiring Cable
A
A
Screws
Hinge Screw Covers
A
A
A
AHinge Screw Cover
A
APlaca superior
A
A
B
B
Wiring Harnesses
Wiring Cover

49-1000580 Rev. 0 13
STEP 3 - COMPLETE THE
INSTALLATION
1. Plug into a grounded 3 prong outlet.
2. Return all removable door parts to door and food to
refrigerator.
NOTE: This refrigerator begins operating as soon as it is
connected to the power supply.
STEP 4 - LEVELING AND DOOR
ADJUSTMENT (IF NEEDED)
The refrigerator must be level to maintain optimal
performance and appearance.
LEVELING
1. Move the refrigerator to its final location.
2. Turn the feet on the bottom, front of the cabinet to
raise or lower that side of the refrigerator until the
refrigerator is level side-to-side.
3. Turn both front legs, by the same amount, to slightly
raise the front of the refrigerator. This will make it easier
for the doors to close.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to turn the screws.
ENGLISH
INSTALLATION INSTRUCTIONS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power
cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or
electrical shock.
READ AND SAVE THESE INSTRUCTIONS

14 49-1000580 Rev. 0
REFRIGERATOR USE
To Lock the Control Panel:
1. Press and hold LOCK for 3 seconds. The Lock indicator will
turn on.
TEMPERATURE DISPLAY
When no buttons or doors are operated for 30 seconds, all
÷ëèÕÎÍöòñçìöóïäüóäñèï÷øõñòģ
When a button is pressed or a door opened, the LEDs on
display panel illuminate.
UNITS SELECT
The Units Select feature allows you to choose between
displaying the set temperature in either degrees Fahrenheit
(°F) or degrees Celsius (°C).
The default temperature unit is degrees Fahrenheit.
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press and hold FRIDGE and FREEZER at the same time
for 3 seconds. °C will appear next to the temperature
display to indicate that the unit has been changed to
degrees Celsius.
3. To return to displaying the set temperature in degrees
Fahrenheit, press and hold FRIDGE and FREEZER at the
same time for 3 seconds. The °C will disappear from the
Temperature display.
ENGLISH
USING THE CONTROLS
TOUCH PADS
The controls are touch pads, which respond when lightly
touched.
CONTROL PANEL LOCK
The control panel is automatically locked after 30 seconds
of nonuse. To change any settings the control panel must be
unlocked.
To Unlock the Control Panel:
1. Press and hold LOCK for 3 seconds. The Lock indicator will
turn OFF.
READ AND SAVE THESE INSTRUCTIONS
Fridge
Hold 3 sec.
Lock
My Zone
Freezer
Quick Cool
Quick Freeze
Sabbath
Hold 3 sec.
H
I
J
K
L
M
N
G
F
E
D
C
B
A
Refrigerator Temperature
Indicator
My Zone Temperature
Indicator
Freezer Temperature
Indicator
Quick Cool Indicator
Quick Freeze Indicator
Sabbath Indicator
Lock Indicator
G
F
E
D
C
B
AFridge Temperature
Control
My Zone Temperature
Control
Freezer Temperature
Control
Quick Cool Control
Quick Freeze Control
Sabbath Mode Control
Lock Control
H
I
J
K
L
M
N
Hold 3 sec.
Lock
Fridge My Zone Freezer
Fridge
Freezer

49-1000580 Rev. 0 15
2. Press the Freezer button to adjust the temperature.
NOTE: The temperature decreases by one degree and a
tone sounds with each press of the button. After 5 seconds
have passed with no button being pressed the temperature
öè÷÷ìñêæòñĤõðöäø÷òðä÷ìæäïïü
To Adjust the My Zone Temperature:
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press MY ZONE to adjust the temperature.
NOTES:
• The temperature increases by two degrees F (one
degree C) and a tone sounds with each press of the
control.
• The temperature in the My Zone compartment cannot
be set warmer than the temperature of the refrigerator
compartment.
3. Press any control except My Zone to confirm. The
indicator light will stop flashing.
NOTE: Temperature setting will confirm automatically
after 5 seconds have passed.
TEMPERATURE CONTROLS
The temperature range for the refrigerator compartment
is 34°F to 42°F (1°C to 6°C). The temperature range for the
freezer compartment is -6°F to 4°F (-21°C to -16°C). The
temperature range for the My Zone compartment is 27°F to
41°F (-3°C to 5°C).
The refrigerator and My Zone compartments are preset to
the recommended temperature of 37°F (3°C) and the freezer
compartment is preset to the recommended temperature
òé Ï¤¡!(Ì¥àëèñ÷ëèõèéõìêèõä÷òõìöĤõö÷óïøêêèçìñ÷ëè
display will show the recommended temperature settings.
IMPORTANT:
• The recommended setting should be correct for normal
household refrigerator use.
• When the refrigerator is first turned on, it may take up to 12
hours to cool to the preset temperatures. Wait 24 hours for
your refrigerator to cool completely before adding food. If you
add food before the refrigerator has cooled completely, your
food may spoil.
• If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not blocked
before adjusting the controls.
Adjusting Controls
Except when first turning on the refrigerator, do not adjust
either temperature more than one degree at a time. Wait
24 hours between adjustments for the temperature to
stabilize.
NOTE: The temperature cannot be adjusted if any other
control function such as Quick Freeze, Quick Cool or
Sabbath Mode is activated, or the Control Panel is locked.
The corresponding indicator will illuminate and a tone will
sound.
To Adjust the Refrigerator Temperature:
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press Fridge to adjust the temperature.
NOTE: The temperature increases by one degree and
a tone sounds with each press of the button. After 5
seconds have passed with no button being pressed the
temperature setting confirms automatically.
To Adjust the Freezer Temperature:
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
ENGLISH
REFRIGERATOR USE
READ AND SAVE THESE INSTRUCTIONS
Fridge
Freezer
My Zone
Setting Description
35°F - 41°F
(2°C - 5°C)
Fruits and Vegetables
Suitable to store fruits and vegetables
27°F (-3°C) Defrost Food or Rapid Cool
Suitable to defrost frozen food or rapidly cool
beverages
29°F - 35°F
(-2°C - 2°C)
Meats
Üøì÷äåïè÷òö÷òõèéõèöëĤöëðèä÷äñçæòòîèç
food for 1 to 2 days.

16 49-1000580 Rev. 0
SABBATH
The Sabbath function is designed for those whose religious
observances require turning off the lights. All interior lights
and alarms will be disabled.
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press and hold SABBATH for 3 seconds until the Sabbath
indicator illuminates.
NOTES:
• All alert tones and lights are deactivated.
• If Quick Cool and/or Quick Freeze was on, Sabbath mode
turns off these features automatically.
• The Control Panel will remain unlocked while in Sabbath mode.
3. To deselect Sabbath mode, press and hold SABBATH for
3 seconds.
FEATURES
ADJUSTABLE SHELVES
The height of the shelves can be adjusted to fit your storage
needs.
1. To remove a shelf, lift up on both the front and back edge
to disengage the shelf hooks from the shelf supports along
the refrigerator wall and pull it out.
2. To reinstall a shelf, rest the shelf on both the front and rear
supports. Push the shelf toward the rear of the refrigerator
until the back of the shelf hooks around the rear shelf
supports.
QUICK COOL
The Quick Cool feature accelerates the cooling of fresh food
and protects the foods already stored from undesirable
warming.
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press the Quick Cool button. The Quick Cool indicators
will illuminate.
3. Repeat steps 1 and 2 to manually turn off the Quick Cool
feature.
NOTE: Quick Cool will automatically turn off after 3 hours.
QUICK FREEZE
The Quick Freeze function accelerates the freezing of
fresh food and protects frozen food from undesirable
warming. If you need to freeze a large amount of food, it
is recommended to select the Quick Freeze feature a few
hours in advance.
1. If locked, unlock the control panel by pressing and holding
LOCK for 3 seconds.
2. Press the Quick Freeze button. The Quick Freeze
indicators will illuminate.
3. Repeat steps 1 and 2 to manually turn off the Quick
Freeze feature.
NOTE: Quick Freeze will automatically turn off after 24
hours.
REFRIGERATOR USE
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
Hold 3 sec.
Lock
Hold 3 sec.
Lock
Quick CoolQuick Cool
Sabbath
Hold 3 sec.
Quick Freeze
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebblesize pieces. This is normal. Glass shelves and covers are
heavy. Use both hands when removing them to avoid dropping.

49-1000580 Rev. 0 17
REMOVABLE DOOR BINS
To Remove/Replace a Door Bin:
1. Place hands on both sides of the bin and lift upward, and
pull out.
2. Replace the door bin by inserting it above the support and
press down to engage.
MY ZONE DRAWER
The My Zone compartment allows you to store temperature
sensitive foods at the correct temperature to ensure optimal
nutritional value.
NOTE: My Zone is not recommended for the storage of
cheese or cold-sensitive fruits and vegetables such as
avocados, bananas, potatoes, cucumbers, tomatoes.
REMOVABLE FREEZER STORAGE DRAWERS
IMPORTANT: Do not overload the drawers.
To Remove and Replace a Freezer Drawer:
1. Remove the freezer draw by extending the drawer fully, and
then lift up on the drawer and pull out to remove.
2. Replace the drawer by tilting the back of the drawer
downward onto the support and sliding it in.
ENGLISH
REFRIGERATOR USE
READ AND SAVE THESE INSTRUCTIONS
AMy Zone Drawer
A

18 49-1000580 Rev. 0
REFRIGERATOR CARE
ENGLISH
READ AND SAVE THESE INSTRUCTIONS
CLEANING
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once a
month to avoid buildup of odors. Wipe up spills immediately.
Because air circulates between both sections, any odors formed
in one section will transfer to the other. You must thoroughly
clean both sections to eliminate odors. To avoid odor transfer
and drying out of food, wrap or cover foods tightly.
IMPORTANT:
• Do not use harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents, abrasives or metal
scouring pads to clean your refrigerator inside or out. They
can damage and/or discolor the refrigerator finish.
• Do not use warm water to clean glass shelves while they
are still cold. Glass may break when exposed to sudden
temperature changes or impact.
1. Unplug refrigerator or disconnect power.
2. Clean the interior. Hand wash, rinse, and dry removable
parts and interior surfaces thoroughly. Use a clean sponge
or soft cloth and a mild detergent in warm water.
3. Clean the exterior surfaces.
Painted metal: Wash painted metal exteriors with a clean,
soft cloth or sponge and a mild detergent in warm water.
Rinse surfaces with clean, warm water and dry immediately
to avoid water spots.
Stainless steel: Stainless steel is corrosion resistant
and not corrosion-proof. To help avoid corrosion of your
stainless steel, wash stainless steel surfaces with a clean,
soft cloth or sponge and a mild detergent in warm water.
Rinse surfaces with clean, warm water and dry immediately
to avoid water spots.
NOTE: When cleaning stainless steel, always wipe in the
direction of the grain to avoid cross-grain scratching.
4. Plug in refrigerator or reconnect power.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Ïäìïøõè÷òçòöòæäñõèöøï÷ìñçèä÷ëĤõèòõèïèæ÷õìæäïöëòæî

49-1000580 Rev. 0 19
MOVING
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all frozen
food in dry ice.
2. Unplug refrigerator.
3. Clean, wipe, and dry thoroughly.
4. Take out all removable parts, wrap them well, and tape
them together so they don’t shift and rattle during the
move.
5. Raise the leveling legs so they don’t scrape the floor. See
“Leveling.”
6. Tape the doors closed and tape the power cord to the back
of the refrigerator.
7. When you get to your new home, replace removable parts.
Refer to the “Installation Instructions” section to prepare
the refrigerator for use.
REINSTALLING/USING
REFRIGERATOR AGAIN
If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 24 hours before plugging
it in to allow the refrigerant to settle.
1. Clean refrigerator. See “Cleaning.“
2. Place refrigerator in desired location and level. See
“Installation Instructions.”
LIGHTS
The interior lights of the refrigerator turn off when the doors
are open for more than 7 minutes.
IMPORTANT: Your refrigerator is equipped with LED
lighting. These lights are designed to last for the life of your
refrigerator. However, if the lights stop operating, please
contact a qualified technician for replacement.
VACATION AND MOVING CARE
VACATION
If You Choose to Leave the Refrigerator On While
You’re Away:
1. Use up any perishables and freeze other items.
If You Choose to Turn Off the Refrigerator Before You
Leave:
1. Remove all food from the refrigerator and freezer.
2. Unplug refrigerator or disconnect power.
3. Clean refrigerator, wipe it, and dry well.
4. Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
REFRIGERATOR CARE
Excessive Weight Hazard
Use two or more people to move and install refrigerator.
Failure to do so can result in back or other injury.
WARNING
ENGLISH

20 49-1000580 Rev. 0
ENGLISH
PROBLEM POSSIBLE CAUSE(S) SOLUTION
Refrigerator does not run. Refrigerator is unplugged. Plug into a grounded 3 prong outlet.
Ëõèäîèõìö÷õìóóèçòõ÷øõñèçòģ¦Ïøöèìö
blown. Reset / Turn on breaker or replace fuse.
Refrigerator is in defrost mode. Wait approximately 40 minutes for defrost cycle
to end, and the cooling system to restart.
Refrigerator compress or
runs frequently or for long
periods of time.
NOTE: This refrigerator is
designed to run for longer
periods of time at a lower
energy usage.
Ûèéõìêèõä÷òõìöĤõö÷óïøêêèçìñ Allow 12 hours for the refrigerator to cool down.
Warm food or large amounts of food
added. This is normal.
Door is left open, or refrigerator is not
level. Ensure that door is not being held open by an Item. Level the refrigerator. See “Leveling
Refrigerator.”
Hot weather or frequent openings This is normal.
Temperature control set to coldest
setting. Adjust temperature to a warmer setting.
Refrigerator has an odor. Food is not sealed or packaged
properly. Reseal packaging. Place an opened box of baking soda in the refrigerator, replace every 3 months.
Interior needs to be cleaned. Clean the interior. See “Cleaning.“
Food stored too long. Dispose of spoiled food.
Light does not come on. Refrigerator is unplugged. Plug into a grounded 3 prong outlet.
LED light is burned out. Ìòñ÷äæ÷äôøäïìĤèç÷èæëñìæìäñ÷òõèóïäæè÷ëè
burned out LED.
Sabbath Mode is activated. Lights are disabled in Sabbath mode. To turn on
ïìêë÷öüòøðøö÷÷øõñòģÜäååä÷ëÖòçè
See “Sabbath Mode” for instructions.
Doors do not close
properly. Refrigerator is not level. See “Leveling.“
Something is obstructing door closure. Check for and remove obstructions.
Vibration or rattling Ûèéõìêèõä÷òõìöñò÷õèö÷ìñêĤõðïüòñ
ĥòòõ
See “Leveling.“
Normal Sounds Ò÷öòøñçöïìîèúä÷èõìöĥòúìñêéõòð÷ëè
refrigerator. Ûèéõìêèõäñ÷ĥòúìñêìñ÷ëèïìñèöúìïïðäîè÷ëìö sound when the compressor starts and stops.
The refrigerator has an automatic defrosting
system. The defrosted water will make this
sound.
Humming or buzzing sounds The compressor and fans for cold air circulation
can make this sound. If the refrigerator is not
level, the sound will be louder.
Cracking or clicking sounds The interior parts will make this sound as they
contract and expand in response to temperature
changes.
TROUBLESHOOTING
First try the solutions suggested here to possibly avoid the cost of a service call.
REFRIGERATOR IS NOT OPERATING
READ AND SAVE THESE INSTRUCTIONS
