Haier HBCND05EB - 06-04 User manual

Entertainment Center
Centre de Divertissement
Cava de Vinos
User Manual
Model # HBCN02EBB, HBCN05EBB, HBCND05EB
Guide de l’Utilisateur
Modéle # HBCN02EBB, HBCN05EBB, HBCND05EB
Manual del Usuario
Para Modelo de # HBCN02EBB, HBCN05EBB, HBCND05EB
Quality •Innovation •Style
(HBCN05EBB)
(Features will vary per model)
(HBCND05EB)

1
IMPORTANT SAFEGUARDS
W
Wh he en nu us si in ng gt th hi is sa ap pp pl li ia an nc ce e, ,a al lw wa ay ys se ex xe er rc ci is se eb ba as si ic cs sa af fe et ty yp pr re ec ca au ut ti io on ns s, ,
i
in nc cl lu ud di in ng gt th he ef fo ol ll lo ow wi in ng g: :
1) Read all of the instructions before using this appliance.
2) Use this appliance only for its intended purpose as described in this use and
care guide.
3) This entertainment center must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
4) Never unplug your entertainment center by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
5) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or abra-
sion damage along its length, the plug or the connector end.
6) Unplug your entertainment center before cleaning or before making any
repairs. Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
7) If your old entertainment center is not being used, we recommend that you
remove the doors and leave the shelves in place. This will reduce the
possibility of danger to children.
8) This entertainment center should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
9) Do not operate your entertainment center in the presence of explosive fumes.
10) Your entertainment center was NOT designed to store perishable foods. Store
only bottled or canned beverages.
SAVE THESE INSTRUCTIONS
DANGER
R
Ri is sk ko of fc ch hi il ld de en nt tr ra ap pm me en nt t. .B Be ef fo or re ey yo ou ut th hr ro ow wa aw wa ay yy yo ou ur ro ol ld d
a
ap pp pl li ia an nc ce e, ,t ta ak ke eo of ff ft th he ed do oo or rs s. .L Le ea av ve et th he es sh he el lv ve es si in np pl la ac ce es so o
t
th ha at tc ch hi il ld dr re en nm ma ay yn no ot te ea as si il ly yc cl li im mb bi in ns si id de e. .
English

2
Table Of Contents
PAGE
I
IM MP PO OR RT TA AN NT TS SA AF FE EG GU UA AR RD DS S1
P
PA AR RT TS SA AN ND DF FE EA AT TU UR RE ES S3
I
IN NS ST TA AL LL LI IN NG GY YO OU UR RE EN NT TE ER RT TA AI IN NM ME EN NT TC CE EN NT TE ER R4-6
Unpacking your entertainment center 4
Leveling your entertainment center 4
Proper Air Circulation 4
Electrical requirements 5
Use of extension cords 5
Install Limitations 5
Door Reversal 6
E
EN NT TE ER RT TA AI IN NM ME EN NT TC CE EN NT TE ER RF FE EA AT TU UR RE ES SA AN ND DU US SE E7-8
General features 7
Adjustable temperature dial 7
Entertainment center insterior shelves 7
Normal operating sounds 8
P
PR RO OP PE ER RE EN NT TE ER RT TA AI IN NM ME EN NT TC CE EN NT TE ER RC CA AR RE EA AN ND DC CL LE EA AN NI IN NG G9-10
Cleaning and Maintenance 9
Defrosting 10
Power interruptions 10
Vacation & moving care 10
T
TR RO OU UB BL LE ES SH HO OO OT TI IN NG G11
W
WA AR RR RA AN NT TY Y12
Thank you for using our Haier product.
This easy-to-use manual will guide you
in getting the best use of your
entertainment center.
Remember to record the model and
serial number. They are on a label in
back of the entertainment center.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
Y
Yo ou uw wi il ll ln ne ee ed di it tt to oo ob bt ta ai in nw wa ar rr ra an nt ty ys se er rv vi ic ce e. .
English

3

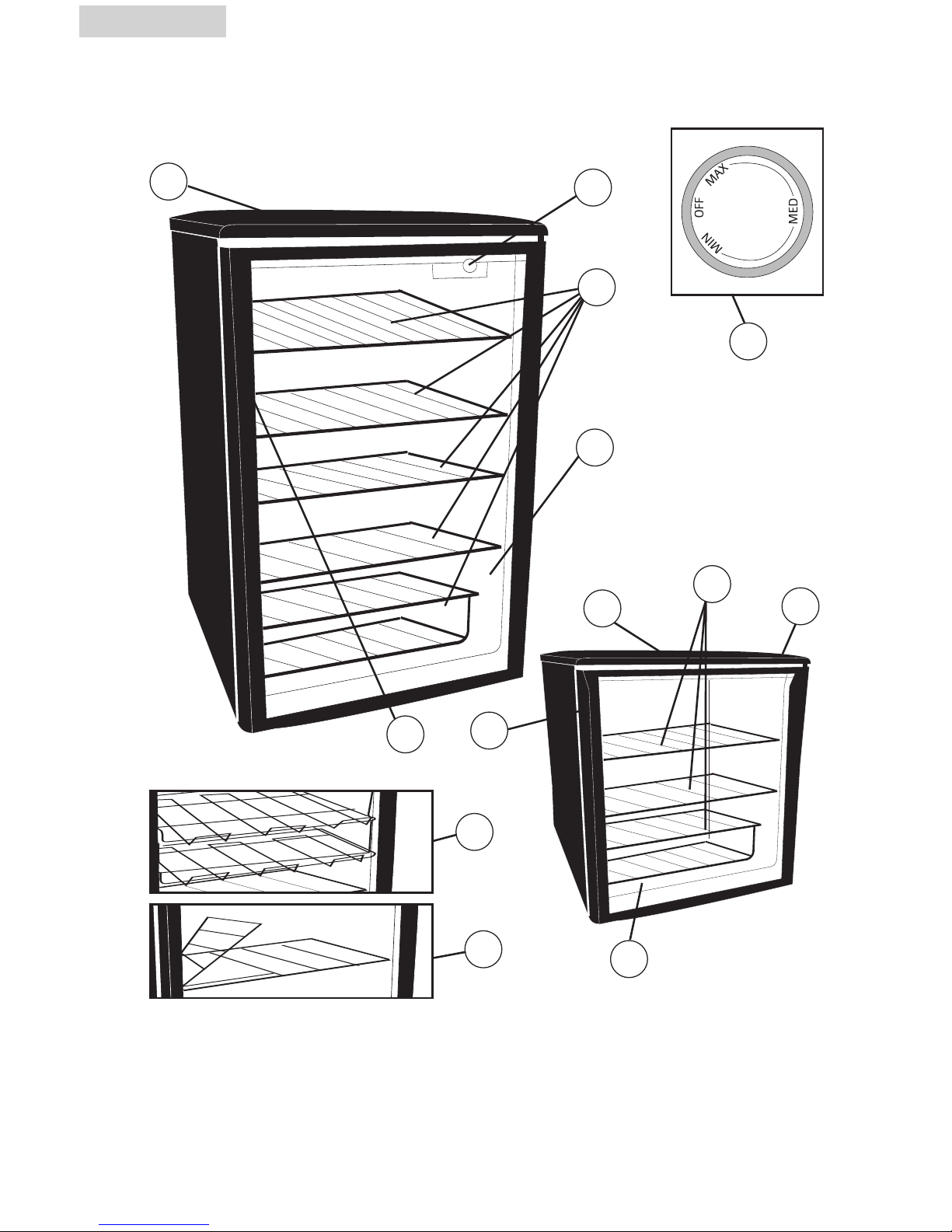

Knowing Your Entertainment Center
Parts and Features
1. Thermostat Dial
(location varies per model)
2. Coated Storage Shelves (style and
quantity vary with model)
3. See-through Glass Door
4. Recessed Door Handle
5. Work Top
6. Dual Dispense Can Storage on
HBCND05EB only.
7. Flip Shelf on HBCND05EB only
1
4
5
3
English
(HBCN05EBB)
2
(HBCN02EBB)
1
5
4
2
3
1
6
7

4
English
Installing Your Entertainment Center
Unpacking your Entertainment Center
1. Remove all packaging material. This includes the base and all adhesive tape
holding the entertainment center accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before
powering on the entertainment center.
Leveling your Entertainment Center
• Your entertainment center has 2 leveling legs which are located at the bottom
of your entertainment center. After properly placing your entertainment center
in its final position, you can level your entertainment center.
• Leveling legs can be adjusted by turning them clockwise to raise your
entertainment center or by turning them counterclockwise to lower your
entertainment center. The entertainment center door will close easier when the
leveling legs are extended.
Proper Air Circulation
• To assure your entertainment center works at the maximum efficiency it was
designed for, you should install it in a location where there is proper air circu-
lation and electrical connections.
• The following are recommended clearances around the entertainment center:
Sides……………3/4 "(19mm)
Top....................2" (50mm)
Back..................2" (50mm)

5
English
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with
proper grounding to power the entertainment center.
• Avoid the use of three plug adapters or cutting off the third grounding in order
to accommodate a two plug outlet. This is a dangerous practice since it pro-
vides no effective grounding for the entertainment center and may result in
shock hazard.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
Install Limitations
• Do not install your entertainment center in any location not properly insulated
or heated e.g. garage etc. Your entertainment center was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the entertainment center on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard heaters,
cooking appliances etc. Any floor unevenness should be corrected with the
leveling legs located at the bottom.

6
English
Door Reversal Instructions
(HBCN05EBB and HBCND05EB)
Your entertainment center is built with a reversible door. You have the choice of
either opening it from the left or the right side. In order to reserve the opening
direction of your door, please follow these simple instructions.
Tilt the entertainment center backwards. Secure the rear from sliding. Tape the
door to the cabinet to prevent from falling.
1. Remove the 3 hexagonal screws from base bracket.
2. Remove the pivot holding the bottom of the door.
3. Separate the door from the cabinet and remove the pivot axle from the upper
side of the door. Remove and reinstall upper and lower axle door inserts to
opposite side.
4. Install the pivot axle to the opposite side.
5. Re-attach the door to the cabinet and secure with tape.
6. Attach the base bracket to the opposite side
7. Install the bottom pivot aligning with the lower pivot insert on the door. Attach
the 3 hexagonal screws to base bracket.
8. Remove tape.
9. As the unit was tilted, wait 24 hours before plugging it in.

7
English
Entertainment Center Features & Use
General Features
Adjustable Temperature Dial:
(location varies per model)
Your entertainment center will automatically maintain the
temperature level you select. The temperature control dial
has 3 settings plus off. MIN is the warmest. MAX is the cold-
est. Turning the dial to OFF stops cooling in the entertain-
ment
center. At first, set the dial to MED and allow 24 hours to
pass before adjusting the temperature to your needs.
1. Located on the rear near bottom for model HBCN02EBB.
2. Located on the interior of the unit on right side for model HBCN05EBB and
HBCND05EB.
(
(N No ot te e: :I If ft th he ee en nt te er rt ta ai in nm me en nt tc ce en nt te er rh ha as sb be ee en np pl la ac ce ed di in na ah ho or ri iz zo on nt ta al l
o
or rt ti il lt te ed dp po os si it ti io on nf fo or ra an ny yp pe er ri io od do of ft ti im me ew wa ai it t2 24 4h ho ou ur rs sb be ef fo or re ep pl lu ug g- -
g
gi in ng gt th he eu un ni it ti in n. .) )
Entertainment Center Interior Shelves
(Shelves will vary per model purchased)
TToorreemmoovveeoorrrreeppllaacceeaaffuullll--wwiiddtthhsslliiddee--oouuttsshheellff::
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
3. Dual Dispense Can Rack (HBCND05EB Only)
For easy access to cans.
4. Flip rack (HBCND05EB Only)
To help store tall and big size bottles only.

8
English
Normal Operating SoundsYou May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

9
Warning: To avoid electric shock always unplug your
entertainment center before cleaning. Ignoring this
warning may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your entertainment center.
• Rinse with clean warm water and dry with a soft
cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your entertain-
ment center.
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
Door Gaskets:
Proper Entertainment Center Care
and Cleaning
Cleaning and Maintenance
English
