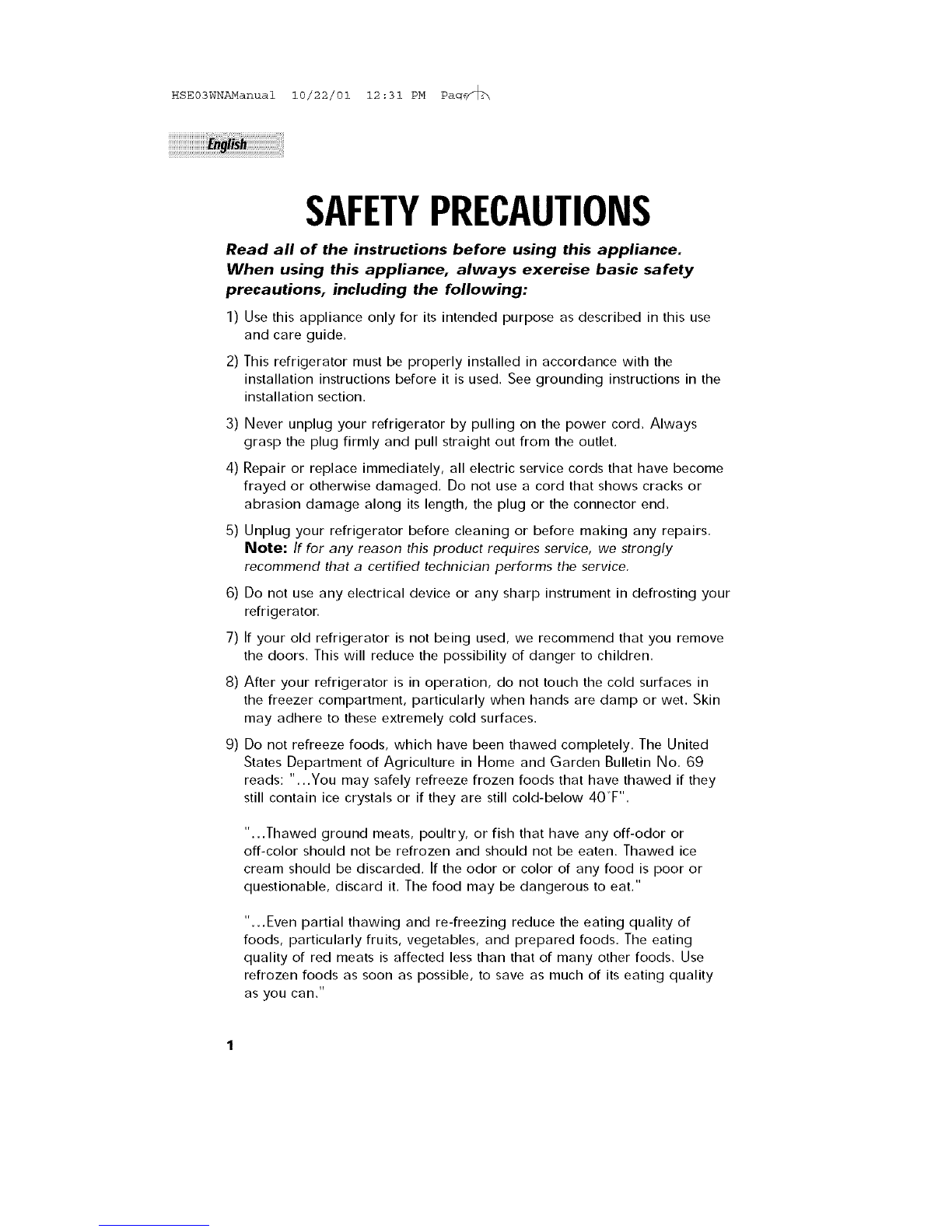

SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40°F''.
"...Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"...Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."

HSE03WNAManual 10/22/01 12:31 PM Paq_f_Th
10) This refrigerator should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only,
11) Do not operate your refrigerator in the presence of explosive fumes.
ForFutureReferencePlease
SAVETHESEINSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
As per UL 250 Standards.
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.

HSE03WNAManual 10/22/01 12:31 PM Paq_/_

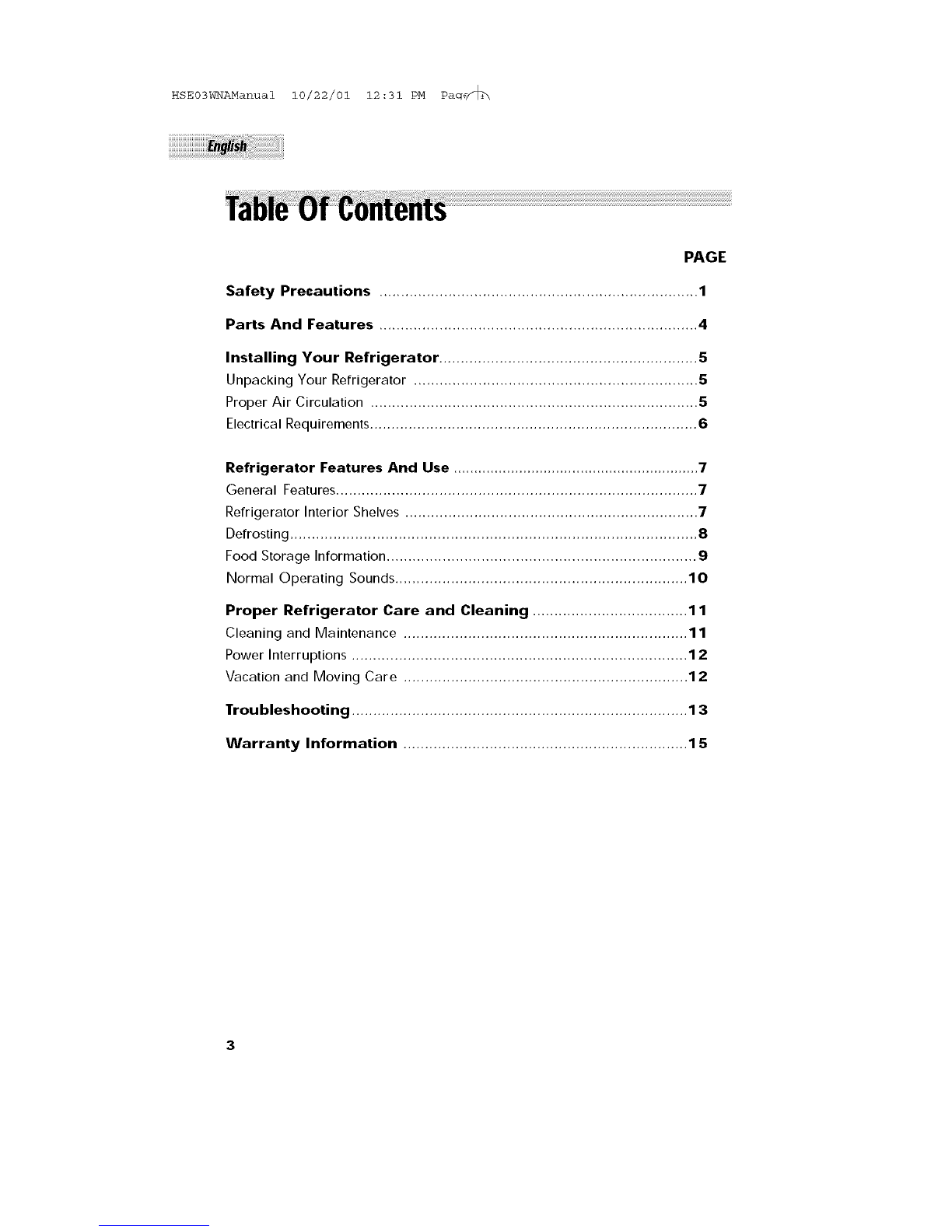

PAGE
Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Refrigerator ............................................................ 5
Unpacking Your Refrigerator .................................................................. 5
Proper Air Circulation ............................................................................ 5
Electrical Requirements ............................................................................ 6
Refrigerator Features And Use ............................................................ 7
General Features .................................................................................... 7
Refrigerator Interior Shelves .................................................................... 7
Defrosting .............................................................................................. 8
Food Storage Information ........................................................................ 9
Normal Operating Sounds .................................................................... 10
Proper Refrigerator Care and Cleaning .................................... 1 1
Cleaning and Maintenance .................................................................. 11
Power Interruptions .............................................................................. 12
Vacation and Moving Care .................................................................. 12
Troubleshooting .............................................................................. 13
Warranty Information .................................................................. 15

HSE03WNAManual 10/22/01 12:31 PM Paq_

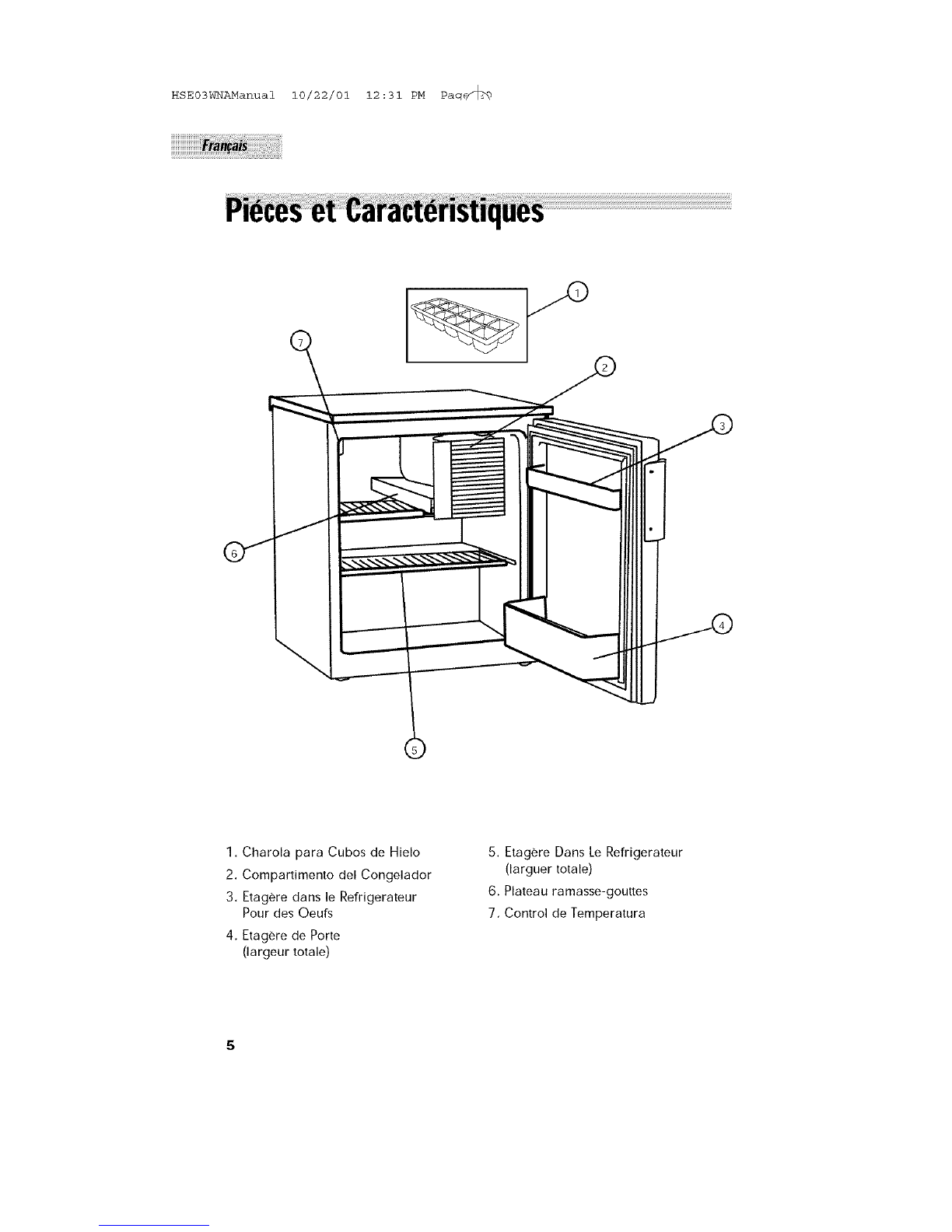

1. Ice Cube Tray
2. Freezer Compartment
3. Egg Storage Shelf
4, Door Storage Shelf
5, Full-Width Refrigerator Shelf
6, Drip Tray
7, Temperature Control

}{SE03WNAManual 10/22/01 12:31 PM Pag_/_

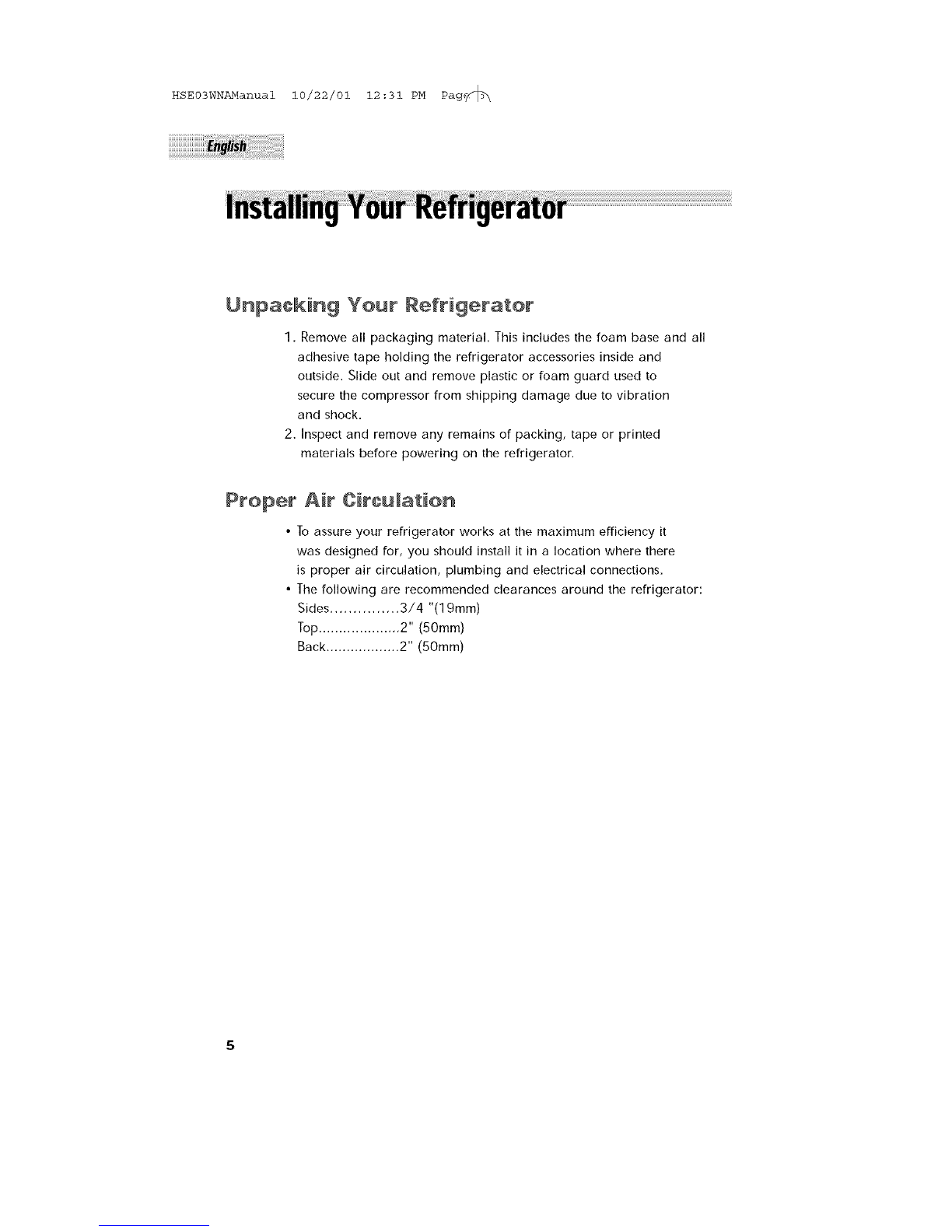

Unpacking Your Refrigerator
1, Remove allpackaging matehal. Thisincludesthe foam base and all
adhesive tape holding the refrigeratoraccessoriesinsideand
outside.Slideout and remove plasticor foam guard used to
secure the compFessor Horn shipping damage due to vibration
and shock.
2. Inspectand remove any remains of packing, tape or printed
materialsbefore powering on the refrigerator.
Proper Air Circulation
• To assure your refrigeratorworks at the maximum efficiencyR
was designed for,you should installitina locationwhere there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides ............... 3/4 "(19mm)
Top. .................. .2" (50ram)
Back. ................ .2" (50ram)

HSE03WNAManual 10/22/01 12:31 PM Paa_/_7_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil¸
De¢[ri{a_ Requirements
Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
install Limitations
• Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55 ° Fahrenheit.
• Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc.

HSE03WNAManual 10/22/01 12:31 PM Pag_/_
Gene[al [÷a[ures
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off. 1 is the warmest. 7 is
the coldest. Turning the dial to OFF stops
cooling in both the refrigeration and
freezer sections. At first, set the dial to 4
and allow 24 hours to pass before
adjusting the temperature to your needs.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Interior She_ves
To remove or replace a slide-out shelf:
(see fig. #1)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back,
fig. #1

HSE03WNAManual 10/22/01 12:31 PM Paq_/_

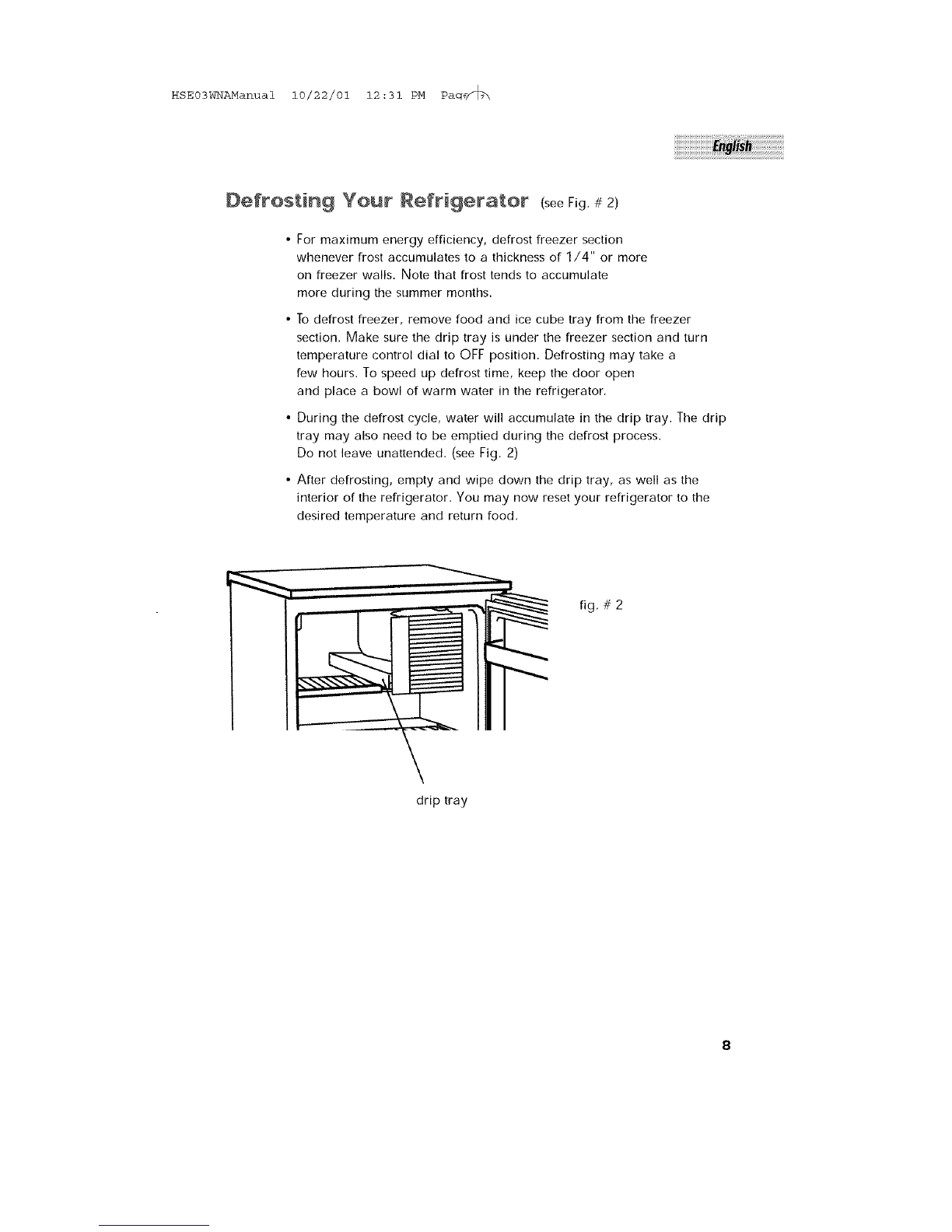

Defrosting Your Refrigerator (seerig. #2)
• For maximum energy efficiency, defrost freezer section
whenever frost accumulates to a thickness of 1/4" or more
on freezer walls. Note that frost tends to accumulate
more during the summer months.
• To defrost freezer, remove food and ice cube tray from the freezer
section. Make sure the drip tray is under the freezer section and turn
temperature control dial to OFF position. Defrosting may take a
few hours. To speed up defrost time, keep the door open
and place a bowl of warm water in the refrigerator,
• During the defrost cycle, water will accumulate in the drip tray. The drip
tray may also need to be emptied during the defrost process.
Do not leave unattended, (see Fig. 2)
• After defrosting, empty and wipe down the drip tray, as well as the
interior of the refrigerator, You may now reset your refrigerator to the
desired temperature and return food,
fig, # 2
drip tray

HSE03WNAManual 10/22/01 12:31 PM Pag_
Food Storage Information
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted This will ensure proper shelf life and prevent the transfer of
odors and tastes
• Wipe containers before storing to avoid needless spills
• Eggs should be stored in an upright position in their original carton to
maximize shelf life
• Fruit should be washed and dried then stored in sealed plastic bags
before storing in the refrigerator,
• Vegetables with skins should be stored in plastic bags or containers,
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use,
• Fresh seafood should be used the same day as purchased,
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
Chicken
Ground Beef
Cold Cuts
Steaks/Roasts
Smoked/Cured Meats
All others
12 Days
12 Days
35 Days
35 Days
710 Days
12 Days

HSE03WNAHanual 10/22/01 12:31 PM Paq_
NormaM Operating Sounds You May Hear
• Boilingwater, gurglingsounds or slightvibrationsthatare the resultof
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off,
lO

HSE03WNAManual 10/22/01 12:31 PM Paq_

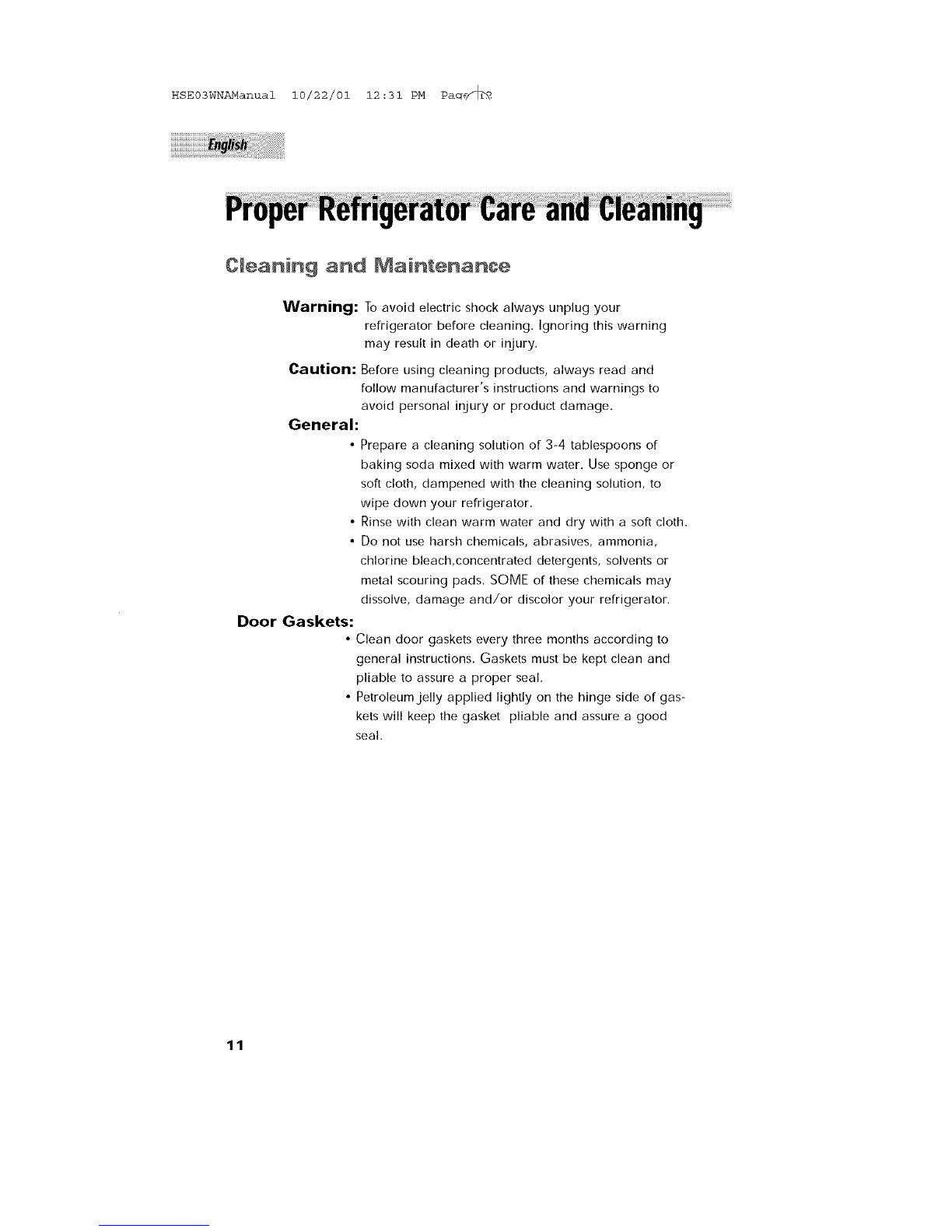

CMeaning and Maintenance
Warning: To avoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury,
Caution: Before using cleaning products, always read and
follow manufacturer's instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME or these chemicals may
dissolve, damage and/or discolor your refrigerator.
Door Gaskets: Clean door gaskets every three months according to
general instructions, Gaskets must be kept clean and
pliable to assure a proper seal,
• Petroleum jelly applied lightly on the hinge side of gas-
kets will keep the gasket pliable and assure a good
seal,
11

HSE03WNAManual 10/22/01 12:31 PM Paq_/_

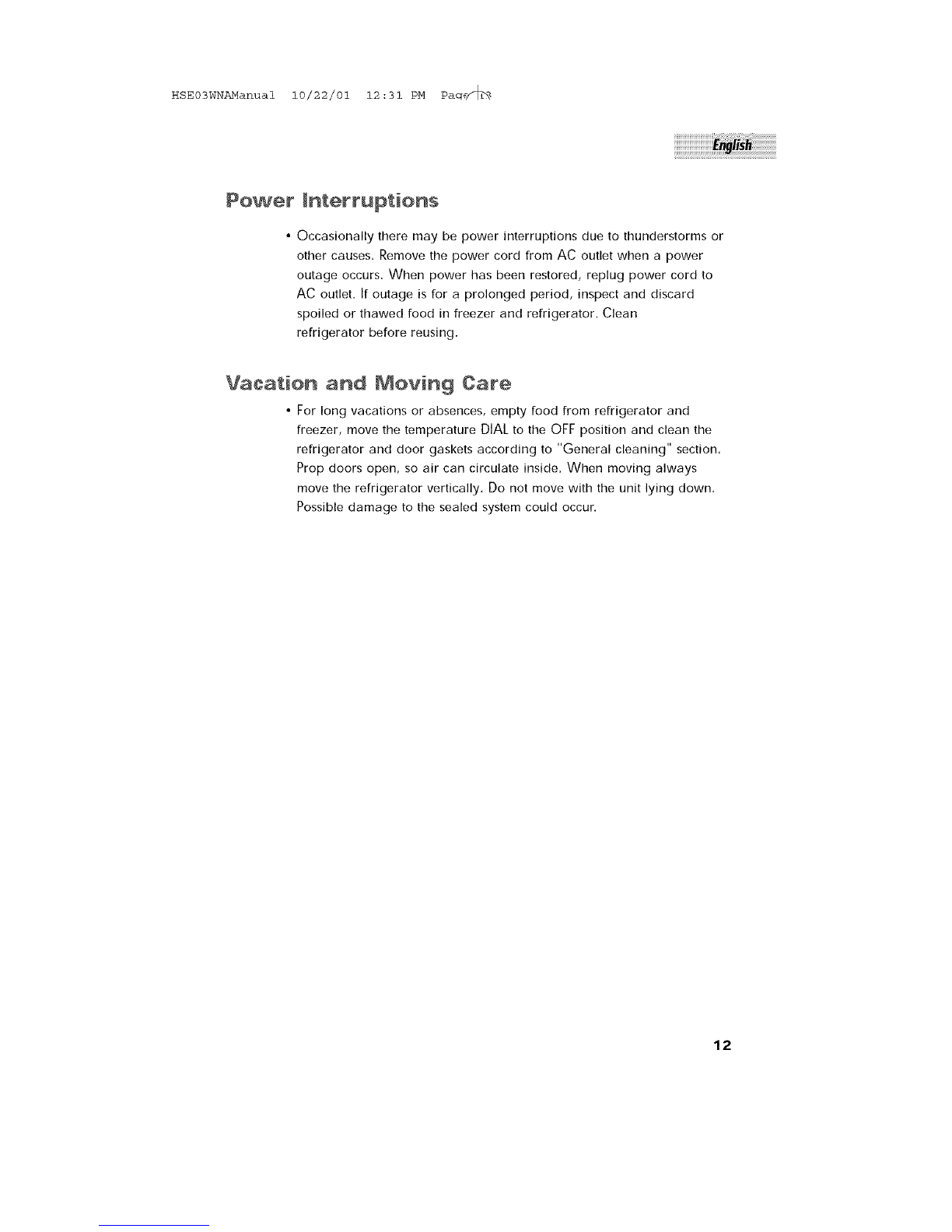

Power _nterruptions
•Occasionally there may be power interruptions due to thunderstorms or
other causes, Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
Vacation and Moving Oare
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning" section,
Prop doors open, so air can circulate inside. When moving always
move the refrigerator vertically, Do not move with the unit lying down,
Possible damage to the sealed system could occun
12

HSE03WNAManual 10/22/01 12:31 PM Paq_f_i_

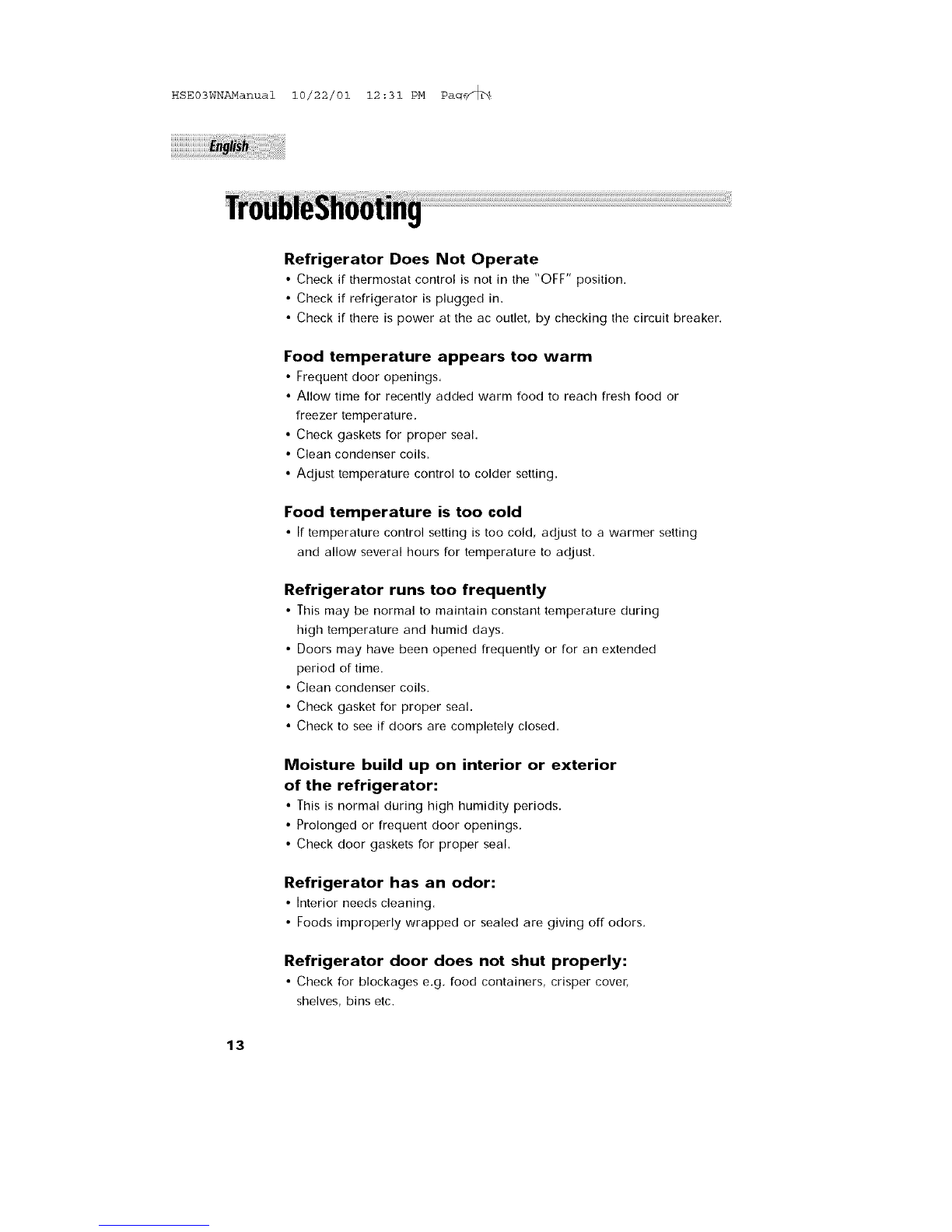

Refrigerator Does Not Operate
•Check if thermostat control is not in the "OFF" position.
• Check if refrigerator is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
Food temperature appears too warm
• Frequent door openings,
• Allow time for recently added warm food to reach fresh food or
freezer temperature,
• Check gaskets for proper seal.
• Clean condenser coils.
• Adjust temperature control to colder setting.
Food temperature is too cold
•if temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust,
Refrigerator runs too frequently
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Clean condenser coils.
• Check gasket for proper seal.
• Check to see if doors are completely closed,
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods,
• Prolonged or frequent door openings,
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors,
Refrigerator door does not shut properly:
•Check for blockages e.g, food containers, crisper cover,
shelves, bins etc.
13

HSE03WNAManual 10/22/01 12:31 PM Pag_/_

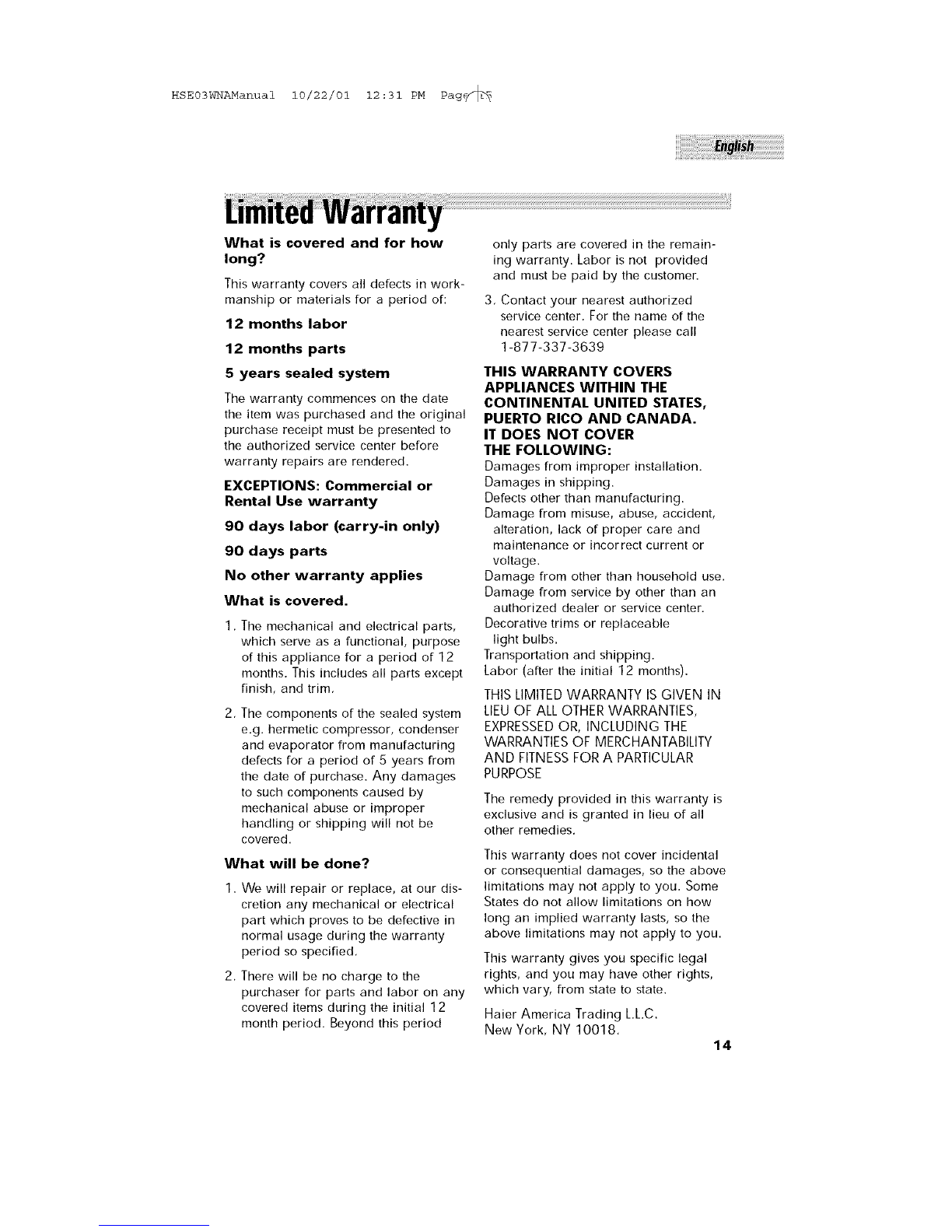

What is covered and for how
long?
This warranty covers all defects in work-
manship or materials for a period of:
12 months labor
12 months parts
5 years sealed system
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered.
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1,
2,
The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months. This includes all parts except
finish, and trim.
The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages
to such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1. We will repair or replace, at our dis-
cretion any mechanical or electrical
part which proves to be defective in
normal usage during the warranty
period so specified.
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12
month period. Beyond this period
only parts are covered in the remain-
ing warranty. Labor is not provided
and must be paid by the customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haler America Trading L.L.C.
New York, NY 10018. 14

HSE03WNAManual 10/22/01 12:31 PM Pag_
MESURESDESECURITE
Lire I'ensemble des instructions avant d'utiliser I'appareil.
Lors de I'utilisation de cet appareil, prendre toutes les
mesures de securite de base, ycompris les suivantes:
1) N'utiliser cet appareil que pour I'usage pour lequel il est prevu, tel qu'il est
indique dans le guide d'utilisation et d'entretien.
2) Ce refrigerateur doit etre correctement installe conformement aux
instructions d'installation avant d'etre utilise, Consulter les instructions
de raise a la terre du chapitre Installation.
3) Nejamais tirer sur le cordon d'alimentation pour debrancher le
refrigerateur. Toujours saisir fermement la fiche et la retirer
completement de la prise,
4) Reparer ou remplacer immediatement tout cordon electrique effiloche ou
endommage d'une quelconque maniere, Ne pas utiliser un cordon fissure,
abrase ou dont la prise ou le connecteur est endommage.
5) Debrancher le refrigerateur avant de le nettoyer ou d'effectuer des
reparations.Remarque: Si ce produit doit faire I'objet d'une
maintenance pour quelque raison que ce soit, il est vivement
recommande de confier cette t_che a un technicien agree.
6) Ne pas utiliser d'appareils electriques ou d'objets pointus pour degivrer le
refrigerateur,
7) Si vous n'avez plus I'usage de votre ancien refrigerateur, nous vous
conseillons d'en retirer les portes. Ceci permet d'eviter tout danger
potentiel pour les enfants.
8) Une lois le refrigerateur en fonctionnement, ne pas toucher les surfaces
froides du compartiment de congelation, en particulier avec des mains
mouillees ou humides. /a peau risquerait d'adherer aces surfaces
extremement froides.
9) Ne pas recongeler les aliments qui ont ete completement decongeles. /e
bulletin Maisons et ]ardins du Ministere de I'Agriculture des Etats-Unis n°
69 stipule que: <<.../es aliments congeles peuvent etre recongeles en route
securite s'ils contiennent toujours des cristaux de glace ou si leur
temperature reste inferieure a 4,5°C ''.
<<.../es viandes hachees, la volaille et le poisson presentant une odeur
desagreable ou une couleur suspecte ne doivent ni etre recongeles, ni etre
consommes. /a creme glacee degelee doit etrejetee. Tout aliment
presentant une odeur ou couleur douteuse doit etrejete. /'ingestion d'un
aliment de ce type peut s'averer dangereuse. >>

HSE03WNAManual 10/22/01 12:31 PM Pag_/_i_
<<...La decongelation ou la recongelation, meme partielle, fair diminuer
les qualites gustatives des aliments, en particulier des fruits, legumes et
plats prepares. La qua lite gustative des viandes rouges est affectee a un bien
moindre degre que celle de nombreux autres aliments. Utiliser les aliments
recongeles des que possible, afin de conserver la majeure partie de leurs
qualites gustatives. >>
10) Ce refrigerateur ne doit etre ni encastre, ni enclos dans un placard. II a ete
conqu pour etre installe tel qu'il se presente.
11) Ne pas faire marcher le congelateur en presence de fumees pouvant entrainer
une explosion,

HSE03WNAHanual 10/22/01 12:31 PM Paq_/'_9

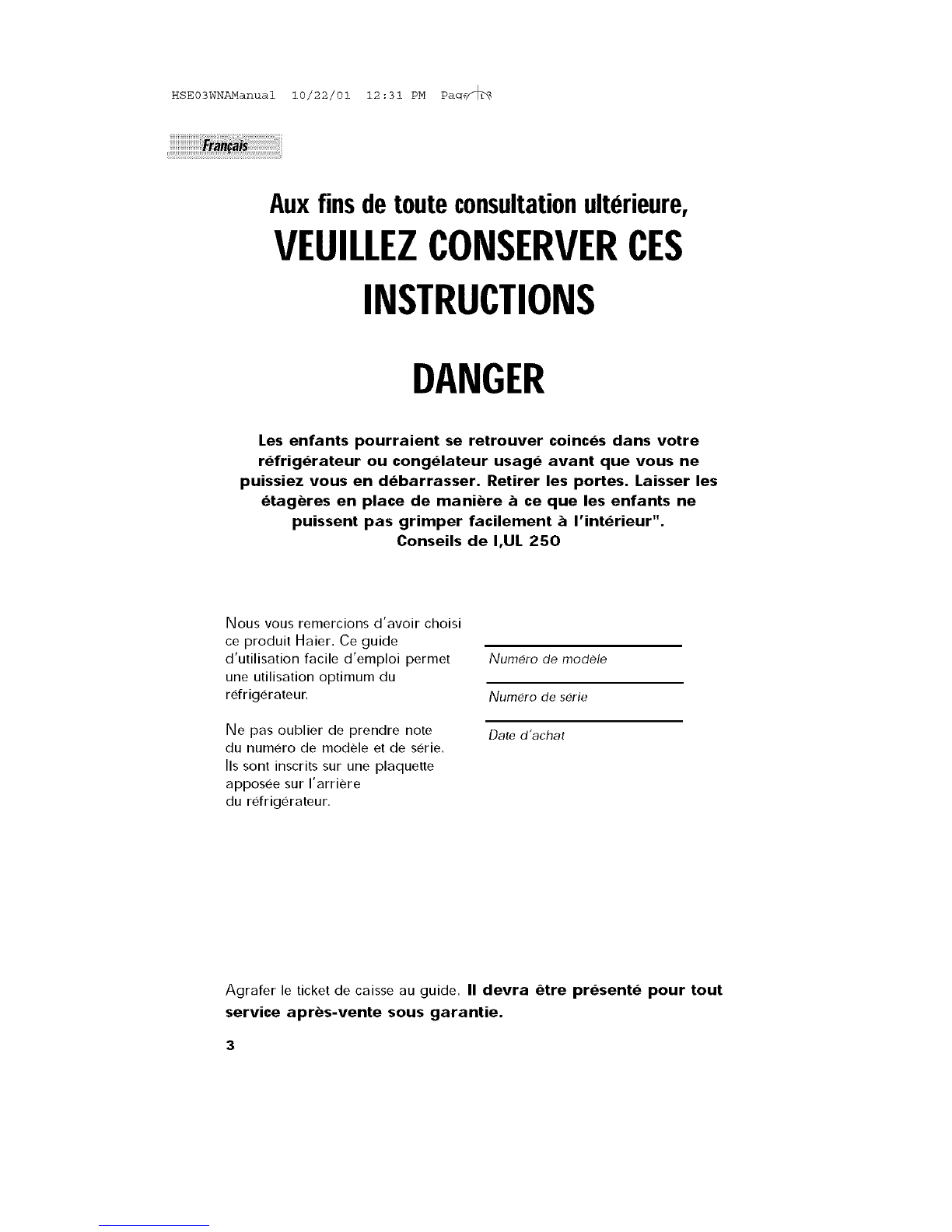

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!!_!i_ii_i_!iiii
Auxfinsdetouteconsultationulterieure,
VEUILLEZCONSERVERCES
INSTRUCTIONS
DANGER
Les enfants pourraient se retrouver coinces dans votre
refrigerateur ou congelateur usage avant que vous ne
puissiez vous en debarrasser. Retirer les portes. Laisser les
etageres en place de maniere a ce que les enfants ne
puissent pas grimper facilement a I'interieur".
Conseils de I,UL 250
Nous vous remercions d'avoir choisi
ce produit Haier, Ce guide
d'utilisation facile d'emploi permet
une utilisation optimum du
refrigerateur.
Ne pas oublier de prendre note
du numero de modele et de serie,
IIs sont inscrits sur une plaquette
apposee sur I'arriere
du refrigerateur,
Numero de modele
Numero de serie
Date d'achat
Agrafer le ticket de caisse au guide, II devra _tre presente pour tout
service apres-vente sous garantie.

HSE03WNAManual 10/22/01 12:31 PM Paq_f_i_

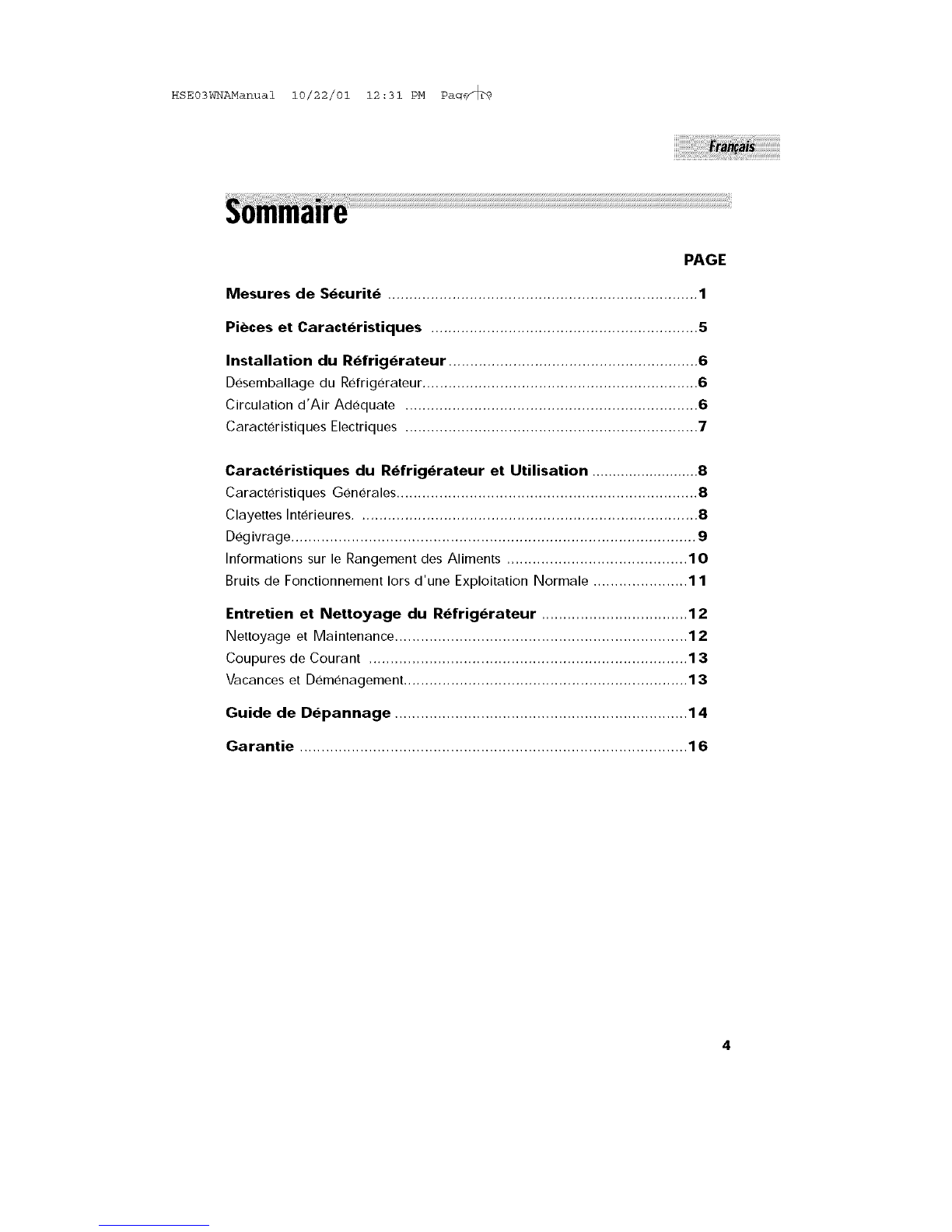

PAGE
Mesures de Securite ........................................................................ 1
Pieces et Caracteristiques .............................................................. 5
Installation du Refrigerateur .......................................................... 6
Desemballage du Refrigerateur ................................................................ 6
Circulation d'Air Adequate .................................................................... 6
Caracteristiques Electriques .................................................................... 7
Caracteristiques du Refrigerateur et Utilisation .......................... 8
Caracteristiques Generales ...................................................................... 8
Clayettes Interieures ............................................................................... 8
Degivrage .............................................................................................. 9
Informations sur le Rangement des Aliments .......................................... 10
Bruits de Fonctionnement Iors d'une Exploitation Normale ...................... 11
Entretien et Nettoyage du Refrigerateur .................................. 12
Nettoyage et Maintenance .................................................................... 12
Coupures de Courant .......................................................................... 13
Vacances et Demenagement .................................................................. 13
Guide de Depannage .................................................................... 14
Garantie .......................................................................................... 16

HSE03WNAManual 10/22/01 12:31 PM Paq _f_
\
1. Charola para Cubos de Hielo
2. Compartimento del Congelador
3. Etagere dans le Refrigerateur
Pour des Oeufs
4. Etagere de Porte
(largeur totale)
5. Etagere Dans Le Refrigerateur
(larguer totale)
6, Plateau ramasse-gouttes
7, Control de Temperatura
