Haier PRCS25TDAS - Appliances - Refrigerators User manual

Safety Precautions
Location
Features
Components
Dismantling and Installing the Door
Connecting the Water Supply Line
Preparation Before Use
Usage

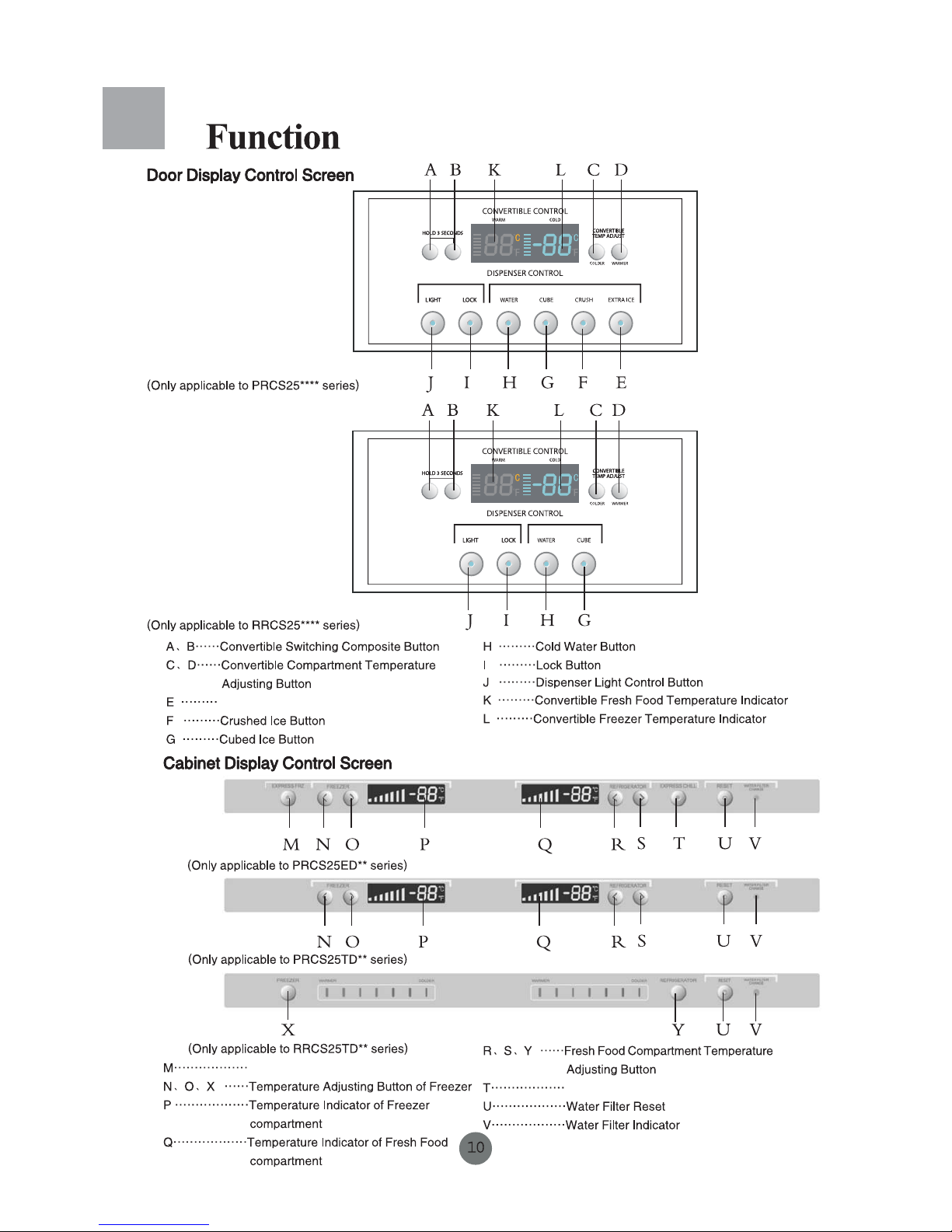

Function
About the Fresh Food Compartment
Precaution when Refrigerating Food
Tips and Hints in Using the Fresh Food Compartment
About the Freezer
Precaution when Freezing Food
Use of the Ice Maker and the Cold Water Dispenser
Dismantling and Installing the Ice Container
Usage of the Dispenser
Precautions in Using the Dispenser
About the Convertible Compartment
Defrosting, Cleaning
Water Filter
Discontinuing or Breaking in Usage
Troubleshooting
Limited Warranty
Contents

Before operating this appliance, please thoroughly read and retain this manual for your
reference. Because we offer a variety of models, the characteristics of your refrigerator may
differ slightly from those described in this manual.
The appliance is not intended for use by children without adult supervision. Children should be
supervised to ensure that they do not play with the appliance.
Indicates that a danger or risk of serious injury exists
Indicates that a risk of personal injury or material damage exists
Represents something you must follow
Represents something you must not do
This refrigerator uses AC
115V/60Hz power.
Large voltage fluctuation may
prevent start-up of the refrigerator,
burning of main control board, and
compressor or abnormal noise in the
compressor. In such cases, an auto
stabilizer is needed.
A separated socket is a must and
a reliable grounded plug is
needed as well.
This refrigerator uses a three-prong
(grounding) plug, which can be used
on standard three-prong (grounding)
sockets. In every case, cutting off or
dismantling the third prong
(grounding) is prohibited. After the
refrigerator is installed, the plug must
be within reach.
Do not damage the power cord.
Do not disconnect the power
cord by pulling on it. Hold the plug
and pull it out from the socket
directly.
The refrigerator must not press
on the cord. Do not step on the
cord.
When you move the refrigerator
away from the wall, make sure that
you do not roll over or press on the
cord.
In case the power cord is
damaged:
If the cord or plug is worn or
damaged, stop using it. Contact a
service engineer to replace it.
In case there is flammable gas
leakage:
Shut off the valve where there is gas
leakage.
Open doors and windows.
Do not pull out or insert the power
plug of the fridge or any other appliances.
Unplug the fridge in the following
cases:
Before you clean or maintain the
fridge, unplug the fridge.
Before changing the light bulb,
unplug the fridge to prevent potential
shock.
When you open or close the dairy bin,
please do so as shown to prevent pinching
your finger:
Do not pull the convertible drawer with too much force,
or food might fall out.
Do not put too much food in the convertible drawer, or
the compressor will run non-stop and food might fall out

alkali
acid
gas spray mousse
Flammable, explosive, and dangerous
items, and highly corrosive acid and
alkali must not be put in fridge.
Drugs, vaccines, and chemical reagents
must not be put in fridge. This fridge is
for household use only. It cannot store
temperature-sensitive materials.
Do not store or use petrol or other
flammable substances near the fridge to
avoid fire hazard.
Do not put unstable materials on the
fridge, such as heavy containers or
containers full of water, to avoid personal
injury. Do not rest containers of water on
fridge to prevent leaks that could damage
the electrical workings of the unit.
Do not play or hang on the bottle bin or
drawers on the inside of the doors. This
may damage the bottle bin and drawers
or lead to them falling off the fridge and
causing personal injury. Do not step on
the convertible drawer while adding or
removing food from the main
compartment.
While the fridge is in operation, do not
touch the frozen surface of the freezer,
especially with wet hands, to prevent
frostbite.
The gaps between doors and cabinets
are small. Please do not put your finger
in these gaps. While opening or closing
the fridge door, keep children away from
the fridge.
Do not spray or rinse the fridge, and do
not put the fridge in a humid
environment. This will prevent damage
to the electrical insulation and
performance of the fridge from water
exposure.
Dismantling or modifying the fridge is
prohibited. Damage to the cooling
piping is also not allowed. Any repair
work must be done by a service
engineer or technician.
Do not put bottled beer or soft drinks in
the freezer to avoid broken glass. You
also must not put these beverages in the
convertible compartment when it is being
used as a freezer.
During a power failure or when cleaning,
pull out the plug. You must wait at least
5 minutes before putting the plug back in,
otherwise it may cause continuous start-
up and damage the compressor.
After the fridge is no longer in use, take
off the doors, the gaskets, and the
shelves, and put them in a proper place.
This avoids the danger of children
playing in and getting caught in the
discarded refrigerator.

1.Water filter:
2.Convertible Drawer:
3.Extra-Large, Spacious Design:
4.CFC-Free, Frost-Free, Fast-Freeze and Fast-Cool Options
5.Air Curtain Technology:
6.Automatic Display
7.Open Door Alarm
This provides high quality purified water. The filter is easy to change.
The convertible drawer can be set as a refrigerator or a freezer.
Large capacity in refrigerator and freezer sections. Tempered glass shelves are adopted in the refrigerator
compartment. There is also a spacious crisper for produce storage.
The air curtain is on the front top part of the refrigerated compartment. It prevents cold air from escaping when the
fridge is opened, and distributes cool air evenly. This ensures that food is kept fresh.
The fridge should be put in a location
that is far away from any heat source or
direct sunlight. This will improve the
performance of the fridge.
Do not put the fridge in a place where it
is humid, or where there may be
splashing water. Clean off any
splashed water or dirt with a soft cloth.
The fridge must be put in an environment
with good ventilation. It must be near a
safe water resource, and there must be
at least 1 inch of space on each of the
four sides.
Cabinet Adjustment
The fridge must be on a flat, solid floor.
You can put a flat, hard, non-flammable
spacer underneath it if you wish. Do not
use the packing foam as a spacer. If the
fridge is on a slightly uneven surface,
adjust the leveling legs. Raise the fridge
by turning one leg clockwise, and lower it
by turning the leveling leg
counterclockwise.
Door Heights
If the door heights are not even,
follow these instructions for
alignment:
1.Raise the door from the middle
hinge with one hand.
2.Insert clip ring with pliers with the
other hand, as shown.
3.Insert the other clip rings until the
doors are aligned. (Three clip rings
are provided.)
Features

Ice-cream Shelf
Movable Board
Due to product modification, your purchased Haier refrigerator may not be identical with the one
shown in the manual. We hereby express our apologies to you for this possible difference.
Tilt bin
Crispers

Before dismantling and installing the door, take food out of the door bin and dismantle the bottle bin.
Cut off power and water source to avoid personal injury and damage to the product or the surrounding
area. You need to have 2 or more people present when dismantling or installing the door in order to
complete the job correctly and avoid personal injury.
Dismantling and Installing the Fresh Food Door
Dismantling and Installing the Door
Dismount the screw on the decorating
strip with a screwdriver, and take the
decorating strip off of the cabinet.
Dismount the screw with a screwdriver and take off the top
hinge. Then take off the fresh food door and put it in a safe
place.
If necessary, dismount the middle hinge. To install the fresh food door, follow these directions in reverse.
When raising the hinge to separate it from the door, be careful not to drop it on the floor.
Dismantling and Installing the Freezer Door
Perform Step 1 in Dismantling and
Installing the Fresh Food Door
above.
“
”
Disconnect the wire and the water pipe. Take out the screw with a
screwdriver and dismantle the top hinge. Take down the freezer
door and put it in a safe place.

Dismantling and Installing the Door
If necessary, dismantle the middle hinge. To install the freezer door, follow these directions in reverse.
When raising the hinge to separate it from the door, be careful not to drop the door.
Dismantling and Installing the Convertible Drawer
Open the convertible drawer
completely. Take out the drawer or
steel wire shelf.
Take out the screws on both sides with a screwdriver.
Take off the supports on each side, and take out the
convertible drawer. Put it in a safe place.
To install the convertible drawer, follow
these directions in reverse.
To prevent a suffocation hazard for children or pets, do not allow them to play inside the drawer.

Shut off the main water supply:
Choose the valve location:
Drill the hole for the valve:
Fasten the shutoff valve:
Tighten the pipe clamp:
Route the tubing:
Turn on the nearest faucet long enough to clear the line of water.
Choose a location for the valve that is easily accessible. It is best to connect
into the side of a vertical water pipe. If necessary to connect to a horizontal
water pipe, make the connection at the top or side rather than at the bottom, to
avoid any sediment from the water pipe.
Drill a hole in the water pipe (even if you are using a self-piercing valve)
using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe.
Make sure not to allow water to drain into the drill. Failure to drill a hole may
result in reduced ice production or smaller ice cubes.
Fasten the shutoff valve to the cold water pipe with the pipe clamp.
Commonwealth of Massachusetts Plumbing Codes 248CMR must be adhered
to. Saddle valves are illegal and use in not permitted in Massachusetts.
Consult with your licensed plumber.
Tighten the clamp screws until the sealing water begins to swell. Do not over-
tighten or you may crush the tubing.
Route the tubing between the cold water line and the refrigerator. Route the
tubing through a hole drilled in the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall as possible. Be sure there is
sufficient extra tubing (about 8', 2.4m, coiled into 3 turns of about 10 25cm
diameter) to allow the refrigerator to move out from the wall after installation.
¼”
¼”
”,
Connecting the Water Supply Line
Install the shutoff valve on the nearest frequently used drinking water line.

After install the water line,please confirm that there is no leakage in
every connection piont before using the refrigerator.
Connecting the Water Supply Line
Connect the tubing to the valve:
Flush out the tubing:
Connect the tubing to the refrigerator:
Place the compression nut and ferrule (sleeve) for copper onto the end of the
tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted
into the valve. Tighten the compression nut securely. Commonwealth of
Massachusetts Plumbing Codes 248CMR must be adhered to. Saddle vales are
illegal and use is not permitted in Massachusetts. Consult with your licensed
plumber.
Turn the main water supply on and flush out the tubing until the water is clear.
Shut the water off at the water valve after about one quart (1 liter) of water has
been flushed through the tubing.
Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged
into the wall outlet.
a.Remove the plastic flexible cap from the water valve.
b.Place the compression nut and ferrule (sleeve) onto the end of the
tubing as shown.

Preparation Before Use
Remove all packing materials, including
foam base pad and tape used to attach
accessories.
Check accessory and documents:
Check materials against packing list. If any are
different or missing, inquire with the retailer.
Put the fridge in a proper place.
(Refer to the Location section.)“”
Installation of the lower decoration strip:
Open the refrigerator door. Take out the
decoration strip and install it in place as is
shown. Fasten with screws.
Copy the fridge model number and manufacturer's warranty number for all service calls or
inquiries you may have in the future.
It is recommended to clean the fridge
before use.
Mix 4L water with 1 tsp baking soda. Wipe
the interior and exterior with a soft cloth
moistened with this mixture.
On standby:
After the fridge is put into place, adjusted,
and cleaned, connect the power to begin
normal operation.
Connecting the Power:
The default temperature range of the fresh
food, freezer, and convertible compartment
is at a middle setting when the refrigerator
is first connected to the power supply.
The convertible compartment will be set
as a refrigerator.
Fridge work mode:
Manual adjustment: Set the temperature by pushing
the temperature-adjusting button. (Refer to Function
section.) Convertible compartment will be set in the
refrigerator mode by the factory.
“”
Put food inside the fridge:
After the fridge has been plugged in and
is fully cooled, it is safe to put in food
and begin use.
Every time the temperature settings are
changed, it takes some time for the
temperature to adjust. The length of time
depends on the amount of change, the
ambient temperature, frequent door
openings, quantity of stored food, etc.

Extra Ice Button
Express Freeze Button
Express Chill Button

I
I
Lock and Release
(Only applicable to PRCS25**** series)
(Only applicable to RRCS25**** series)
Push I Button ,the lock button will light, and it is now in lock status. Push I Button again , the lock button light will turn
off, and it is now not in lock status.
Fresh Food Compartment Temperature Adjustment
(Only applicable to PRCS25ED** series)
(Only applicable to PRCS25TD** series)
Push S or R button once, the fresh food compartment temperature indicator will flash Q. This indicates the
temperature-setting mode. The temperature range is from 34 to 46 (1 to 8 ). The range will increase one level
every time you press the S button until it reaches the 7 level, which is the maximum. The range will decrease one
level every time you press the R button.
“”
°F °C
th
(Only applicable to RRCS25TD** series)
Press S button once the temperature will flash. This indicates temperature-setting mode. Te temperature range is
from 34 to 46 (1 to 8 C). It increases one level every time you press the S button until it reaches the 7 level,
which is the maximum. If you press the S button again, the range will cycle back to level 1.
°F ° th

A B K L C D
AB K L CD
Freezer Compartment Temperature Adjustment
(Only applicable to PRCS25ED** series)
(Only applicable to PRCS25TD** series)
Push the O or N button once the freezer compartment temperature P indicator will flash. This indicates that you
are in the temperature-setting mode. The temperature range is from -6°F to 8°F (-21°C to -13°C). The range
increases one level every time you press the O button until it reaches the 7 level, which is the maximum. The
range decreases one level every time you press the N button.
th
(Only applicable to RRCS25TD** series)
Press the N button once the temperature flashes. This indicates the freezer temperature-setting mode. The
temperature range is from 8°F to -6°F (-13°C to -21°C). The temperature will increase by one level each time you
press the N button, until it reaches the 7 level, which is the maximum. If you press the N button again, it will cycle
back to level 1.
th
Convertible Compartment Temperature Adjustment
(Only applicable to PRCS25**** series)
(Only applicable to PRCS25**** series)
Press A and B buttons at the same time to select fresh food mode. The fresh food indicator light “K” will flash,
indicating the fresh food temperature-setting mode. The temperature range is from 34°F to 46°F (1°C to 8°C).
Press A and B at the same time again, this time holding them for 3 seconds, to select the freezer mode. The
freezer indicator light will flash, indicating freezer temperature-setting mode. The temperature range of the freezer
is from 30°F to 19°F (-1°C to -7°C). When it is in fresh or frozen food temperature-setting status, press the C
button ton to increase the range. Every time you press the C button it will increase by one level until it reaches the
7 level, the maximum level. Every time you press the D button, the range will decrease by one level until it
reaches the lowest level (1).
th

Express Freeze Setting:
This function is designed to preserve food's nutritional value by deeply freezing it in a short period of time. Press
the M button. The express freeze indicator will light up. This indicates that the express freeze mode is chosen,
and express freeze will function automatically. It will stop after 3 hours. If you want to turn off express freeze
before 3 hours is up, press the M button again. The express freeze will then turn off.
Express Chill Setting:
Press the T button. The express chill indicator will light up. This indicates that the express chill mode is chosen,
and express chill will function automatically. It will stop after 4 hours. If you want to turn off express chill before 4
hours is up, press the T button again. The express chill will then turn off.
Fast Cooling Function of Convertible Compartment:
When the unit is in the locked status, press the A button for 3 seconds to enter the convertible compartment's fast
cooling mode. “K” displays the set range, and “L” displays “SC.” Press the A button for 3 seconds again to stop
the fast cooling of the convertible compartment.
Fast Freezing Function of the Convertible Compartment:
When the unit is in the locked status, press the A button for 3 seconds to enter the convertible compartment's fast
freezing mode. “L” displays the set range, and “K” displays “SC.” Press the A button for 3 seconds again to stop
the fast freezing of the convertible compartment.
Fresh Food Compartment Switch Function:
Press the R and S button at the same time and hold for 3 seconds. The indicator Q will turn off, indicating that
the fresh food compartment cooling is turned off. To turn the cooling in the fresh food compartment back on,
press the R and S buttons for 3 seconds again and cooling will turn back on. The Q indicator light will turn on
again when cooling begins. (Only applicable to RRCS25** series.)
Convertible Compartment Switch Function:
When the unit is in the locked status, press B and hold for 3 seconds. The temperature indicator for the
convertible compartment will turn off, indicating that the convertible compartment is no longer cooling and is off. To
turn back on, press the B button again for 3 seconds while the unit is in the locked status. The temperature
indicator for the convertible compartment will turn back on when cooling in the convertible compartment resumes.
Switch Between Celsius and Fahrenheit:
When the unit is in the locked status, press C and D at the same time for 3 seconds. K, L, P, and Q on the display
will be switched to Celsius readings. Press C and D for 3 seconds again to switch back to Fahrenheit displays.

When the water filter indicator V is lit, the water filter needs to be replaced. After you replace the water filter, press U
to indicate that the water filter was reset. The water filter indicator V will then turn off.
Ice Maker Switch Function:
When the unit is in the locked status, press G and F at the same time for 3 seconds. A buzzer will sound, indicating
that the ice maker is closed and in the locked status. To turn the icemaker back on, press G and F again for 3 seconds.
You will hear another buzzer, and the ice maker will be back on. (Only applicable to PRCS25** series.)
When the fridge is in the quick freezing and quick cooling status, the fridge will keep cooling
continuously.
Water Filter Indicator
(Only applicable to PRCS25ED** series)
(Only applicable to PRCS25TD** series)
(Only applicable to RRCS25TD** series)
When you change the water filter, please refer to the “Water Filter” section of this manual.
Display Control Function:
30 seconds after pressing an operation button, the display turns off automatically. Press any button or open any
door to light up the display again.
Faulty Display:
If the display is broken but you still hear the accompanying noises when you press button, this means that the
buttons are still working. However you should call an after-sale service technician to fix the problem and ensure
optimum performance.
Open Door Alarm:
The refrigerator will sound an alarm automatically if any door or drawer is open for over 60 seconds. The alarm will
turn off when the door or drawer is closed.
Sabbath Mode:
When the refrigerator is in the locked status, press the lock button for 3 seconds. The buzzer will sound. The lights
will now be off when you open the doors and when you get ice or water. To turn the lights back on, press the lock
button for 3 seconds again. You will hear another buzzer, and the lights will resume working.

Temporary stored food or frequently used foods
should be kept in the fresh food compartment.
Although the average temperature in most parts of the fresh food
compartment is 34 to 48°F (1 to 8°C), this compartment cannot keep food
fresh for extended periods of time. The fresh food compartment should only
be used for short-term storage.
The height of the suspending shelf is adjustable
The height of the suspending shelf can be adjusted to fit the food you want to
store. To adjust the shelf, disassemble the shelf by raising the shelf gradient,
then raising and dismounting the shelf. When re-installing the shelf, put the
connecting part inside the groove, then lower the front of the shelf and insert it
into the groove.
Make sure the shelf is level and that both sides are on
equal groves, or it may drop food and cause leakage.
Crisper and its usage
This fridge has a crisper. You can adjust the humidity in
the crisper according to the food you store.
For high humidity: Turn the knob on the right side of the crisper up.
This is suitable to store cucumbers, grapes, kiwis, persimmons, etc.
For low humidity: Turn the knob on the right side of the crisper
down. This is suitable to store strawberries, oranges, green beans,
garlic, watermelons, plums, tomatoes, and more.
When removing the crisper, make sure that the cover front is on the
inner side of the crisper, and then remove it. The crisper cover can
only be taken off after the crisper is removed. When putting the
crisper back in, put the cover on first, and then put the crisper into
the refrigerator.
Adjustment and cleaning the door bottle bin
Lift the door bottle bin as shown in step 1. Take the two sides and pull it out
as shown in step 2. After cleaning, reinstall the bottle bin the other way
around, and then adjust the bottle bin's height as desired.
Dismounting the crisper cover
Raise the back part of the shelf as shown in step 1. Pull it out as show in
step 2.
When you adjust the bins, do not put the dairy bin, the gallon bin, and the twin bin in the lower part of
the door. This will make it easier to open the crisper drawer when the door is open.

About the Fresh Food Compartment
The suggested storage section of various foods:
Because of the cool air circulation, there is a temperature difference among
different sections in the cabinet. Therefore different foods should be put in
different temperature sections.
1.Eggs, butter, cheese, etc 2.Cans, glass jars, spices, batteries, gallon milk, etc
3.Soft drinks, gallon milk, bottled foods 4.Preserved foods, cans, jars, etc
5.Meats, snacks, etc 6.Pasta, cans, yogurts, jars, etc
7.Cooked meats, sausage, etc 8.Fruits, vegetables, salads, etc
Lamp and its Replacement in the Fresh Food Compartment
Parameter: 115V ~, 40W
Upper Socket: E17 (40W plus Bulb is prohibited)
Lower Socket: E26 (40W plus Bulb is prohibited)
While changing the upper bulb:
Pull out plug to cut off power.
1.Press the stopper pin slightly at the back of the lamp to disconnect
and separate jaw from the square hole
2.Turn counterclockwise and take down bulb. Turn clockwise to install
the new one.
3.Reinstallation: Insert the jaw into square hole. Push the back of the
lamp socket to insert the stopper pin into the square hold at the back of
the lamp socket.
While changing the lower bulb:
Pull out plug to cut off power.
1.Press the jaw slightly and take out the lamp cover.
2.Turn counterclockwise and take down the bulb. Turn clockwise to
install the new one.
3.Reinstallation: Insert the jaw into the square hole on the inner line.
Precaution When Refrigerating Food
Before putting hot food into the fridge,
cool it to ambient temperature.
Before storing food in the fridge,
clean food and wipe water off it.
Before storing food in the fridge, it is
suggested to cover all food. It will
keep moistness and freshness of fruit
and vegetables, and prevent odors
from traveling to other foods.
Food should be stored based on use.
Food should be classified according to
its use. Daily food should be put in
front of the shelves in order to shorten
the time that the door is open. This will
prevent food spoilage and save energy.
Do not put too much food in the
fridge and overcrowd it.
The stored food in the fridge should
have space around it and not be
touching other food. This will allow
better air circulation and cooling.
The stored food should not be near
the inner shelf.
Avoid storing food in the inner side of
the shelf. This will prevent freezing
food in the cooling section. There
should be a space between the
inside shelf and the food in the
cooling section.

Tips and Hints in Using the Fresh Food
Compartment
Radish leaves should be cut
off otherwise the leaves will
absorb some of the nutrients
from the vegetable.
Defrost frozen food in the
fresh food compartment to
save energy.
Some foods, like onion,
garlic, ginger, water
chestnuts, and certain root
and stem vegetables, can
be stored at room
temperature. It is not
always necessary to store
them in the fridge.
Refrigeration can
accelerate the ripening of
certain fruits like melons,
bananas, pineapples, and
more. Do not keep these
fruits in the fridge unless
you want them to ripen
faster.
It is suitable to store food for a long period of time.
The temperature is very low, and can keep food fresh and safe for a
long time. Therefore, food you intend to store for a long time should
be kept in the freezer compartment. Follow the storage time indicated
on the food package.
Shelf can be dismounted to clean
Move the shelf as seen in Figure 1. Raise the right side of the shelf as
seen in Figure 2.
Lamp and its Replacement in the Freezer Compartment
Parameter: 115V~, 40W
Socket: E26 (40 plus bulb is prohibited)
While changing the lamp:
Pull out the plug to cut off power
1.Raise the lamp cover gently as in Figure 1, and pull it out as in Figure 2.
2.Turn the bulb counterclockwise to take it out. Replace with a new bulb of
the same wattage.
3.Reinstall by following these directions in reverse.
While storing frozen food like ice cream, be sure to put it all the way inside the freezer and
not in or near the door. This protects the frozen food during door openings.

Precaution when Freezing Food
Before putting hot food into the
freezer, cool it to room
temperature.
Separate food into small batches to
make it easier to freeze and defrost for
later. Do not freeze in batches larger
than 5.5 lbs each.
Before freezing food, it is better to pack it
securely and make sure that the outside of
the package is dry. The packing material
should be flavorless, airproof, nontoxic,
and contamination-free to avoid tainting the
food inside.
Write the date, expiration date,
and food name on the outside of
packing materials so you can be
assured of the food and when it
is safe to eat.
Take food from the freezer to defrost
when needed. Defrosted food cannot
be frozen again unless it is cooked.
Otherwise, it will affect food quality and
safety.
Do not put too much fresh food into the
freezer at once. This could go beyond the
freezer's cooling capacity. (Refer to
“Technical Data.”)
Usage of Ice Maker and Cold Water Dispenser
Preparation before using the ice maker and cold water dispenser:
a.Cut the water pipe according to need, and avoid bending the water pipe too much. Usually the length should be
less than 5 meters (18 feet). If the water pipe is too long, the ice content and cold water content are affected
because there is not enough water pressure.
b.The water pipe cannot stand heat. Keep it away from heat sources.
c.You may want to have a service engineer install the water pipe.
d.During the first use, in order to supply water to the fresh food compartment, press the cold water button several
times for 1 minute each. Do not press the cold water button for longer than a minute, to prevent overheating of the
water valve. Cold water will begin to flow from the outlet.
e.Water supply pipe instruction: The cold water pressure should be 21-123 psi for automatic ice making.
f.The purifier is only for filtering. It cannot sterilize or destroy anything.Therefore, make sure to connect the water
pipe to a drinkable water source.
Precautions
a.To prevent the pipe from freezing, do not install the water pipe in place below 32°F.
b.Open water valve to flush pipe, and check leakage in water pipe joints until water is clean.
c.When temperature of icemaker is equal to or below 5°F, the icemaker will begin to make ice. (Throw out the first
several batches of ice cubes if you make ice after not having made it for a long time.)
d.After the fridge is installed, put the water supply pipe in a proper place to prevent pressing and damage.
e.The filter in the water pipe is there to filter impurities in the water and to make ice clean and hygienic. Therefore,
the filter will absorb impurities during normal use. After a long time of usage, if the cubed ice becomes smaller, it
may mean that the filter is blocked from the impurities. After 6 months of use, the “Change Filter” indicator light will
turn on. At this time, we suggest you go to an authorized Haier after-sale service center or shop to buy a new filter
and change it. After you change the filter, the indicator light will turn off. The refrigerator comes with a filter installed;
after this you have to buy and change the filter yourself.
f.The icemaker should only be connected to a source of drinkable water.

Usage of Ice Maker and Cold Water Dispenser
Working Principle:
The ice maker can make 8 ice cubes per cycle. The ice content will depend on room temperature, door
openings, water pressure, freezer temperature, etc. It is considered normal when ice cubes stick
together.
Wait 24 hours after installing the refrigerator before you being making ice.
If this is your first icemaker:
Occasionally you may hear some sounds, like water flowing or ice dropping. These sounds are normal.
Occasionally, in periods of infrequent ice use, cubes may stick together and clog the dispenser. Remove
the ice cream holder and lift up the ice bucket. Shake it from side to side to dislodge the cubes. Return
the ice bucket and ice cream holder. Cubes should dispense normally now.
If you do not use ice often:
Older ice cubes can get stale. Clean the ice container periodically and use warm water to clean. Before
putting it back, make sure to dry it so new ice does not stick to it.
When you do not use the ice container for an extended time:
If you will not be using the ice container for a long time (such as during the winter), throw out the
remaining ice cubes, wash the container with warm water, dry it with a towel, and put it back in the
refrigerator. Then close the valve between the water supply and the fridge.
Dismounting and Installing the Ice Container
Dismounting the Ice Container:
Take down food in the ice-cream shelf. Raise the
center of the container away from the shelf, hold
down the front, and pull the container out.
Reinstall the Ice Container:
Reinstall the ice container and fix the clamp of the
container, in the groove. If the ice container cannot be
fully inserted, remove it and turn the driving device in ¼
circle. Try to reinstall the ice container. Repeat until the
clamp can be fixed in the groove on the two sides sliding
way of the shelf.
